Inspection Procedure

WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT MULTI-DISPLAY (+B1, ACC, IG, TELSW-, GND)
1. Disconnect the multi-display connector M3, M4.
2. Measure the resistance according to the value (s) in the figure Fig 1 below.
  Standard:

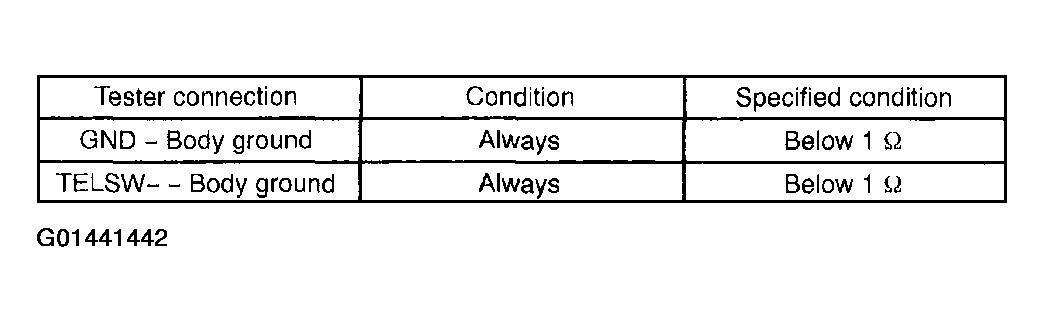

  Fig 1: Terminals Resistance Reference Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

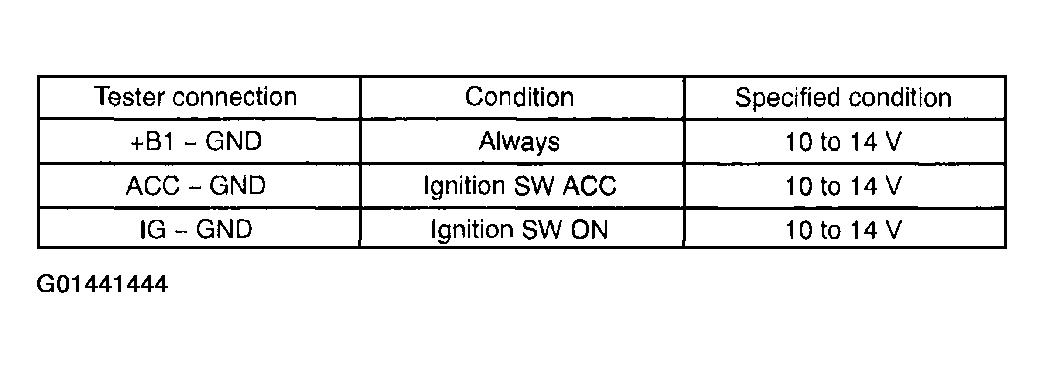

  Fig 2: Terminals Voltage Reference Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Measure the voltage according to the value (s) in the figure Fig 3 below.
  Standard:

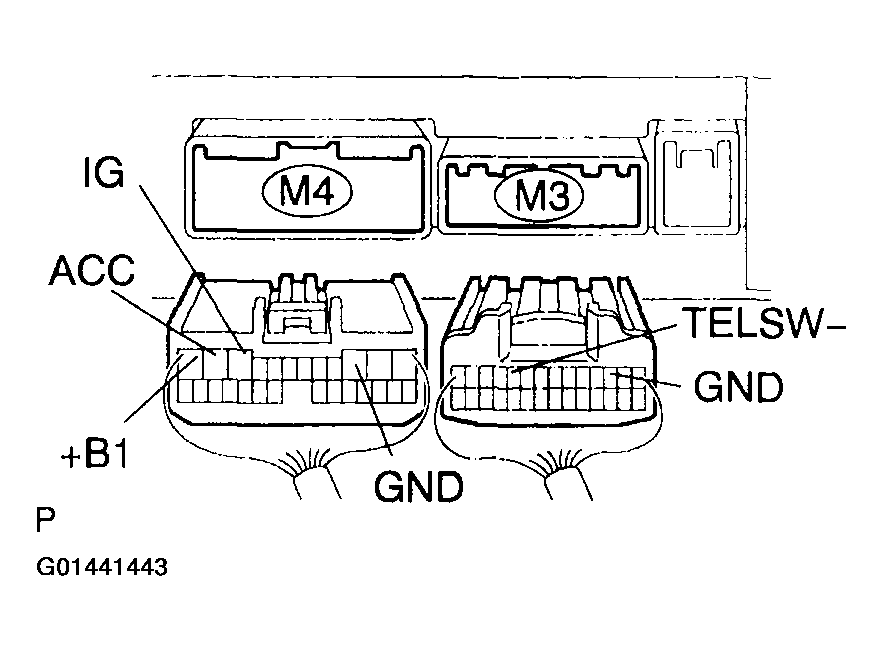

  Fig 3: Inspecting Multi-Display (+B1, ACC, IG, TELSW-, GND)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE OR DIAGNOSTIC TROUBLE CODE CHART (SEE PROBLEM SYMPTOMS TABLE or DIAGNOSTIC TROUBLE CODE CHART )
