Accessories & Equipment: Infotainment: Navigation: Multi-Display: Installation

  1. INSTALL MULTI-DISPLAY
  2. INSTALL CLOCK ASSEMBLY (See  INSTALLATION  )
  3. INSTALL NAVIGATION ECU ( INSTALLATION   )
  4. INSTALL MULTI-DISPLAY ASSEMBLY
    1. Install the multi-display assembly as shown in the illustration.
  5. INSTALL NO. 2 RADIO BRACKET (See  INSTALLATION  )
  6. INSTALL NO. 1 RADIO BRACKET (See  INSTALLATION  )
  7. INSTALL MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY (See  INSTALLATION  )
  8. INSTALL CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL (See  INSTALLATION  )
  9. INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY (See  INSTALLATION  )
  10. INSTALL CONSOLE BOX (See  INSTALLATION  )
  11. INSTALL CONSOLE BOX REGISTER ASSEMBLY (See  INSTALLATION  )
  12. INSTALL FRONT ASH RECEPTACLE SUB-ASSEMBLY (See  INSTALLATION  )
  13. INSTALL FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) (See  INSTALLATION  )
  14. INSTALL REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) (See  INSTALLATION  )
  15. INSTALL CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission) (See  INSTALLATION  )
  16. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH (for Automatic Transmission) (See  INSTALLATION  )
  17. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH (for Automatic Transmission) (See  INSTALLATION  )
  18. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)
  19. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)
  20. ADJUST CLOCK

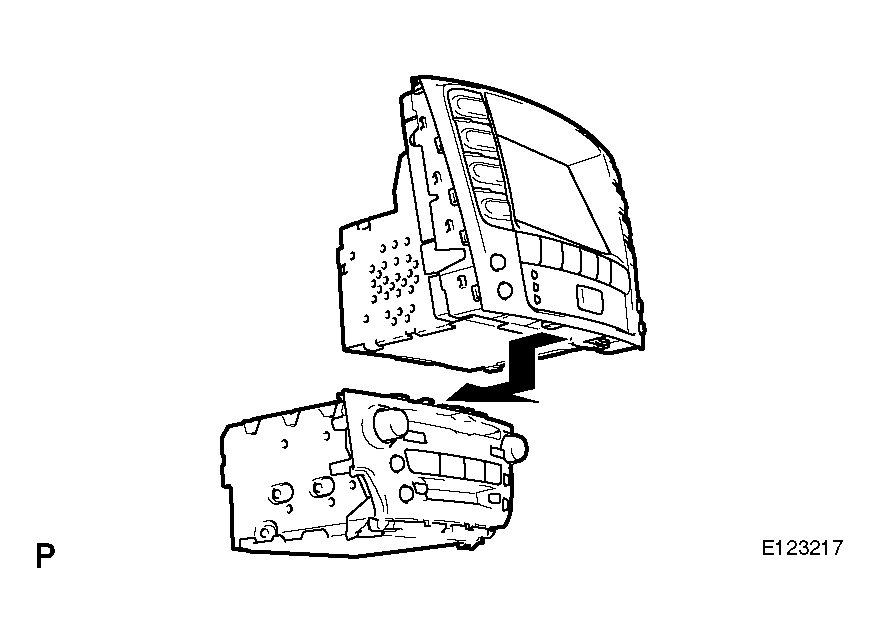

    Fig 1: Identifying Multi-Display Assembly
    G04050530Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
