Display does not Dim when Light Control Switch is Turned ON

1. Enter the display adjustment screen by pressing the "DISP" switch.
2. Turn the light control switch to the TAIL position.
3. Check if "DAY MODE" on the display is ON.

   OK: "DAY MODE" is ON.

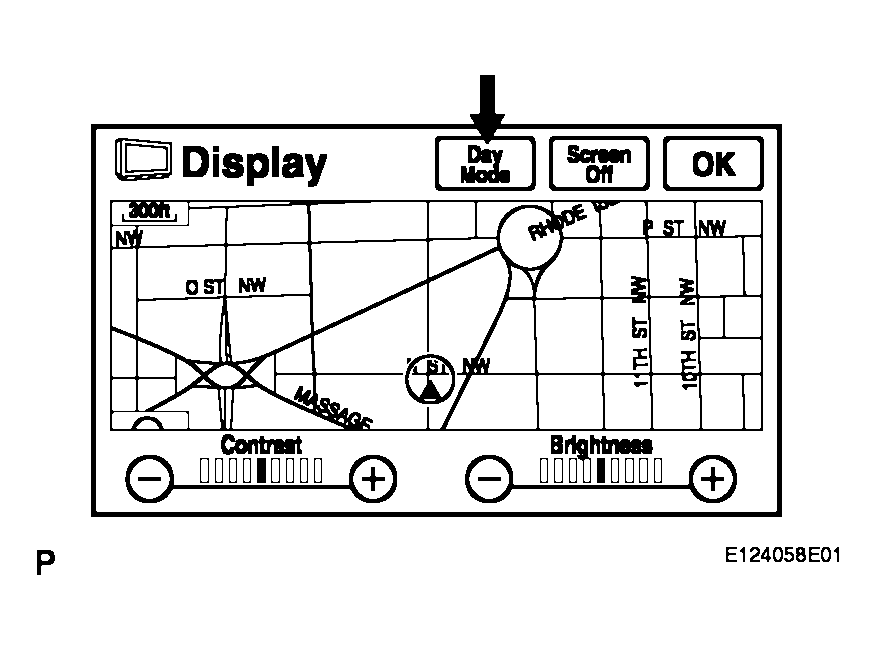

Fig 1: Identifying DAY MODE On Screen

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: GO TO STEP 2

OK: TURN "DAY MODE" SETTING OFF

1. Enter the "Display Check" mode (Vehicle Signal Check) (See DISPLAY CHECK MODE  ).
2. Check that the display changes between DIM and BRIGHT according to the light control switch operation.

   OK

   LIGHT CONTROL SWITCH DISPLAY



   Light Control Switch	Display
   TAIL or HEAD	DIM
   OFF	BRIGHT

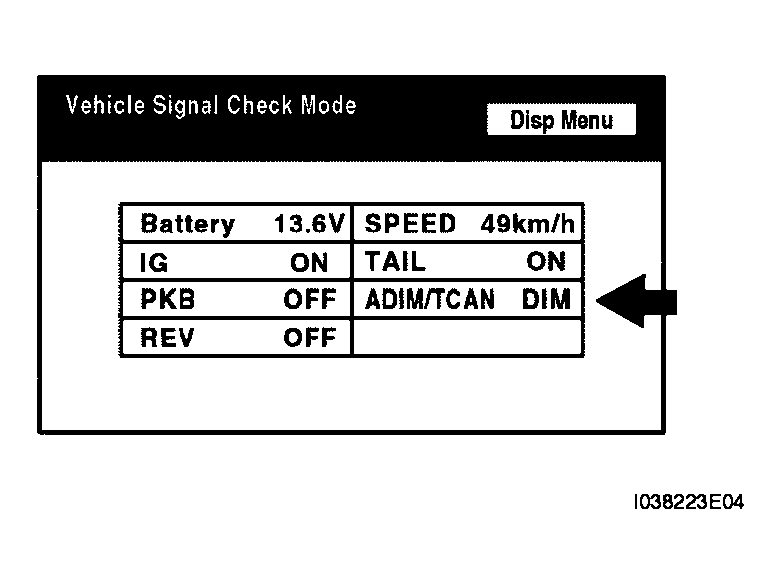

   Fig 2: Checking Vehicle Signal (Display Check Mode)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   The display is updated once per second. It is normal for the display to lag behind the actual switch operation.

NG: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

Ok: REPLACE MULTI-DISPLAY
