Inspection Procedure

1. Remove the ECM with the connector still connected.
2. Turn the ignition switch ON.
3. Measure the voltage between terminal CCS of the E9 ECM connector and body ground, when each of the -/SET, +RES and CANCEL switches are turned ON.

   Standard voltage

   VOLTAGE SPECIFICATIONS



   Switch Position	Specified Condition
   Neutral	10 to 14 V
   +/RES	2.3 to 4 V
   -/SET	4.5 to 7.1 V
   CANCEL	6.6 to 10.1 V

   Fig 1: Identifying ECM Connector Terminal

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

NG: Go to next step.

1. Remove the steering wheel center pad (see REMOVAL ).
2. Disconnect the control switch connector.
3. Measure the resistance between terminals 4 and 5 of the cruise control switch connector when the control switch is operated.

   Standard resistance

   RESISTANCE SPECIFICATIONS



   Switch Position	Specified Condition
   Neutral	∞ (No continuity)
   +/RES	216 to 264 Ω
   -/SET	567 to 693 Ω
   CANCEL	1,386 to 1,694 Ω

4. Check continuity between terminals 4 and 5 of the control switch connector when the main switch is held on and off.

   OK

   CONTINUITY SPECIFICATIONS



   Tester Condition	Switch Position	Specified Condition
   4 - 5	OFF	No continuity
   4 - 5	ON	Continuity

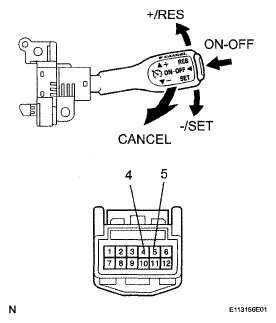

   Fig 2: Identifying Cruise Control Main Switch Connector Terminal

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE CRUISE CONTROL MAIN SWITCH

OK: Go to next step.

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: Go to next step.

1. Check CRUISE main indicator light (see TERMINALS OF ECM  ).

NG: REPLACE COMBINATION METER ASSEMBLY

OK: REPLACE ECM
