Control Switch

The control switch is located on the steering column or steering wheel. SeeFig 1 -6. The main switch must be on for the control switch to function. When SET is pressed and then released, desired speed is set in the memory of the control unit. To accelerate from a set cruising speed, turn control switch to ACCEL position or depress ACCEL button. On RX7 models, hold SET button down to accelerate from a set speed. When switch is released the new higher speed will be set in the memory of the control unit.

When COAST switch function is activated, speed will be reduced. When switch is released, new lower speed will be set. If cruise control is overridden by means other than main switch, original speed can be resumed by activating RESUME function.

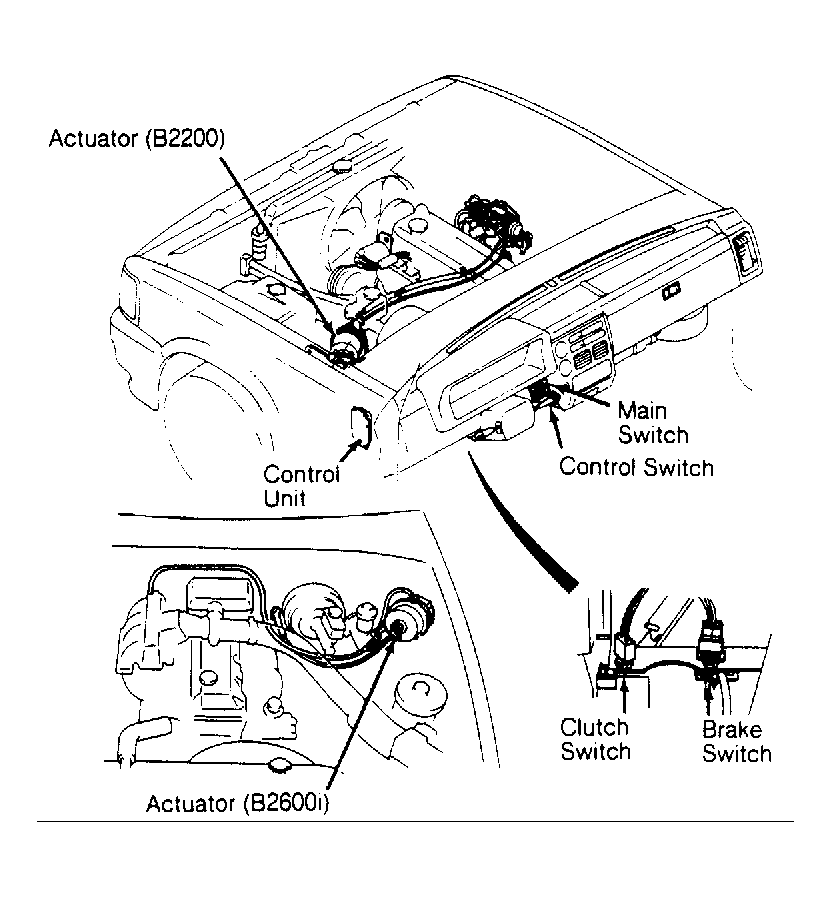

Fig 1: Locating B2200 & B2600i Cruise Control Components

Courtesy of MAZDA MOTORS CORP.

Fig 2: Locating Miata Cruise Control Components

Courtesy of MAZDA MOTORS CORP.

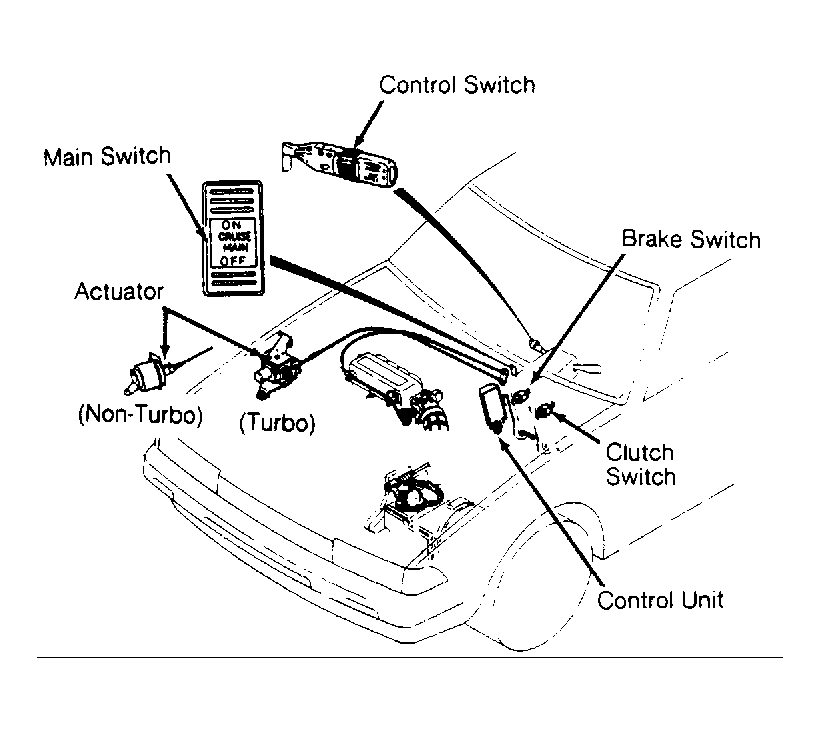

Fig 3: Locating MX-6 & 626 Cruise Control Components

Courtesy of MAZDA MOTORS CORP.

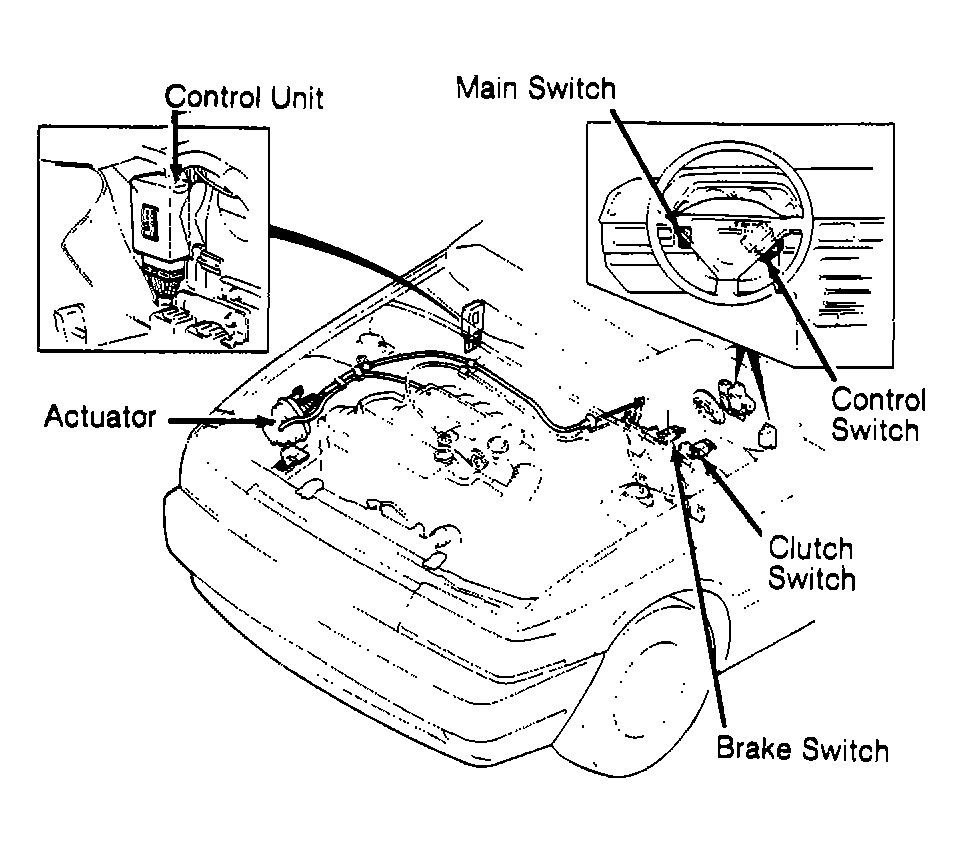

Fig 4: Locating RX7 Cruise Control Components

Courtesy of MAZDA MOTORS CORP.

Fig 5: Locating 323 Cruise Control Components

Courtesy of MAZDA MOTORS CORP.

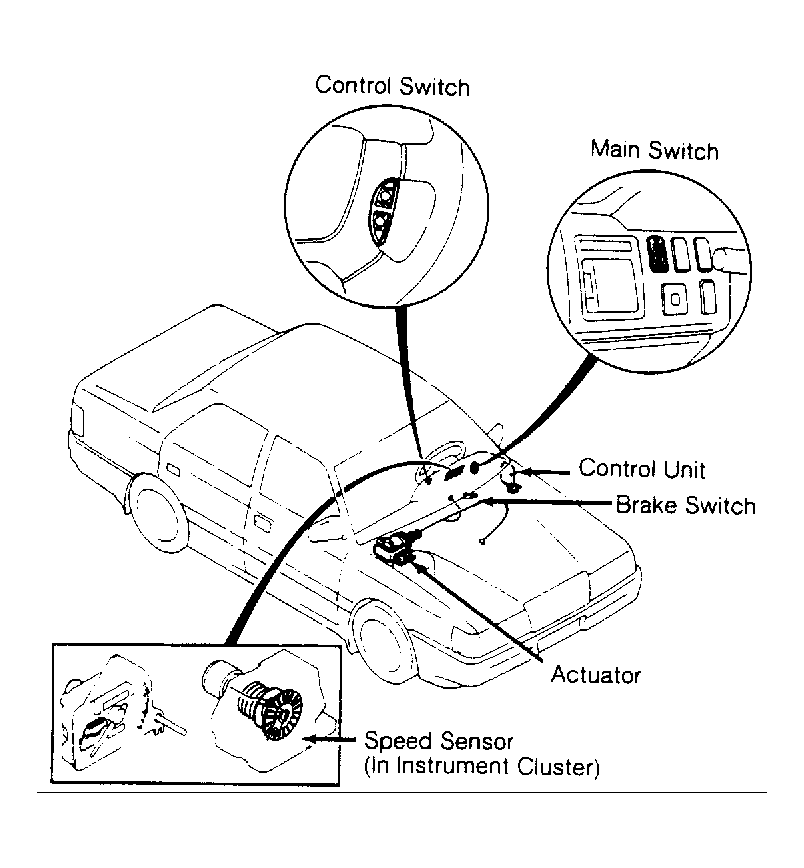

Fig 6: Locating 929 Cruise Control Components

Courtesy of MAZDA MOTORS CORP.
