Audio Relay Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the center lower panel. (See CENTER PANEL REMOVAL/INSTALLATION .)
Disconnect the audio relay connector.
Remove the audio relay.
Install in the reverse order of removal.

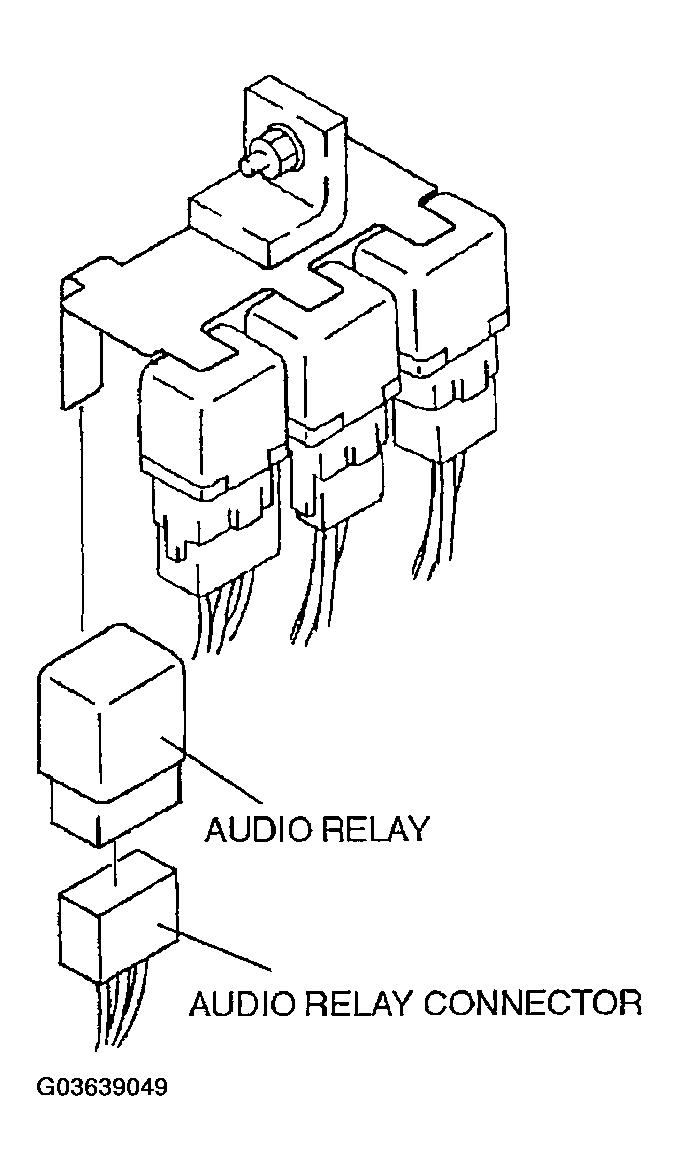

Fig 1: Removing Audio Relay
Courtesy of MAZDA MOTORS CORP.
