COMPONENT LOCATIONS

Component	Locations
Diagnosis Check Connector	Under left side of instrument panel, next to junction box. See Figure .
ETACS Unit	Left of steering column. See Fig 1 .
Fusible Link 9	In underhood centralized juction box. See Fig 3 .
Junction Block	Under left side of instrument panel. See Fig 2 .
Power Window Relay	Under left side of instrument panel, next to junction box. See Fig 4 .

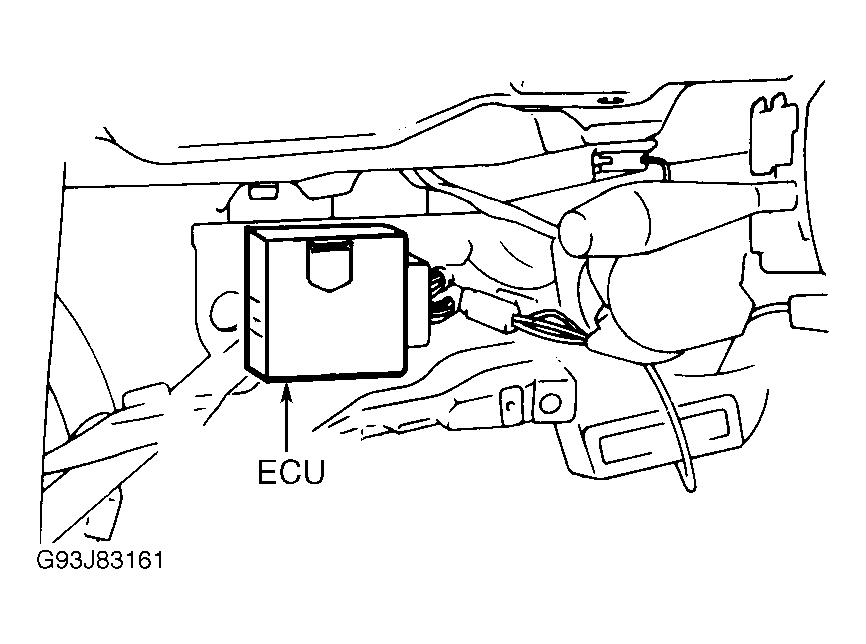

Fig 1: Locating Electronic Timer Alarm Control System (ETACS) ECU

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

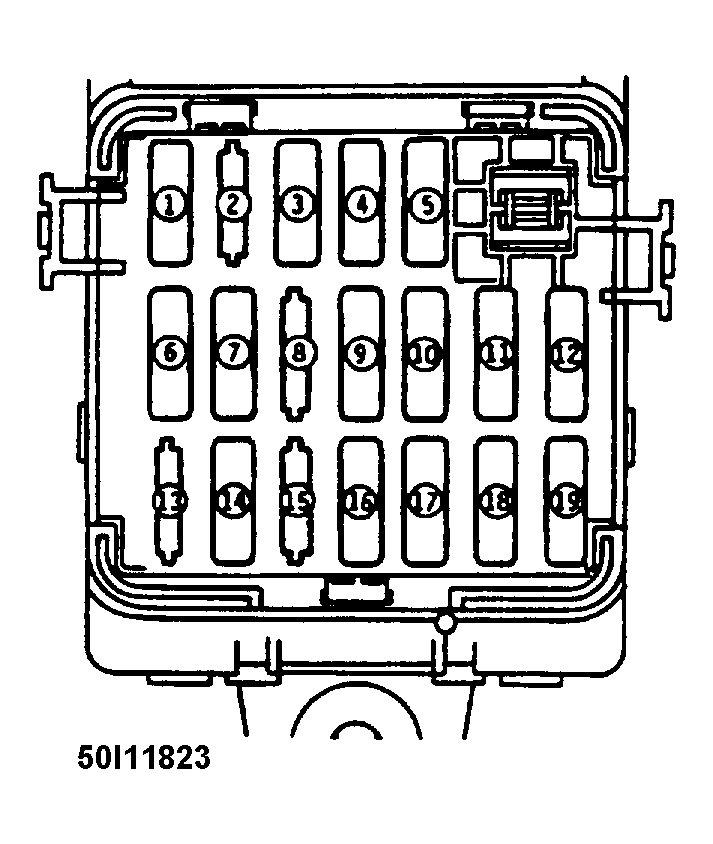

Fig 2: Interior Junction Box Identification (Under Lower Left Side Of Instrument Panel)

Courtesy of MITSUBISHI MOTORS.

NOTE: Underhood centralized junction box on right side fenderwell, in front of right shock tower.

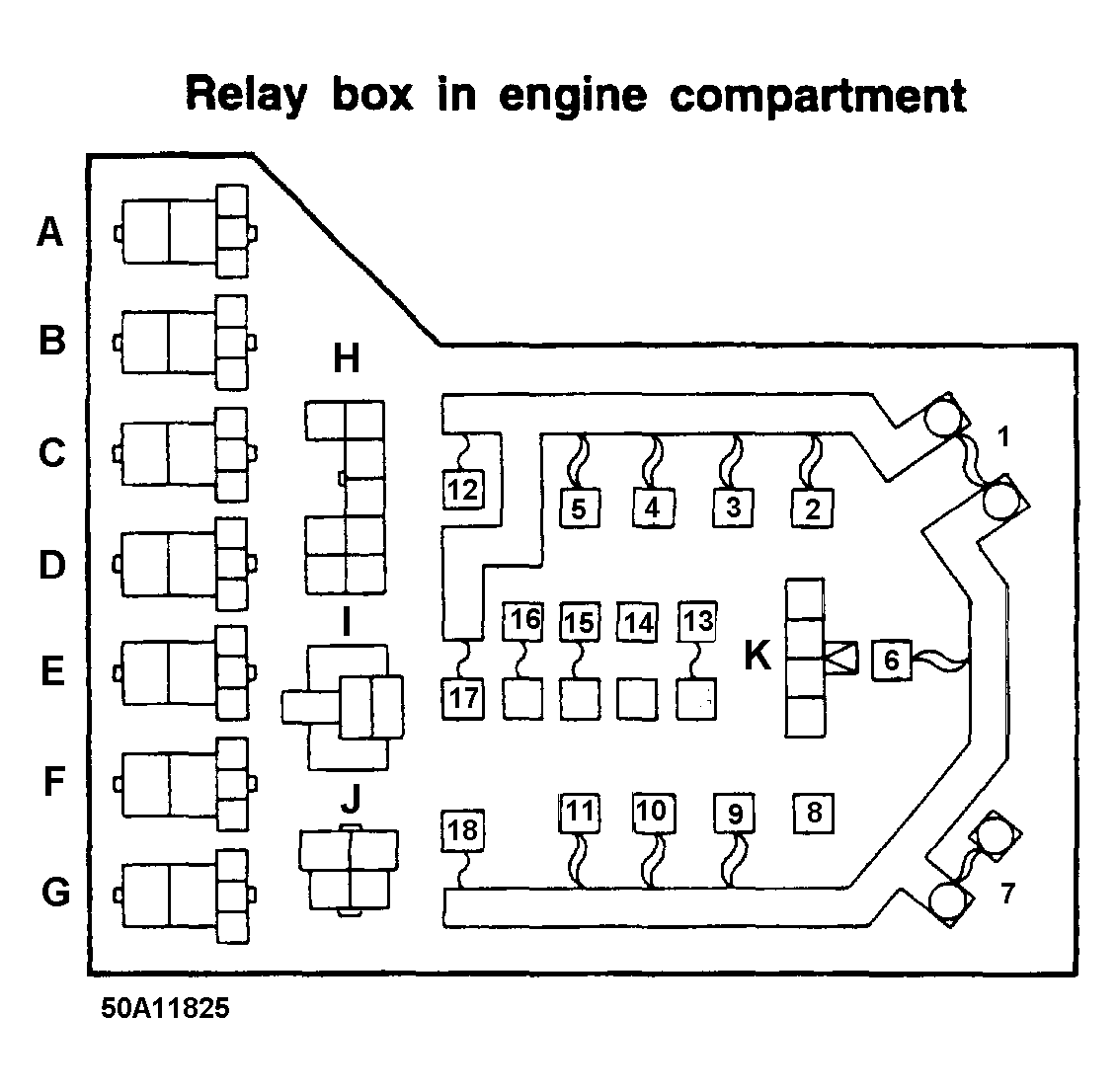

Fig 3: Identifying Underhood Centralized Junction Box (Fuse Link 9 For Power Window Relay)

Courtesy of MITSUBISHI MOTORS.

Fig 4: Locating Power Window Relay

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
