Heater Control Assembly Disassembly And Assembly: Notes

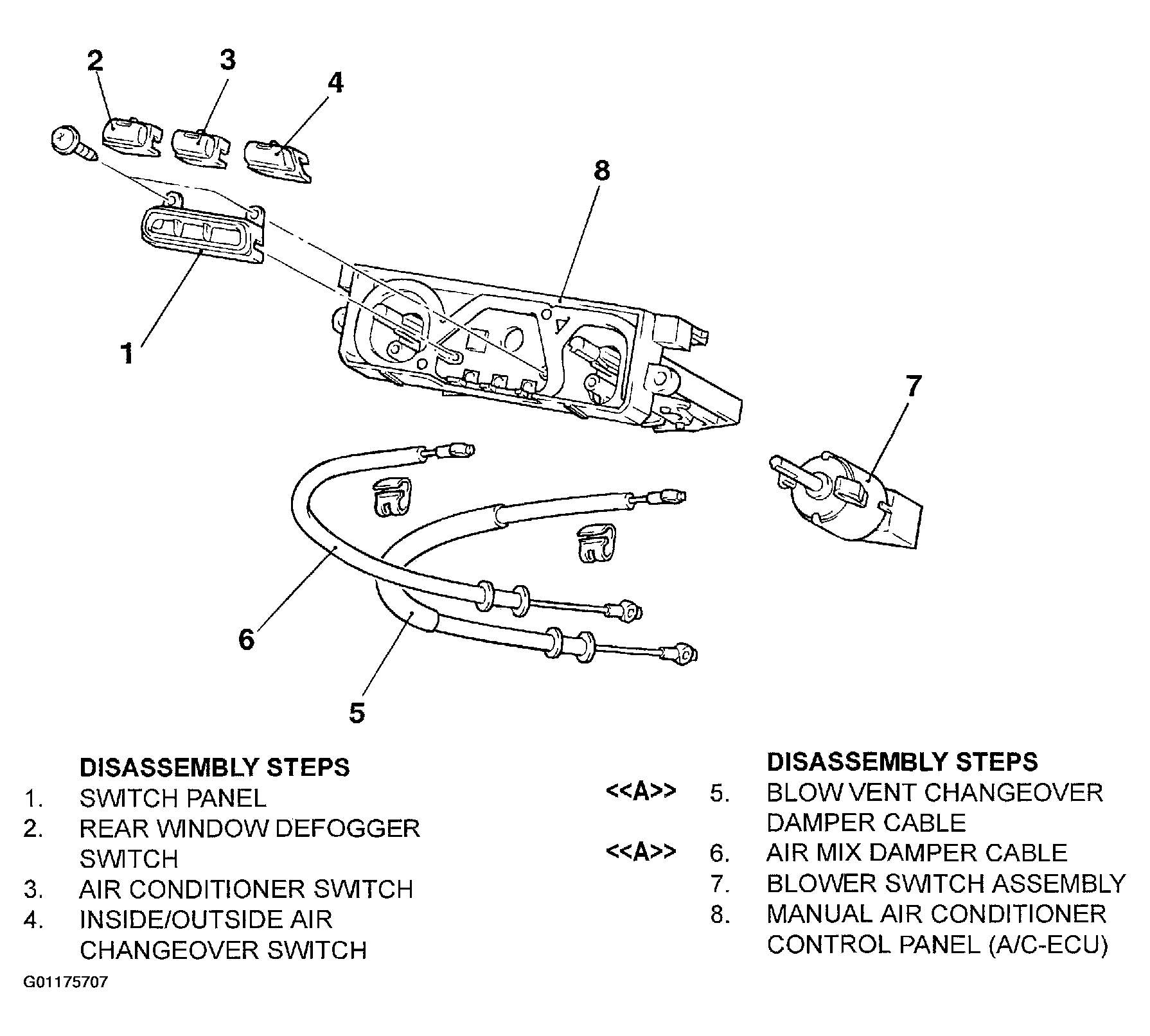

For heater control disassembly procedures, follow numbered steps in illustration. See Fig 1 . For heater control assembly procedures, follow numbers steps in illustration in reverse order. Letters in illustration refer to service point to observe while disassembling and assembling heater control. Letters with arrows pointing away from letter refer to service points to be observed while performing that step of the disassembly procedure. See DISASSEMBLY SERVICE POINTS .
