Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| A/C-ECU | Behind center of dash. See Figure. |

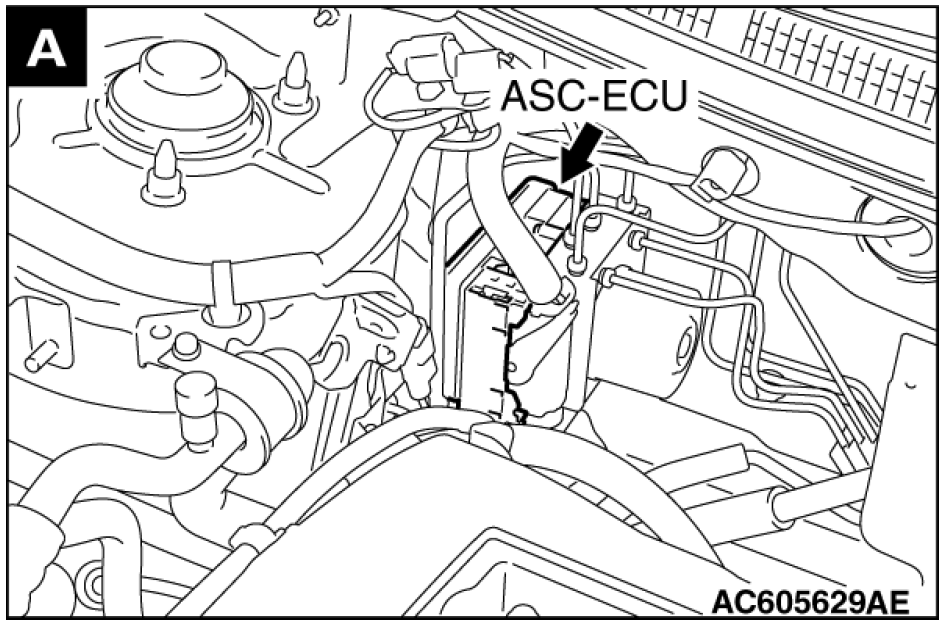

| ASC-ECU | Right rear of engine compartment. See Figure. |

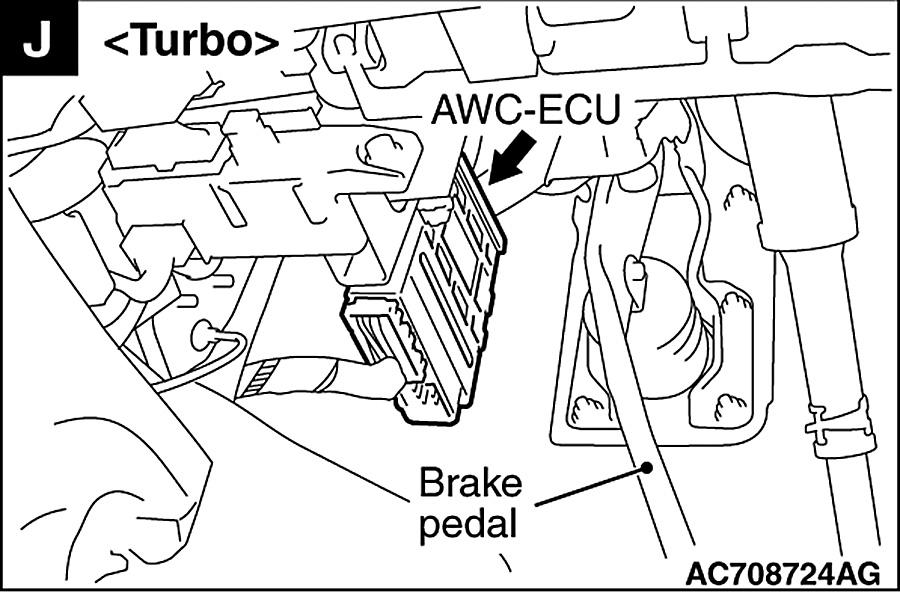

| AWC-ECU | Left side of dash. See Figure. |

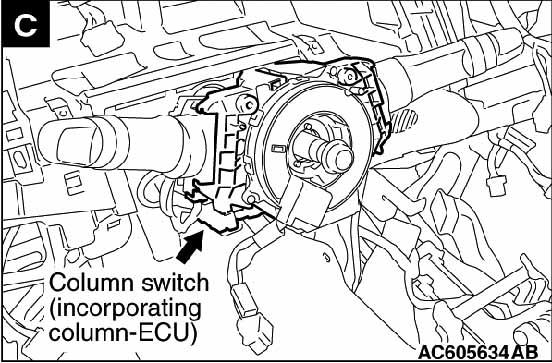

| Column Switch-ECU | On top of steering column. See Figure. |

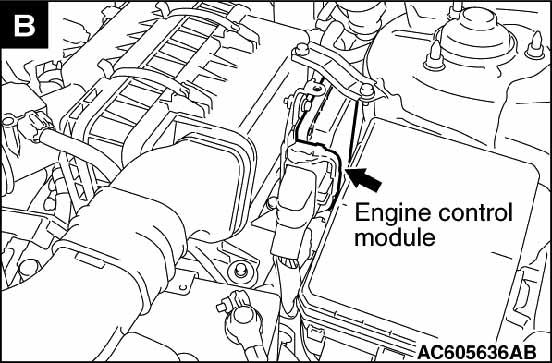

| Engine Control Module | Left rear of engine compartment. See Figure. |

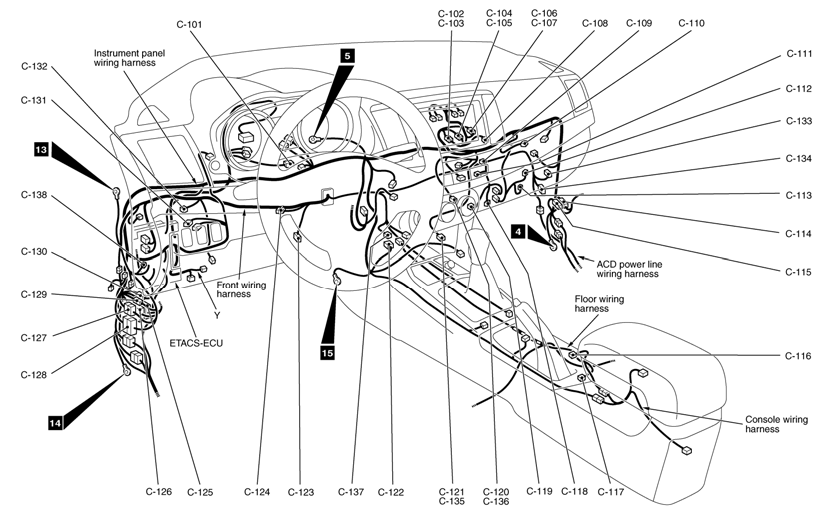

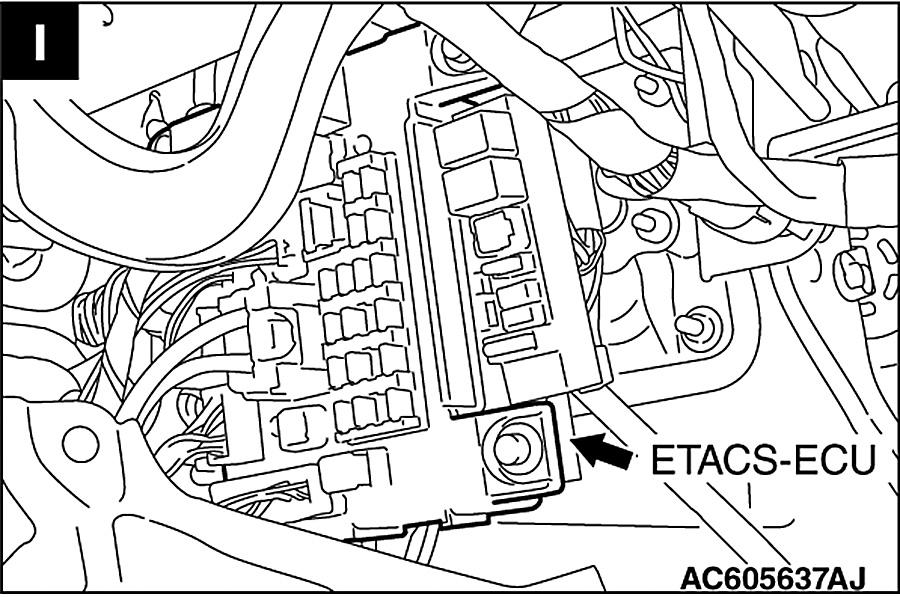

| ETACS-ECU | On rear of junction block, behind left end of dash. See Figure. |

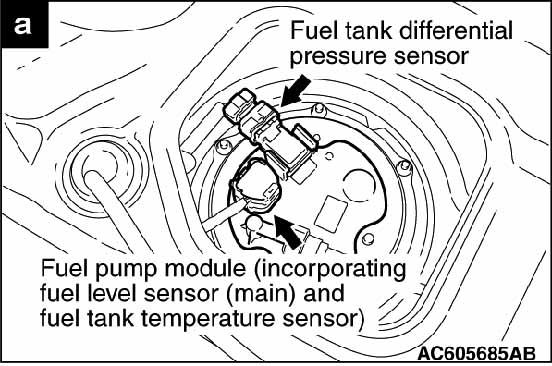

| Fuel Pump Module | Top of fuel tank. See Figure. |

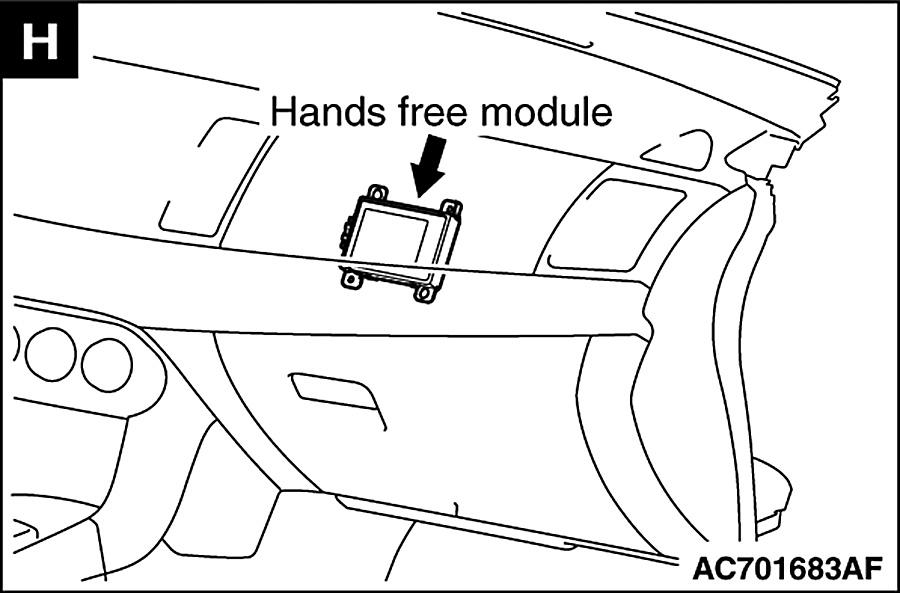

| Hands Free Module | Behind right side of dash. See Figure. |

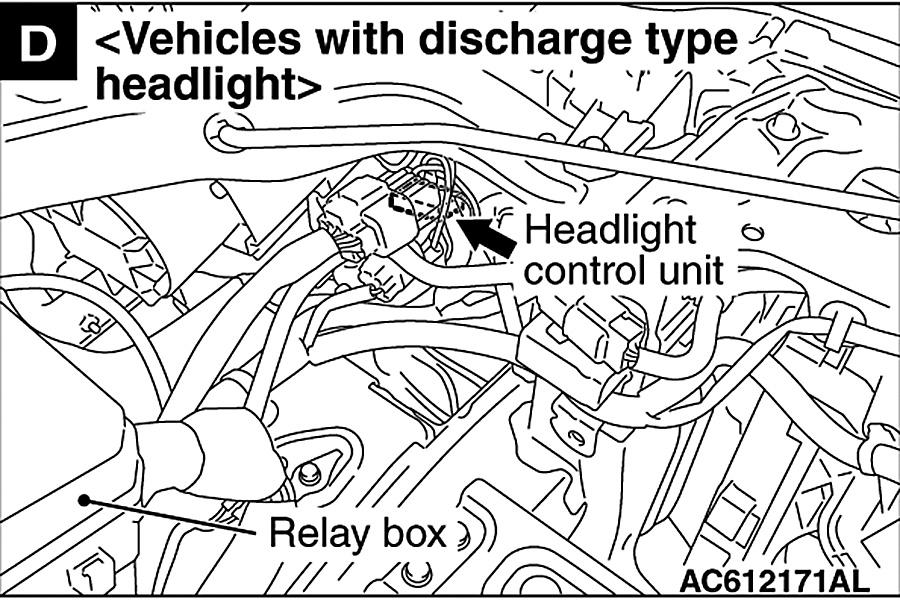

| Headlight Control Module | Left front of engine compartment. See Figure. |

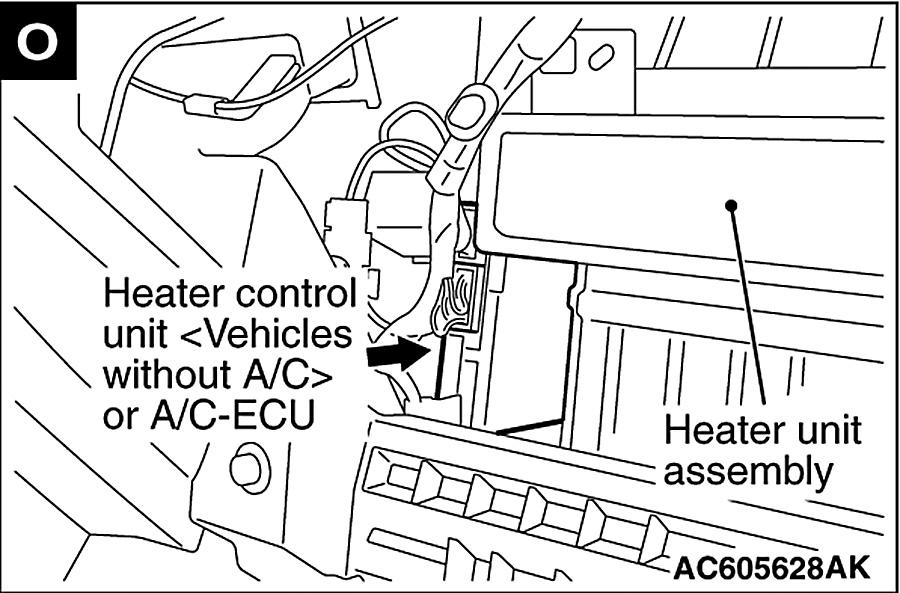

| Heater Control Unit | Behind center of dash. See Figure. |

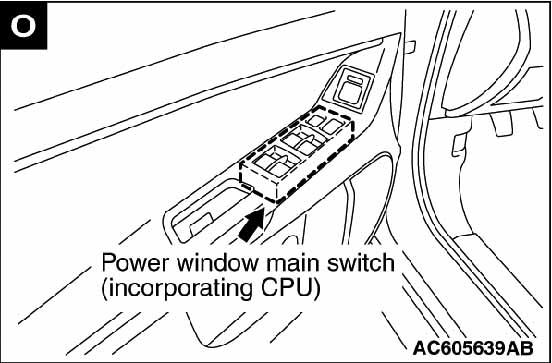

| Incorporating-ECU | In left door panel. See Figure. |
| Knee Airbag Module | Under left side of dash. See Figure. |

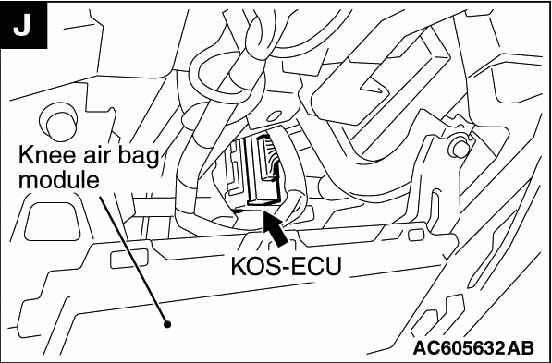

| KOS-ECU | Under right side of dash. See Figure. |

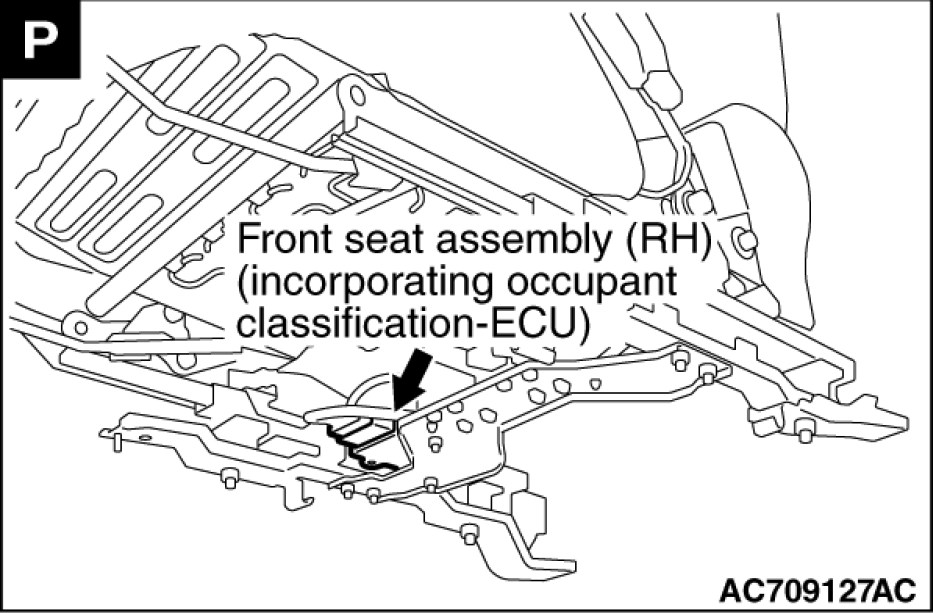

| Occupant Classification-ECU | Under front of front passenger's seat. See Figure. |
| Outside/Inside Selection Damper Control Module (C-109) | Behind right side of dash. See Figure. |

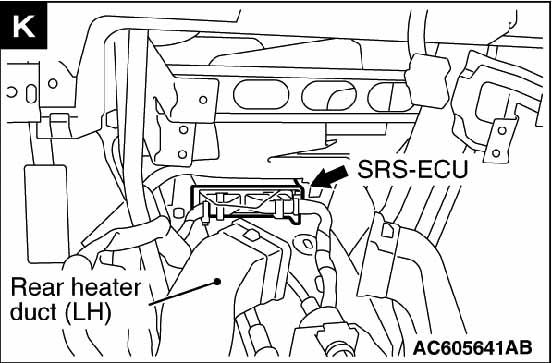

| SRS-ECU | Behind lower center of dash. See Figure. |

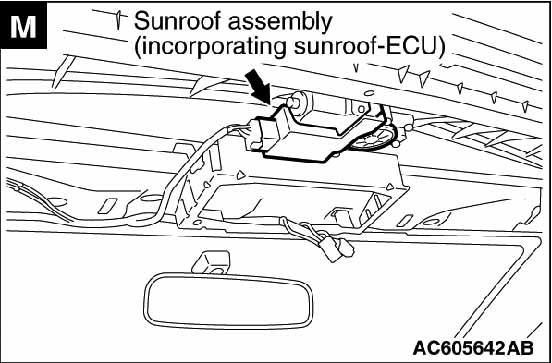

| Sunroof-ECU | In center headliner. See Figure. |

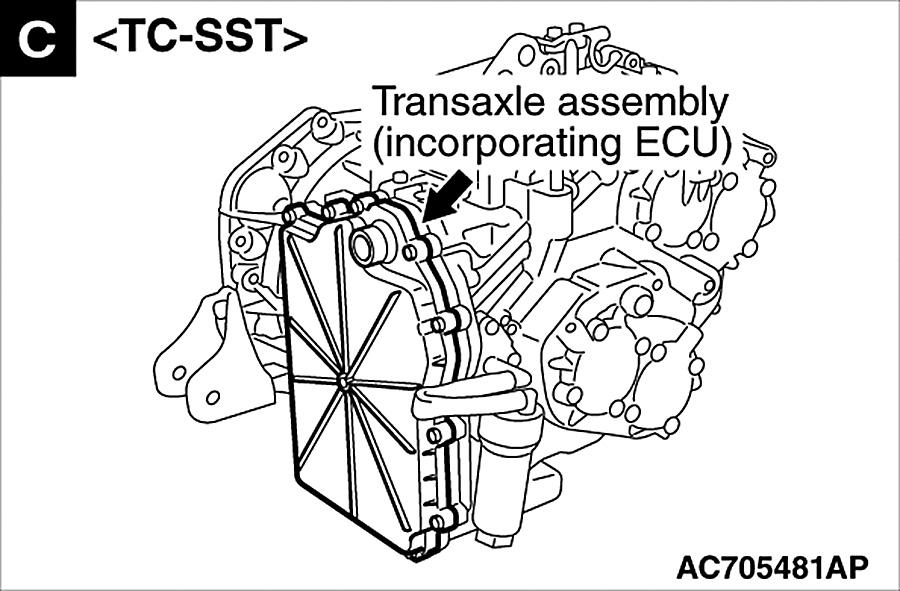

| Transaxle Assembly | Transmission assembly. See Figure. |

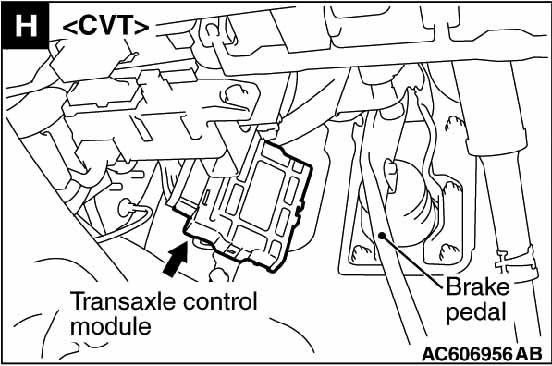

| Transaxle Control Module | Behind left side of dash. See Figure. |

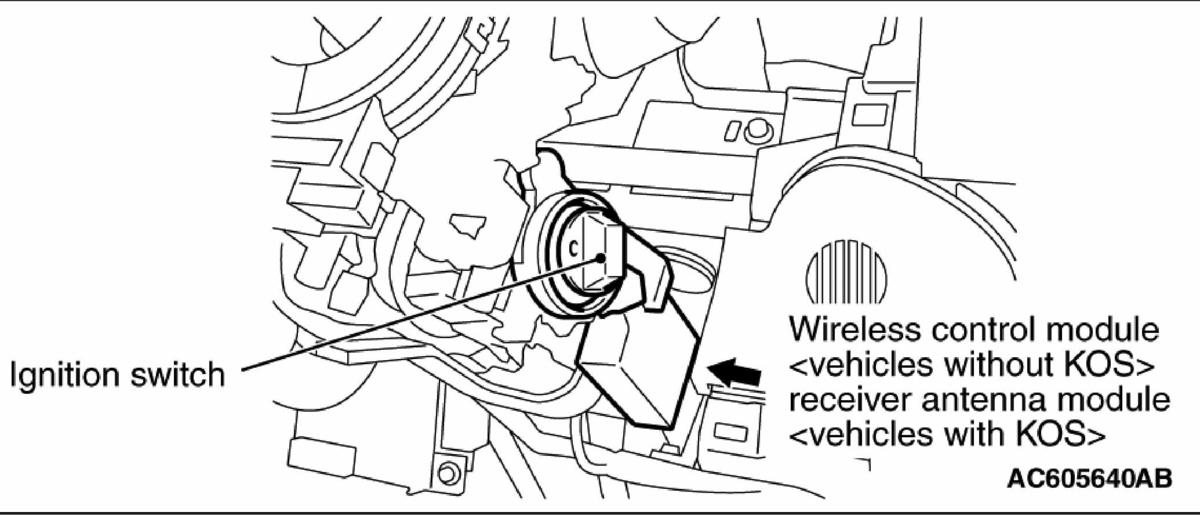

| Wireless Control Module | On ignition switch. See Figure. |
