TORQUE SPECIFICATIONS
| Application | Ft. Lbs. (N.m) | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Buffer Rod Bolt | 32-40 (43-54) | ||||||||||||||
| Buffer Rod Bracket Bolt | 32-40 (43-54) | ||||||||||||||
| Camshaft Sprocket Bolt | |||||||||||||||
| Intake | 58-65 (79-88) | ||||||||||||||
| Exhaust | 72-94 (98-127) | ||||||||||||||
| Connecting Rod Nut | |||||||||||||||
| 1st Step | 10-12 (14-16) | ||||||||||||||
| 2nd Step | 35-40° Or 17-21 Ft. lbs (23-28 N.m) | ||||||||||||||
| Control Rod Bolt | 10-13 (14-18) | ||||||||||||||
| Crankshaft Pulley Bolt | 97-112 (132-152) | ||||||||||||||
| Crossmember-To-Engine Mount Bolt | 57-72 (77-98) | ||||||||||||||

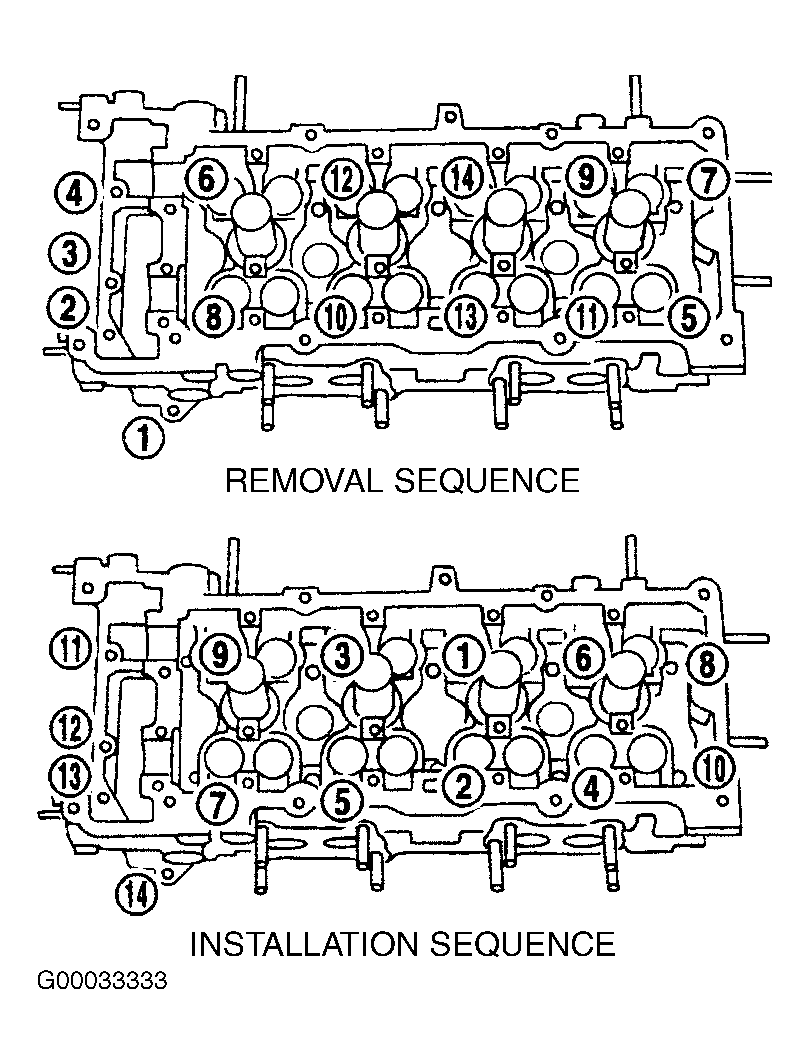

| Cylinder Head Bolt (1) | |||||||||||||||
| 1-10 (Large Bolt) | |||||||||||||||
| 1st Step | 22 (29) | ||||||||||||||
| 2nd Step | 43 (59) | ||||||||||||||
| 3rd Step | Loosen Bolts Completely | ||||||||||||||
| 4th Step | 22 (29) | ||||||||||||||
| 5th Step | 50-55° Or 40-47 Ft. lbs (54-64 N.m) | ||||||||||||||
| 11-14 (Small Bolt) | |||||||||||||||
| 6th Step | 56-74 (6.3-8.3) INCH Lbs. (N.m) | ||||||||||||||

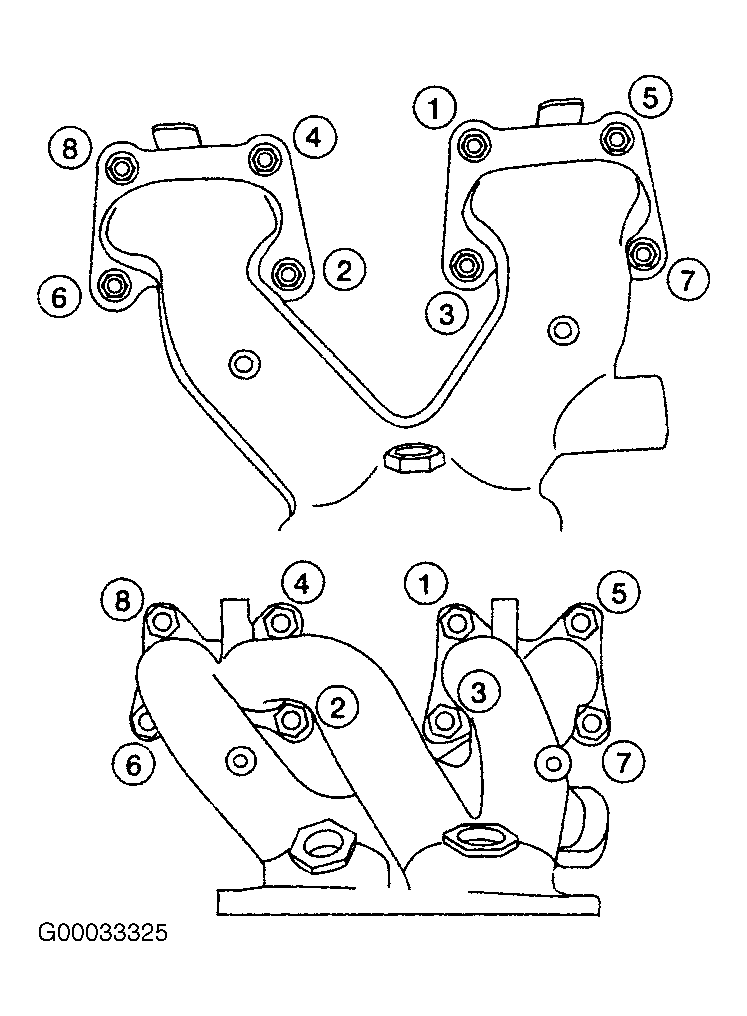

| Exhaust Manifold Nut (2) | 20-22 (26-29) | ||||||||||||||
| Exhaust Pipe-To-Manifold Nut | 21-24 (28-33) | ||||||||||||||
| Flexplate Bolt | 69-76 (93-103) | ||||||||||||||
| Flywheel Bolt | 61-69 (83-93) | ||||||||||||||
| Front Engine Mount Bolt | 45-51 (60-70) | ||||||||||||||
| Idler Sprocket Bolt | 32-43 (43-58) | ||||||||||||||

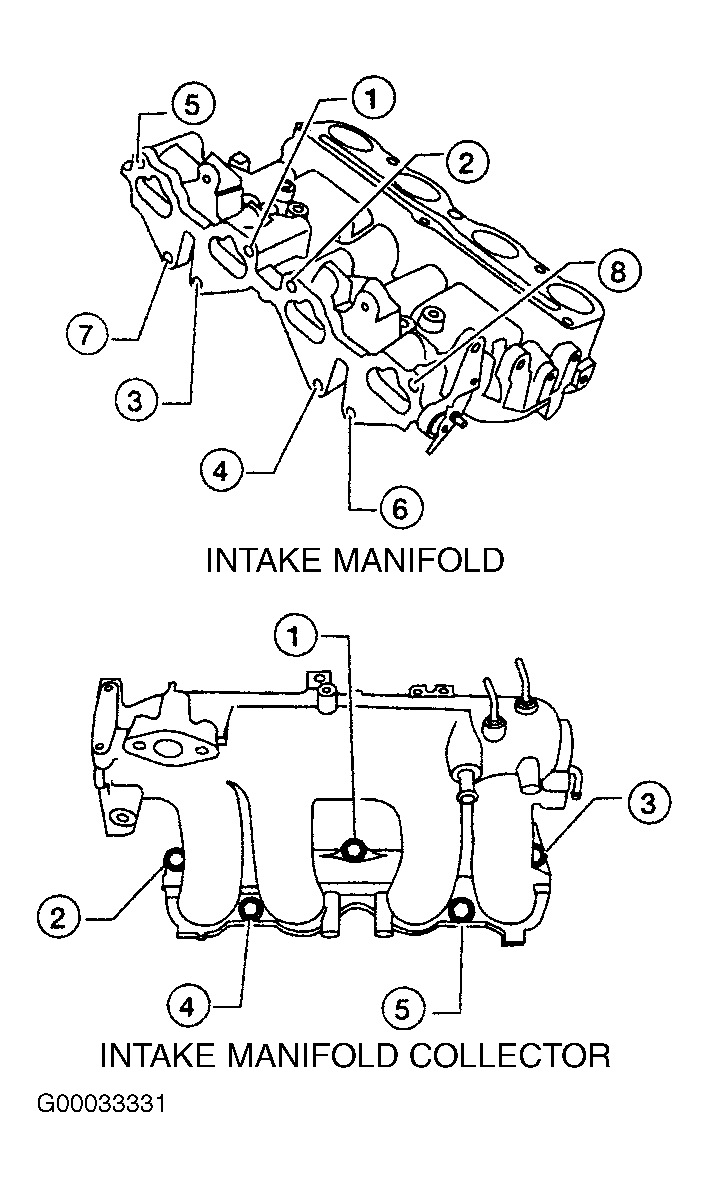

| Intake Manifold Collector-To-Intake Manifold Bolt (3) | 12-15 (16-20) | ||||||||||||||
| Intake Manifold Nut (3) | 12-15 (16-20) | ||||||||||||||
| Intake Manifold Support | 12-17 (17-24) | ||||||||||||||
| Left Engine Mount Bolt | 32-40 (43-54) | ||||||||||||||

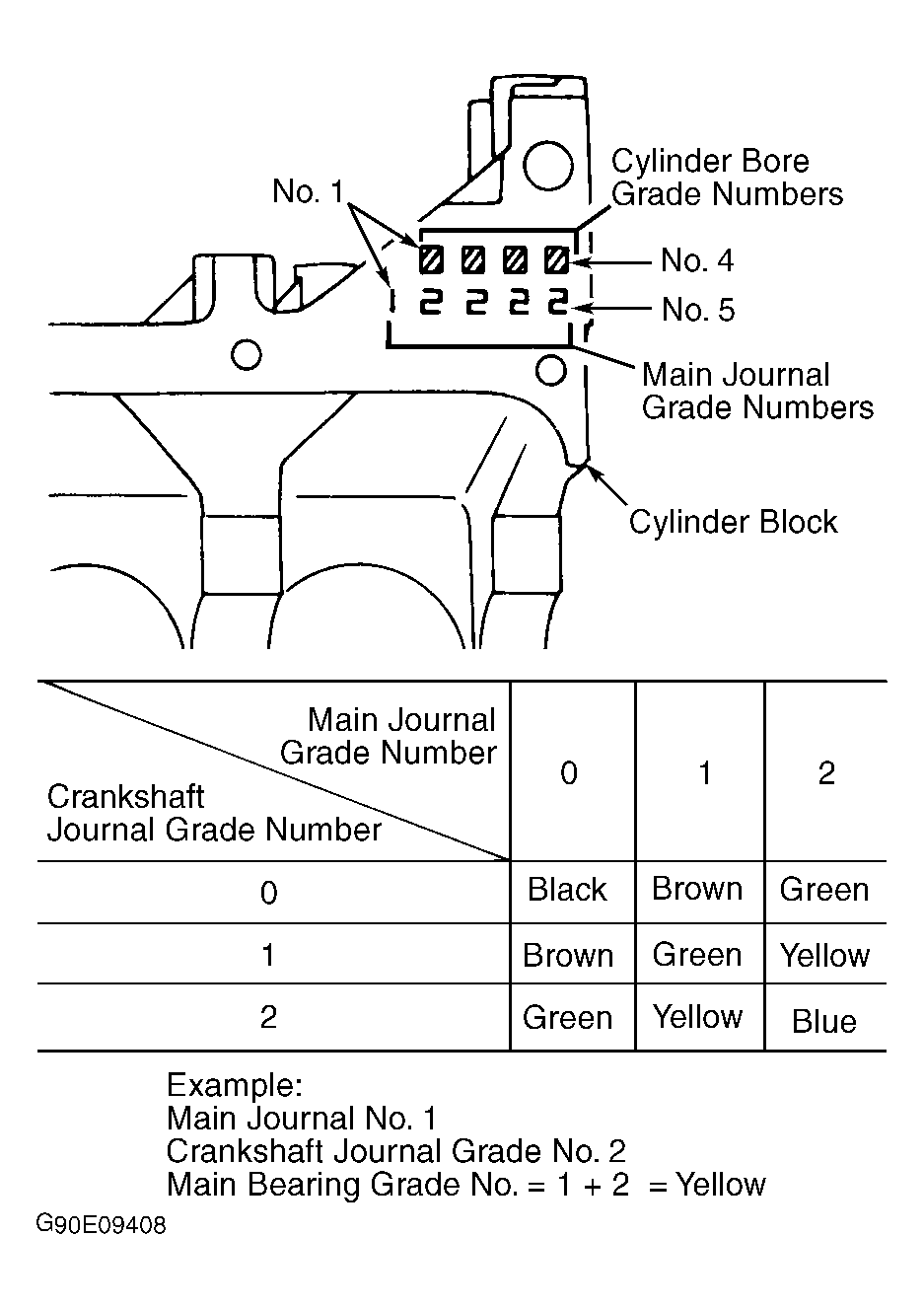

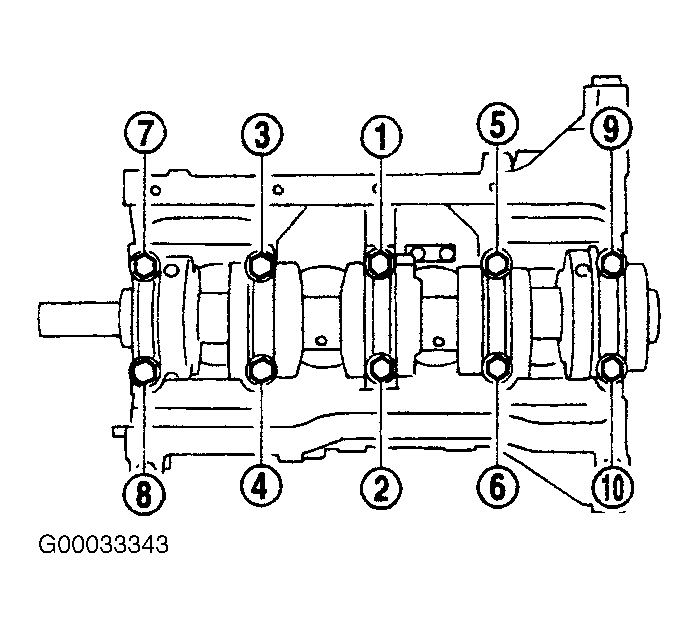

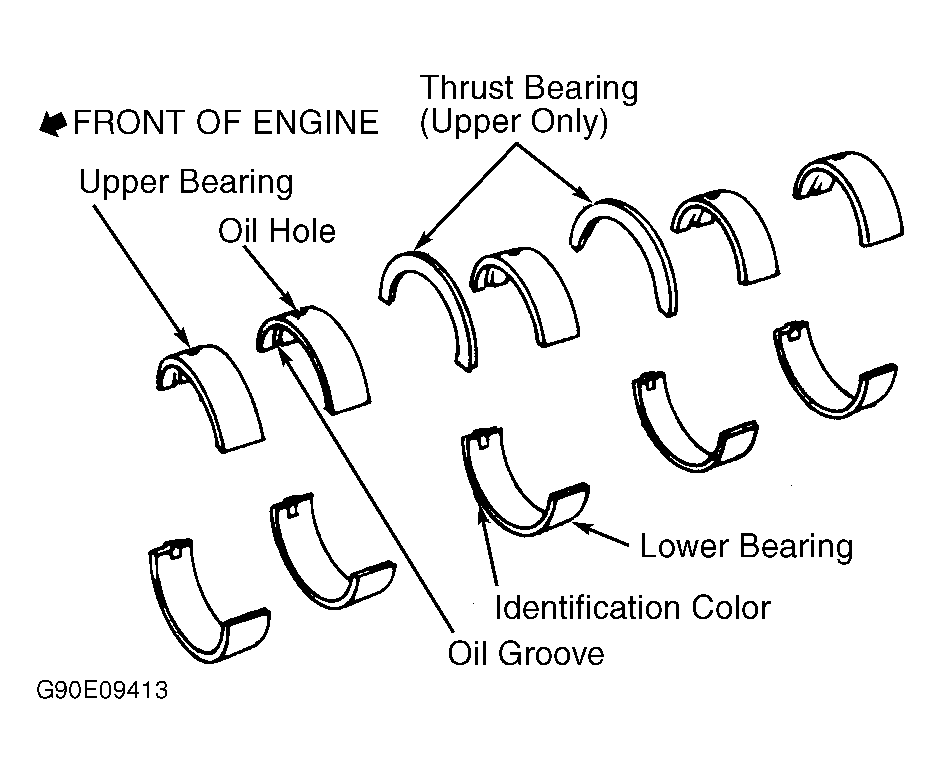

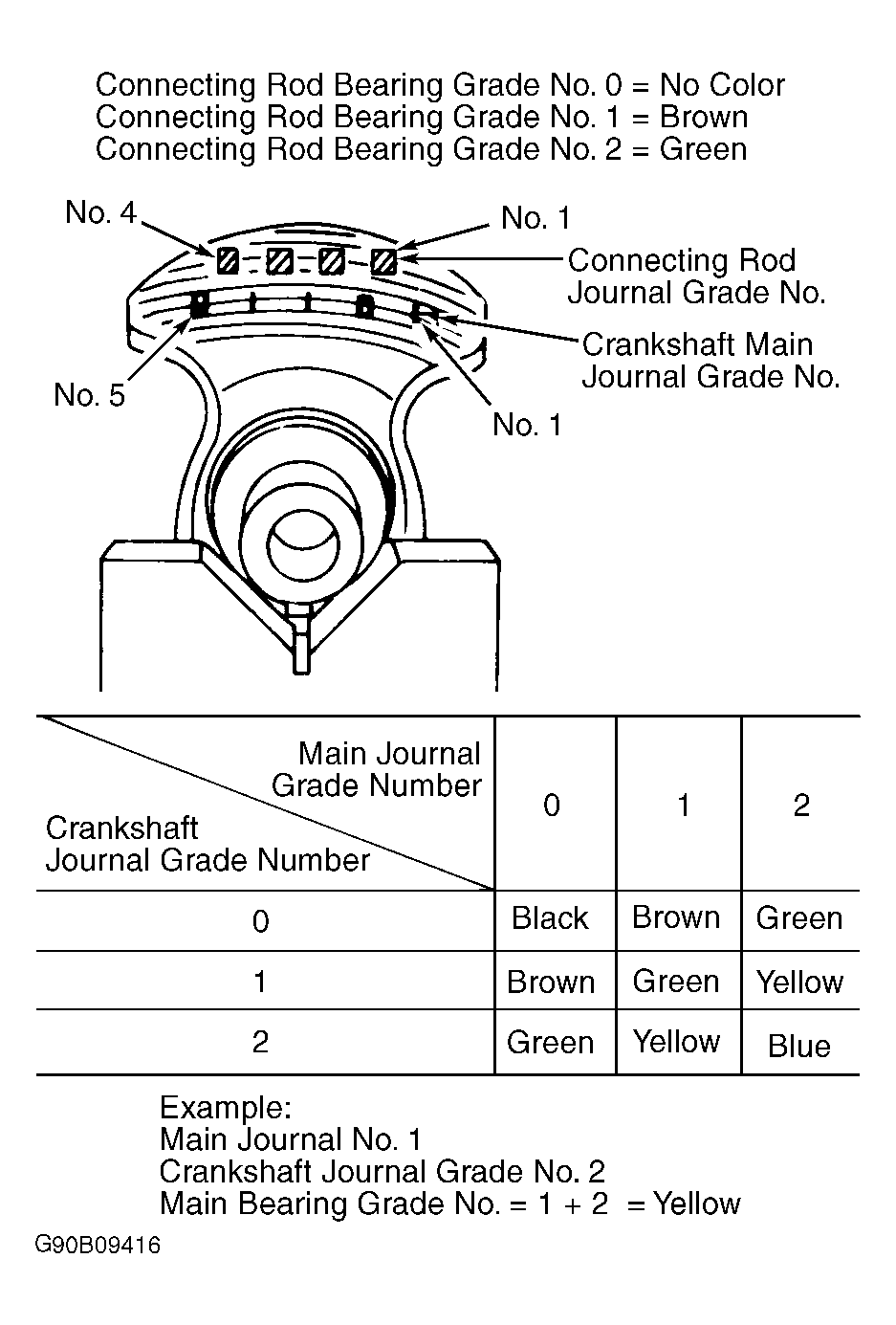

| Main Bearing Cap Bolt (4) | 34-38 (46-52) | ||||||||||||||
| Oil Pan Drain Plug | 22-29 (29-39) | ||||||||||||||
| Oil Pressure Regulator Valve Plug | 29-43 (39-58) | ||||||||||||||
| Oil Pump Pick-Up Tube Bolt | 12-15 (16-20) | ||||||||||||||
| Rear Engine Mount Bolt | 45-51 (60-70) | ||||||||||||||
| Right Engine Mount Bolt | 45-51 (60-70) | ||||||||||||||
| Support Rod Bolt | 26-35 (35-47) | ||||||||||||||
| Spark Plug | 14-22 (19-30) | ||||||||||||||
| Starter Bolt | 23-31 (31-42) | ||||||||||||||
| INCH Lbs. (N.m) | |||||||||||||||

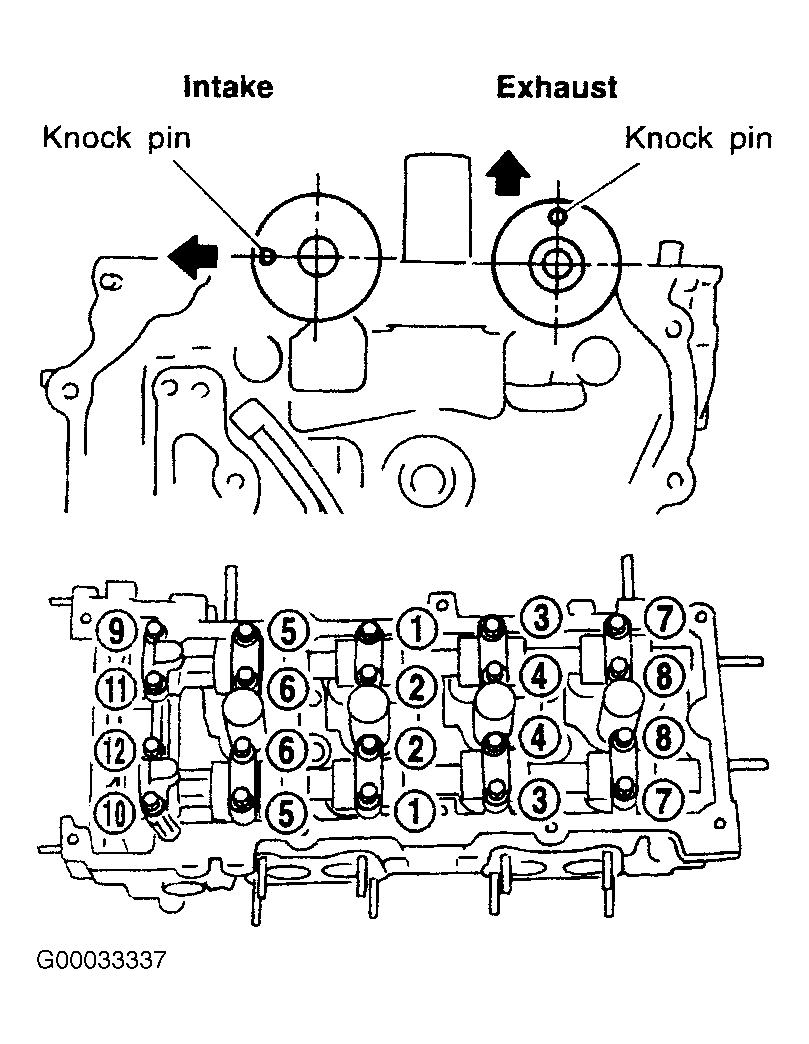

| Camshaft Bracket Bolts | |||||||||||||||
| Step 1 (Bolts 9-12 then 1-8) | 18 (2) | ||||||||||||||
| Step 2 (All Bolts in sequence) | 53 (6) | ||||||||||||||
| Step 3 (All Bolts in sequence) | 80-106 (9-12) | ||||||||||||||
| Camshaft Journal Cap Bolt (5) | |||||||||||||||
| Step 1 (Bolts 9-12) | 18 (2) | ||||||||||||||
| Step 2 (Bolts 1-8) | 18 (2) | ||||||||||||||
| Step 3 (Bolts 1-12) | 53 (6) | ||||||||||||||
| Step 4 (Bolts 1-12) | 80-106 (9-12) | ||||||||||||||
| Cylinder Head Cover Bolt | 18-35 (2-4) | ||||||||||||||
| Cylinder Head Front Cover Bolt/Nut | 35-44 (4-5) | ||||||||||||||
| Front Cover Bolt | 53-71 (6-8) | ||||||||||||||
| Lower Timing Chain Tensioner Bolt | 53-71 (6-8) | ||||||||||||||

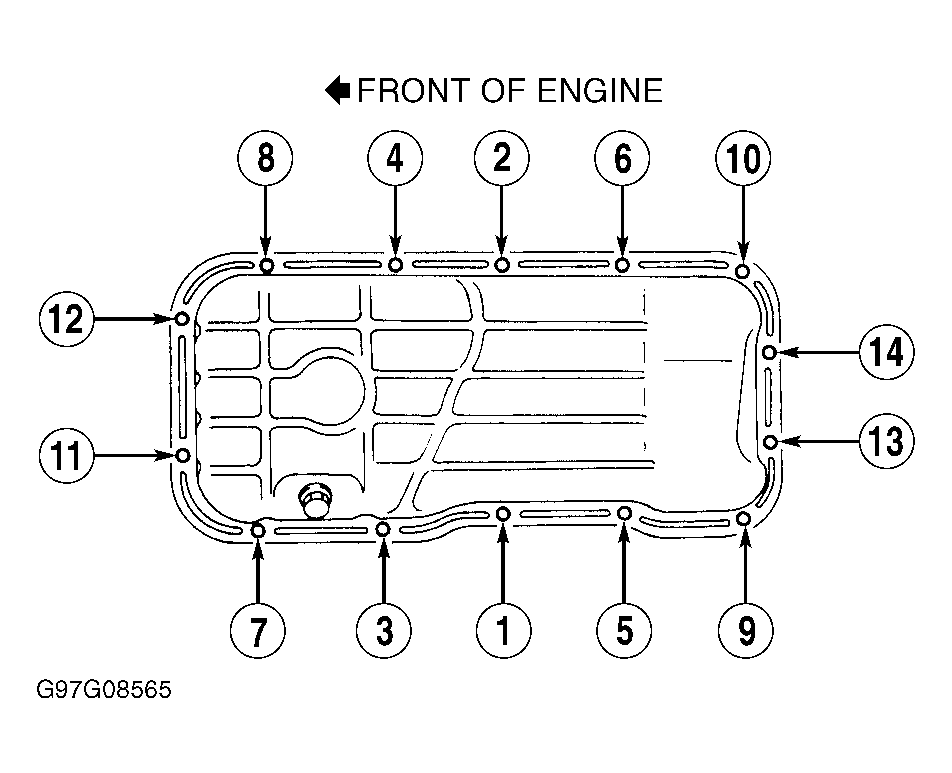

| Oil Pan Bolt (6) | 53-71 (6-8) | ||||||||||||||
| Oil Pump Cover Bolt | 53-71 (6-8) | ||||||||||||||
| Oil Pump Cover Screw | 35-44 (4-5) | ||||||||||||||
| Upper Timing Chain Tensioner Bolt | 53-71 (6-8) | ||||||||||||||
| Water Pump Bolt | 53-71 (6-8) | ||||||||||||||
| Water Pump Pulley Bolt | 53-71 (6-8) | ||||||||||||||
|
|||||||||||||||
