Circuit Protection Devices
WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Component Location |
|---|---|

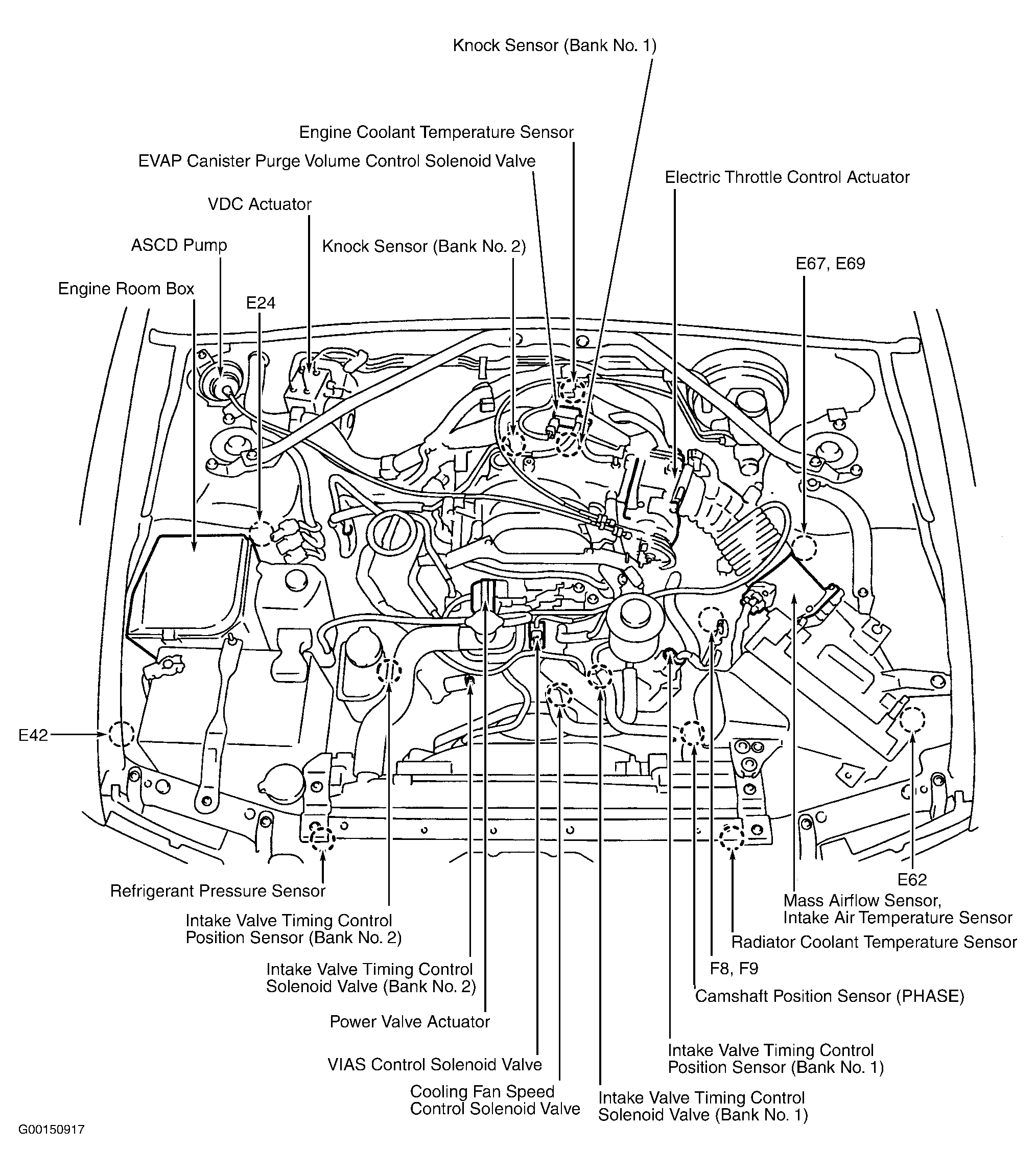

| Engine Room Box | In right side of engine compartment. See Figure . |
| Fuse Block | In fuse, fusible link & relay block (J/B). See Figure . |
| Fuse Block (J/B) No. 1 | Behind left end of dash. See Figure . |
| Fuse Block (J/B) No. 2 | Behind right kick panel. See Figure . |

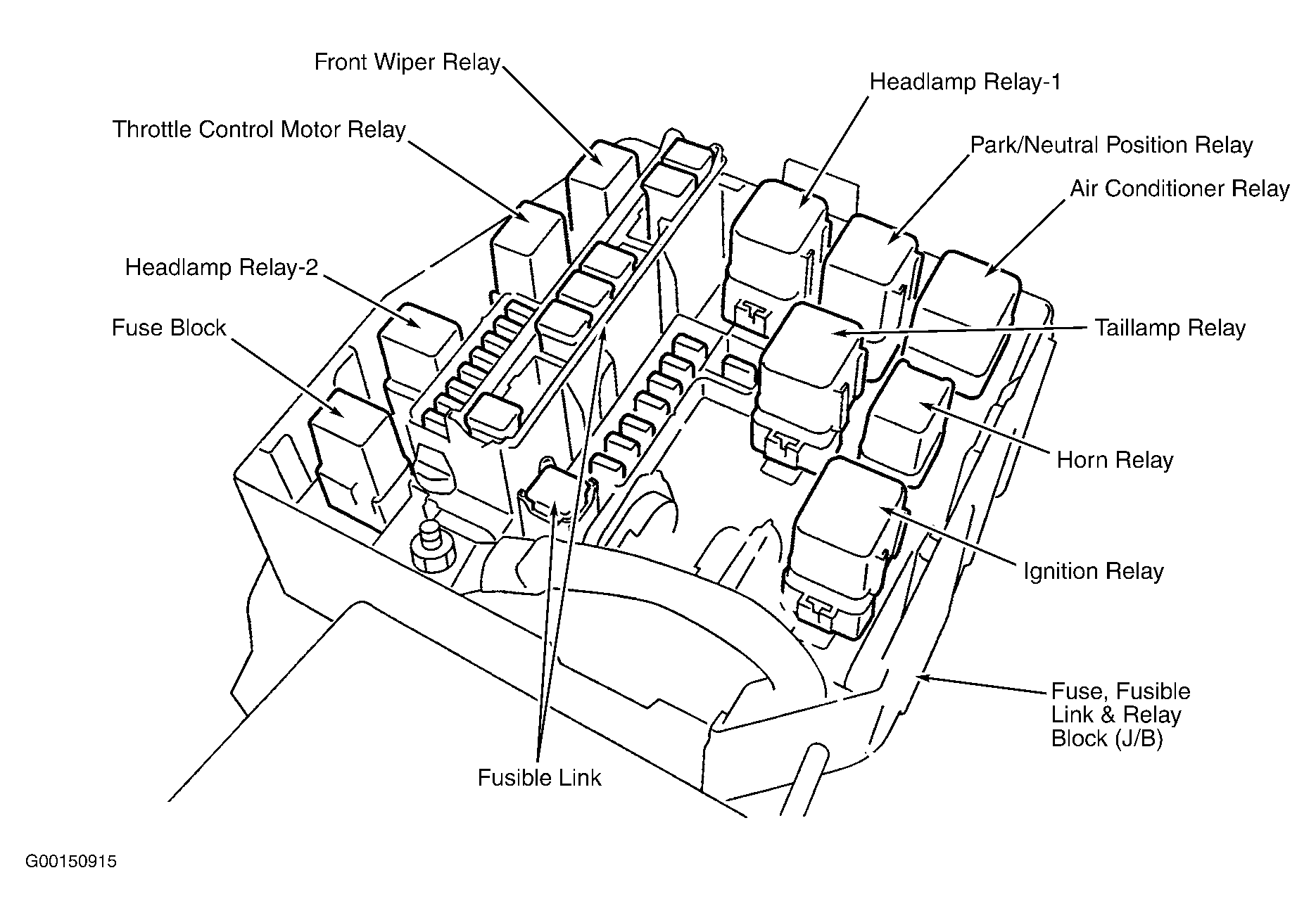

| Fuse, Fusible Link & Relay Block (J/B) | At right side of engine compartment. See Figure . |
| Fuse, Fusible Link & Relay Box | At right side of engine compartment, in engine room box. |
| Fusible Link | In fuse, fusible link & relay block (J/B). See Figure . |
