Component Inspection

  1. CHECK GEAR LEVER POSITION SENSOR-I
    1. Turn ignition switch OFF.
    2. Disconnect gear lever position sensor harness connector.
    3. Remove the sensor. Refer to INPUT SPEED SENSOR : Exploded View .

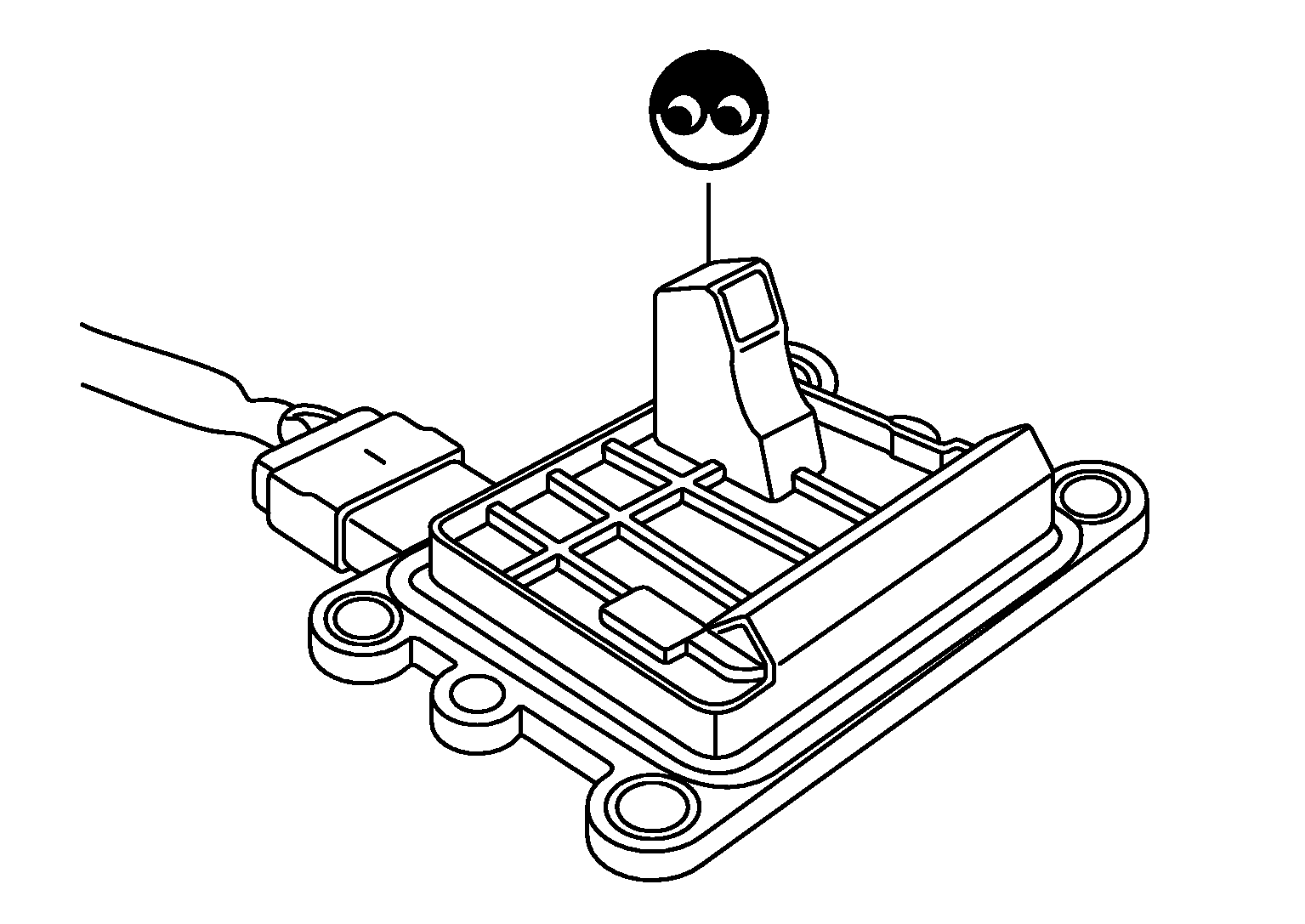

    4. Visually check the sensor for chipping.
      GNSJMBIA2061Z-061Courtesy of NISSAN NORTH AMERICA, INC.

    Is the inspection result normal?

    YES

    GO TO 2.

    NO

    GO TO 3.

  2. CHECK GEAR LEVER POSITION SENSOR-II

    Check resistance between gear lever position sensor terminals as per the following items.

    Terminals (Polarity)

    Resistance (Ohm)

    1 (+) - 2 (-)

    Except 0 or INF. [at 25 deg. C (77 deg. F)]

    1 (+) - 3 (-)

    1 (+) - 4 (-)

    2 (+) - 3 (-)

    2 (+) - 4 (-)

    3 (+) - 4 (-)

    Is the inspection result normal?

    YES

    INSPECTION END

    NO

    GO TO 3.

  3. REPLACE GEAR LEVER POSITION SENSOR

    Replace gear lever position sensor. Refer to INPUT SPEED SENSOR : Exploded View .

    INSPECTION END
