Connector Identification

CONNECTOR IDENTIFICATION DIRECTORY

Connector	See
A/C Clutch Relay	Fig 1
Auto Shutdown (ASD) Relay	Fig 2 & Fig 3
Distributor Connector	Fig 4
Exhaust Gas Recirculation (EGR) Solenoid	Fig 5
Evaporative Purge Solenoid	Fig 7
Fuel Pump	Fig 8
Fuel Pump Relay	Fig 9 & Fig 10
Idle Air Control (IAC) Motor	Fig 11
Injector Connector	Fig 12
Manifold Absolute Pressure (MAP) Sensor	Fig 13
02S	Fig 14
Powertrain Control Module (PCM)	Fig 20
Radiator Fan Relay	Fig 15 & Fig 16
Torque Converter Clutch (TCC) Solenoid	Fig 17
Throttle Position (TP) Sensor	Fig 18
Transmission Temperature Sensor	Fig 19

A/C CLUTCH RELAY CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
A	Dark Blue/White	Fused Ign. Sw. Output
B	Red/Light Blue	Fused Battery Voltage
C	Dark Blue/Orange	Relay Control
D	Dark Blue/Black	Relay Output

Fig 1: A/C Clutch Relay Connector Terminal ID (Caravan & Voyager)

Courtesy of CHRYSLER CORP.

ASD RELAY CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
A	Dark Blue/White	Fused Ign. Sw. Output
B	Red/White	Fused Battery Voltage
C	Dark Blue/Yellow	Relay Control
D	Dark Green/Orange	Relay Output

Fig 2: ASD Relay Connector Terminal ID - 1 Of 2 (Caravan & Voyager)

Courtesy of CHRYSLER CORP.

Fig 3: ASD Relay Connector Terminal ID - 2 Of 2 (Caravan & Voyager)

Courtesy of CHRYSLER CORP.

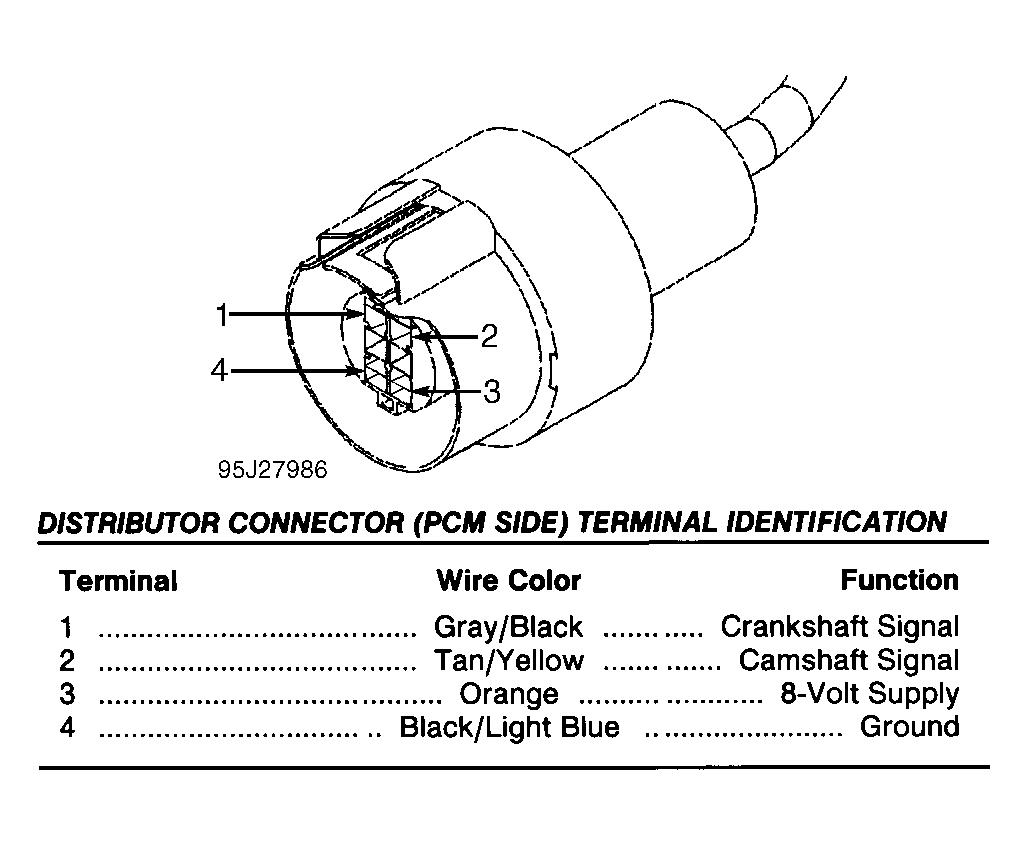

DISTRIBUTOR CONNECTOR (PCM SIDE) TERMINAL ID

Terminal	Wire Color	Function
1	Gray/Black	Crankshaft Signal
2	Tan/Yellow	Camshaft Signal
3	Orange	8-Volt Supply
4	Black/Light Blue	Ground

Fig 4: Identifying Distributor Connector Terminals (PCM Side - Caravan & Voyager)

Courtesy of CHRYSLER CORP.

EGR SOLENOID CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	Dark Blue/White	Fused Ign. Sw. Output
2	Gray/Yellow	Control

Fig 5: EGR Solenoid Connector Terminal ID (Caravan & Voyager)

Courtesy of CHRYSLER CORP.

ECT SENSOR CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Tan/Black	Signal
2	Black/Light Blue	Ground

Fig 6: ECT Sensor Connector Terminal ID (Caravan & Voyager)

Courtesy of CHRYSLER CORP.

FUEL PUMP CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	Dark Blue/White	Fused Ignition Switch Outpost
2	Pink/Black	Solenoid Control

Fig 7: Evaporative Purge Solenoid Connector Terminal ID (Caravan & Voyager)

Courtesy of CHRYSLER CORP.

FUEL PUMP CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	Dark Green/Black	Fuel Pump Relay Output
2	Dark Blue	Sending Unit Feed
3	-----	Not Used
4	Black/Tan	Sending Unit Ground
5	Black	Fuel Pump Ground

Fig 8: Fuel Pump Connector Terminal ID (Caravan & Voyager)

Courtesy of CHRYSLER CORP.

FUEL PUMP RELAY CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
A	Dark Blue/White	Fused Ign. Sw. Output
B	Dark Green/White	Fused Battery Voltage
C	Dark Blue/Yellow	ASD Relay Control
D	Dark Green/Black	Fuel Pump Relay Output

Fig 9: Fuel Pump Relay Connector Terminal ID - 1 Of 2 (Caravan & Voyager)

Courtesy of CHRYSLER CORP.

Fig 10: Fuel Pump Relay Connector Terminal ID - 2 Of 2 (Caravan & Voyager)

Courtesy of CHRYSLER CORP.

IAC MOTOR CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Gray/Red	IAC Driver No. 3
2	Yellow/Black	IAC Driver No. 2
3	Brown/White	IAC Driver No. 1
4	Violet/Black	IAC Driver No. 4

Fig 11: IAC Motor Connector Terminal ID (Caravan & Voyager)

Courtesy of CHRYSLER CORP.

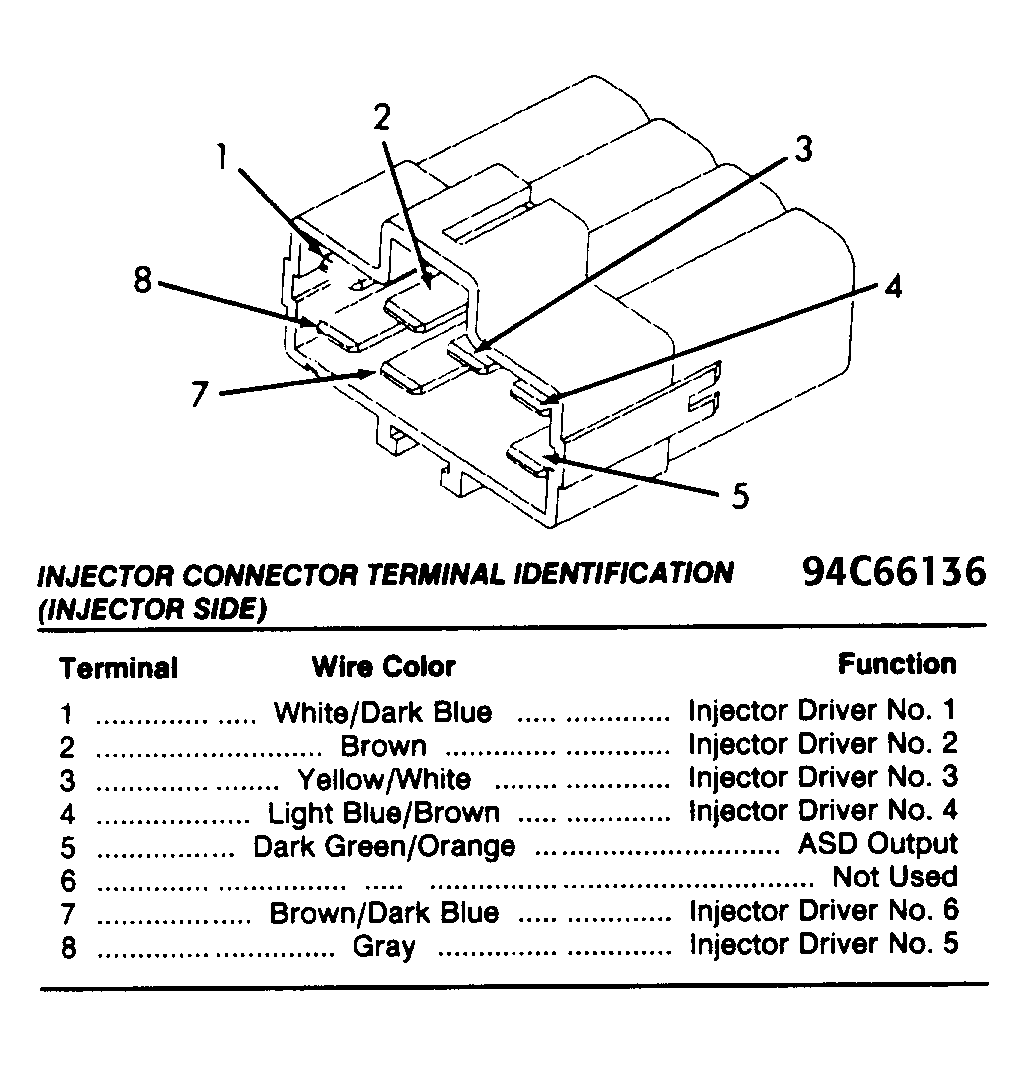

INJECTOR CONNECTOR TERMINAL ID (INJECTOR SIDE)

Terminal	Wire Color	Function
1	White/Dark Blue	Injector Driver No. 1
2	Brown	Injector Driver No. 2
3	Yellow/White	Injector Driver No. 3
4	Light Blue/Brown	Injector Driver No. 4
5	Dark Green/Orange	ASD Output
6	-----	Not Used
7	Brown/Dark Blue	Injector Driver No. 6
8	Gray	Injector Driver No. 5

INJECTOR CONNECTOR TERMINAL ID (PCM SIDE)

Terminal	Wire Color	Function
1	Light Blue/Brown	Injector Driver No. 4
2	Yellow/White	Injector Driver No. 3
3	Tan	Injector Driver No. 2
4	White/Dark Blue	Injector Driver No. 1
5	Gray	Injector Driver No. 5
6	Brown/Dark Blue	Injector Driver No. 6
7	-----	Not Used
8	Dark Green/Orange	ASD Output

Fig 12: Identifying Injector Connector Terminals (Caravan & Voyager)

Courtesy of CHRYSLER CORP.

MAP SENSOR CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Black/Light Blue	Ground
2	Dark Green/Red	Signal
3	Violet/White	5-Volt Supply

Fig 13: MAP Sensor Connector Terminal ID (Caravan & Voyager)

Courtesy of CHRYSLER CORP.

O2S CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Black/Light Blue	Sensor Ground
2	Dark Green/White	Signal
3	Black	Heater Ground
4	Dark Green/Black	ASD Relay Output

Fig 14: Identifying O2S Connector Terminals (Caravan & Voyager)

Courtesy of CHRYSLER CORP.

LOW SPEED RADIATOR FAN RELAY CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
A	Dark Blue/White	Fused Ign. Sw. Output
B	Gray	Fused Battery Voltage
C	Dark Blue/Pink	Low Speed Relay Control
D	Dark Green	Low Speed Relay Output

Fig 15: Low/High Speed Radiator Fan Relay Connector Term. ID (Caravan & Voyager)

Courtesy of CHRYSLER CORP.

HIGH SPEED RADIATOR FAN RELAY CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
A	Dark Blue/White	Fused Ign. Sw. Output
B	Red/Light Green	Fused Battery Voltage
C	Yellow	High Speed Relay Control
D	Light Green	High Speed Relay Output

Fig 16: Low/High Speed Radiator Fan Relay Conn. Terminal ID (Caravan & Voyager)

Courtesy of CHRYSLER CORP.

TCC SOLENOID CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	-----	Not Used
2	Dark Blue	Fused Ign. Sw. Output
3	Orange/Black	Solenoid Control

Fig 17: TCC Solenoid Connector Terminal ID (Caravan & Voyager)

Courtesy of CHRYSLER CORP.

TPS CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	Black/Light Blue	Ground
2	Dark Blue	Signal
3	Violet/White	5-Volt Supply

Fig 18: TP Sensor Connector Terminal ID (Caravan & Voyager)

Courtesy of CHRYSLER CORP.

TRANSMISSION TEMPERATURE SENSOR CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Violet	Sensor Signal
2	Black/Light Blue	Ground

Fig 19: Transmission Temperature Sensor Connector Terminal ID (Caravan & Voyager)

Courtesy of CHRYSLER CORP.

Fig 20: PCM Connector Terminal ID (Caravan & Voyager)

Courtesy of CHRYSLER CORP.
