Service Valve Locations

WARNING: This page does not describe the selected car, but rather 125 other vehicles, including the 2003 Dodge Ram Van, 2002 Saturn Vue, 2002 Saturn SL2, 2002 Saturn SL1, and 2002 Saturn SL. However, it is still accessible from the selected car via links, so may be relevant.

For service valve locations, see SERVICE VALVE LOCATIONS (CARS)  or SERVICE VALVE LOCATIONS (TRUCKS & VANS)  table.

SERVICE VALVE LOCATIONS (CARS)

Vehicle High Low
DaimlerChrysler Corp.
Chrysler
Concord
2.7L See Fig 1 See Fig 2
3.5L See Fig 3 See Fig 3
Prowler See Fig 3 See Fig 3
PT Cruiser See Fig 7 See Fig 7
Sebring
Coupe (1) (2)
Convertible & Sedan See Fig 6 See Fig 6
300M See Fig 3 See Fig 3
Dodge
Intrepid
2.7L See Fig 1 See Fig 2
3.5L See Fig 3 See Fig 3
Neon See Fig 7 See Fig 7
Stratus
Coupe (1) (2)
Sedan See Fig 6 See Fig 6
Viper Fig 4 Fig 4
Ford Motor Co.
Ford
Crown Victoria See Fig 12 See Fig 12
Escort See Fig 8 See Fig 8
Focus (6) (8)
Mustang See Fig 9 See Fig 9
Taurus (6) (7)
Thunderbird See Fig 11 See Fig 11
ZX2 See Fig 8 See Fig 8
Lincoln
Continental See Fig 10 See Fig 10
LS See Fig 11 See Fig 11
Town Car See Fig 12 See Fig 12
Mercury
Cougar
2.0L (3) (4)
2.5L (3) (5)
Grand Marquis See Fig 12 See Fig 12
Sable (6) (7)
General Motors
Buick
Century See Fig 19 See Fig 19
LeSabre See Fig 25 See Fig 25
Park Avenue See Fig 26 See Fig 26
Regal See Fig 23 & Fig 24 See Fig 23 & Fig 24
Cadillac
DeVille See Fig 21 See Fig 21
Eldorado See Fig 22 See Fig 22
Seville See Fig 30 See Fig 30
Chevrolet
Camaro See Fig 17 See Fig 17
Cavalier See Fig 18 See Fig 18
Corvette See Fig 20 See Fig 20
Impala See Fig 23 & Fig 24 See Fig 23 & Fig 24
Malibu See Fig 13 See Fig 14
Monte Carlo See Fig 23 & Fig 24 See Fig 23 & Fig 24
Prizm Fig 27 Fig 27
Oldsmobile
Alero See Fig 13 See Fig 14
Aurora See Fig 15 See Fig 15
Intrigue See Fig 19 See Fig 19
Pontiac
Bonneville See Fig 16 See Fig 16
Firebird See Fig 17 See Fig 17
Grand Am See Fig 13 See Fig 14
Grand Prix See Fig 23 & Fig 24 See Fig 23 & Fig 24
Sunfire See Fig 18 See Fig 18
Saturn
"L" Series See Fig 28 See Fig 28
"S" Series See Fig 29 See Fig 29
(1) On A/C pipe. See Fig 5.
(2) On suction hose. See Fig 5.
(3) On high side line, between compressor and condenser.
(4) On low-side line, between evaporator and accumulator/receiver-drier.
(5) On low-side line, between accumulator/receiver-drier and compressor.
(6) On high pressure liquid line.
(7) On evaporator to accumulator/drier suction line.
(8) On accumulator.

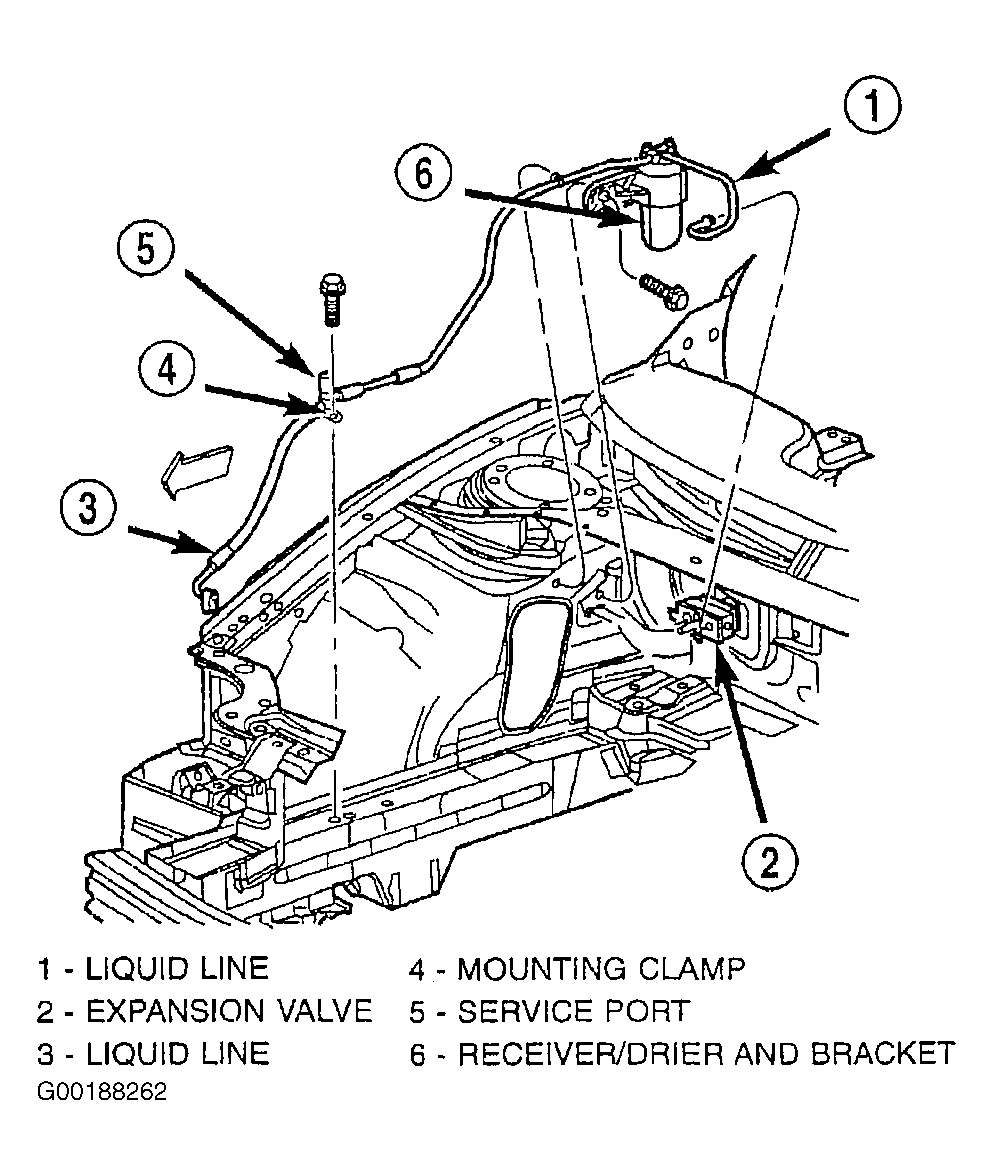

Fig 1: Locating High Pressure Service Valve (Concord & Intrepid - 2.7L Models)
G00188262Courtesy of CHRYSLER CORP.

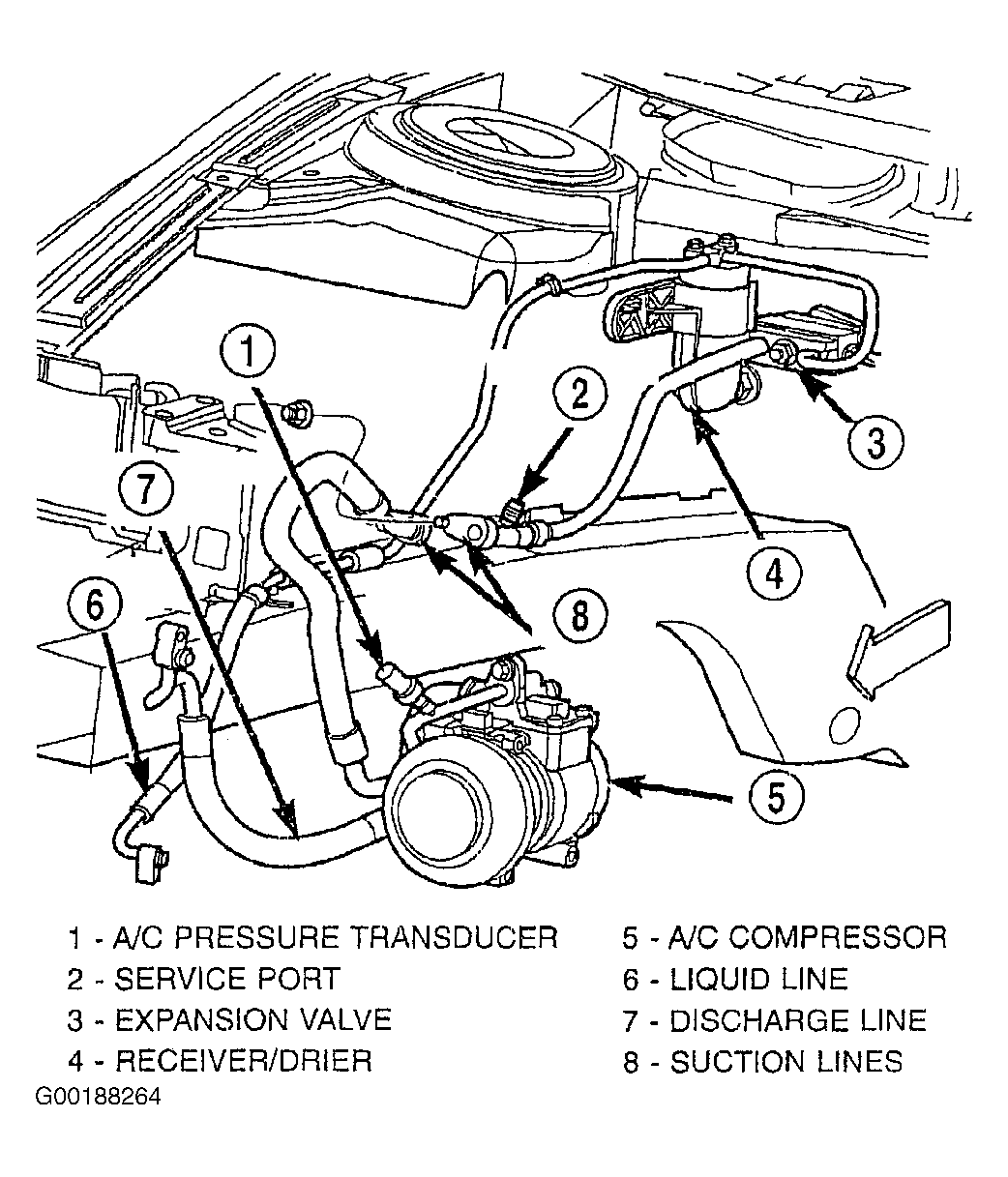

Fig 2: Locating Low Pressure Service Valve (Concord & Intrepid - 2.7L Models)
G00188264Courtesy of CHRYSLER CORP.

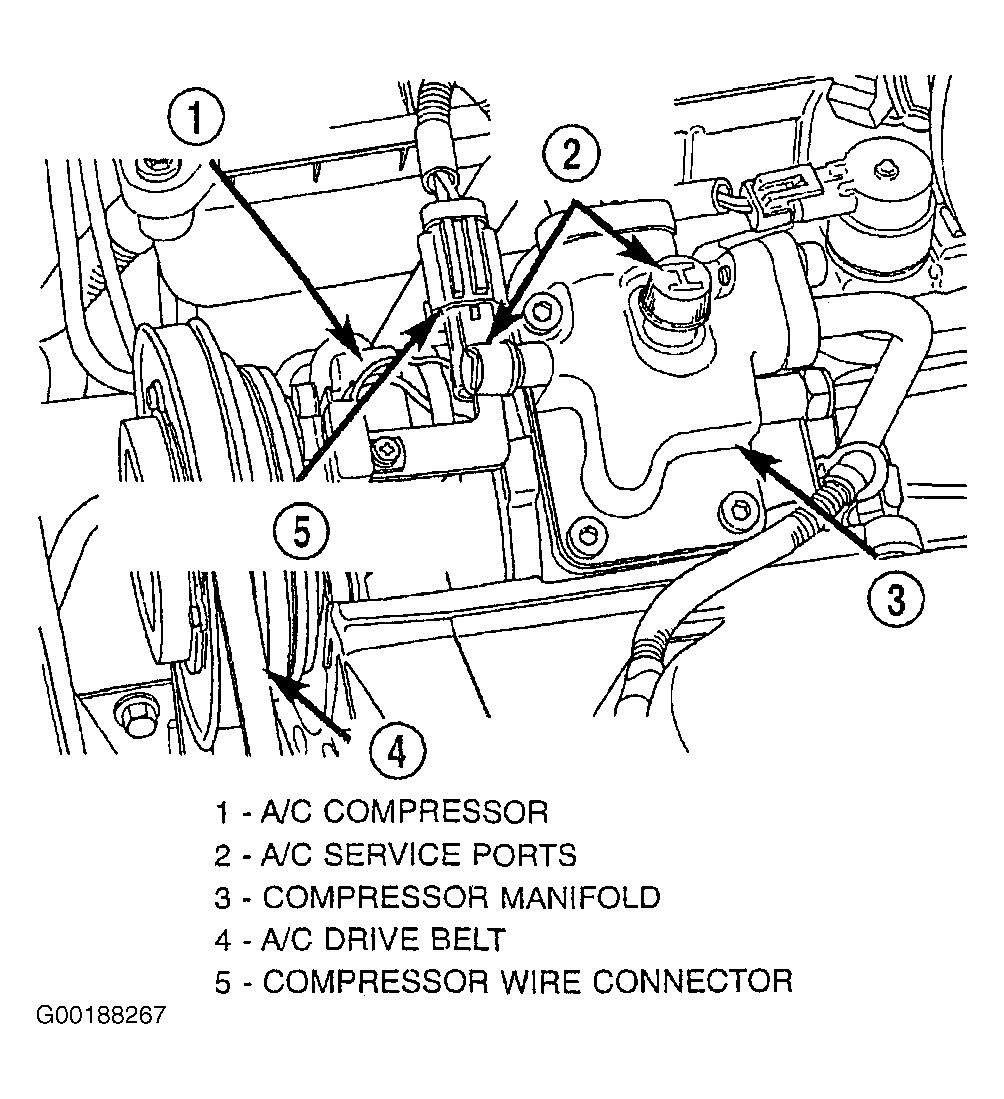

Fig 3: Locating High & Low Pressure Service Valves (Concord, Intrepid, Prowler & 300M - 3.5L Models)
G00188267Courtesy of CHRYSLER CORP.

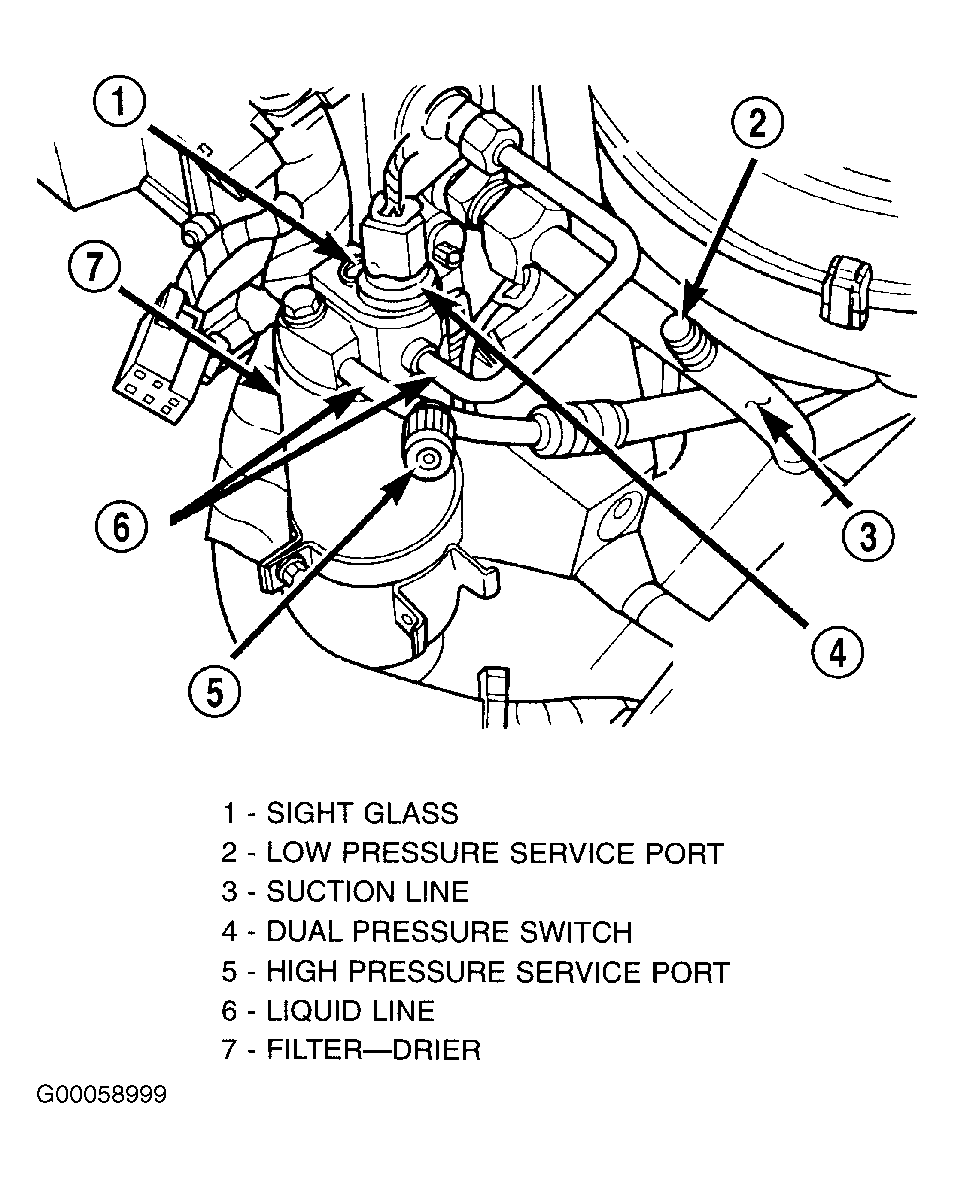

Fig 4: Locating High & Low Pressure Service Valves (Viper)
G00058999Courtesy of DAIMLERCHRYSLER CORPORATION

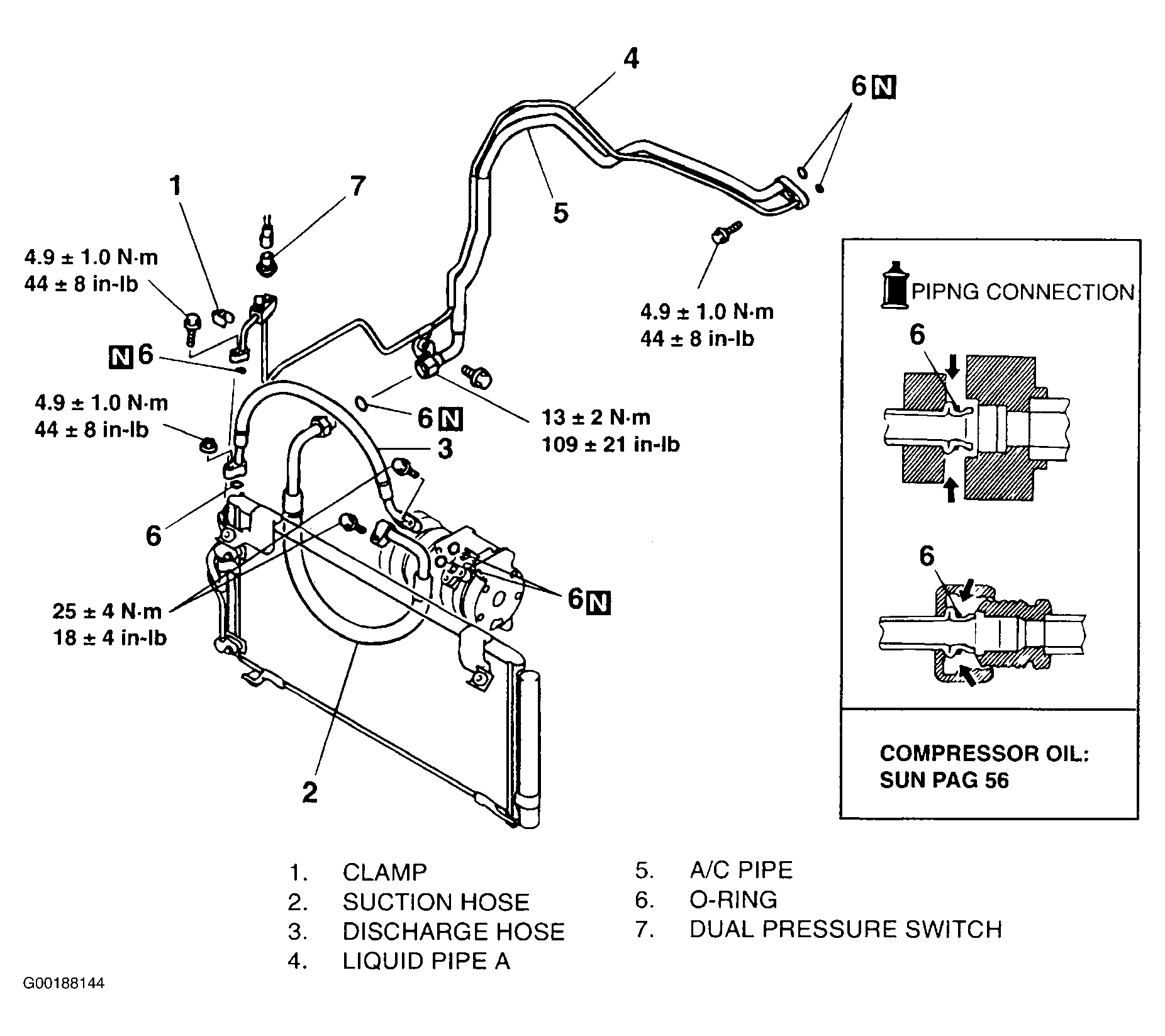

Fig 5: Identifying Refrigerant Lines (Sebring & Stratus Coupe)
G00188144Courtesy of CHRYSLER CORP.

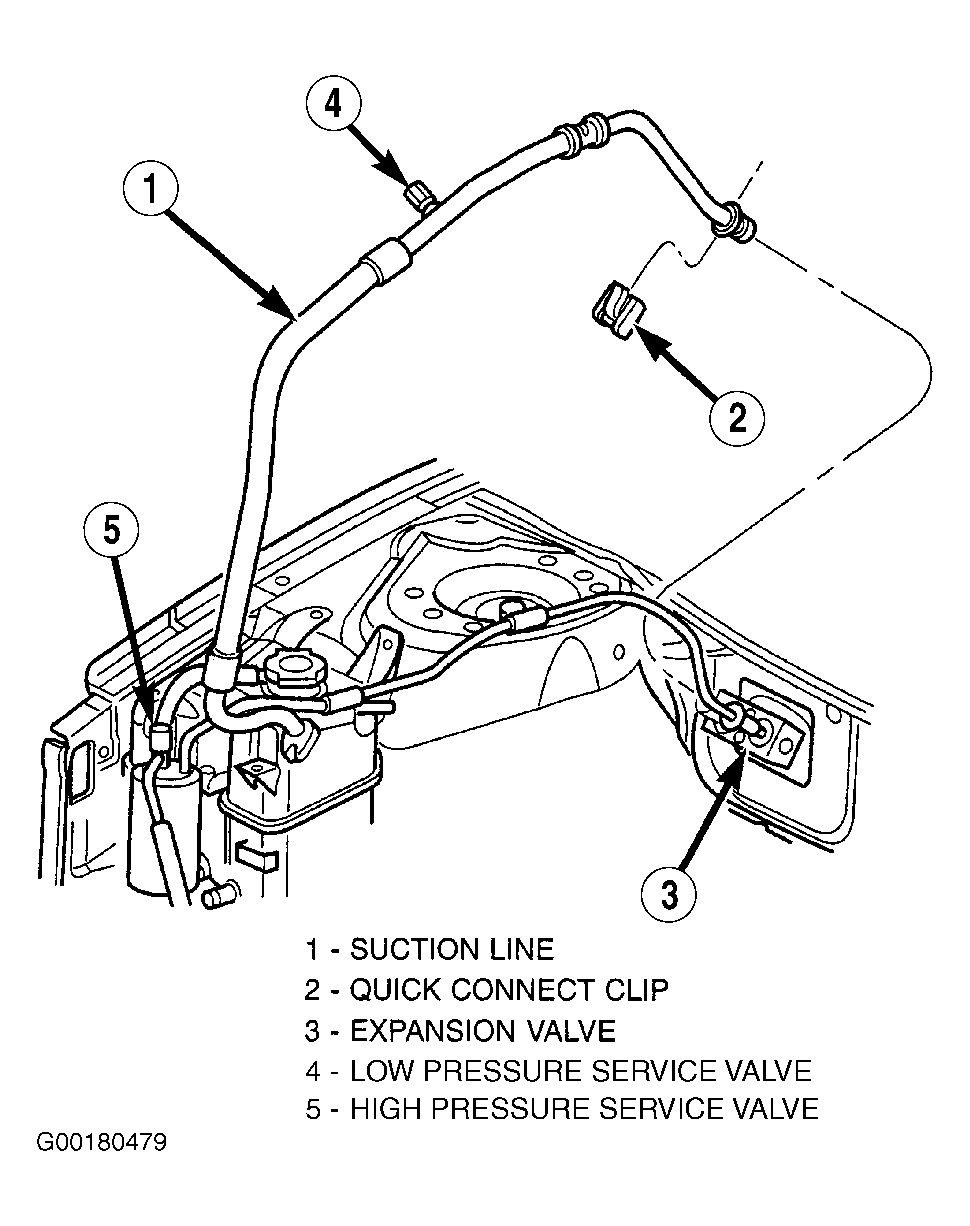

Fig 6: Locating High & Low Pressure Service Valves (Sebring Convertible & Sebring/Stratus Sedan)
G00180479Courtesy of CHRYSLER CORP.

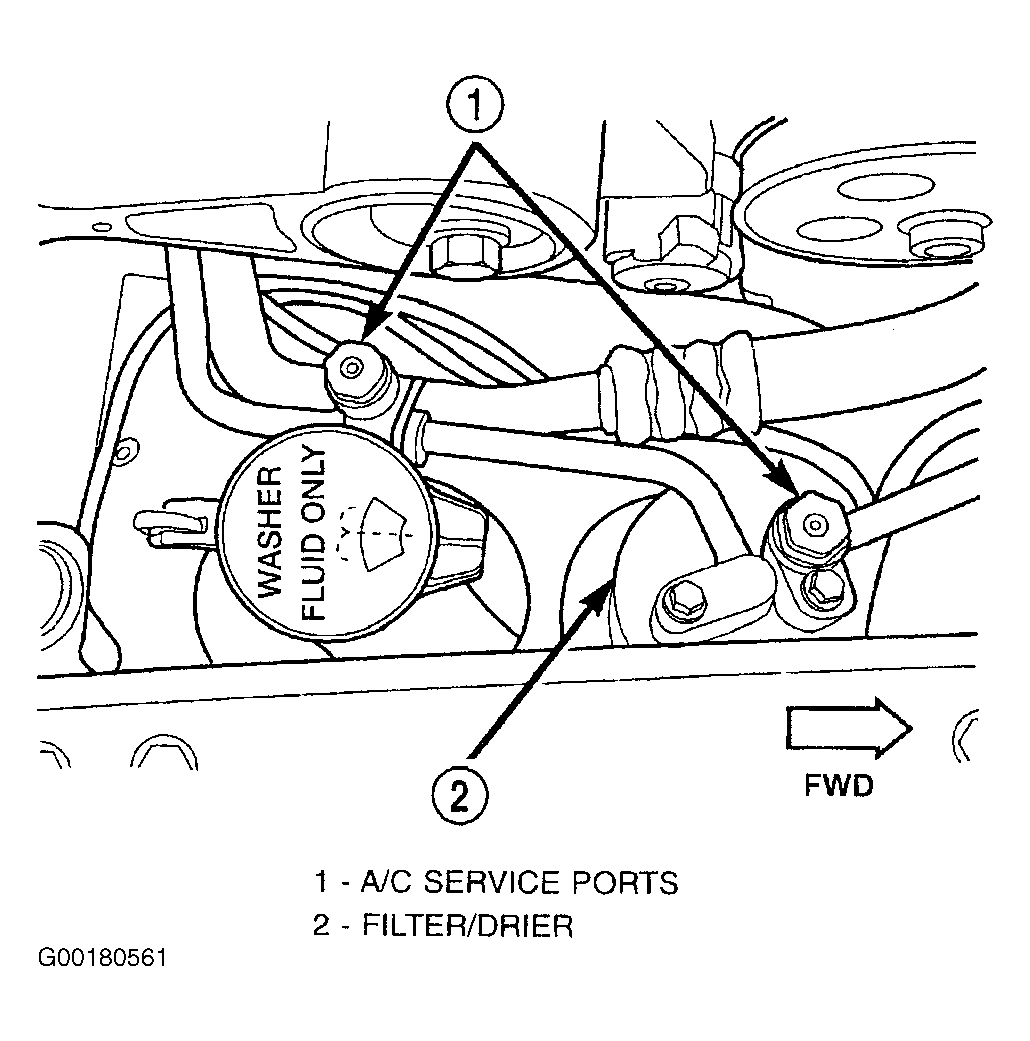

Fig 7: Locating High & Low Pressure Service Valves (Neon & PT Cruiser)
G00180561Courtesy of CHRYSLER CORP.

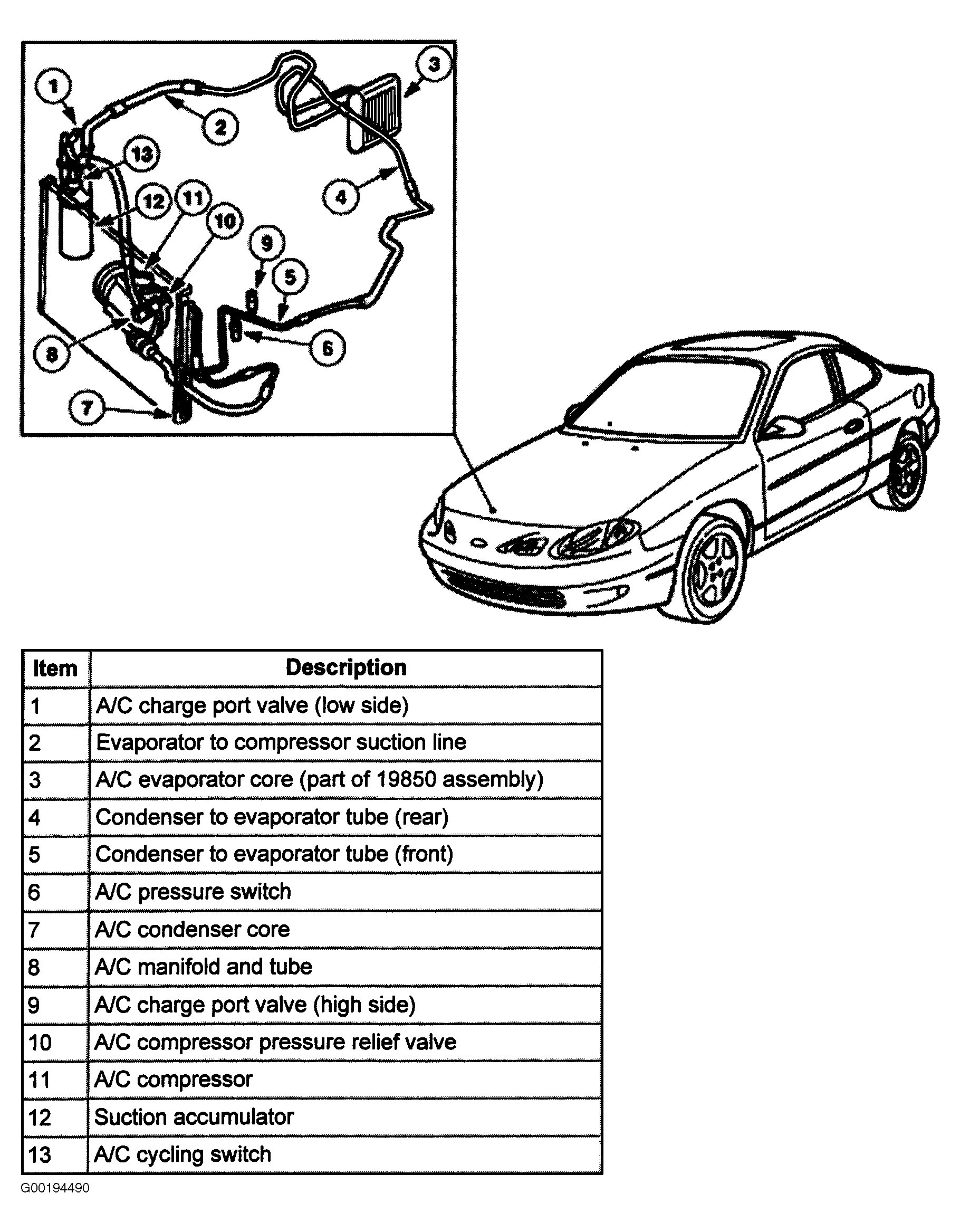

Fig 8: Locating High & Low Pressure Service Valves (Escort & ZX2)
G00194490Courtesy of FORD MOTOR CO.

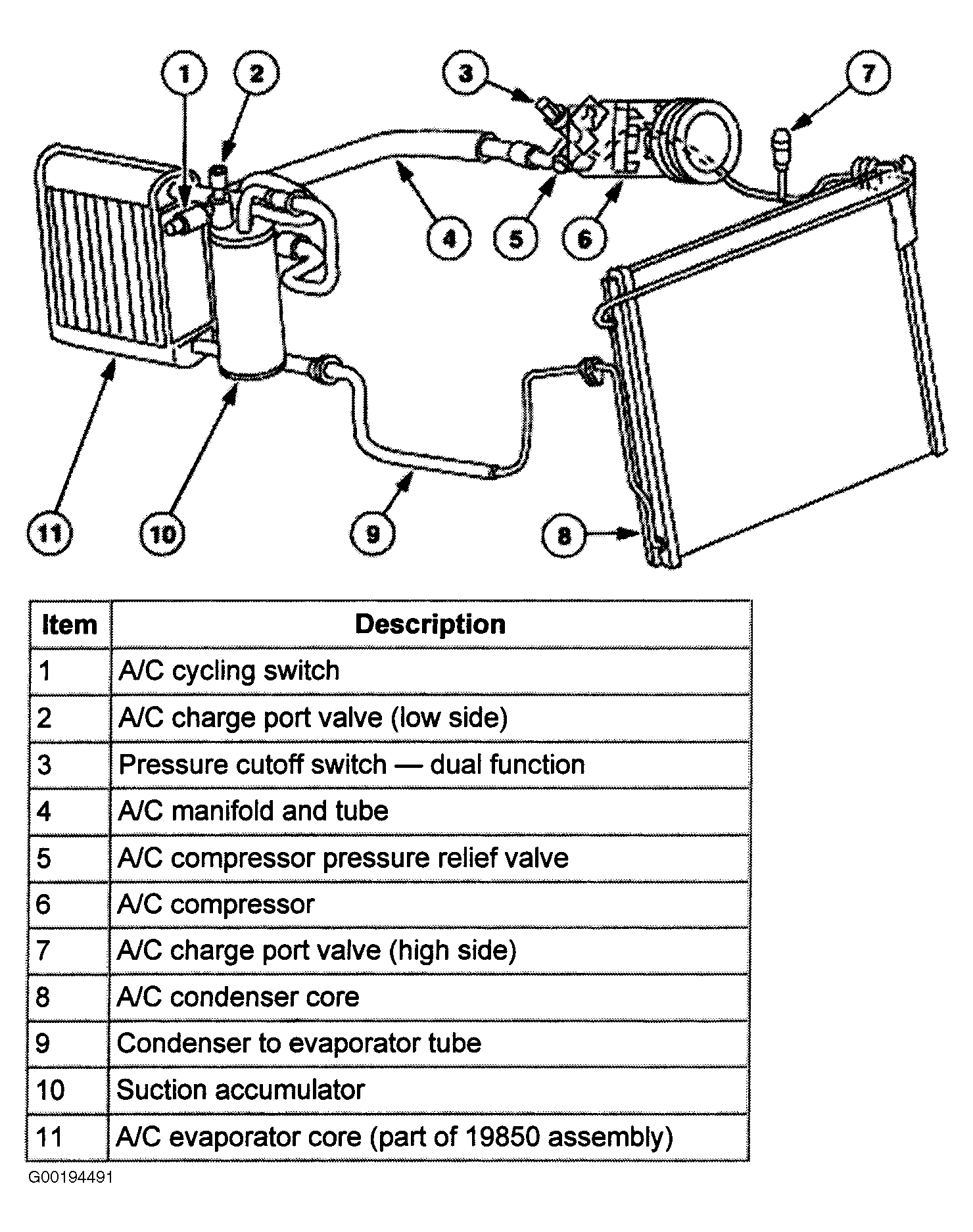

Fig 9: Locating High & Low Pressure Service Valves (Mustang)
G00194491Courtesy of FORD MOTOR CO.

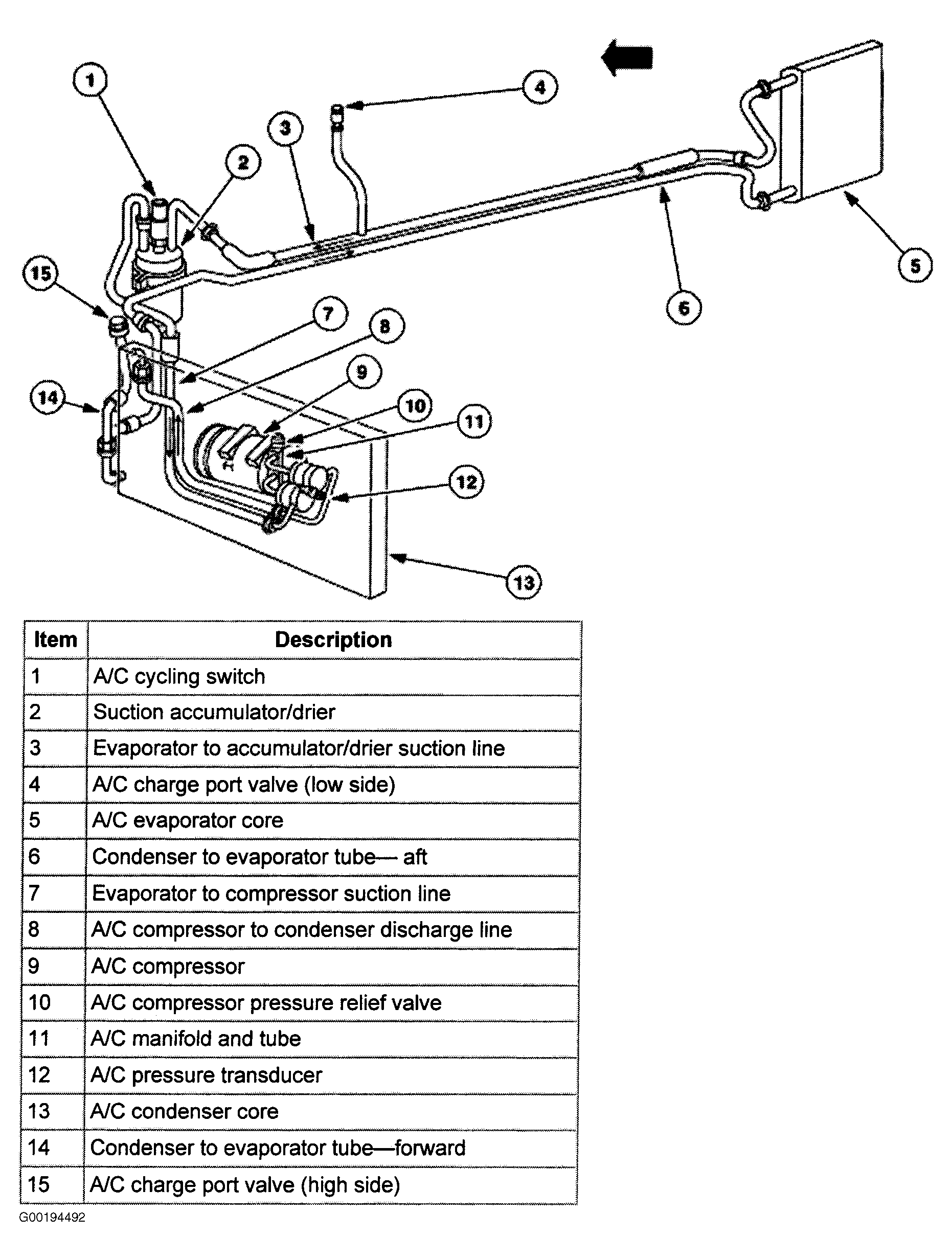

Fig 10: Locating High & Low Pressure Service Valves (Continental)
G00194492Courtesy of FORD MOTOR CO.

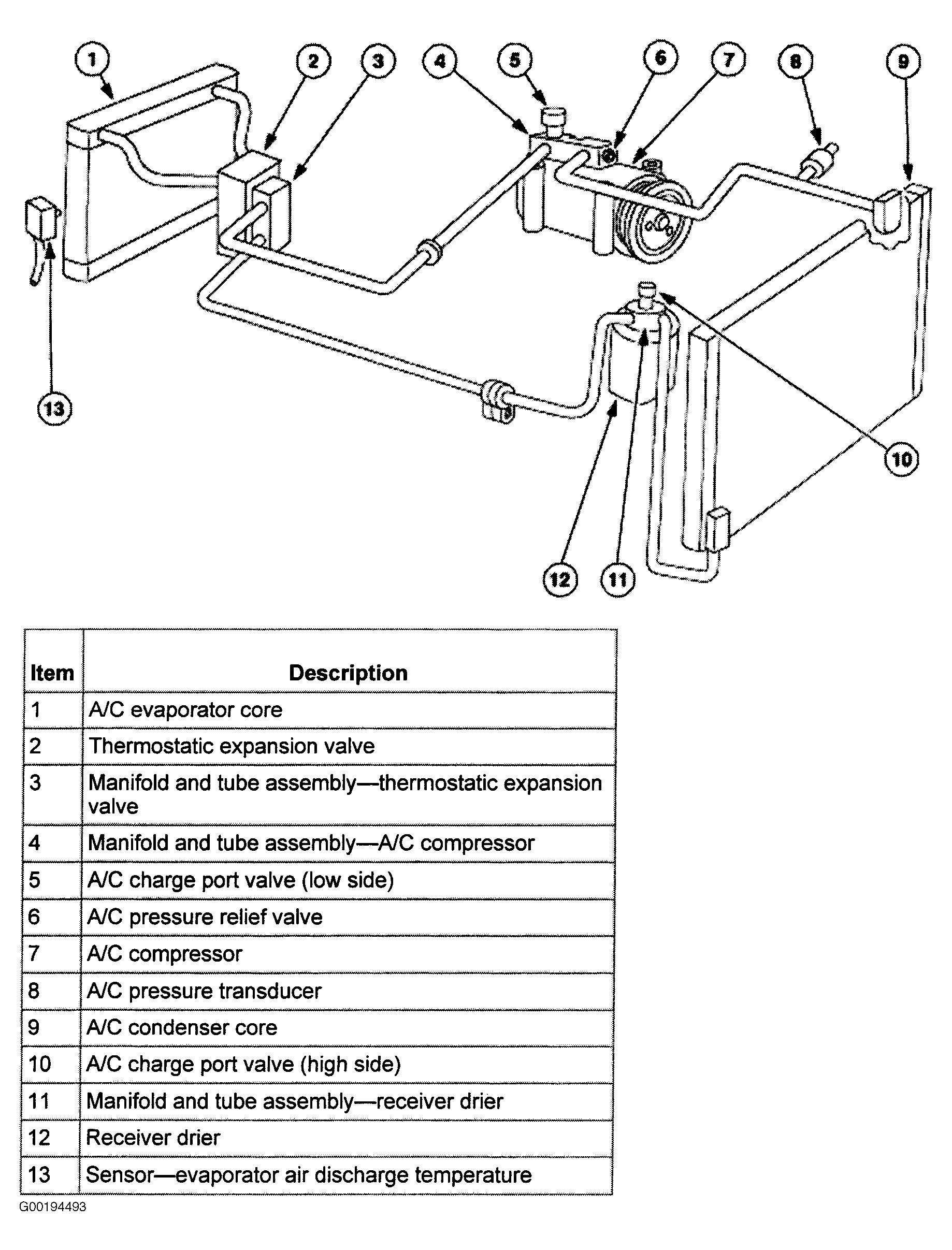

Fig 11: Locating High & Low Pressure Service Valves (LS & Thunderbird)
G00194493Courtesy of FORD MOTOR CO.

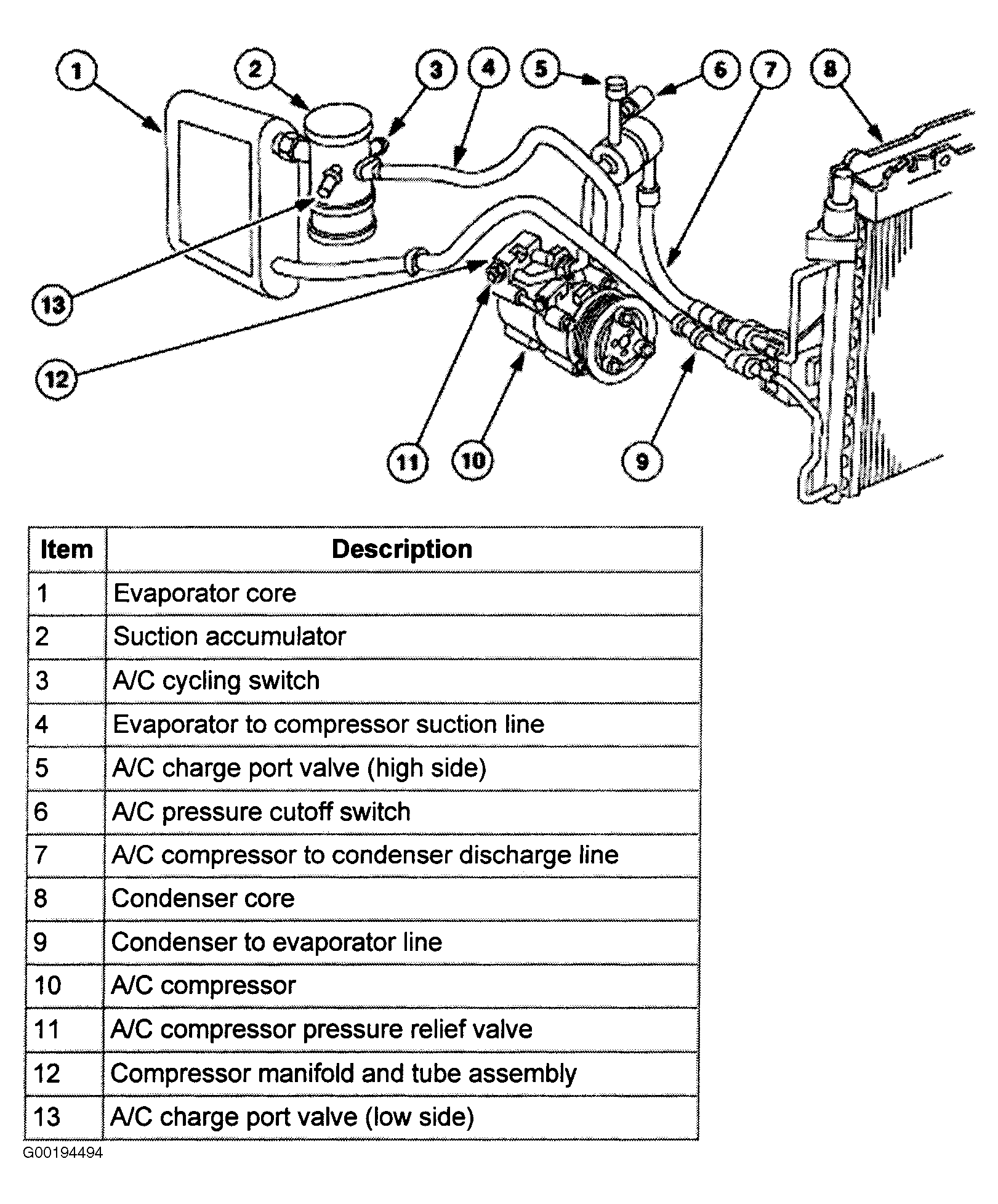

Fig 12: Locating High & Low Pressure Service Valves (Crown Victoria, Grand Marquis & Town Car)
G00194494Courtesy of FORD MOTOR CO.

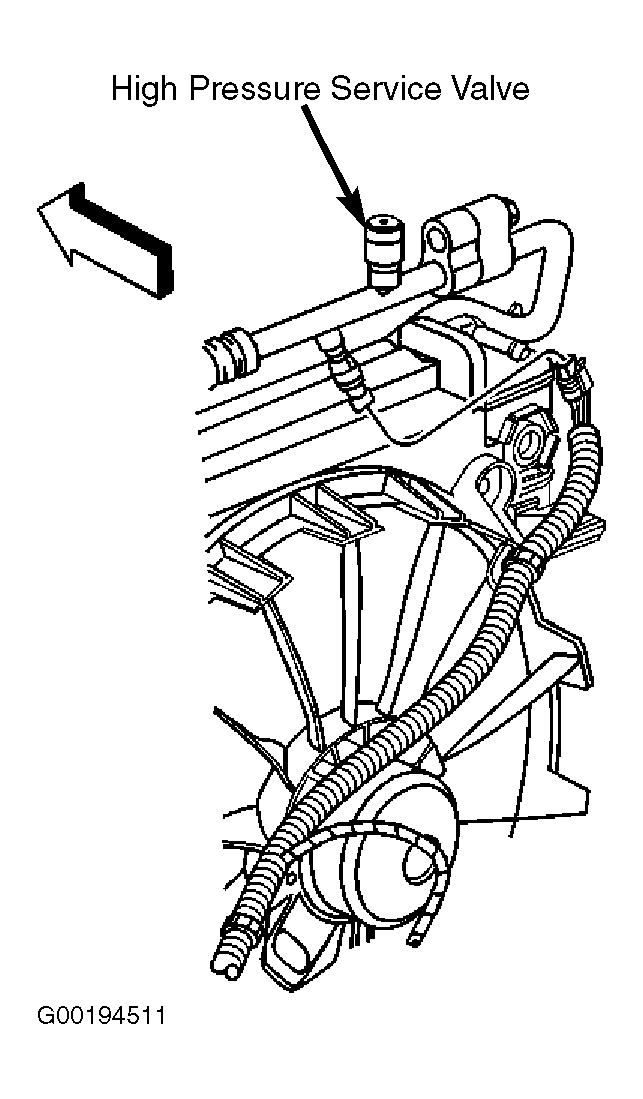

Fig 13: Locating High Pressure Service Valve (Alero, Grand Am & Malibu)
G00194511Courtesy of GENERAL MOTORS CORP.

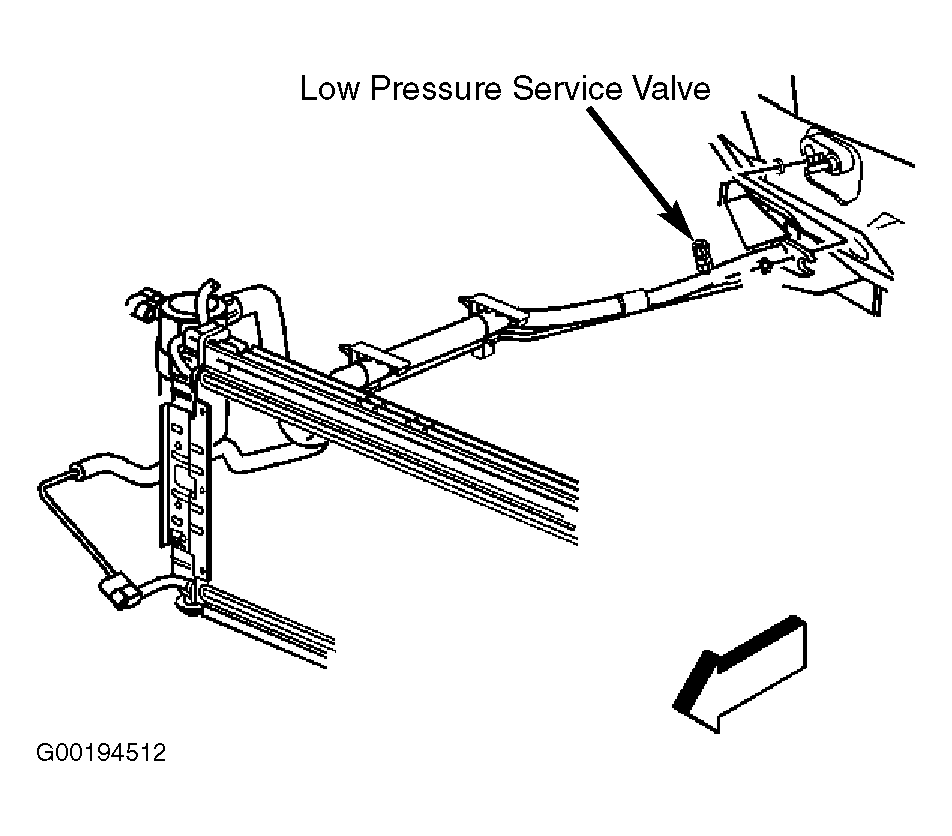

Fig 14: Locating Low Pressure Service Valve (Alero, Grand Am & Malibu)
G00194512Courtesy of GENERAL MOTORS CORP.

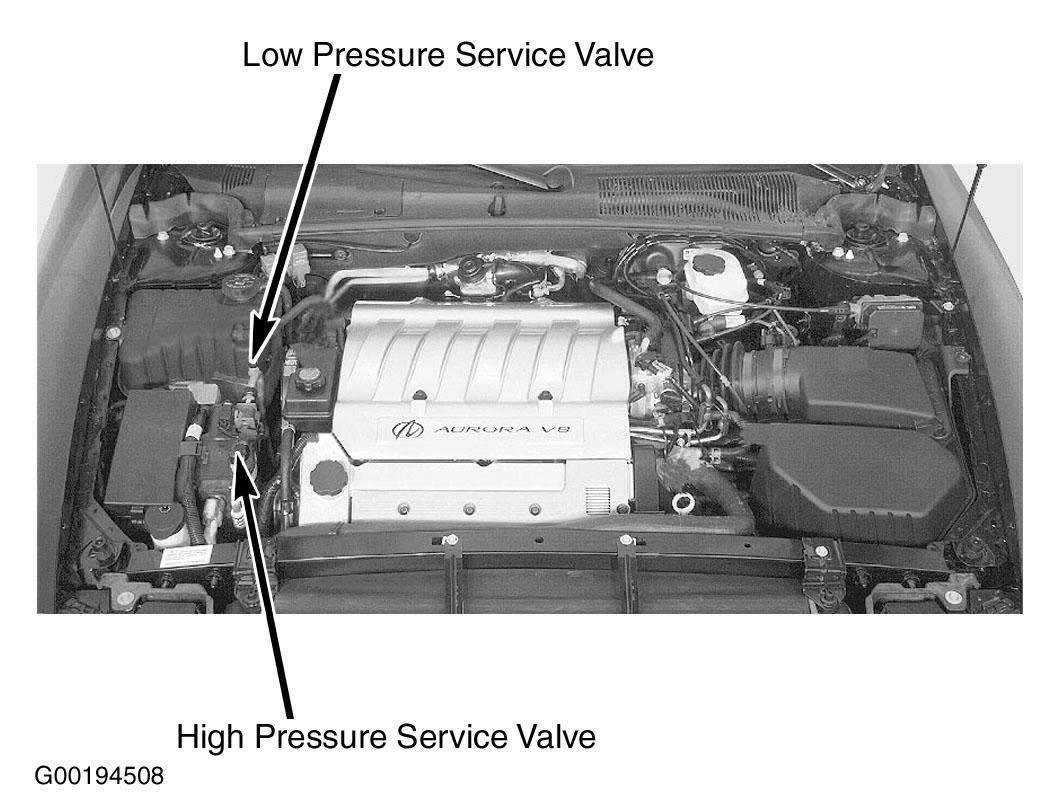

Fig 15: Locating High & Low Pressure Service Valves (Aurora)
G00194508Courtesy of GENERAL MOTORS CORP.

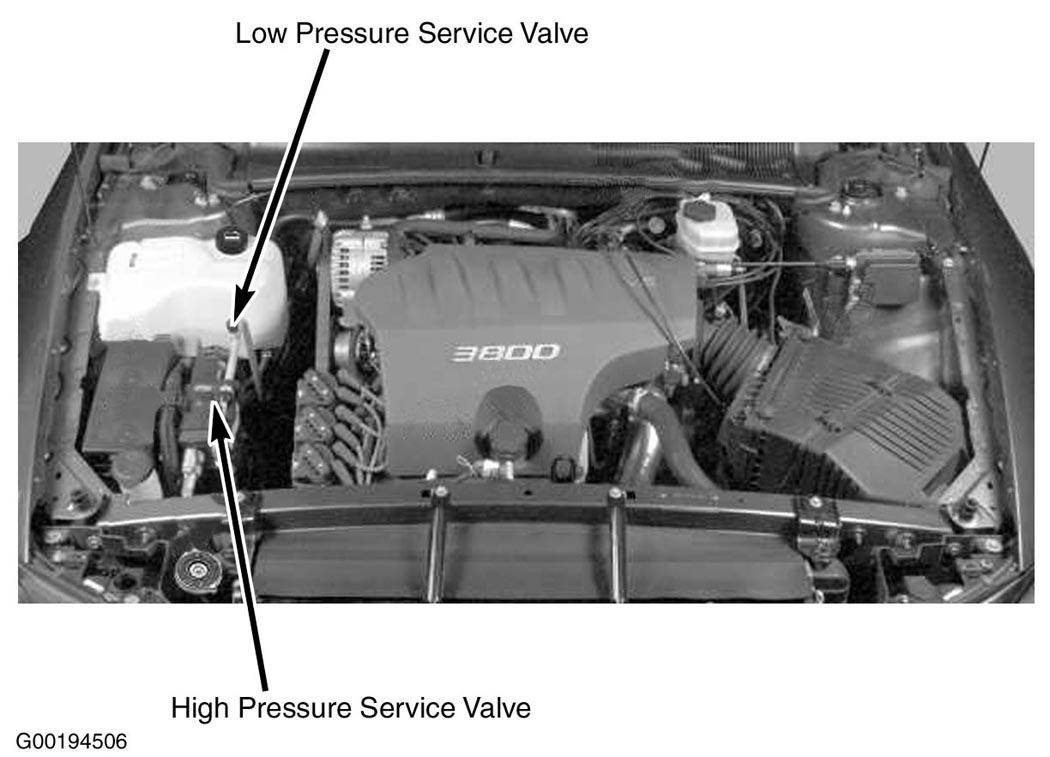

Fig 16: Locating High & Low Pressure Service Valves (Bonneville)
G00194506Courtesy of GENERAL MOTORS CORP.

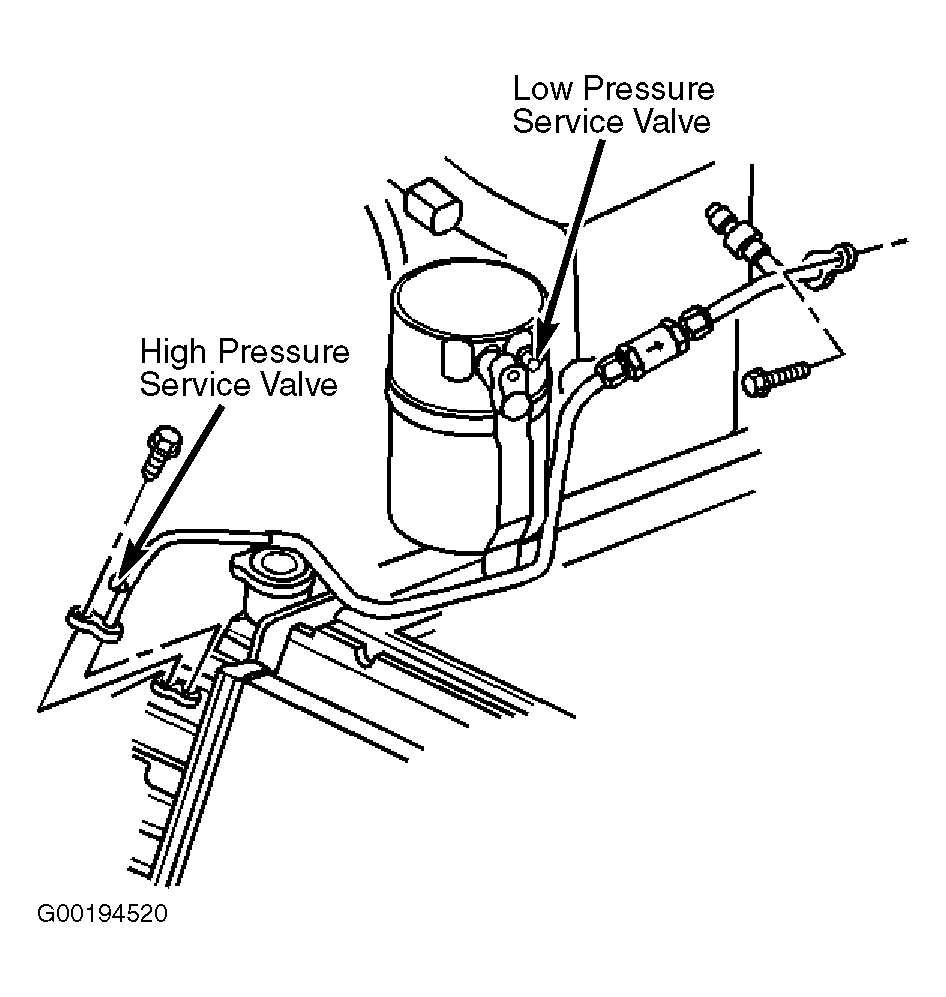

Fig 17: Locating High & Low Pressure Service Valves (Camaro & Firebird)
G00194520Courtesy of GENERAL MOTORS CORP.

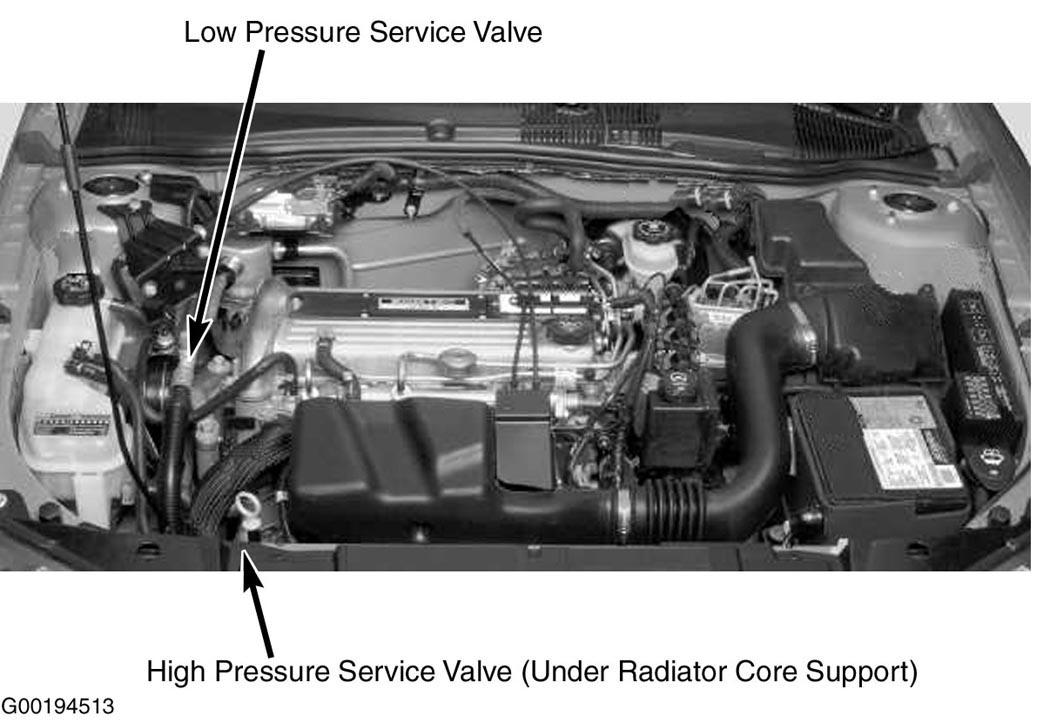

Fig 18: Locating High & Low Pressure Service Valves (Cavalier & Sunfire - 2.2L Model Shown; 2.0L & 2.4L Models Similar)
G00194513Courtesy of GENERAL MOTORS CORP.

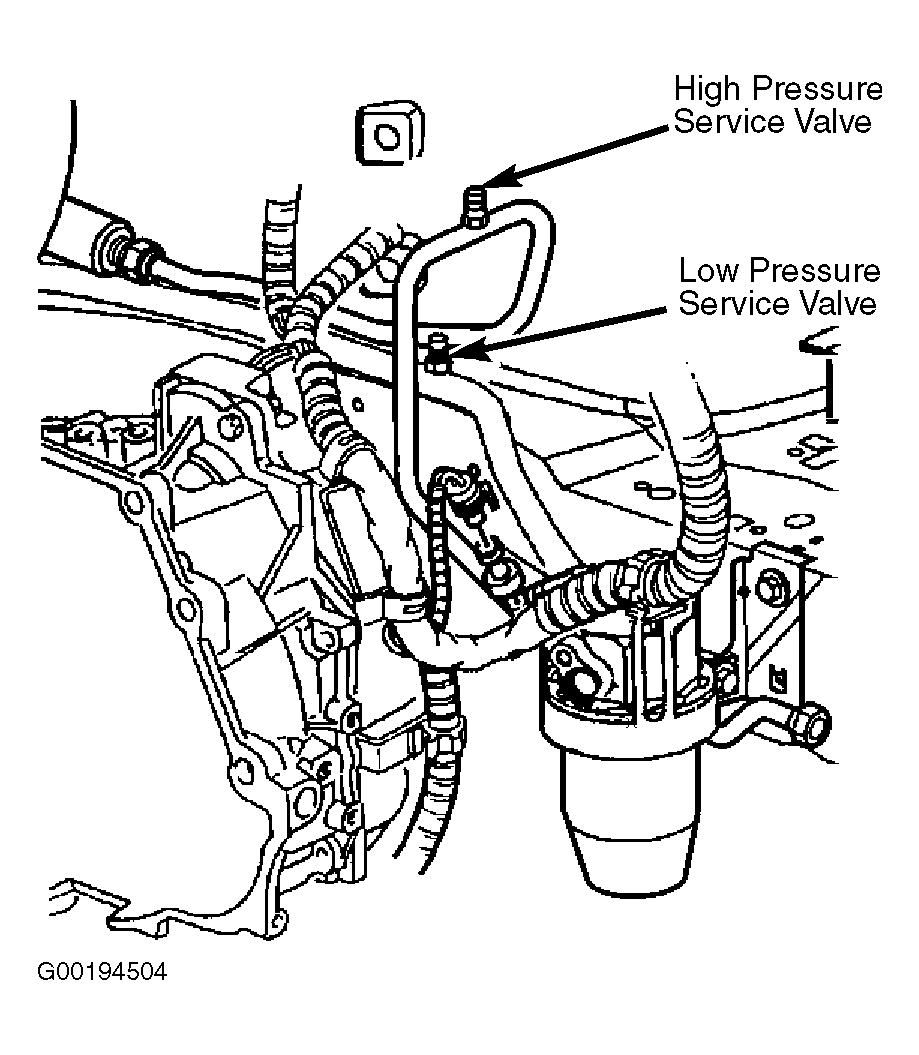

Fig 19: Locating High & Low Pressure Service Valves (Century & Intrigue)
G00194504Courtesy of GENERAL MOTORS CORP.

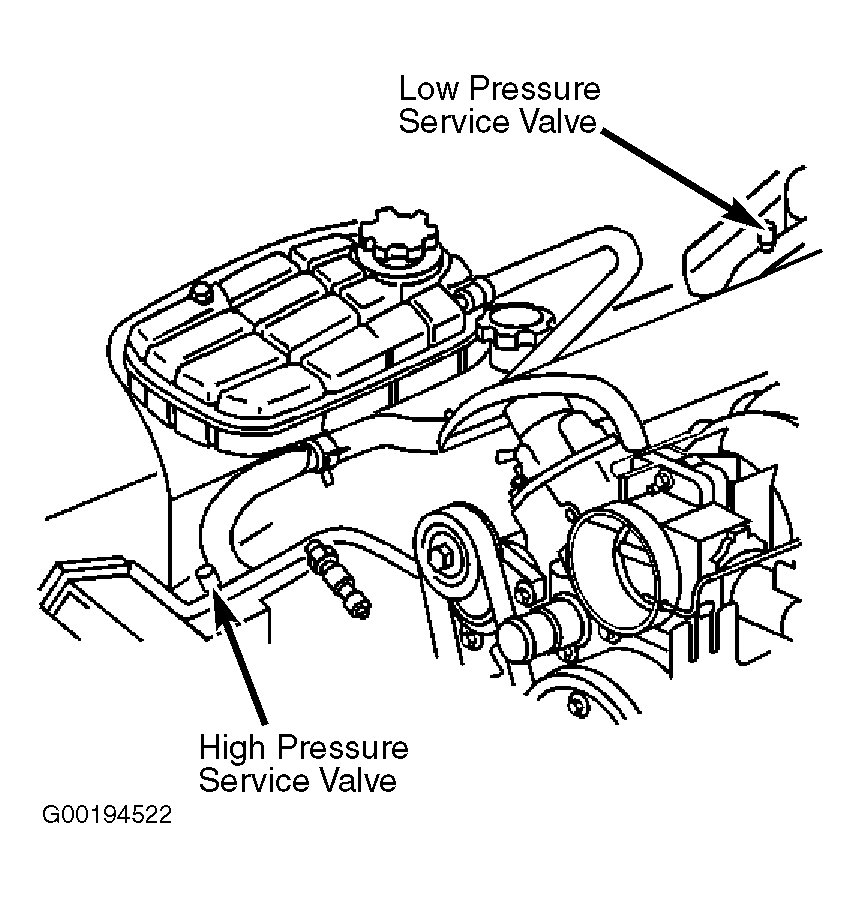

Fig 20: Locating High & Low Pressure Service Valves (Corvette)
G00194522Courtesy of GENERAL MOTORS CORP.

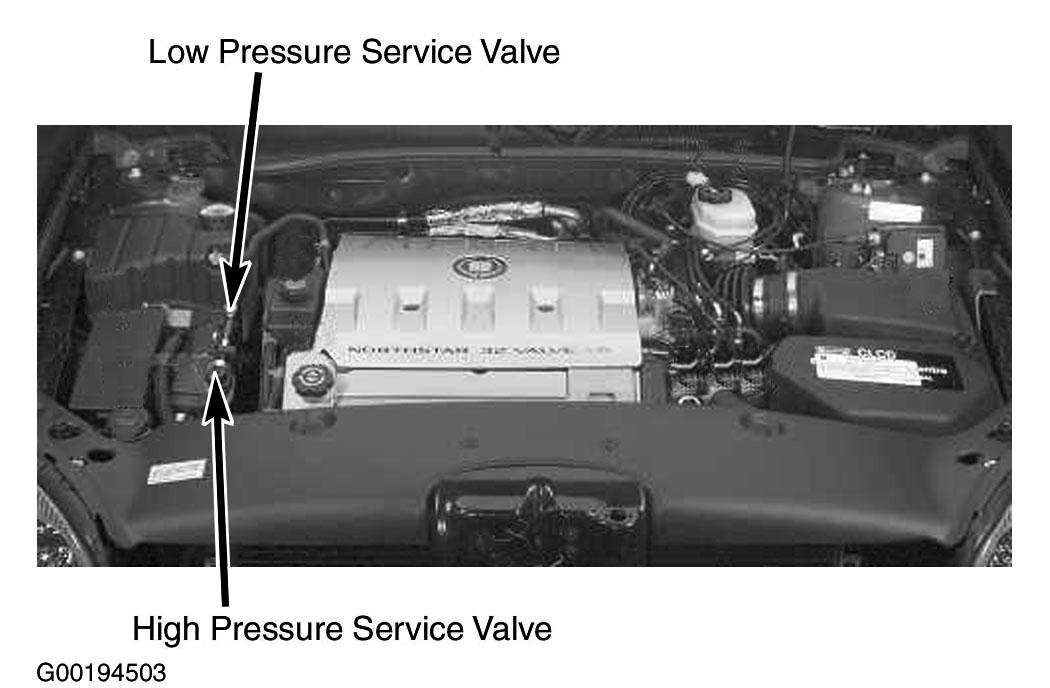

Fig 21: Locating High & Low Pressure Service Valves (DeVille)
G00194503Courtesy of GENERAL MOTORS CORP.

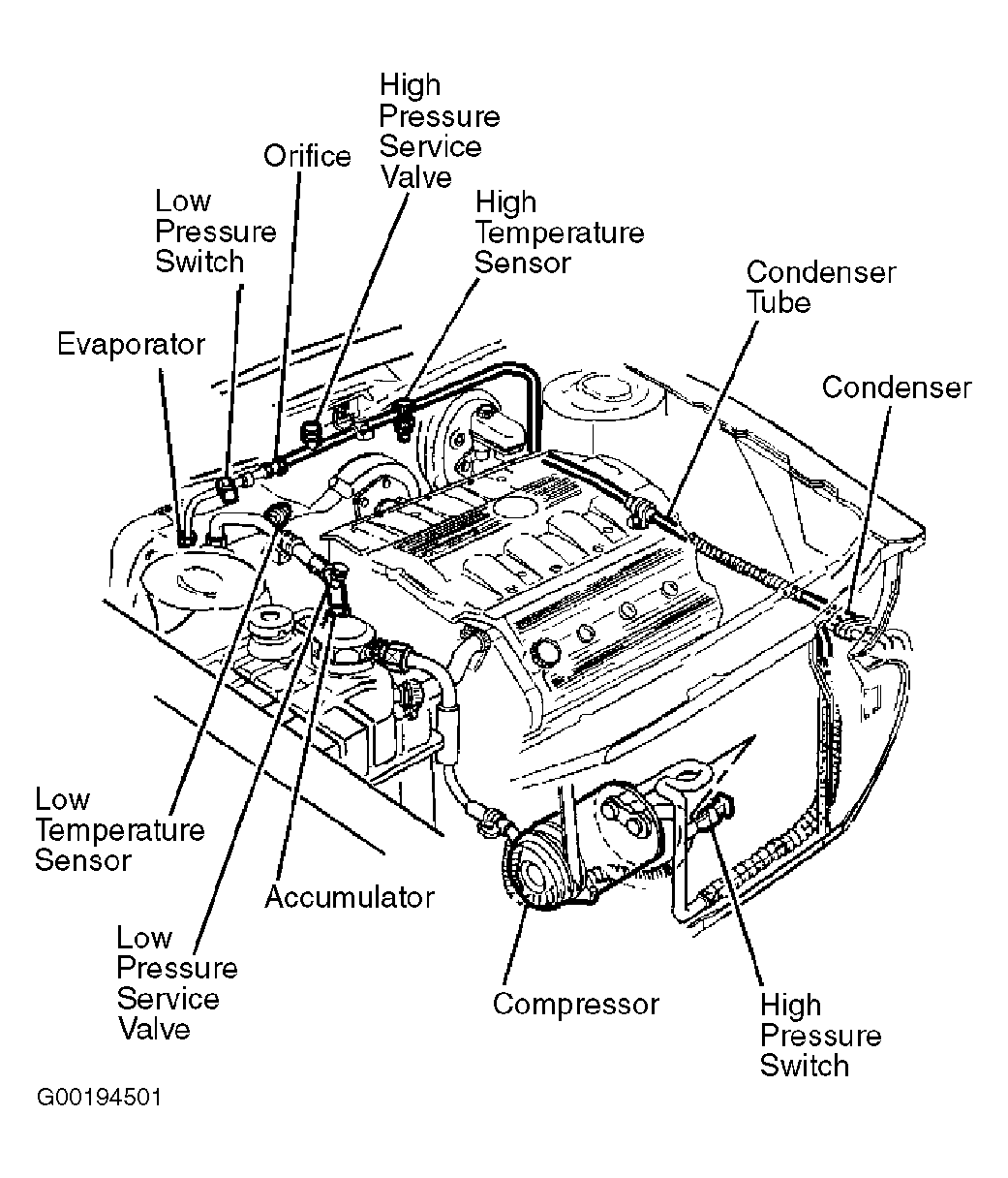

Fig 22: Locating High & Low Pressure Service Valves (Eldorado)
G00194501Courtesy of GENERAL MOTORS CORP.

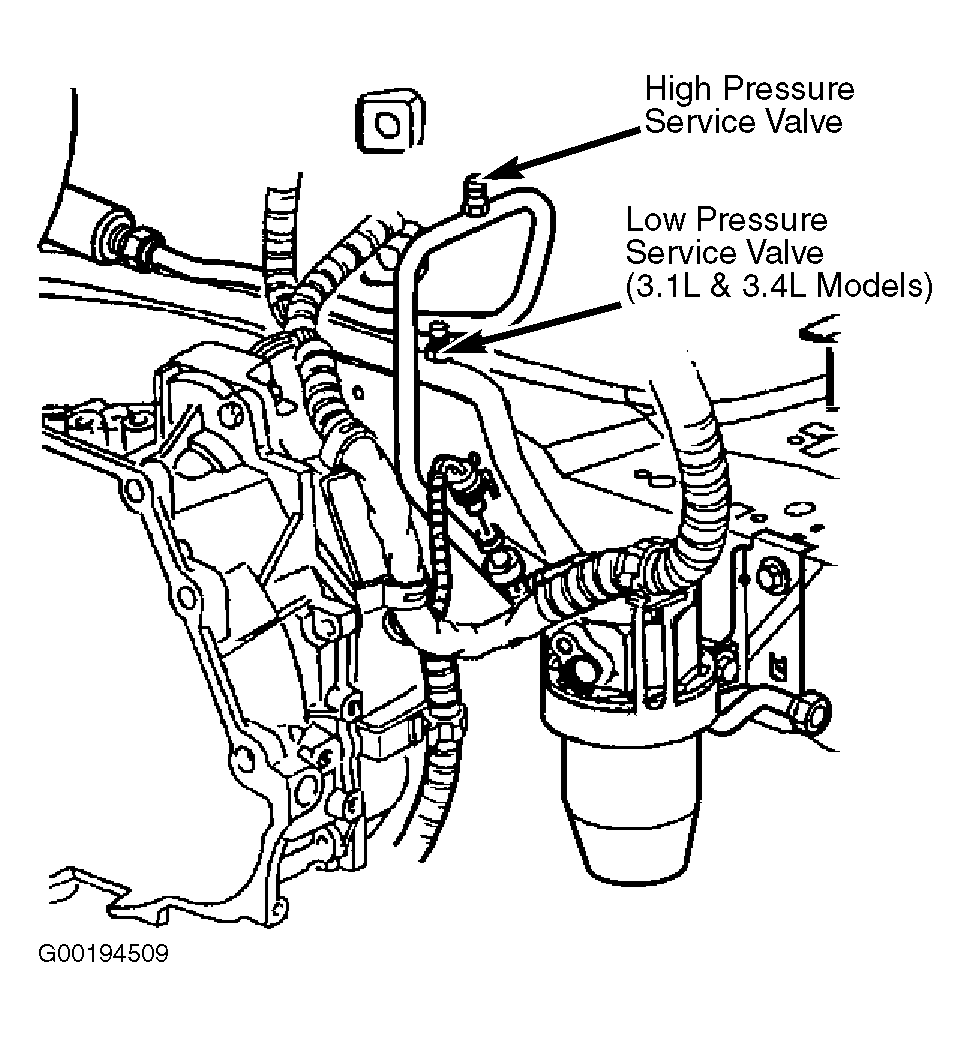

Fig 23: Locating High & Low Pressure Service Valves (Grand Prix, Impala, Monte Carlo & Regal - 1 Of 2)
G00194509Courtesy of GENERAL MOTORS CORP.

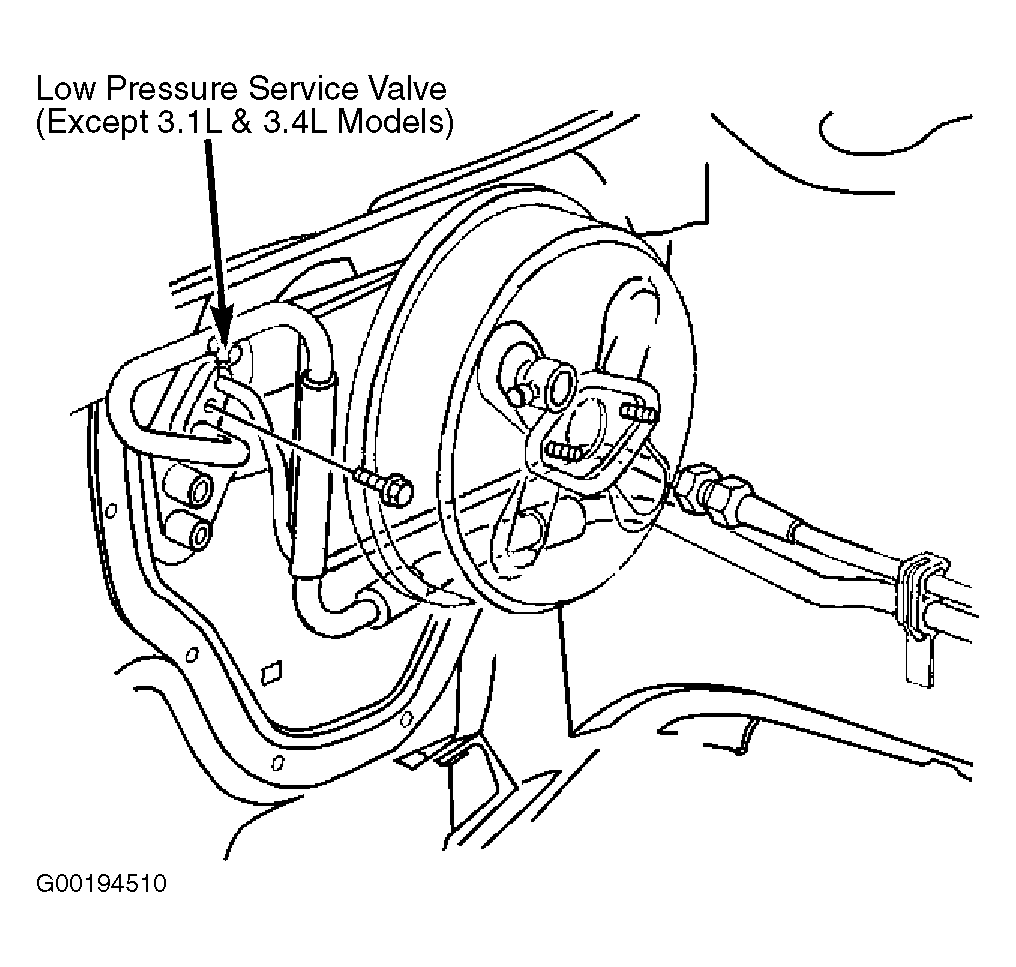

Fig 24: Locating High & Low Pressure Service Valves (Grand Prix, Impala, Monte Carlo & Regal - 2 Of 2)
G00194510Courtesy of GENERAL MOTORS CORP.

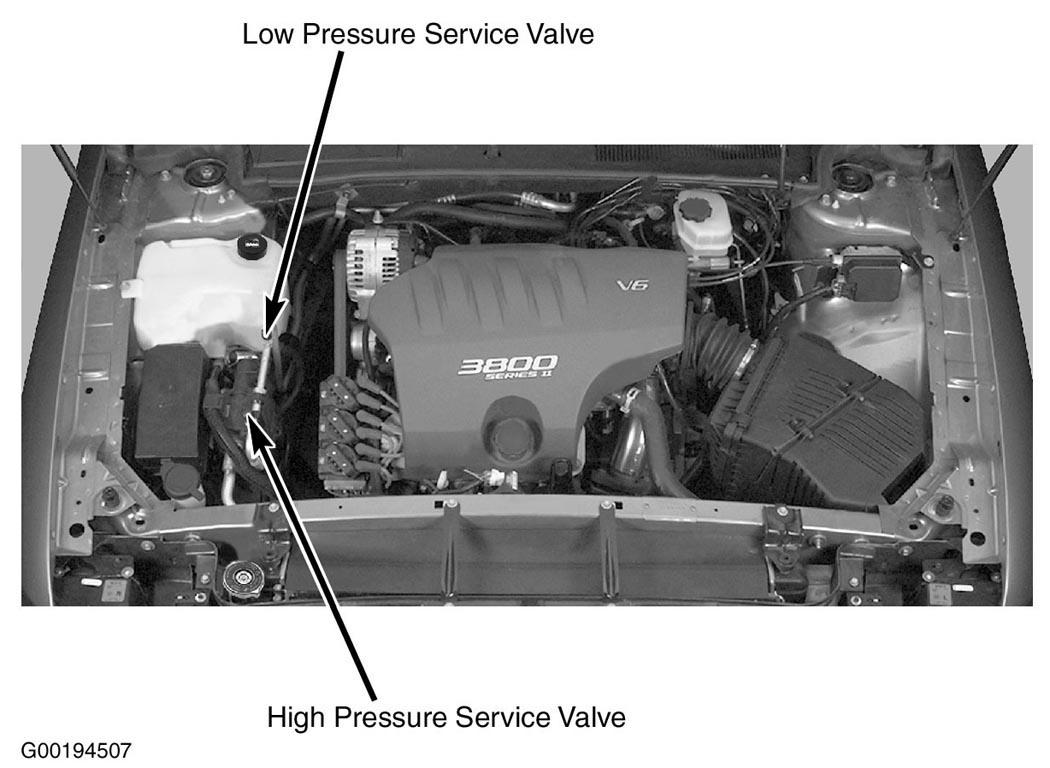

Fig 25: Locating High & Low Pressure Service Valves (LeSabre)
G00194507Courtesy of GENERAL MOTORS CORP.

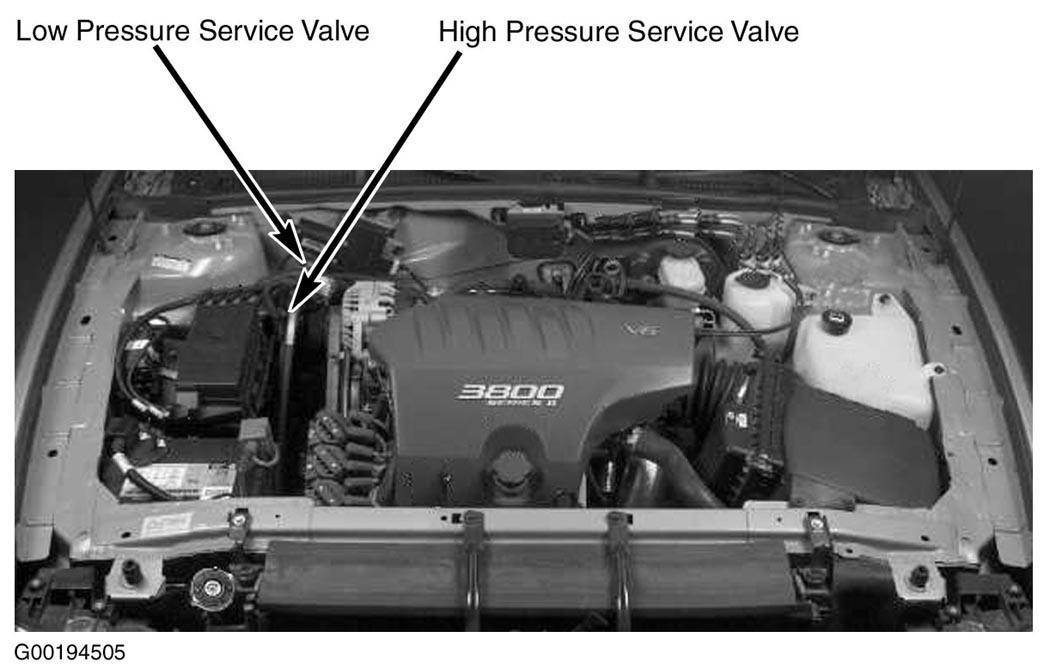

Fig 26: Locating High & Low Pressure Service Valves (Park Avenue)
G00194505Courtesy of GENERAL MOTORS CORP.

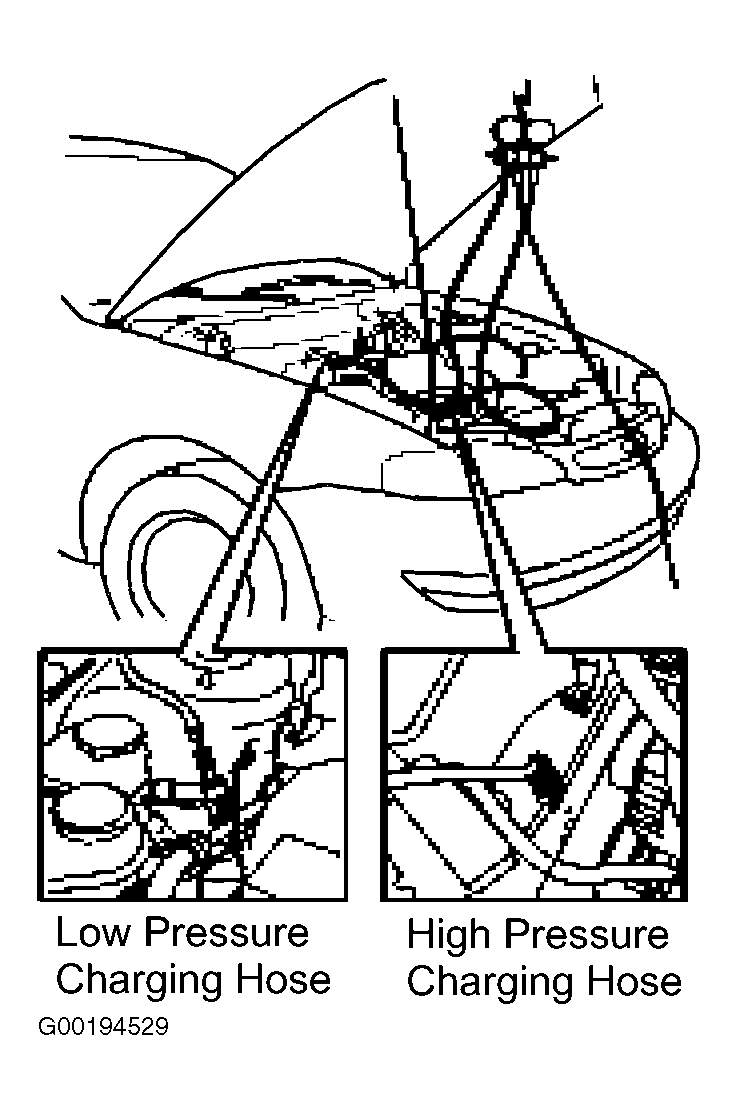

Fig 27: Locating High & Low Pressure Service Valves (Prizm)
G00194529Courtesy of GENERAL MOTORS CORP.

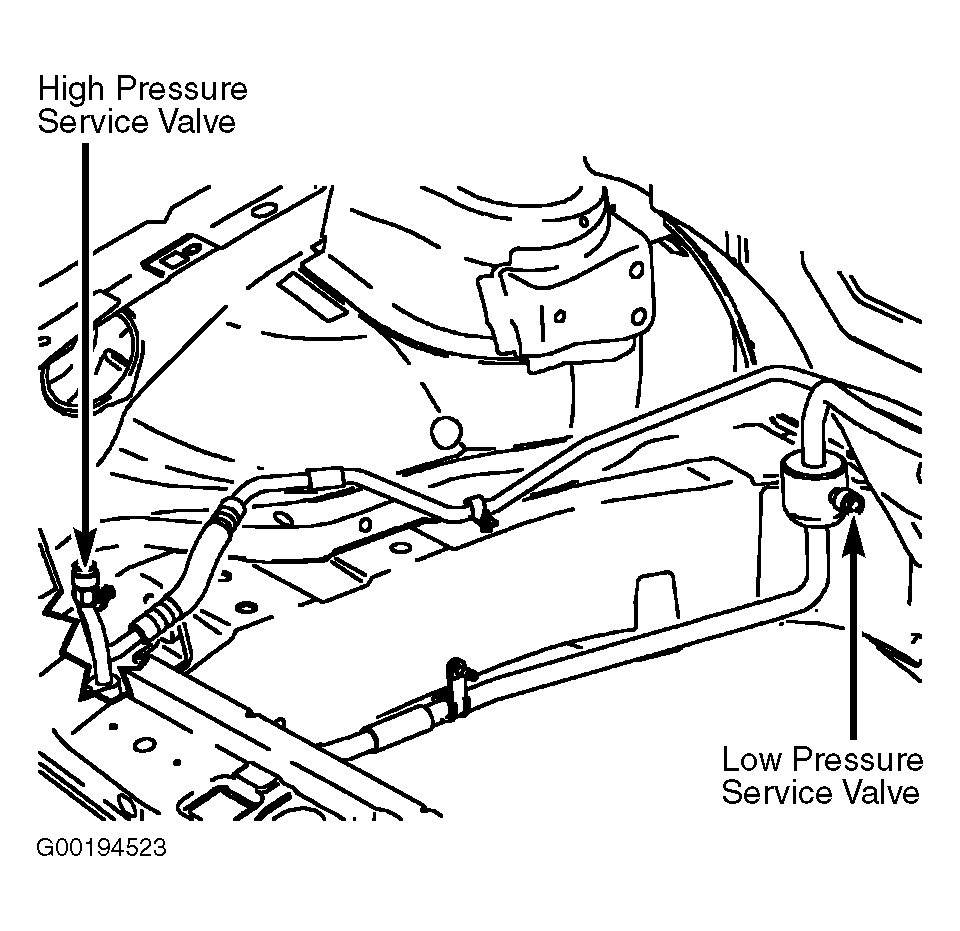

Fig 28: Locating High & Low Pressure Service Valves (Saturn - "L" Series
G00194523Courtesy of GENERAL MOTORS CORP.

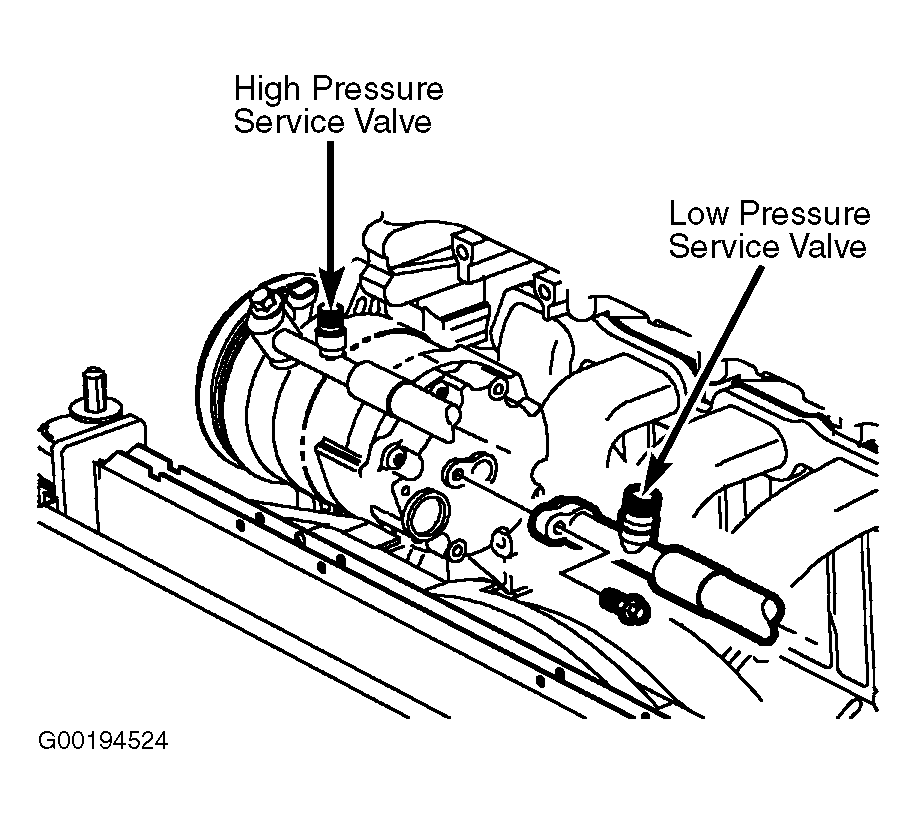

Fig 29: Locating High & Low Pressure Service Valves (Saturn - "S" Series)
G00194524Courtesy of GENERAL MOTORS CORP.

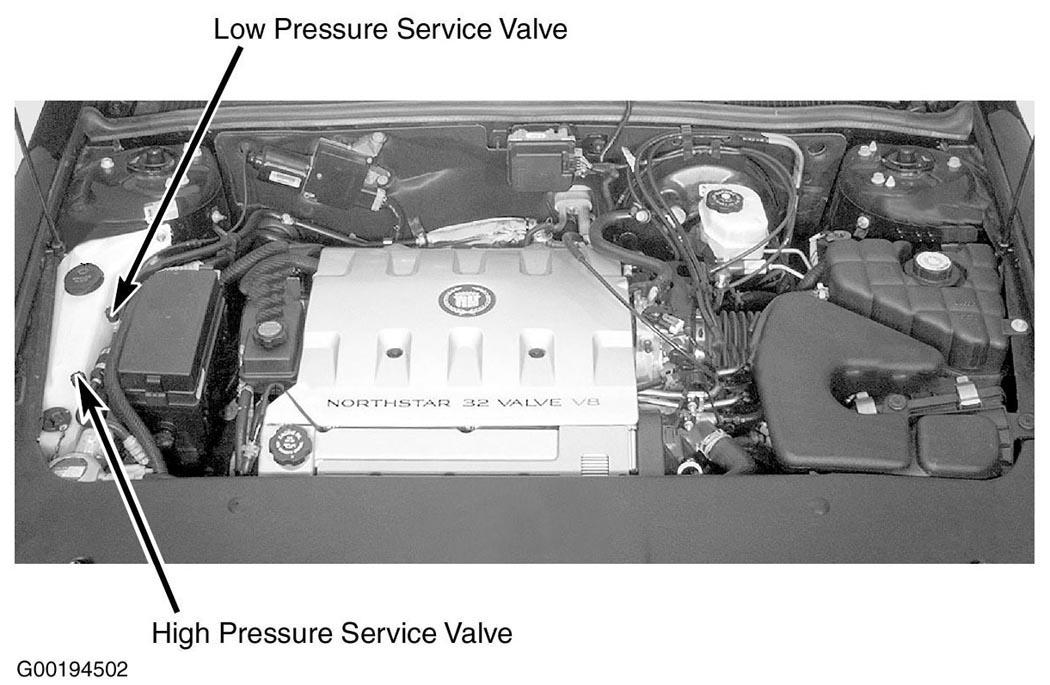

Fig 30: Locating High & Low Pressure Service Valves (Seville)
G00194502Courtesy of GENERAL MOTORS CORP.
SERVICE VALVE LOCATIONS (TRUCKS & VANS)

Vehicle High Low
DaimlerChrysler Corp.
Caravan, Town & Country, & Voyager See Fig 31 See Fig 31
Dakota & Durango
4.7L (1) (2)
5.9L (1) (3)
Ram Pickup (4) (5)
Ram Van & Ram Wagon See Fig 32 See Fig 32
Ford Motor Co.
Blackwood, Expedition & Navigator See Fig 33 See Fig 33
"E" Series (6) (7)
Escape (8) (9)
Explorer & Mountaineer (6) (7)
Excursion, F-Series Super Duty See Fig 34 See Fig 34
F-150 See Fig 35 See Fig 35
Ranger See Fig 36 See Fig 36
Villager (6) (7)
Windstar See Fig 37 See Fig 37
General Motors
Astro & Safari See Fig 38 See Fig 38
Aztek, Montana, Rendezvous, Silhouette & Venture See Fig 39 See Fig 39
Blazer, Jimmy Canadian, Sonoma & S-10 See Fig 40 See Fig 40
Bravada, Envoy & Trailblazer See Fig 41 See Fig 41
"C" & "K" Series See Fig 42 See Fig 42
Express & Savana See Fig 43 See Fig 43
Tracker See Fig 44 See Fig 44
Vue
2.2L See Fig 45 See Fig 46
3.0L See Fig 45 See Fig 47
Jeep
Grand Cherokee (10) (11)
Liberty (12) (13)
Wrangler (12) (14)
(1) On liquid line between condenser and evaporator, near front of engine compartment.
(2) On suction line between compressor and evaporator.
(3) On compressor manifold, directly over suction port of compressor.
(4) On liquid line at passenger side of engine compartment, near condenser.
(5) On suction line, near accumulator.
(6) On compressor manifold and tube assembly.
(7) On suction accumulator/drier.
(8) On condenser to evaporator line.
(9) On A/C manifold and tube assembly.
(10) On liquid line near receiver/drier.
(11) On suction line near evaporator at rear of engine compartment.
(12) On refrigerant line, near discharge port of compressor.
(13) On liquid line at side of engine compartment, near condenser.
(14) On liquid line at rear of engine compartment, near evaporator inlet tube.

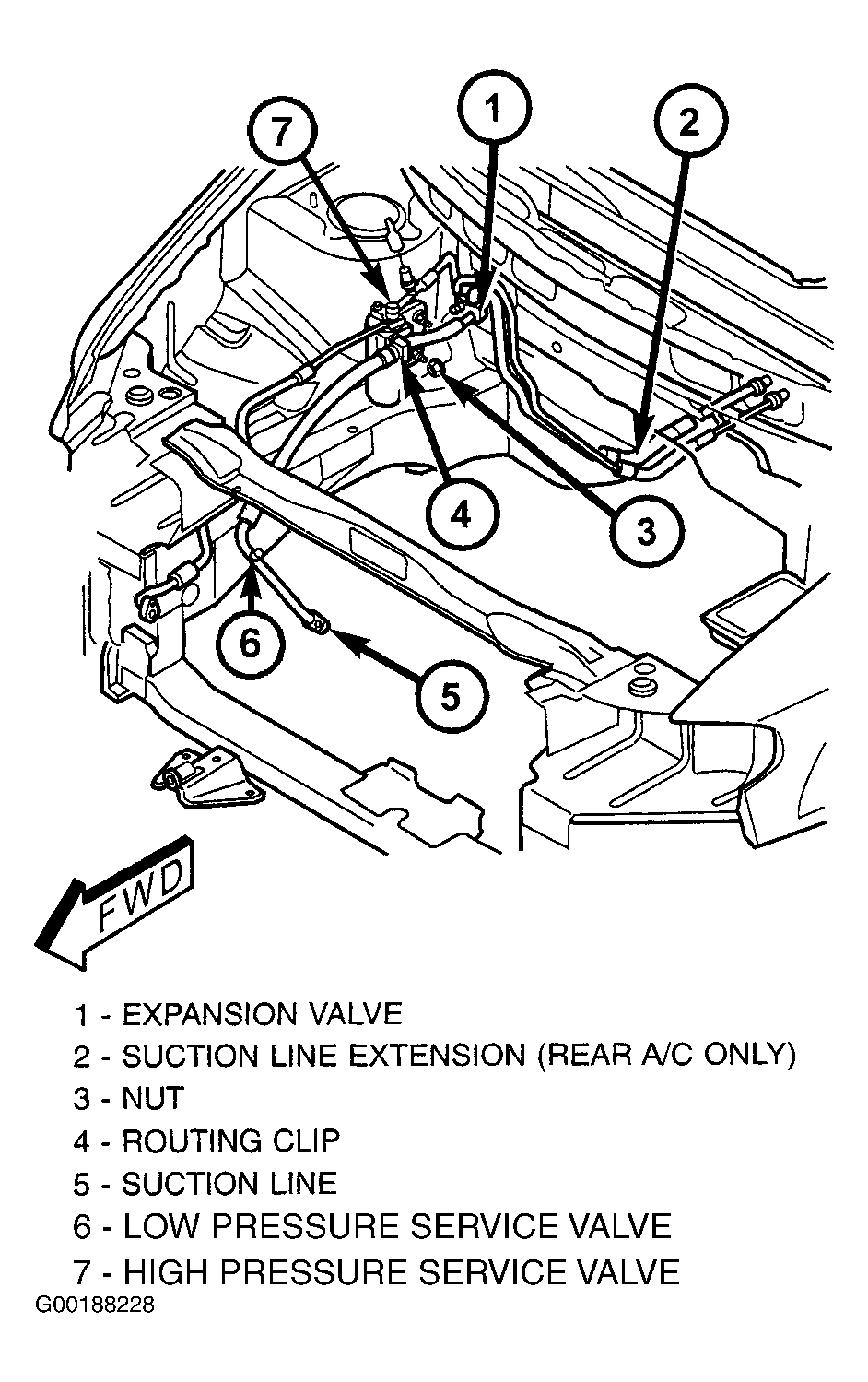

Fig 31: Locating High & Low Pressure Service Valves (Caravan, Grand Caravan, Town & Country & Voyager)
G00188228Courtesy of CHRYSLER CORP.

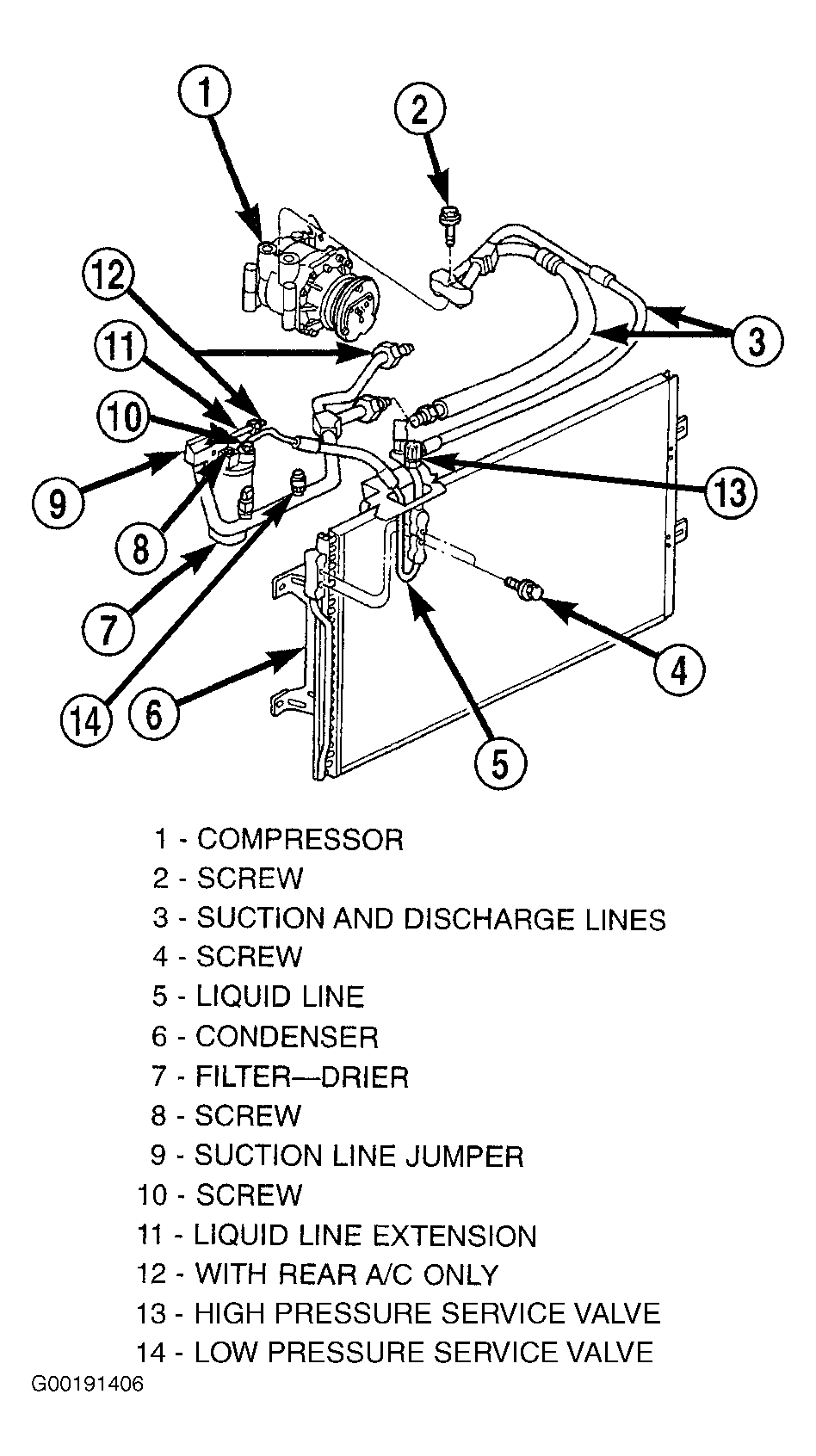

Fig 32: Locating High & Low Pressure Service Valves (Ram Van & Ram Wagon)
G00191406Courtesy of CHRYSLER CORP.

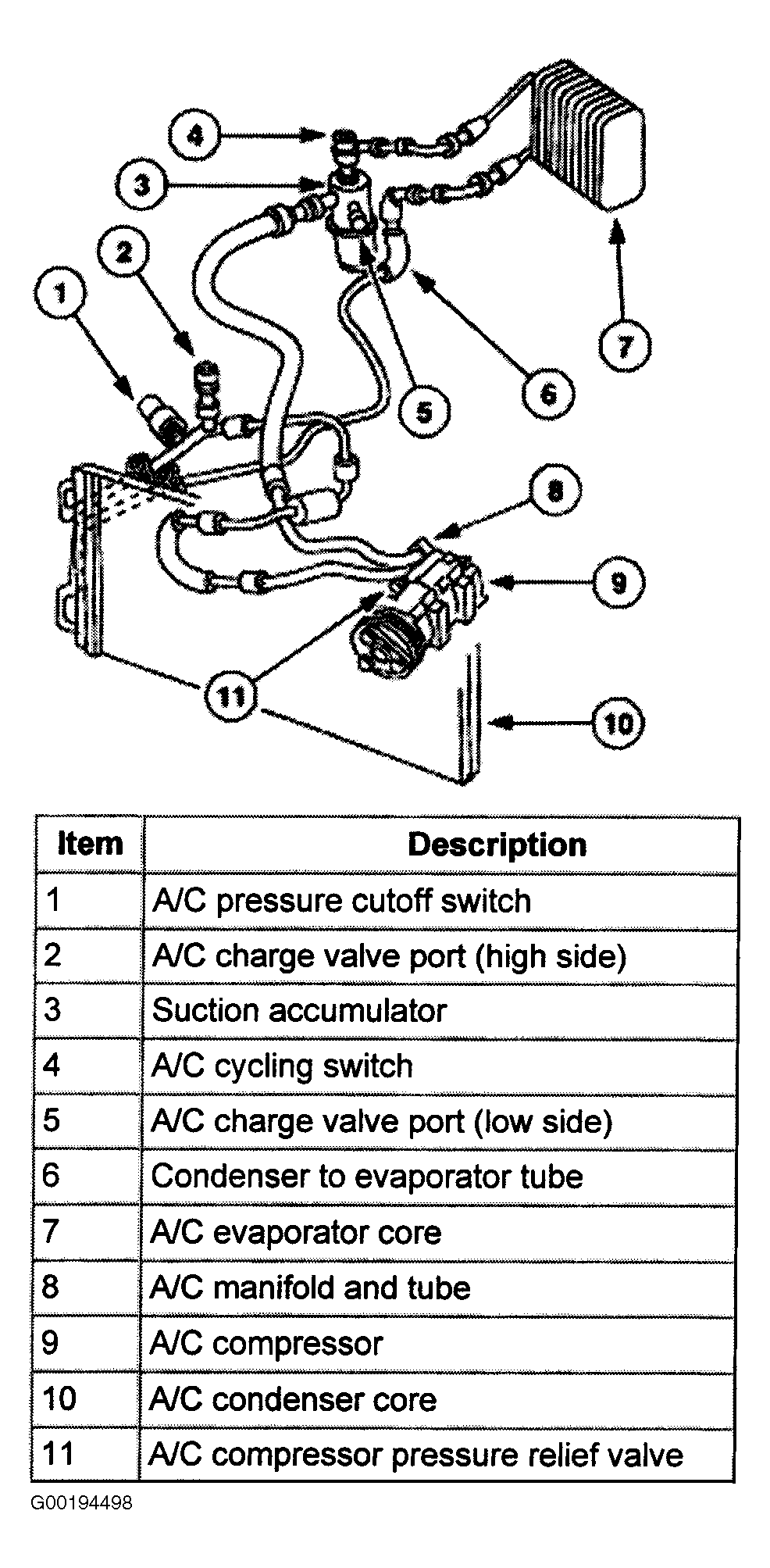

Fig 33: Locating High & Low Pressure Service Valves (Blackwood, Expedition & Navigator)
G00194498Courtesy of FORD MOTOR CO.

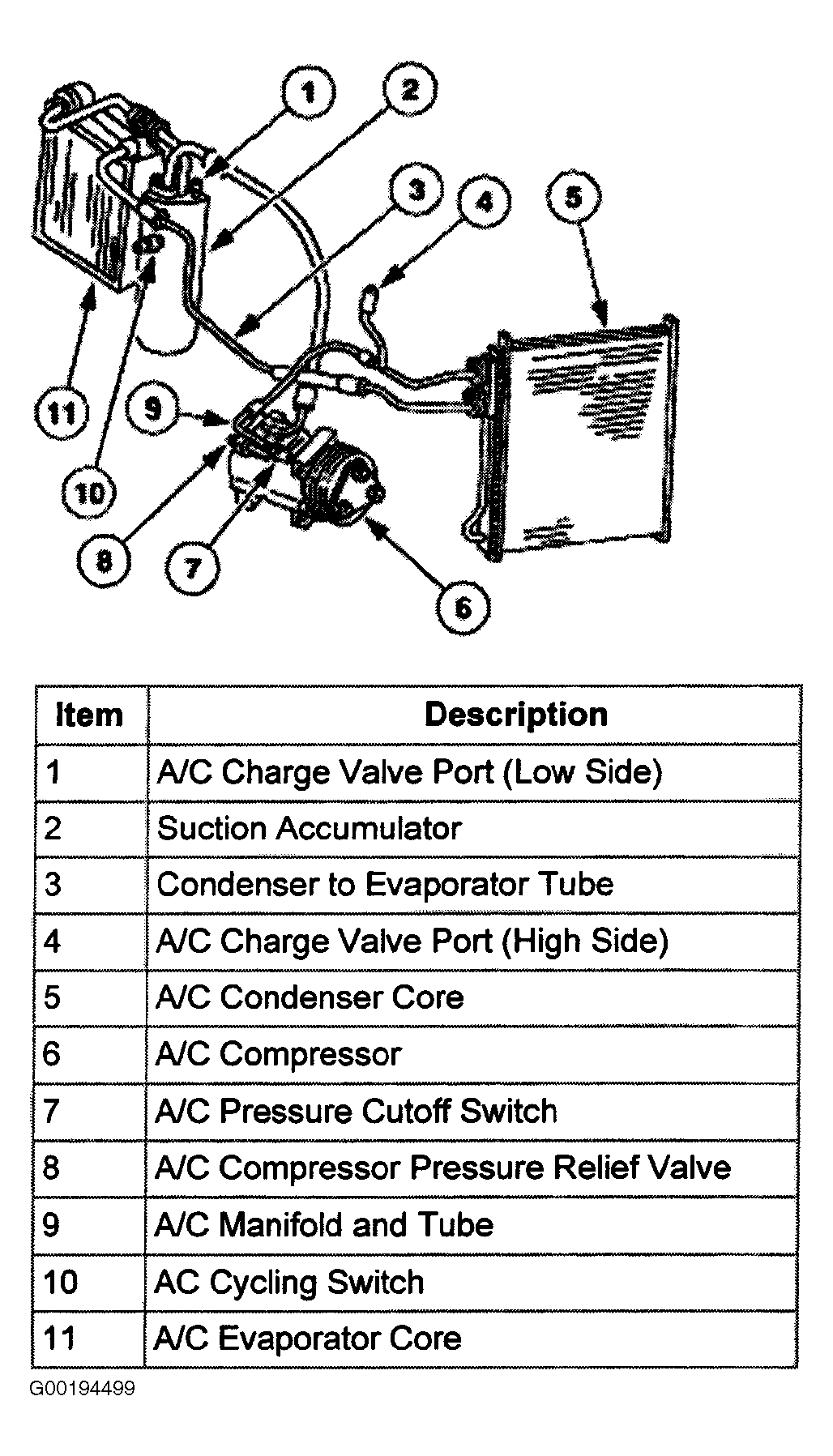

Fig 34: Locating High & Low Pressure Service Valves (Excursion & F- Series Super Duty - 5.4L & 6.8L Gasoline Models Shown; 7.3L Diesel Model Similar)
G00194499Courtesy of FORD MOTOR CO.

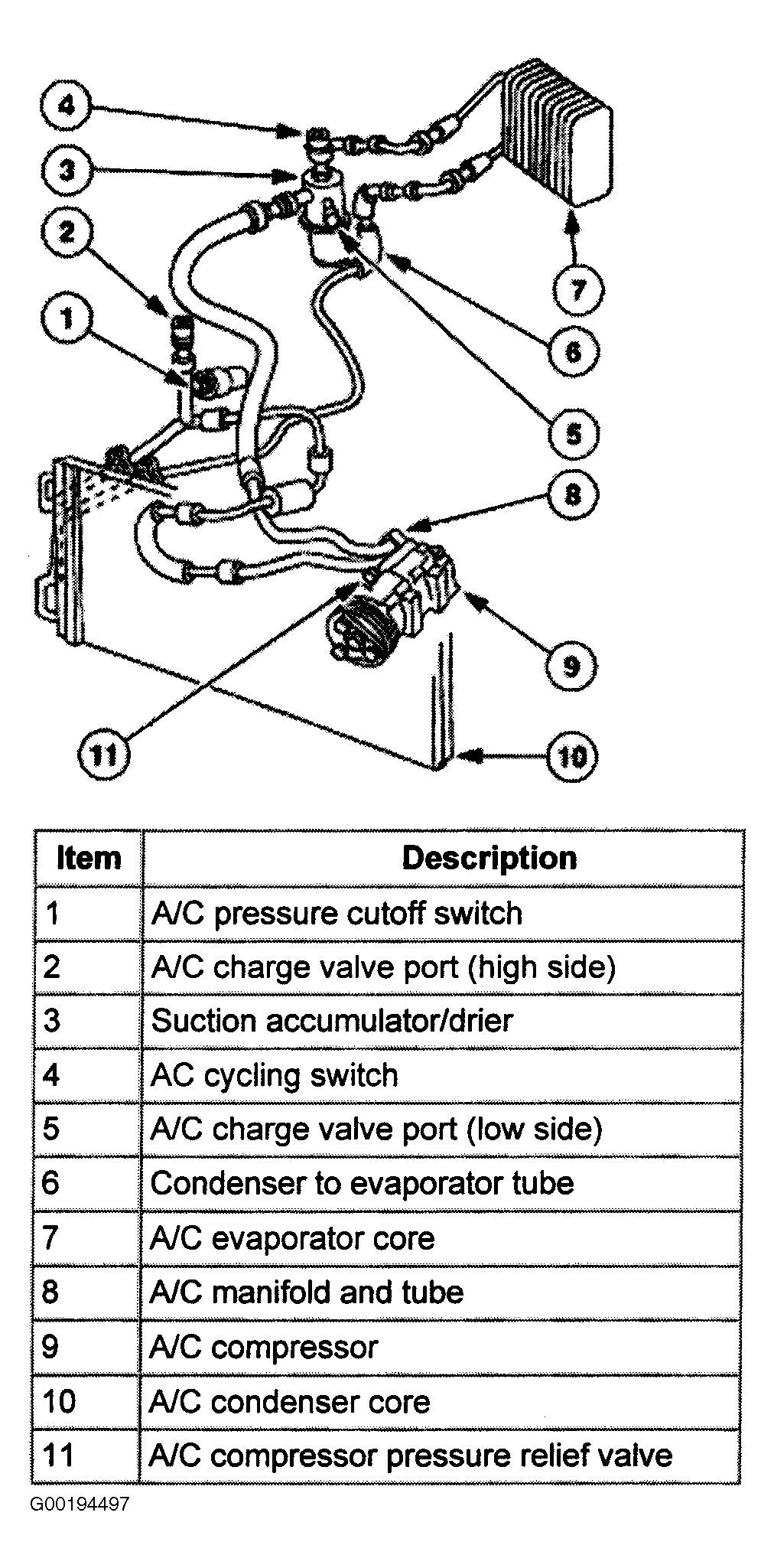

Fig 35: Locating High & Low Pressure Service Valves (F-150)
G00194497Courtesy of FORD MOTOR CO.

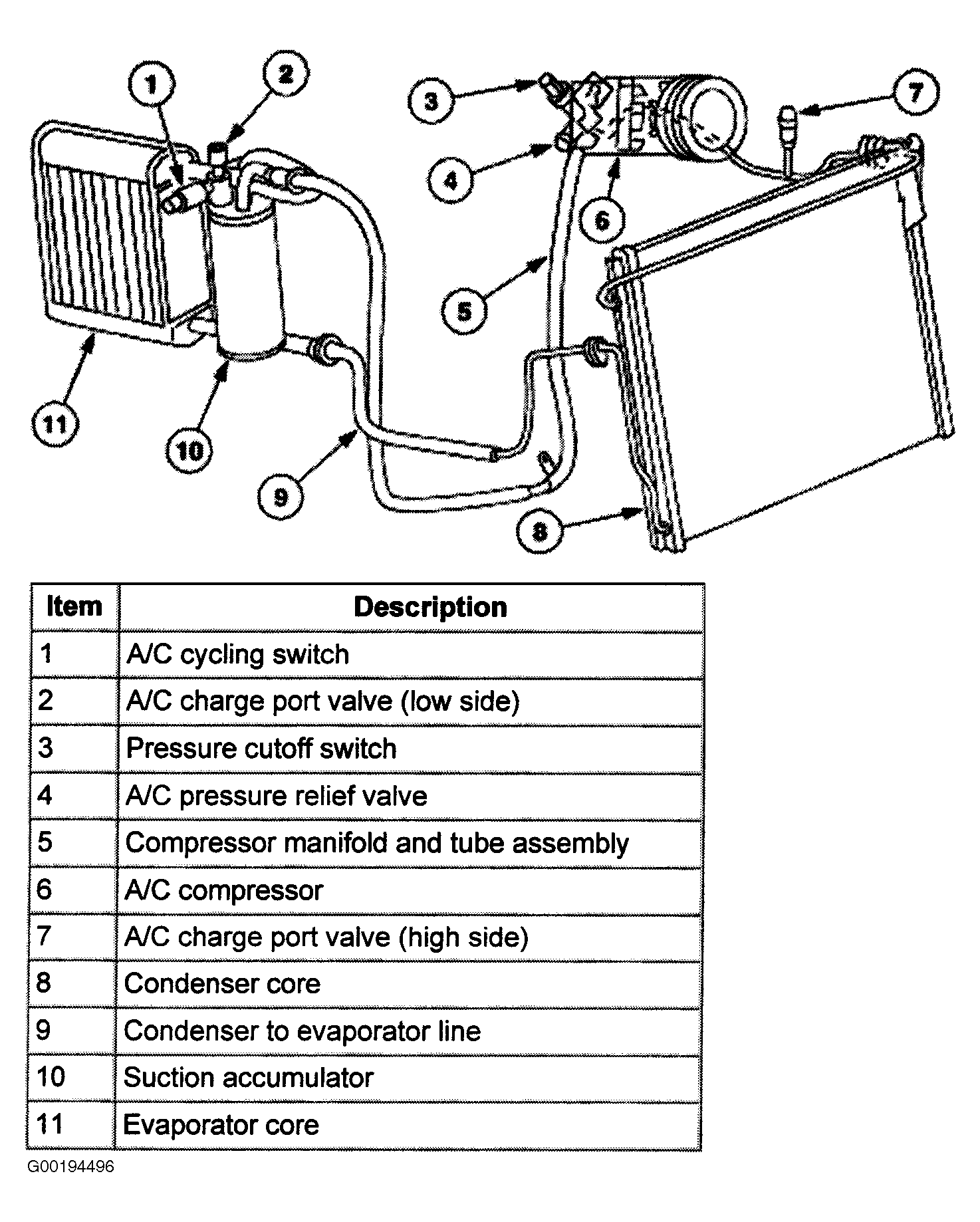

Fig 36: Locating High & Low Pressure Service Valves (Ranger - 4.0L Model Shown; Others Similar)
G00194496Courtesy of FORD MOTOR CO.

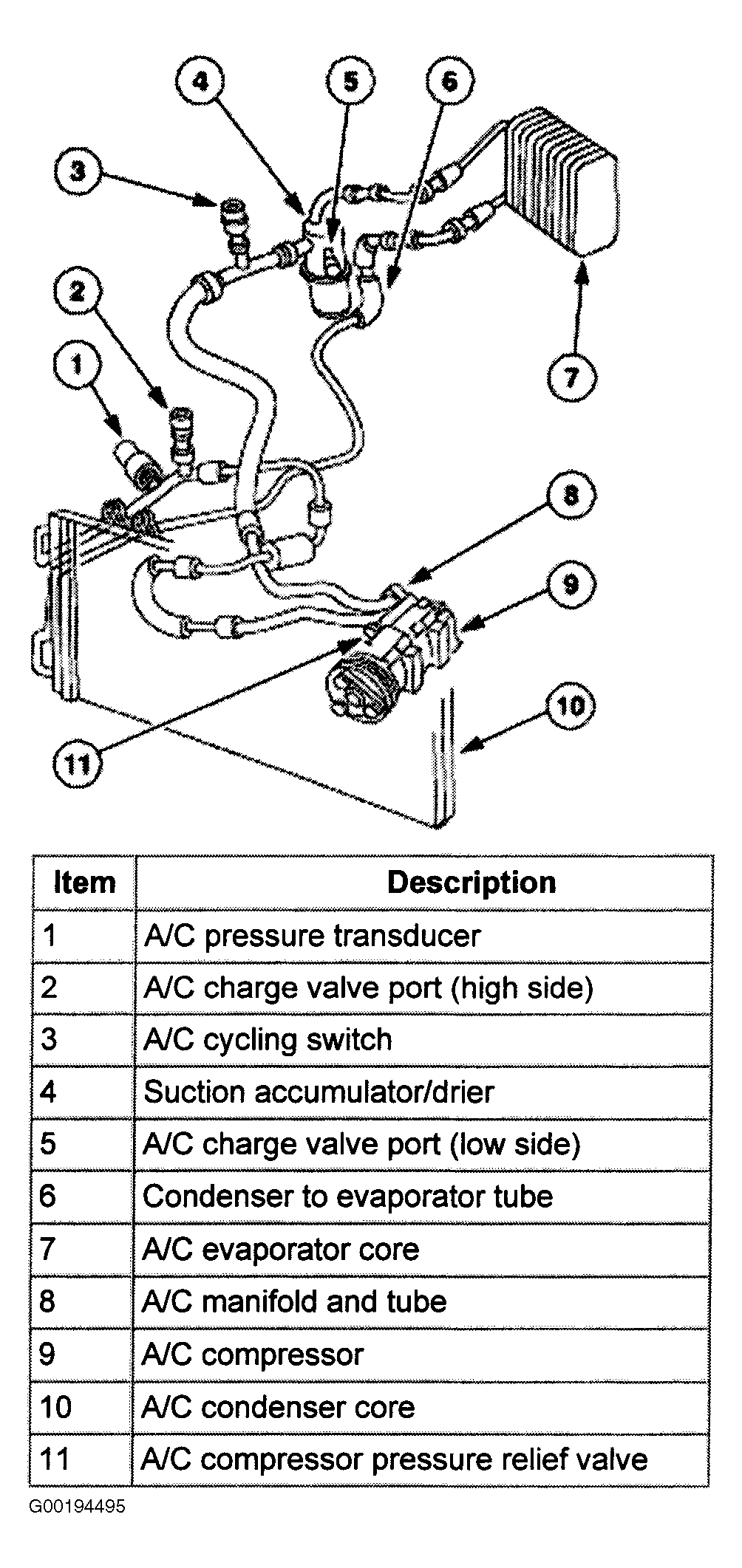

Fig 37: Locating High & Low Pressure Service Valves (Windstar)
G00194495Courtesy of FORD MOTOR CO.

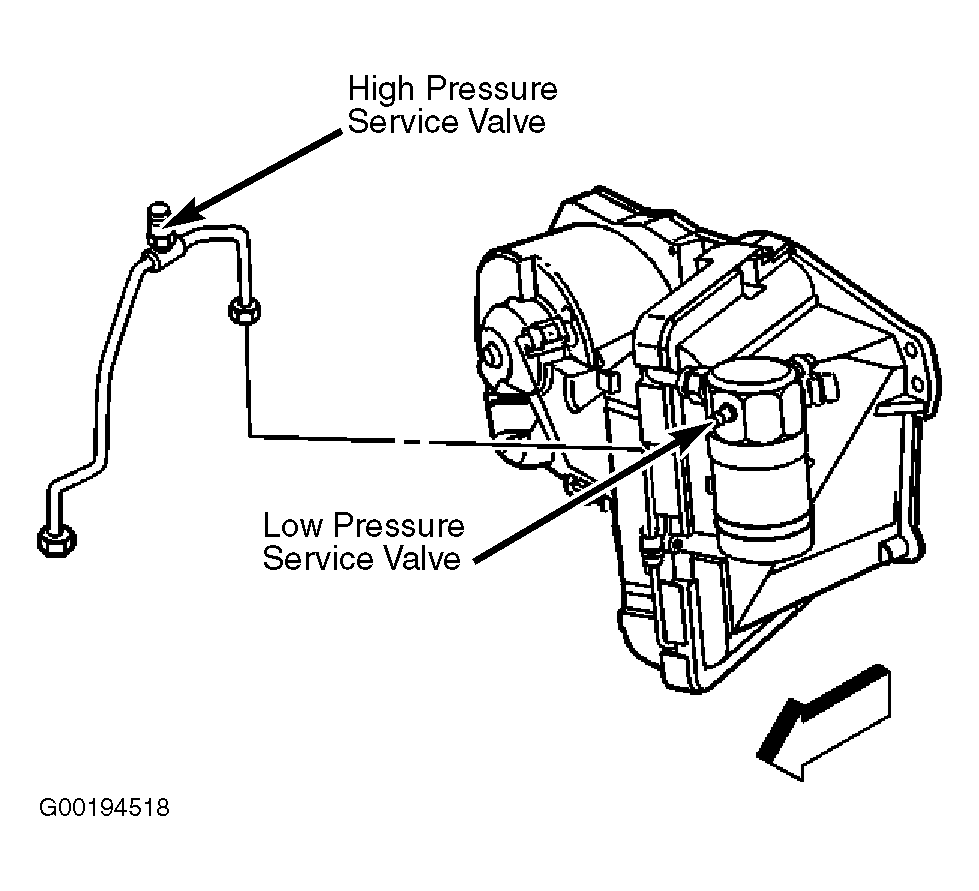

Fig 38: Locating High & Low Pressure Service Valves (Astro & Safari)
G00194518Courtesy of GENERAL MOTORS CORP.

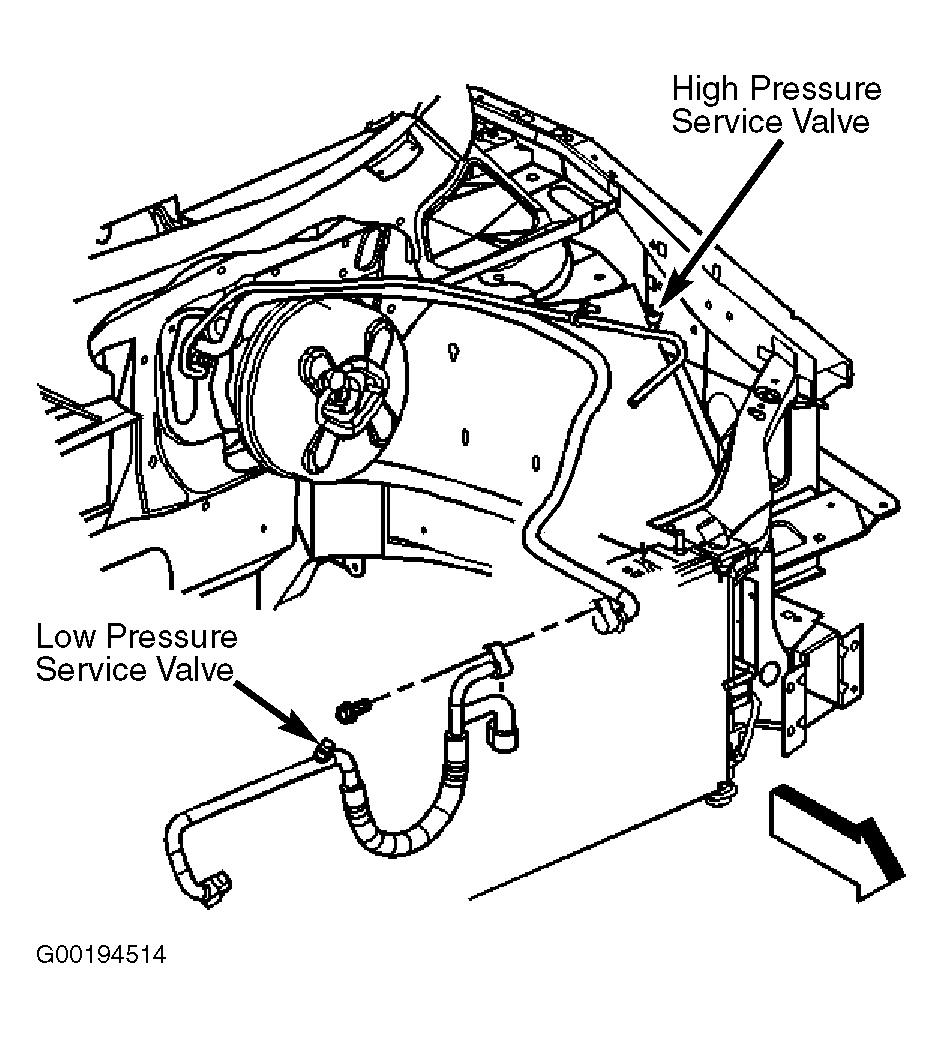

Fig 39: Locating High & Low Pressure Service Valves (Aztek, Montana, Rendezvous, Silhouette & Venture)
G00194514Courtesy of GENERAL MOTORS CORP.

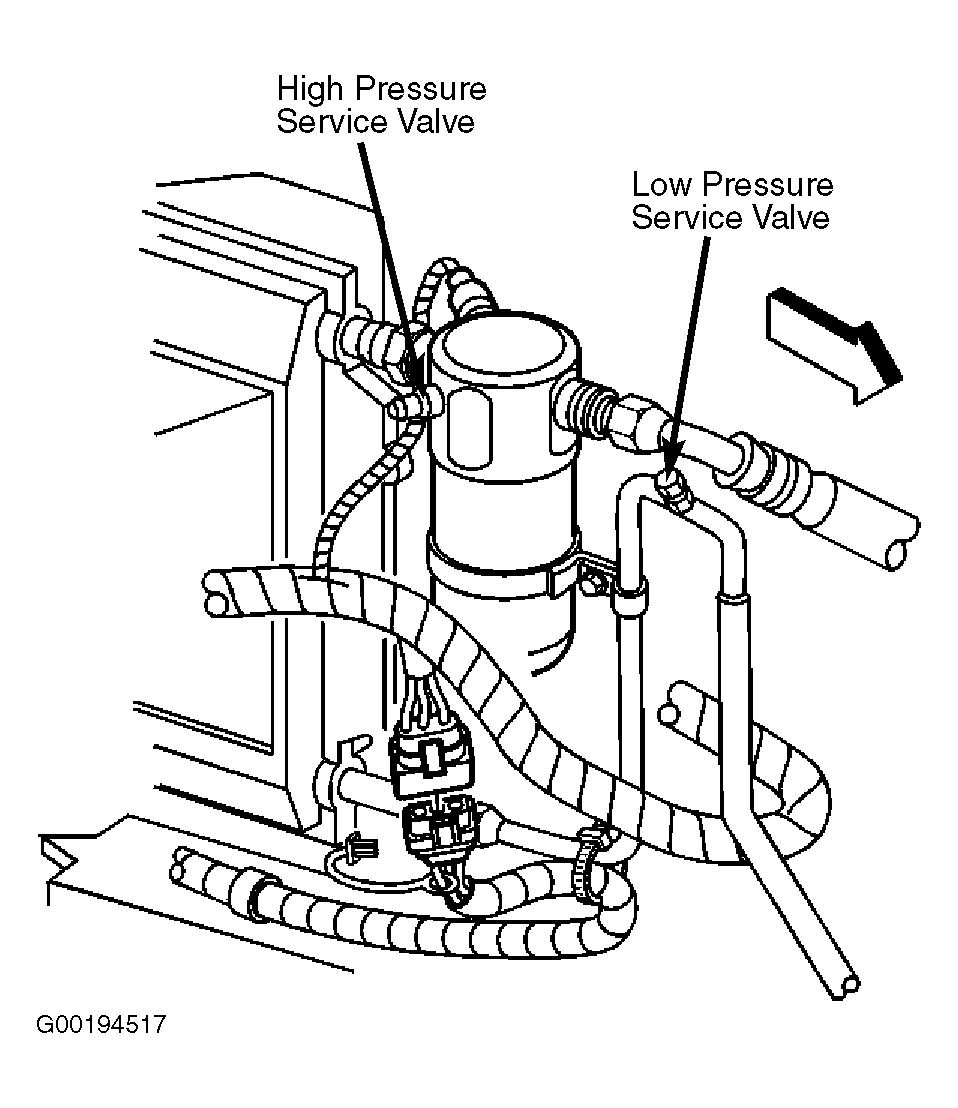

Fig 40: Locating High & Low Pressure Service Valves (Blazer, Jimmy Canadian, Sonoma & S-10)
G00194517Courtesy of GENERAL MOTORS CORP.

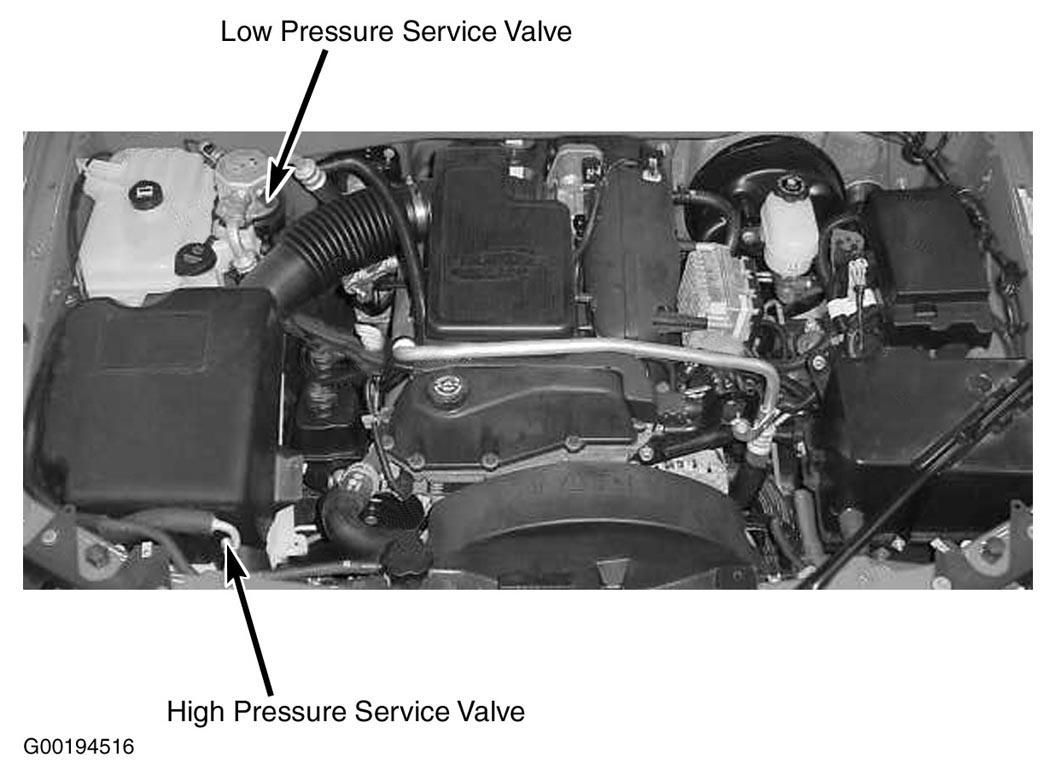

Fig 41: Locating High & Low Pressure Service Valves (Bravada, Envoy & Trailblazer)
G00194516Courtesy of GENERAL MOTORS CORP.

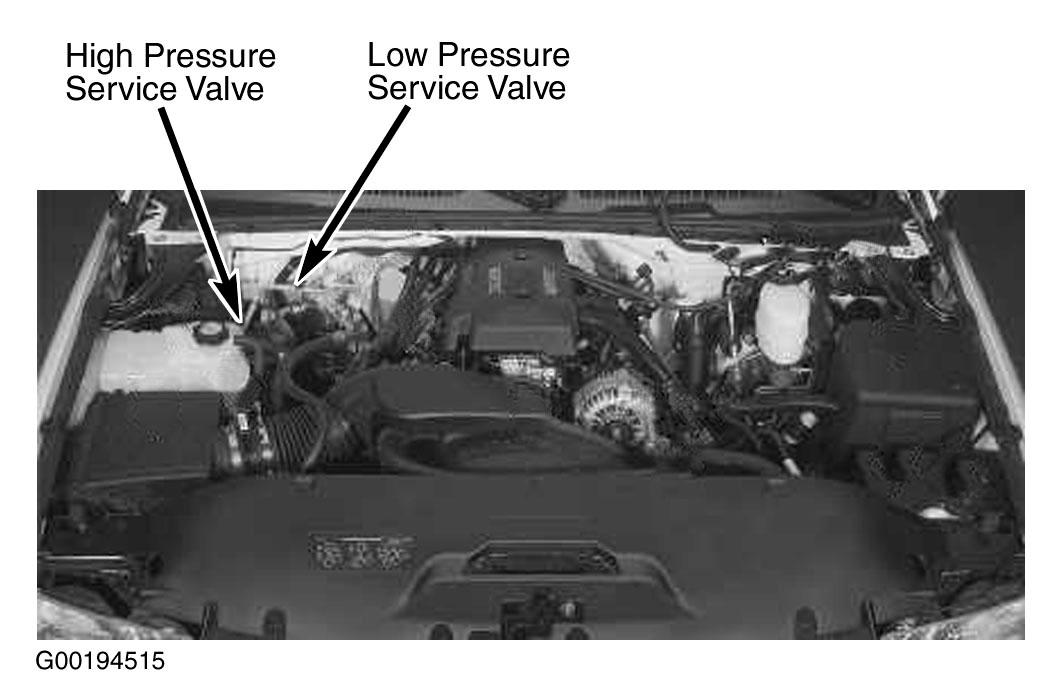

Fig 42: Locating High & Low Pressure Service Valves (C-K Series - 5.3L Model Shown; Others Similar)
G00194515Courtesy of GENERAL MOTORS CORP.

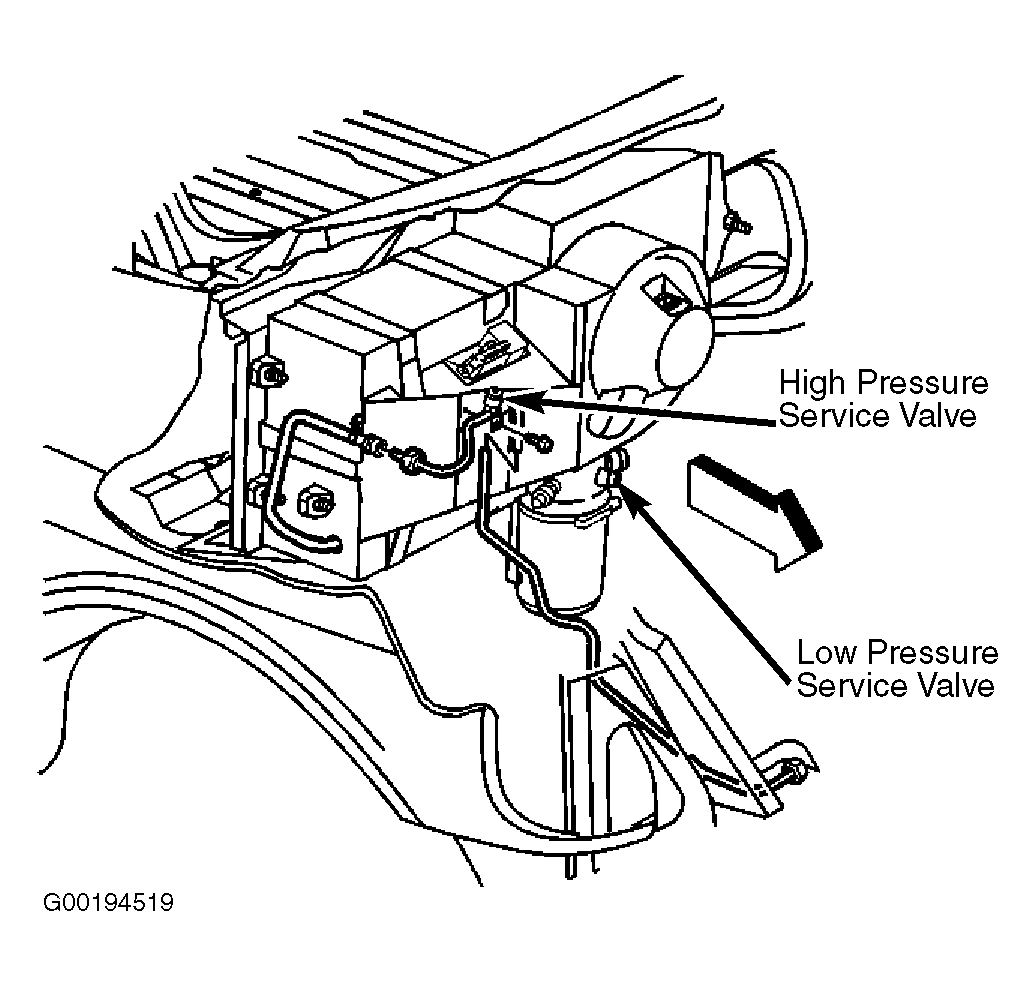

Fig 43: Locating High & Low Pressure Service Valves (Express & Savana)
G00194519Courtesy of GENERAL MOTORS CORP.

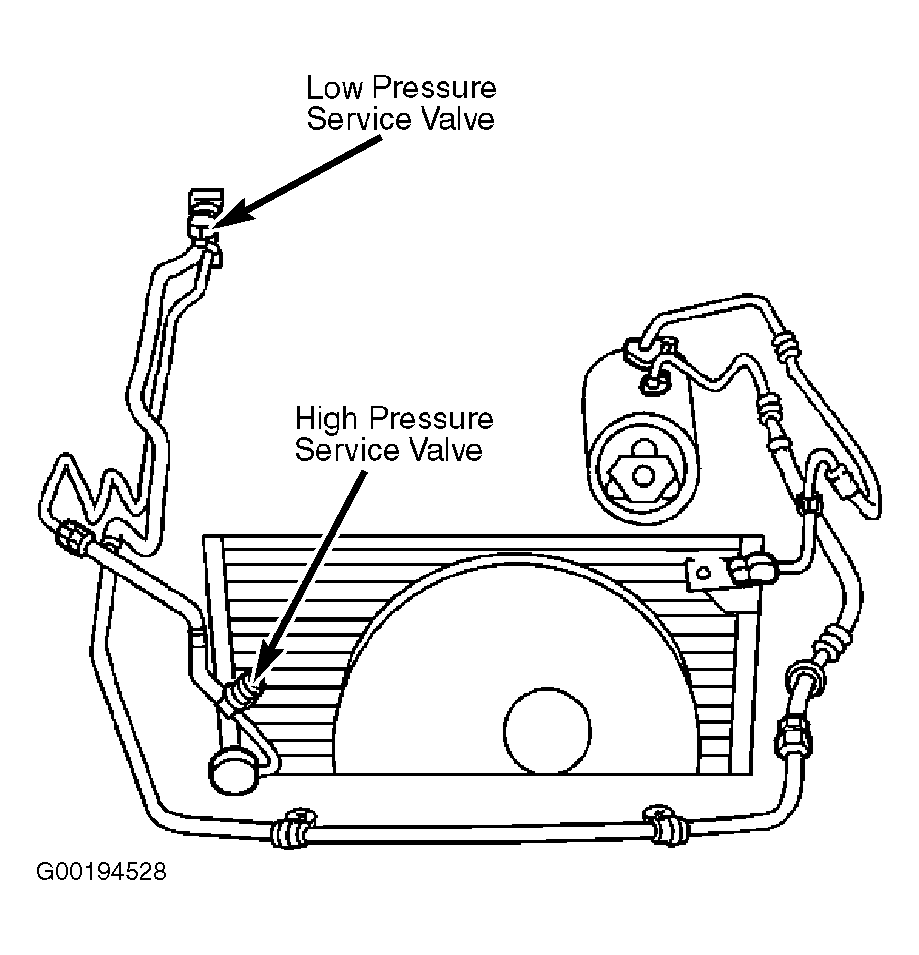

Fig 44: Locating High & Low Pressure Service Valves (Tracker)
G00194528Courtesy of GENERAL MOTORS CORP.

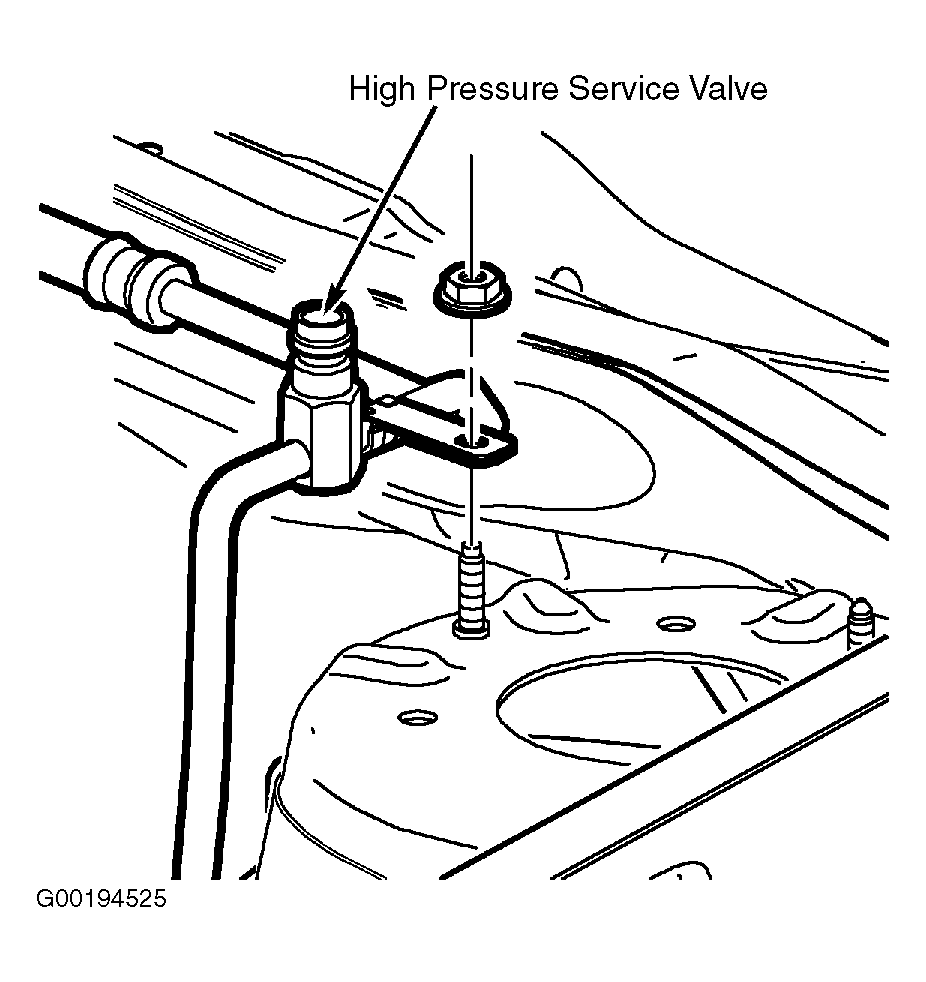

Fig 45: Locating High Pressure Service Valve (Saturn - Vue)
G00194525Courtesy of GENERAL MOTORS CORP.

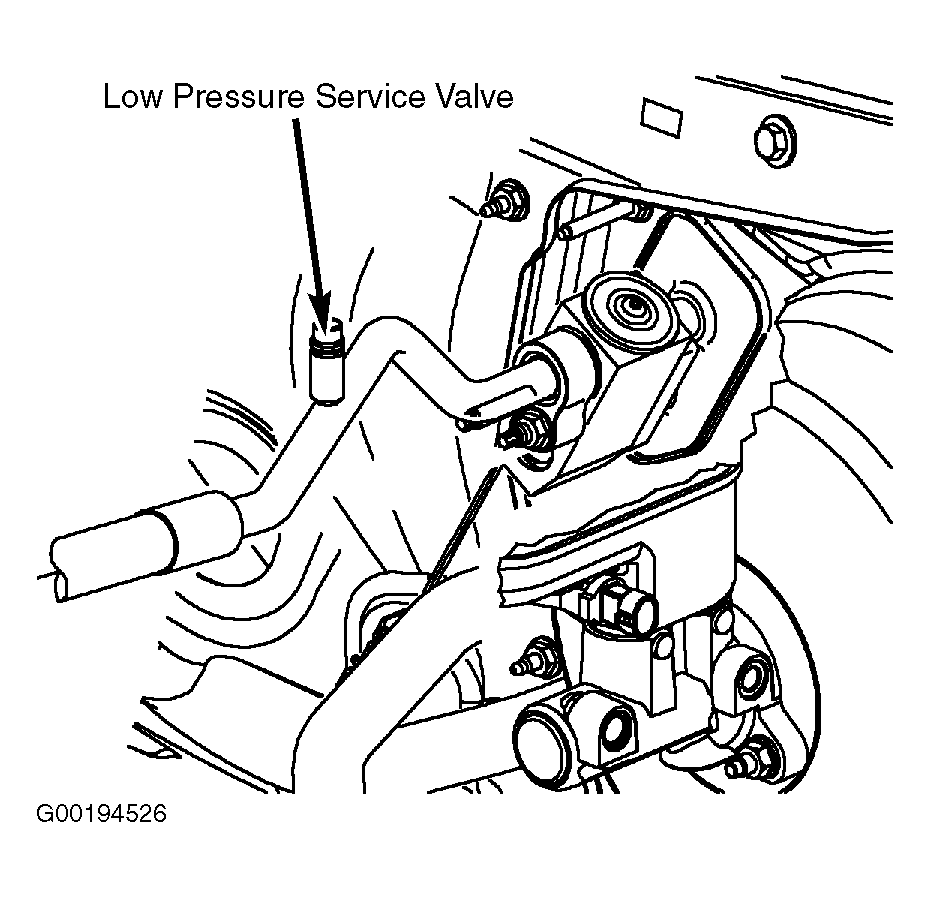

Fig 46: Locating Low Pressure Service Valve (Saturn - Vue - 2.2L Models)
G00194526Courtesy of GENERAL MOTORS CORP.
Fig 47: Locating Low Pressure Service Valve (Saturn - Vue - 3.0L Models)
G00194527Courtesy of GENERAL MOTORS CORP.
