Parking Pawl: Installation

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the parking pawl, return spring and shaft.

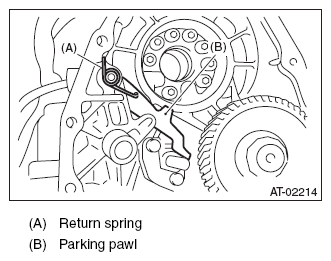

    Fig 1: Identifying Parking Pawl And Return Spring
    G08564041Courtesy of SUBARU OF AMERICA, INC.
  2. Install the reduction drive gear. < Refer to INSTALLATION , Reduction Drive Gear. >
  3. Install the extension case. < Refer to INSTALLATION , Extension Case. >
  4. Install the transmission assembly to the vehicle. < Refer to INSTALLATION , Automatic Transmission Assembly. >
