Reduction Drive Gear: Installation
WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

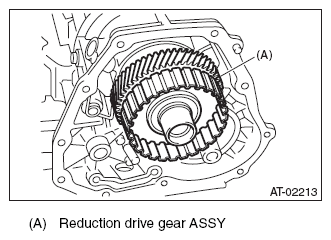

- Install the reduction drive gear assembly.NOTE: Press-fit it to the bottom of bearing shoulder completely.
- Install the reduction driven gear. < Refer to INSTALLATION , Reduction Driven Gear. >
- Connect the transmission case with the extension case. < Refer to INSTALLATION , Extension Case. >
- Install the transmission assembly to the vehicle. < Refer to INSTALLATION , Automatic Transmission Assembly. >
