Center Differential Carrier: Installation

WARNING: This page is about a different variant/trim than selected.

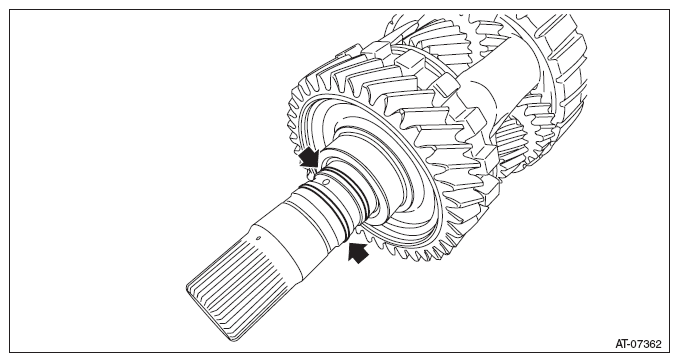

  1. Install the seal rings.
    NOTE:
    • Use new seal rings.
    • Do not stretch the seal ring excessively.
    • Apply CVTF after installation.
    G10268230Courtesy of SUBARU OF AMERICA, INC.

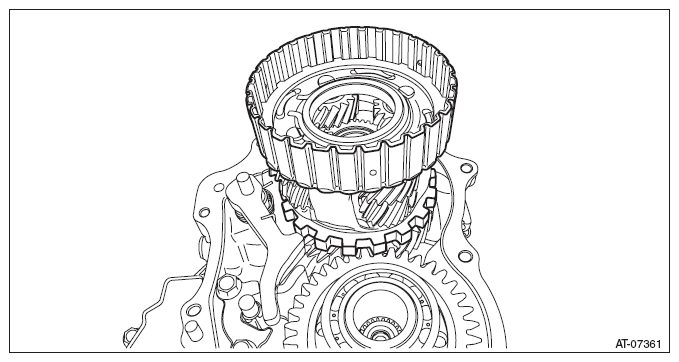

  2. Install the center differential assembly.
    G10268229Courtesy of SUBARU OF AMERICA, INC.
  3. Install the transfer clutch. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TRANSFER CLUTCH>INSTALLATION .
  4. Select driven plate No. 3 to replace. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TRANSFER CLUTCH>ADJUSTMENT .
  5. Install the rear drive shaft. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>REAR DRIVE SHAFT>INSTALLATION .
  6. Select the rear drive shaft shim. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>REAR DRIVE SHAFT>ADJUSTMENT .
  7. Install the extension case. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>EXTENSION CASE>INSTALLATION .
  8. Install the transmission assembly to the vehicle. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>AUTOMATIC TRANSMISSION ASSEMBLY>INSTALLATION .
