Preparation For Overhaul: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Clean the transmission exterior.
  2. Remove the torque converter assembly. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TORQUE CONVERTER ASSEMBLY>REMOVAL .
  3. Attach the ST on the transmission.

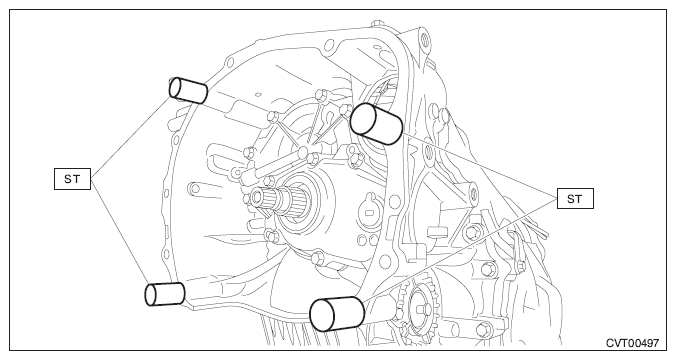

    ST 18632AA000 STAND ASSY
    G10293264Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the transmission cover on the transmission upper side.
    NOTE: Install using the following tightening torque.

    Tightening torque:

    8 N.m (0.8 kgf-m, 5.9 ft-lb)

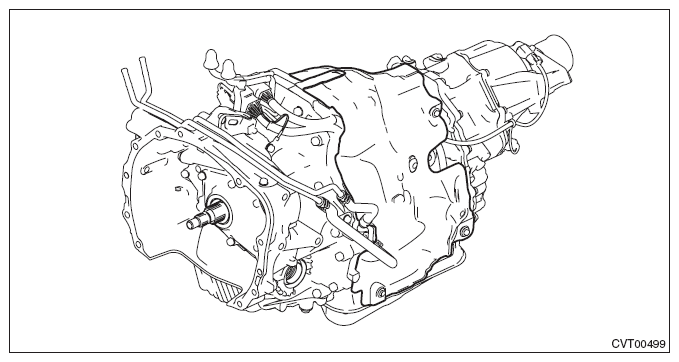

    G10268148Courtesy of SUBARU OF AMERICA, INC.
  5. Place the transmission assembly on end.
