Transmission Case: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transmission assembly from the vehicle. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>AUTOMATIC TRANSMISSION ASSEMBLY>REMOVAL .
  2. Remove the air breather hose. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>AIR BREATHER HOSE>REMOVAL .
  3. Remove the transmission harness. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TRANSMISSION HARNESS>REMOVAL .
  4. Remove the secondary speed sensor. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>SECONDARY SPEED SENSOR>REMOVAL .
  5. Remove the inhibitor switch. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>INHIBITOR SWITCH>REMOVAL .
  6. Remove the extension case. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>EXTENSION CASE>REMOVAL .
  7. Remove the rear drive shaft. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>REAR DRIVE SHAFT>REMOVAL .
  8. Remove the transfer clutch assembly. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TRANSFER CLUTCH>REMOVAL .
  9. Remove the center differential carrier. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>CENTER DIFFERENTIAL CARRIER>REMOVAL .
  10. Remove the transfer reduction driven gear assembly. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TRANSFER REDUCTION DRIVEN GEAR>REMOVAL .
  11. Remove the intermediate case. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>INTERMEDIATE CASE>REMOVAL .
  12. Remove the forward clutch assembly. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>FORWARD CLUTCH ASSEMBLY>REMOVAL .
  13. Remove the reduction driven gear. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>REDUCTION DRIVEN GEAR>REMOVAL .
  14. Remove the oil pan and control valve body. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>CONTROL VALVE BODY>REMOVAL .
    NOTE: When removing the control valve body, also remove the pressure pipe if it is attached on the case.
    G06654622Courtesy of SUBARU OF AMERICA, INC.

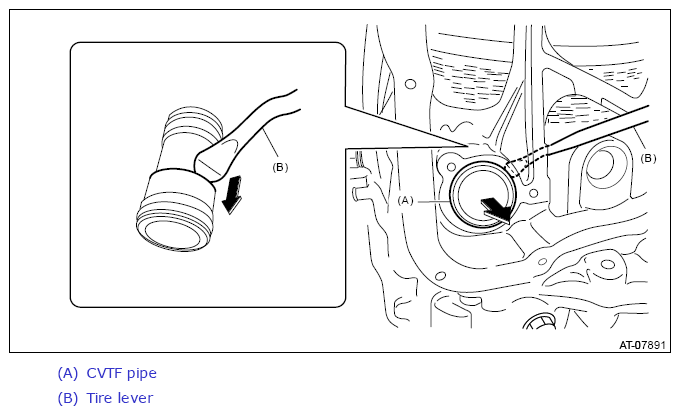

  15. Remove the CVTF pipe using a tire lever etc.
    NOTE: Remove by hooking the stepped portion of CVTF pipe with a tire lever etc.
    G13261098Courtesy of SUBARU OF AMERICA, INC.
  16. Remove the transmission case.
    NOTE: The total number of transmission case mounting bolts is 15.
  17. Remove the O-ring of lubrication pipe.
    G06654624Courtesy of SUBARU OF AMERICA, INC.
  18. Remove the control device system. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TRANSMISSION CONTROL DEVICE>REMOVAL .
