Front Wiper Motor: Installation
WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

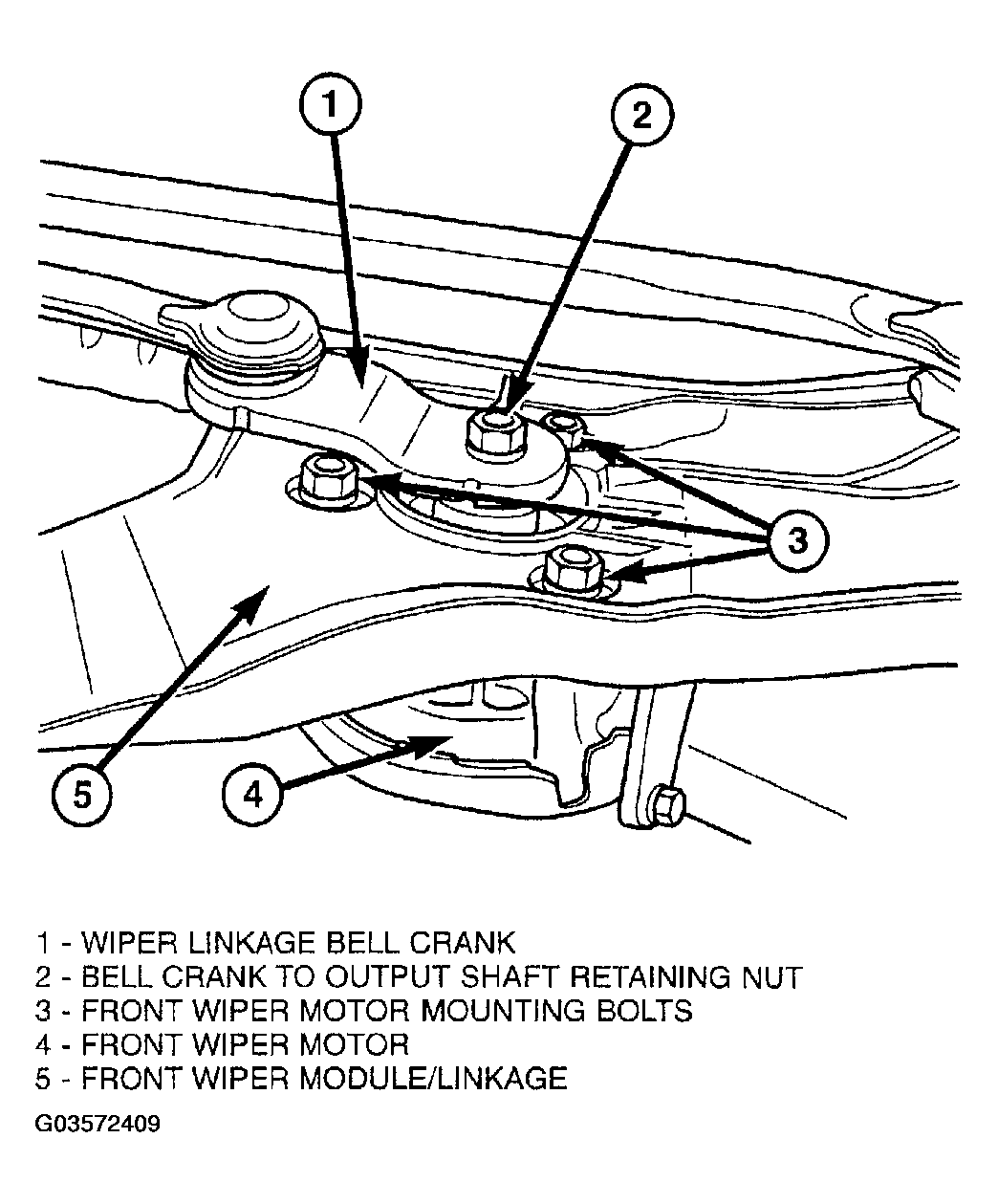

- Position the wiper motor into wiper module and install the three front wiper motor mounting bolts (Figure).
- Press the socket and ball joint together on end of bell crank (Figure).

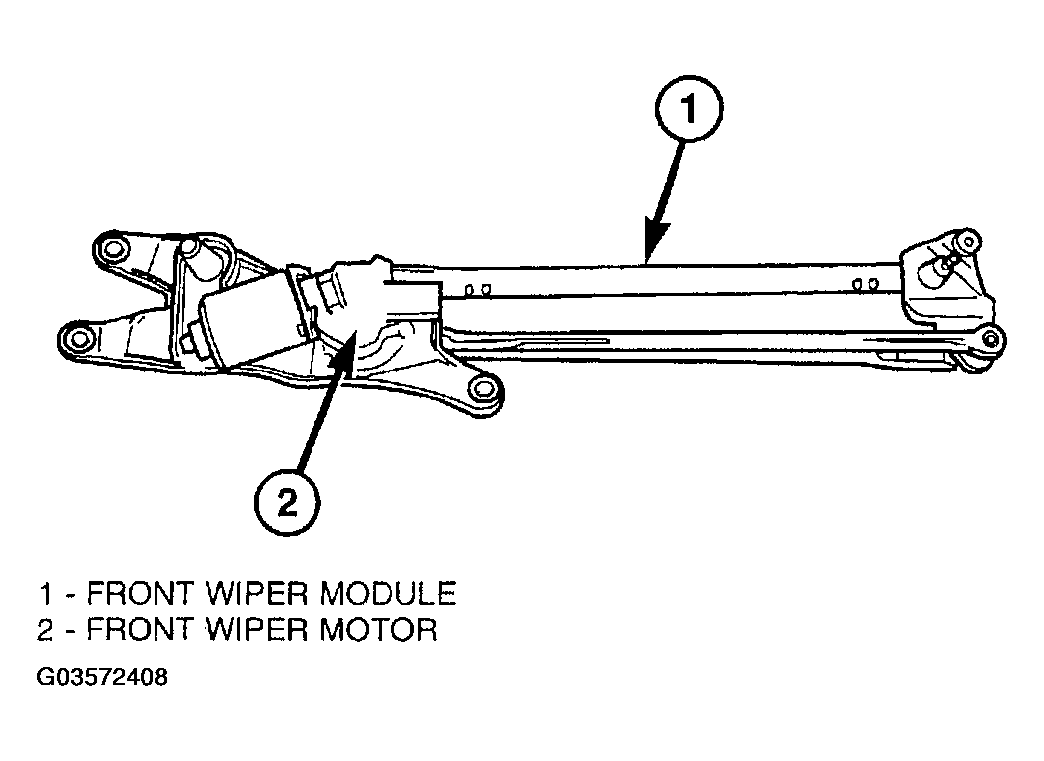

- Install the wiper module (Refer to INSTALLATION ) and (Figure).
- Connect the battery negative cable.
- Verify vehicle and system operation.
- Close hood.
