Manual Transaxle ASSY (C60): Overhaul

1. Remove the bolt and speedometer driven hole cover sub-assy.
2. Remove the O-ring from the speedometer driven hole cover sub-assy.

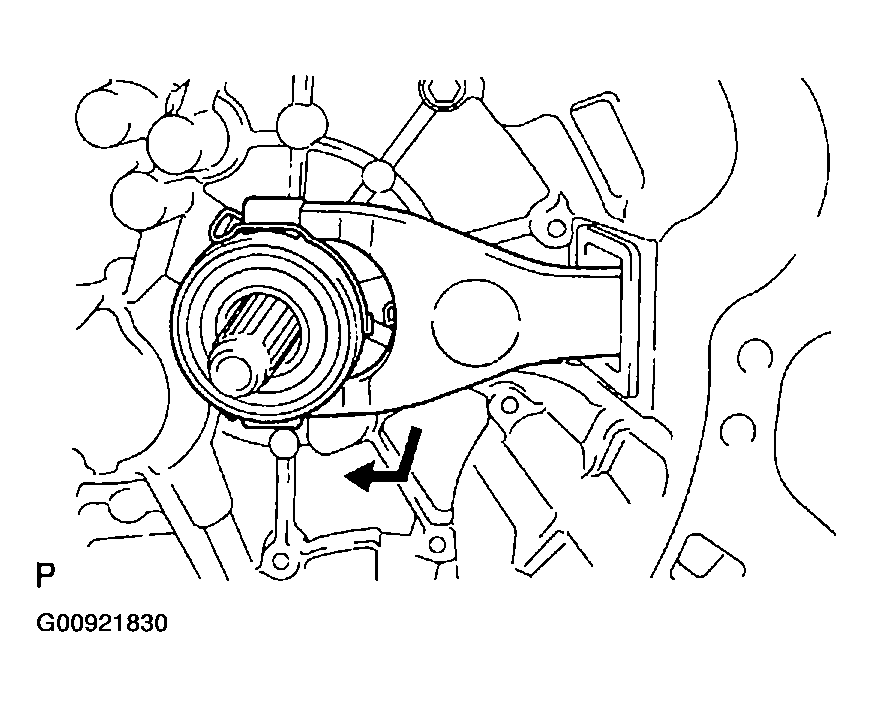

1. Remove the clutch release fork sub-assy with clutch release bearing assy from the transaxle case.

Fig 1: Removing Clutch Release Fork Sub-Assy

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

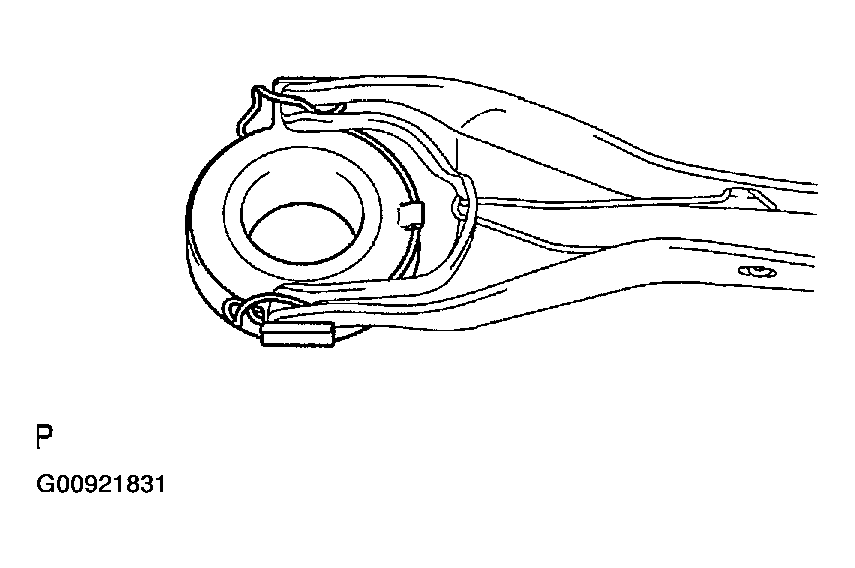

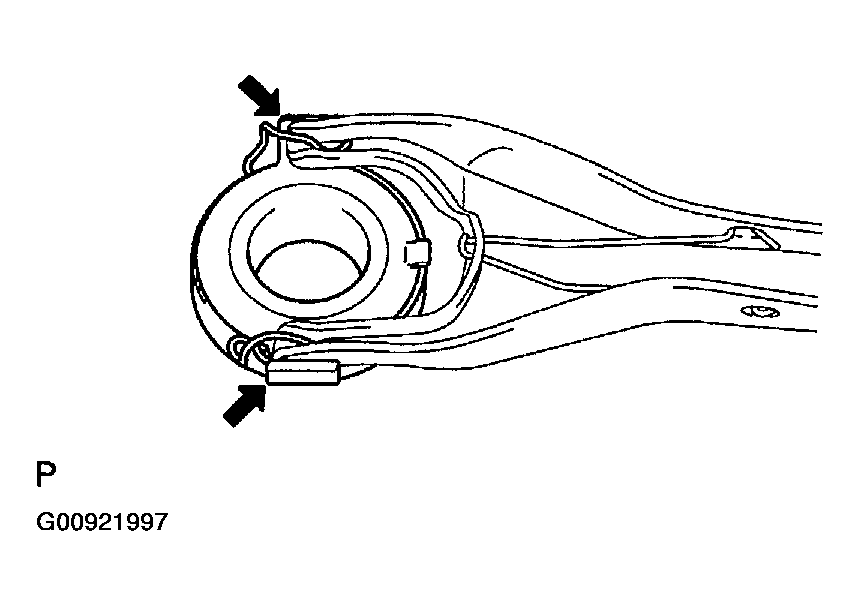

1. Remove the clutch release bearing hub clip and clutch release bearing assy from the clutch release fork sub-assy.

Fig 2: Removing Clutch Release Bearing Assy

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

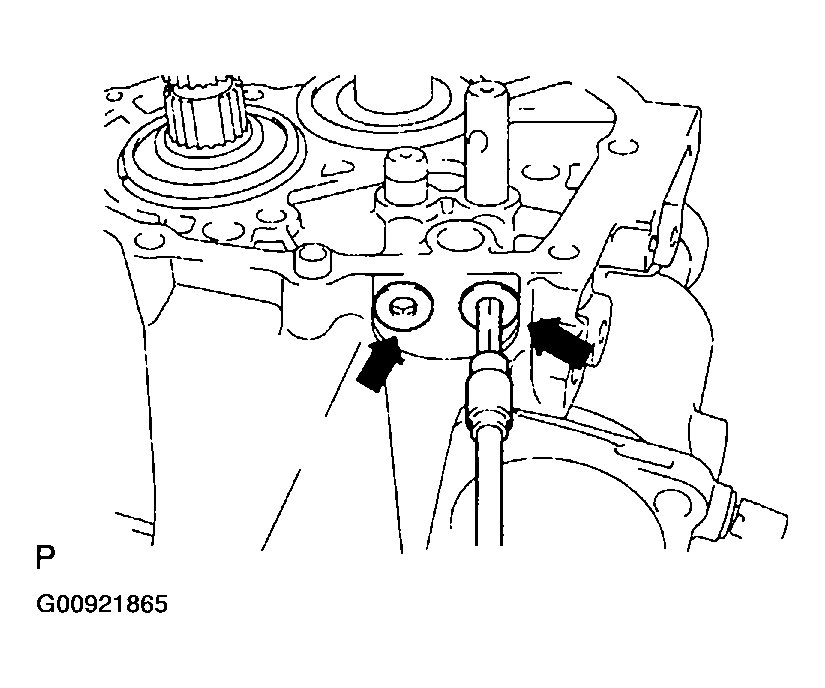

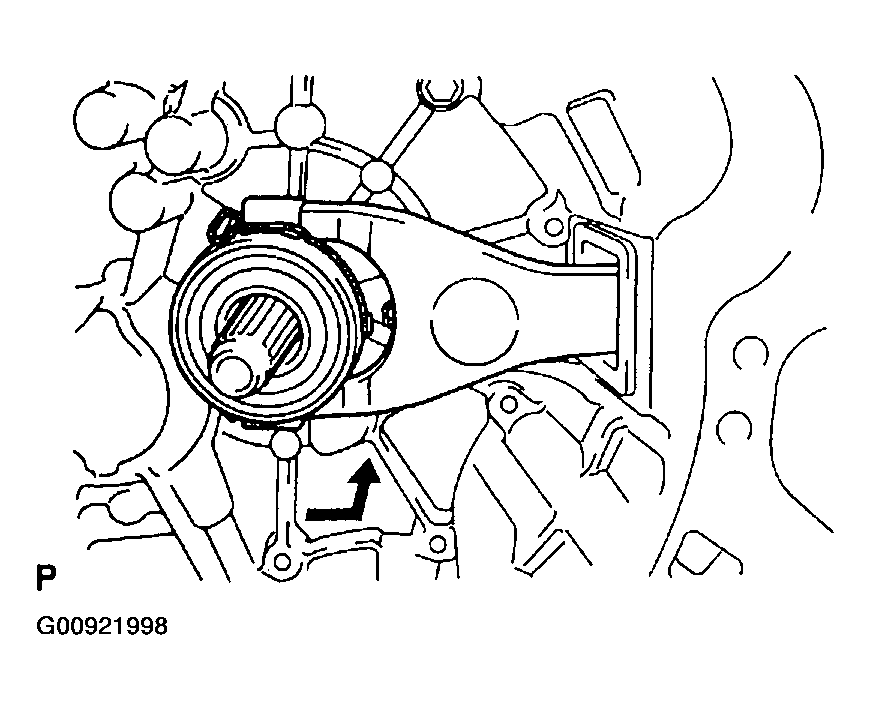

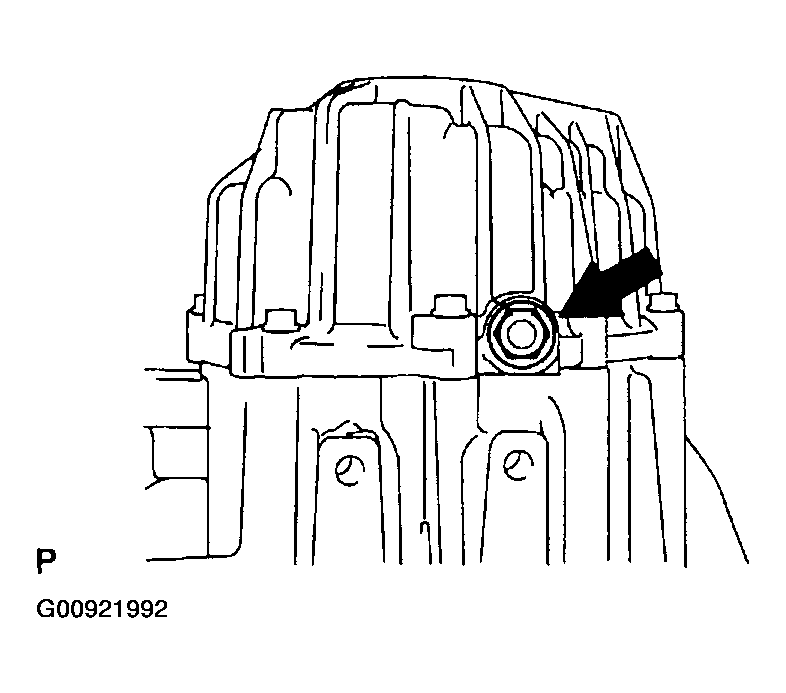

1. Remove release fork support from the transaxle case.

Fig 3: Removing Release Fork Support

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

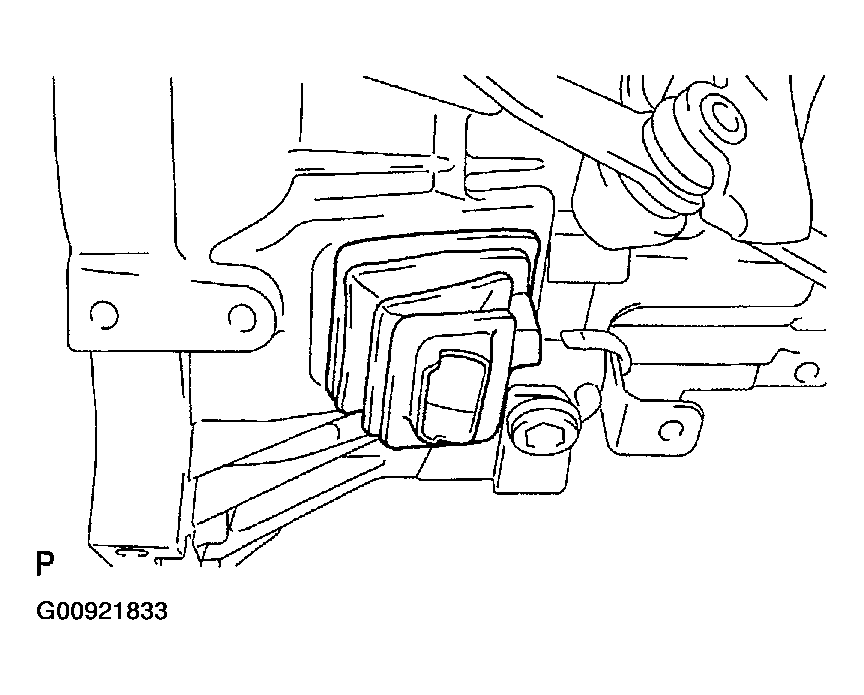

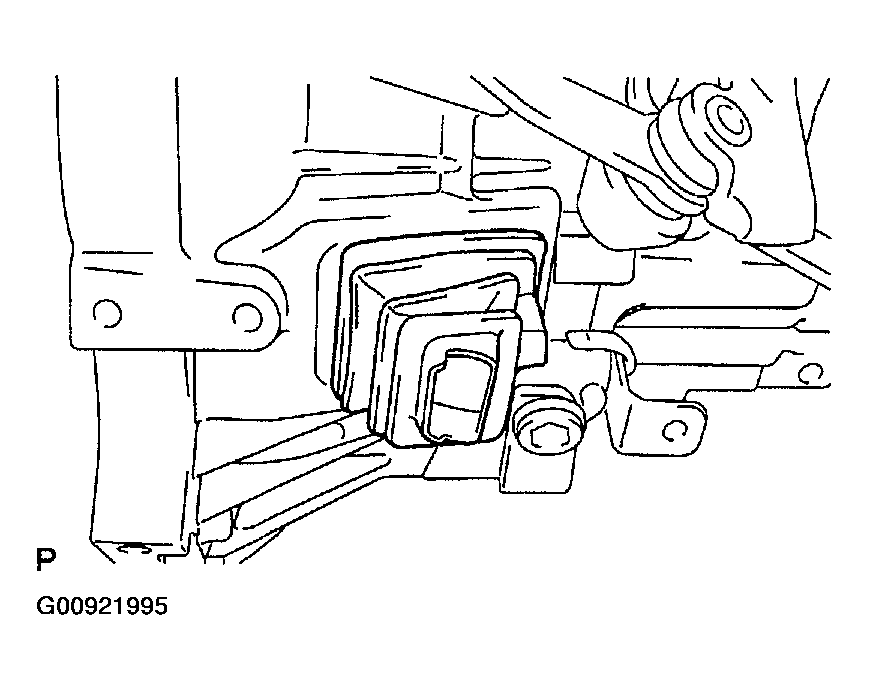

1. Remove the clutch release fork boot from the transaxle case.

Fig 4: Removing Clutch Release Fork Boot

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

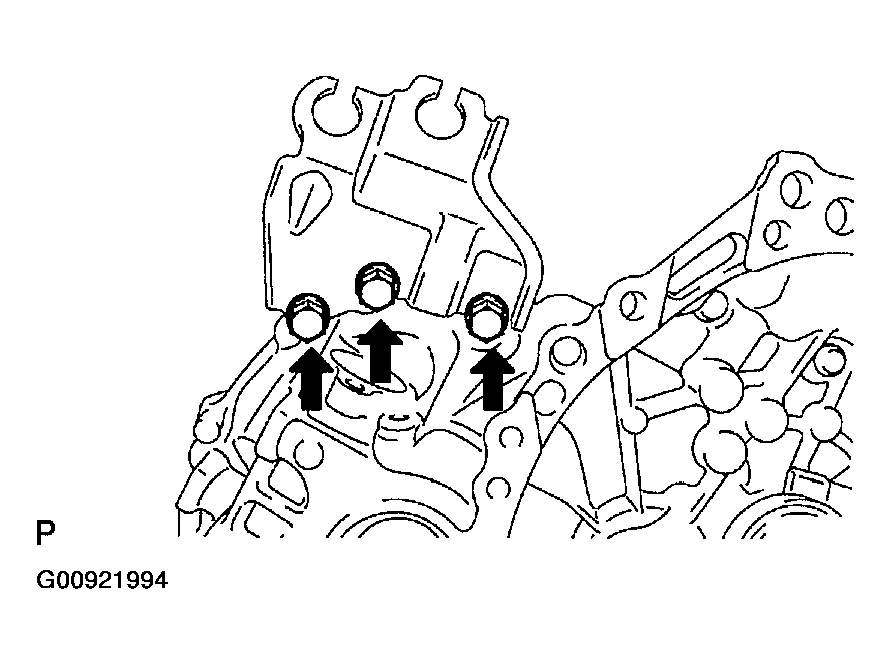

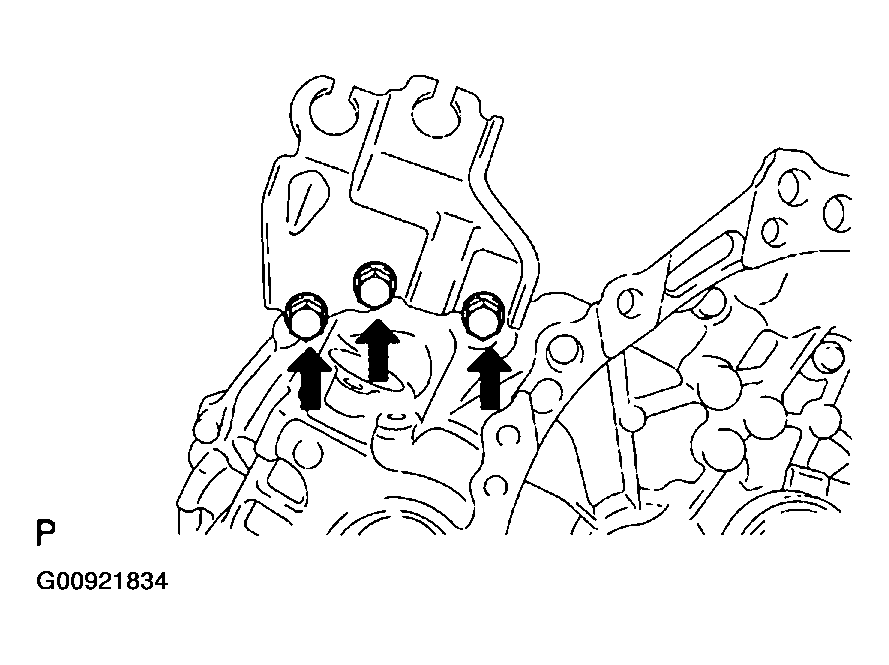

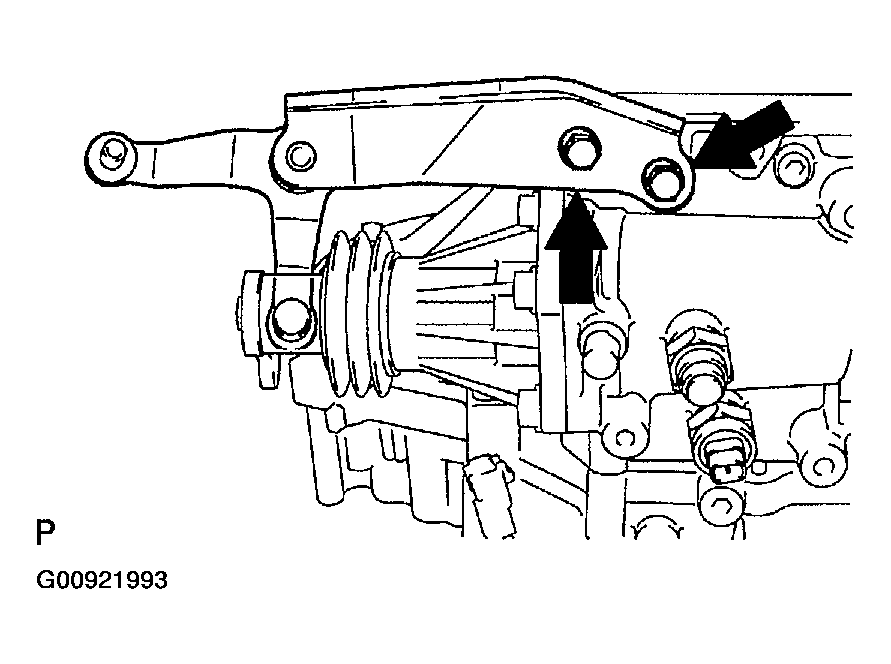

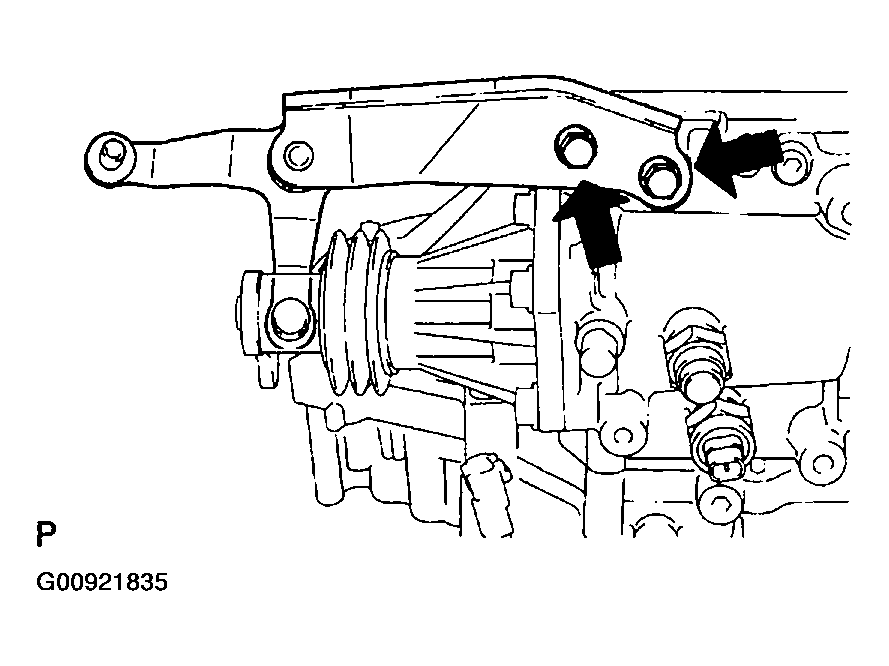

1. Remove the 3 bolts and floor shift control lever housing support bracket from the transaxle case.

Fig 5: Removing Floor Shift Control Lever Housing Support Bracket

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

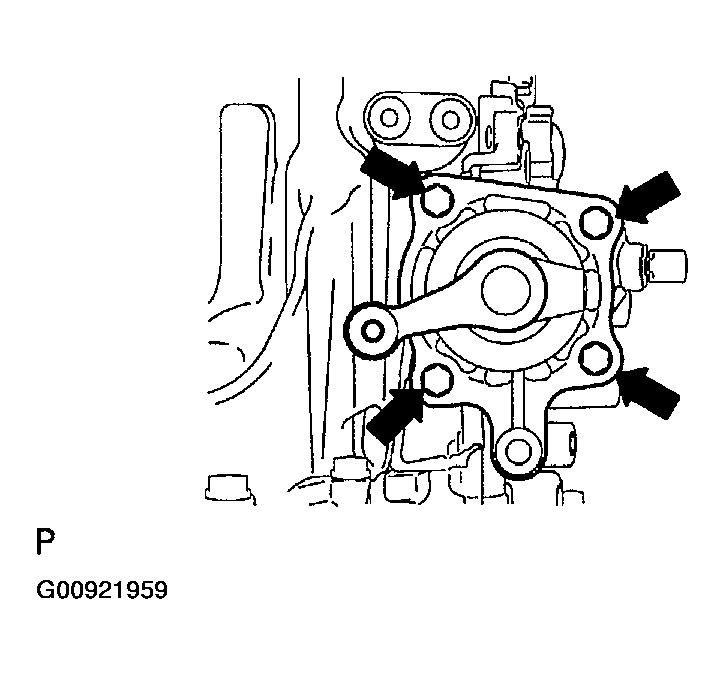

1. Remove the 2 bolts and selecting bellcrank assy from the manual transmission case.

Fig 6: Removing Selecting Bell Crank Assy

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

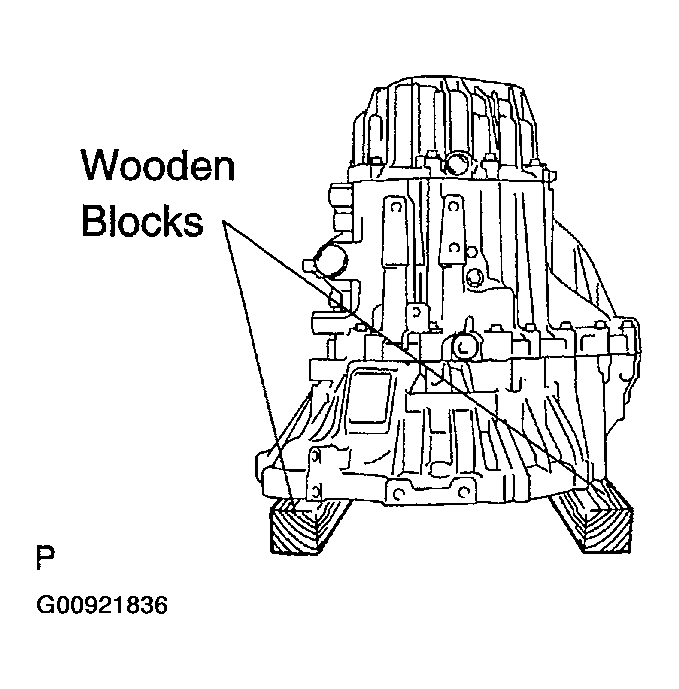

1. Using wooden blocks, fix the manual transaxle assy.

Fig 7: Fixing Manual Transaxle Assy

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

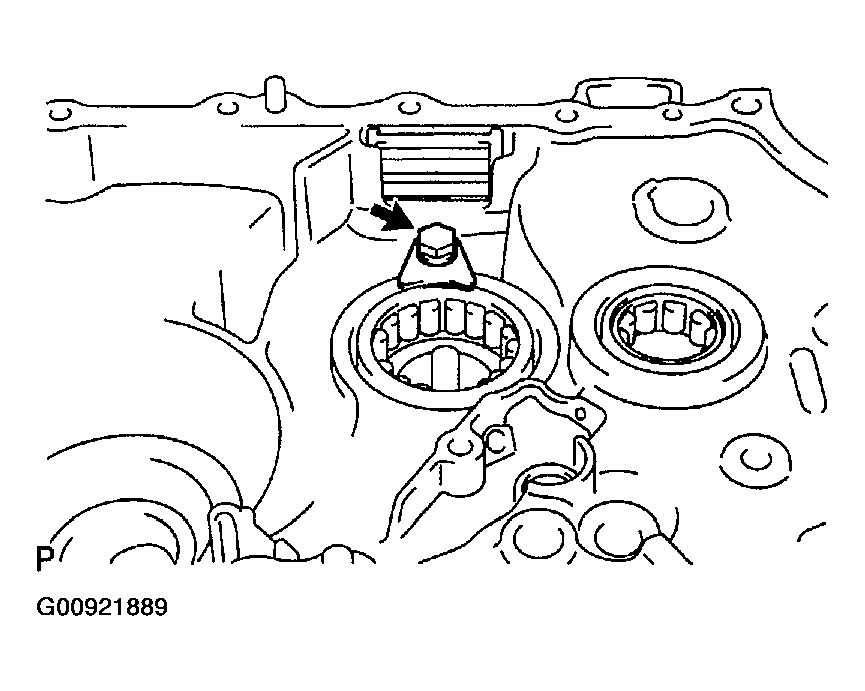

1. Remove the manual transmission filler plug and gasket from the manual transmission case cover.

Fig 8: Removing Manual Transmission Filler Plug

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

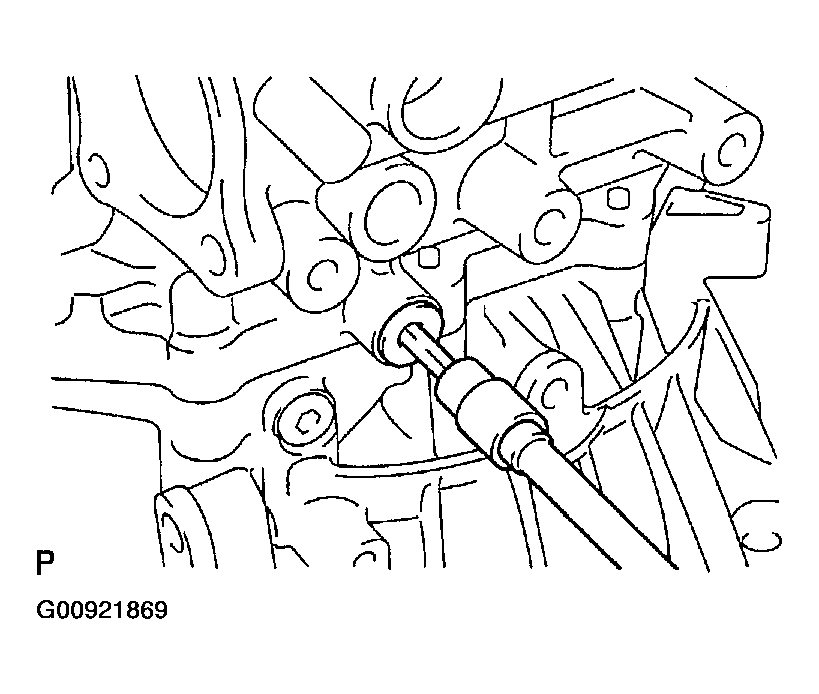

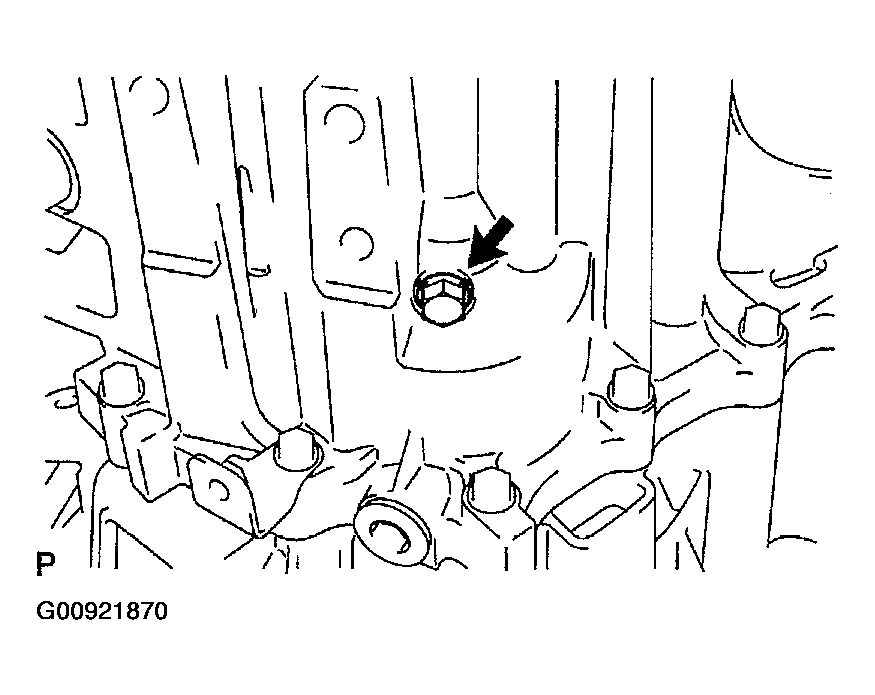

1. Remove the drain (MTM) plug sub-assy and gasket from the manual transmission case.

Fig 9: Removing Drain Plug Sub-Assy

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 9 bolts.
   Fig 10: Removing Manual Transmission Case Cover Sub-Assy Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a brass bar and a hammer, remove the manual transmission case cover sub-assy.

Fig 11: Removing Manual Transmission Case Cover Sub-Assy

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

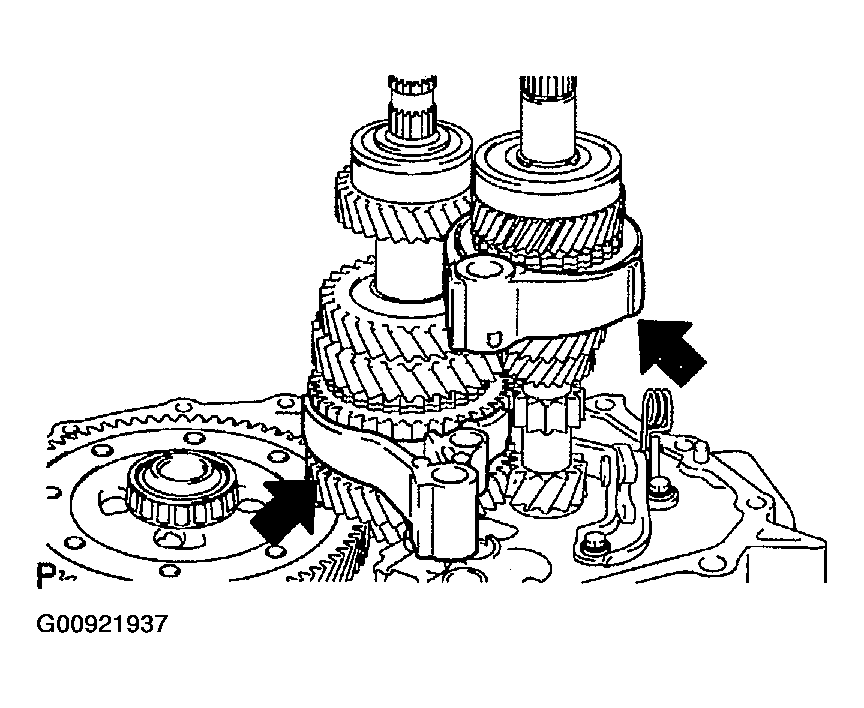

1. Using a feeler gauge, measure the 6th gear thrust clearance.
   1. Standard clearance:0.10 - 0.60 mm (0.0039 - 0.0236 in.)

Fig 12: Measuring 6th Gear Thrust Clearance

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

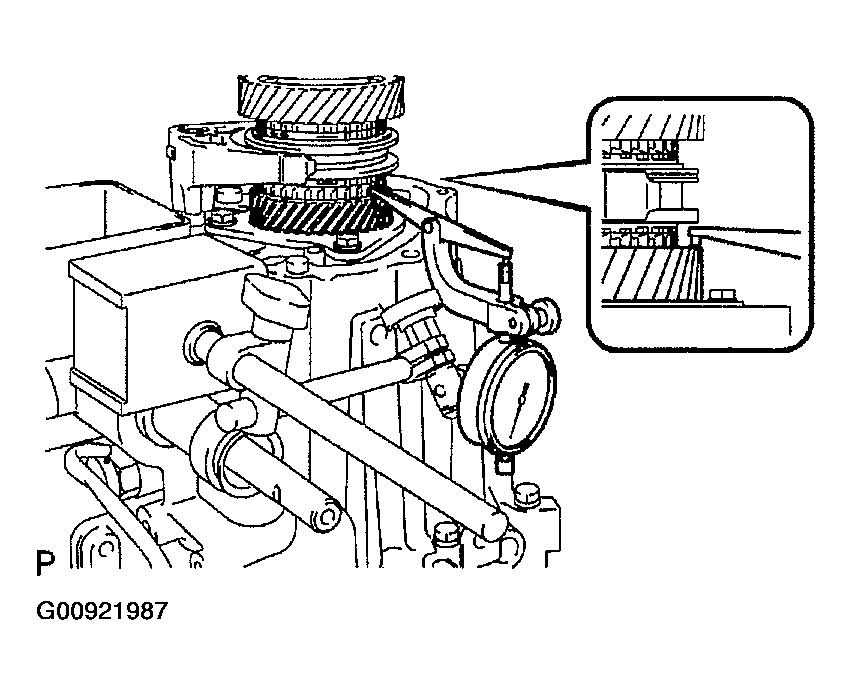

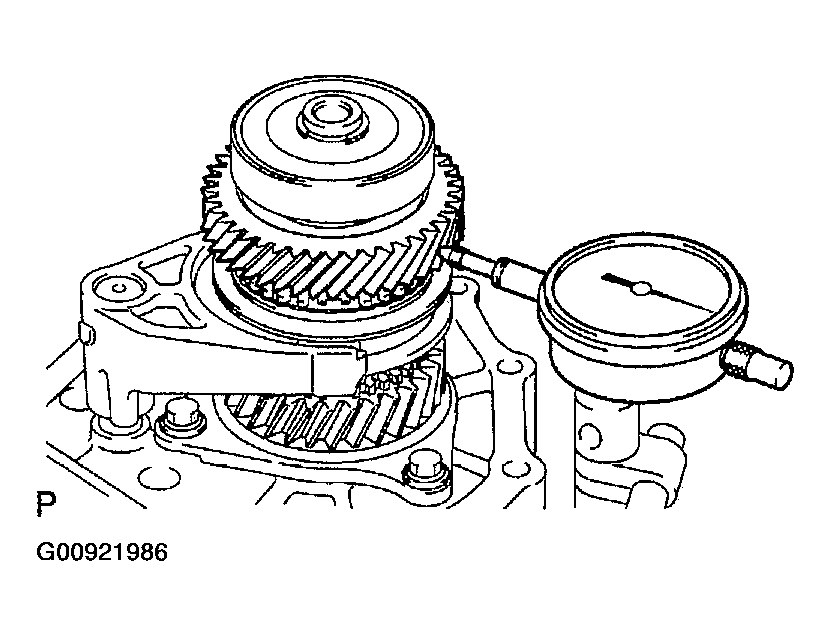

1. Using a dial indicator, measure the 5th gear thrust clearance.
   1. Standard clearance:0.10-0.62 mm (0.0039-0.0244 in.)

Fig 13: Measuring 5th Gear Thrust Clearance

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

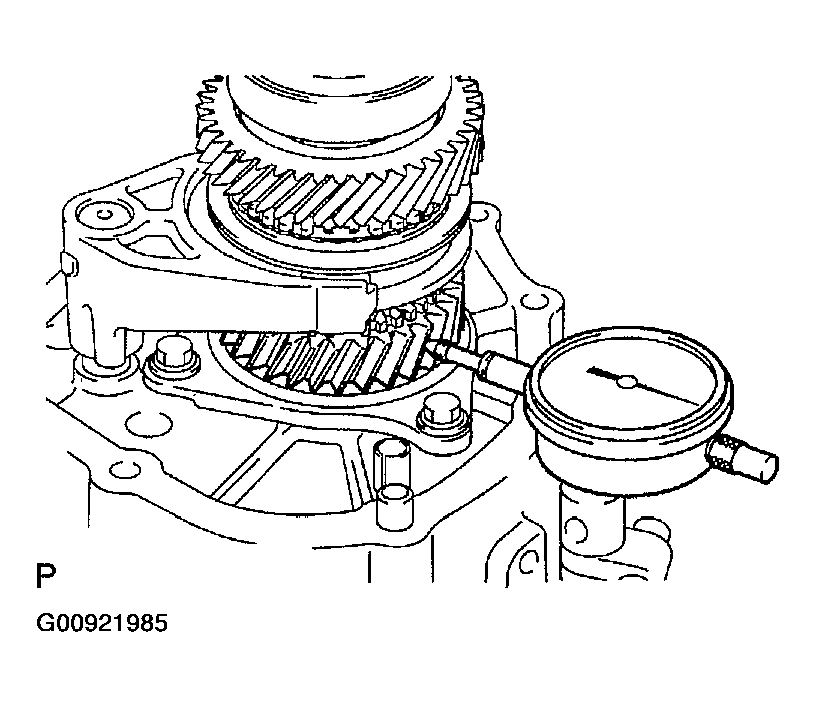

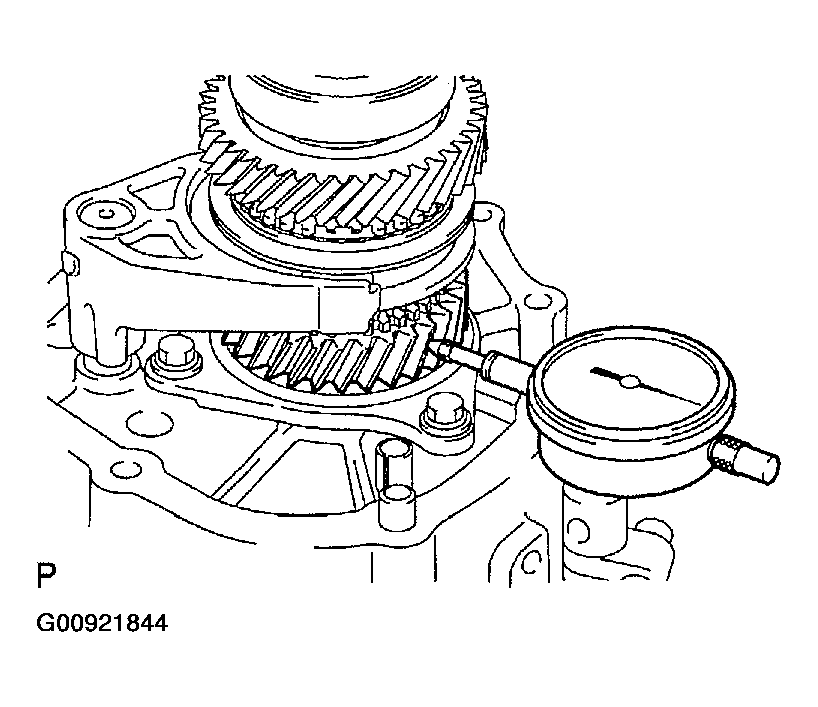

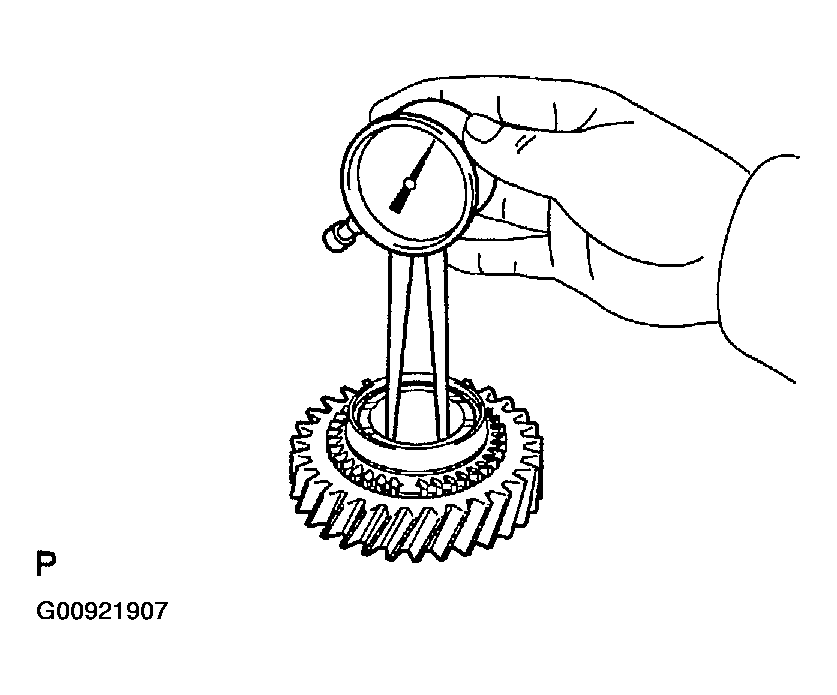

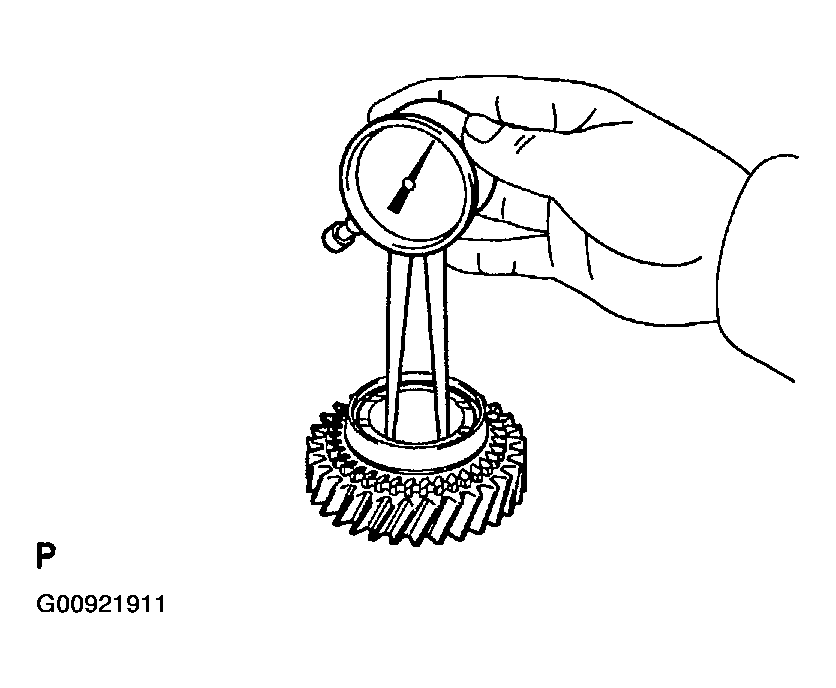

1. Using a dial indicator, measure the 6th gear radial clearance.
   1. Standard clearance:0.009-0.050 mm (0.0004-0.0020 in.)

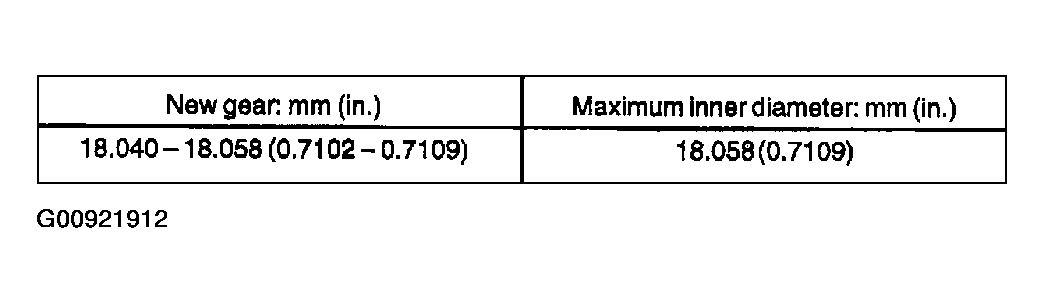

If the clearance is out of the specification, replace the 6th gear needle roller bearing.

Fig 14: Measuring 6th Gear Radial Clearance

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a dial indicator, measure the 5th gear radial clearance.
   1. Standard clearance:0.015-0.056 mm (0.0006-0.0022 in.)

   If the clearance is out of specification, replace the 5th gear needle roller bearing.

Fig 15: Measuring 5th Gear Radial Clearance

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

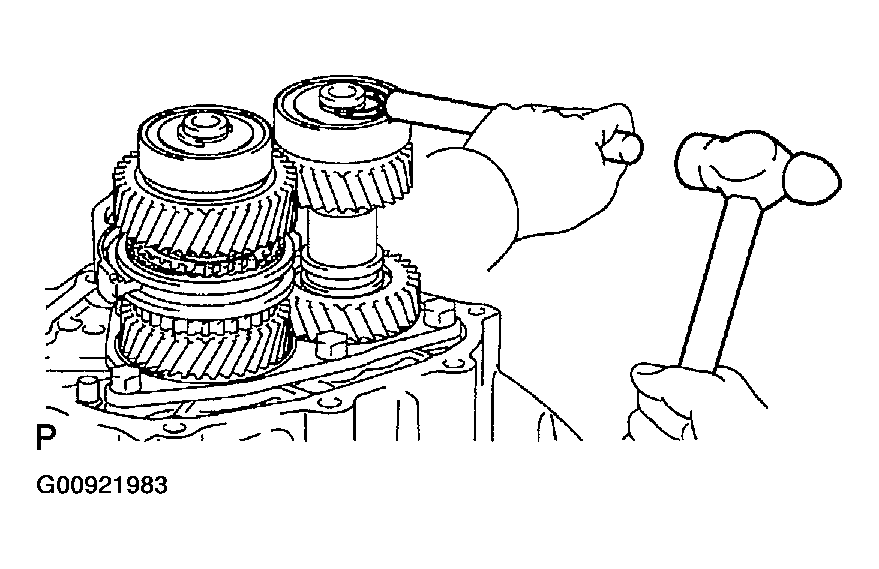

1. Using 2 screwdrivers and a hammer, remove the output shaft RR snap ring from the output shaft.
   NOTE: Using a waste to prevent the snap ring from the being scattered.
   Fig 16: Removing Output Shaft RR Snap Ring

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

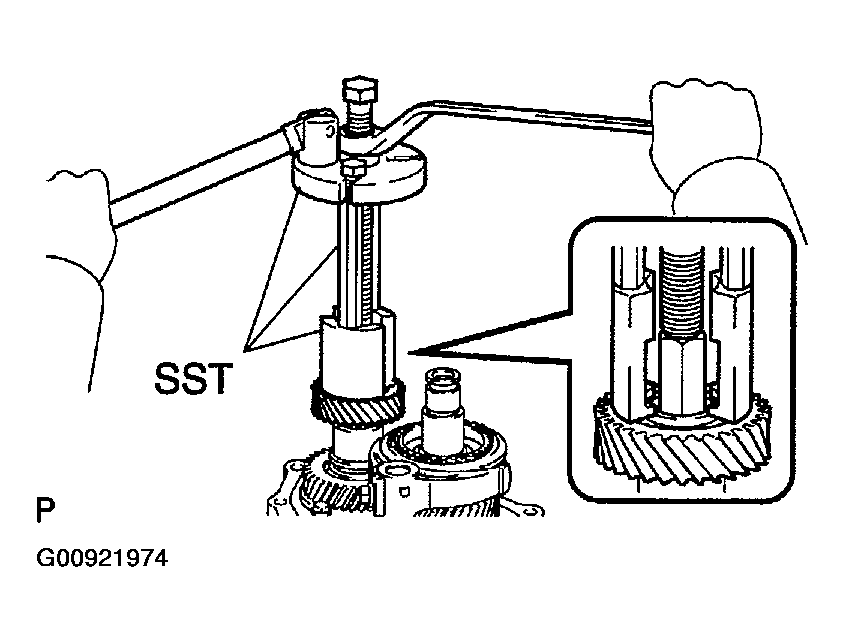

2. Using SST, remove output shaft RR bearing with 6th counter gear from the output shaft.

   SST 09950-40011 (09951-04010, 09952-04010, 09953-04020, 09954-04010, 09955-04021, 09957-04010, 09958-04011), 09950-60010 (09951-00190)

Fig 17: Removing Counter Gear 6th

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

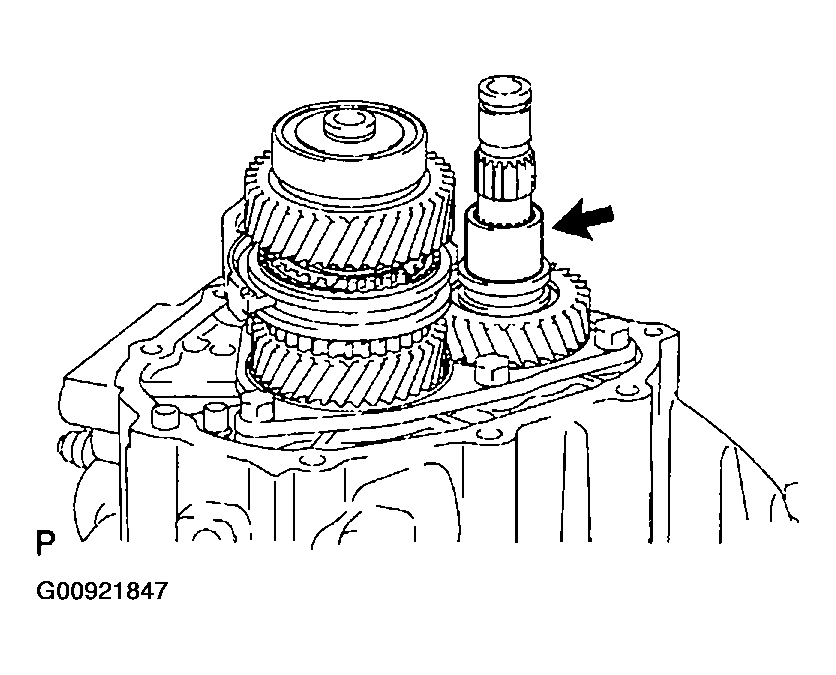

1. Remove the output gear spacer from the output shaft.

Fig 18: Removing Output Gear Spacer

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

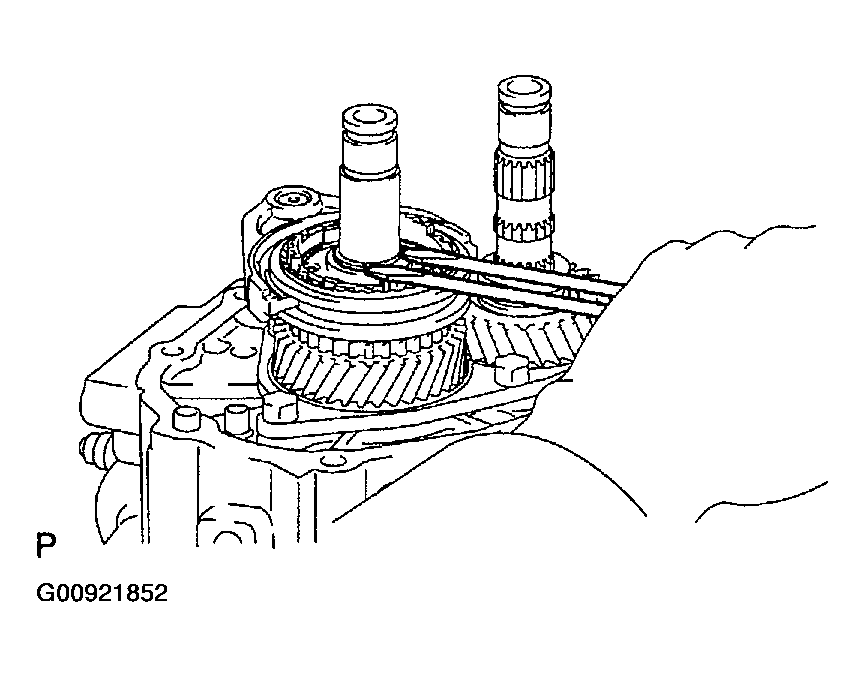

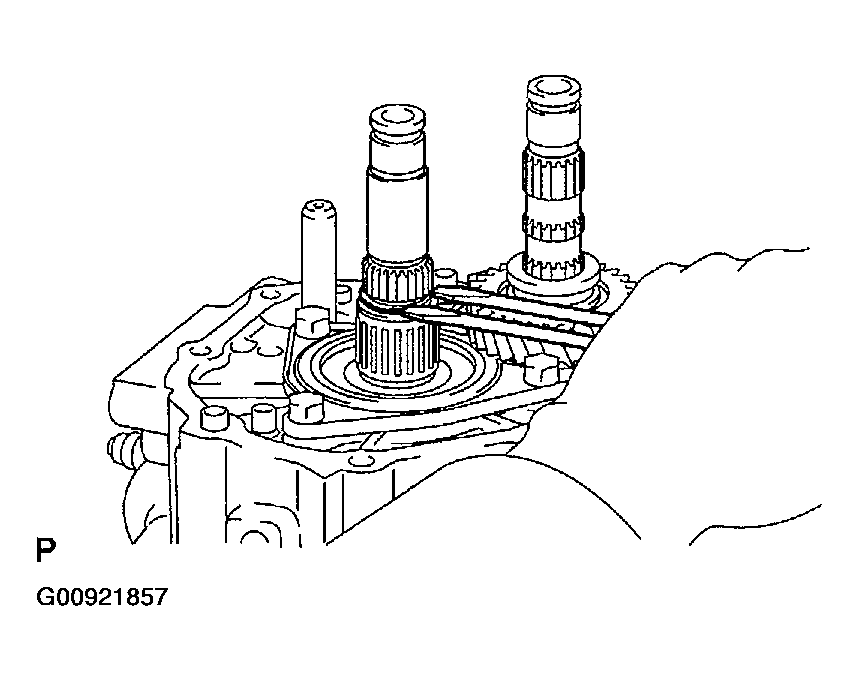

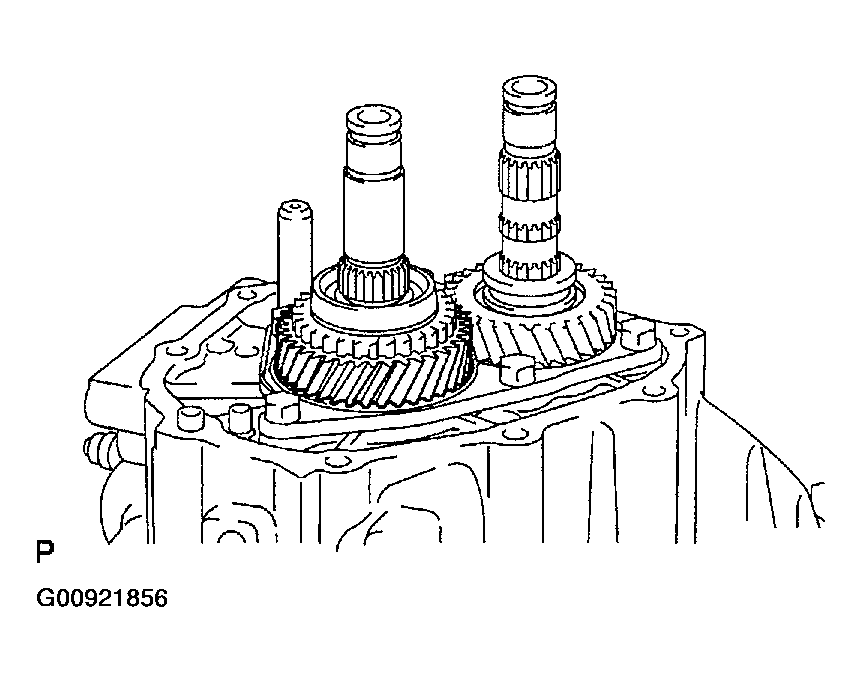

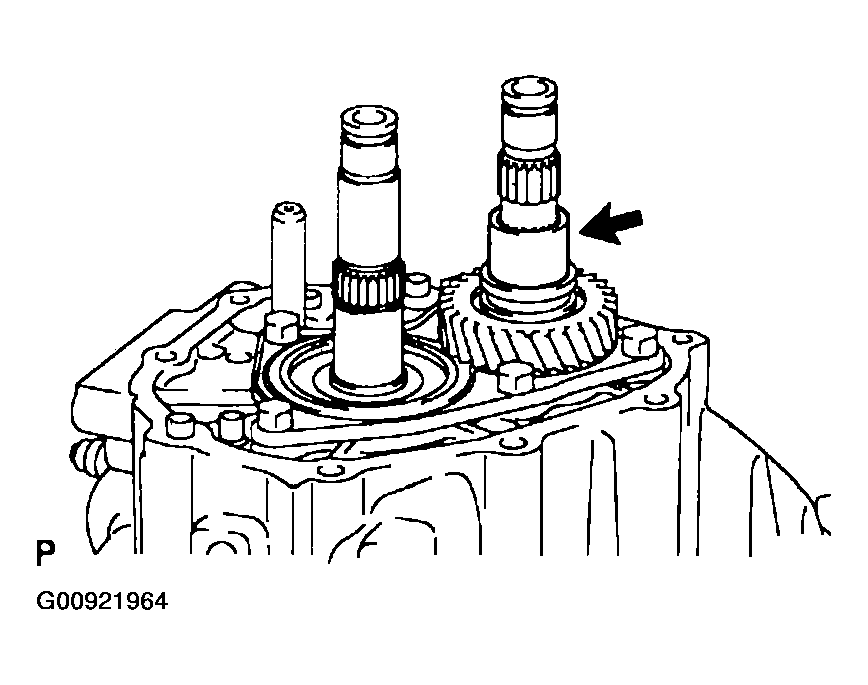

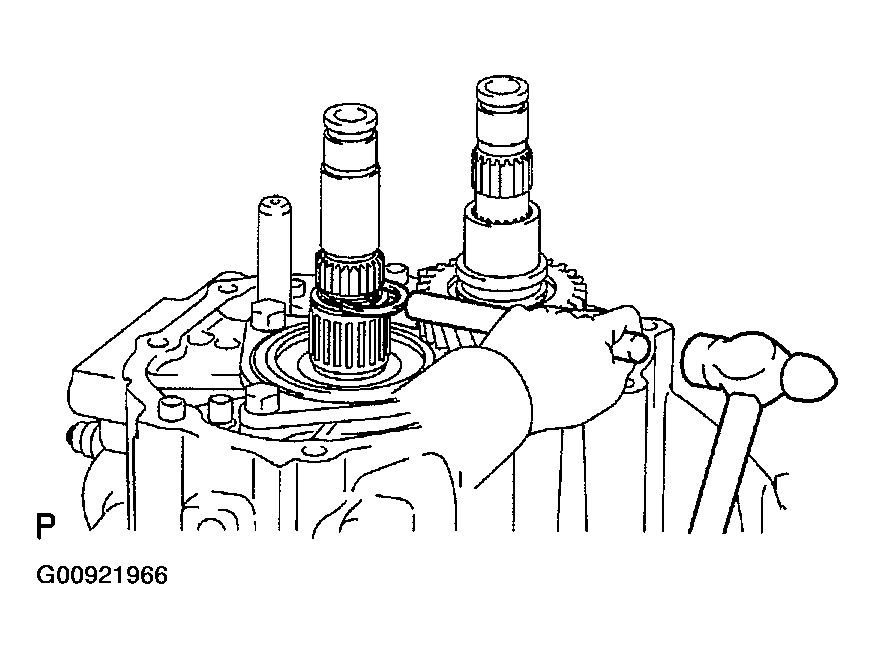

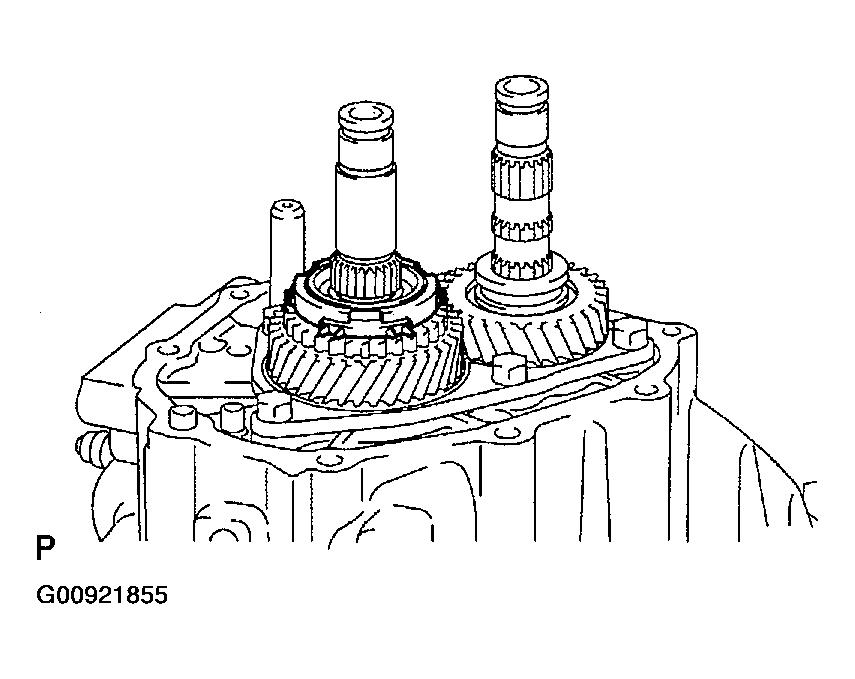

1. Using 2 screwdrivers and a hammer, remove the input shaft snap ring from the input shaft.
   NOTE: Using a waste to prevent the snap ring from the being scattered.
   Fig 19: Removing Input Shaft Snap Ring

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

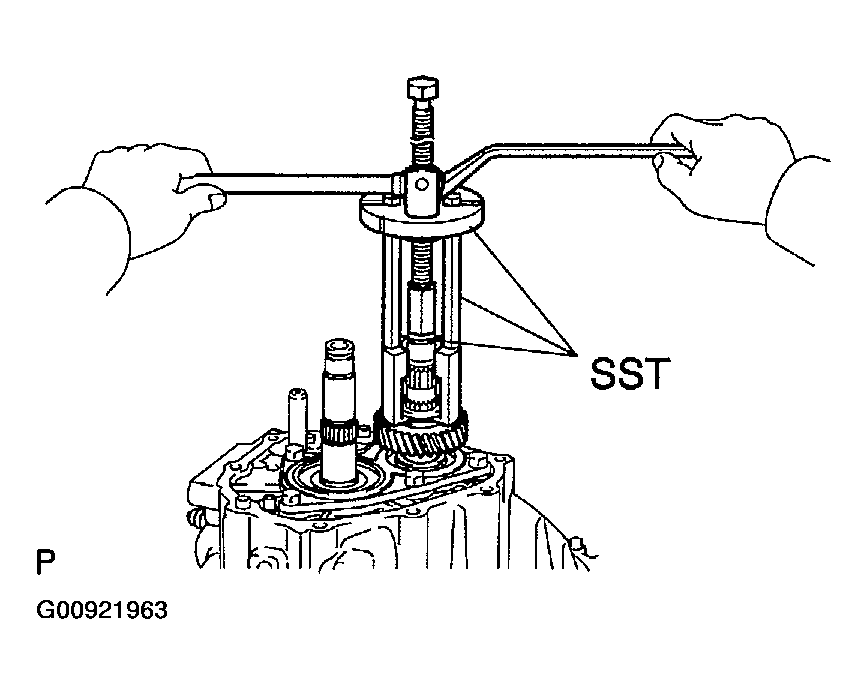

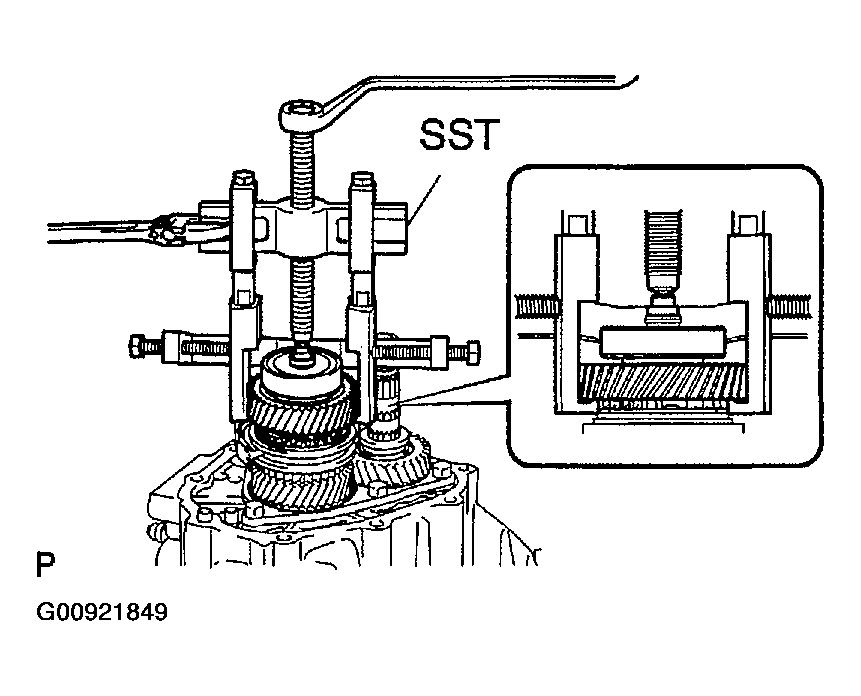

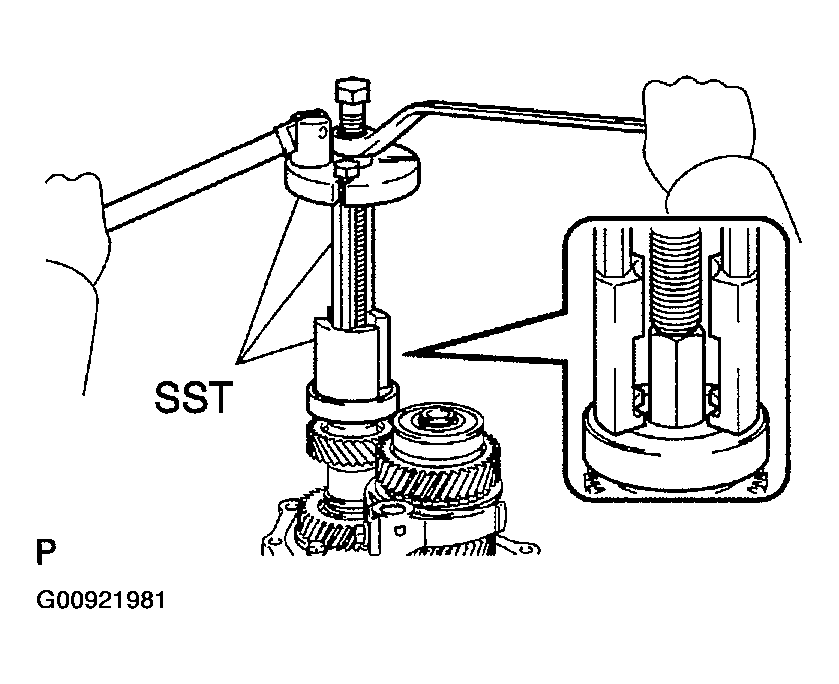

2. Using SST, remove the input shaft radial ball bearing RR with 6th gear sub-assy from the input shaft.

   SST 09950-40011 (09951-04010, 09952-04010, 09953-04020, 09954-04010, 09955-04021, 09957-04010, 09958-04011)

Fig 20: Removing 6th Gear Sub-Assy

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

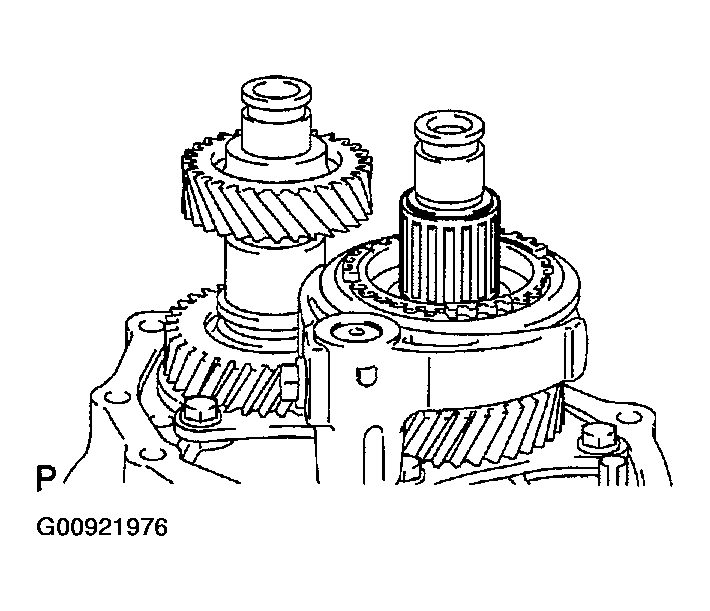

1. Remove 6th gear needle roller bearing from the input shaft.

Fig 21: Removing 6th Gear Needle Roller Bearing

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

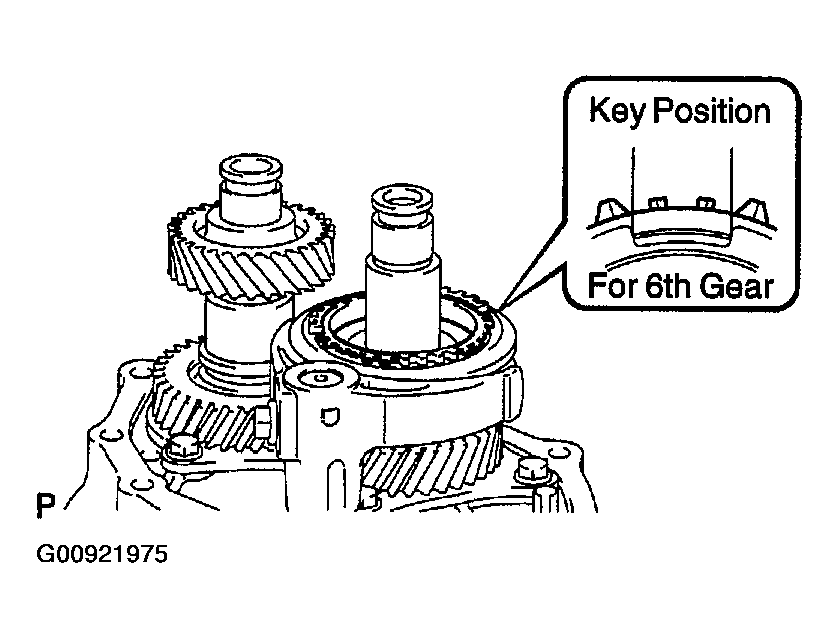

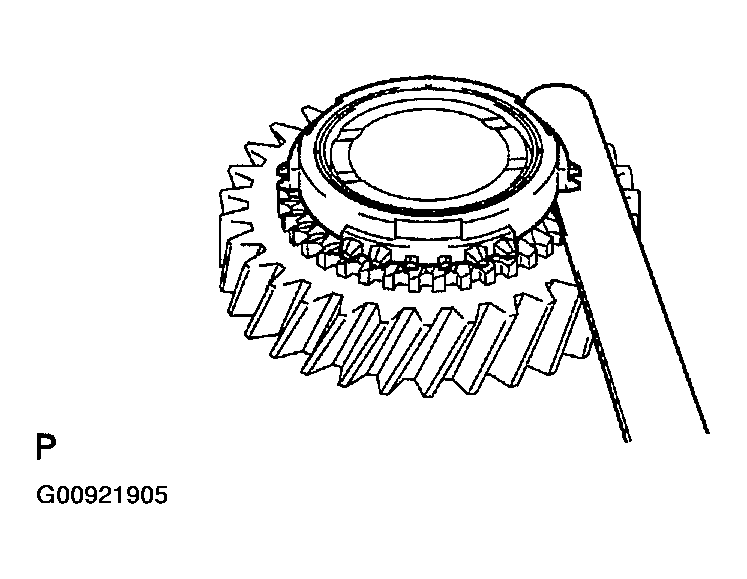

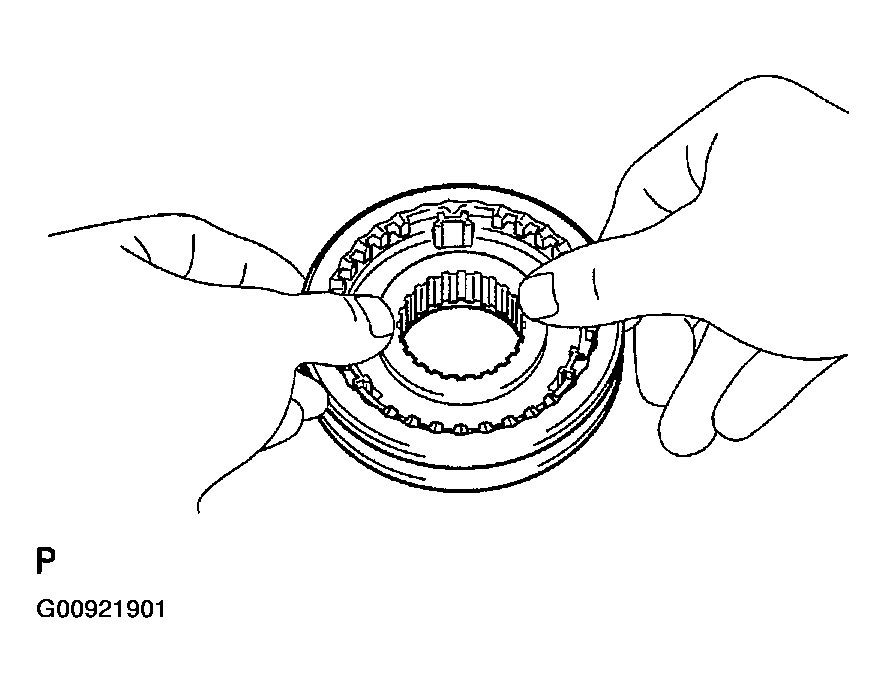

1. Remove the synchronizer ring No. 3 from the input shaft.

Fig 22: Removing Synchronizer Ring No. 3 (For 6th Gear MT)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 6th gear spacer.

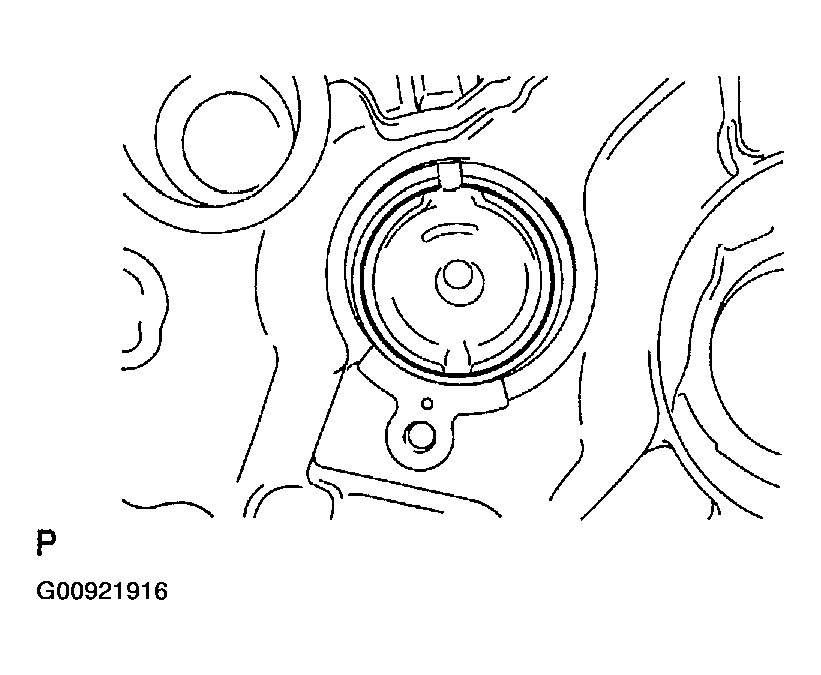

2. Using 2 screwdrivers and a hammer, remove the transmission clutch hub No. 3 shaft snap ring from the input shaft.
   NOTE: Using a waste to prevent the snap ring from the being scattered.
   Fig 23: Removing Transmission Clutch Hub No. 3 Shaft Snap Ring

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

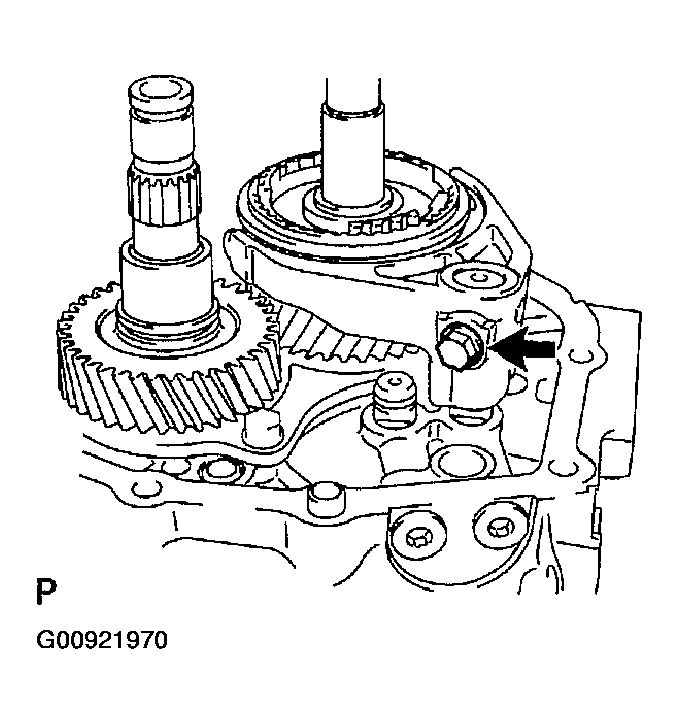

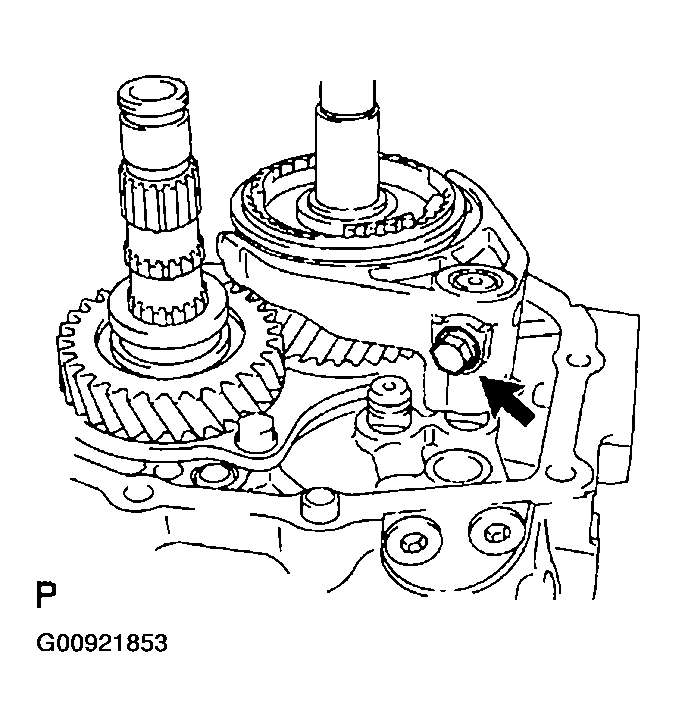

3. Remove the shift fork lock bolt from the shift fork No. 3.
   Fig 24: Removing Shift Fork Lock Bolt From Shift Fork No. 3

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

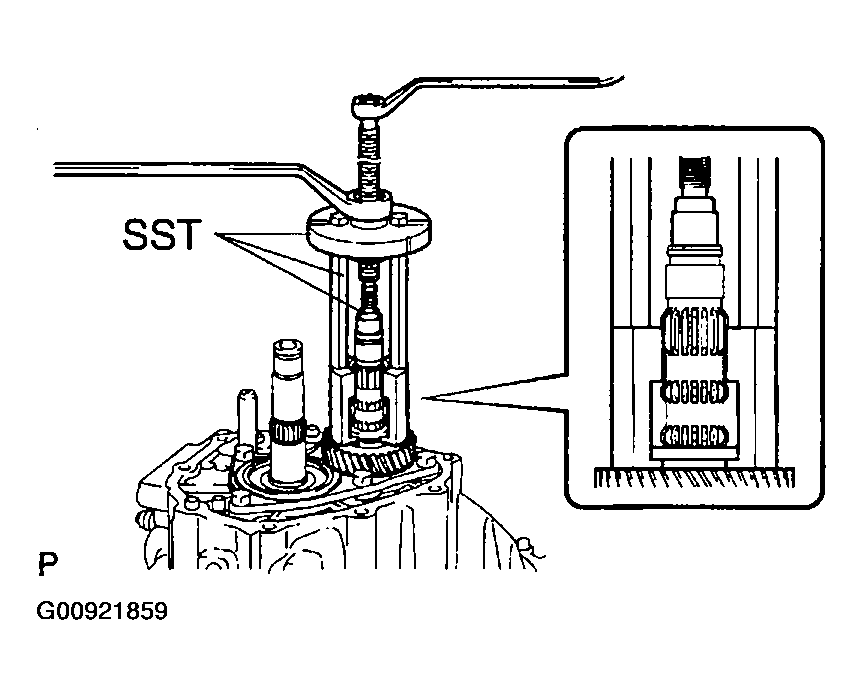

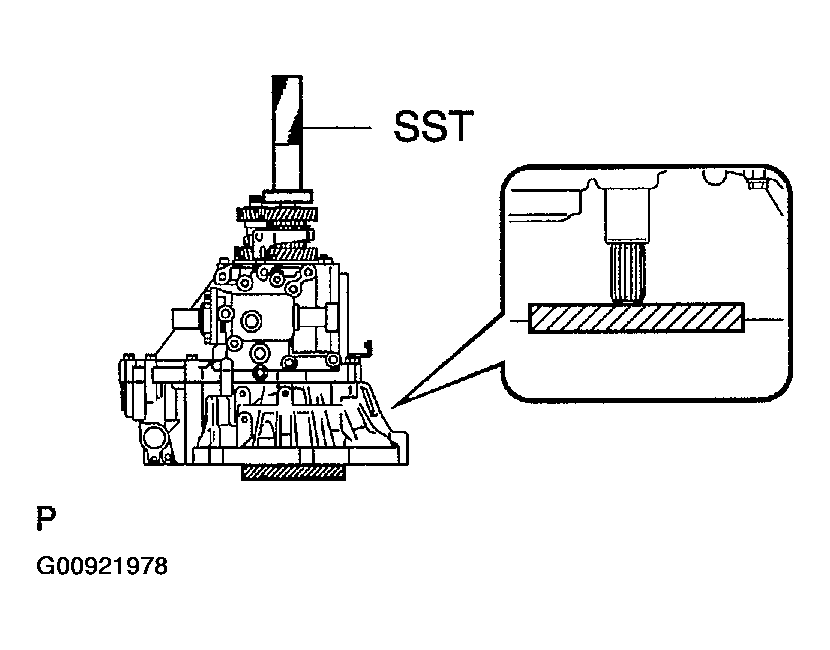

4. Using SST, remove the transmission clutch hub No. 3 with gear shift fork No. 3 from the input shaft.

   SST 09950-30012 (09951-03010, 09953-03010, 09957-04010), 09950-50013 (09954-05040)

Fig 25: Removing Transmission Clutch Hub No. 3

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

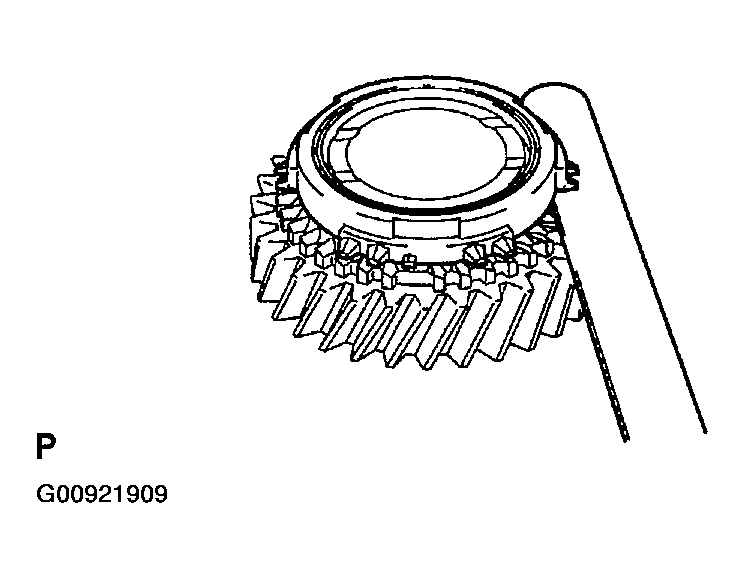

1. Remove the synchronizer ring No. 3 from the 5th gear.

Fig 26: Removing Synchronizer Ring No. 3 (For 5th Gear MT)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 5th gear from the input shaft.

Fig 27: Removing 5th Gear

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

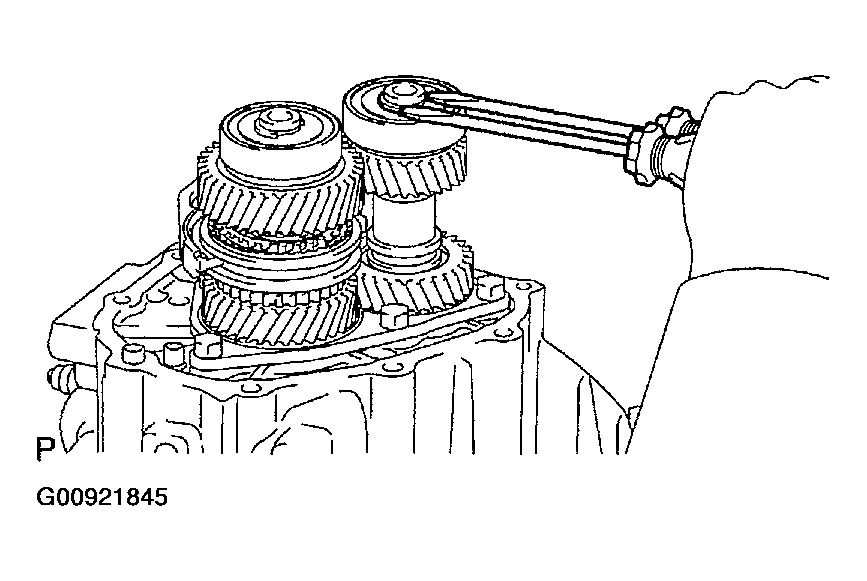

1. Using 2 screwdrivers and a hammer, remove the transmission clutch hub No. 3 shaft snap ring from the input shaft.
   NOTE: Use a rag to prevent the snap ring from the being scattered.
   Fig 28: Removing Transmission Clutch Hub No. 3 Shaft Snap Ring

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 5th gear needle roller bearing and 2 5th gear bearing spacers from the input shaft.

Fig 29: Removing 5th Gear Needle Roller Bearing

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

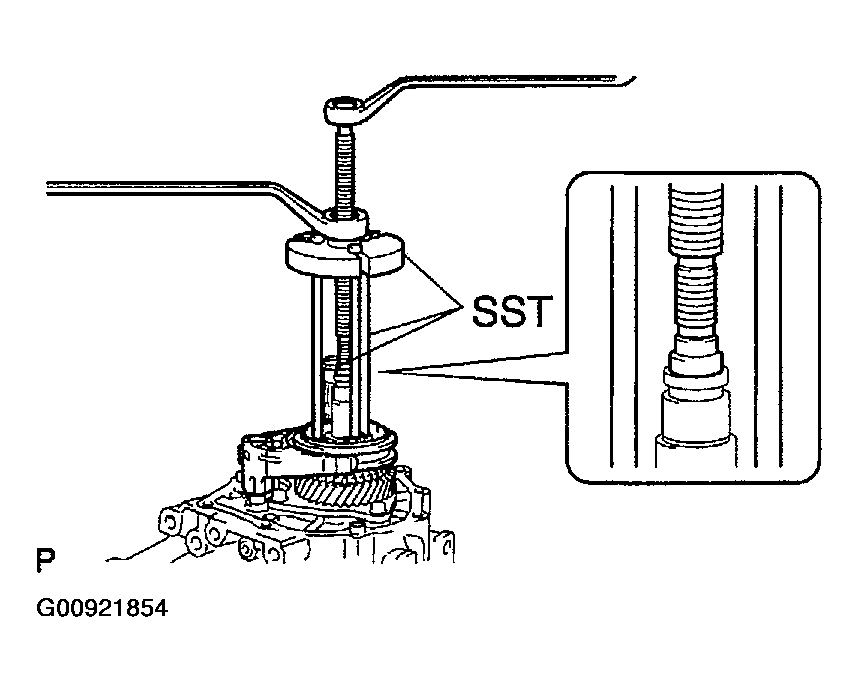

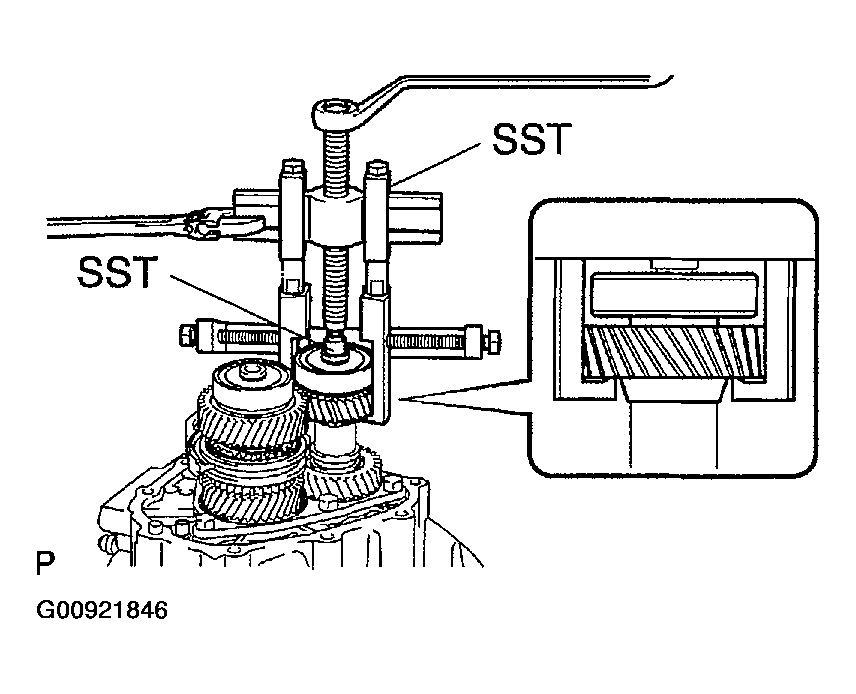

1. Using SST, remove the 5th driven gear from the output shaft.

   SST 09950-30012 (09951-03010, 09953-03010, 09954-03010, 09955-03011, 09957-04010), 09950-60010 (09951-00190)

Fig 30: Removing 5th Driven Gear

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

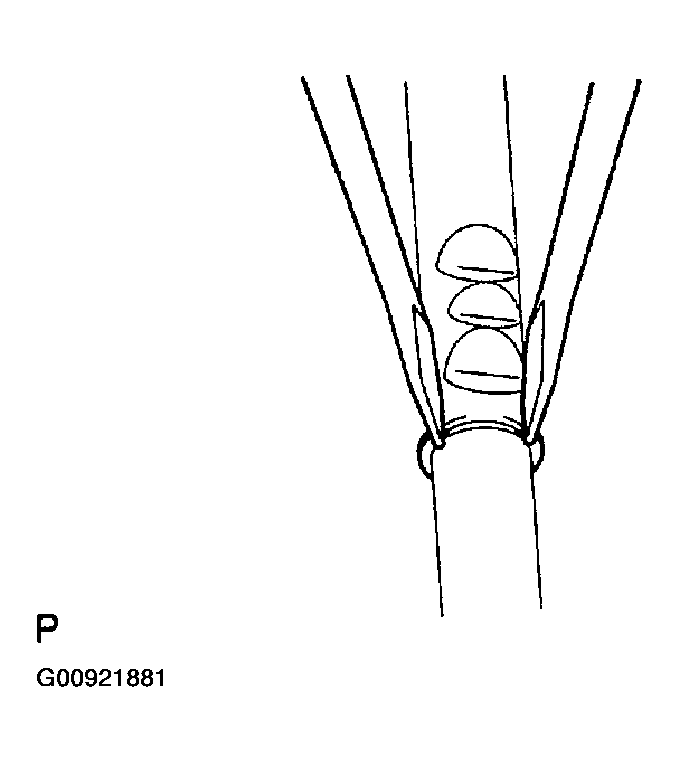

1. Using 2 screwdrivers and a hammer, remove the shift fork shaft snap ring from the shift fork shaft No. 2.
   NOTE: Using a waste to prevent the snap ring from the being scattered.

Fig 31: Removing Shift Fork Shaft Snap Ring

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

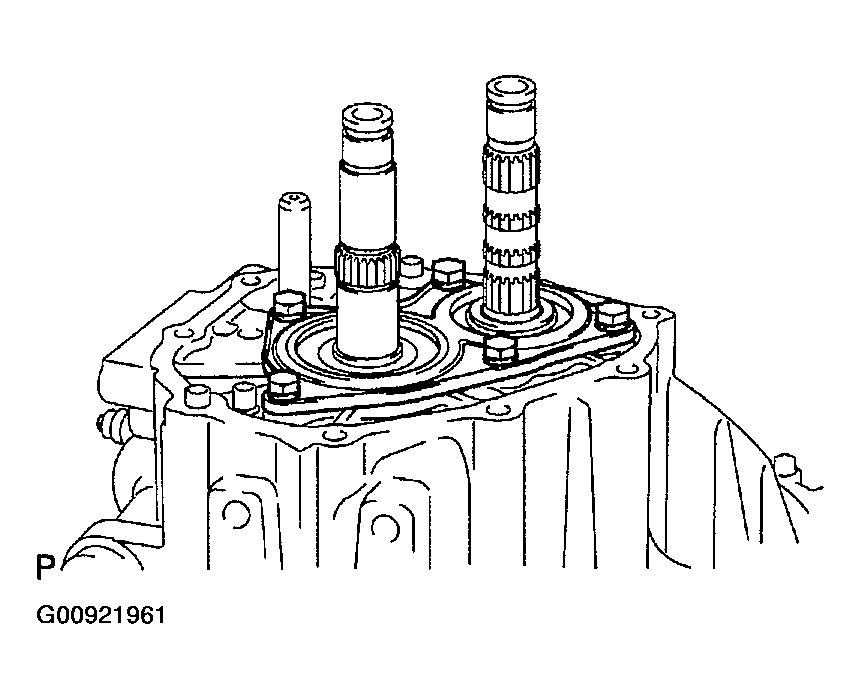

1. Remove the 5 bolts and bearing retainer rear (MTM) from the manual transmission case.

Fig 32: Removing Bearing Retainer Rear

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the lock ball assy No. 1 from the manual transmission case.

Fig 33: Removing Lock Ball Assy No. 1

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 4 bolts and shift & select lever shaft assy and gasket from the manual transmission case.

Fig 34: Removing Shift & Select Lever Shaft Assy

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

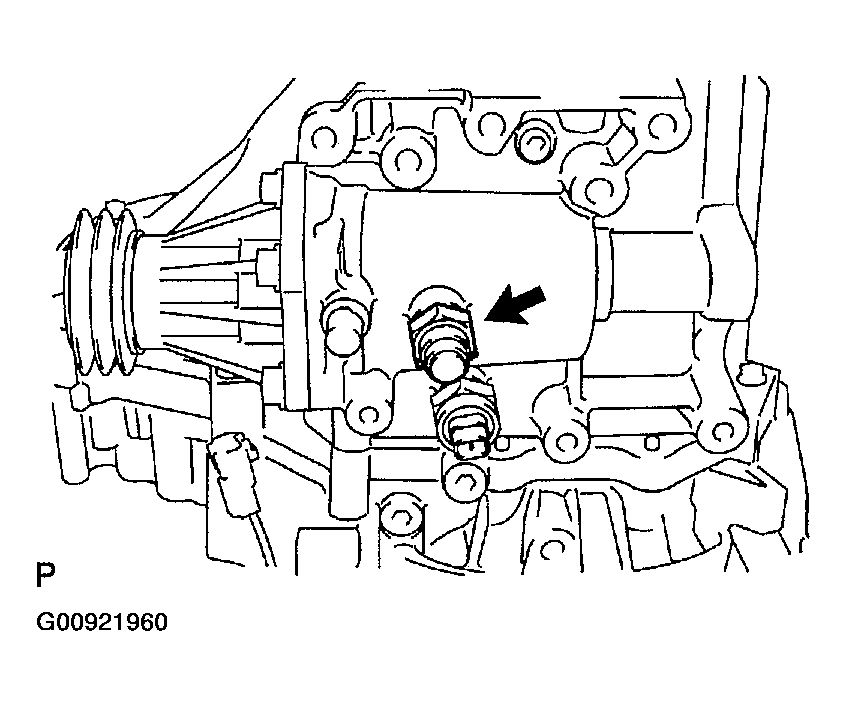

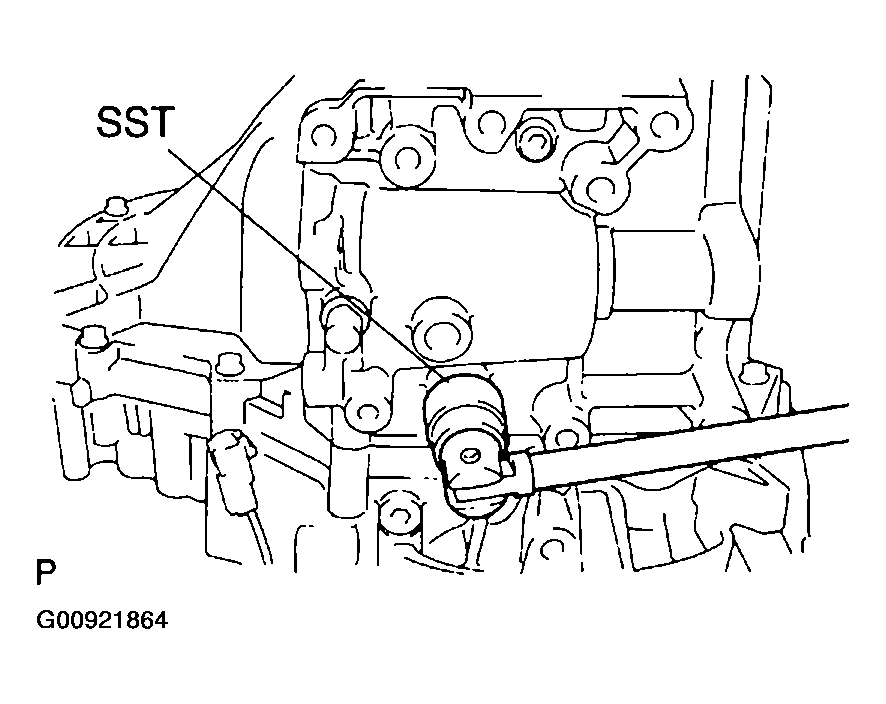

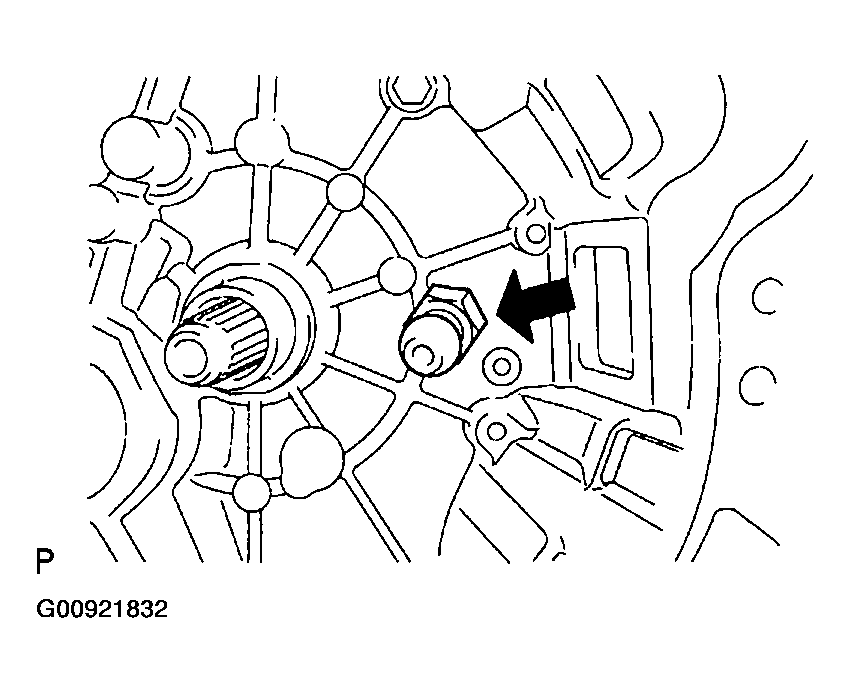

1. Using SST, remove the back up lamp switch assy and gasket from the manual transmission case.

   SST 09817-16011

Fig 35: Removing Back Up Lamp Switch Assy

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

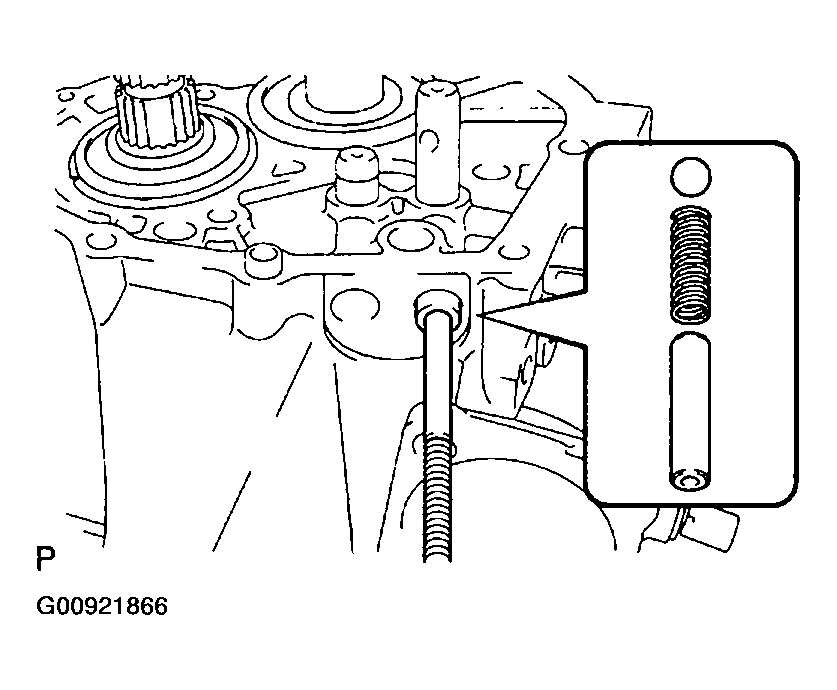

1. Using a socket hexagon wrench 6, remove the 2 shift detent ball plugs from the manual transmission case.
   Fig 36: Removing Shift Detent Ball Plugs

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a magnetic finger, remove the 2 shift detent ball spring seats, 2 shift detent ball compression springs and 2 shift detent balls from the manual transmission case.

Fig 37: Removing Spring Seats, Springs And Shift Detent Balls

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

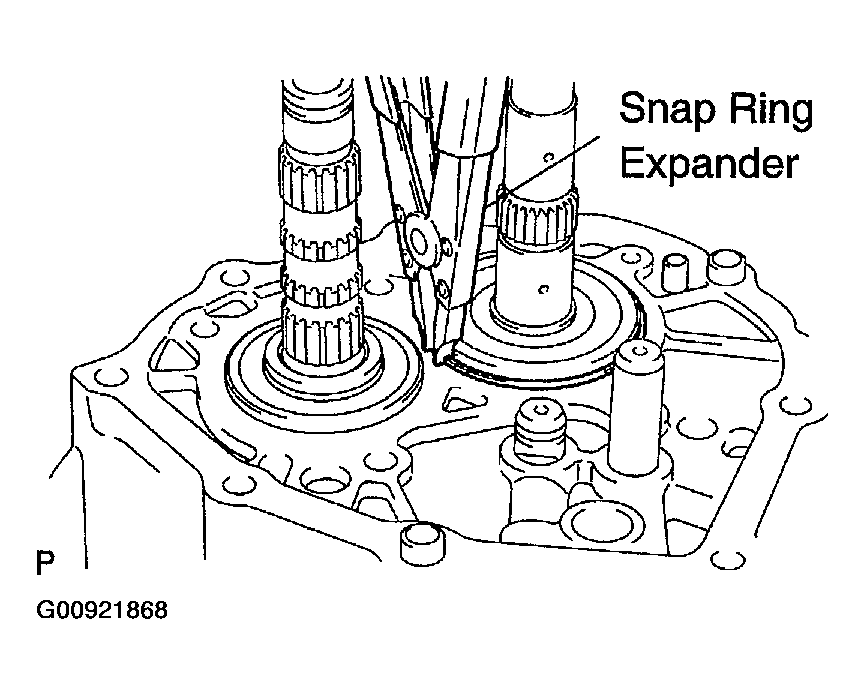

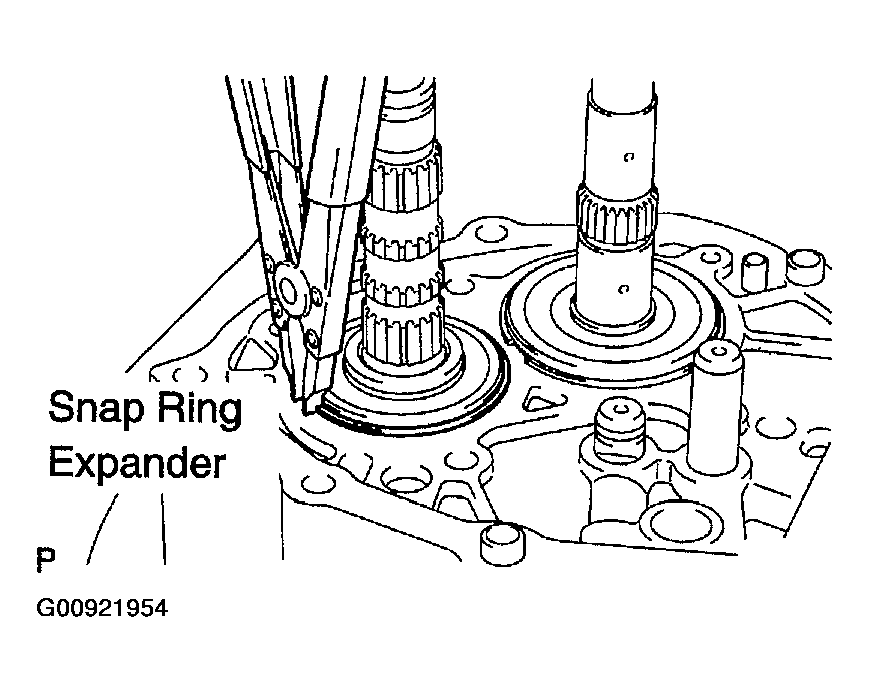

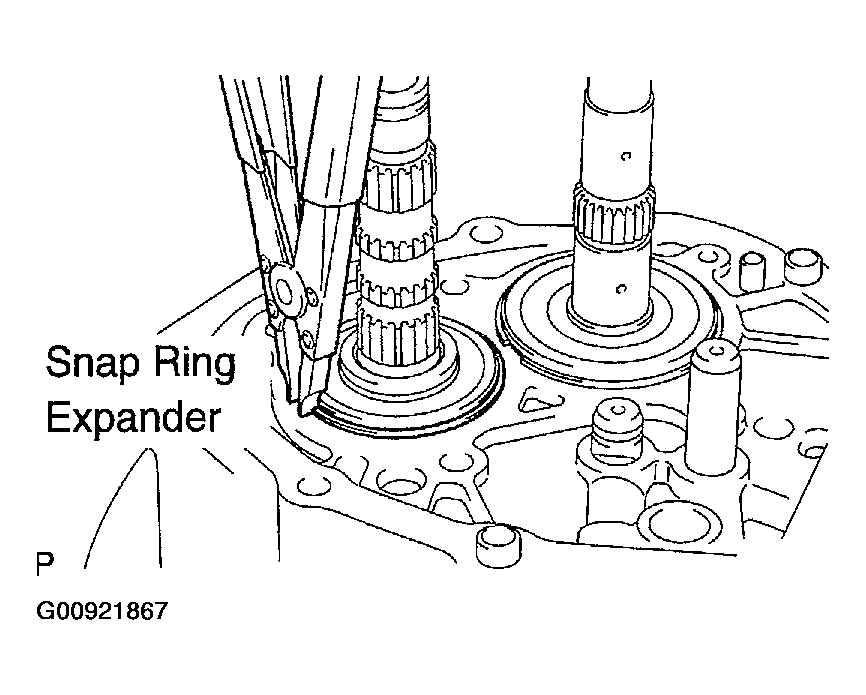

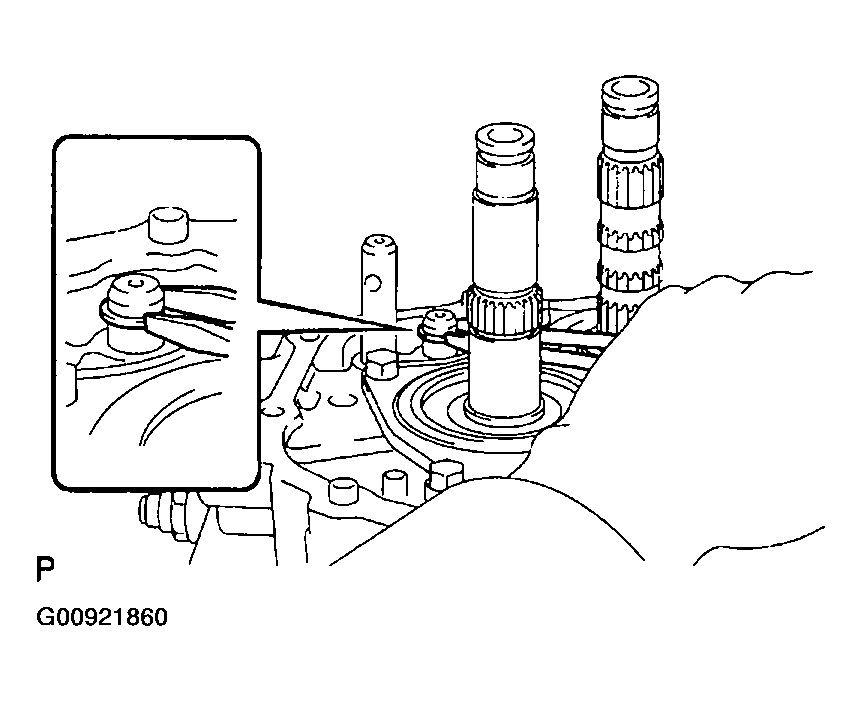

1. Using a snap ring expander, remove the output shaft rear bearing hole snap ring from the output shaft.

Fig 38: Removing Output Shaft Rear Bearing Hole Snap Ring

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

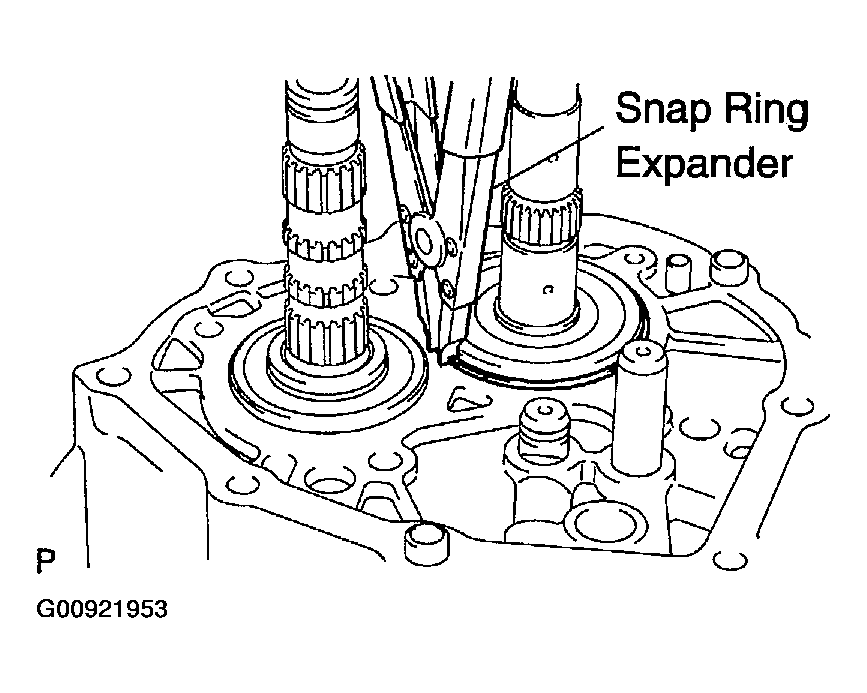

1. Using a snap ring expander, remove the input shaft rear bearing hole snap ring.

Fig 39: Removing Input Shaft Rear Bearing Hole Snap Ring

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a socket hexagon wrench 6, remove the manual transmission case plug from the manual transmission case.

Fig 40: Removing Manual Transmission Case Plug

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

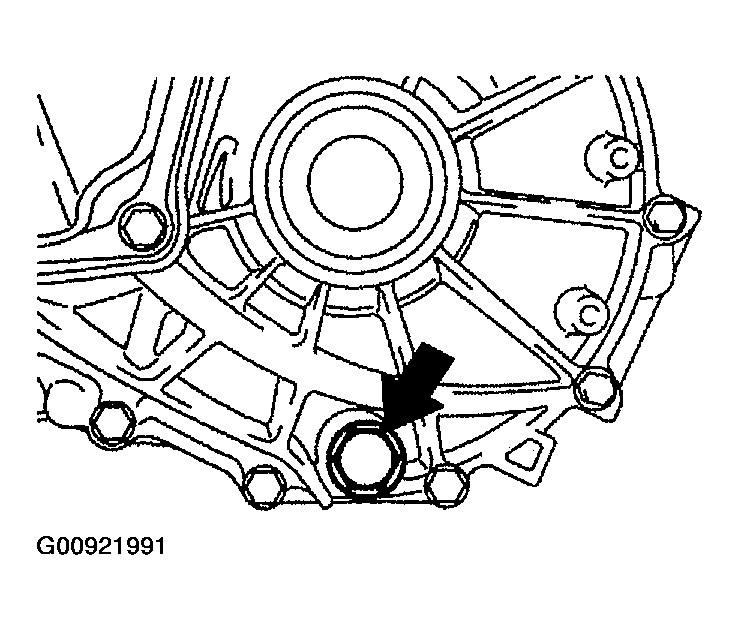

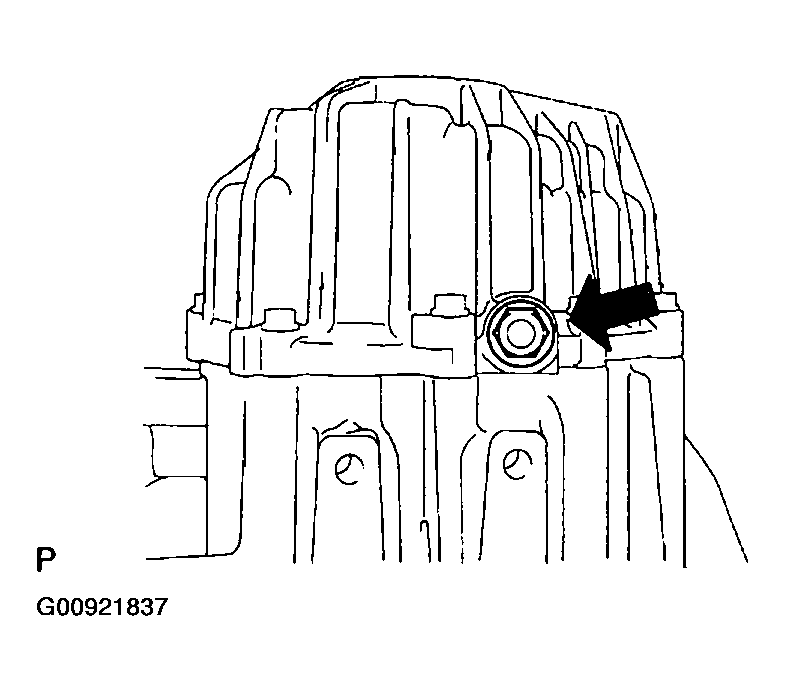

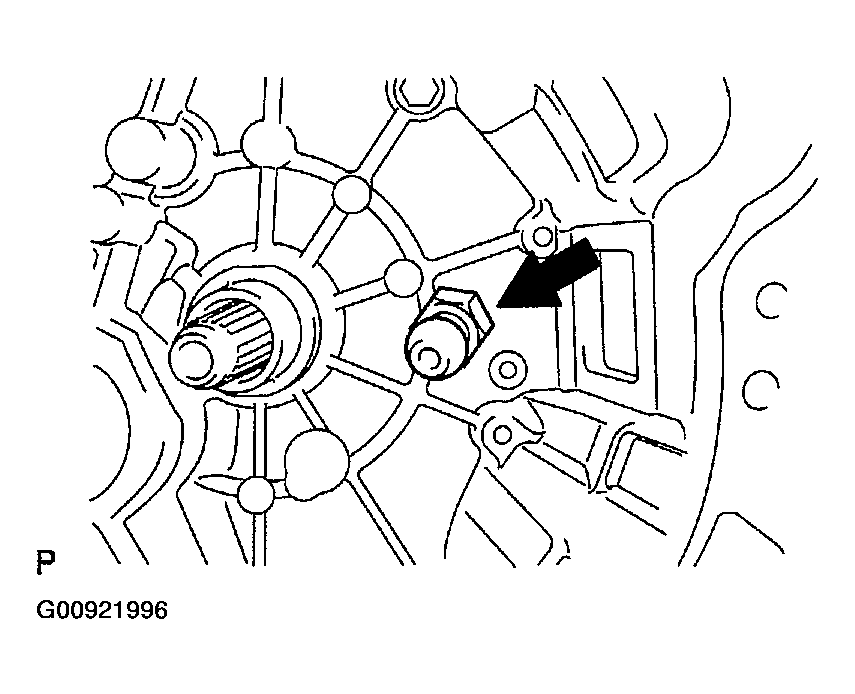

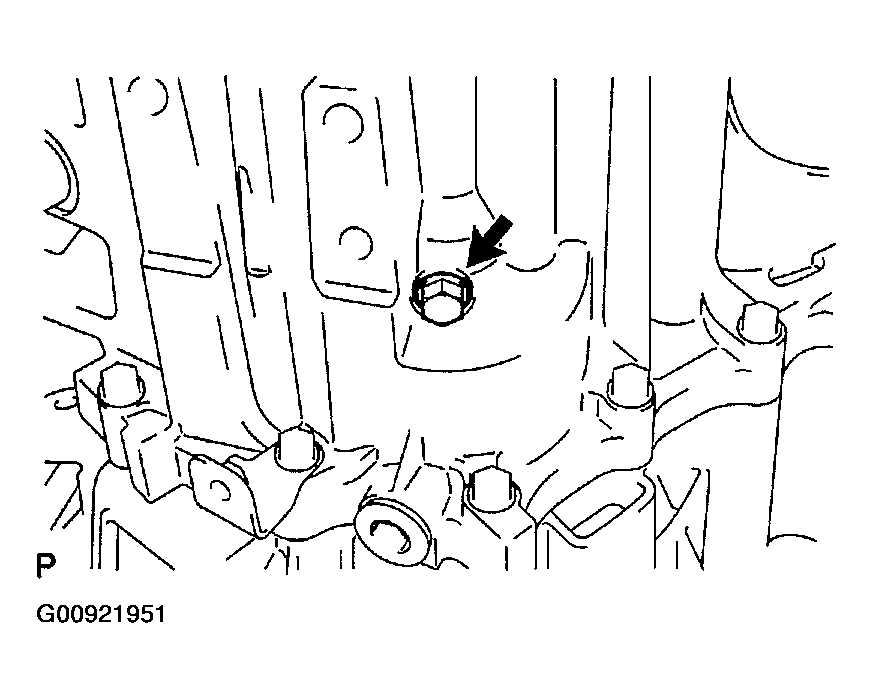

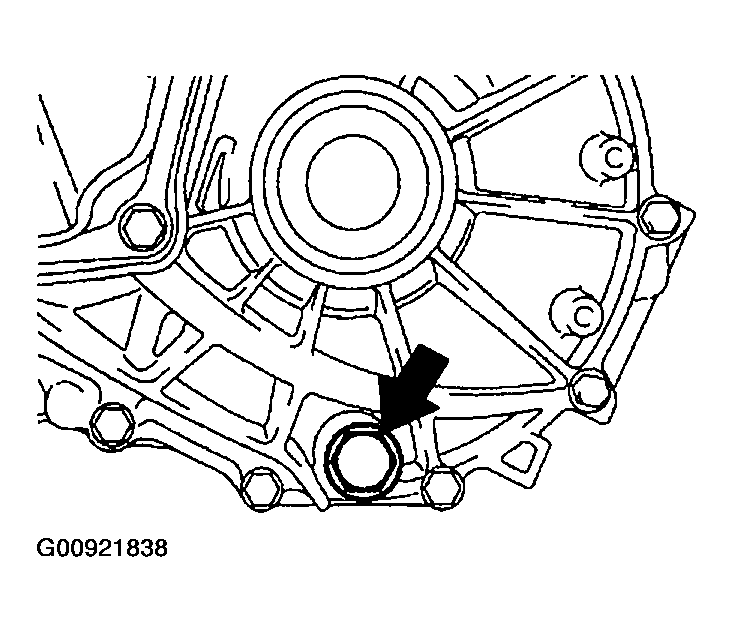

1. Remove the reverse idler gear shaft bolt and gasket from the manual transmission case.

Fig 41: Removing Reverse Idler Gear Shaft Bolt

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

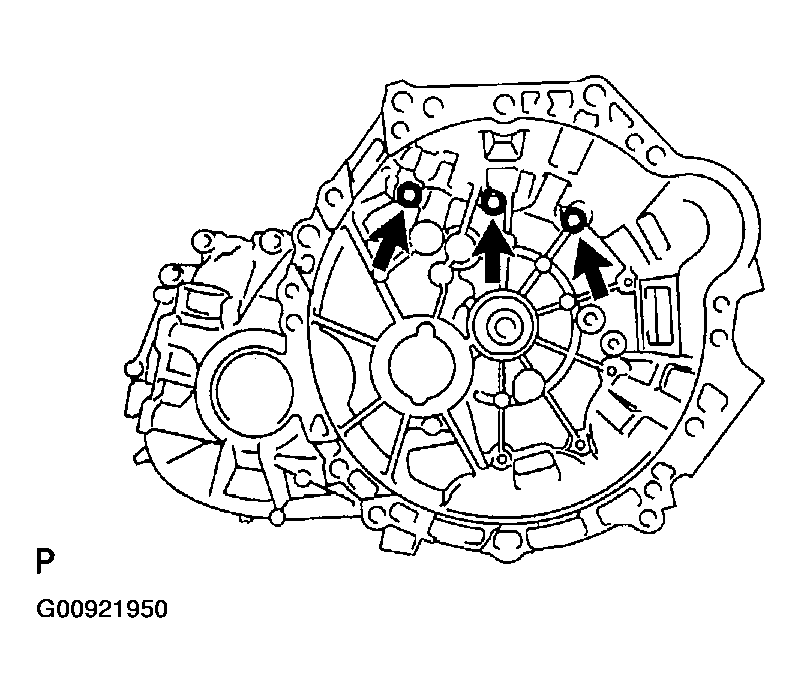

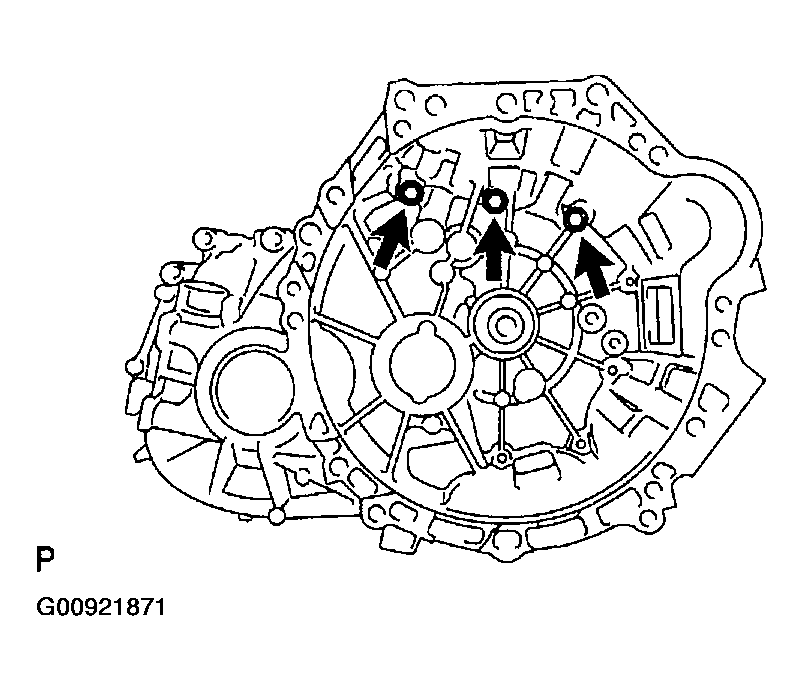

1. Remove the 3 bolts from the transaxle case side.
   Fig 42: Removing Bolts From Transaxle Case Side

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

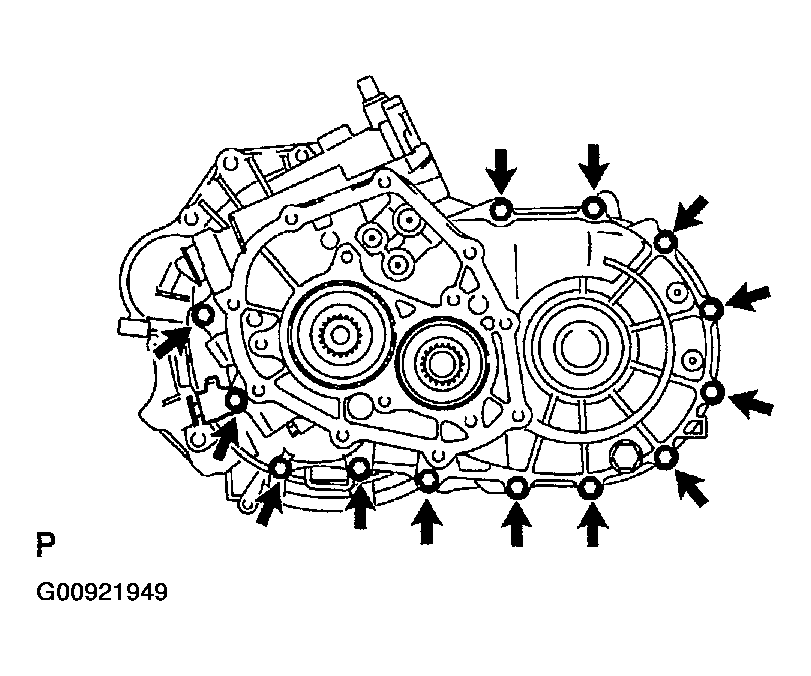

2. Remove the 13 bolts from manual transmission case side.
   Fig 43: Removing Bolts From Manual Transmission Case Side

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using a brass bar and a hammer, remove the manual transmission case from the transaxle case.

Fig 44: Removing Manual Transmission Case From Transaxle Case

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the bolt and oil receiver pipe No. 1 from the manual transmission case.

Fig 45: Removing Oil Receiver Pipe No. 1

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the bolt and oil receiver pipe No. 2 from the manual transmission case.

Fig 46: Removing Oil Receiver Pipe No. 2

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

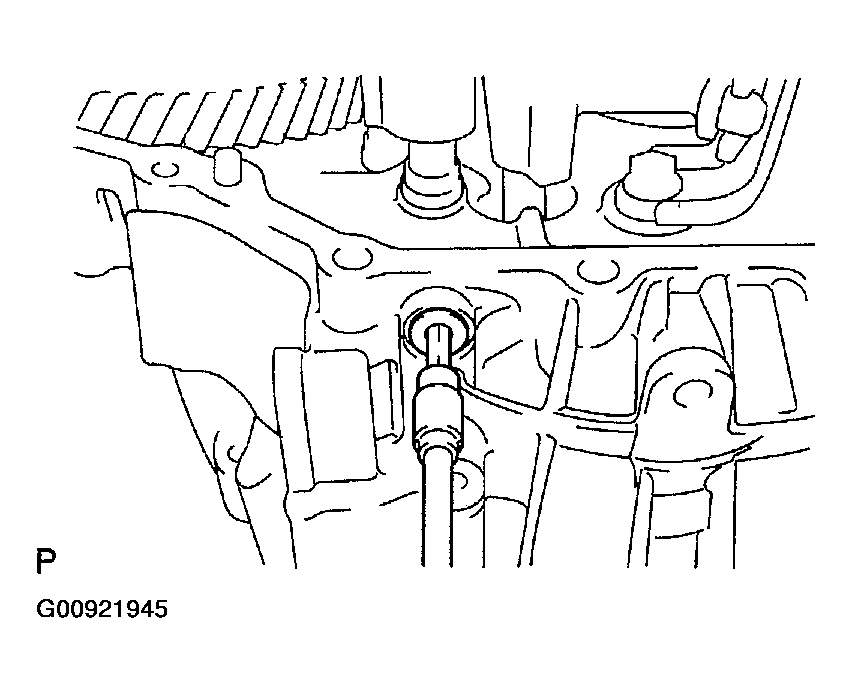

1. Using a socket hexagon wrench 6, remove the shift detent ball plug from the transaxle case.
   Fig 47: Removing The Shift Detent Ball Plug

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

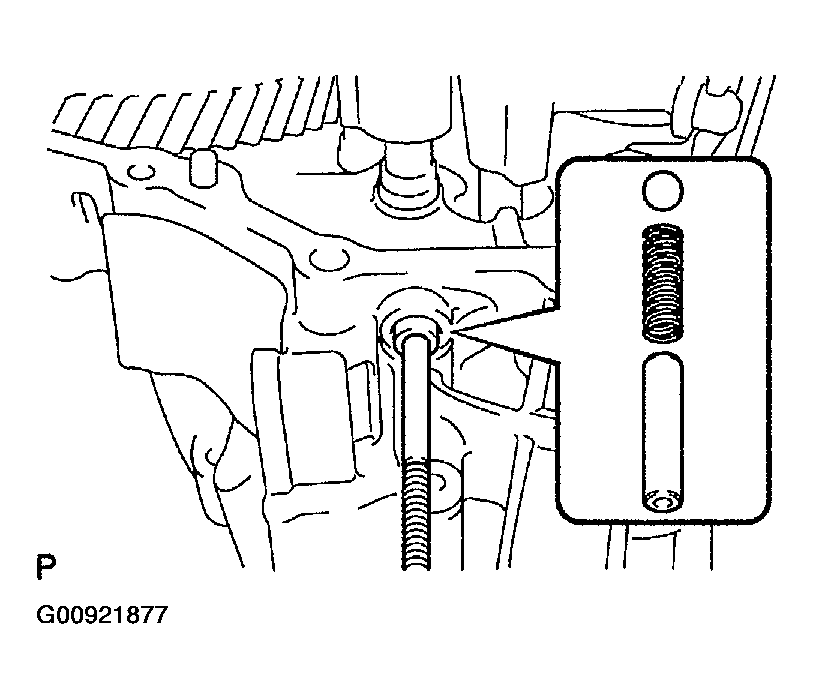

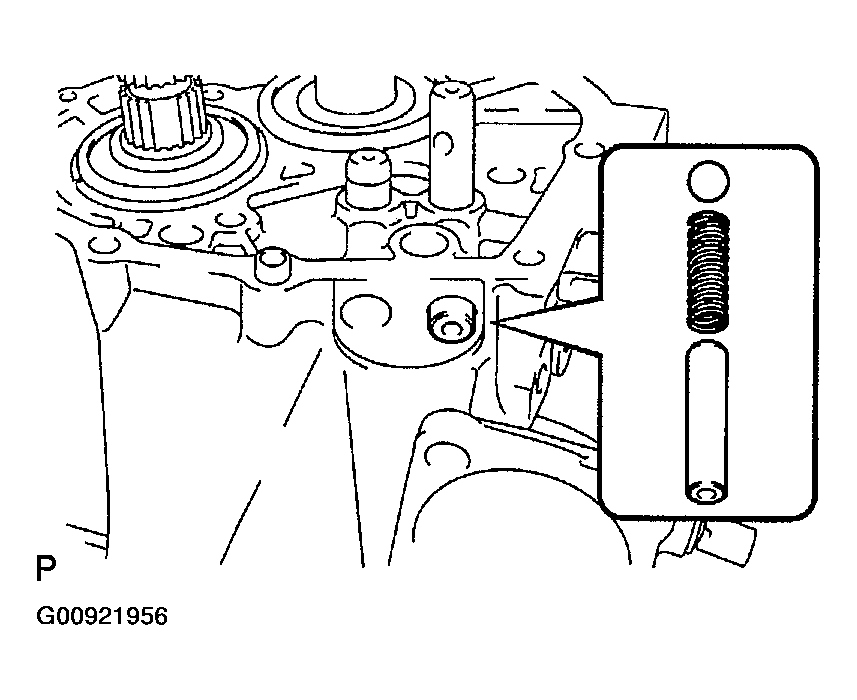

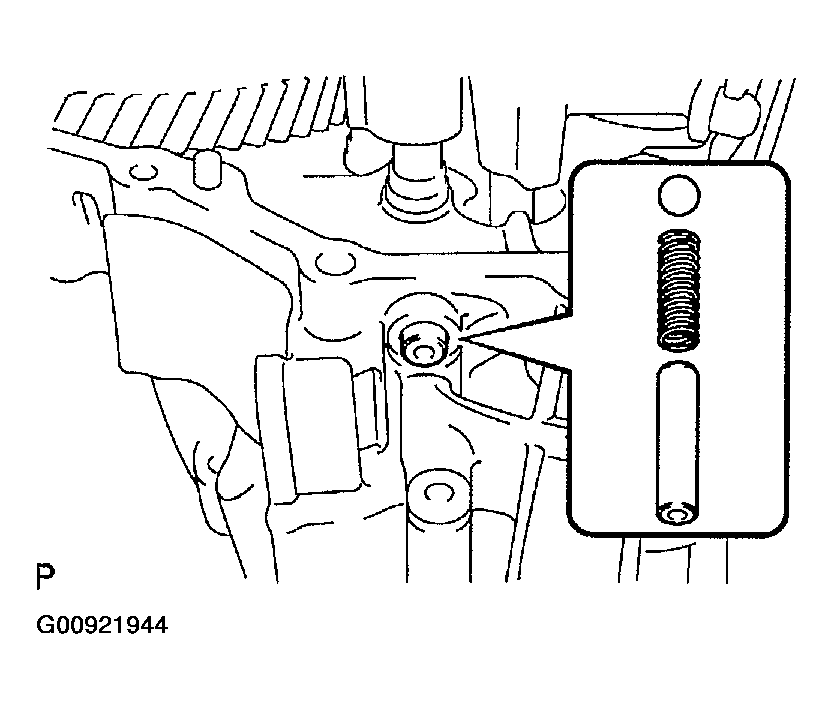

2. Using a magnetic finger, remove the shift detent ball spring seat, shift detent ball compression spring and shift detent ball from the transaxle case.

Fig 48: Removing 1st Gear Thrust Washer Pin Or Ball

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

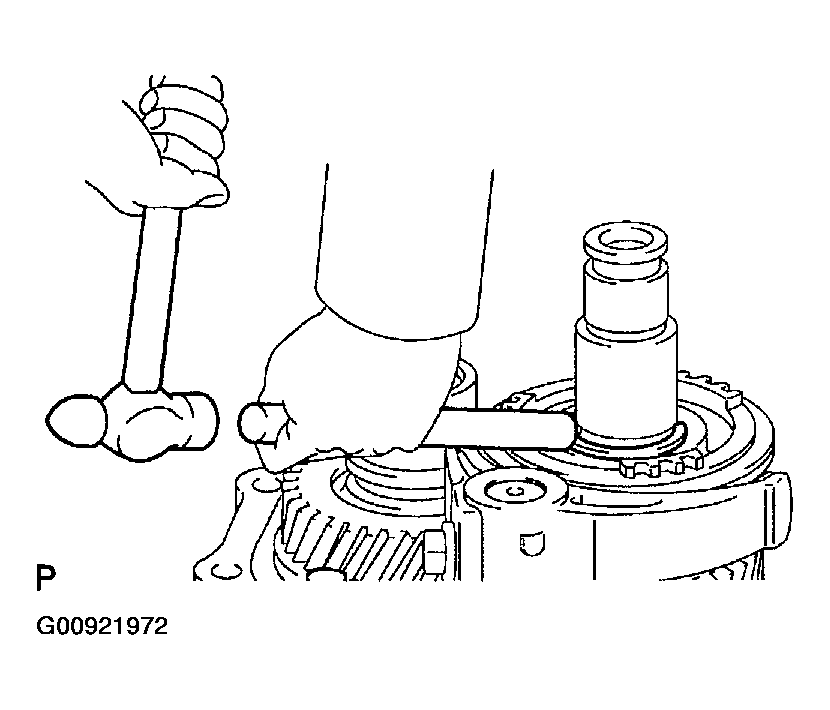

1. Using 2 screwdrivers and a hammer, remove shaft snap ring.
   NOTE: Using a waste to prevent the snap ring from the being scattered.
   Fig 49: Removing Shaft Snap Ring

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

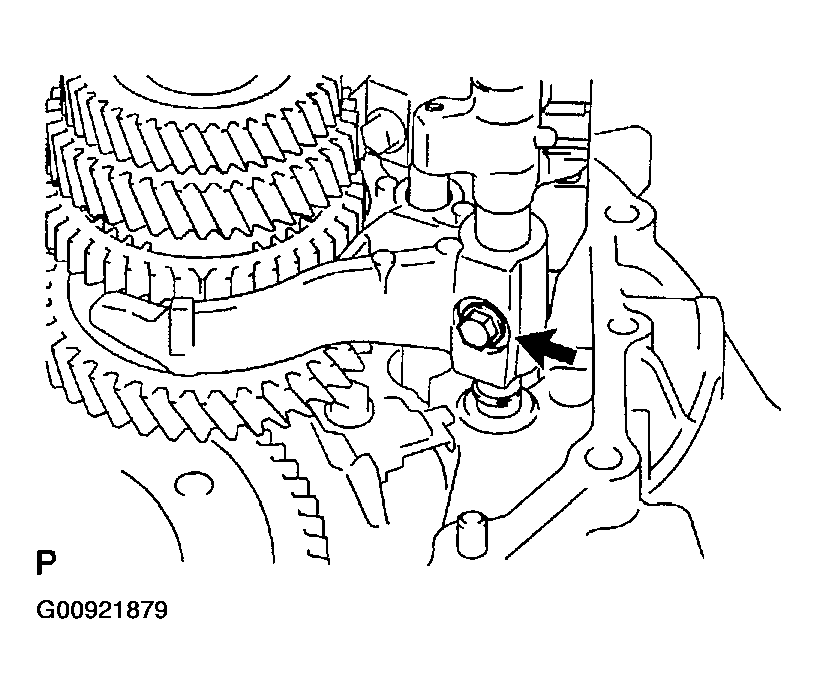

2. Remove the gear shift fork lock bolt and gear shift fork shaft sub-assy No. 1.

Fig 50: Removing Gear Shift Fork Shaft Sub-Assy No. 1

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the shift fork shaft No. 3 from the transaxle case.
   Fig 51: Removing Gear Shift Fork Shaft No. 3

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

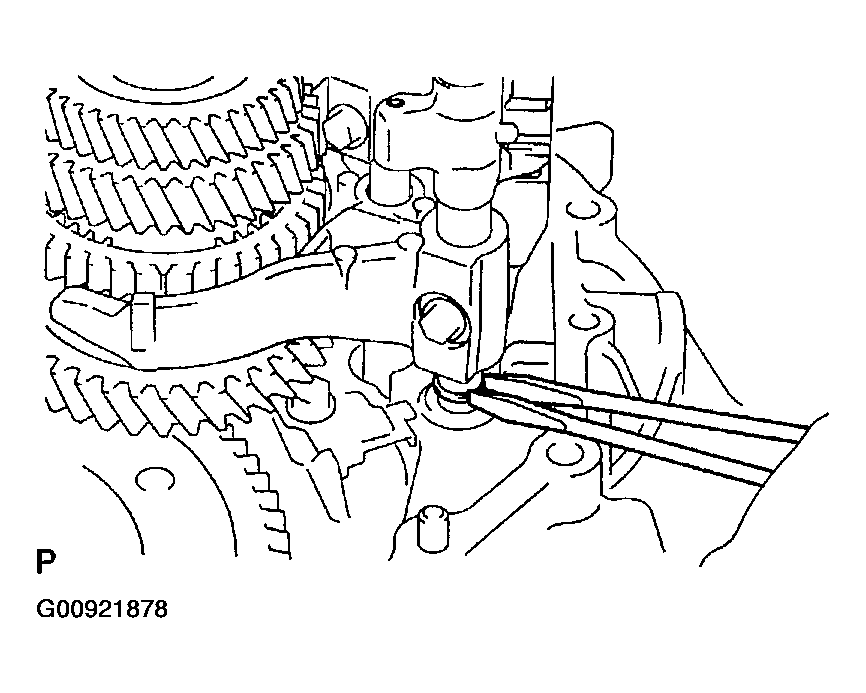

2. Using 2 screwdrivers and a hammer, remove the shaft snap ring from the shift fork shaft No. 3.

Fig 52: Removing Shaft Snap Ring

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

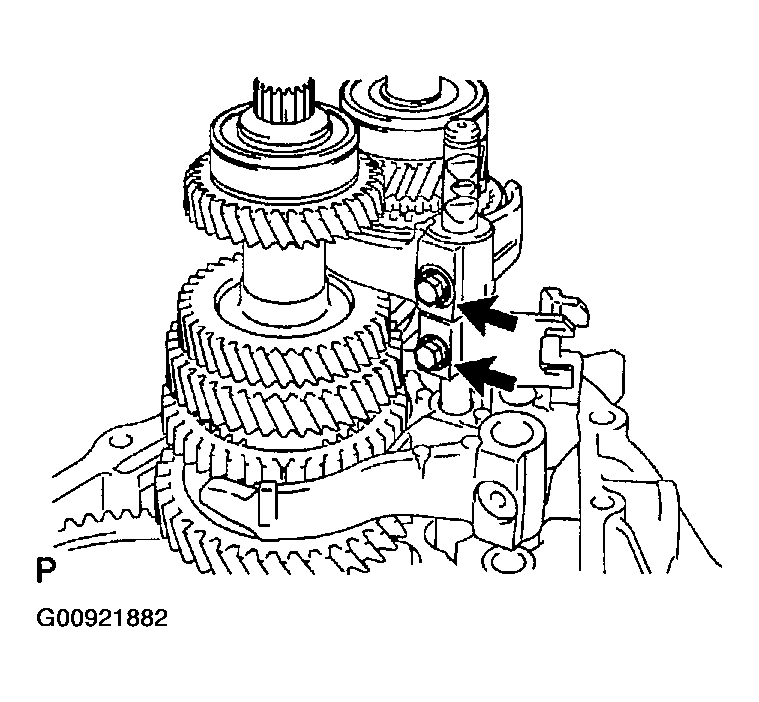

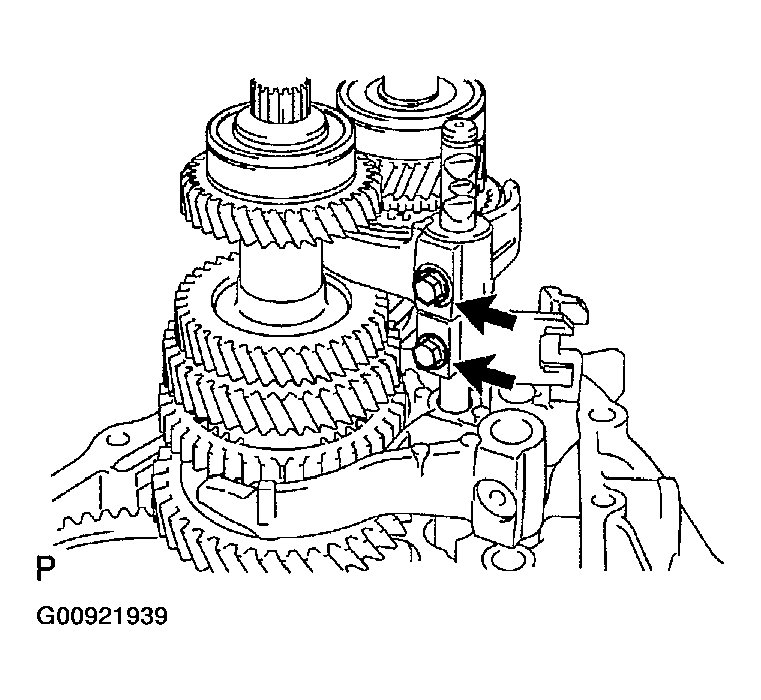

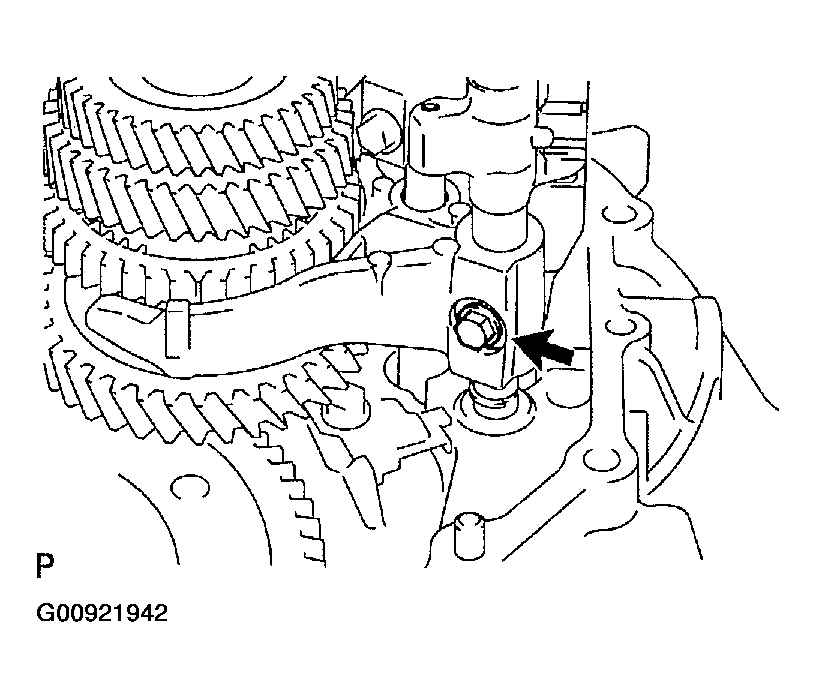

1. Remove the 2 gear shift fork lock bolts from the gear shift fork No. 2 and gear shift head No. 1.
   Fig 53: Removing Gear Shift Fork Lock Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

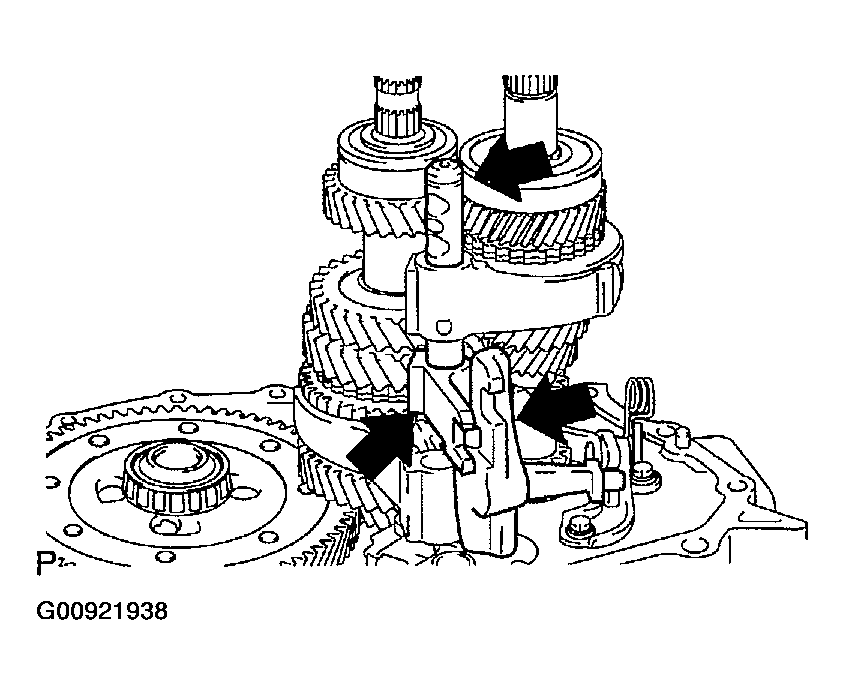

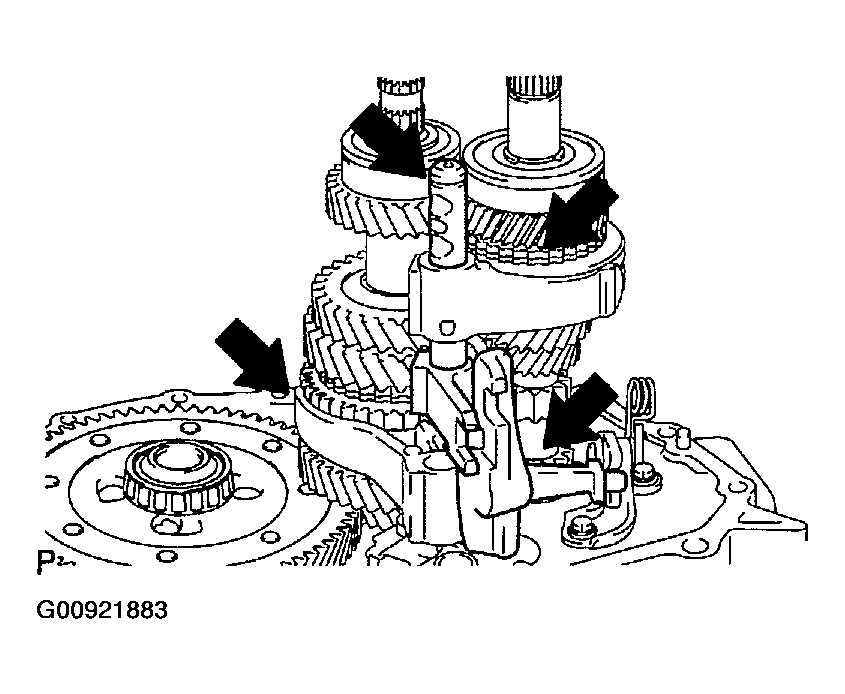

2. Remove the gear shift fork shaft No. 2, gear shift fork No. 2, gear shift fork No. 1, gear shift head No. 1 and reverse shift fork.

Fig 54: Removing Gear Shift Fork Shaft No. 2

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

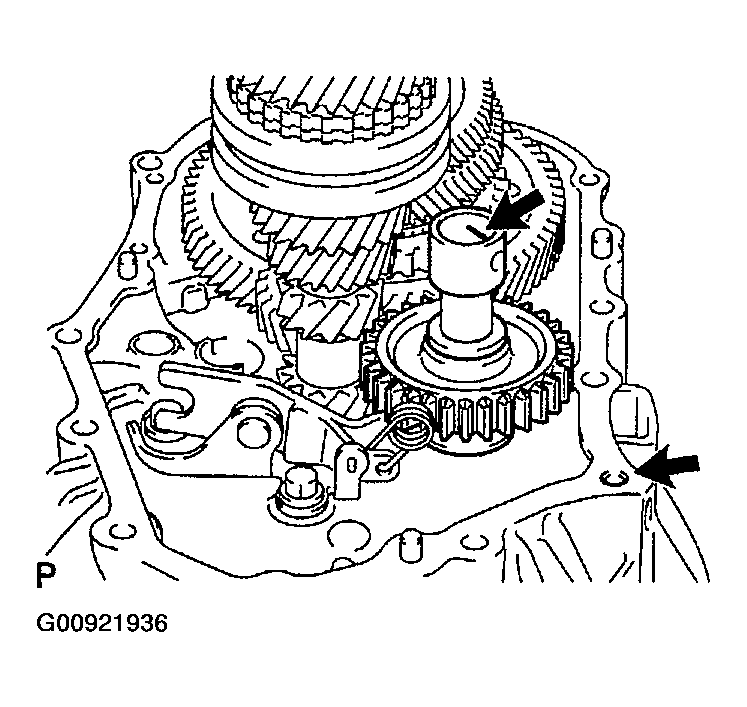

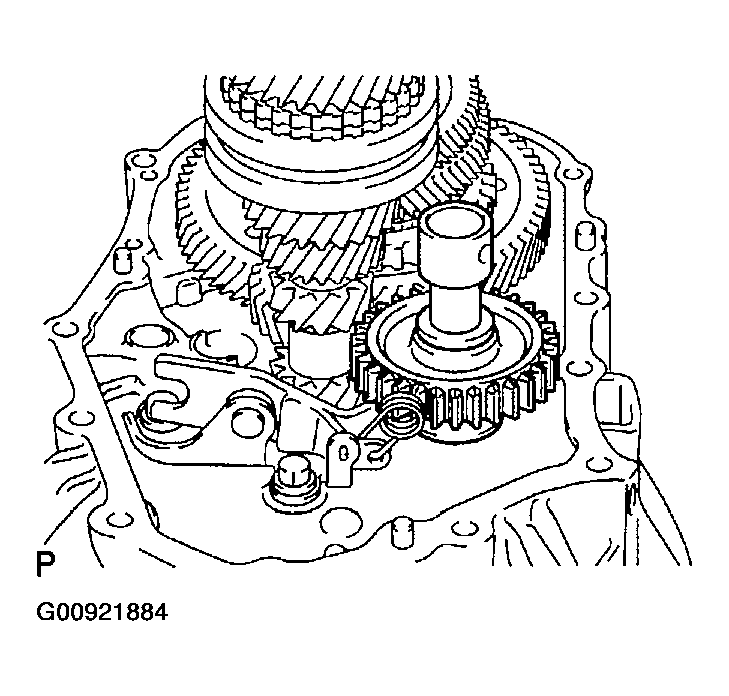

1. Remove the reverse idler gear shaft, thrust washer and reverse idler gear sub-assy from the transaxle case.

Fig 55: Removing Reverse Idler Gear Sub-Assy

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

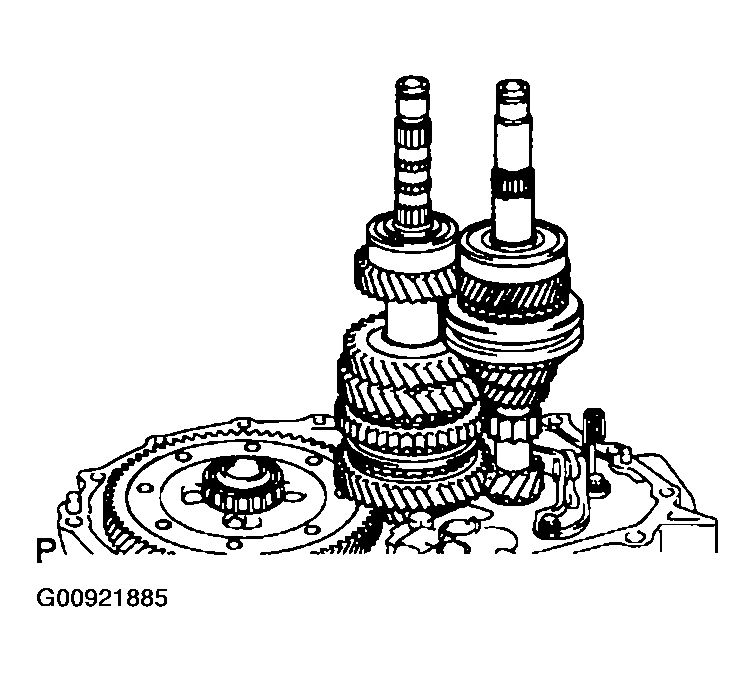

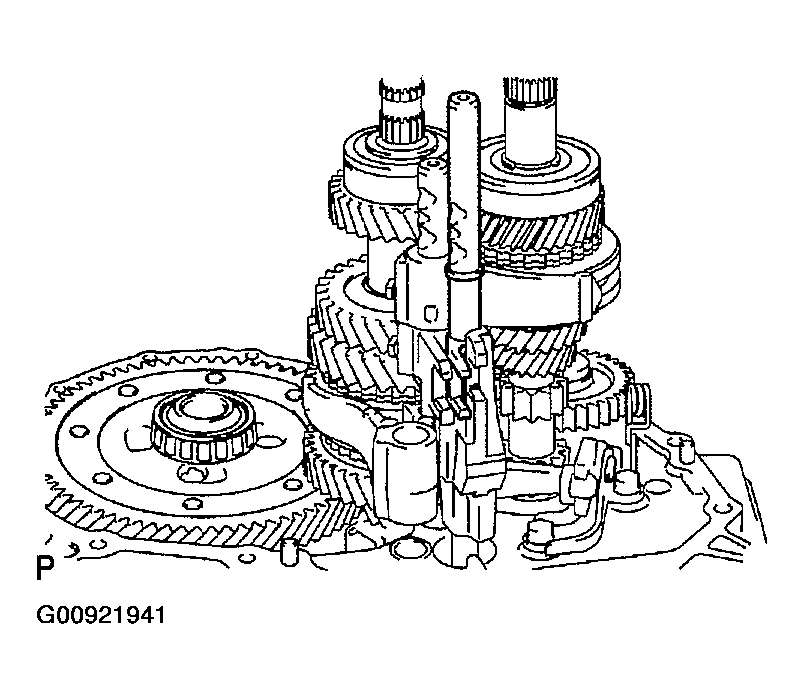

1. Remove the input shaft assy with output shaft assy from the transaxle case.

Fig 56: Removing Input Shaft Assy

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

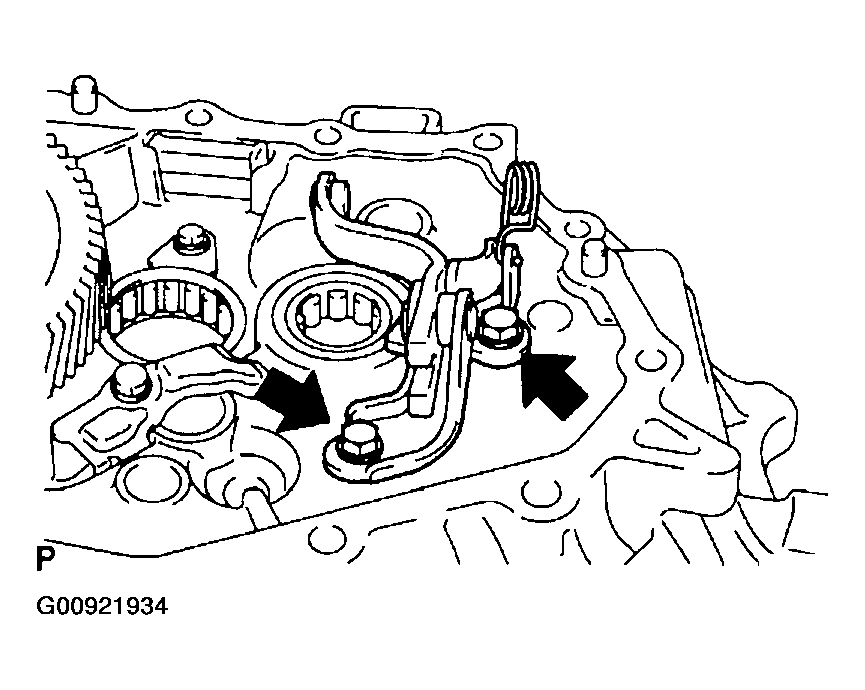

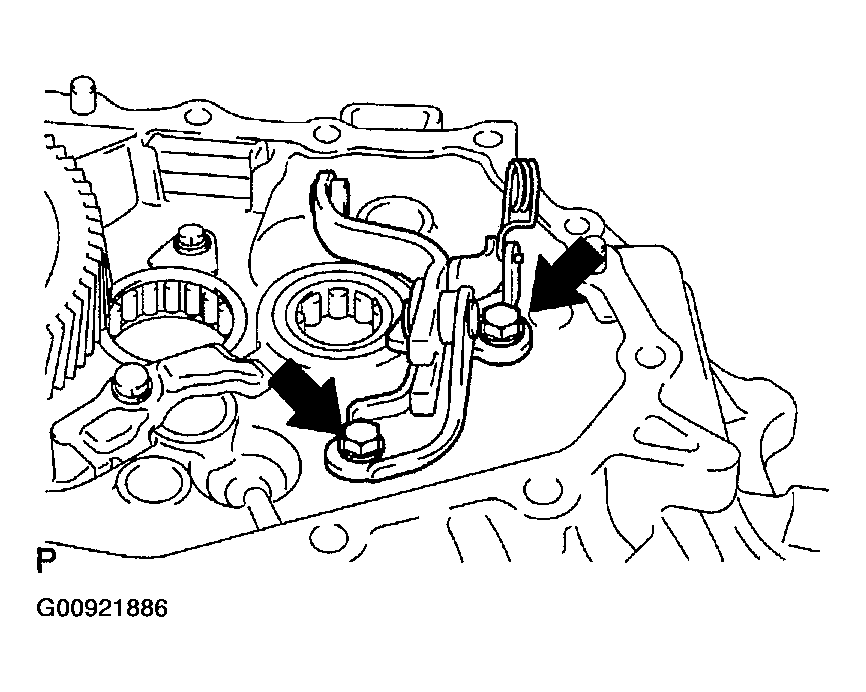

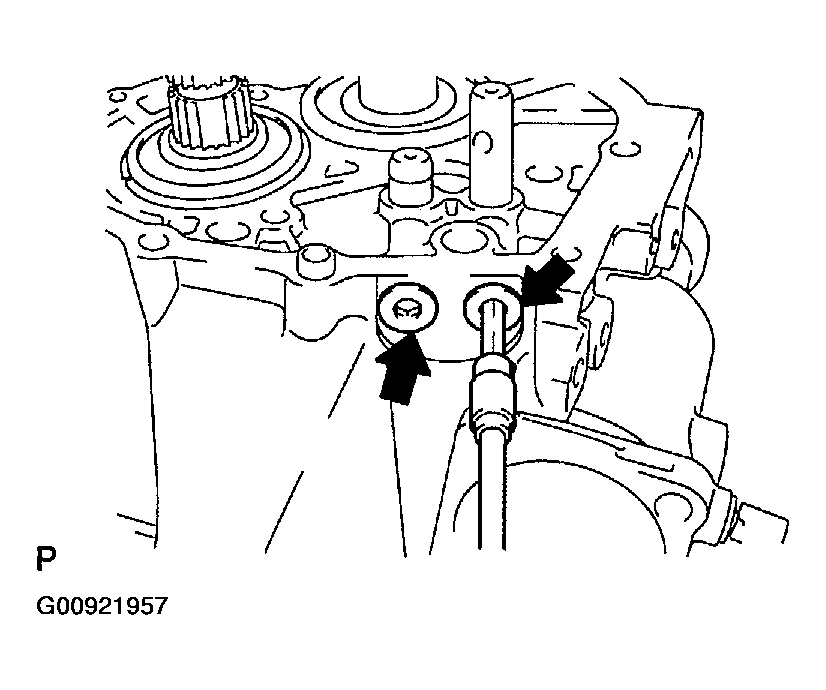

1. Remove the 2 bolts and reverse shift arm bracket assy from the transaxle case.

Fig 57: Removing Reverse Shift Arm Bracket Assy

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

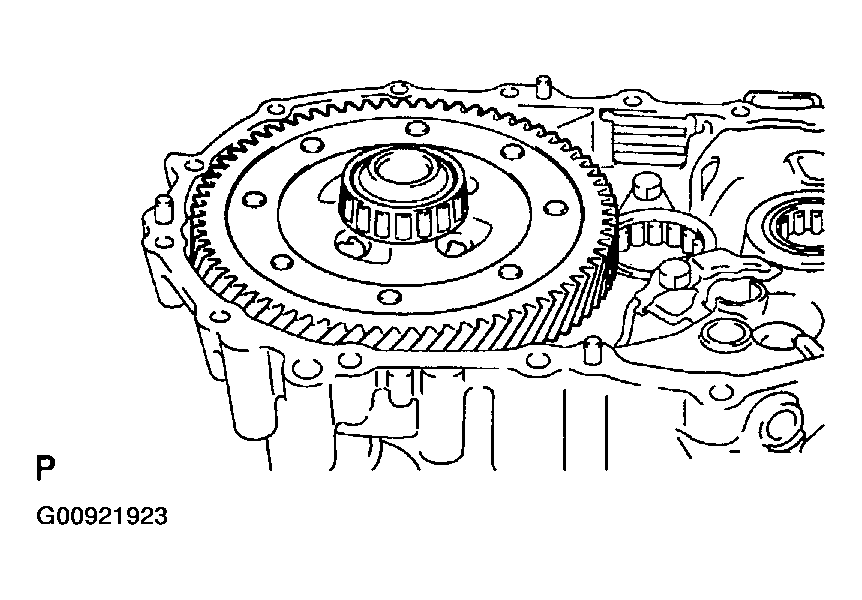

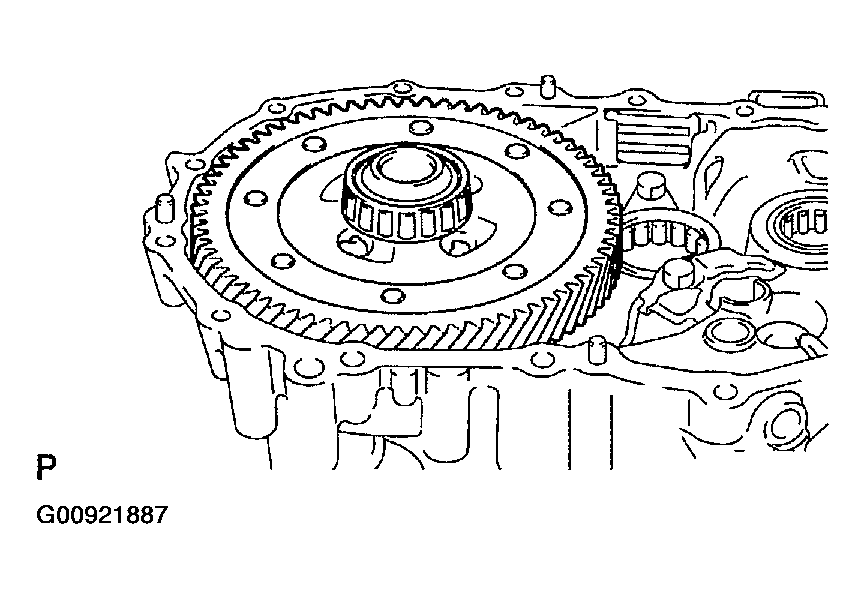

1. Remove the differential case assy from the transaxle case.

Fig 58: Removing Differential Case Assy

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

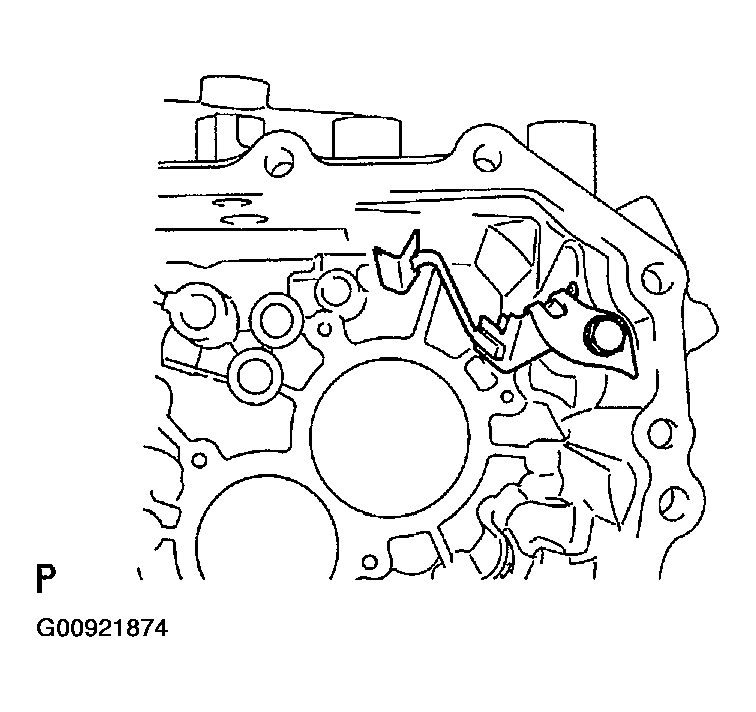

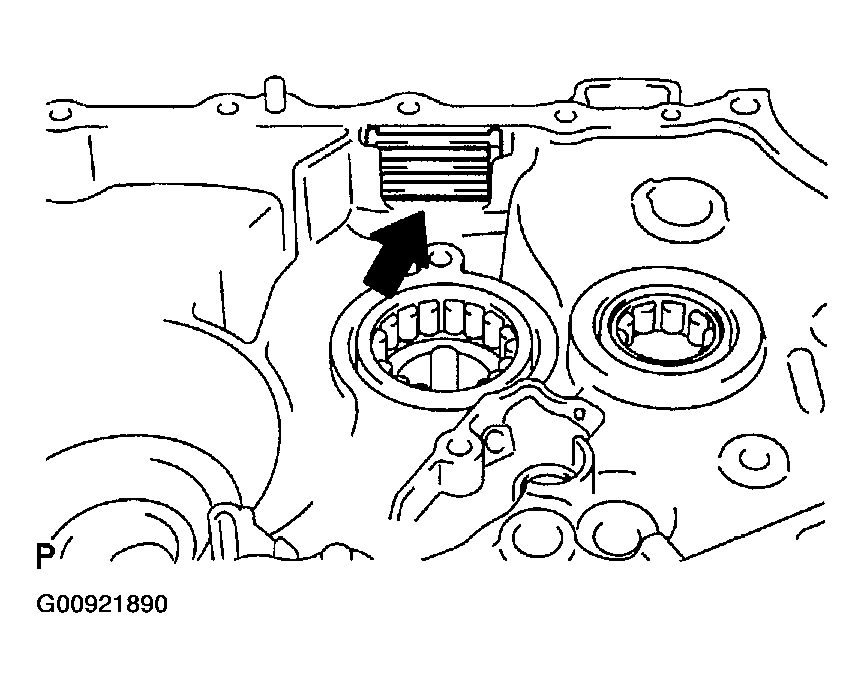

1. Remove the bolt and manual transaxle case receiver from the transaxle case.

Fig 59: Removing Manual Transaxle Case Receiver

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

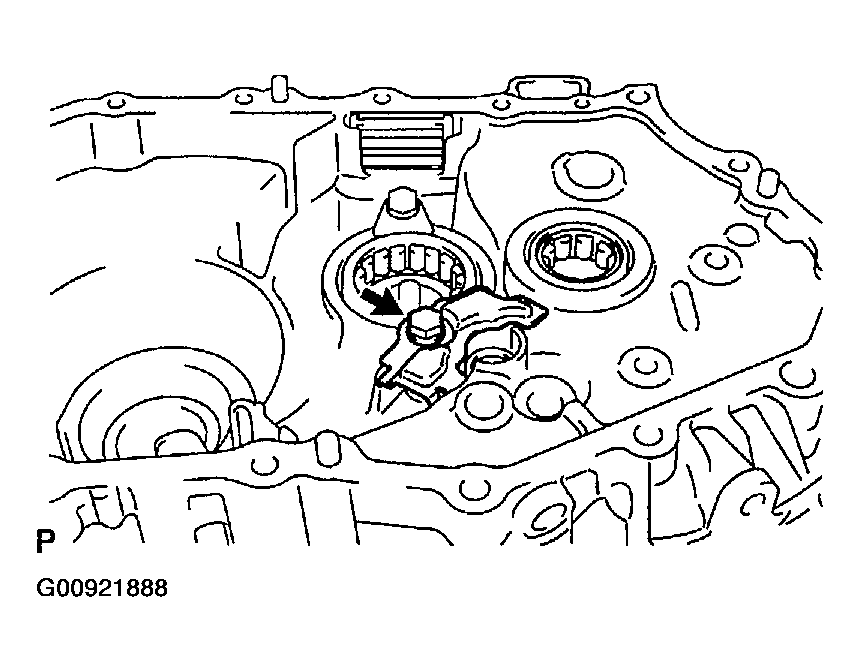

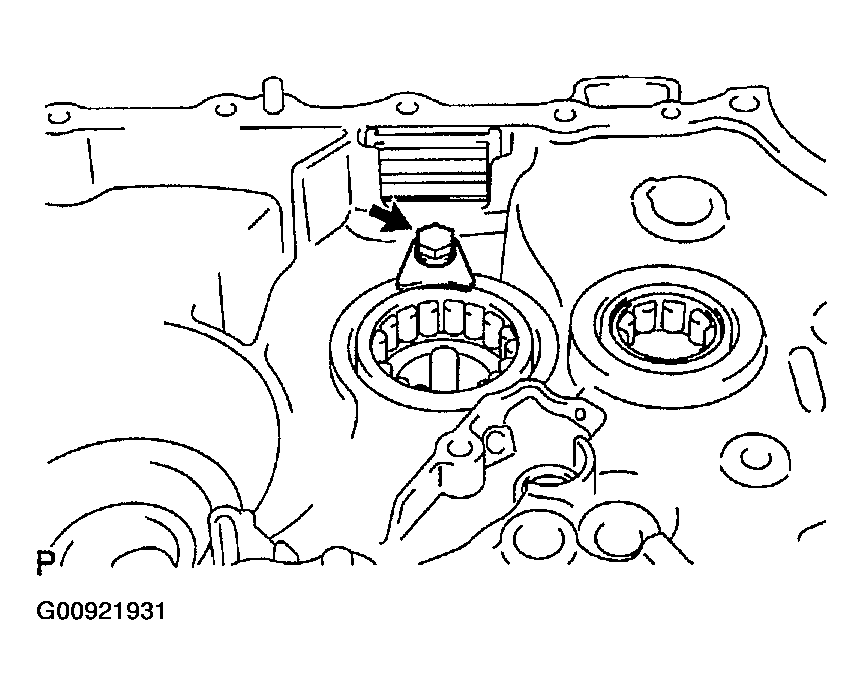

1. Remove the bolt and bearing lock plate from the transaxle case.

Fig 60: Removing Bearing Lock Plate

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

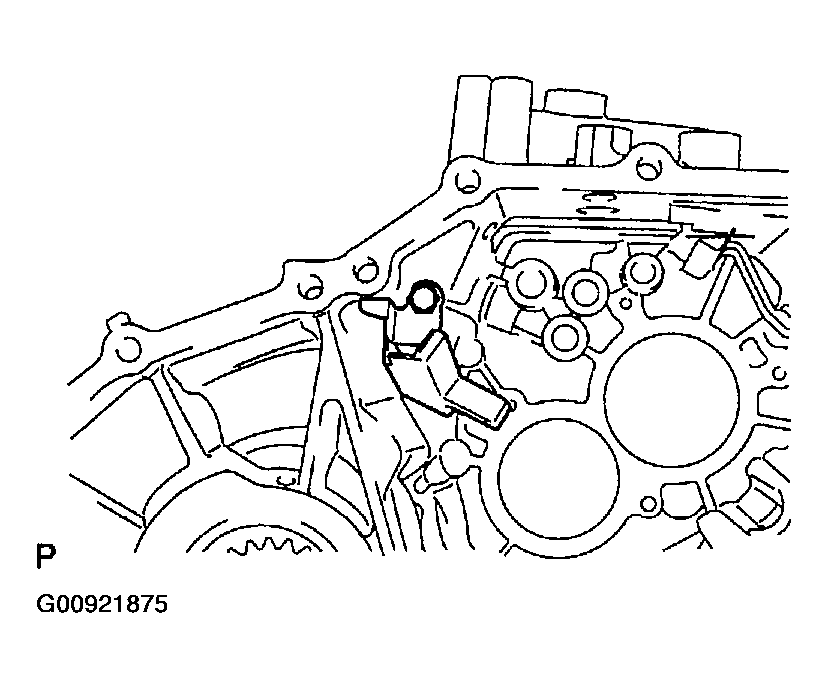

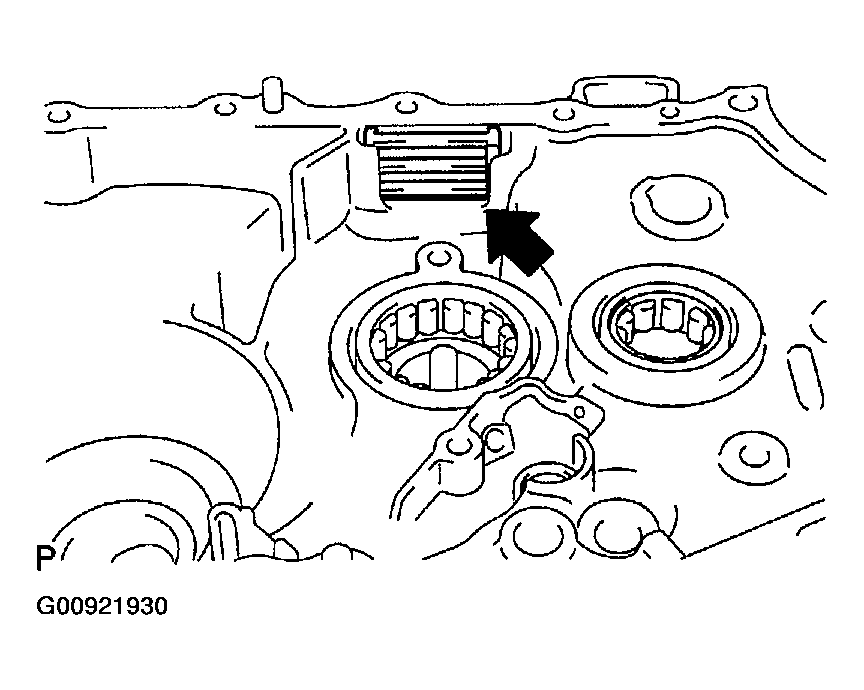

1. Remove the transmission magnet from the transaxle case.

Fig 61: Removing Transmission Magnet

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

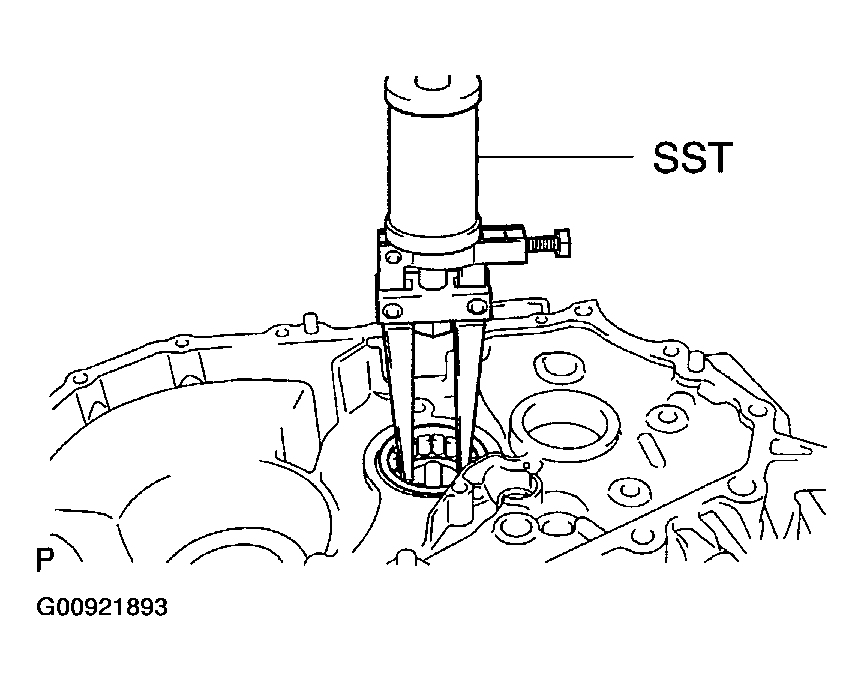

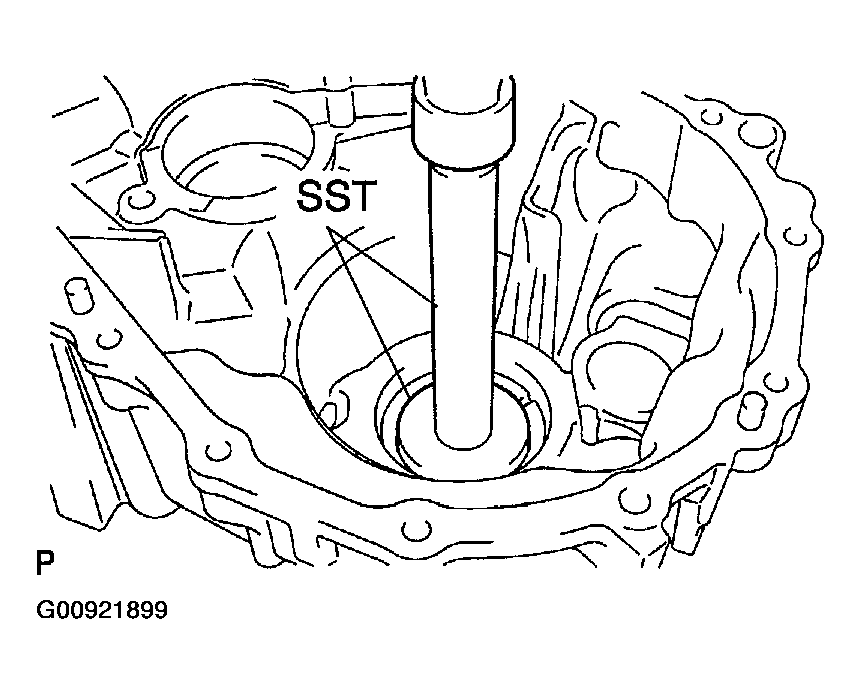

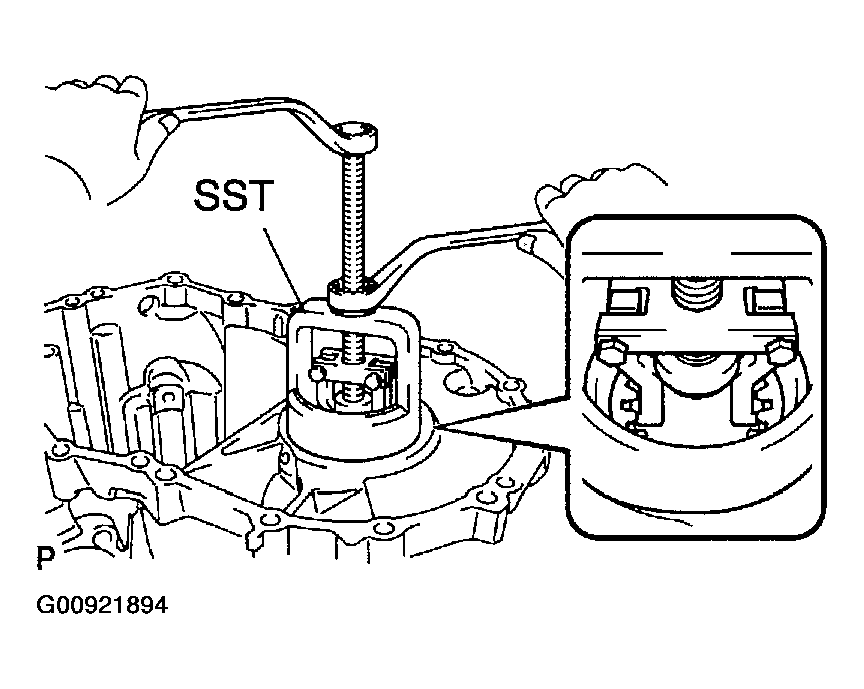

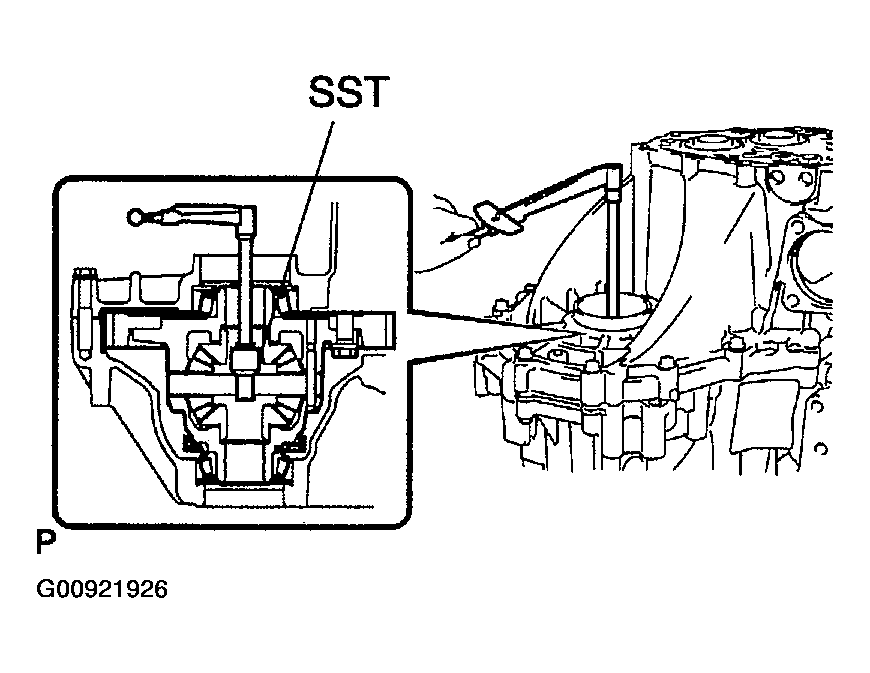

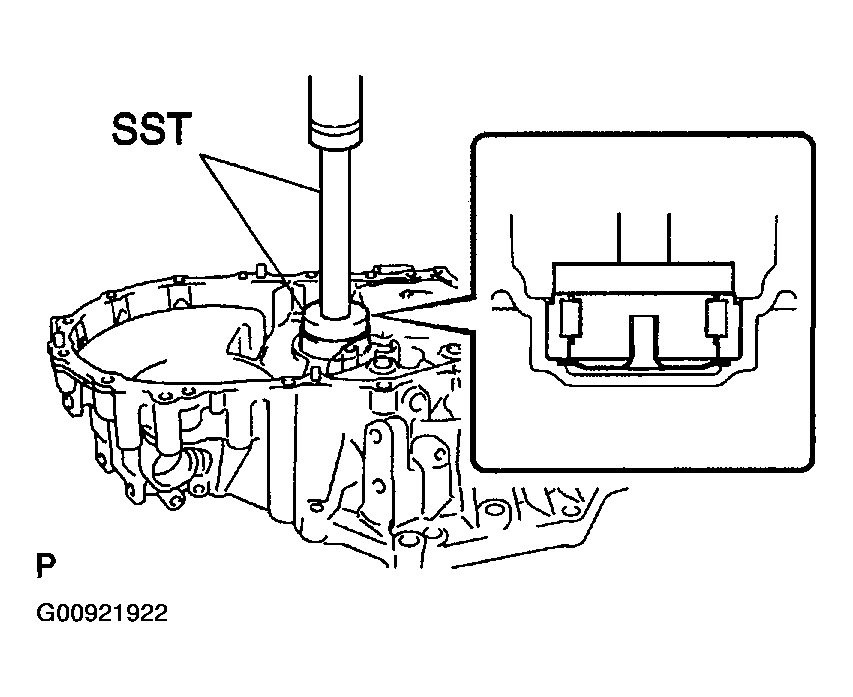

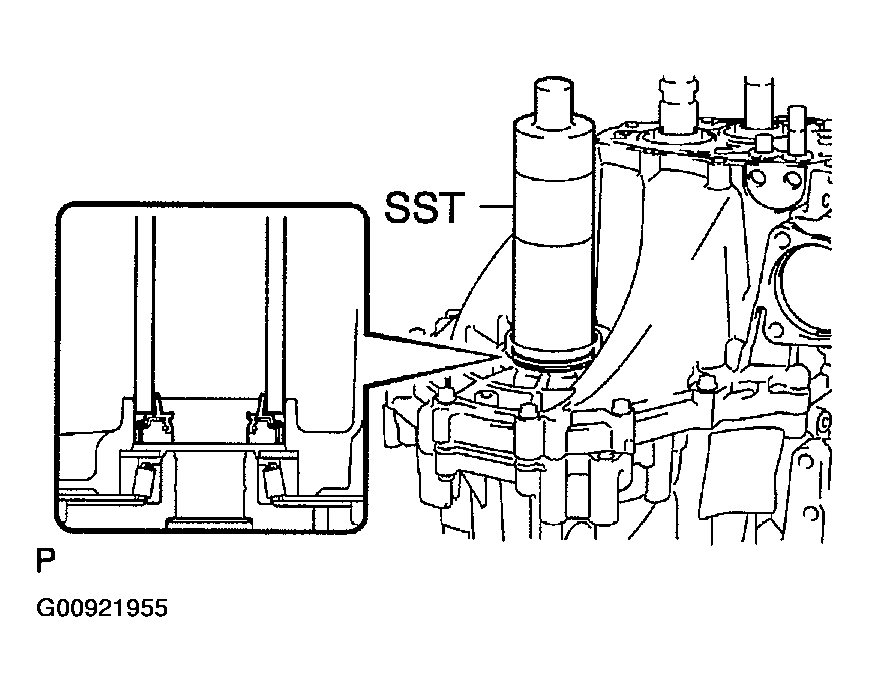

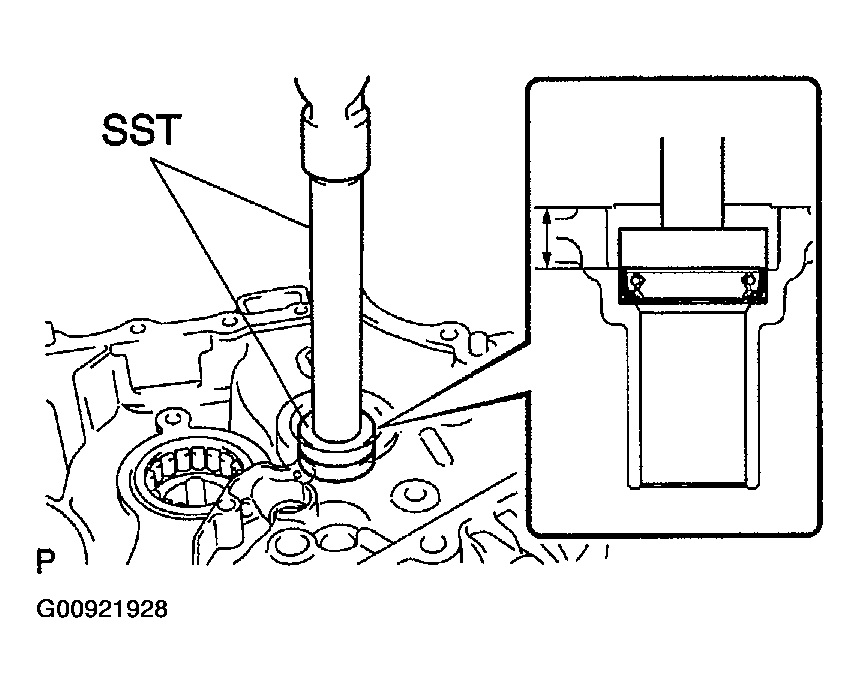

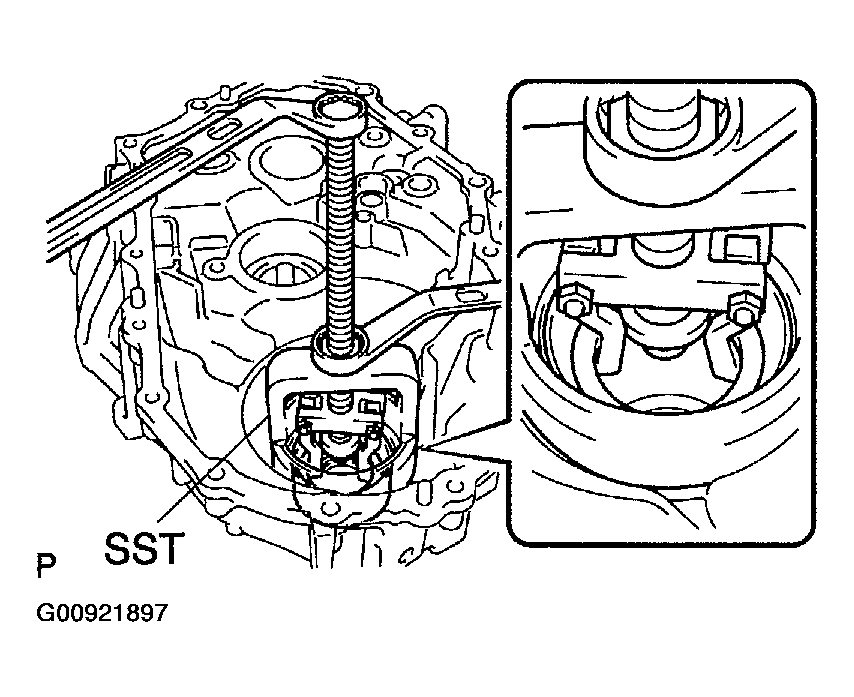

1. Using SST, remove the input shaft front bearing (outer race) from the transaxle case.

   SST 09612-24014 (09613-22011)

Fig 62: Removing Input Shaft Front Bearing

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

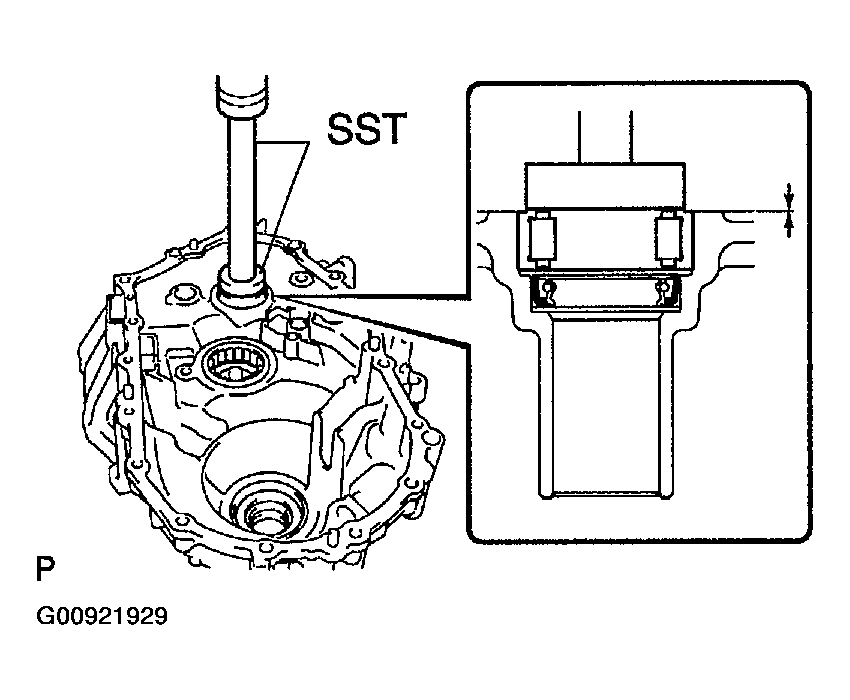

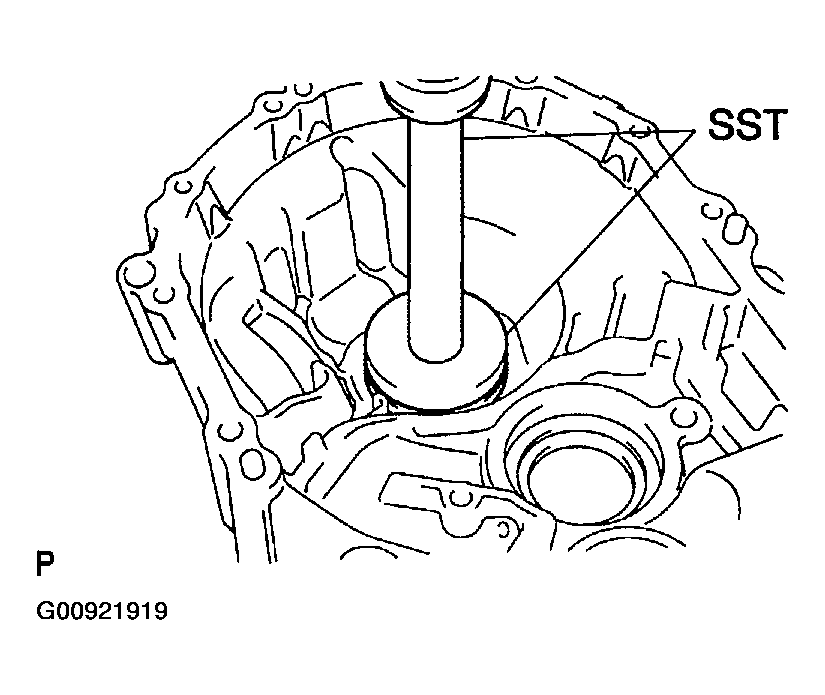

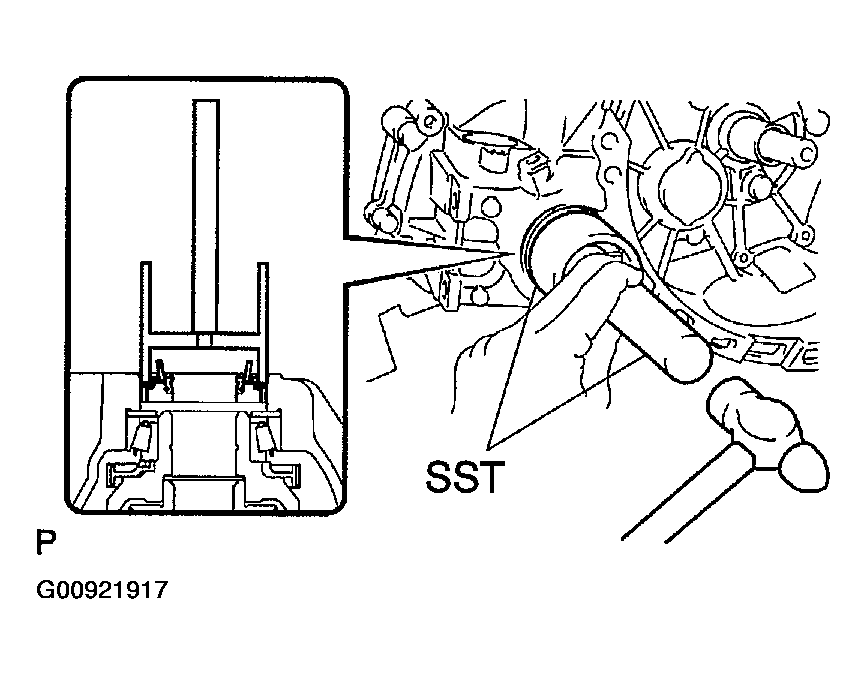

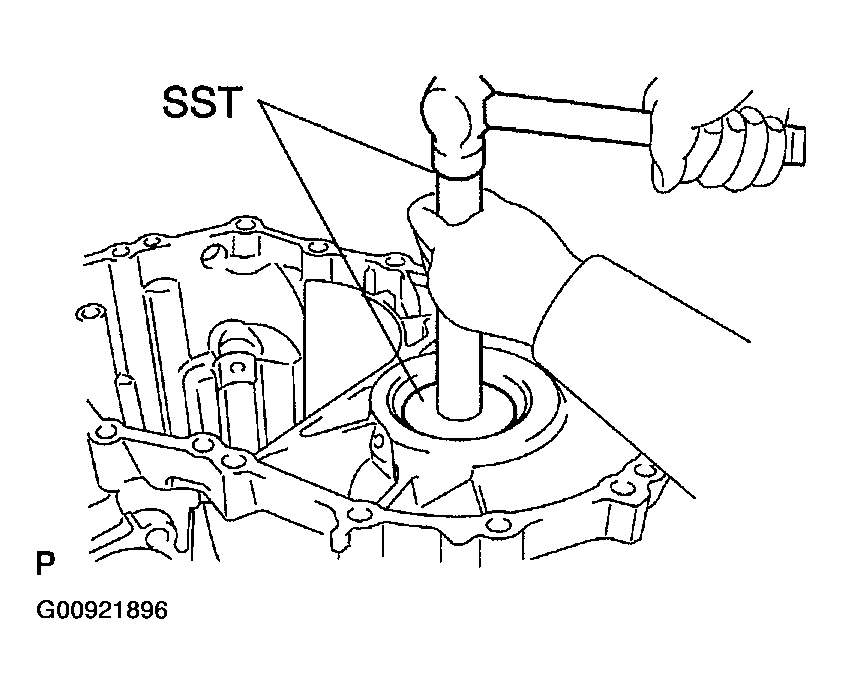

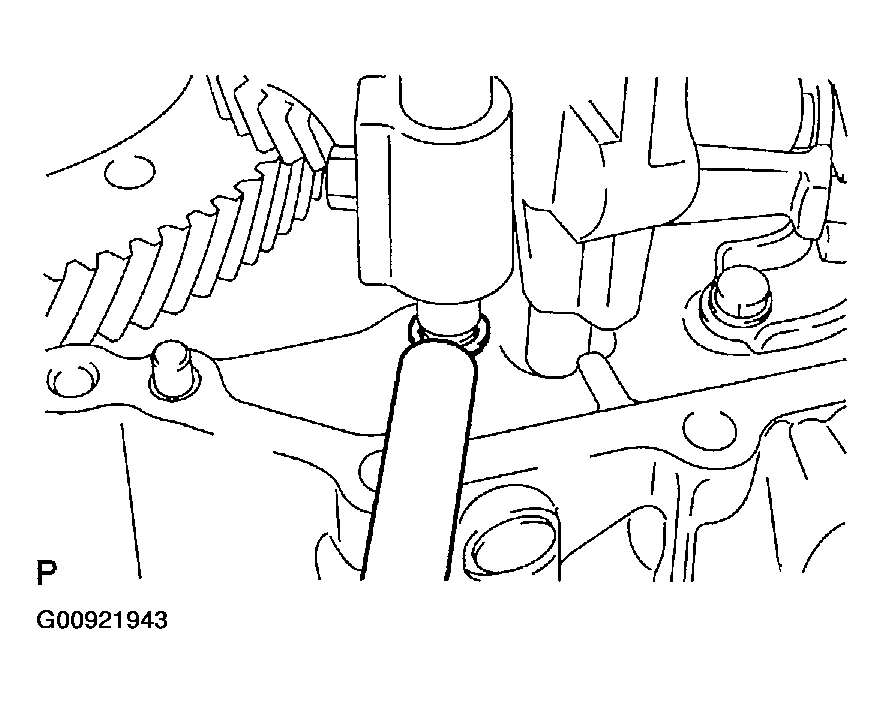

1. Using SST, remove the front transaxle case oil seal from the transaxle case.

   SST 09612-65014 (09612-01040, 09612-01050)

Fig 63: Removing Front Transaxle Case Oil Seal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

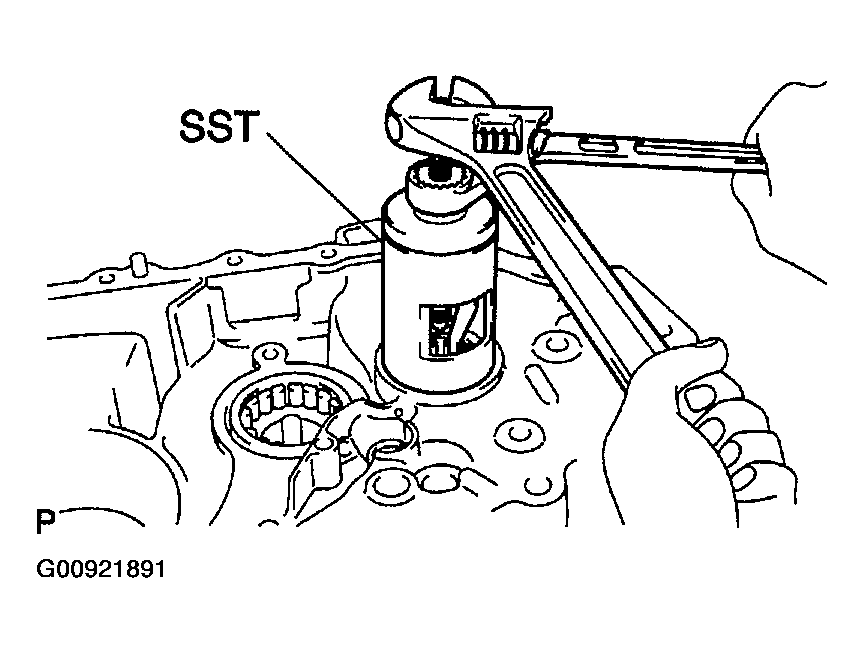

1. Using SST, remove the output shaft front bearing from the transaxle case.

   SST 09308-00010

Fig 64: Removing Output Shaft Front Bearing

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

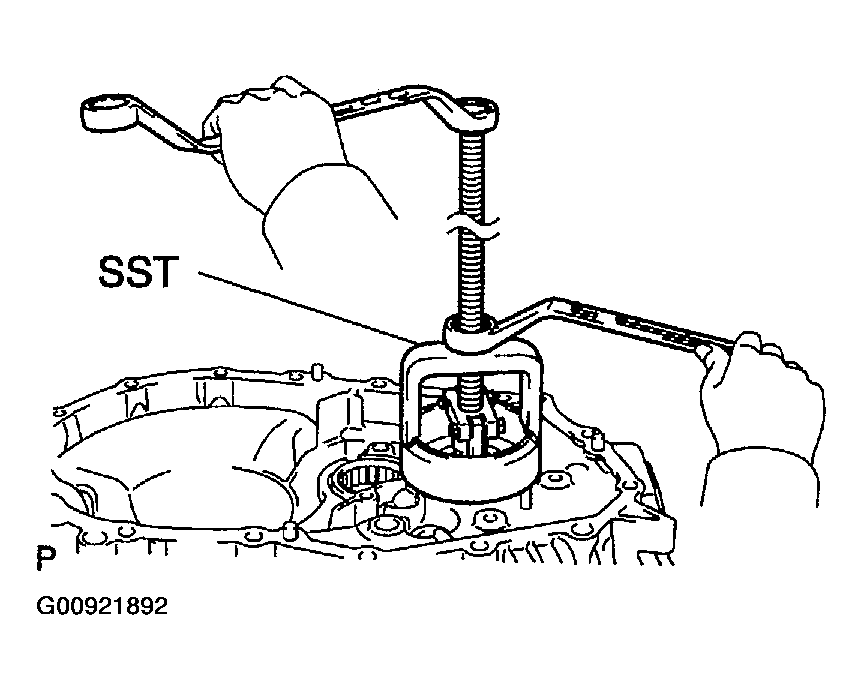

1. Using SST, remove the front differential case rear tapered roller bearing (outer race) and shim from manual transmission case.

   SST 09612-65014 (09612-01040, 09612-01050)

   Fig 65: Removing Front Differential Case Rear Tapered Roller Bearing (Outer Race)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST, remove the FR differential case rear tapered roller bearing (inner race) from the front differential case.

   SST 09612-65014 (09612-01040, 09612-01050), 09950-40011 (09951-00390, 09951-04010, 09952-04010, 09953-04020, 09954-04010, 09955-04061, 09957-04010, 09958-04011), 09950-60010

Fig 66: Removing Front Differential Case Rear Tapered Roller Bearing (Inner Race)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using SST and a hammer, remove transmission case oil seal from the manual transmission case.

   SST 09950-60010 (09951-00530), 09950-70010 (09951-07150)

Fig 67: Removing Transmission Case Oil Seal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

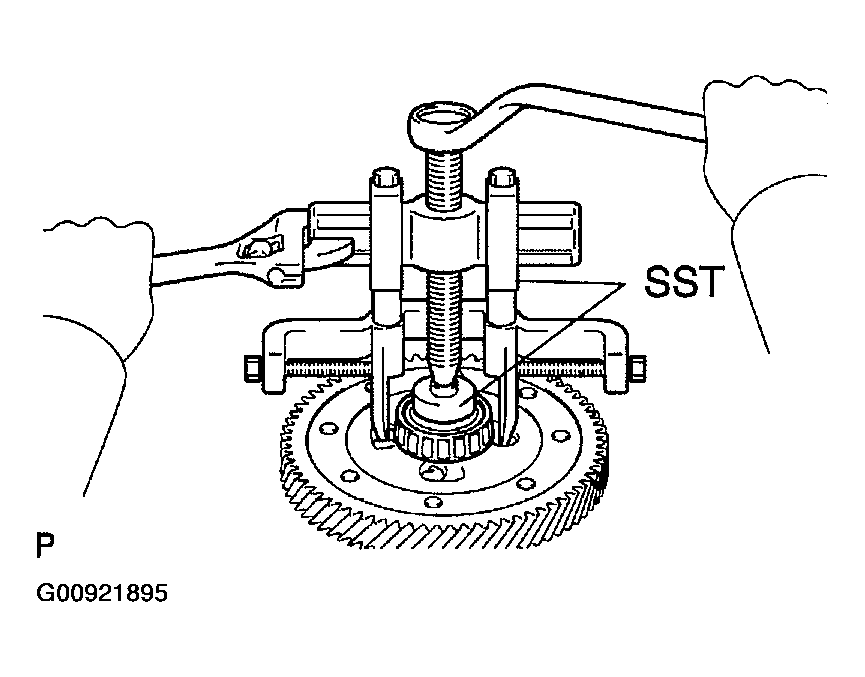

1. Using SST, remove the front differential case front tapered roller bearing (outer race) and front differential case washer FR from the transaxle case.

   SST 09612-65014 (09612-01040, 09612-01050)

   Fig 68: Removing Front Differential Case Front Tapered Roller Bearing (Outer Race)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST, remove the FR differential case front tapered roller bearing (inner race) from the front differential case.

   SST 09950-00020, 09950-00030, 09950-40011 (09957-04010), 09950-60010 (09951-00390)

Fig 69: Removing Front Differential Case Front Tapered Roller Bearing (Inner Race)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using SST and a hammer, remove transaxle case oil seal from the transaxle case.

   SST 09950-60010 (09951-00600), 09950-70010 (09951-07100)

Fig 70: Removing Transaxle Case Oil Seal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

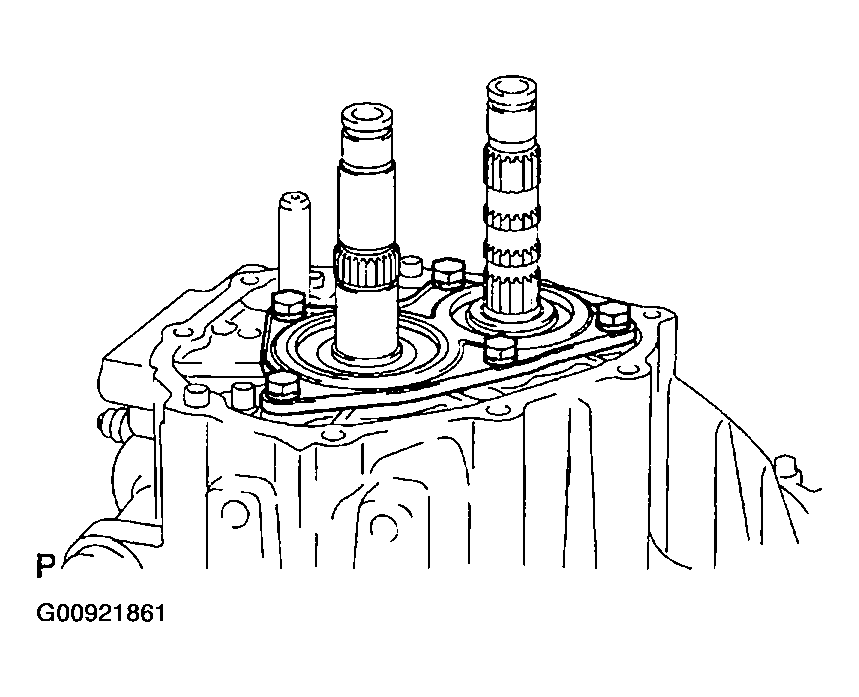

1. Remove the output (MTM) shaft cover from the transaxle case.

Fig 71: Removing Output Shaft Cover

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the transmission hub sleeve No. 3, 3 synchromesh shifting key No. 3 and 2 synchromesh shifting key spring No. 3.

Fig 72: Removing Transmission Hub Sleeve No. 3

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Check the sliding condition between the transmission hub sleeve No. 3 and transmission clutch hub No. 3.
2. Check that spline gears of the transmission hub sleeve No. 3 is not worn down.
   Fig 73: Inspecting Transmission Hub Sleeve No. 3 (1 Of 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

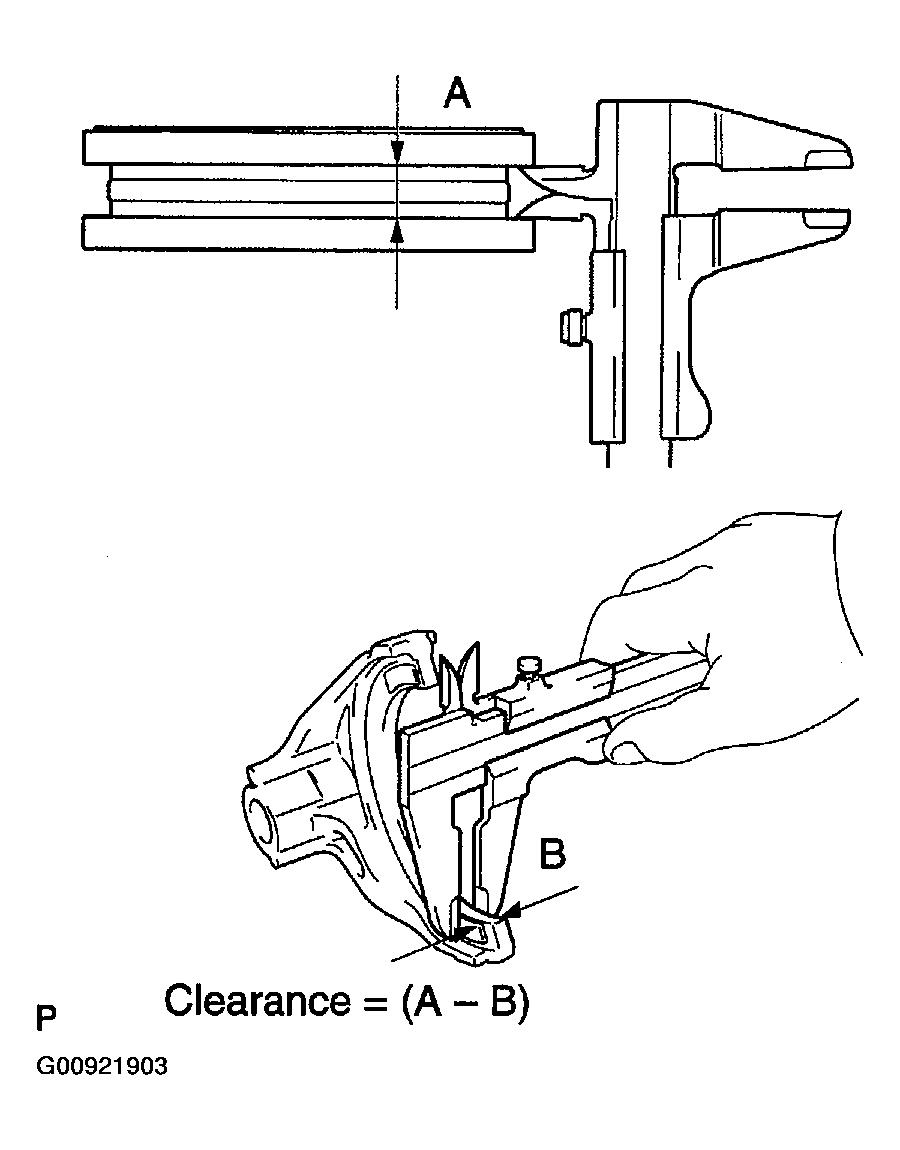

3. Using a vernier calipers, inspect the transmission hub sleeve No. 3 and gear shift fork No. 3 as shown in Fig 74 .
   1. Standard clearance:0.31-0.89 mm (0.0122-0.035 in.

If the clearance out of specification, replace the transmission hub sleeve No. 3 and gear shift fork No. 3.

Fig 74: Inspecting Transmission Hub Sleeve No. 3 (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Check for wear of damage.

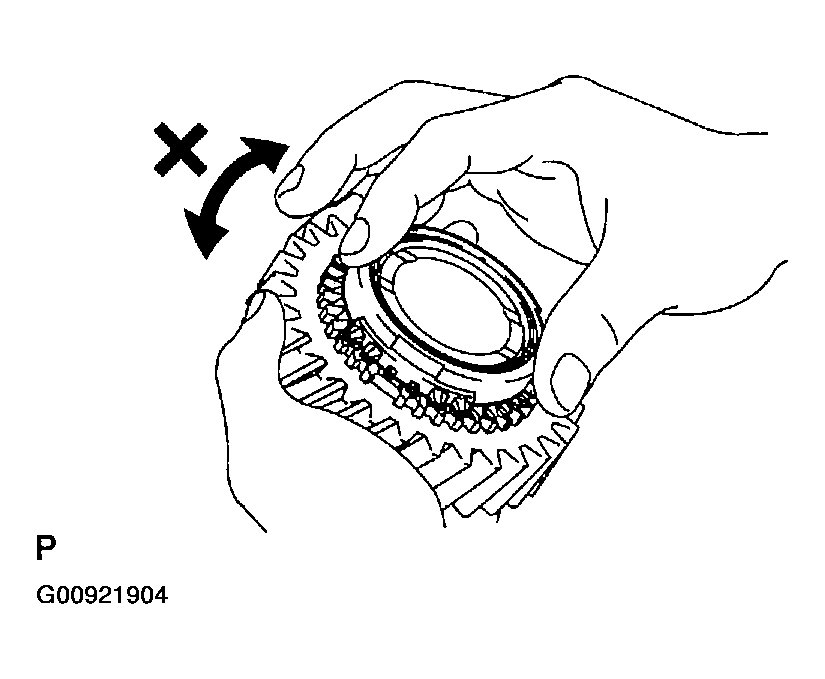

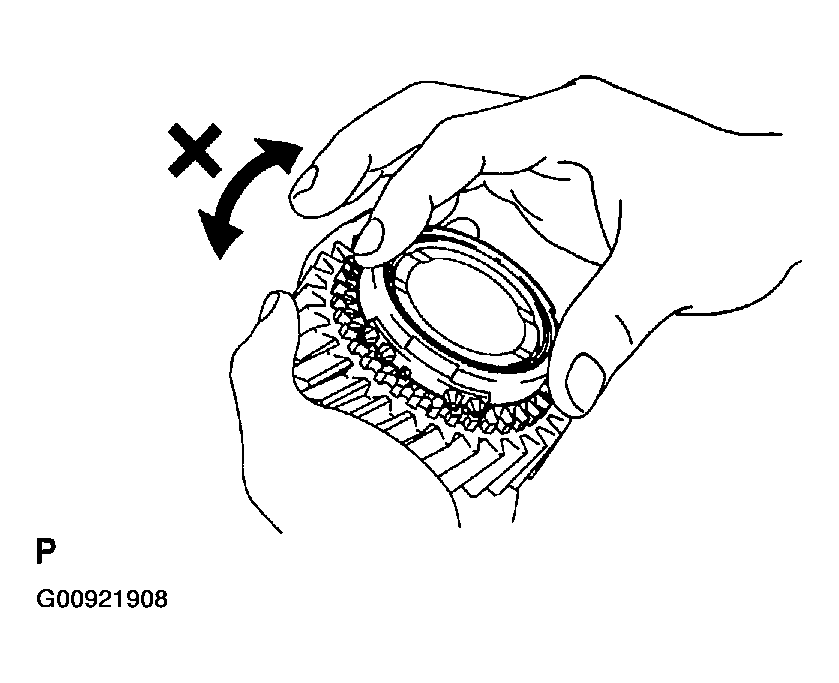

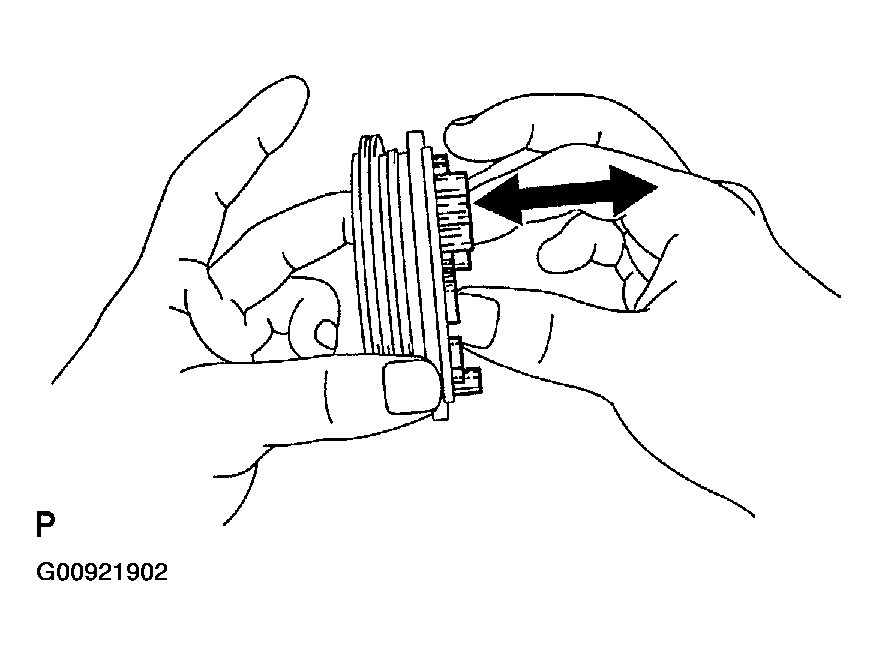

2. Check the braking effect of the synchronizer ring. Turn the synchronizer ring in one direction while pushing it to the gear cone, check that the ring locks.
   Fig 75: Inspecting Synchronizer Ring No. 3 (For 6th Gear MT)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using a feeler gauge, measure the clearance between the synchronizer ring back and gear spline end.
   1. Standard clearance:0.75-1.65 mm (0.0295-0.065 in.)

If the clearance is out of specification, replace the synchronizer ring No. 3.

Fig 76: Measuring Clearance Between Synchronizer Ring Back And Gear Spline End

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a caliper gauge, inspect the 6th gear inner diameter.

Fig 77: 6th Gear Inner Diameter Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Inner diameter:

Fig 78: Inspecting 6th Gear Inner Diameter

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the clearance is exceeds the maximum, replace the 6th gear sub-assy.

1. Check the braking effect of the synchronizer ring.

   Turn the synchronizer ring in one direction while pushing it to the gear cone, check that the ring locks.

   Fig 79: Inspecting Synchronizer Ring No. 3 (For 5th Gear MT)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a feeler gauge, measure the clearance between the synchronizer ring back and 5th gear spline end.
   1. Standard clearance:0.75-1.65 mm (0.0295-0.0650 in.)

If the clearance is out of specification, replace the synchronizer ring No. 3.

Fig 80: Measuring Clearance Between Synchronizer Ring Back And 5th Gear Spline End

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a caliper gauge, inspect the 5th gear inner diameter.

Inner diameter:

Fig 81: 5th Gear Inner Diameter Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the inner diameter is exceeds the maximum, replace the 5th gear.

Fig 82: Inspecting 5th Gear Inner Diameter

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

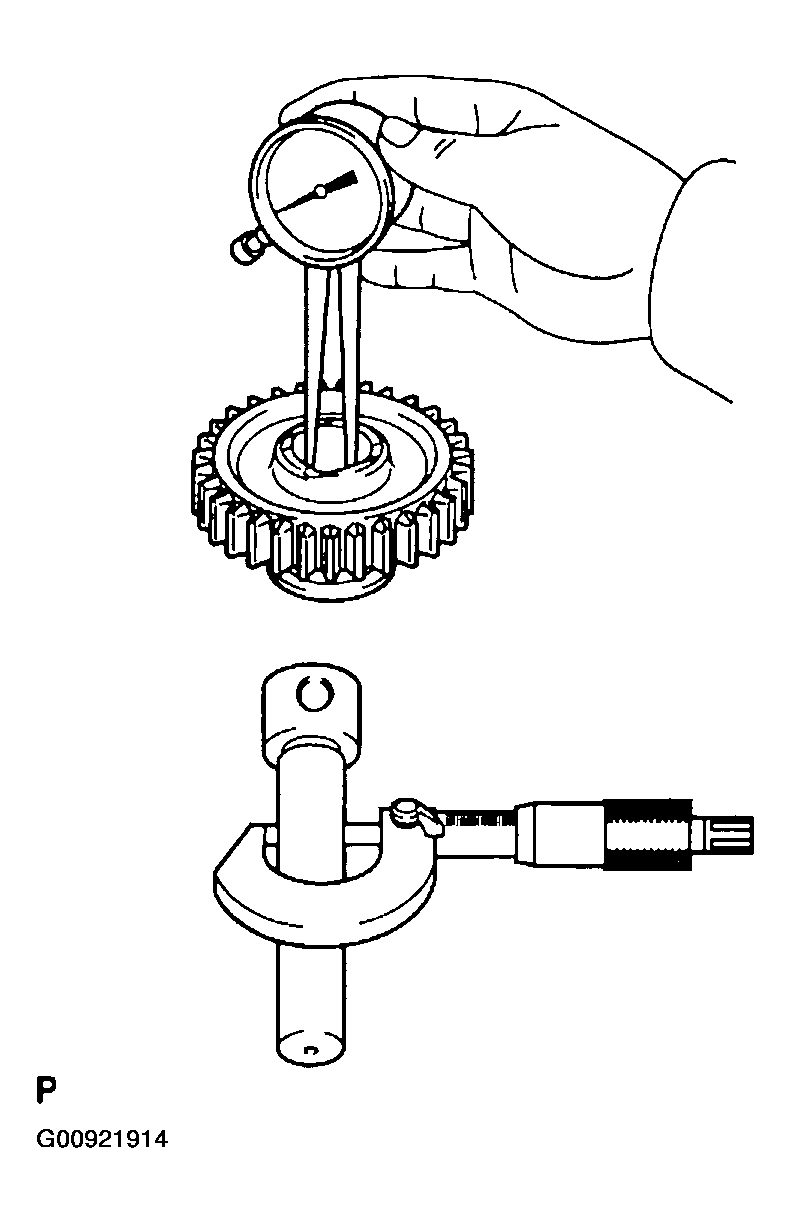

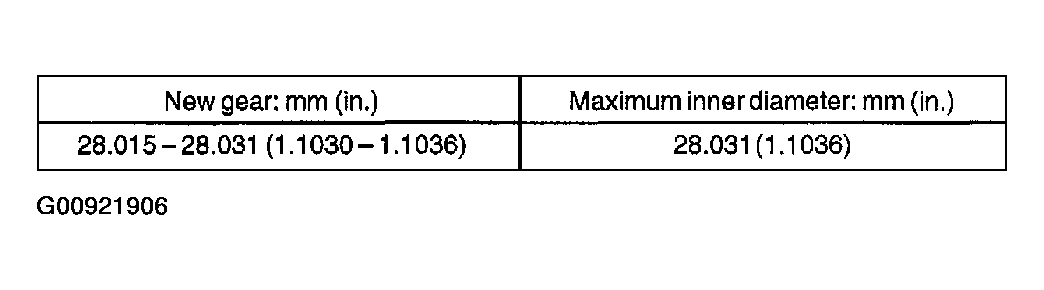

1. Using a caliper gauge, inspect the reverse idler gear sub-assy as shown in Fig 85 .

   Inner diameter:

   Fig 83: Reverse Idler Gear Inner Diameter Specifications

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   If the inner diameter is exceeds the maximum, replace the reverse idler gear sub-assy.

2. Using a micrometer, inspect the reverse idler gear shaft as shown in Fig 85 .

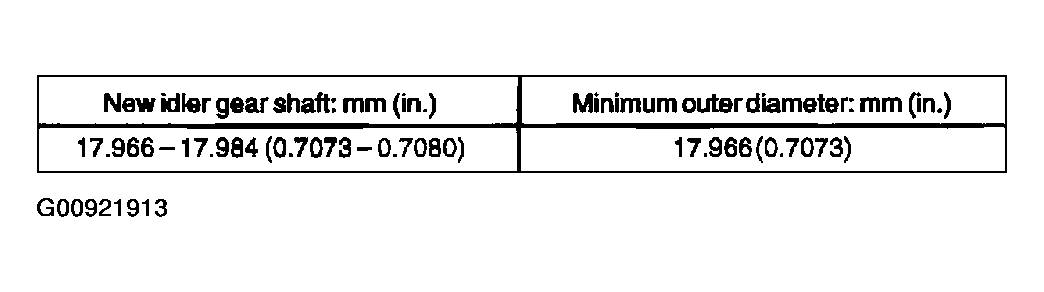

Outer diameter:

Fig 84: Reverse Idler Gear Outer Diameter Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the outer diameter is exceeds the minimum, replace the reverse idler gear shaft.

Fig 85: Inspecting Reverse Idler Gear Sub-Assy

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Coat the transmission hub sleeve No. 3 with gear oil, install it to the transmission clutch hub No. 3.
   NOTE: Do not set the transmission clutch hub No. 3 in incorrect orientation.

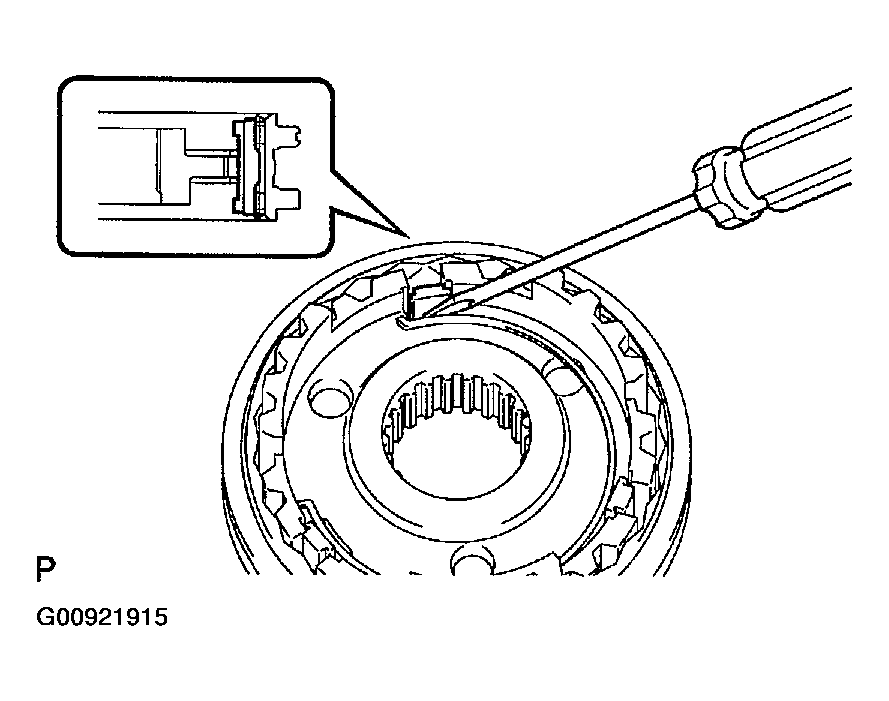

2. Using a screwdriver, install the 2 synchromesh shifting key spring No. 3 and 3 synchromesh shifting key No. 3.

Fig 86: Installing Transmission Hub Sleeve No. 3

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Coat the output shaft (MTM) cover with MP grease, install it to the transaxle case.

Fig 87: Installing Output Shaft Cover

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using SST and a hammer, install the transaxle case oil seal No. 2 to the transaxle case.

   SST 09726-27012 (09726-02041), 09950-70010 (09951-07100)

   1. Driven in depth: 1.9 +/- 0.3 mm (0.075 +/- 0.012 in.)

Fig 88: Installing Transaxle Case Oil Seal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

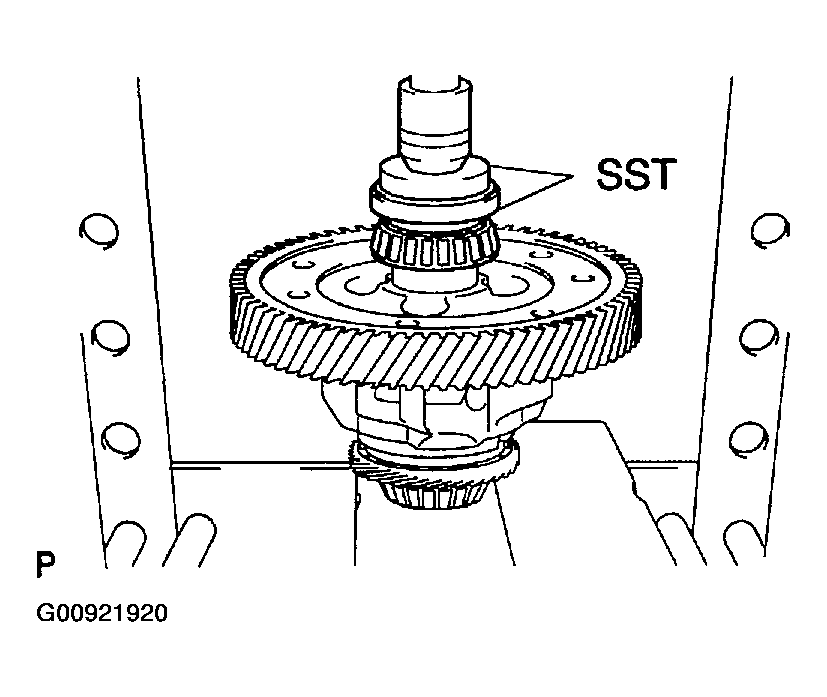

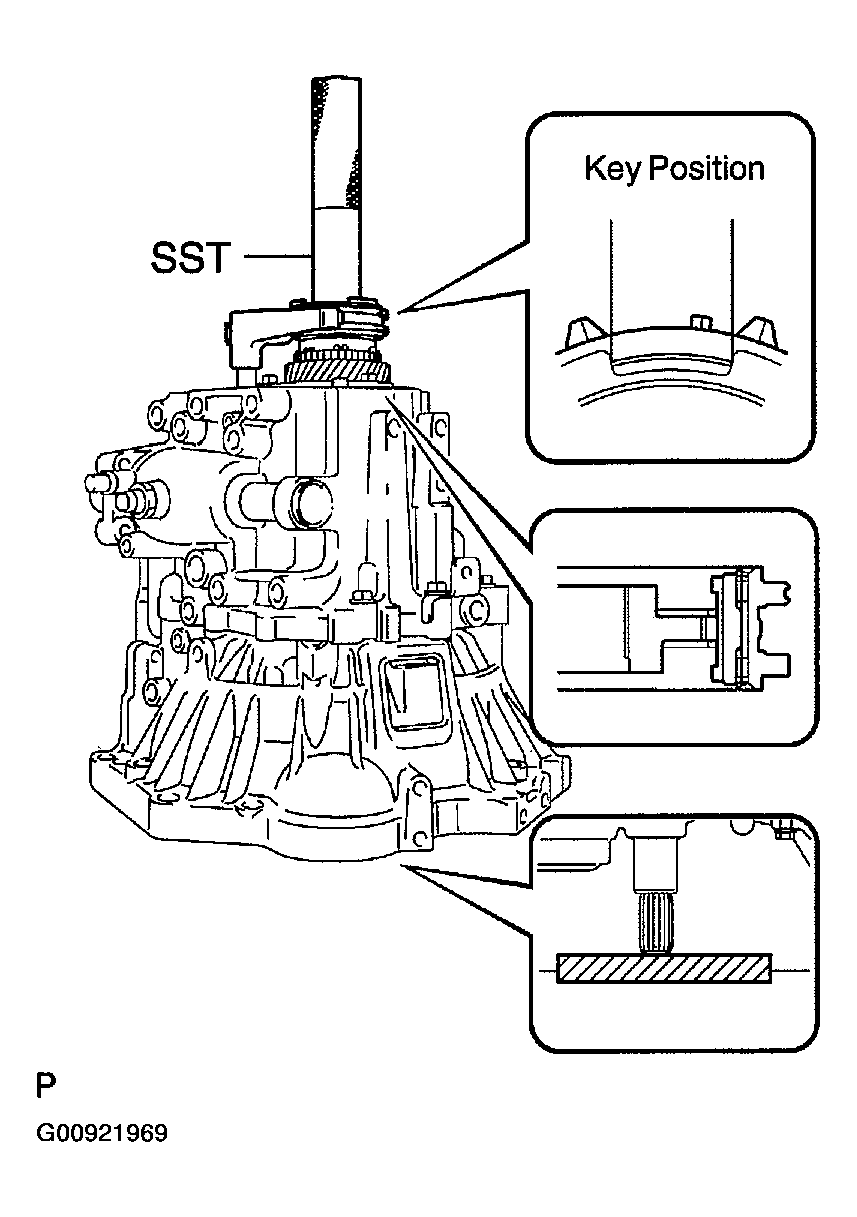

1. Using SST and a press, install FR differential case front tapered roller bearing (inner race) to the front differential case.

   SST 09350-32014 (09351-32120), 09950-60010 (09951-00530)

   Fig 89: Installing FR Differential Case Front Tapered Roller Bearing (Inner Race)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST and a press, install the FR differential case front bearing spacer and FR differential case front tapered roller bearing (outer race) to the transaxle case.

   SST 09950-60020 (09951-00680), 09950-70010 (09951-07150)

Fig 90: Installing FR Differential Case Front Tapered Roller Bearing (Outer Race)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using SST and a press, install the FR differential case rear tapered roller bearing (inner race) to the front differential case.

   SST 09350-32014 (09351-32120), 09950-60010 (09951-00530)

   Fig 91: Installing FR Differential Case Front Tapered Roller Bearing (Inner Race)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST and a press, install the front differential case shim RR and FR differential case rear tapered roller bearing (outer race) to the manual transmission case.

   SST 09309-36010, 09950-60020 (09951-00710), 09950-70010 (09951-07150)

Fig 92: Installing FR Differential Case Front Tapered Roller Bearing (Outer Race)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Coat the new output shaft front bearing with gear oil, using SST and a press, install it to the transaxle case.

   SST 09950-60010 (09951-00550), 09950-70010 (09951-07150)

Fig 93: Installing Output Shaft Front Bearing

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Coat the differential case assy with gear oil, install it to the transaxle case.
2. Install the manual transmission case with 16 bolts.
   1. Torque: 29.4 N.m (300 kgf.cm, 22 ft.lbf)
   Fig 94: Installing Differential Case Assy

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

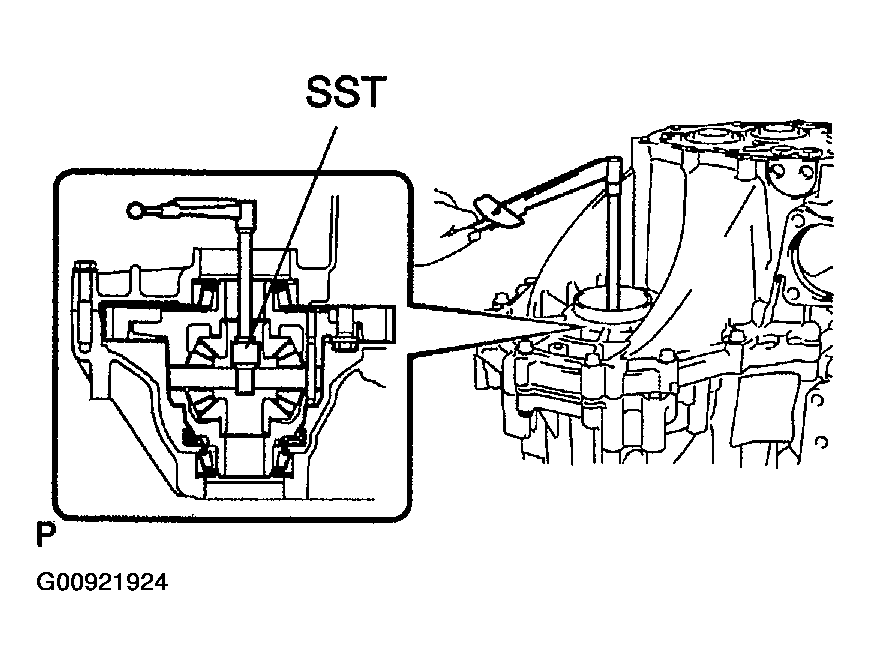

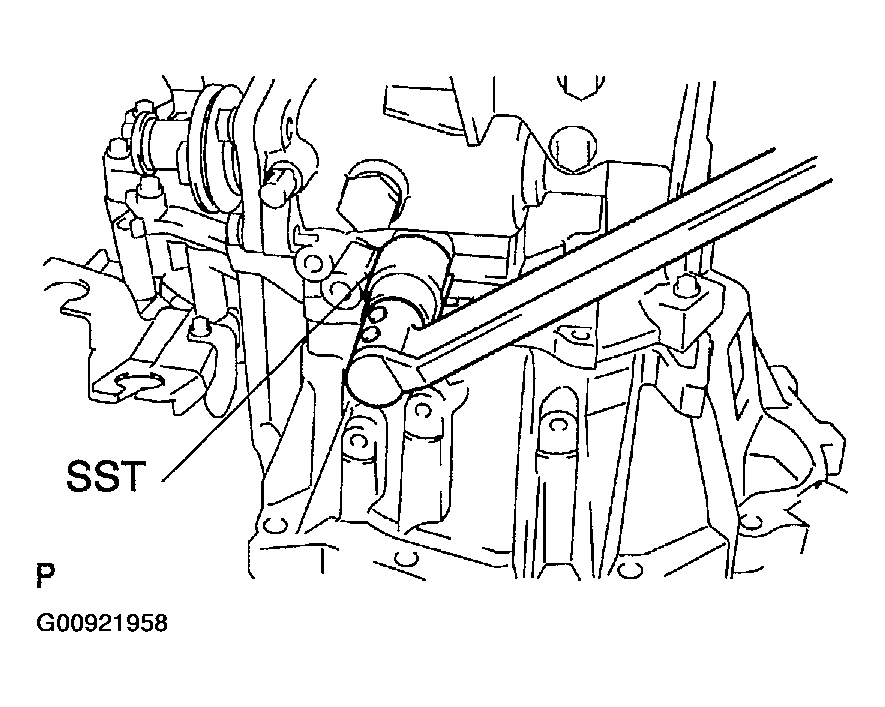

3. Using SST and a torque wrench, turn the deferential case assy right and left 2 or 3 times to allow the bearings to settle.

   SST 09564-32011

   Fig 95: Adjusting Differential Side Bearing Preload

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Using SST and a torque wrench, measure the preload.

   SST 09564-32011

   Fig 96: Preload Specifications

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

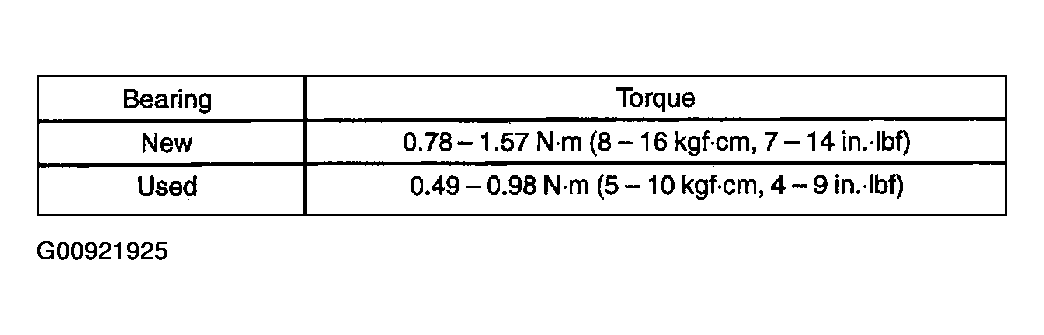

   Preload:

   Fig 97: Measuring Preload

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   If the preload is out of the specification, select the front differential case shim RR adjust it.

   NOTE:

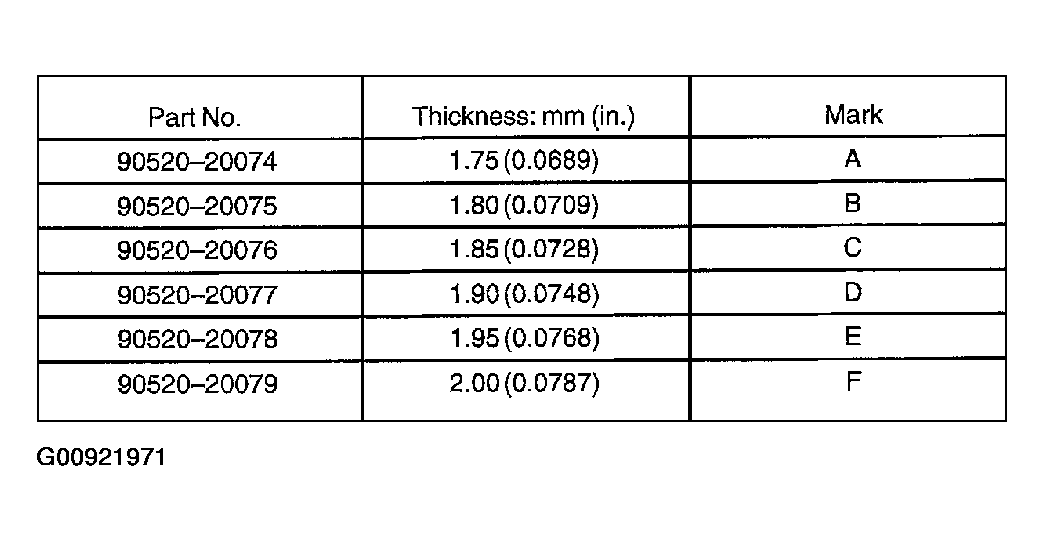

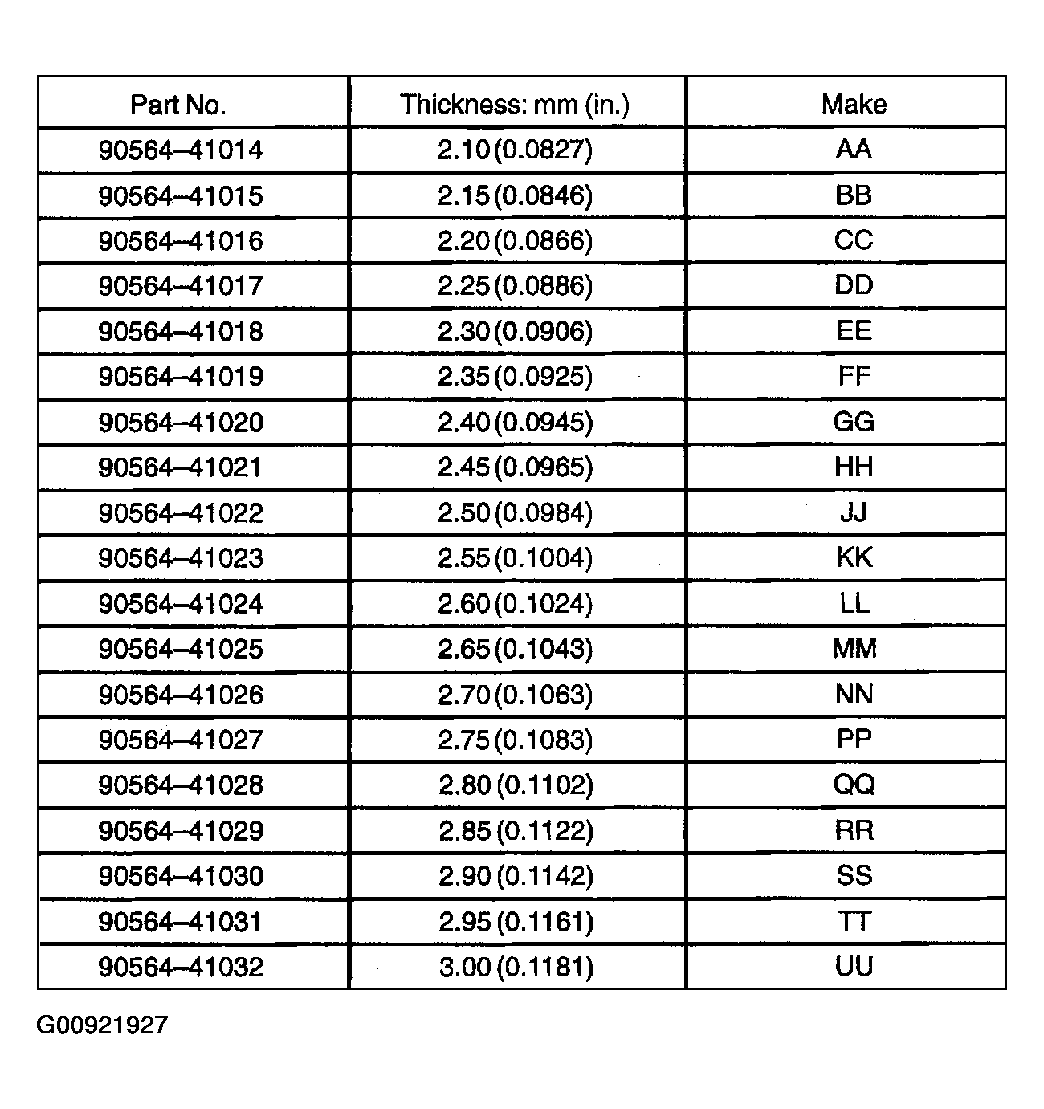

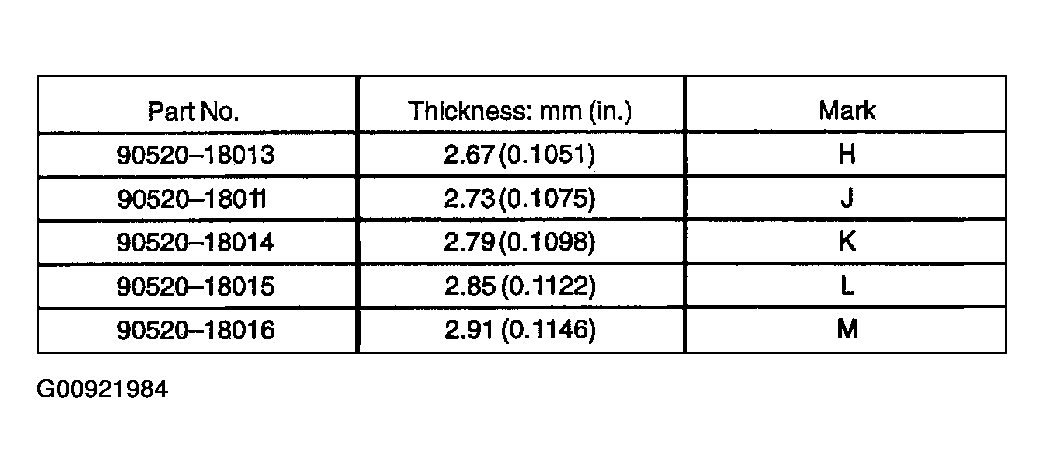

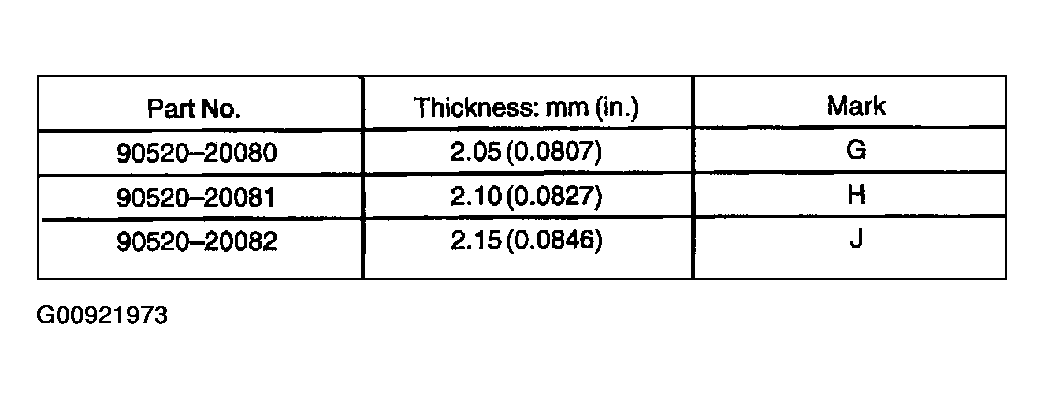

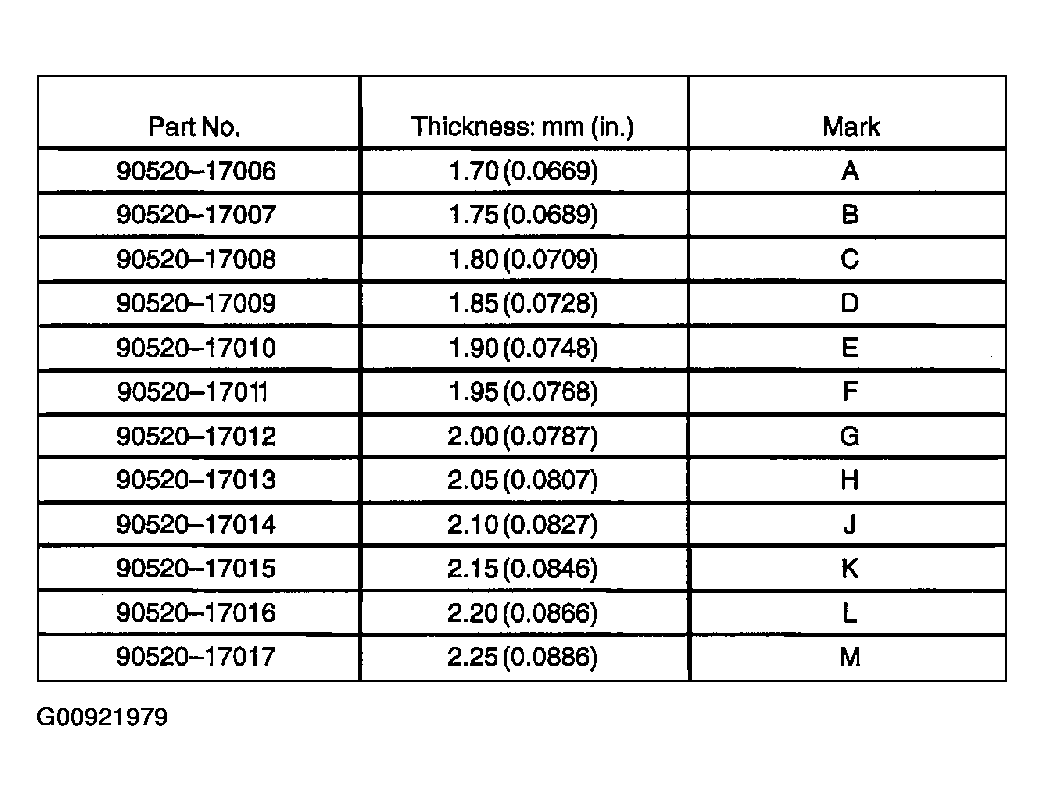

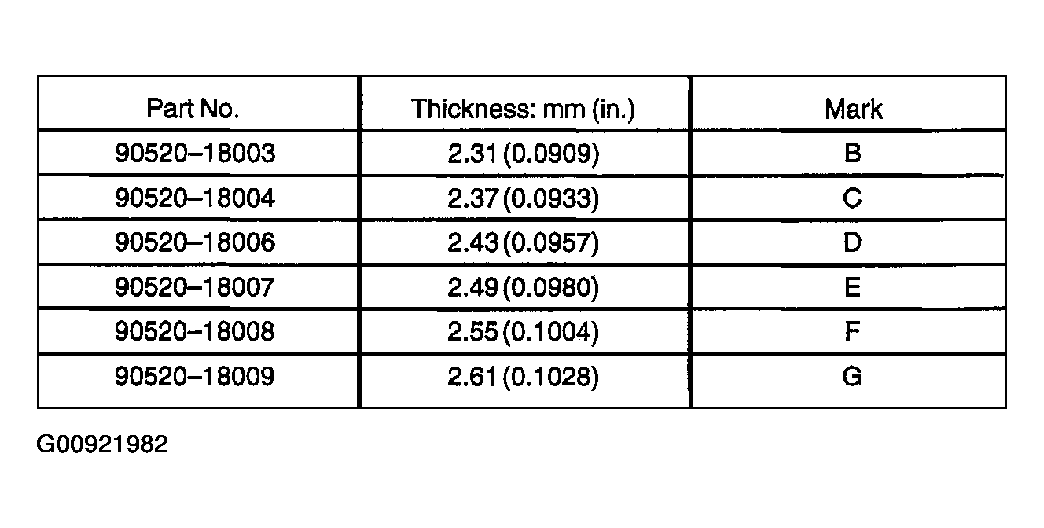

   Shim thickness:

   Fig 98: Shim Thickness Specifications

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Remove the 16 bolts and manual transmission case.
6. Remove the differential case assy from the transaxle case.

1. Using SST and a hammer, install a new front transaxle case oil seal to the transaxle case.

   SST 09950-60010 (09951-00370), 09950-70010 (09951-07150)

   1. Driven in depth: 15.6 - 16.0 mm (0.6142 - 0.6299 in.)
2. Coat the lip of the front transaxle case oil seal with MP grease.

Fig 99: Installing Front Transaxle Case Oil Seal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Coat new input shaft front bearing with MP grease, using SST and a press, install it to the transaxle case.

   SST 09950-60010 (09951-00420), 09950-70010 (09951-07150)

   1. Driven in depth: 0 - 0.30 mm (0 - 0.0118 in.)

Fig 100: Installing Input Shaft Front Bearing

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Clean the transmission magnet, install it to the transaxle case.

Fig 101: Installing Transmission Magnet

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

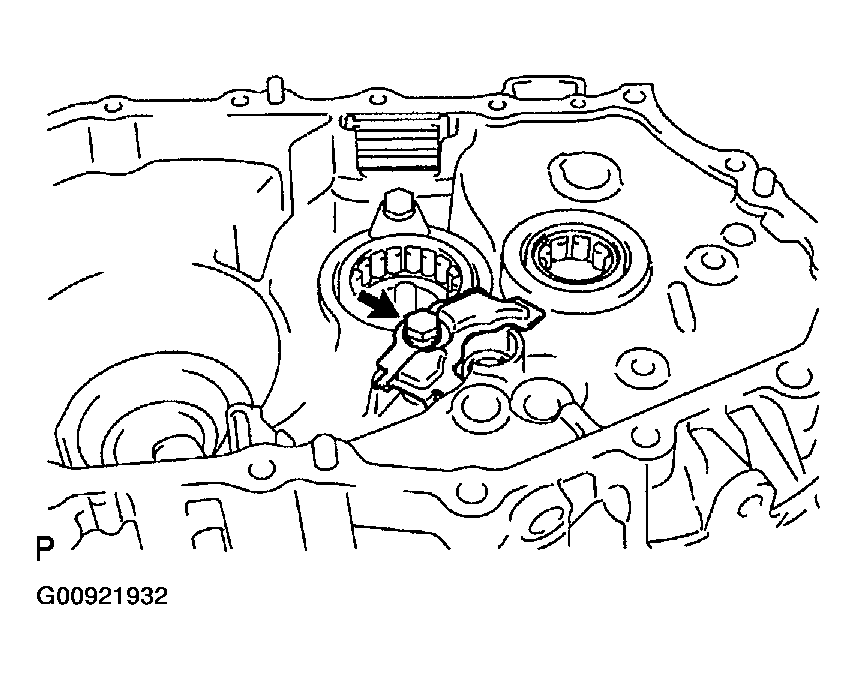

1. Install the bearing lock plate with bolt to the transaxle case.
   1. Torque: 11.3 N.m (115 kgf.cm, 8 ft.lbf)

Fig 102: Installing Bearing Lock Plate

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the manual transaxle case receiver with bolt to the transaxle case.
   1. Torque: 11.3 N.m (115 kgf.cm, 8 ft.lbf)

Fig 103: Installing Manual Transaxle Case Receiver

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Coat the differential case tapered roller bearing with gear oil, install the differential case assy to the transaxle case.

Fig 104: Installing Differential Case Assy

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the reverse shift arm bracket assy with 2 bolts to the transaxle case.
   1. Torque: 17.2 N.m (175 kgf.cm, 13 ft.lbf)

Fig 105: Installing Reverse Shift Arm Bracket Assy

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

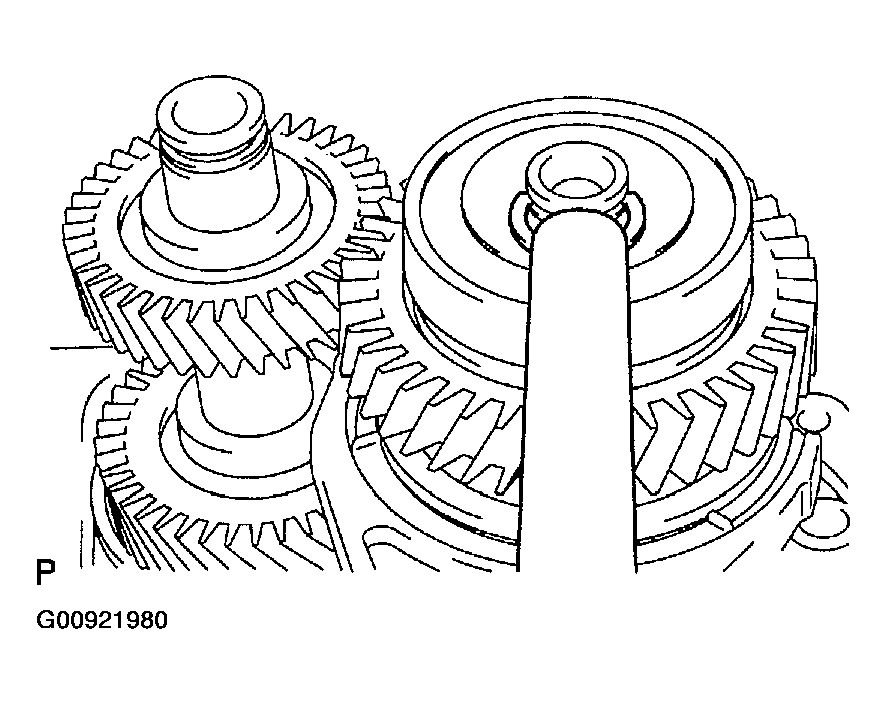

1. Coat the sliding and rotating surface of the input and output shafts with gear oil, install them to the transaxle case.

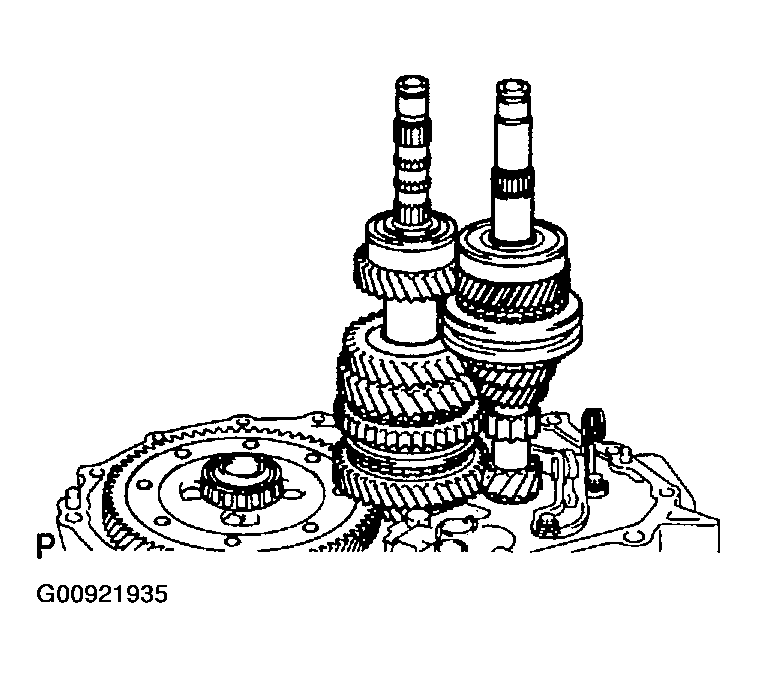

Fig 106: Installing Input Shaft Assy

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Coat the reverse idler gear sub-assy, thrust washer and reverse idler gear shaft with gear oil, install them to the transaxle case.

Fig 107: Installing Reverse Idler Gear Sub-Assy

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Coat the gear shift fork No. 2 and gear shift fork No. 1 with gear oil, install them to the input and output shafts.
   Fig 108: Installing Gear Shift Fork Shaft No. 2 (1 Of 3)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Coat the gear shift fork shaft No. 2 with gear oil, install the gear shift head No. 1, reverse shift fork and gear shift fork shaft No. 2.
   Fig 109: Installing Gear Shift Fork Shaft No. 2 (2 Of 3)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Coat the 2 shift lock bolts with sealant, install them to the gear shift fork No. 2 and gear shift head No. 1.

1. Sealant: Part No. 08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent

1. Torque: 15.7 N.m (160 kgf.cm, 12 ft.lbf)

Fig 110: Installing Gear Shift Fork Shaft No. 2 (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

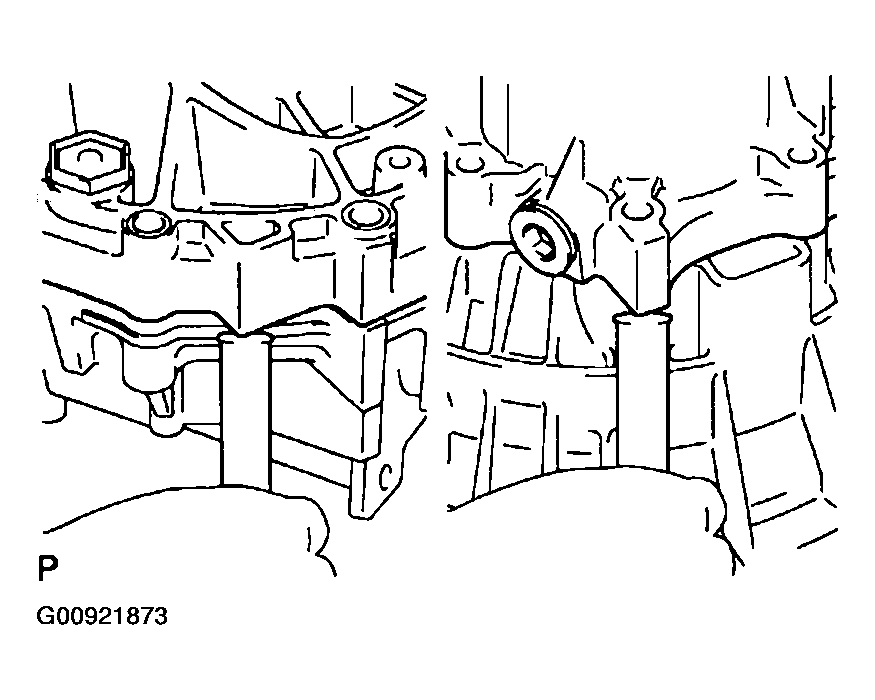

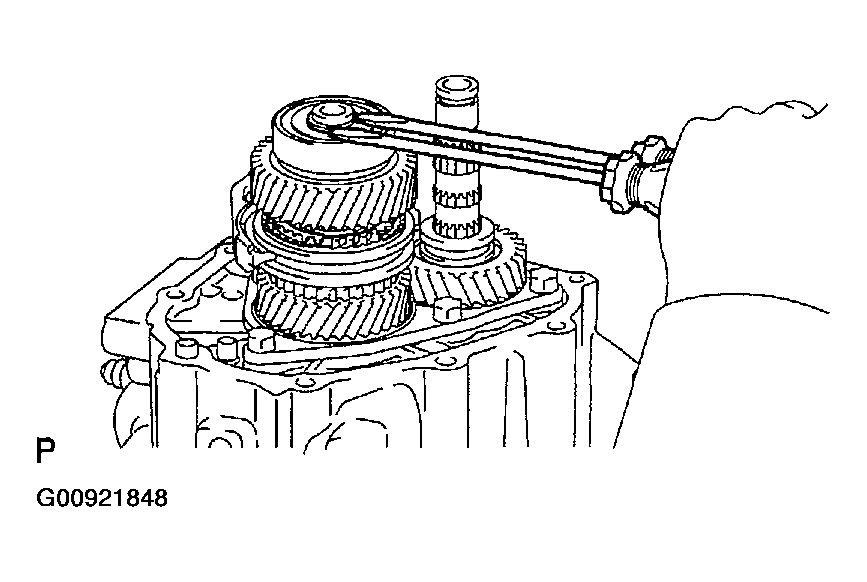

1. Using a brass bar and a hammer, install the shaft snap ring to the gear shift fork shaft No. 3.
   Fig 111: Installing Shaft Snap Ring To Gear Shift Fork Shaft No. 3

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Coat the gear shift fork shaft No. 3 with gear oil, install it to the transaxle case.

Fig 112: Installing Gear Shift Fork Shaft No. 3

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Coat the gear shift fork shaft sub-assy No. 1 with gear oil, install it to the transaxle case.
2. Coat the shift fork lock bolt with sealant, install it to the gear shift fork No. 1.
   1. Sealant: Part No. 08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent
   1. Torque: 15.7 N.m (160 kgf.cm, 12 ft.lbf)
   Fig 113: Installing Shift Fork Lock Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using a brass bar and a hammer, install shaft snap ring.

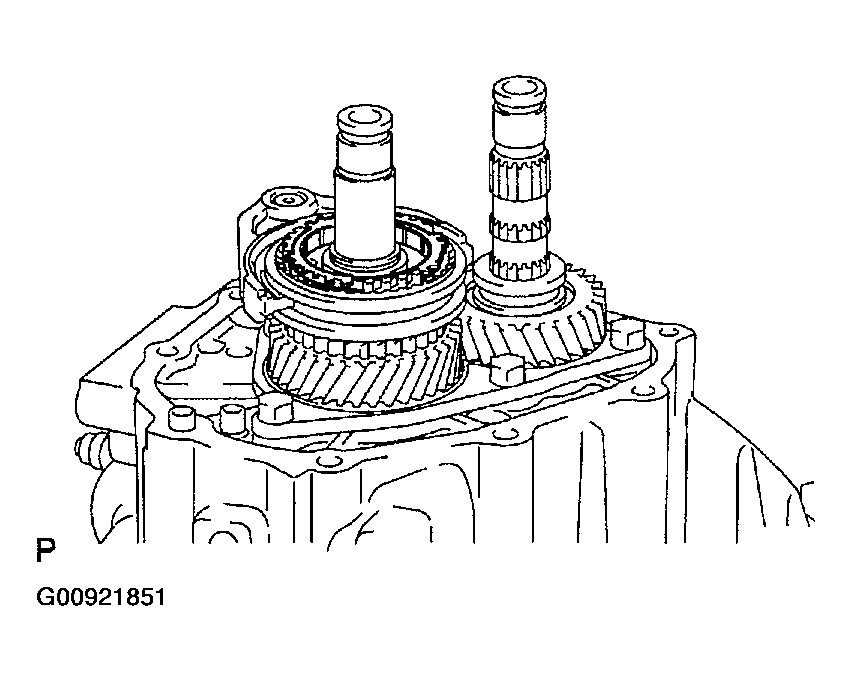

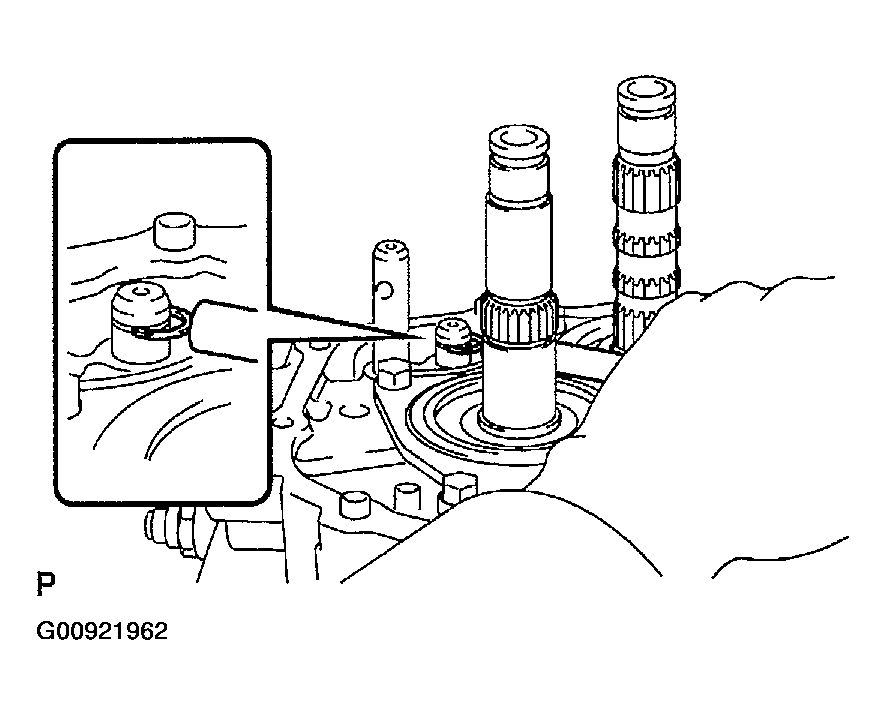

Fig 114: Installing Shaft Snap Ring

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the shift detent ball, shift detent ball compression spring and shift detent ball spring seat to the transaxle case.

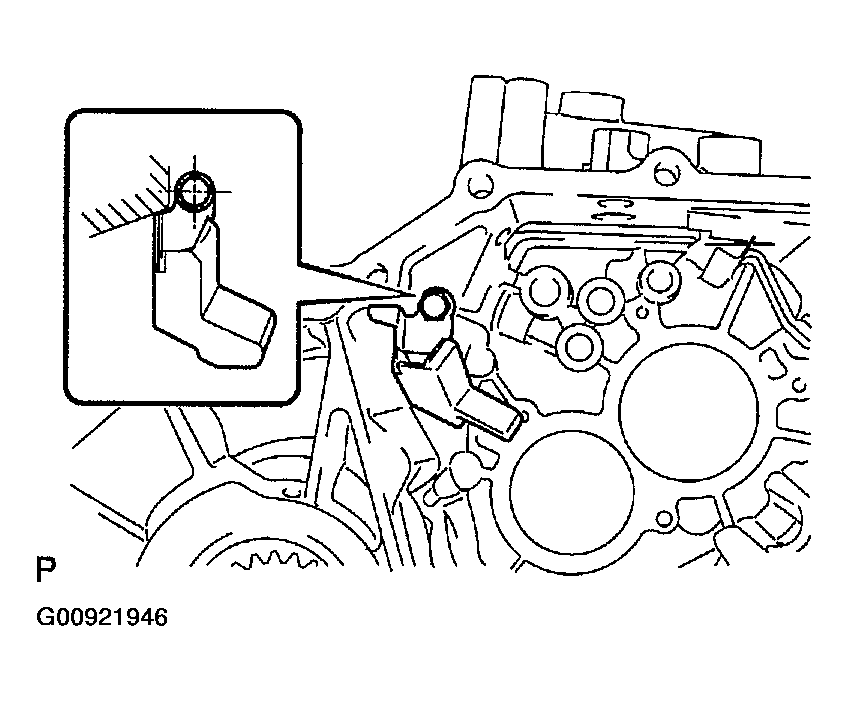

   Fig 115: Installing Shift Detent Ball, Compression Spring And Spring Seat

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Coat the shift detent ball plug with sealant, using SST, install it to the transaxle case.
   1. Sealant: Part No. 08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent
   1. Torque: 24.5 N.m (250 kgf.cm, 18 ft.lbf)

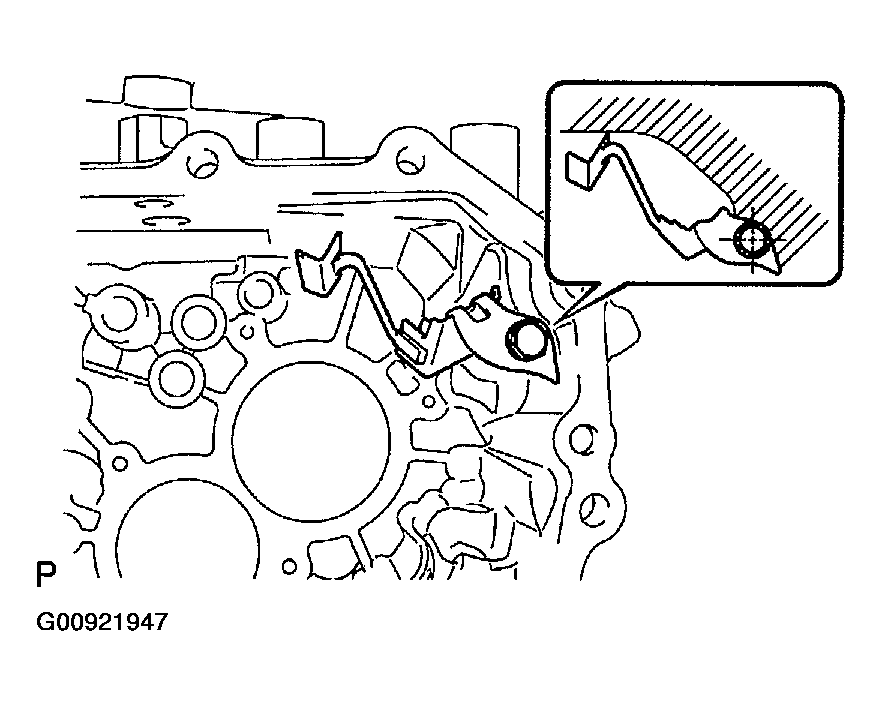

Fig 116: Installing Shift Detent Ball Plug

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the oil receiver pipe No. 2 (MTM) with bolt to the manual transmission case.
   1. Torque: 17.2 N.m (175 kgf.cm, 13 ft.lbf)

Fig 117: Installing Oil Receiver Pipe No. 2

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the oil receiver pipe No. 1 (MTM) with bolt to the manual transmission case.
   1. Torque: 17.2 N.m (175 kgf.cm, 13 ft.lbf)

Fig 118: Installing Oil Receiver Pipe No. 1

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Apply FIPG to the manual transmission case, as shown to Fig 119 .
   1. FIPG: Part No. 08826-00090, THREE BOND 1281 or equivalent

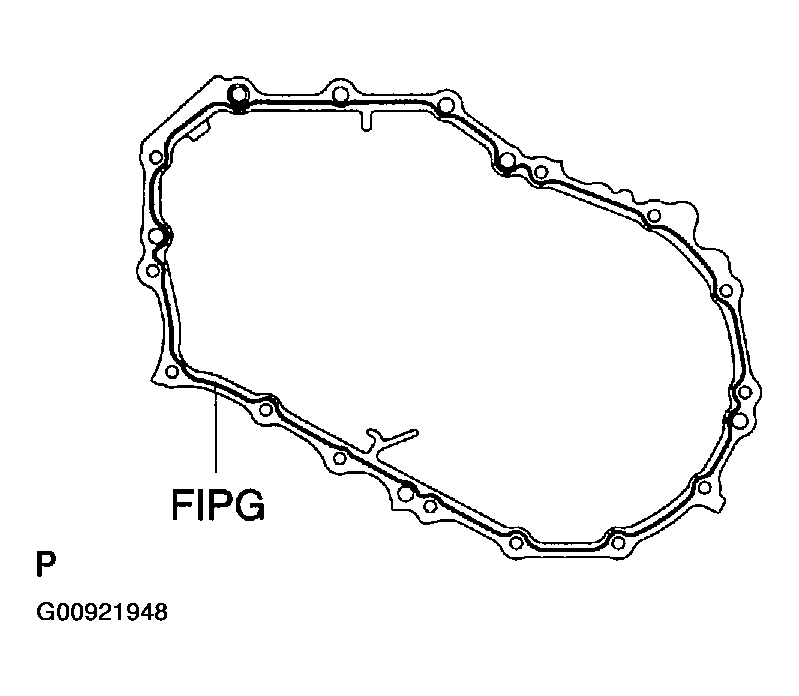

   Fig 119: Applying FIPG To Manual Transmission Case

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE: Parts must be assembled within 10 minutes of application. Otherwise, the packing (FIPG) material must be remove and reapplied.
2. Install the 13 bolts to the manual transmission side.
   1. Torque: 29.4 N.m (300 kgf.cm, 22 ft.lbf)
   Fig 120: Installing Bolts To Manual Transmission Side

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the 3 bolts to the transaxle case side.
   1. Torque: 29.4 N.m (300 kgf.cm, 22 ft.lbf)
   Fig 121: Installing Bolts To Transaxle Case Side

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Coat the reverse idler gear shaft bolt with sealant, install it with new gasket to the manual transmission case.
   1. Sealant: Part No. 08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent
   1. Torque: 29.4 N.m (300 kgf.cm, 22 ft.lbf)

Fig 122: Installing Reverse Idler Gear Shaft Bolt

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Coat the transmission case plug with sealant, using socket hexagon wrench 6, install it to the manual transmission case.
   1. Sealant: Part No. 08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent
   1. Torque: 39.2 N.m (400 kgf.cm, 29 ft.lbf)

Fig 123: Installing Manual Transmission Case Plug

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

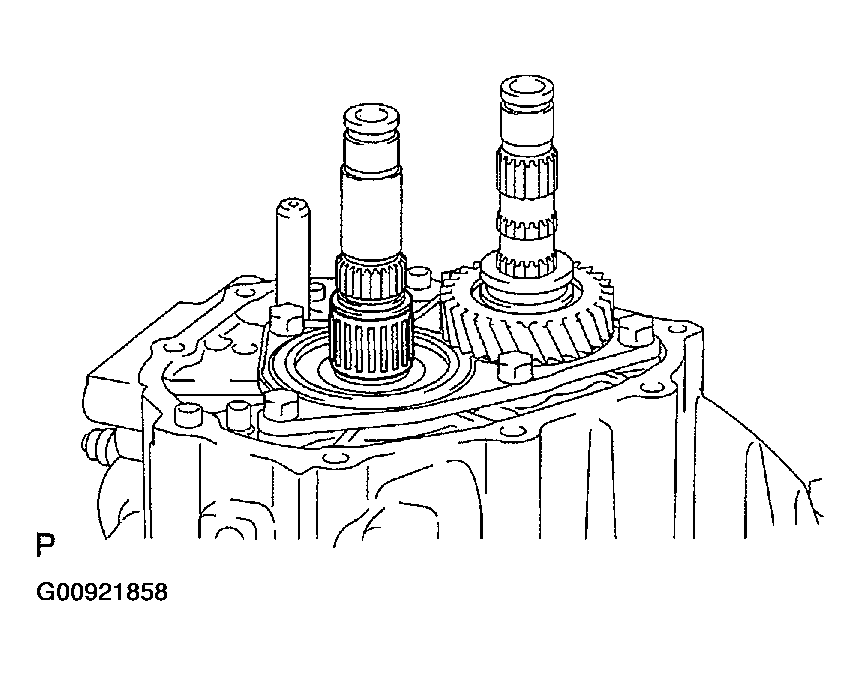

1. Using a snap ring expander, install the input shaft rear bearing hole snap ring to the input shaft.

Fig 124: Installing Input Shaft Rear Bearing Hole Snap Ring

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a snap ring expander, install the output shaft rear bearing hole snap ring to the output shaft.

Fig 125: Installing Output Shaft Rear Bearing Hole Snap Ring

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

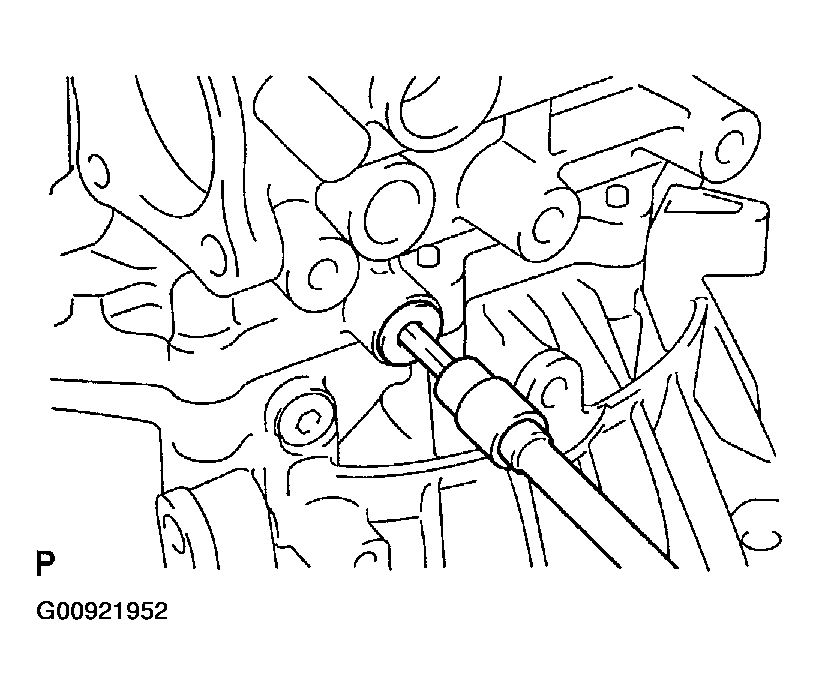

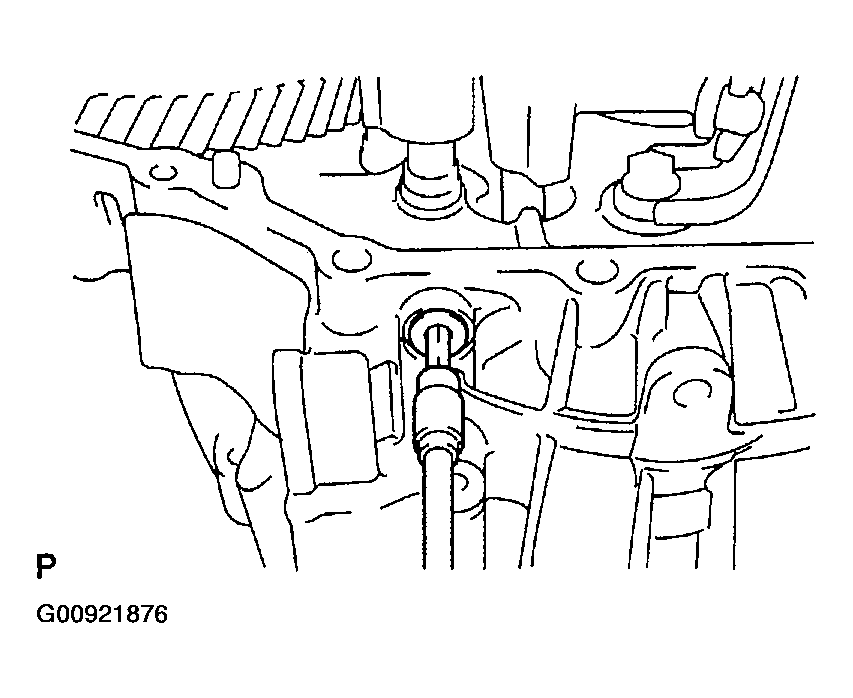

1. Using SST and a hammer, install the transmission case oil seal to the manual transmission case.

   SST 09316-60011 (09316-00011)

   1. Driven in depth: 9.9 +/- 0.3 mm (0.390-0.012 in.)
2. Coat the lip of the transmission case oil seal with MP grease.

Fig 126: Installing Transmission Case Oil Seal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the 2 shift detent balls, 2 shift detent ball springs and 2 shift detent ball spring seats to the manual transmission case.
   Fig 127: Installing Shift Detent Balls, Springs And Spring Seats

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Coat the 2 shift detent ball plugs with sealant, install it to the manual transmission case.
   1. Sealant: Part No. 08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent
   1. Torque: 24.5 N.m (250 kgf.cm, 18 ft.lbf)

Fig 128: Installing Shift Detent Ball Plugs

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using SST, install the back up lamp switch assy with a new gasket to the manual transmission case.

SST 09817-16011

1. Torque: 40.2 N.m (411 kgf.cm, 30 ft.lbf)

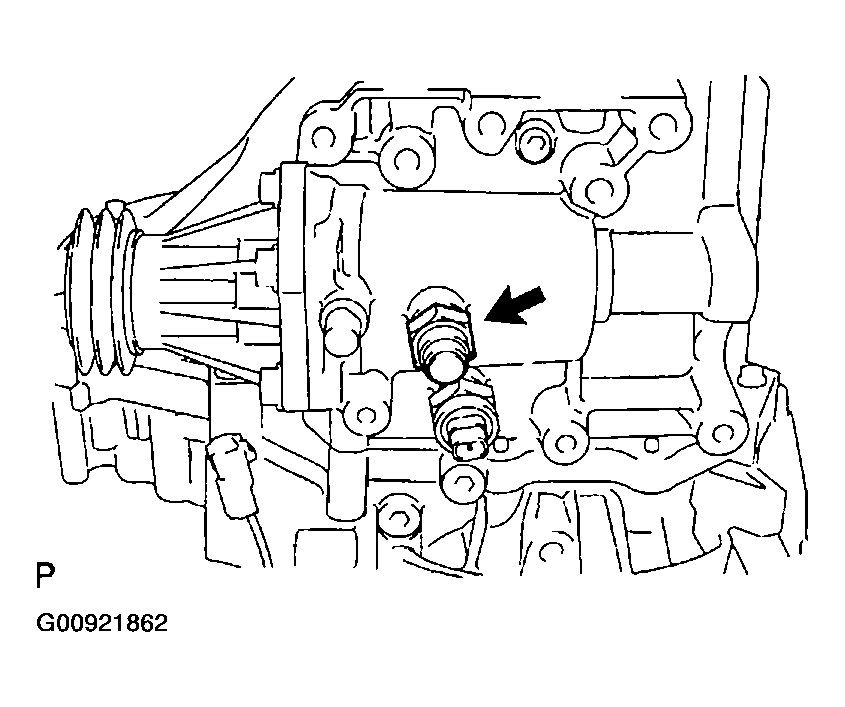

Fig 129: Installing Back Up Lamp Switch Assy

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Coat the shift & select lever shaft assy with gear oil.
2. Coat the 4 bolts with sealant, install them with new gasket and shift & select lever shaft assy.

   Sealant: Part No. 08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent

   1. Torque: 19.6 N.m (200 kgf.cm, 14 ft.lbf)

Fig 130: Installing Shift & Select Lever Shaft Assy

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Coat the lock ball assy No. 1 with sealant, install it to the manual transmission case.
   1. Torque: 29.4 N.m (300 kgf.cm, 22 ft.lbf)

Fig 131: Installing Lock Ball Assy No. 1

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Coat the 5 bolts with sealant, install it with bearing retainer rear to the manual transmission case.
   1. Sealant: Part No. 08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent
      1. Torque: 27.4 N.m (279 kgf.cm, 20 ft.lbf)
   Fig 132: Installing Bearing Retainer Rear

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

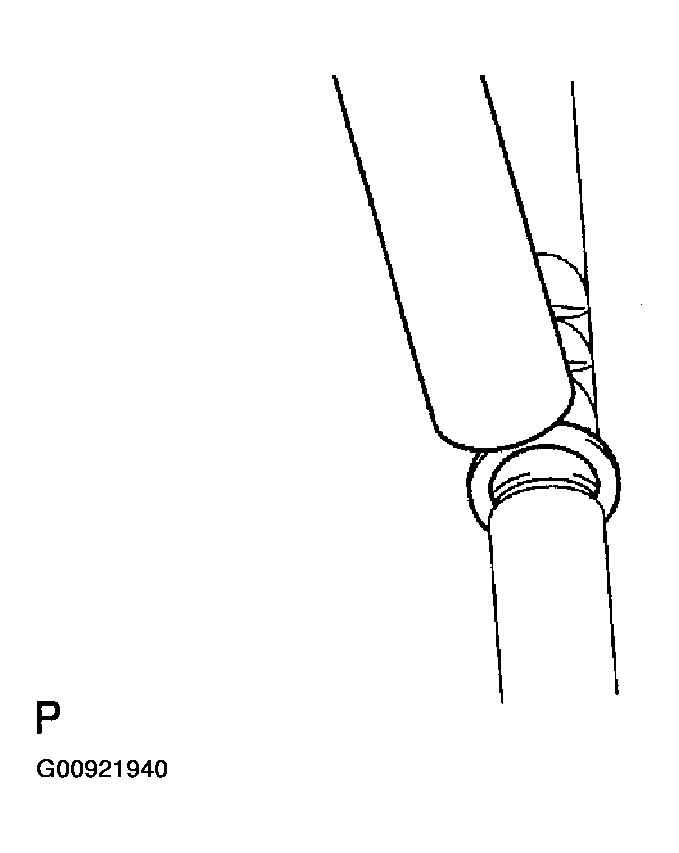

1. Using a brass bar and a hammer, install the shift fork shaft snap ring to the shift fork shaft No. 2.

Fig 133: Installing Shift Fork Shaft Snap Ring

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using SST, install the 5th driven gear to the output shaft.

   SST 09950-30012 (09951-03010, 09953-03010, 09954-03010, 09955-03011, 09956-03080)

Fig 134: Installing 5th Driven Gear

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the output gear spacer to the output shaft.

Fig 135: Installing Output Gear Spacer

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Coat the 2 5th gear bearing spacers, and 5th gear needle roller bearing with gear oil, install them to the input shaft.
   Fig 136: Installing 5th Gear Needle Roller Bearing

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a brass bar and a hammer, install the transmission clutch hub No. 3 shaft snap ring to the input shaft.

Fig 137: Installing Transmission Clutch Hub No. 3 Shaft Snap Ring

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

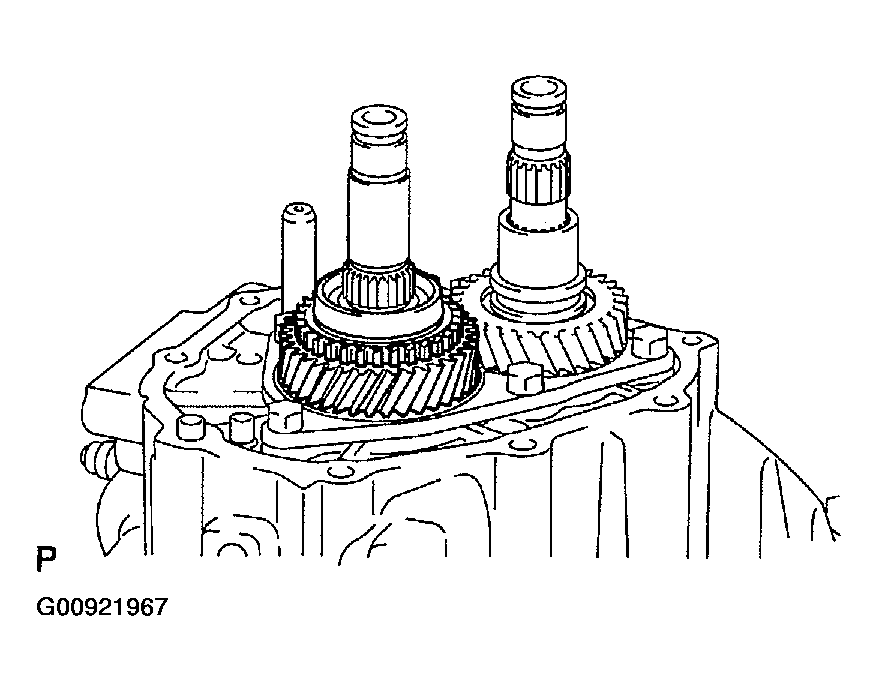

1. Coat the 5th gear with gear oil, install it to the input shaft.

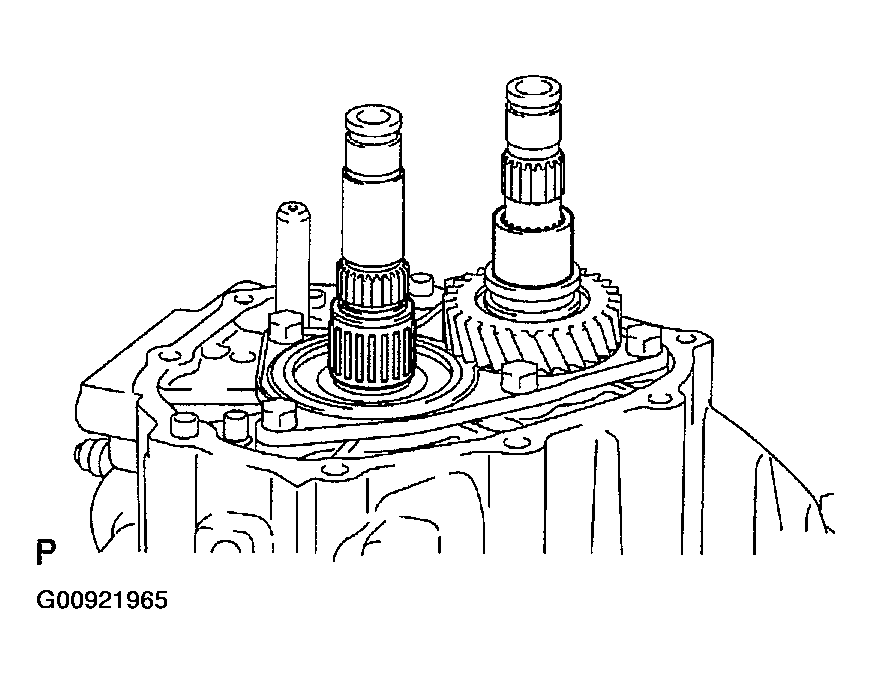

Fig 138: Installing 5th Gear

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Coat the synchronizer ring No. 3 with gear oil, install it to the 5th gear.

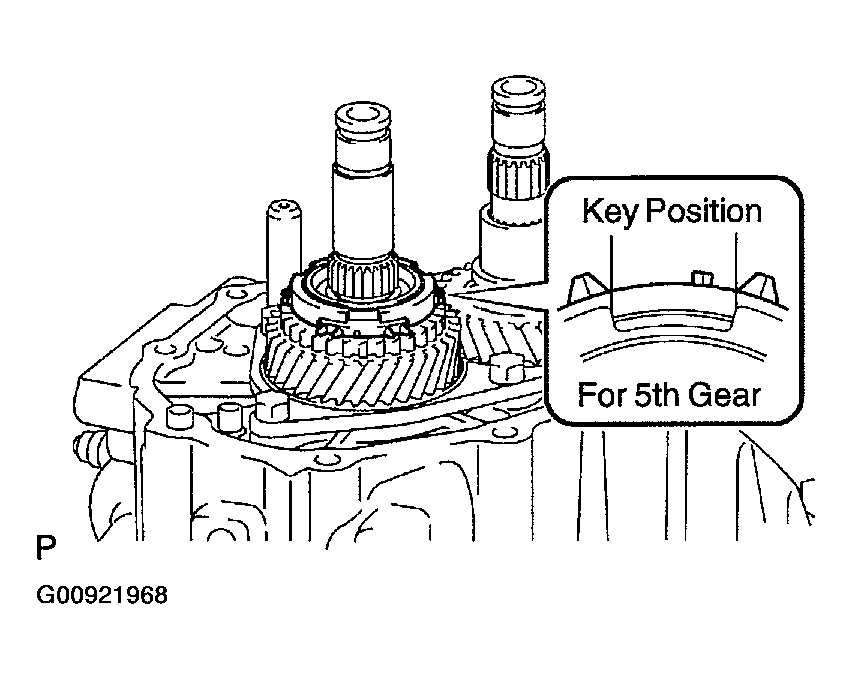

Fig 139: Installing Synchronizer Ring No. 3 (For 5th Gear MT)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

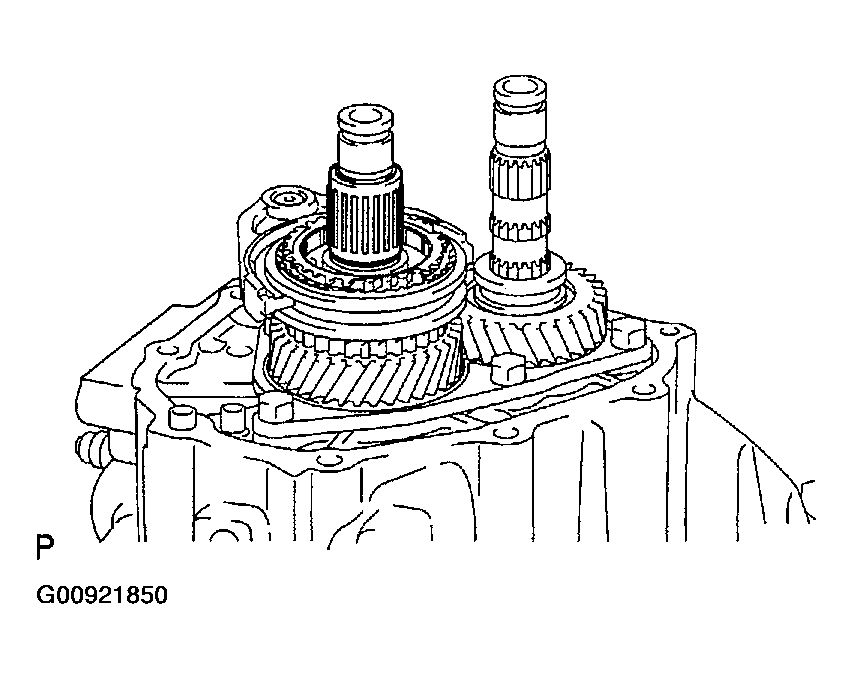

1. Using SST and a hammer, install the transmission clutch hub No. 3 with gear shift fork No. 3 to the input shaft.

   SST 09608-04031

   NOTE:

   • Before driving in the transmission clutch hub No. 3, place the suitable sized wooden block on the rear side of the input shaft, as shown in Fig 140 .
   • When driving it in, fix the input shaft rear bearing is over loaded, it might be damaged.
   Fig 140: Installing Transmission Clutch Hub No. 3

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Coat the shift fork lock bolt with sealant, install it to the gear shift fork No. 3.
   1. Torque: 15.7 N.m (160 kgf.cm, 12 ft.lbf)
   Fig 141: Installing Shift Fork Lock Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Select a snap ring that will minimum axial play.
   1. Clearance: 0.1 mm (0.004 in.) or less

   Snap ring thickness:

   Fig 142: Snap Ring Thickness Specifications (1 Of 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   Fig 143: Snap Ring Thickness Specifications (2 Of 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Using a brass bar and a hammer, install the snap ring to the input shaft.

Fig 144: Installing Snap Ring To Input Shaft

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using SST, install the counter gear to the output shaft.

   SST 09950-30012 (09951-03010, 09953-03010, 09954-03010, 09955-03011, 09956-03080)

Fig 145: Installing Counter Gear 6th

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Coat the synchronizer ring No. 3 with gear oil, install it to the transmission clutch hub No. 3.

Fig 146: Installing Synchronizer Ring No. 3 (For 6th Gear MT)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

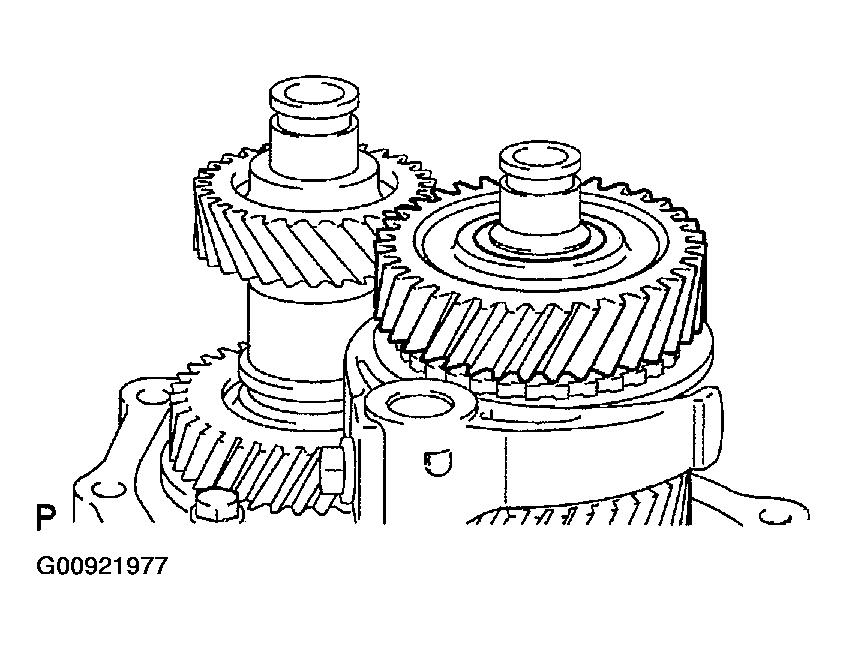

1. Coat the 6th gear needle roller bearing with gear oil, install it to the input shaft.

Fig 147: Installing 6th Gear Needle Roller Bearing

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

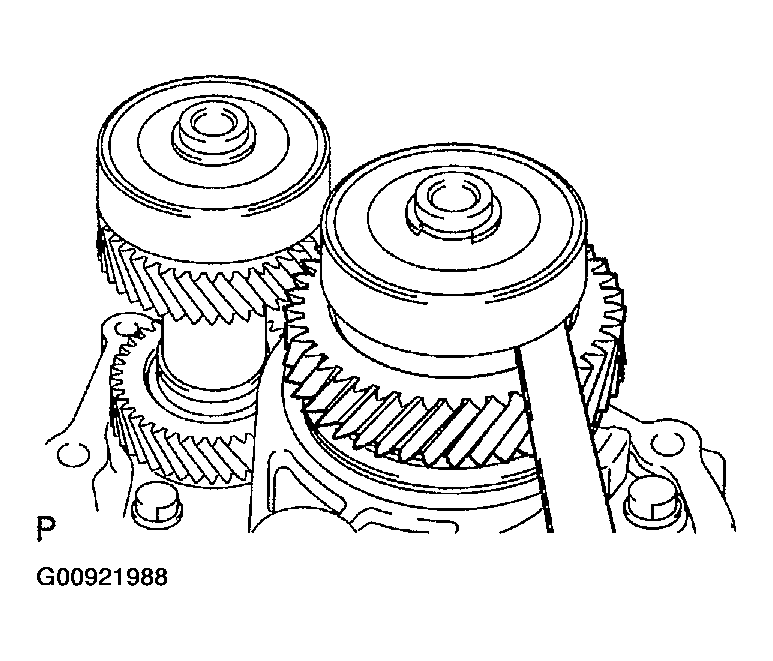

1. Coat the 6th gear sub-assy with gear oil, install it to the input shaft.

Fig 148: Installing 6th Gear Sub-Assy

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

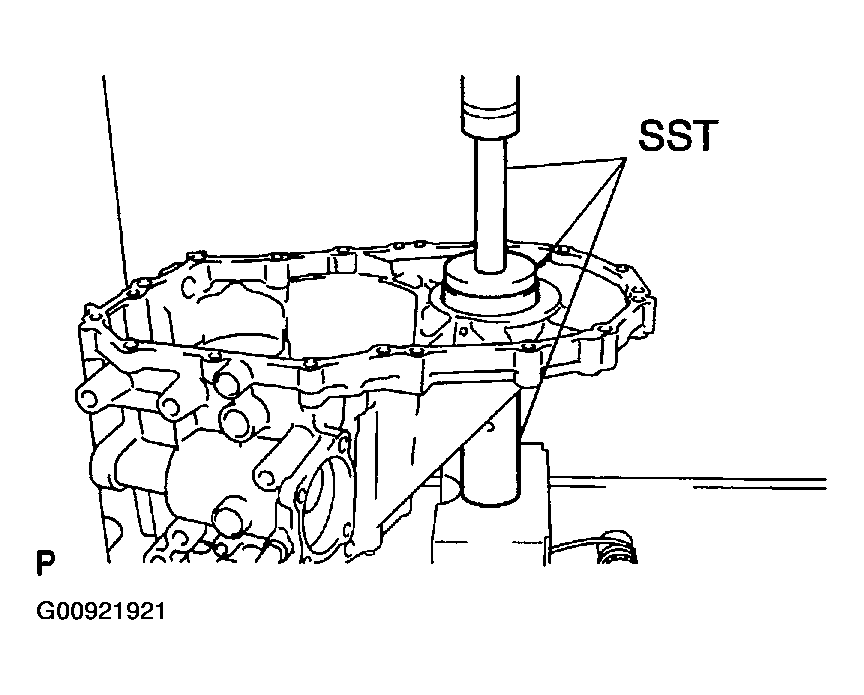

1. Using SST, steel block and a hammer, install the input shaft rear radial ball bearing to the input shaft.

   SST 09608-04031

   Fig 149: Installing Input Shaft Rear Radial Ball Bearing

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Select a snap ring that will minimum axial play.
   1. Clearance: 0.1 mm (0.004 in.) or less
   Fig 150: Snap Ring Thickness Specifications

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Snap ring thickness:

   Fig 151: Installing Snap Ring To Input Shaft

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using a brass bar and hammer, install the snap ring to the input shaft.

1. Using SST, install output shaft rear bearing to the output shaft.

   SST 09950-30012 (09951-03010, 09953-03010, 09954-03010, 09955-03011, 09956-03080)

   Fig 152: Installing Output Shaft Rear Bearing

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Select a snap ring that will minimum axial play.
   1. Clearance: 0.1 mm (0.004 in.) or less
   Fig 153: Snap Ring Thickness Specifications (1 Of 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Snap ring thickness:

   Fig 154: Snap Ring Thickness Specifications (2 Of 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using a brass bar and hammer, install the snap ring to the output shaft.
   Fig 155: Installing Snap Ring To Output Shaft

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a dial indicator, measure the 5th gear radial clearance.
   1. Standard clearance:0.015-0.056 mm (0.0006-0.0022 in.)

If the clearance is out of specification, replace the 6th gear needle roller bearing.

Fig 156: Measuring 5th Gear Radial Clearance

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a dial indicator, measure the 5th gear radial clearance.
   1. Standard clearance:0.009-0.050 mm (0.0004-0.0020 in.)

If the clearance is out of specification, replace the 6th gear needle roller bearing.

Fig 157: Measuring 6th Gear Radial Clearance

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a dial indicator, measure the 5th gear thrust clearance.
   1. Standard clearance:0.10-0.62 mm (0.0039-0.0244 in.)

Fig 158: Measuring 5th Gear Thrust Clearance

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a feeler gauge, measure the 6th gear thrust clearance.
   1. Standard clearance:0.10 - 0.60 mm (0.0039 - 0.0236 in.)

Fig 159: Measuring 6th Gear Thrust Clearance

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Apply FIPG to the manual transmission case cover sub-assy.
   1. FIPG: Parts No.08826-00090, THREE BOND 1281 or equivalent
   NOTE: Parts must be assembled within 10 minutes of application. Other wise, the pack the packing (FIPG) material must be remove and reapplied.

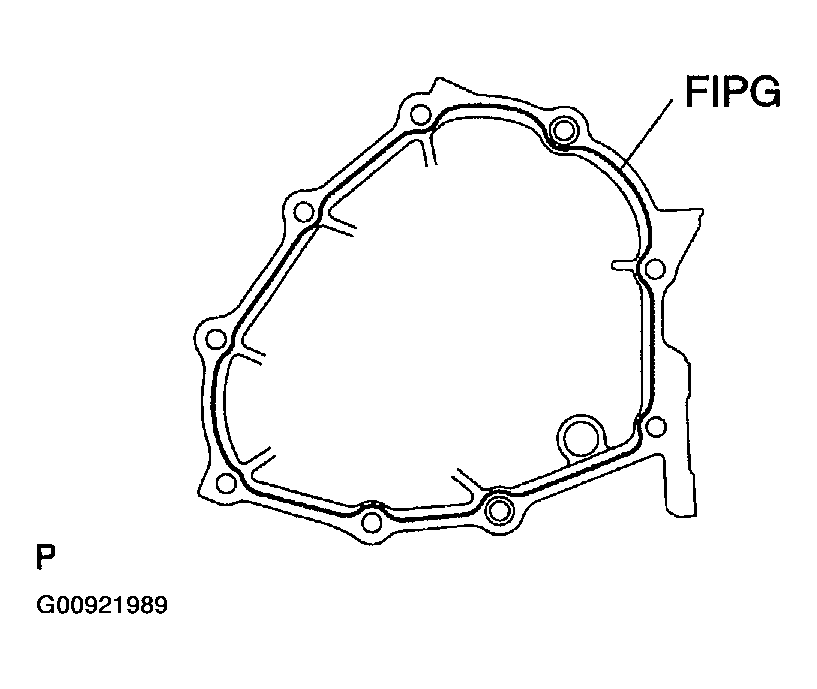

   Fig 160: Applying FIPG To Manual Transmission Case Cover Sub-Assy

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the manual transmission case cover sub-assy with 9 bolts to the manual transmission case.
   1. Torque: 18.1 N.m (185 kgf.cm, 13 ft.lbf)

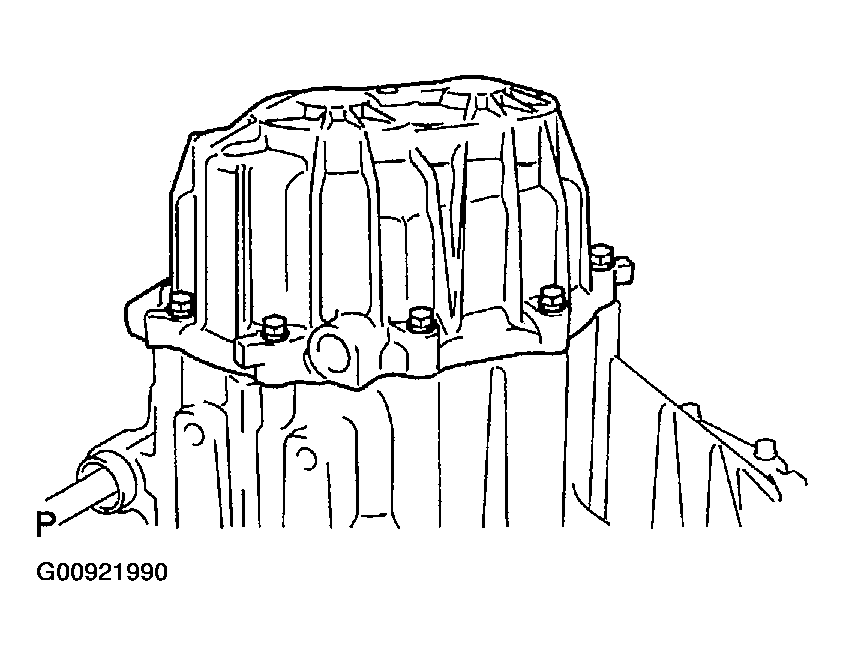

Fig 161: Installing Manual Transmission Case Cover Sub-Assy

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the drain (MTM) plug sub-assy with a new gasket to the manual transmission case.
   1. Torque: 39.2 N.m (400 kgf.cm, 29 ft.lbf)

Fig 162: Installing Drain Plug Sub-Assy

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the manual transmission filler plug with a new gasket to the manual transmission case cover.
   1. Torque: 39.2 N.m (400 kgf.cm, 29 ft.lbf)

Fig 163: Installing Manual Transmission Filler Plug

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the selecting bellcrank assy with 2 bolts to the manual transmission case.
   1. Torque: 24.5 N.m (250 kgf.cm, 18 ft.lbf)

Fig 164: Installing Selecting Bell Crank Assy

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the floor shift control lever housing support bracket with 3 bolts to the transaxle case.
   1. Torque: 11.3 N.m (115 kgf.cm, 8 ft.lbf)

Fig 165: Installing Floor Shift Control Lever Housing Support Bracket

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install clutch release fork boot to the transaxle case.

Fig 166: Installing Clutch Release Fork Boot

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the release fork support to the transaxle case.
   1. Torque: 36.8 N.m (375 kgf.cm, 27 ft.lbf)
2. Coat the release fork support with release hub grease.
   1. Release hub grease: Part No. 08887-01806, RELEASE HUB GREASE or equivalent

Fig 167: Installing Release Fork Support

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Coat the clutch release bearing assy with release hub grease, install it to the clutch release fork sub-assy.
   1. Release hub grease: Part No. 08887-01806, RELEASE HUB GREASE or equivalent
   Fig 168: Installing Clutch Release Bearing Assy

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Apply clutch spline grease to the input shaft spline.
   1. Clutch spline grease: Part No. 08887-01806, CLUTCH SPLINE GREASE or equivalent
2. Install the clutch release fork sub-assy to the input shaft.

Fig 169: Installing Clutch Release Fork Sub-Assy

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install a new O-ring to the speedometer driven hole cover sub-assy.
2. Install the speedometer driven hole cover sub-assy with bolt to the transaxle case.
   1. Torque: 11.3 N.m (115 kgf.cm, 8 ft.lbf)
