Power Seat Systems Component Views

WARNING: This page is about a different car, the 2006 GMC Sierra, 2006 GMC Cab & Chassis Sierra, 2006 Chevrolet Silverado, and 2006 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

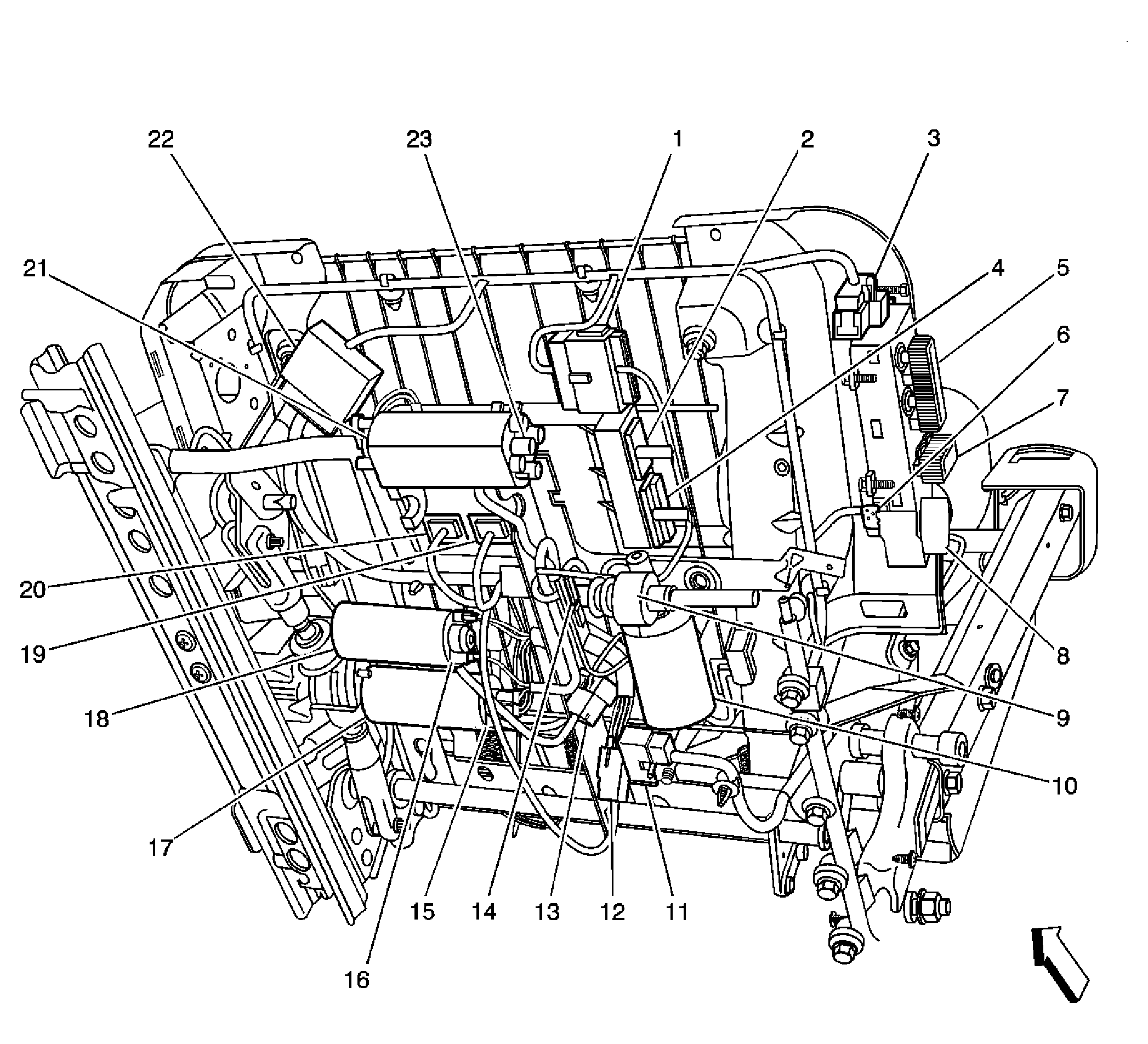

Fig 1: Driver Seat (1 of 2) AG1 w/AN3

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 1

Callout	Component Name
1	C321
2	Memory Seat Module - C4
3	Seat Adjuster Switch Connector - Driver
4	Memory Seat Module - C3
5	Seat Adjuster Switch - Driver
6	Seat Bolster/Lumbar Switch Connector - Driver
7	Seat Adjuster Switch - Driver
8	Seat Bolster/Lumbar Switch - Driver
9	Seat Recline Position Sensor - Driver
10	Seat Recliner Motor - Driver
11	C305
12	C323
13	C325
14	C322
15	Seat Rear Vertical Motor Position Sensor - Driver
16	Seat Front Vertical Motor Position Sensor - Driver
17	Seat Rear Vertical Motor - Driver
18	Seat Front Vertical Motor - Driver
19	Memory Seat Module - C2
20	Memory Seat Module - C1
21	Seat Horizontal Motor - Driver
22	C320
23	Seat Horizontal Motor Seat Position Sensor - Driver

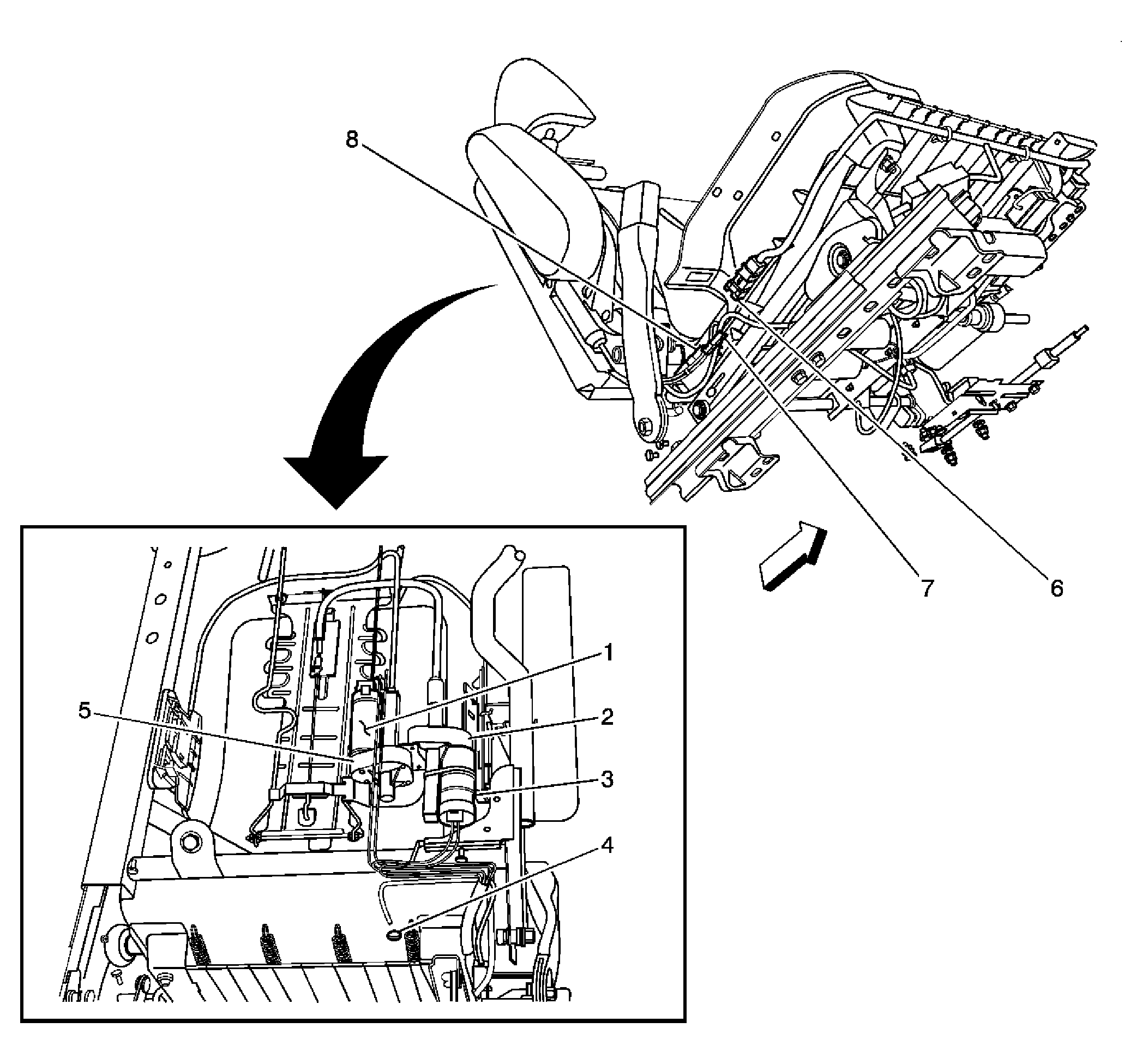

Fig 2: Driver Seat (2 of 2) AG1 w/AN3

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 2

Callout	Component Name
1	Seat Bolster Motor - Driver
2	Seat Lumbar Motor/Position Sensor - Driver
3	Seat Lumbar Motor - Driver
4	Heated Seat Element - Driver Cushion
5	Seat Bolster Motor/Position Sensor - Driver
6	C324
7	Seat Belt Switch Connector
8	Heated Seat Element - Driver Cushion Connector

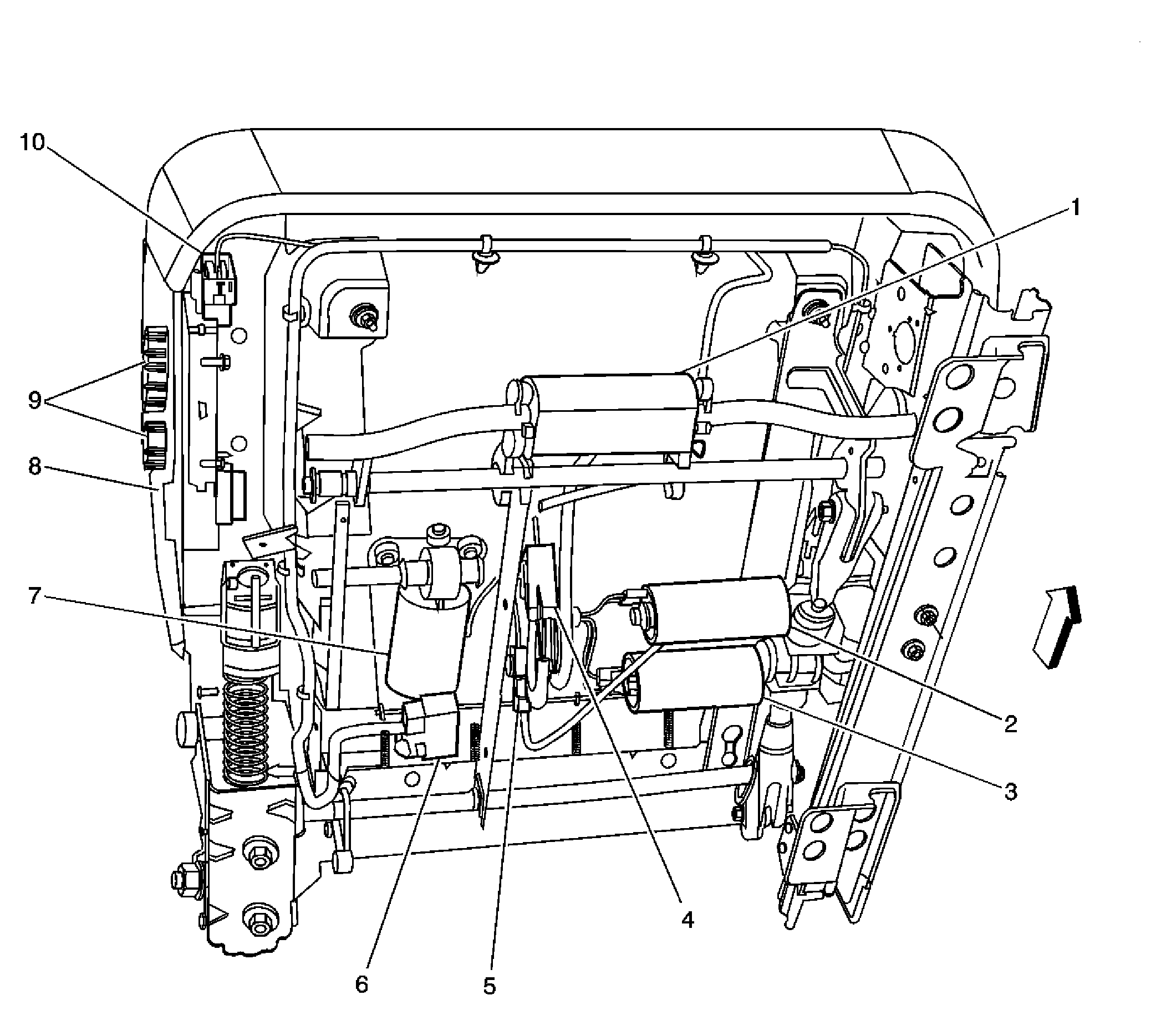

Fig 3: Passenger Seat (1 of 2) AG2

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 3

Callout	Component Name
1	Seat Horizontal Motor - Passenger
2	Seat Front Vertical Motor - Passenger
3	Seat Rear Vertical Motor - Passenger
4	C388
5	C326
6	C399
7	Seat Recliner Motor - Passenger
8	Seat Bolster/Lumbar Switch - Passenger
9	Seat Adjuster Switch - Passenger
10	Seat Adjuster Switch Connector

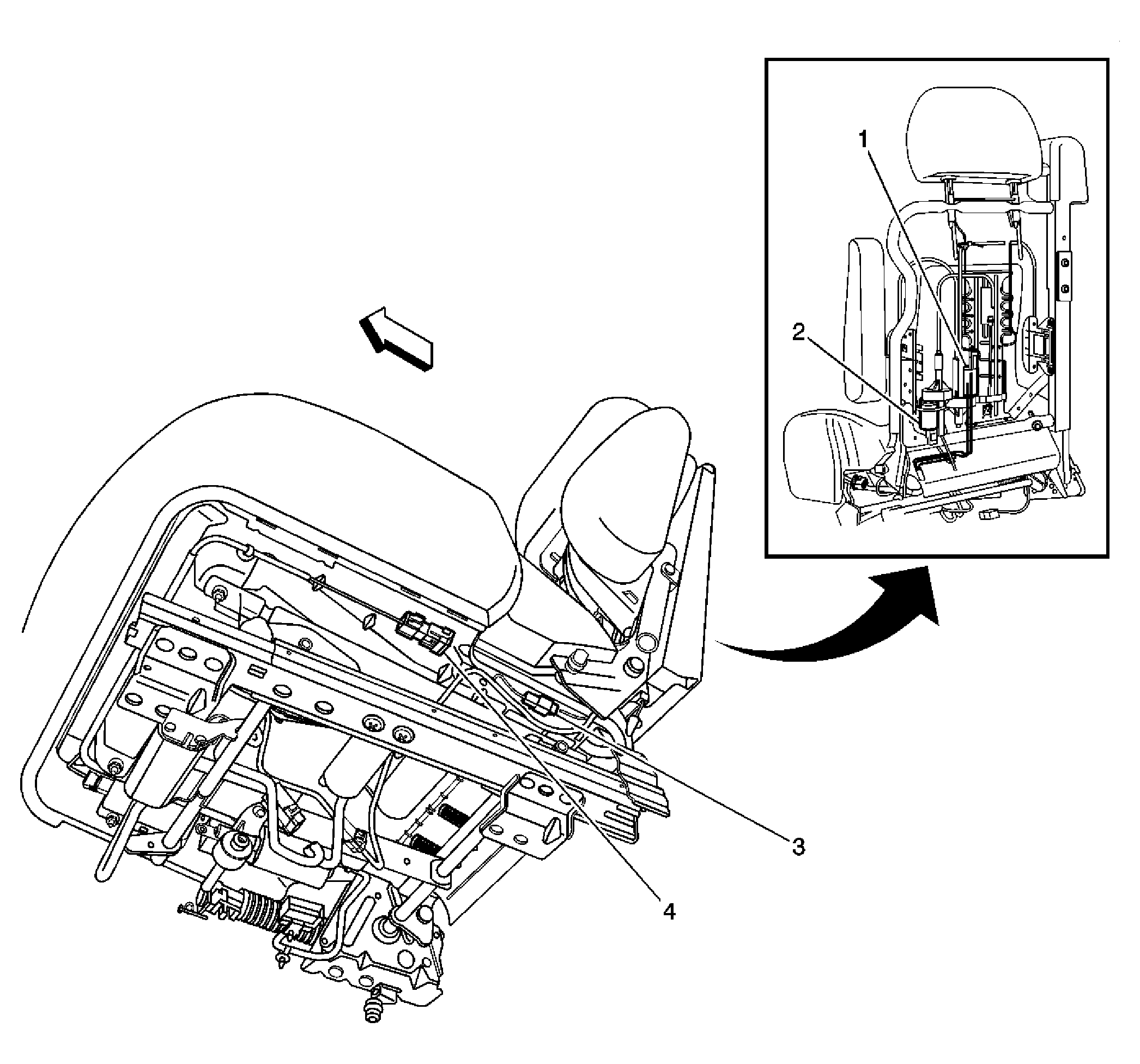

Fig 4: Passenger Seat (2 of 2) AG2

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 4

Callout	Component Name
1	Seat Bolster Motor - Passenger
2	Seat Lumbar Motor - Passenger
3	Heated Seat Element - Passenger Cushion Connector
4	C329

Fig 5: Driver Door

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 5

Callout	Component Name
1	Driver Door
2	Driver Door Module (DDM)
3	Outside Rearview Mirror - Driver
4	Window Motor - Driver
5	Speaker - LF Door
6	Memory/Heated Seat Switch Connector
7	Speaker - LF Tweeter (UQ3)
8	Door Courtesy Lamp - LF
9	Driver Door Panel
10	Memory/Heated Seat Switch
11	Door Latch Assembly - Driver

Fig 6: Passenger Door

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 6

Callout	Component Name
1	Passenger Door Module (PDM)
2	Passenger Door
3	Door Latch Assembly - Passenger
4	Heated Seat Switch - Passenger
5	Door Courtesy Lamp - RF
6	Speaker - RF Tweeter (UQ3)
7	Heated Seat Switch Connector
8	Speaker - RF Door
9	Window Motor - Passenger
10	Outside Rearview Mirror - Passenger
