Rear of Instrument Panel Components
WARNING: This page is about a different car, the 2018 Chevrolet Sonic. However, it is still accessible from the selected car via links, so may be relevant.

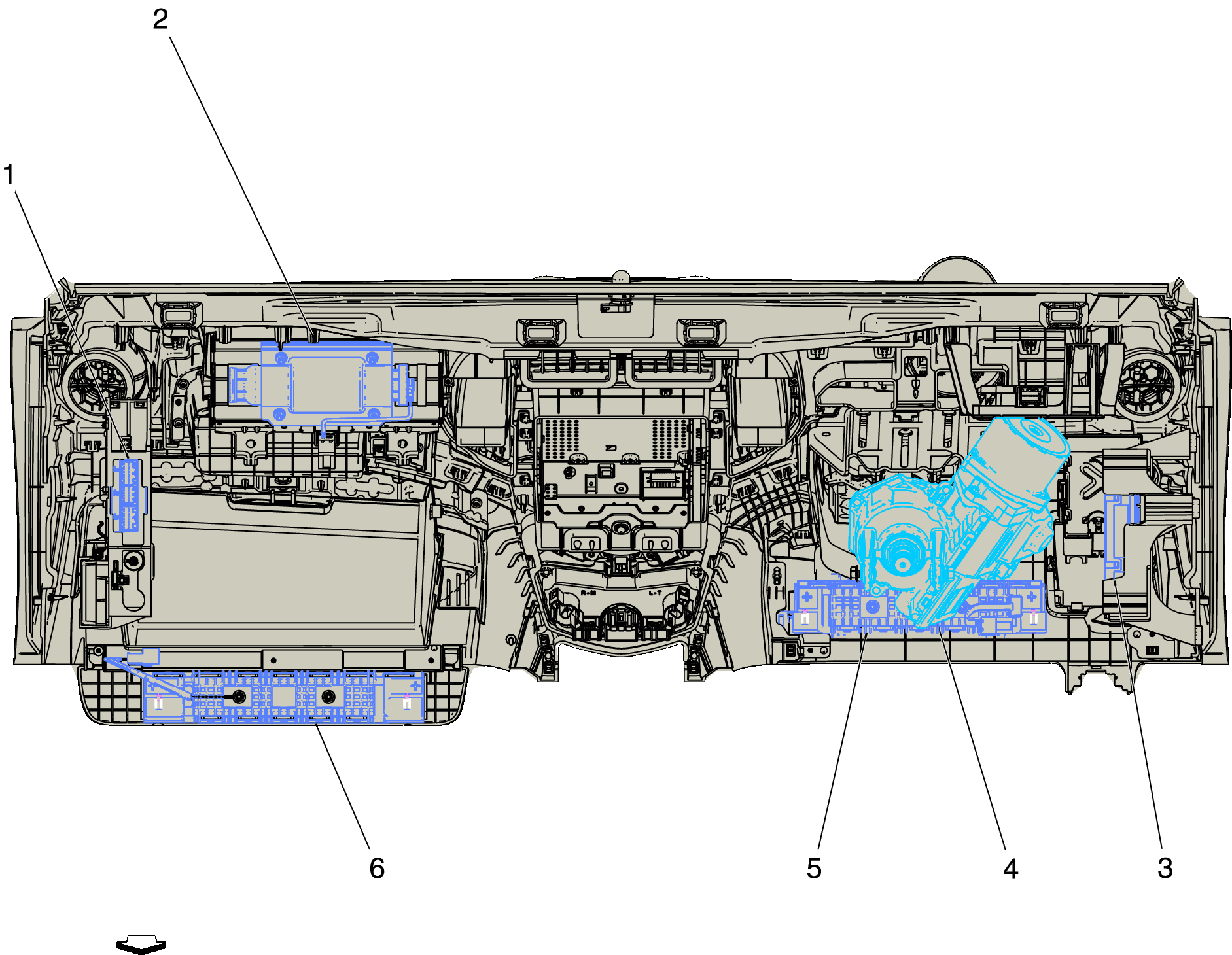

Rear of Instrument Panel Components
| Items |
|---|
| 1. K73 Telematics Communication Interface Control Module (UE1) K73 Telematics Communication Interface Control Module X1 (UE1)K73 Telematics Communication Interface Control Module X5 (UE1)K73 Telematics Communication Interface Control Module X5 (UE1+IOR) |
| 2. F101 Passenger Instrument Panel Air Bag |
| 3. K9 Body Control Module K9 Body Control Module X1K9 Body Control Module X2K9 Body Control Module X3K9 Body Control Module X4K9 Body Control Module X5K9 Body Control Module X6K9 Body Control Module X7 |
| 4. K43 Power Steering Control Module K43 Power Steering Control Module X1 (NJ1)K43 Power Steering Control Module X2 (NJ1+AYF) |
| 5. F114D Knee Air Bag - Driver (AYF) F114D Knee Air Bag - Driver |
| 6. F114P Knee Air Bag - Passenger (AYF) F114P Knee Air Bag - Passenger |
