Caliper Guide Pin Bushings: Reassembly
WARNING: This page is about a different car, the 2002 Dodge Intrepid, 2002 Chrysler Intrepid, 2002 Chrysler Concorde, and 2002 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
- Fold the guide pin bushing in half length wise at the solid middle section.

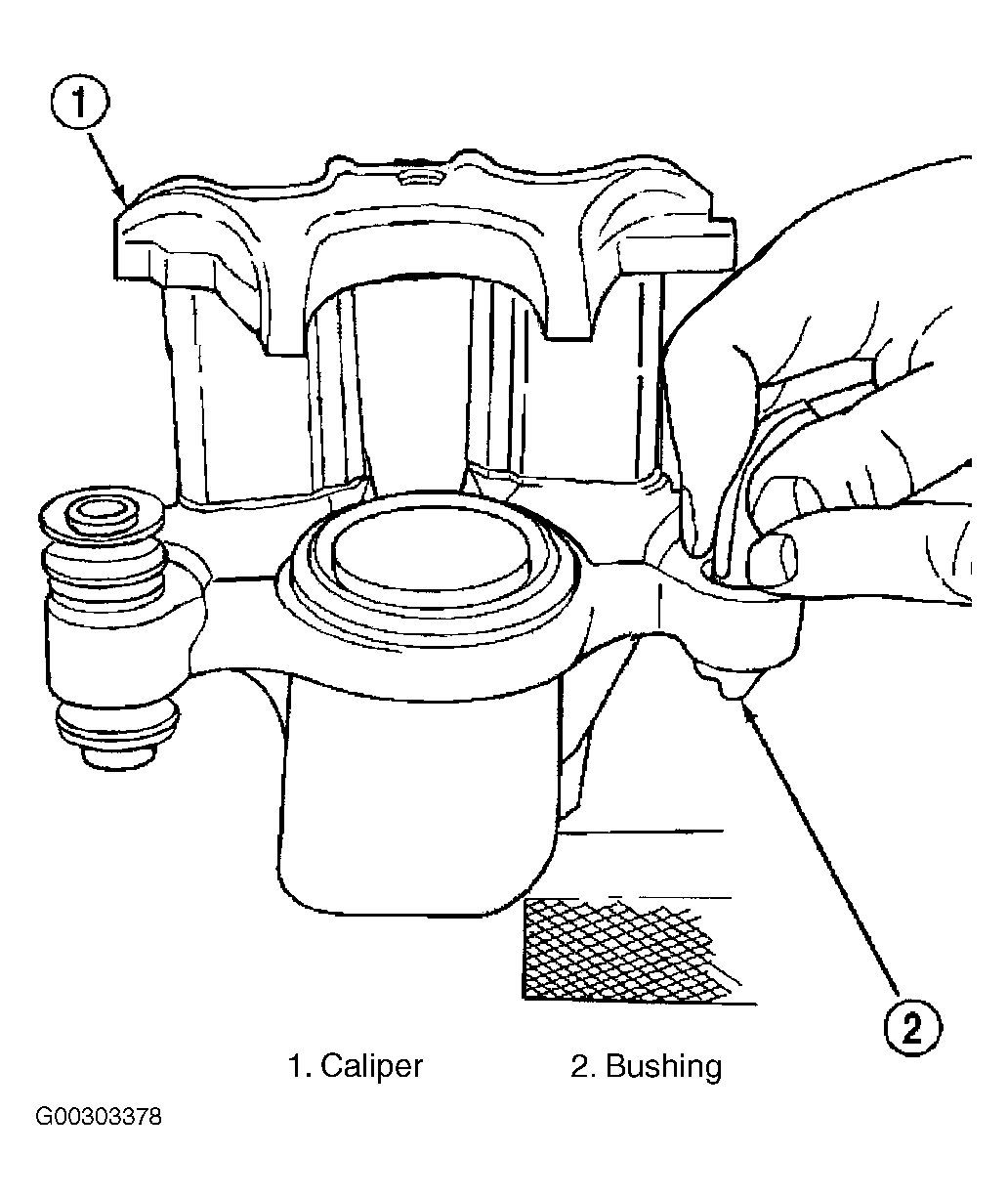

- Using your fingers, insert the folded bushing into the caliper mounting boss. See Fig 1 .

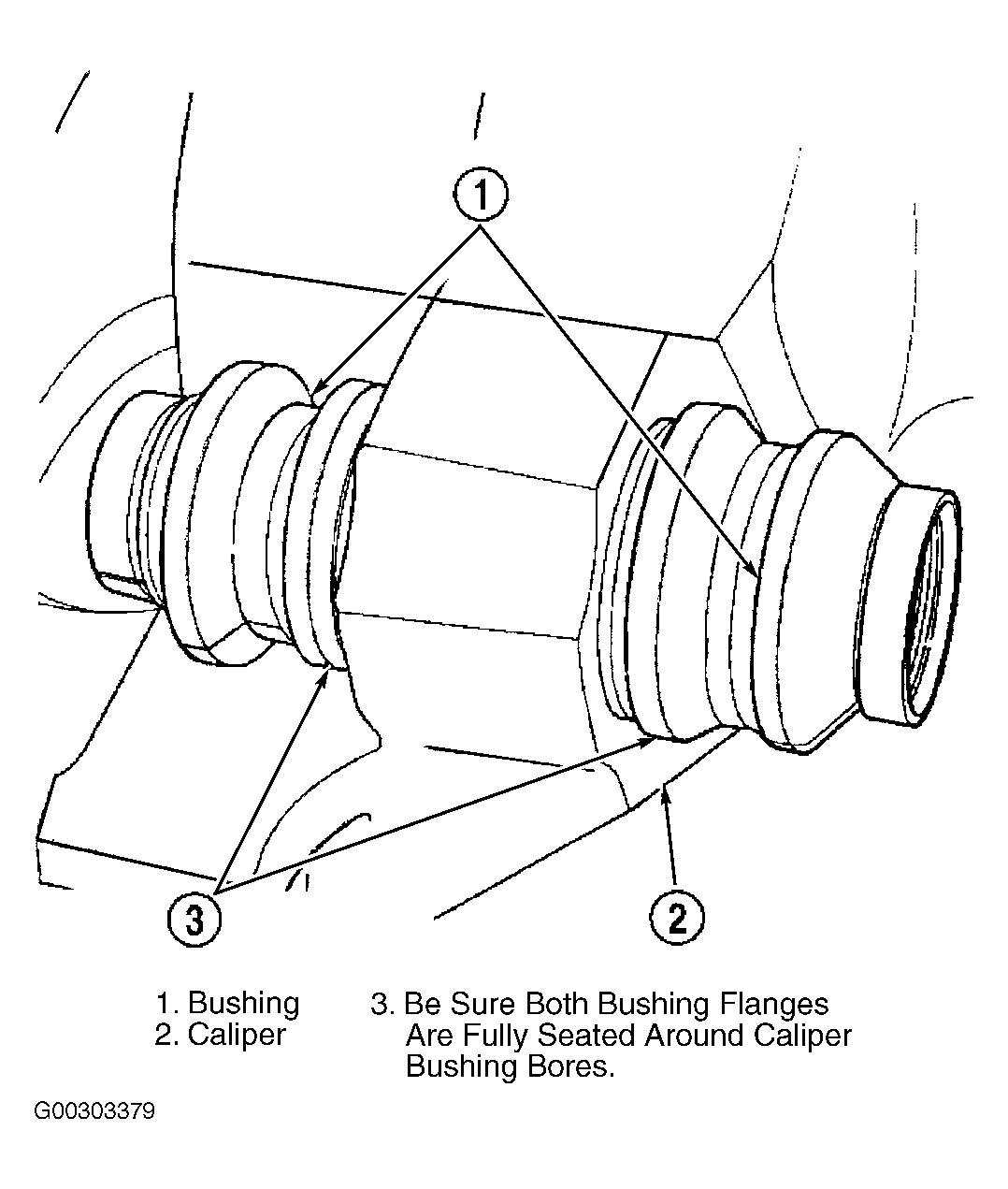

- Unfold the bushing using your fingers or a wooden dowel until the bushing is fully seated into the caliper housing. The bushing flanges should be seated evenly on both sides of the bushing hole. See Fig 2 .
- Lubricate the inside surfaces of the bushing using Mopar(R) Dielectric Grease or an equivalent.

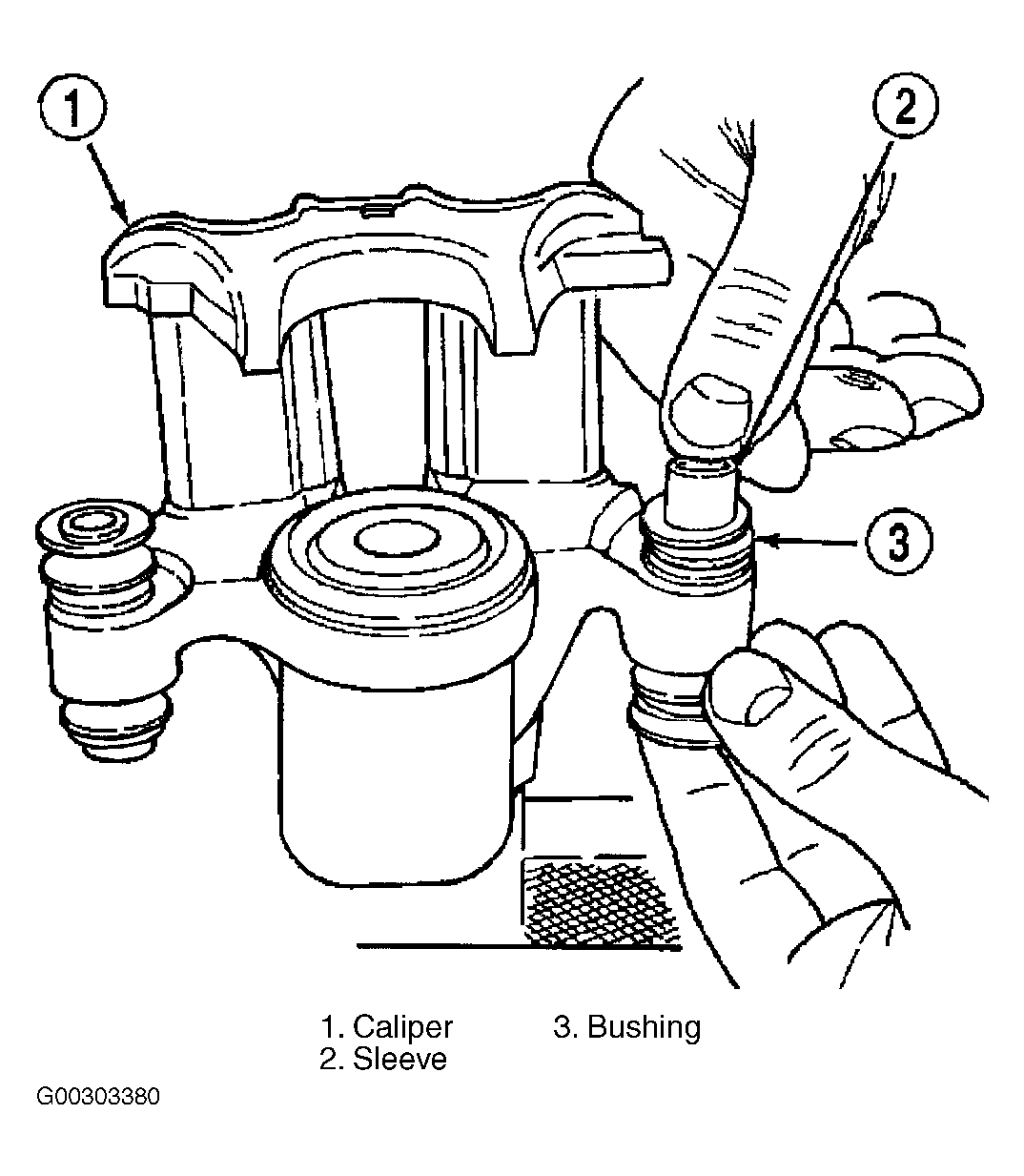

- Install the guide pin sleeve into one end of bushing until the seal area of bushing is past the seal groove in the sleeve. See Fig 3 .
- Holding the convoluted boot on the opposite end of the bushing, push the steel sleeve through the bushing until the bushing boot is fully seated into the seal groove on that end of sleeve. Install the other end bushing boot into the groove on that end of the bushing sleeve.

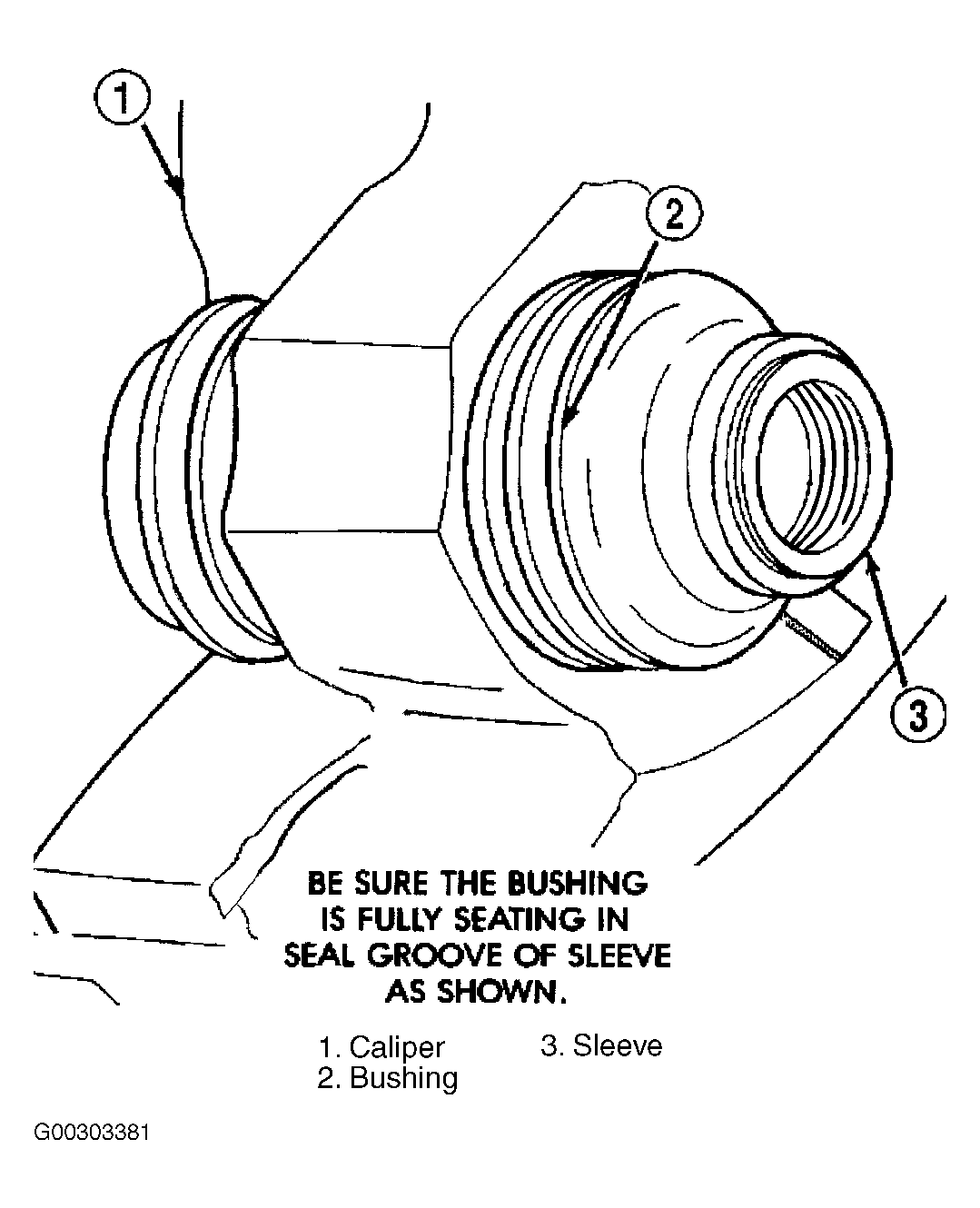

- Verify both ends of the bushing are seated in the sleeve groves. See Fig 4 . When the sleeve is seated properly into the bushing, the sleeve/bushing can be held between your fingers and easily slid back and forth without the bushing unseating from the sleeve groove.
NOTE:
To avoid damage to the bushing, do not use a sharp object to install the guide pin bushing.
