Component Locations
WARNING: This page is about a different car, the 2003 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.
RESTRAINT SYSTEM COMPONENT LOCATIONS
| Component | (1) Location | ||||
|---|---|---|---|---|---|
| Clockspring | On steering column, behind steering wheel | ||||
| Dual-stage driver-side air bag module | Center of steering wheel | ||||
| Dual-stage passenger-side air bag module | Right side of instrument panel, above glove box | ||||
| Front impact crash sensor | Front center of vehicle, behind front grille | ||||

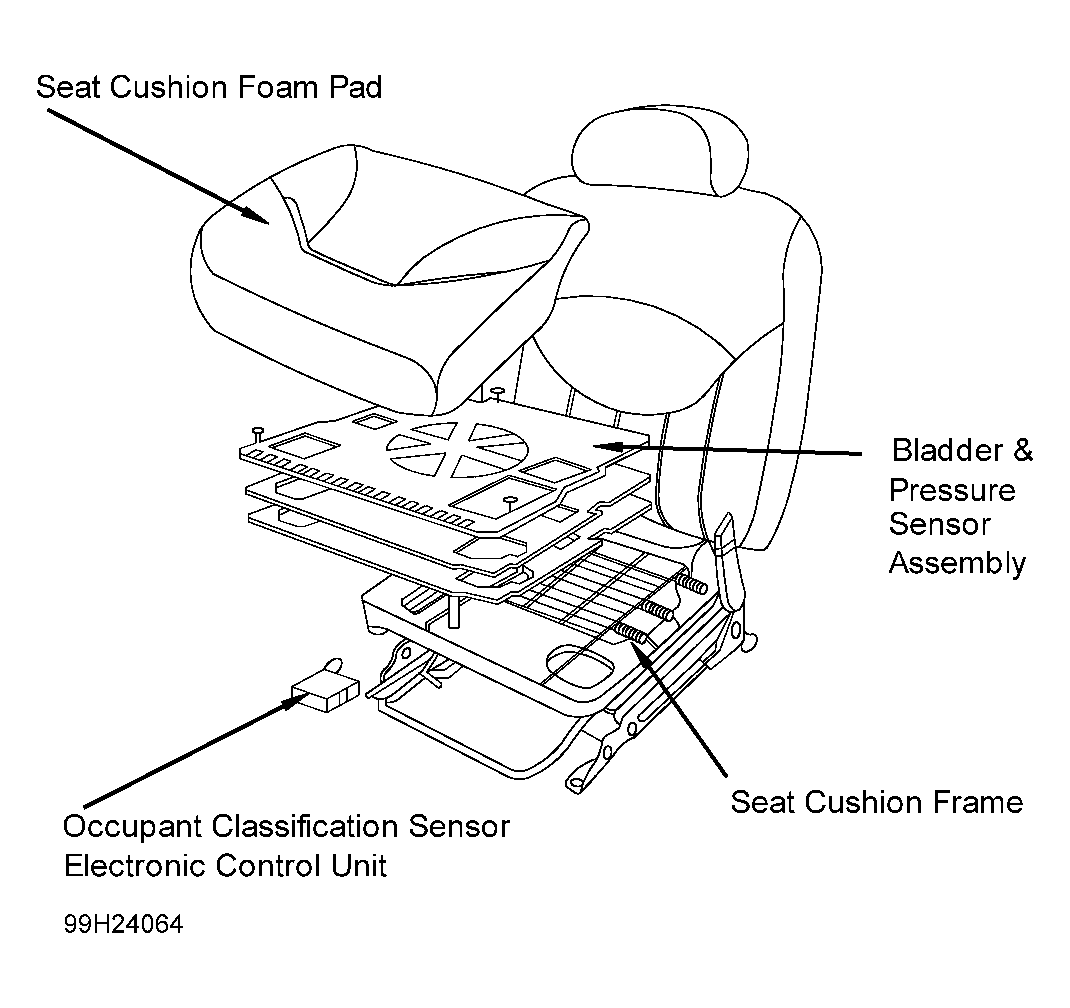

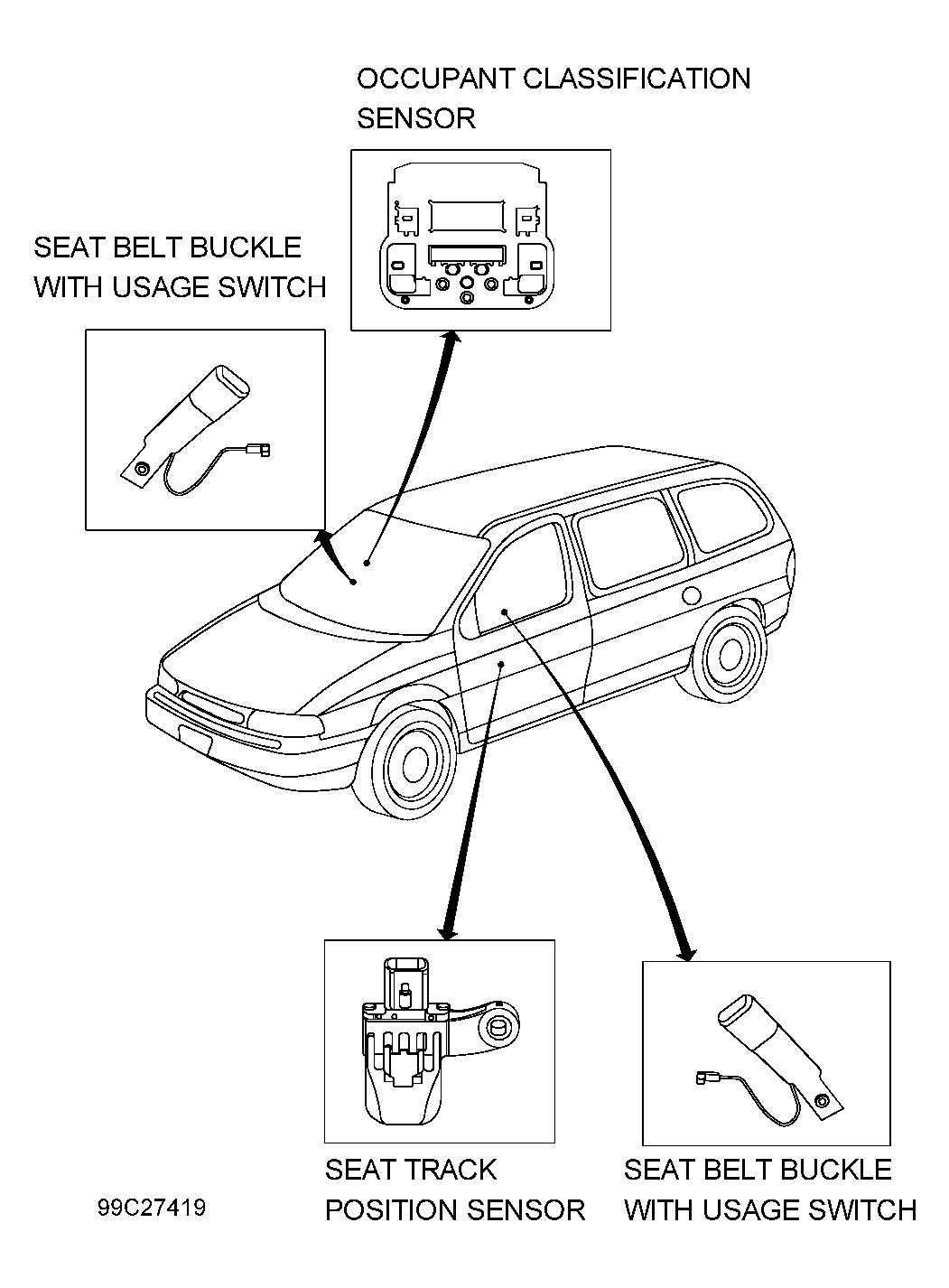

| Occupant classification sensor(2) | Under right front seat cushion | ||||
| Restraints Control Module (RCM) | Center tunnel, behind utility compartment at lower center of instrument panel | ||||
| Seat belt pretensioners | Integrated with seat belt retractor assembly | ||||
| Seat belt switch | Integrated with seat belt buckle assembly | ||||
| Seat track position sensor | Under driver front seat, on outboard side of seat track | ||||
| Side air bag crash sensors | On floor, beneath carpet, under front seats | ||||
| Side air bag modules | Behind outboard bolster of front seat backs | ||||
|
|||||
