Component Locations
WARNING: This page is about a different car, the 2003 Lexus IS 300 and 2002 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.
IDENTIFYING COMPONENT LOCATIONS
| Component | Location |
|---|---|

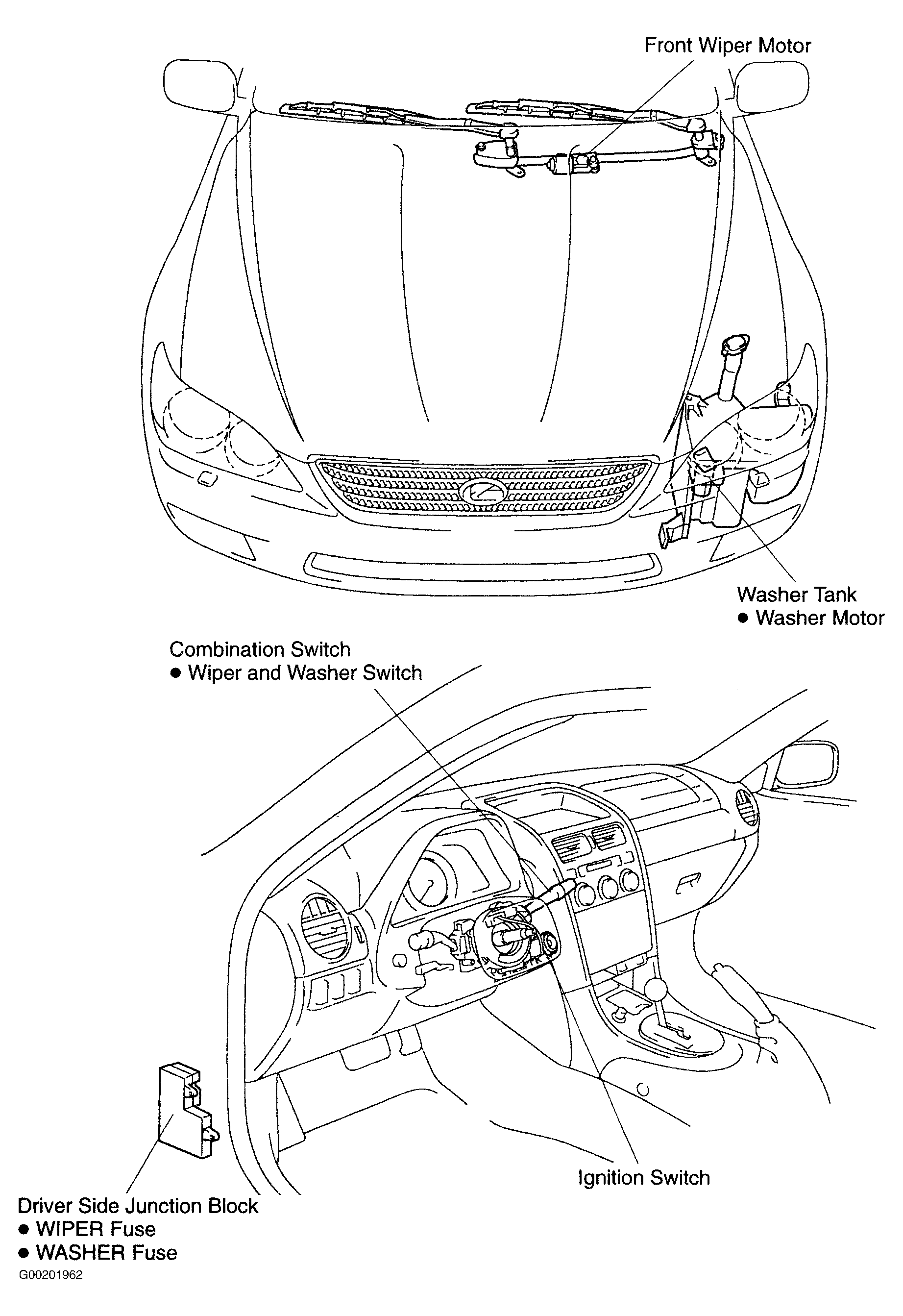

| Front Wiper Motor | Fig 2 |

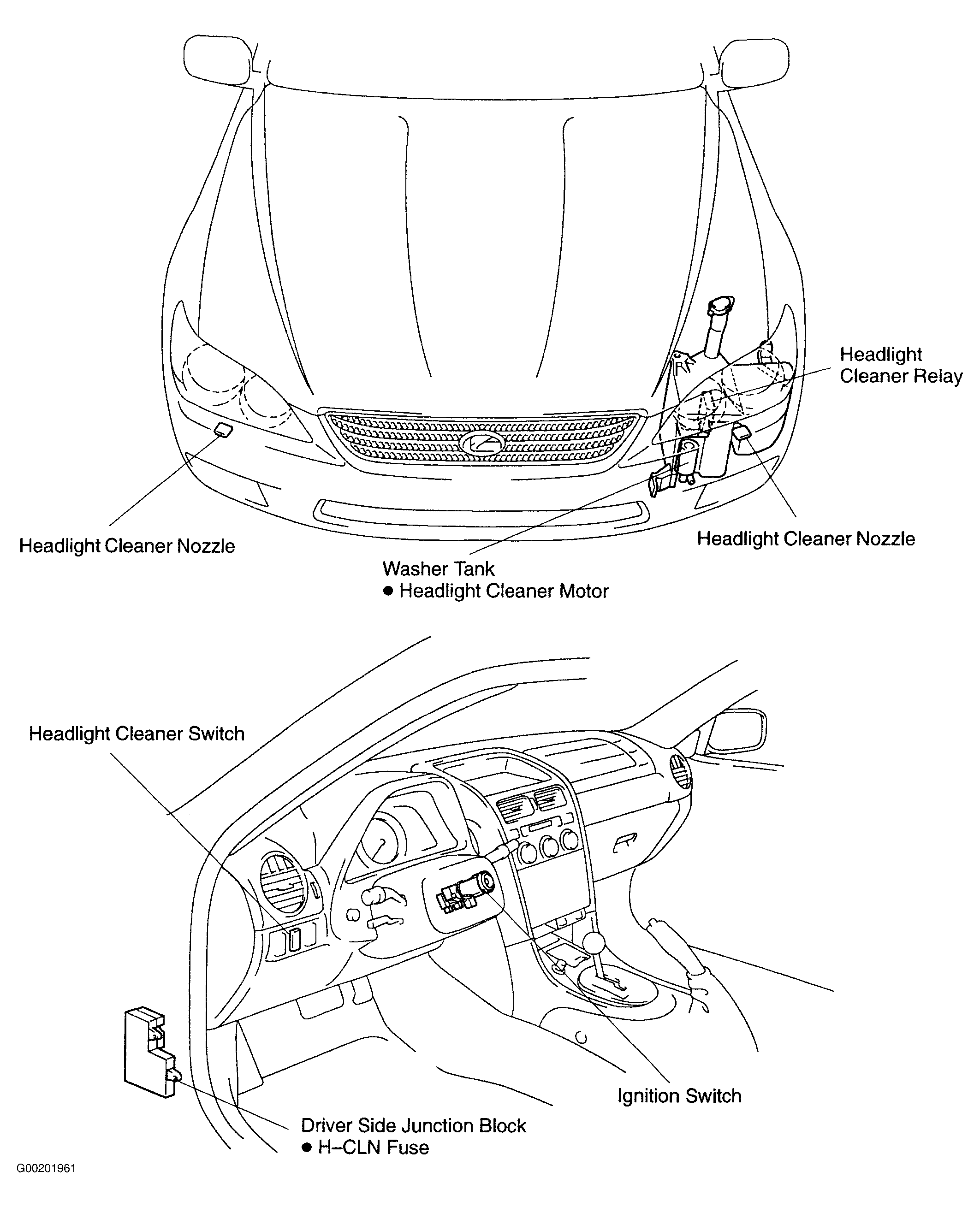

| Headlight Cleaner Motor | Fig 1 |
| Headlight Cleaner Nozzle | Fig 1 |
| Headlight Cleaner Relay | Fig 1 |
| Headlight Cleaner Switch | Fig 1 |
| H-CLN Fuse (Driver Side J/B) | Fig 1 |
| Ignition Switch | Fig 1 & Fig 2 |
| WASHER Fuse (Driver Side J/B) | Fig 2 |
| Washer Motor | Fig 2 |
| WIPER Fuse (Driver Side J/B) | Fig 2 |
| Wiper/Washer Switch | Fig 2 |
