Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| Engine Compartment Relay Box | Left side of engine compartment. See Figure. |

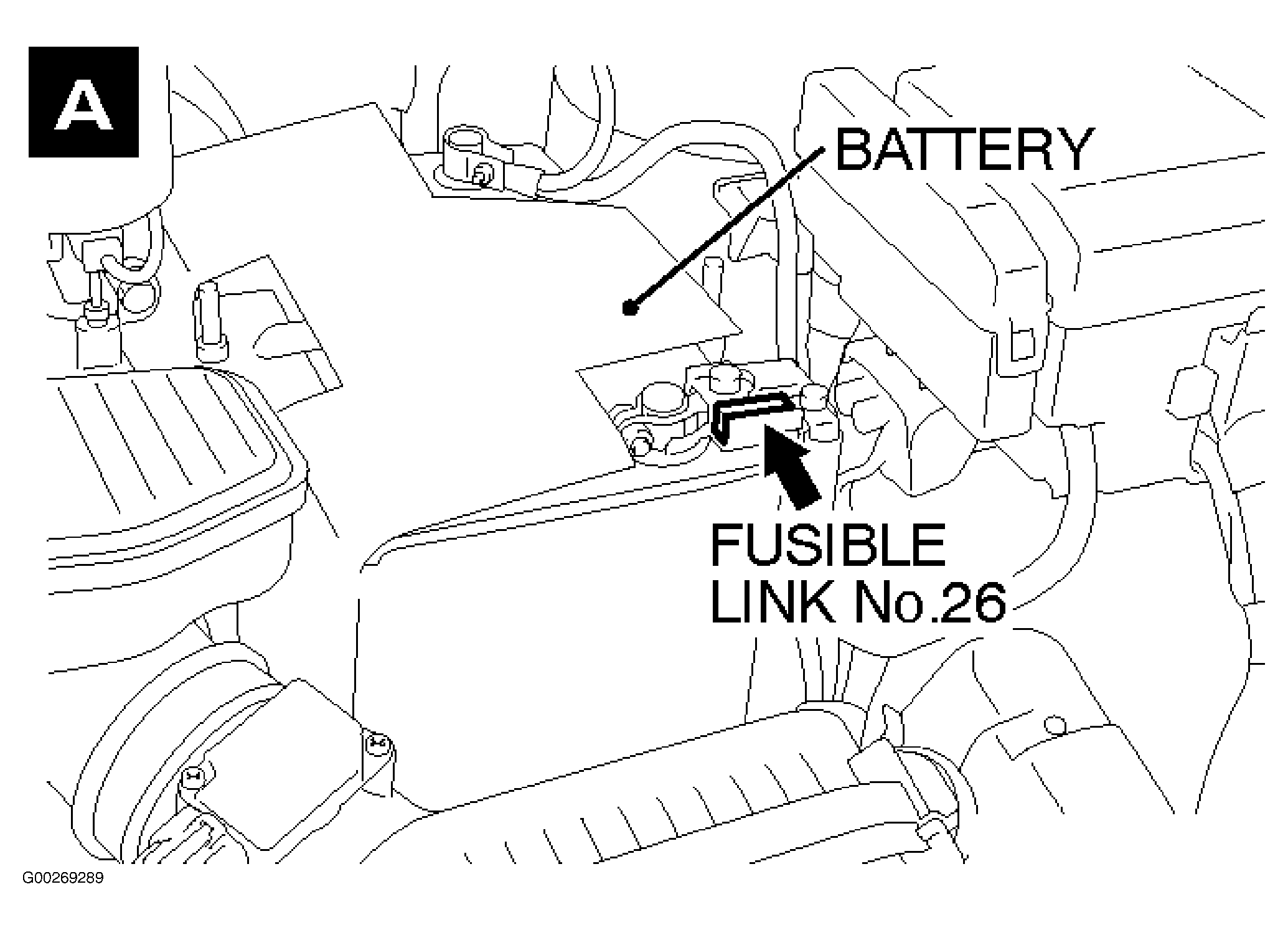

| Fusible Link No. 26 | At positive battery terminal connection. See Figure. |

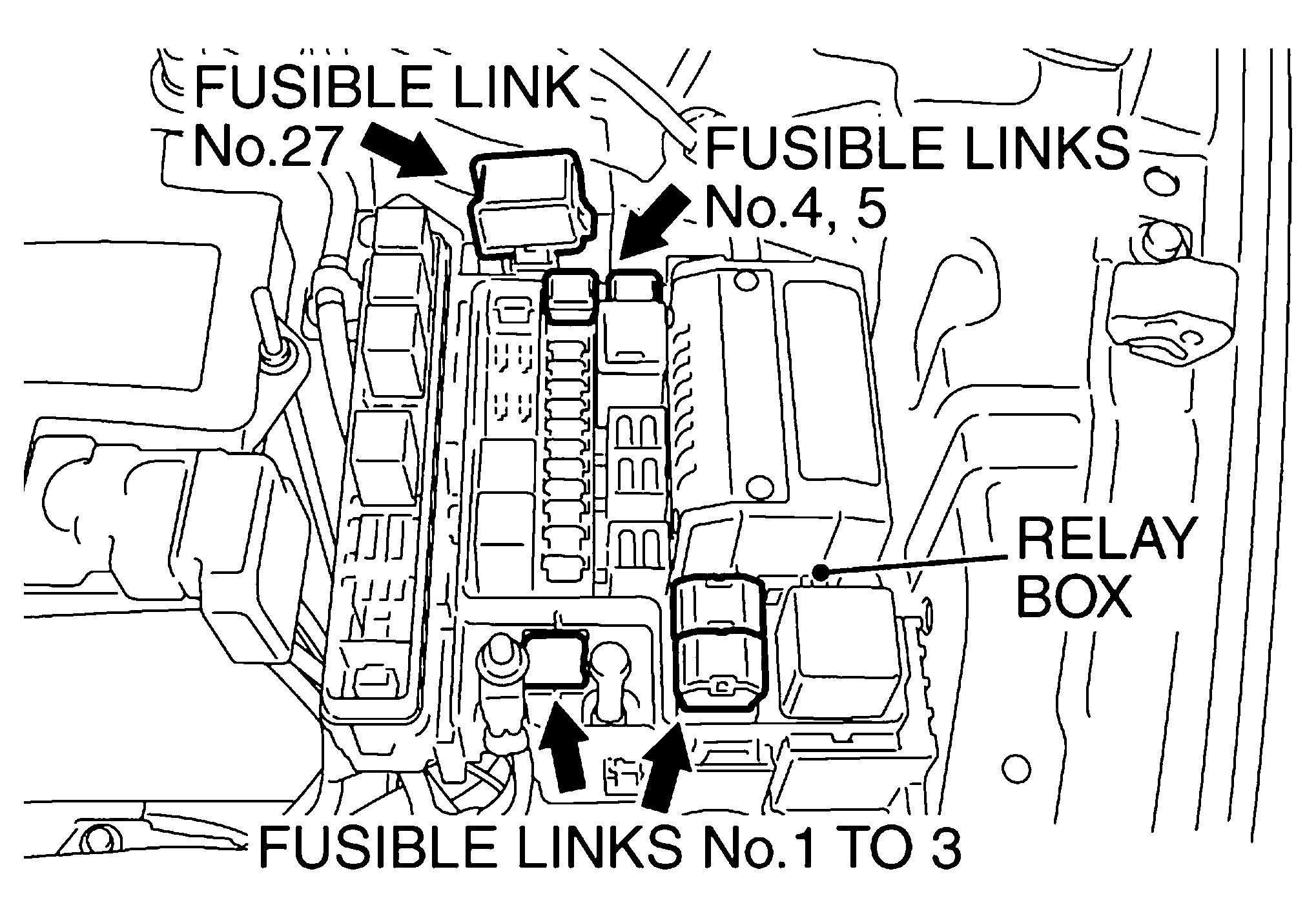

| Fusible Links No. 1 - 5 & 27 | On engine compartment relay box. See Figure. |

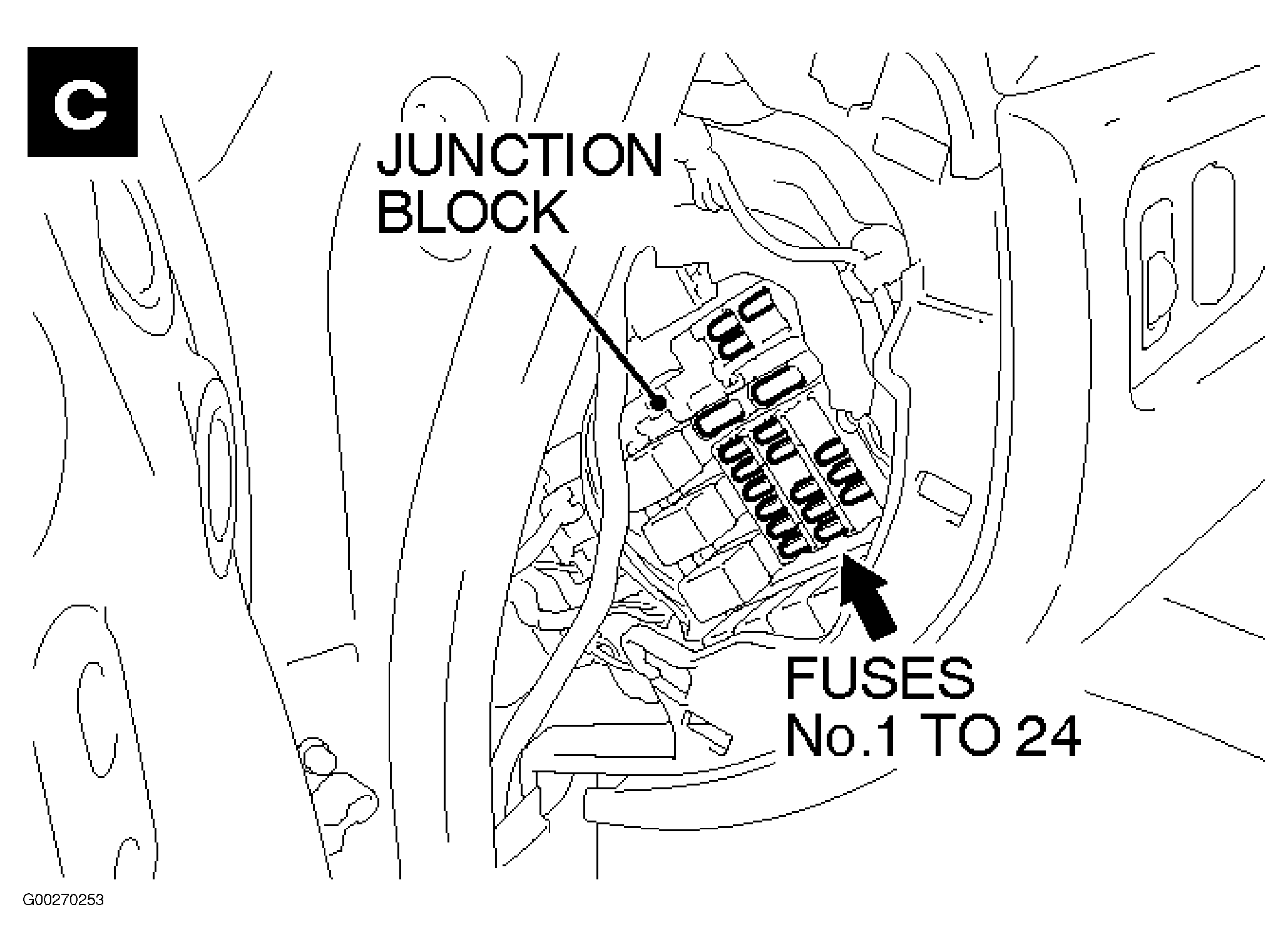

| Junction Block | Left end of dash. See Figure. |
