Transfer Reduction Driven Gear: Installation

WARNING: This page is about a different variant/trim than selected.

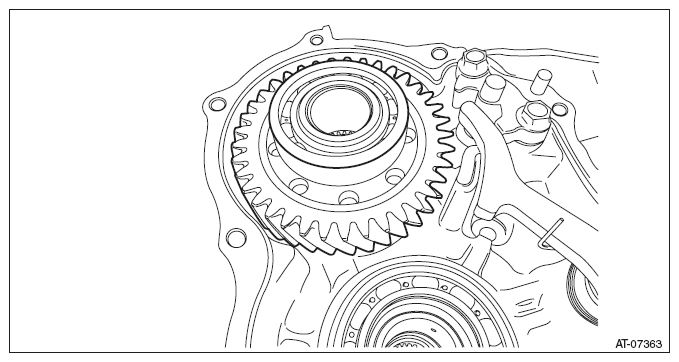

  1. Install the reduction driven gear assembly.
    G10268236Courtesy of SUBARU OF AMERICA, INC.
  2. Select shims. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TRANSFER REDUCTION DRIVEN GEAR>ADJUSTMENT .
  3. Install the center differential carrier. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>CENTER DIFFERENTIAL CARRIER>INSTALLATION .
  4. Install the transfer clutch assembly. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TRANSFER CLUTCH>INSTALLATION .
  5. Install the rear drive shaft. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>REAR DRIVE SHAFT>INSTALLATION .
  6. Mount the selected shim onto ball bearing.
  7. Install the extension case. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>EXTENSION CASE>INSTALLATION .
  8. Install the transmission assembly to the vehicle. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>AUTOMATIC TRANSMISSION ASSEMBLY>INSTALLATION .
