Component Locations

WARNING: This page is about a different car, the 2002 Pontiac Grand Am and 2002 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.
COMPONENT LOCATIONS

Component Location
Body Control Module Under Passenger Side Of Instrument Panel. See Fig 1
Cruise Control Module Passenger Front Side Of Engine Compartment, On Wheel Well
Data Link Connector Under Driver Side Of Instrument Panel
Driver Side Instrument Panel Junction Block Behind Driver Side Of Instrument Panel. See Fig 2
Electronic Brake Control Module Inside Driver Front Fender
Instrument Panel Cluster On Driver Side Of Instrument Panel
Inflatable Restraint Sensing & Diagnostic Module Under Passenger Front Seat. See Fig 3
Passenger Side Instrument Panel Junction Block Behind Passenger End Of Instrument Panel. See Fig 4
Powertrain Control Module Under Driver Side Of Instrument Panel, Near Steering Column. See Fig 5
Remote Control Door Lock Receiver Rear Compartment, On Package Shelf. See Fig 6
Underhood Junction Block Driver Rear Of Engine Compartment
G203 Below Passenger Side Of Instrument Panel. See Fig 7
Fig 1: Locating Body Control Module
G99E08343Courtesy of GENERAL MOTORS CORP.
Fig 2: Locating Driver Side Instrument Panel Junction Block
G00042698Courtesy of GENERAL MOTORS CORP.
Fig 3: Locating Inflatable Restraint Sensing & Diagnostic Module
G98C00978Courtesy of GENERAL MOTORS CORP.

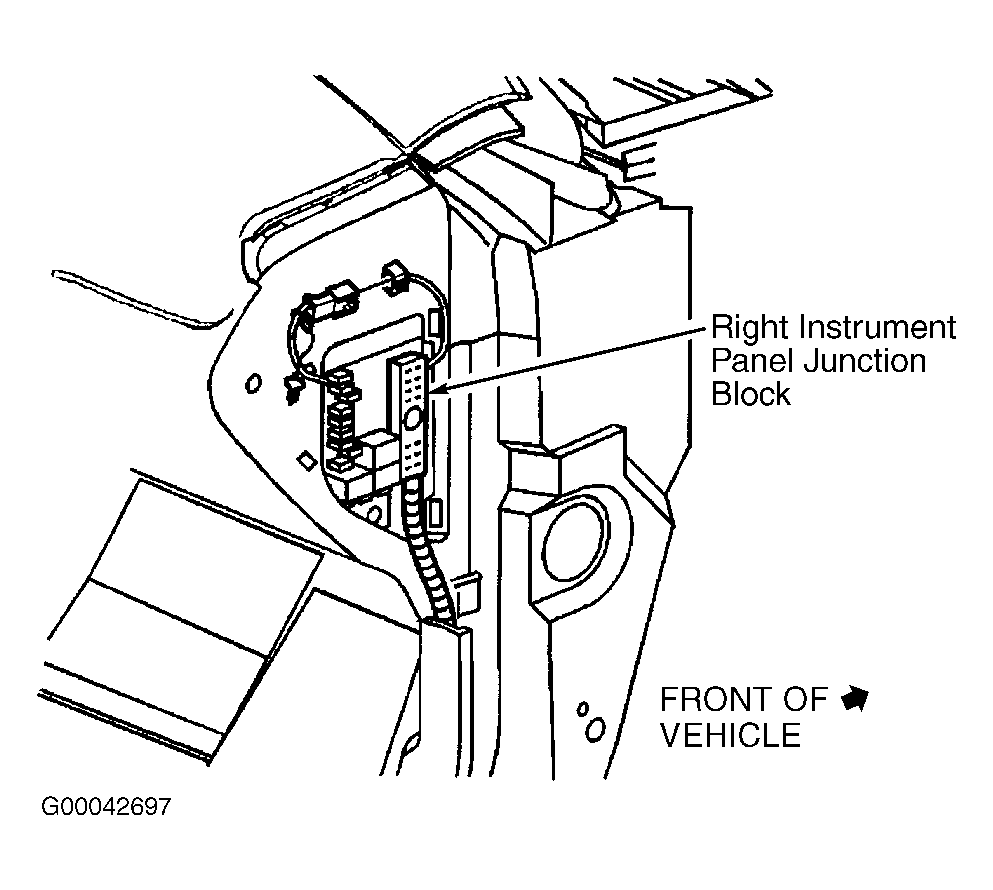

Fig 4: Locating Passenger Side Instrument Panel Junction Block
G00042697Courtesy of GENERAL MOTORS CORP.
Fig 5: Locating Powertrain Control Module (3.4L)
G99C08342Courtesy of GENERAL MOTORS CORP.
Fig 6: Locating Remote Control Door Lock Receiver
G00013371Courtesy of GENERAL MOTORS CORP.
Fig 7: Locating Ground G203
G00169101Courtesy of GENERAL MOTORS CORP.
