Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION

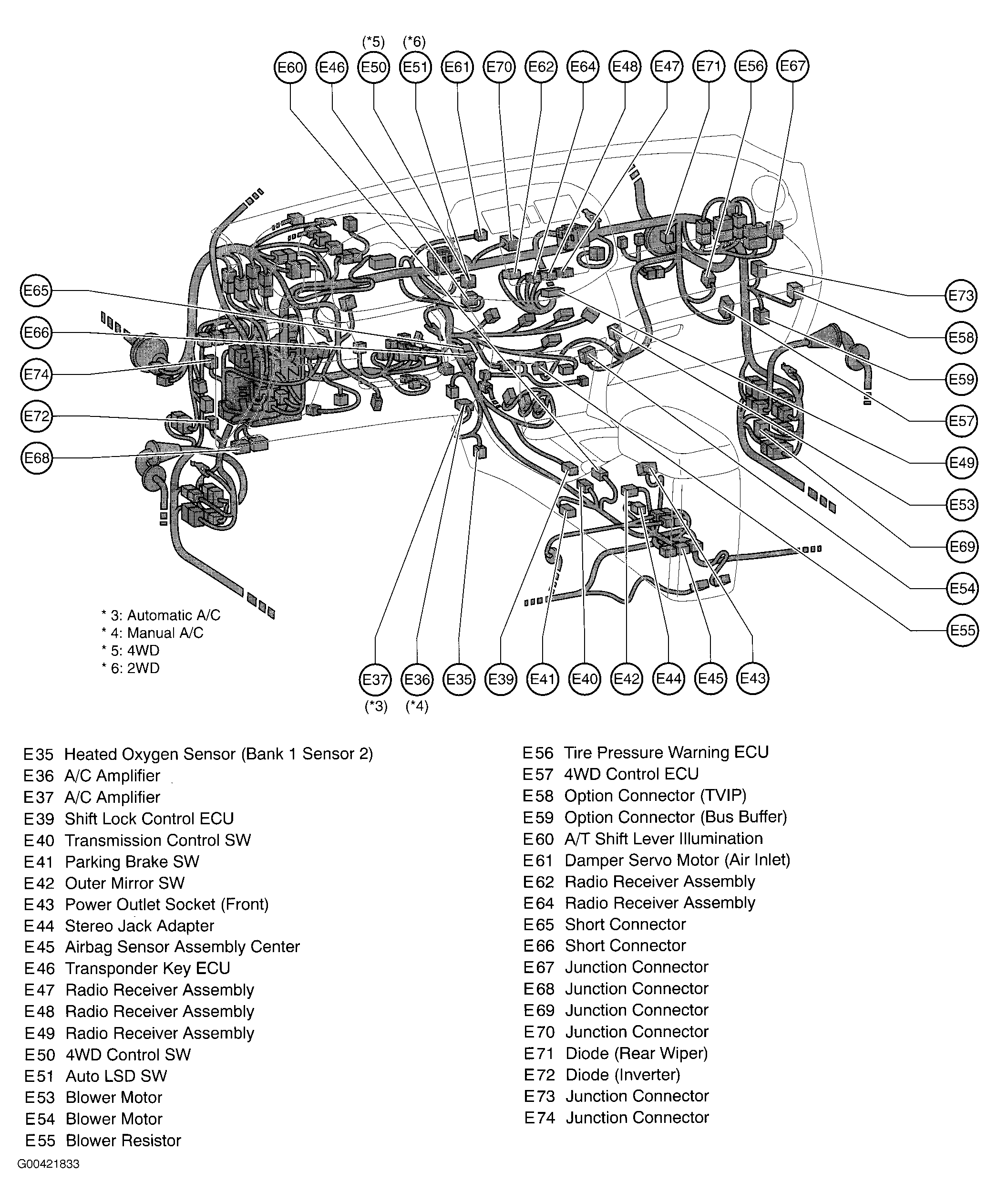

| Component | Location |
|---|---|
| Diode (Inverter) | Left side of dash. See Figure. |
| Diode (Rear Wiper) | Right side of dash. See Figure. |

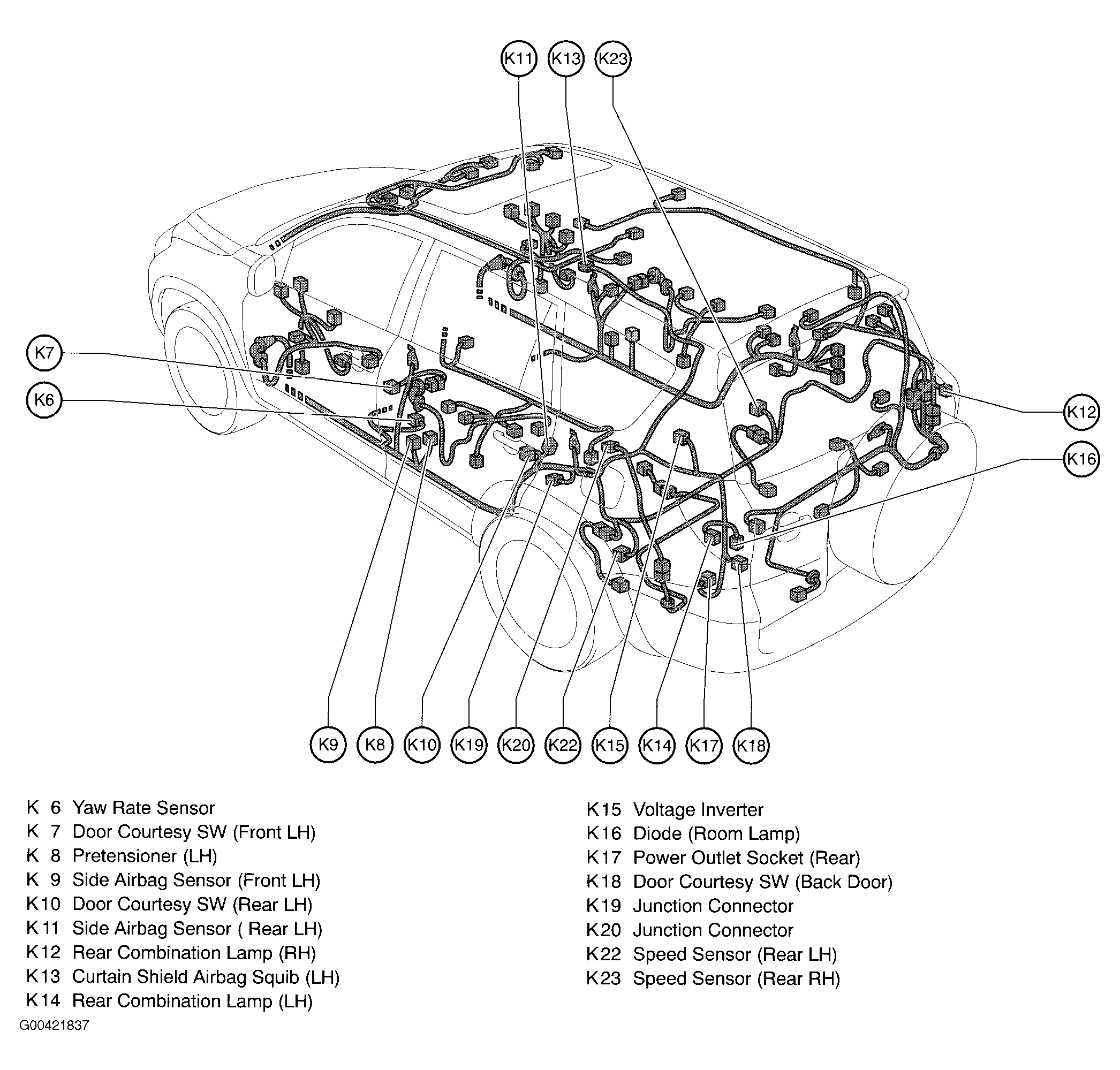

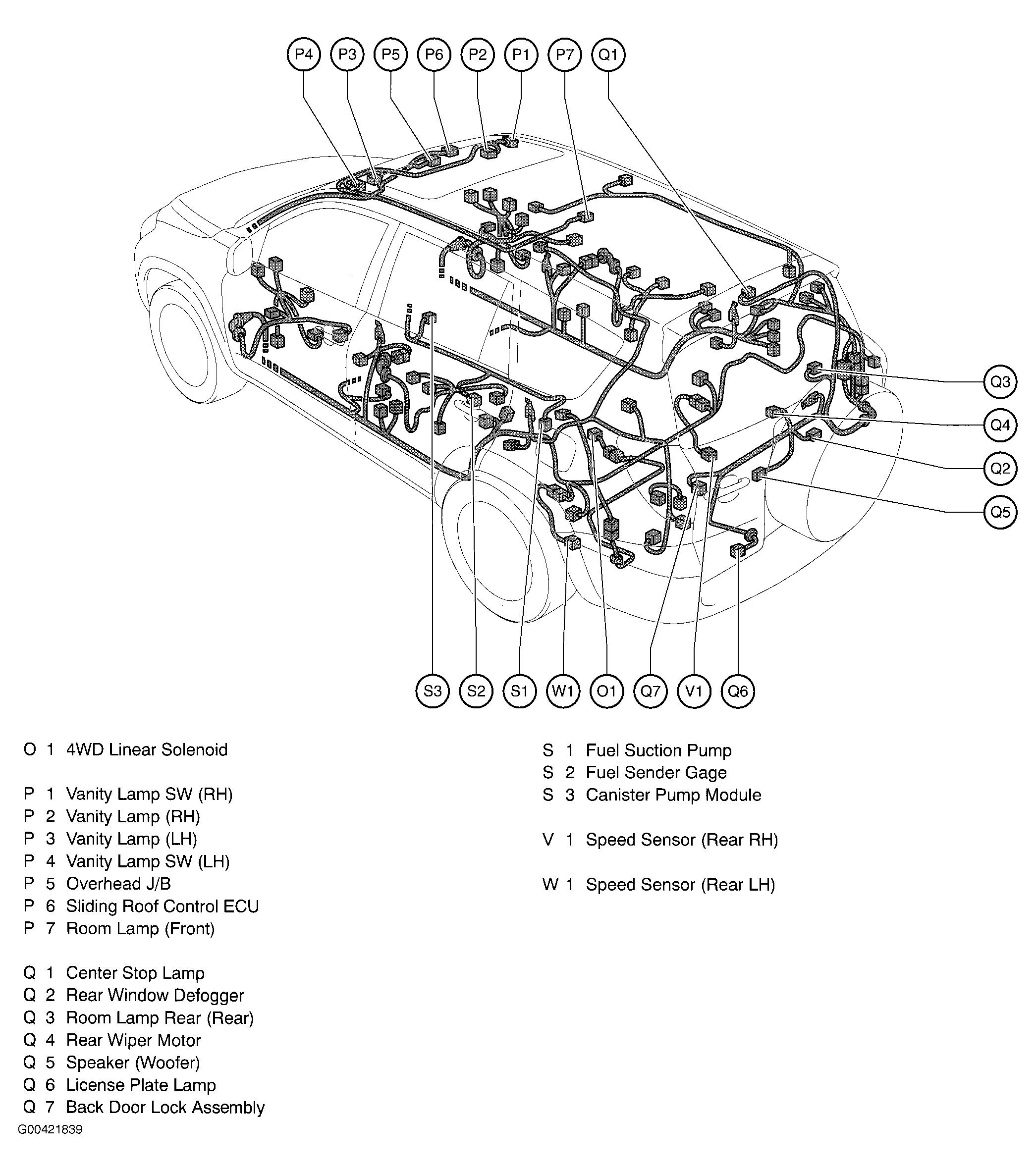

| Diode (Room Lamp) | In luggage compartment area. See Figure. |

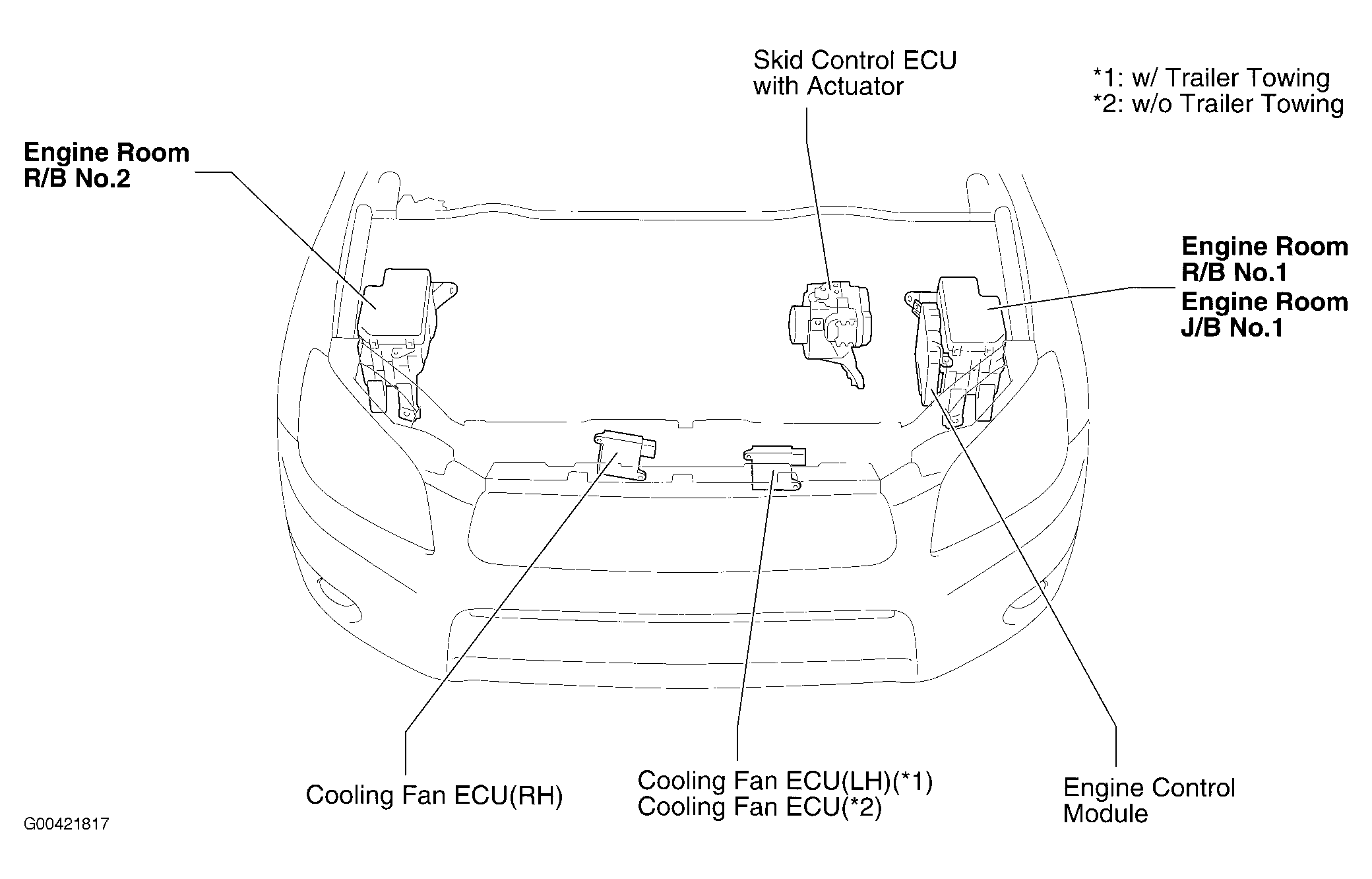

| Engine Room J/B | At left side of engine compartment. See Figure. |
| Engine Room R/B No. 1 | Left side of engine compartment. See Figure. |
| Engine Room R/B No. 2 | At right side of engine compartment. See Figure. |
| Fuel Pump Resistor (3.5L) | Left rear of engine compartment. See Figure. |

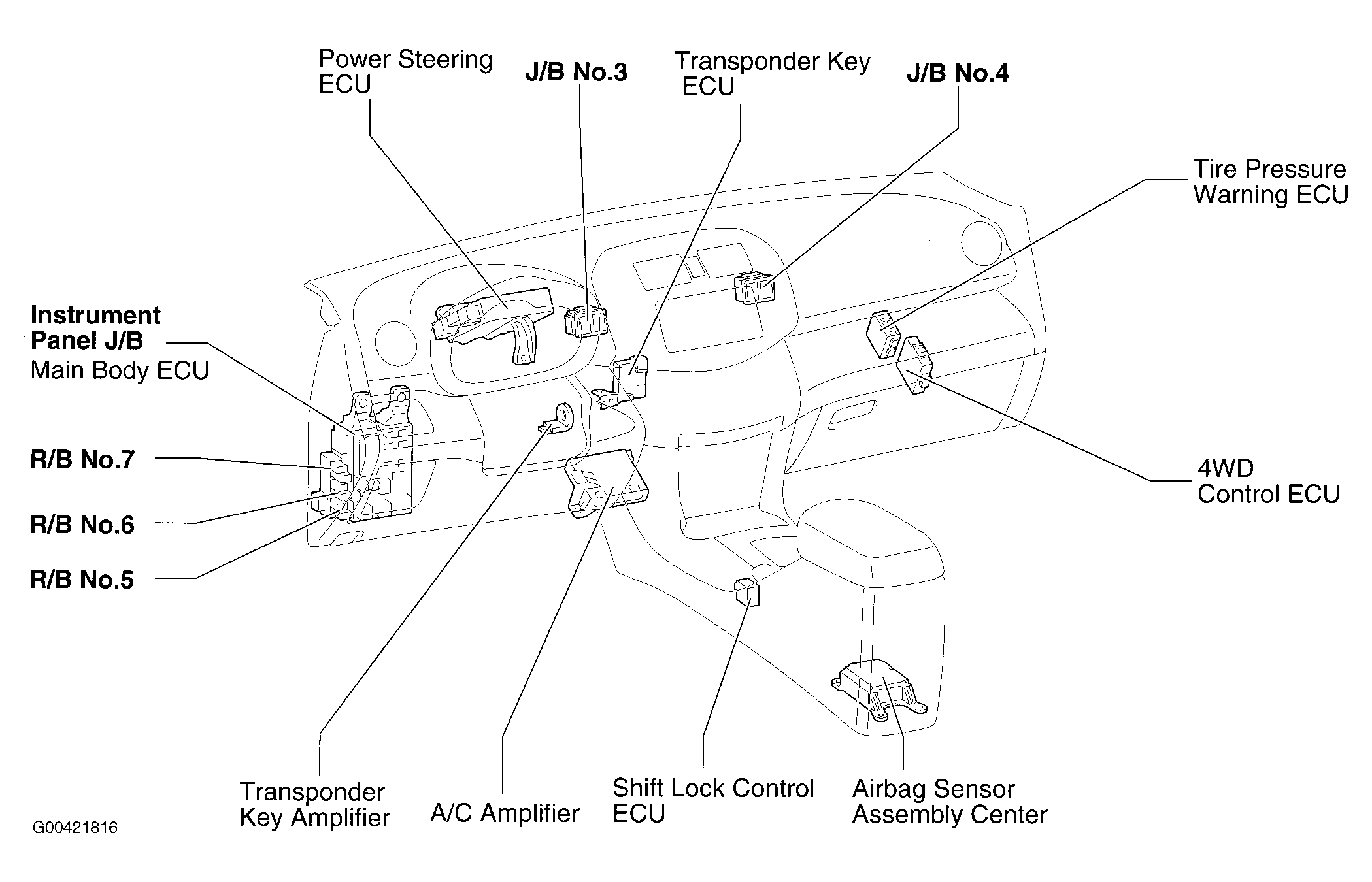

| Instrument Panel J/B | Left side of dash. See Figure. |
| J/B No. 3 | Left side of dash. See Figure. |
| J/B No. 4 | Behind center of dash. See Figure. |
| Overhead J/B | Front center of roof, at windshield. See Figure. |
| R/B No. 5 | Left side of dash. See Figure. |
| R/B No. 6 | Left side of dash. See Figure. |
| R/B No. 7 | Left side of dash. See Figure. |
