DTC U1280: Communication Bus Line Error (BUS-OFF)

WARNING: This page is about a different variant/trim than selected.
NOTE: If you are troubleshooting multiple DTCs, be sure to follow the instructions in B-CAN System Diagnosis Test Mode A (see TROUBLESHOOTING - B-CAN SYSTEM DIAGNOSIS TEST MODE A  ).
  1. Clear the DTCs with the HDS.
  2. Turn the ignition switch to LOCK (0), and then back to ON (II).
  3. Wait for at least 6 seconds.
  4. Check for DTCs with the HDS.

    Is DTC U1280 indicated?

    YES  -Go to step  5.

    NO  -Intermittent failure, the system is OK at this time. Check for loose or poor connections, or worn/shorted wires. If the connections are good, check the battery condition (see BATTERY TEST ) and the charging system.

  5. Turn the ignition switch to LOCK (0).
  6. Disconnect the appropriate connector at each control unit in the table one at a time. Clear the DTC, then recheck for DTCs after each unit is disconnected.
    CONTROL UNIT CONNECTOR REFERENCE CHART

    Control Unit Connector
    Passenger's MICU Passenger's under-dash fuse/relay box connector A (38P)
    Door multiplex control unit Power window master switch 37P connector
    Gauge control module 32P connector
    Immobilizer-keyless control unit 7P connector
    Audio unit(3) Connector B (20P)
    Climate control unit Connector B (12P)
    Power seat control unit 40P connector
    HandsFreeLink control unit 28P connector
    AcuraLink control unit(1) Connector A (32P)
    Audio-navigation unit(2) Connector D (20P)
    Navigation display unit(2) 28P connector
    (1) With AcuraLink
    (2) With navigation
    (3) Without navigation

    Is DTC U1280 indicated with each individual unit disconnected?

    YES  -Leave the connectors disconnected, and go to step  7.

    NO  -Go to the input test (or circuit troubleshooting) for the control unit that was disconnected when DTC U1280 did not reset and perform all power and ground input tests. If the tests prove OK, replace that unit.

  7. Turn the ignition switch to LOCK (0).
  8. Disconnect driver's under-dash fuse/relay box connector P (20P).
  9. Check for continuity between driver's under-dash fuse/relay box connector P (20P) terminals No. 5 and No. 6.
    Fig 1: Checking Continuity Between Driver's Under-Dash Fuse/Relay Box Connector P (20P) Terminals No. 5 And No. 6
    G06946512Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there continuity?

    YES  -Repair a short in the B-CAN wires.

    NO  -go to step  10.

  10. Check for continuity between body ground and driver's under-dash fuse/relay box connector P (20P) terminals No. 5 and No. 6 individually.

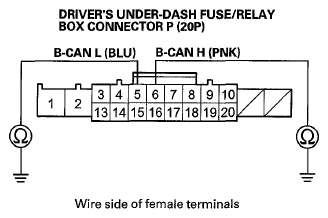

    Fig 2: Checking Continuity Between Body Ground And Driver's Under-Dash Fuse/Relay Box Connector P (20P) Terminals No. 5 And No. 6
    G06946513Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there continuity?

    YES  -Repair a short to ground in the wire(s).

    NO  -Go to step  11.

  11. Turn the ignition switch to ON (II).
  12. Measure the voltage between body ground and driver's under-dash fuse/relay box connector P (20P) terminals No. 5 and No. 6 individually.

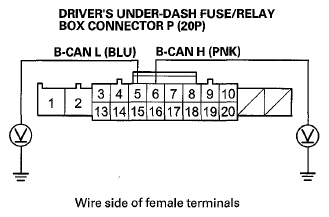

    Fig 3: Measuring Voltage Between Body Ground And Driver's Under-Dash Fuse/Relay Box Connector P (20P) Terminals No. 5 And No. 6
    G06946514Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there voltage?

    YES  -Repair a short to power in the wire(s).

    NO  -Faulty driver's MICU, replace the driver's under-dash fuse/relay box, USA models (see DRIVER'S UNDER-DASH FUSE/RELAY BOX (MICU) REMOVAL AND INSTALLATION ), Canada models (see CANADA MODELS ).
