Component Locations
WARNING: This page is about a different car, the 1999 GMC Sierra and 1999 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
COMPONENT LOCATIONS
| Component | Location (Fig. No.) |
|---|---|

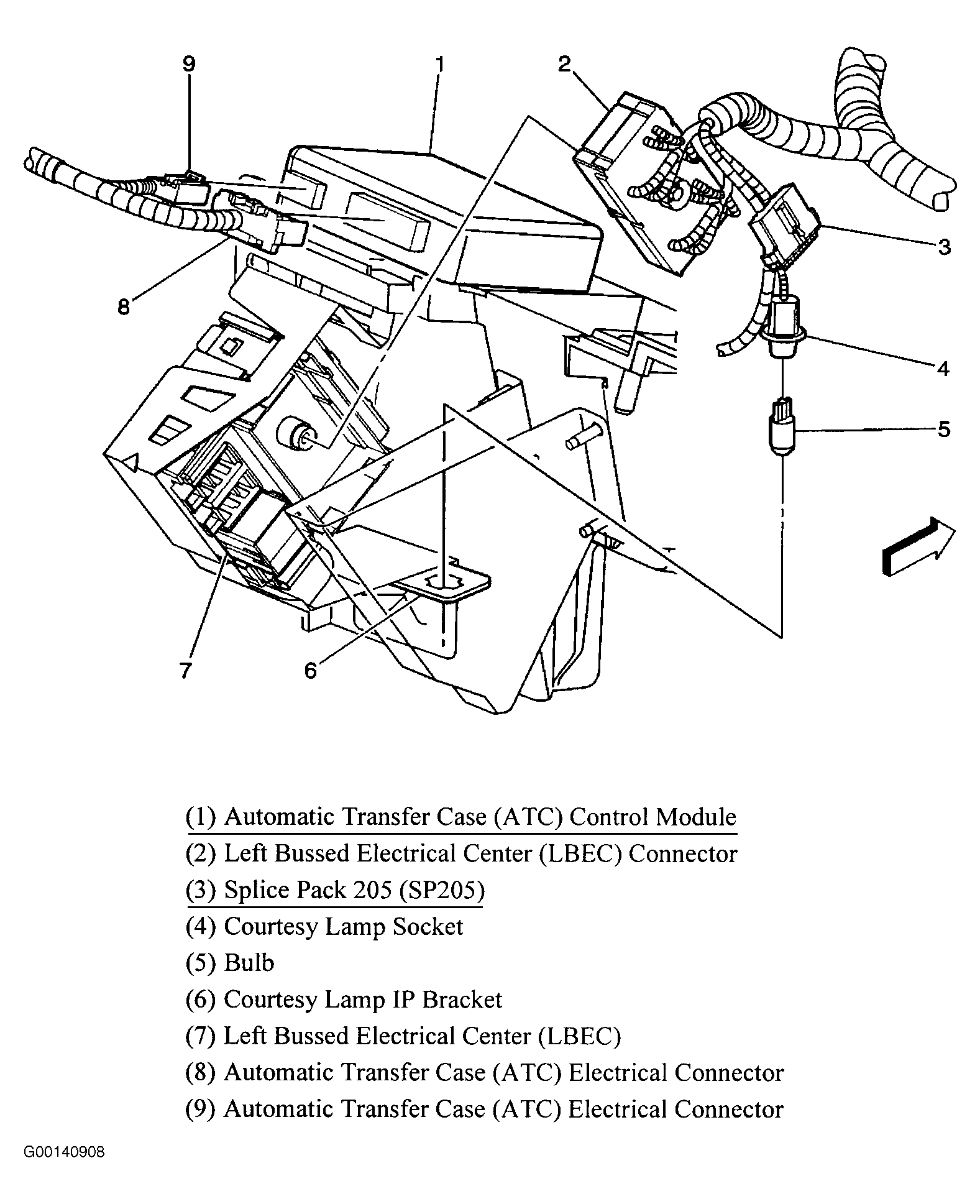

| Automatic Transfer Case (ATC) Control Module | Left Of Instrument Cluster, Behind Headlamp Switch (Fig 1 ) |

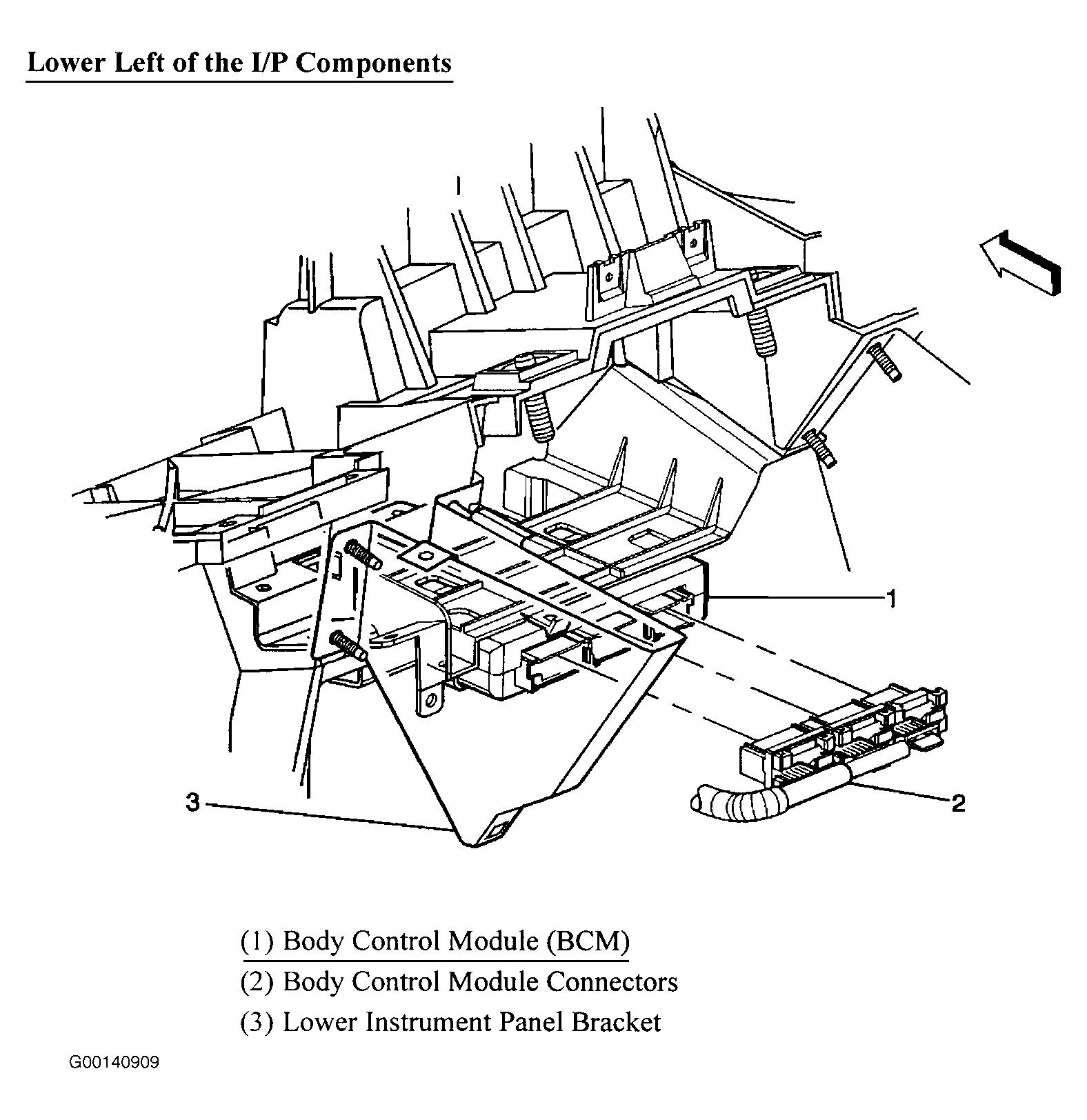

| Body Control Module (BCM) | On Lower Left Side Of Instrument Panel, Below Steering Column (Fig 2 ) |

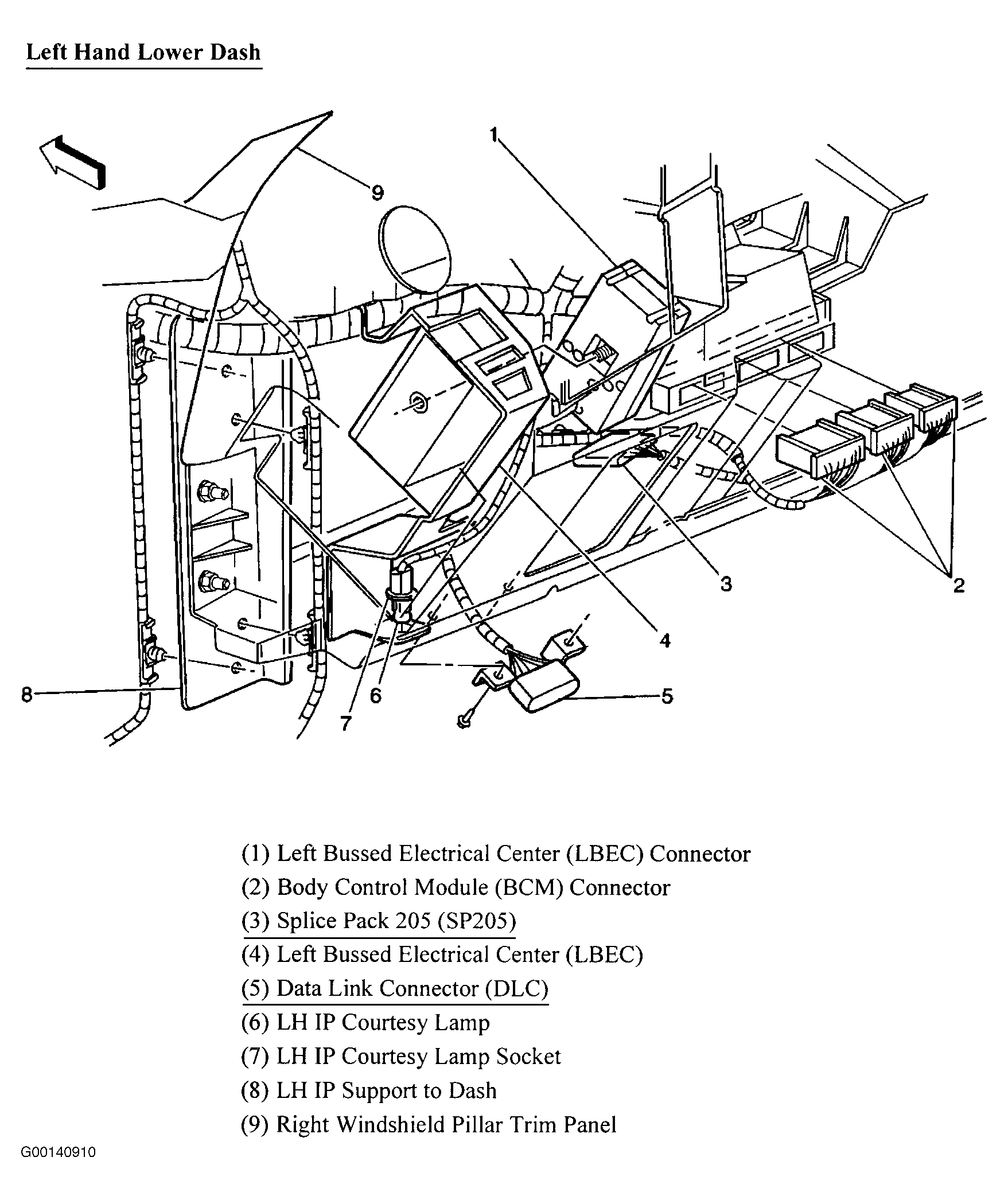

| Data Link Connector (DLC) | On Left Lower Dash, Below Steering Column (Fig 3 ) |

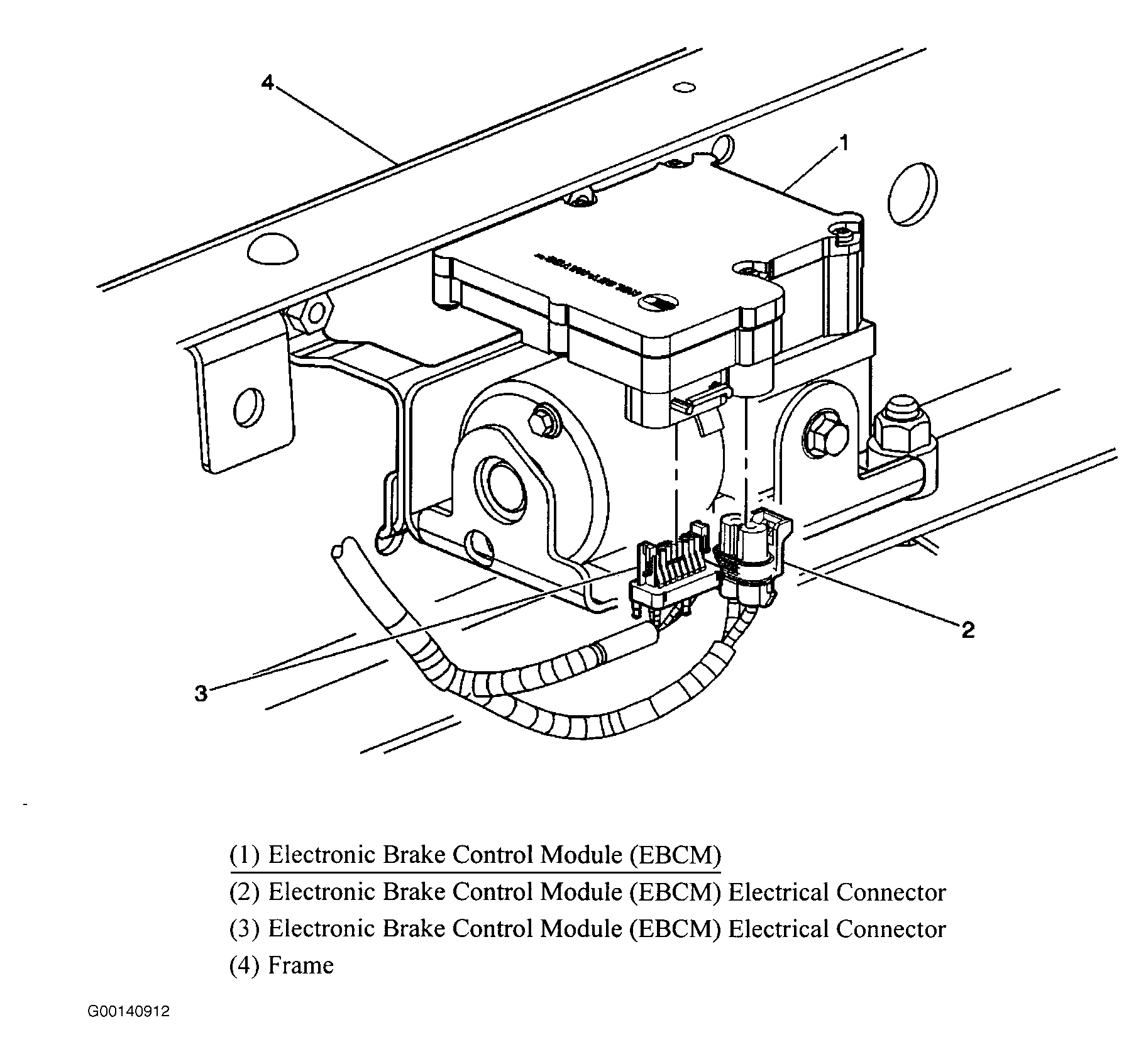

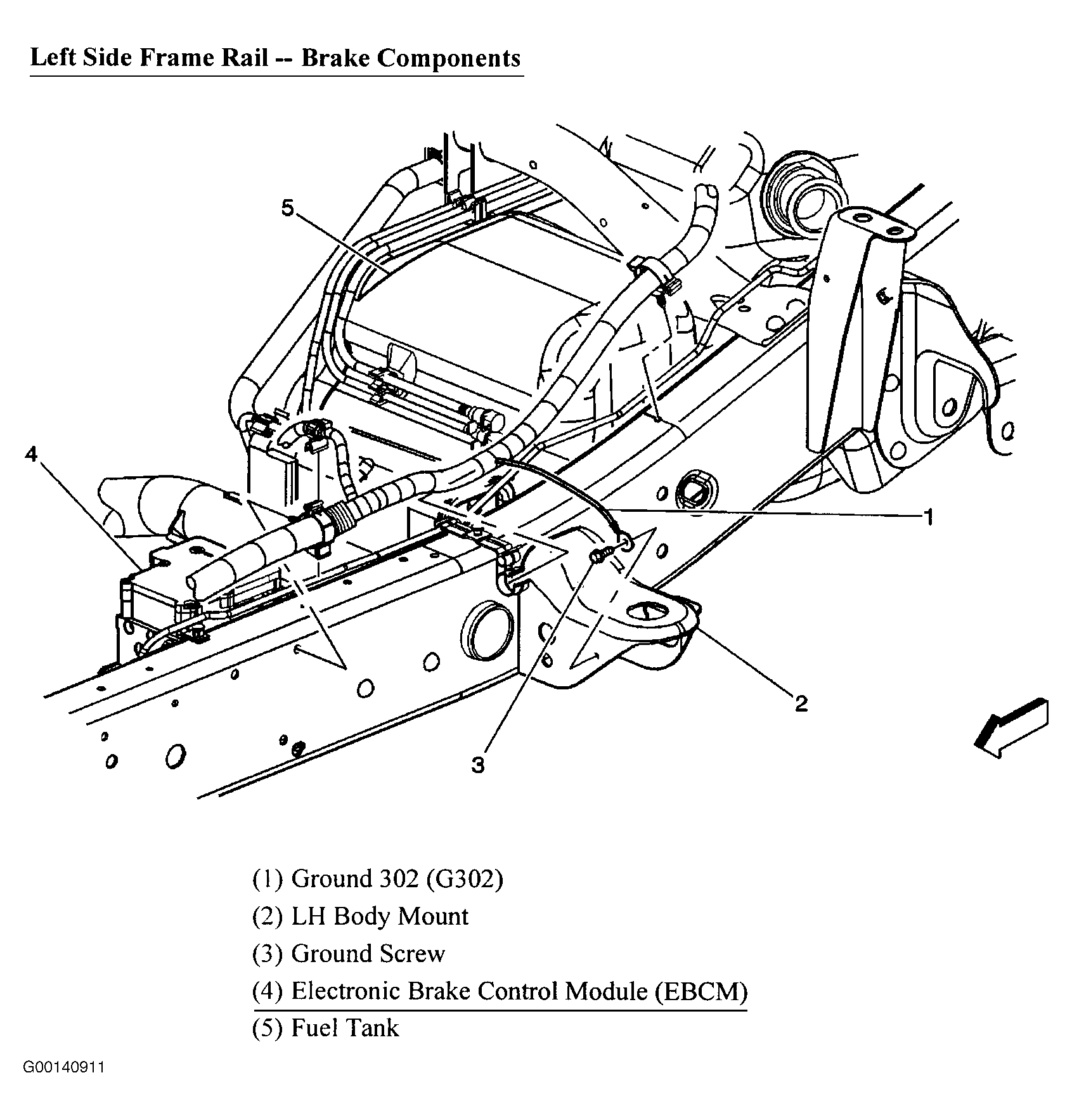

| Electric Brake Control Module (EBCM) | On Left Side Of Inner Frame (Fig 4 & Fig 5 ) |

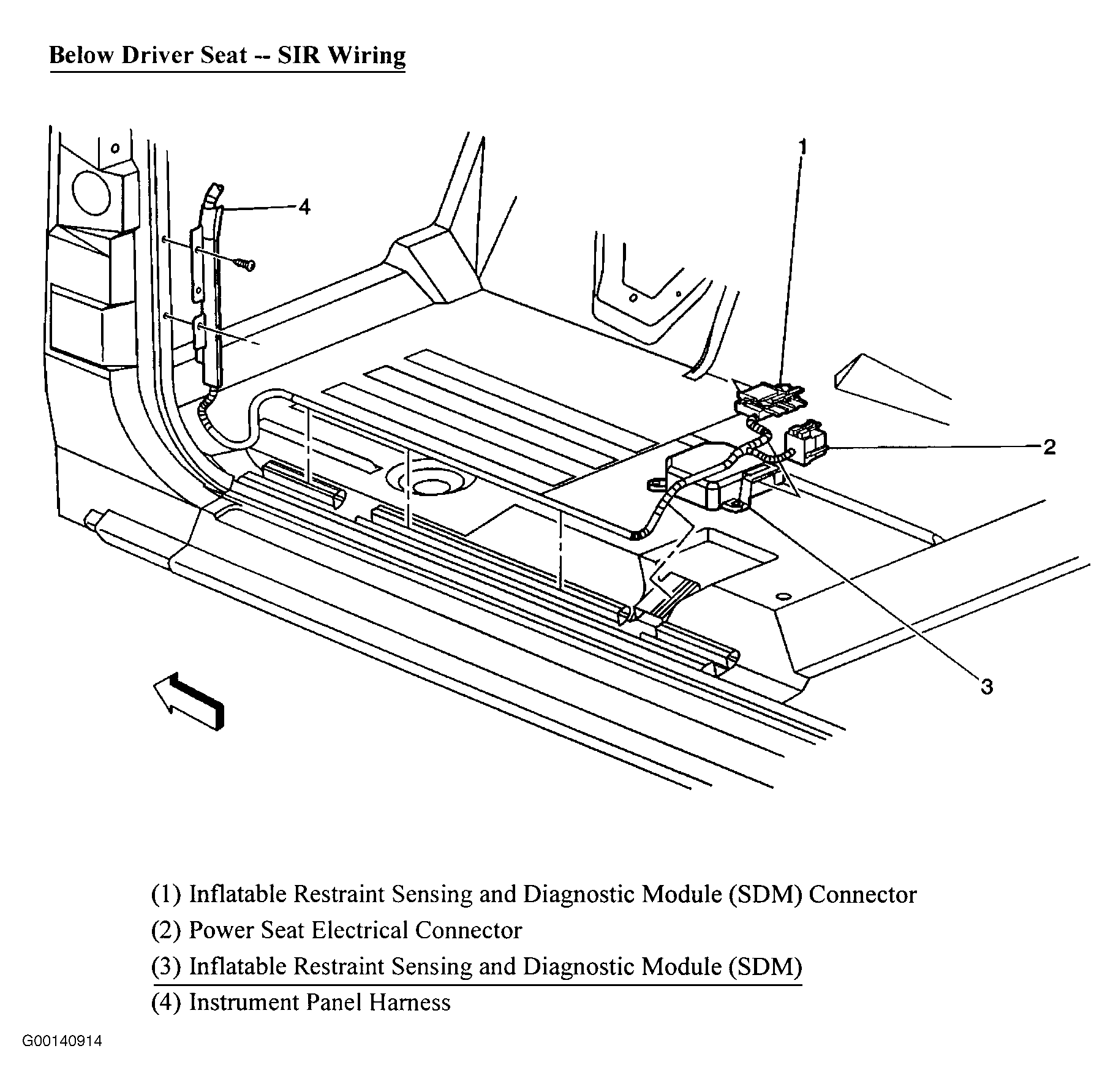

| Inflatable Restraint Sensing & Diagnostic Module (SDM) | Under Driver Seat (Fig 6 ) |

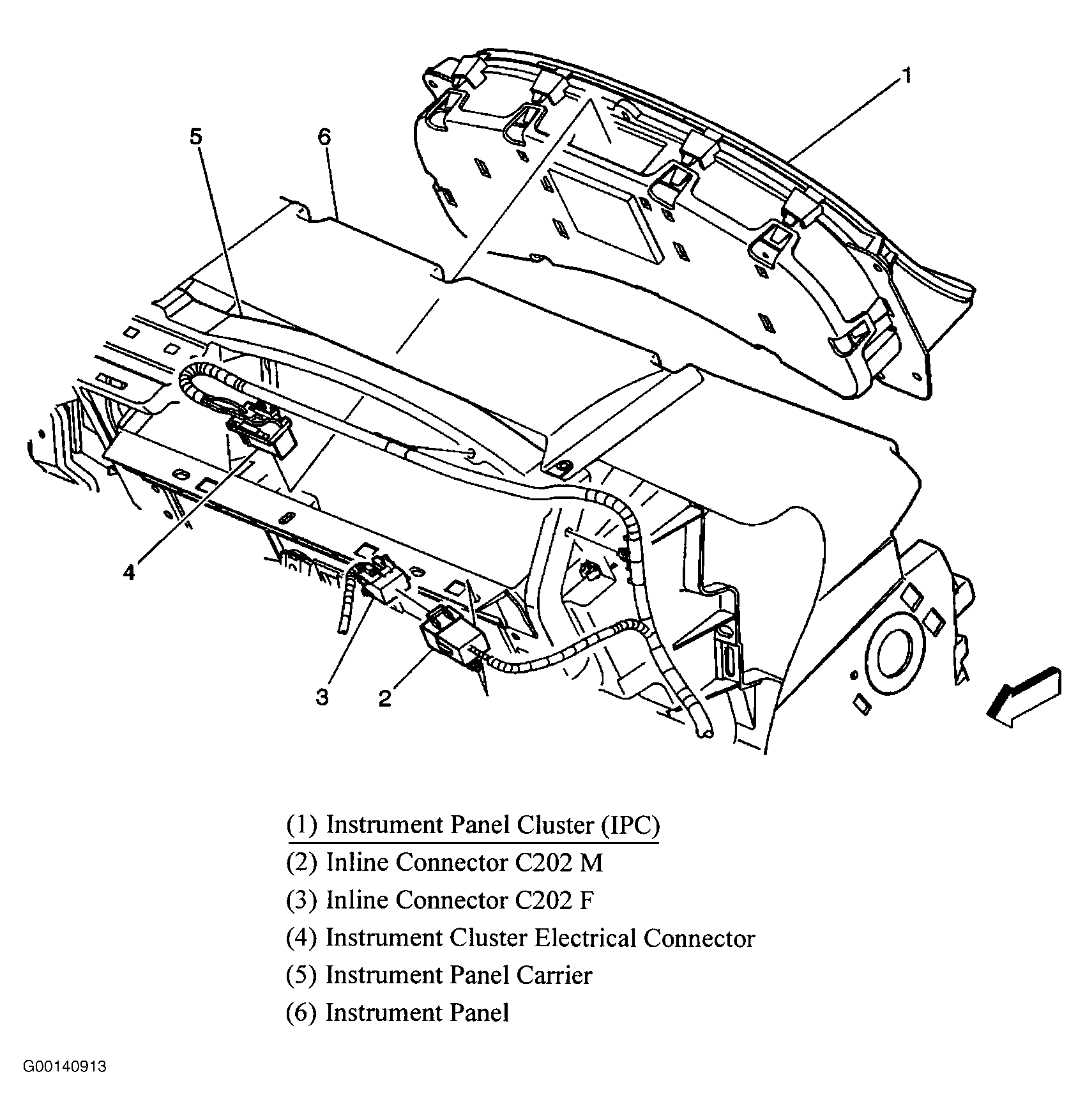

| Instrument Panel Cluster | On Left Side Of Instrument Panel, Above Steering Column (Fig 7 ) |
| Mid Bussed Electrical Center (MBEC) | Under Left Side Of Instrument Panel, Near Left Kick Panel |

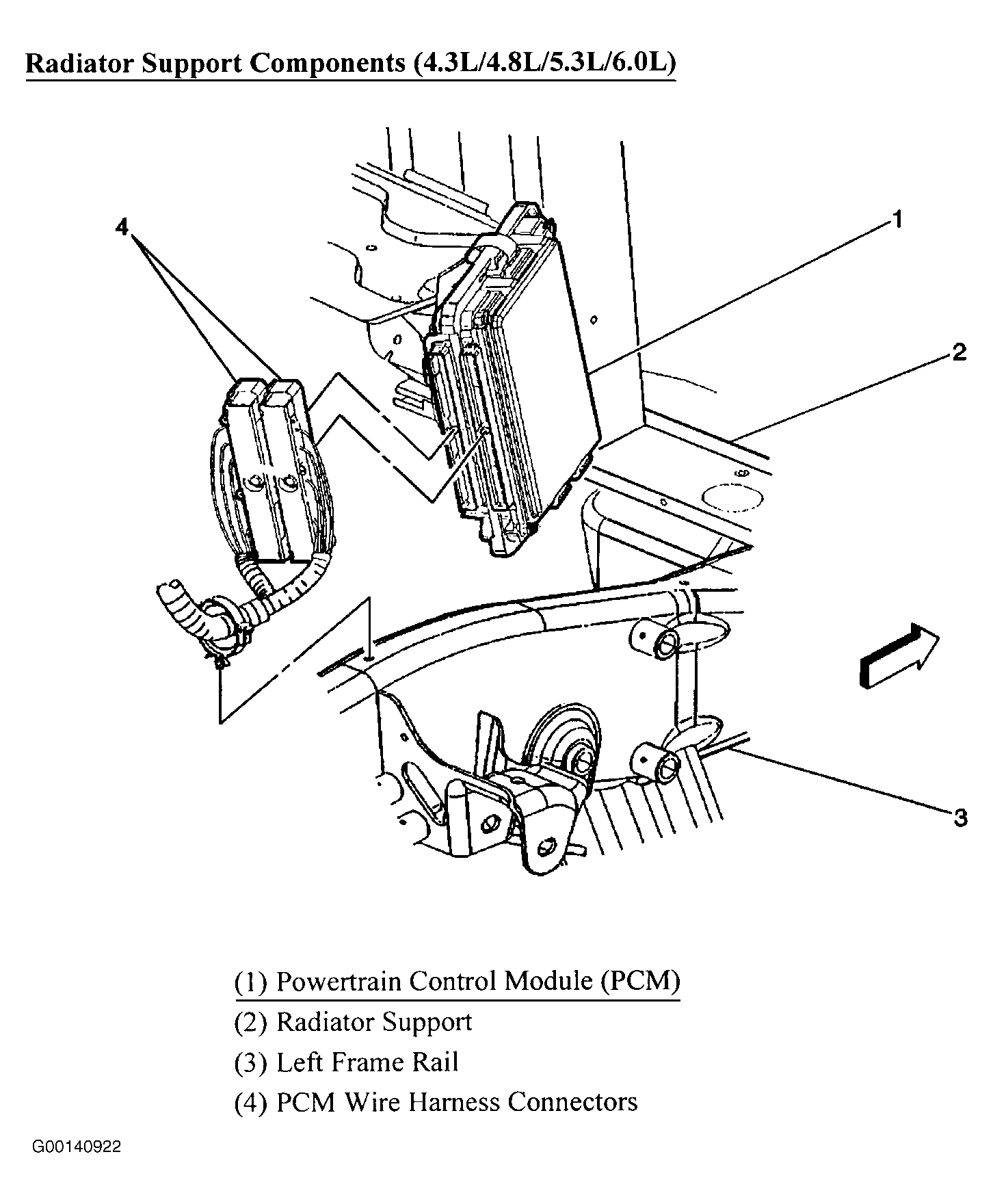

| Powertrain Control Module (PCM) | Near Left Front Of Engine Compartment (Fig 8 ) |

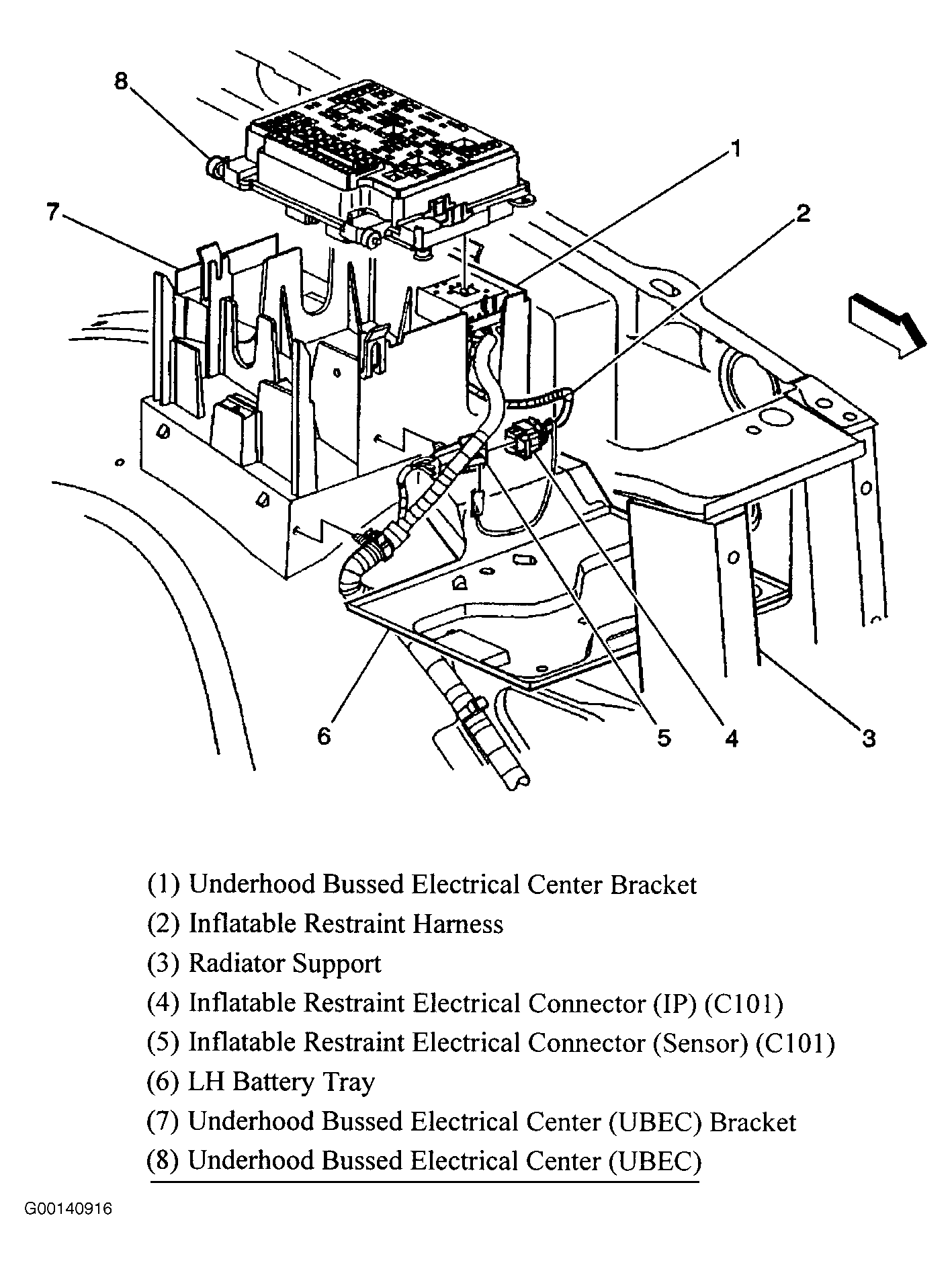

| Underhood Bussed Electrical Center (UBEC) | At Left Side Of Engine Compartment, Near Battery (Fig 9 ) |

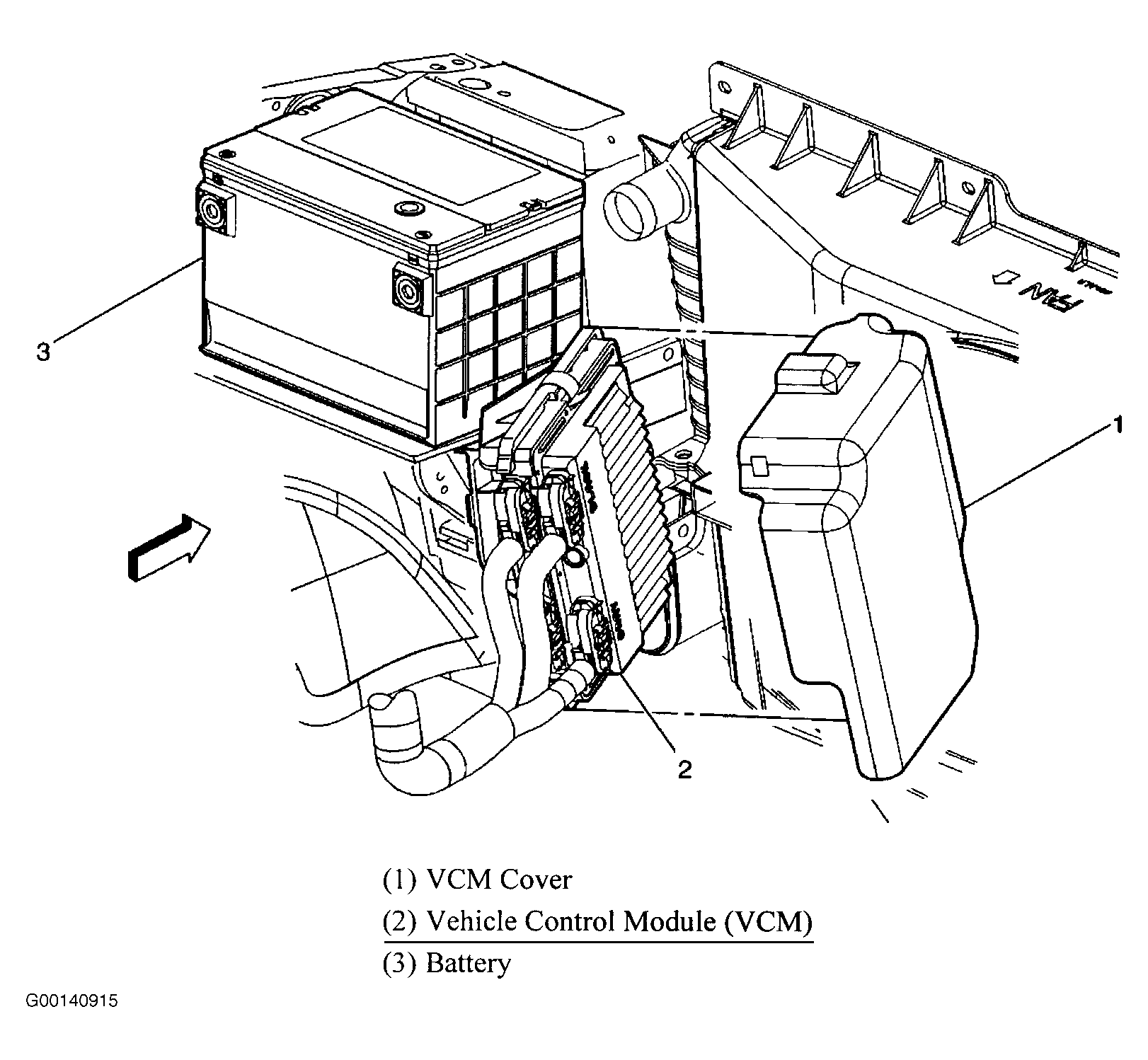

| Vehicle Control Module (VCM) | On Left Front Of Engine Compartment (Fig 10 ) |

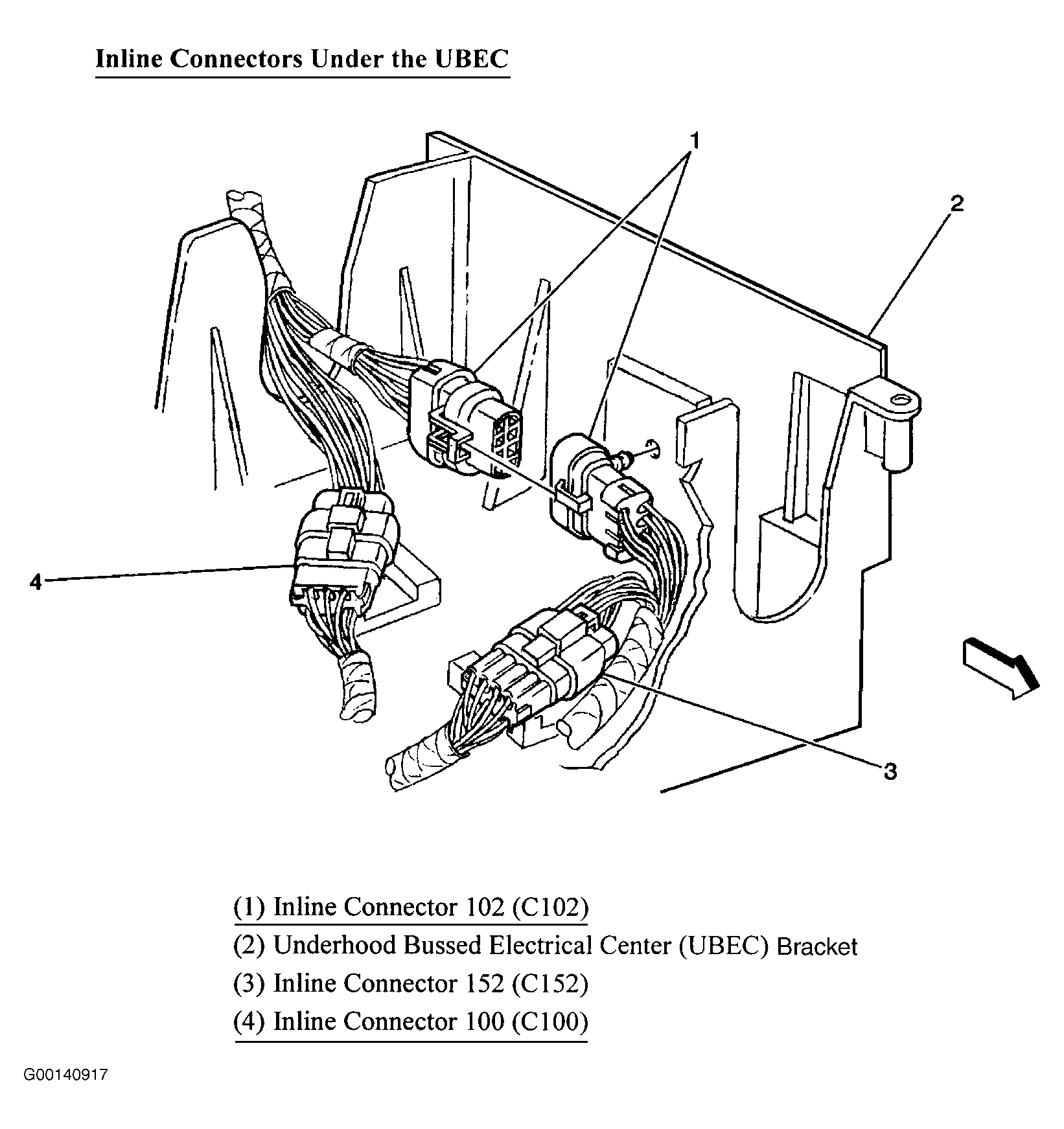

| C100 | Under UBEC (Fig 11 ) |
| C102 | Under UBEC (Fig 11 ) |

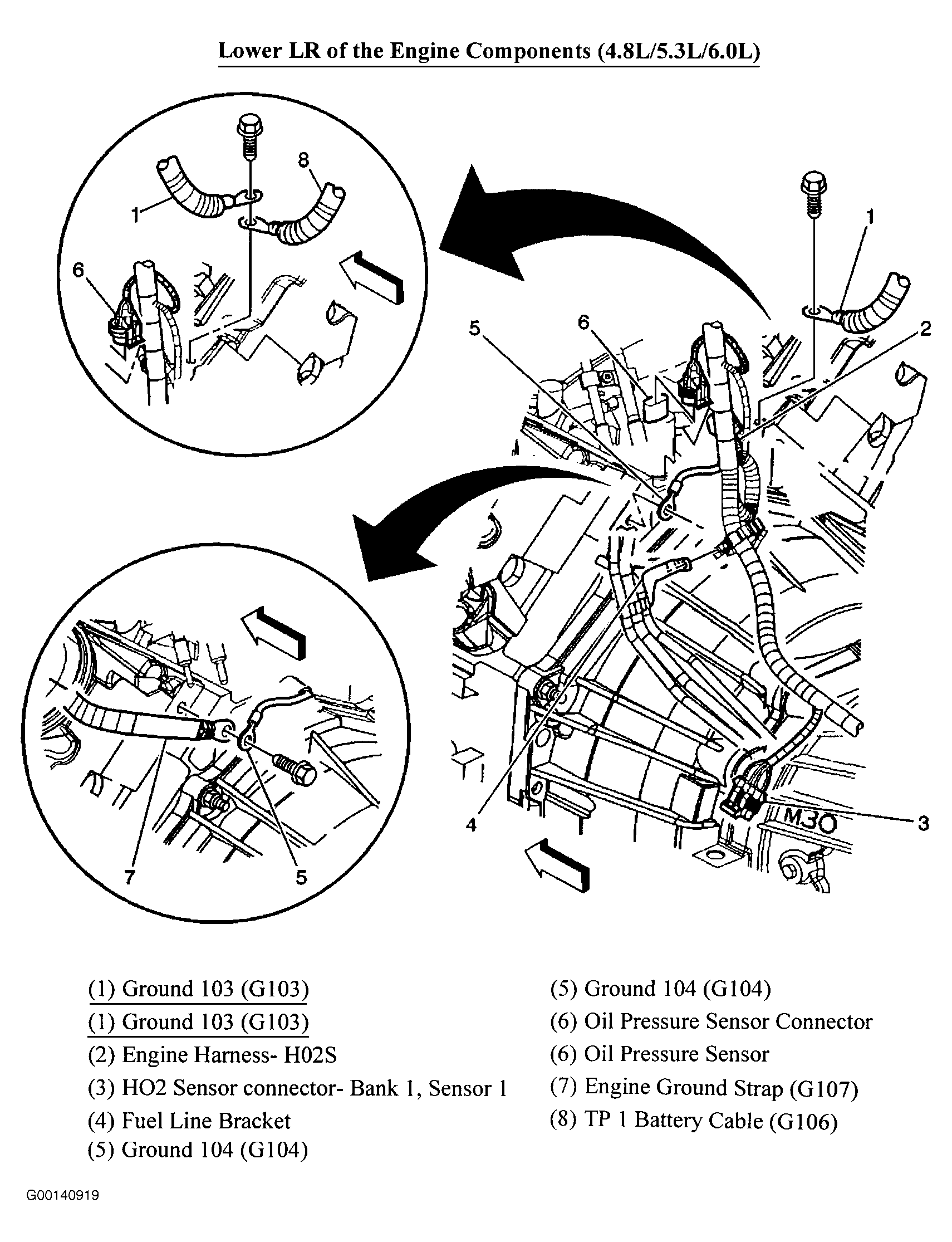

| G103 | On Right Rear Of Engine Block (Fig 12 ) |

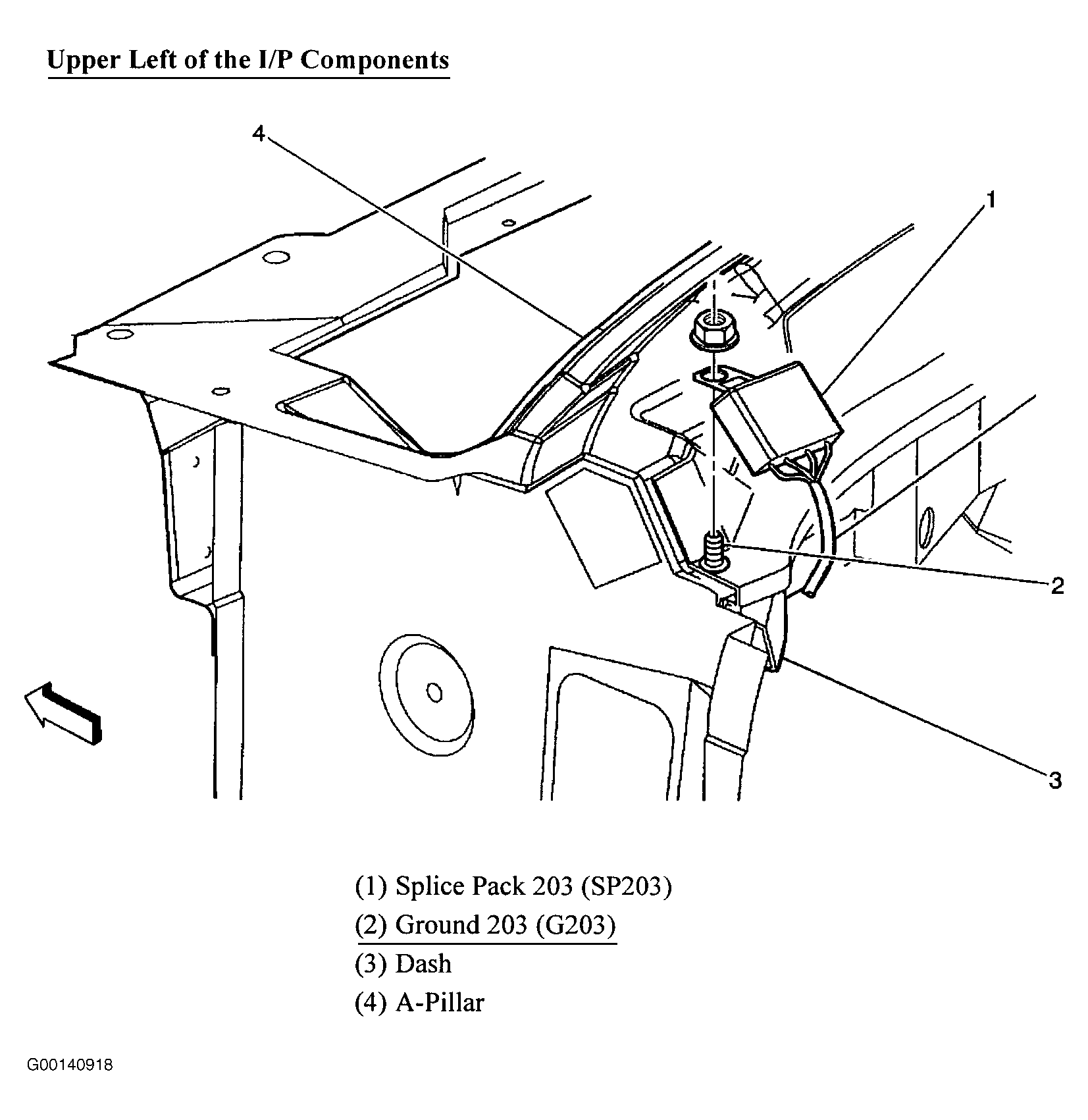

| G203 | On Left Upper Instrument Panel, At A-Pillar (Fig 13 ) |

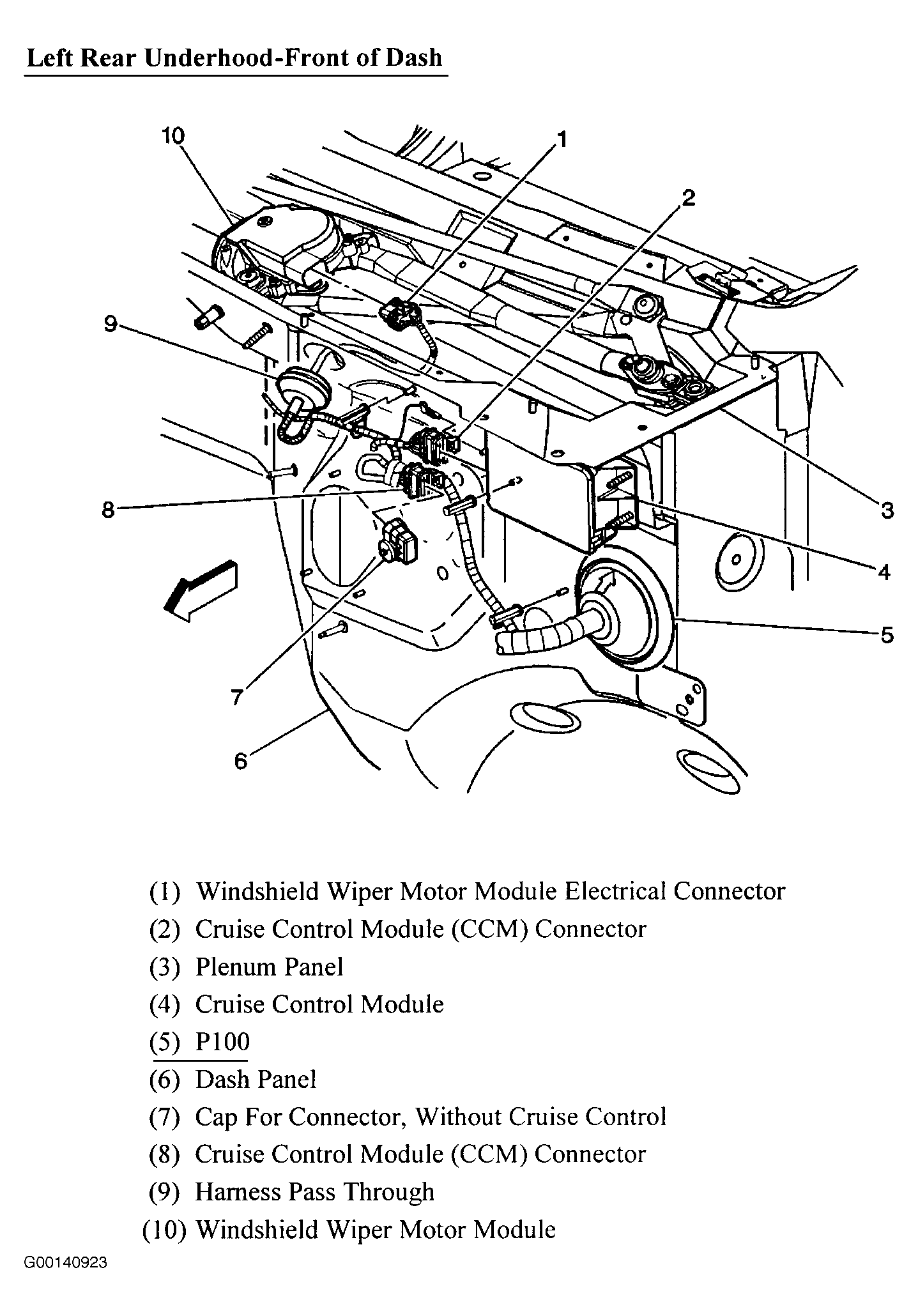

| P100 | At Left Rear Of Engine Compartment, In Front Of Dash (Fig 14 ) |
| SP205 | On Left Side Of Instrument Panel, Behind Headlamp Switch (Fig 1 & Fig 3 ) |
