Entertainment Component Views

WARNING: This page is about a different car, the 2006 GMC Sierra, 2006 GMC Cab & Chassis Sierra, 2006 Chevrolet Silverado, and 2006 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

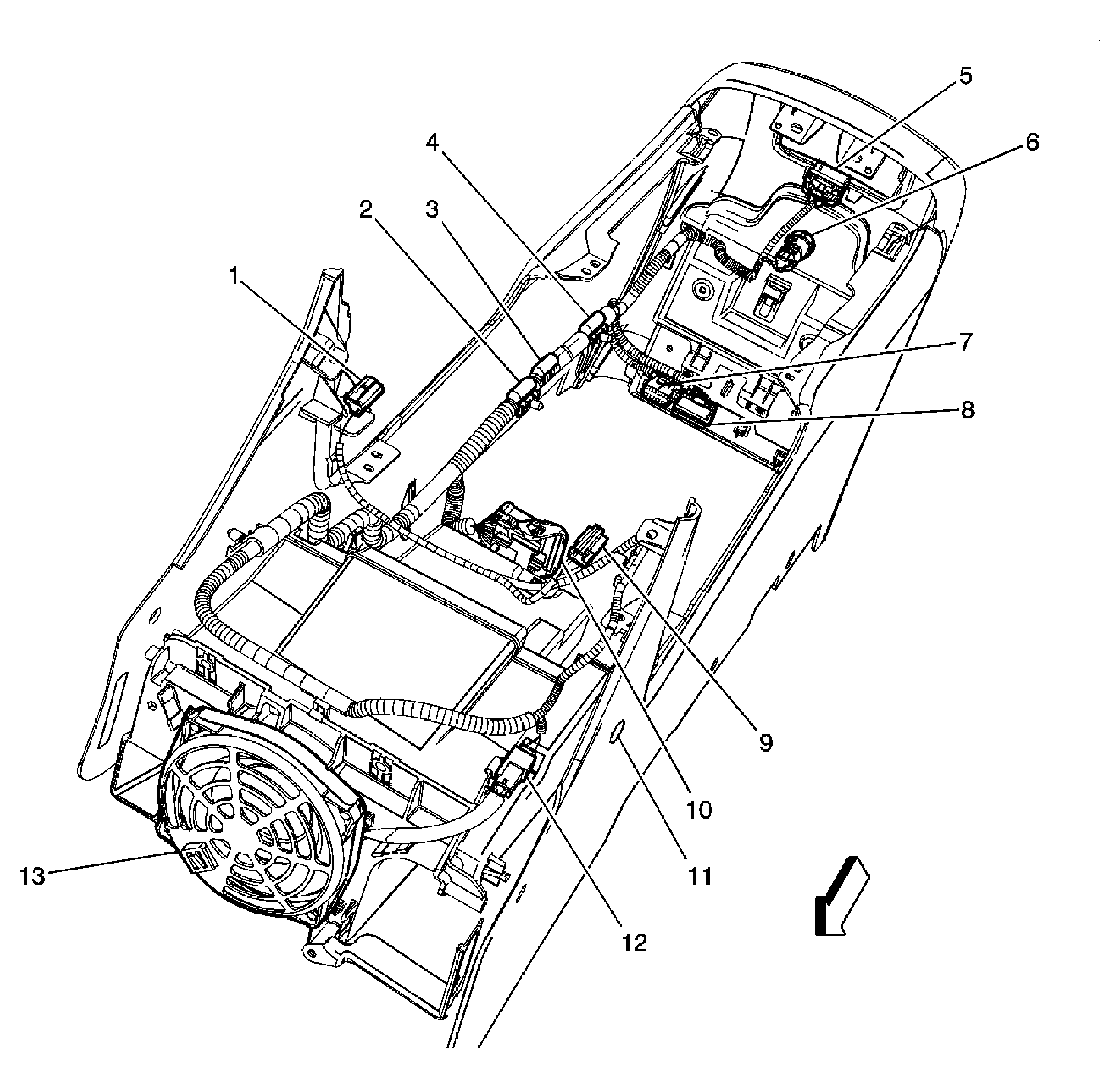

Fig 1: Console Harness

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 1

Callout	Component Name
1	Auxiliary Power Outlet - Front Connector
2	S333
3	S307
4	S303
5	Rear Seat Audio (RSA) Controller Connector
6	Auxiliary Power Outlet - Console Connector
7	Audio Amplifier Connector C2 (UQ7)
8	Audio Amplifier Connector C1 (UQ7)
9	Cigar Lighter
10	C306
11	Noise Compensation Microphone (UQ7 w/Y91)
12	Speaker - Subwoofer Connector
13	Speaker - Subwoofer (UQ7)

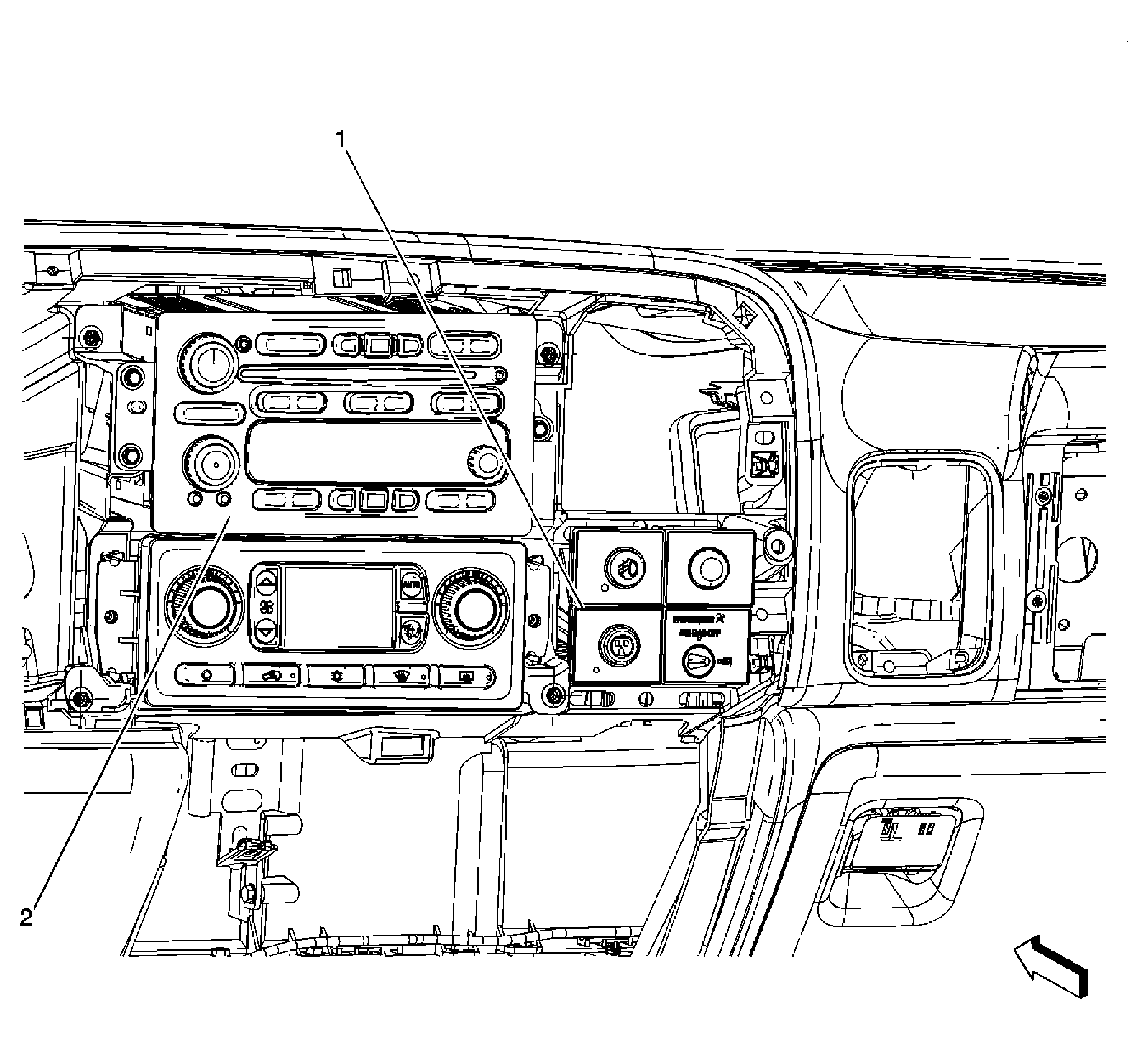

Fig 2: Radio

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 2

Callout	Component Name
1	Auxiliary Power Outlet Switch (HP2)
2	Radio

Fig 3: Speaker - LR (Extended Cab)

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 3

Callout	Component Name
1	Inner Body Panel-LH
2	Speaker Connector - Harness
3	Electrical Connector - Speaker
4	Speaker-LR (RT side Similar)

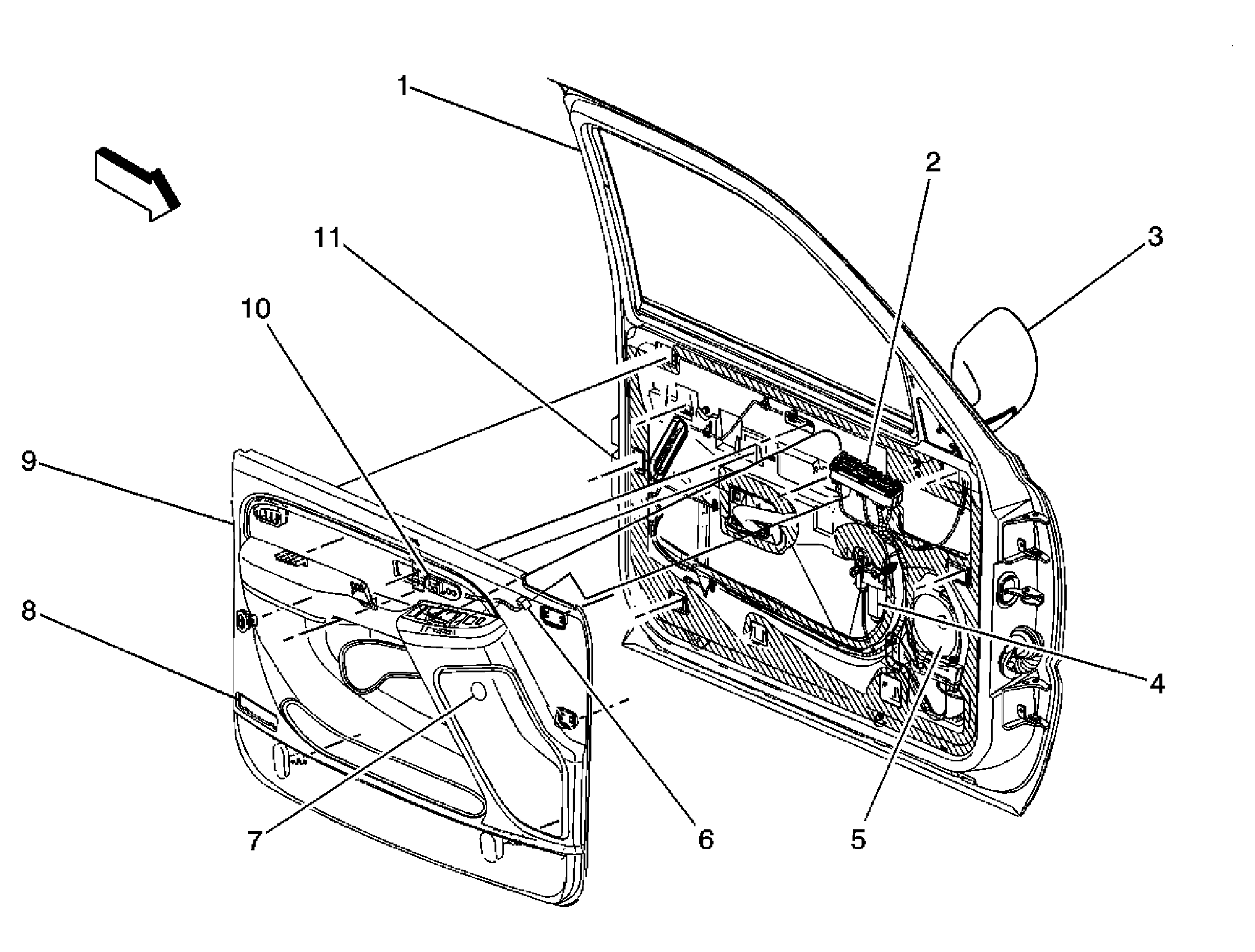

Fig 4: Driver Door

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 4

Callout	Component Name
1	Driver Door
2	Driver Door Module (DDM)
3	Outside Rearview Mirror - Driver
4	Window Motor - Driver
5	Speaker - LF Door
6	Memory/Heated Seat Switch Connector
7	Speaker - LF Tweeter (UQ3)
8	Door Courtesy Lamp - LF
9	Driver Door Panel
10	Memory/Heated Seat Switch
11	Door Latch Assembly - Driver

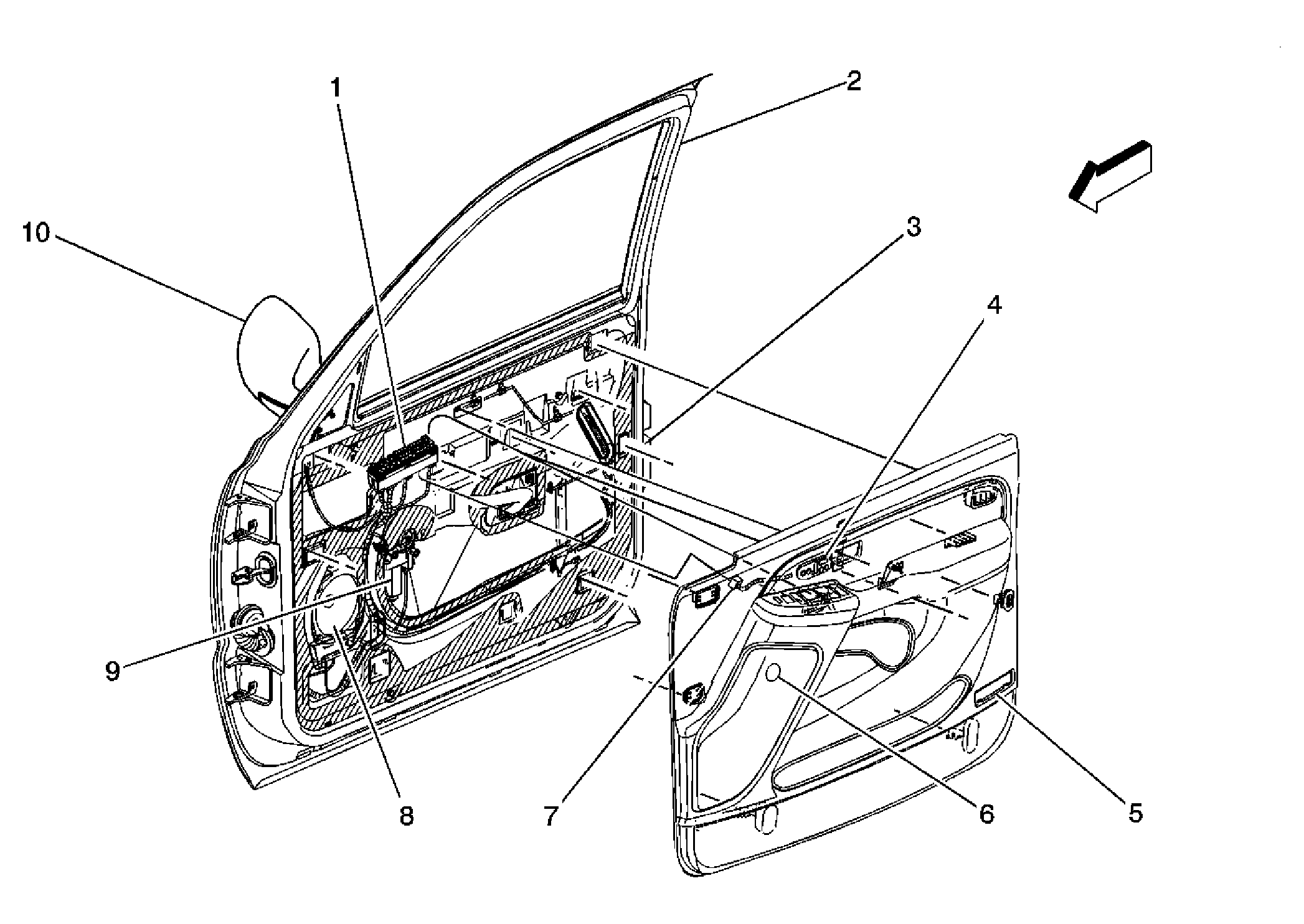

Fig 5: Passenger Door

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 5

Callout	Component Name
1	Passenger Door Module (PDM)
2	Passenger Door
3	Door Latch Assembly - Passenger
4	Heated Seat Switch - Passenger
5	Door Courtesy Lamp - RF
6	Speaker - RF Tweeter (UQ3)
7	Heated Seat Switch Connector
8	Speaker - RF Door
9	Window Motor - Passenger
10	Outside Rearview Mirror - Passenger

Fig 6: Speaker - LF Tweeter (RF Similar)

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 6

Callout	Component Name
1	Left A-Pillar Trim Panel
2	Speaker-LF Tweeter
3	Speaker-LF Tweeter Connector

Fig 7: Speaker - LR Door (RR Similar)

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 7

Callout	Component Name
1	Door-LR
2	Window Motor-LR
3	Speaker-LR

Fig 8: Splice Pack SP250 (RPO Code UQ7)

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 8

Callout	Component Name
1	Instrument Panel
2	C220
3	SP250

Fig 9: Rear of Center Console

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 9

Callout	Component Name
1	Center Console
2	Rear Seat Audio (RSA)
3	Auxiliary Power Outlet-Console

Fig 10: Remote Playback Device - CD Player

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 10

Callout	Component Name
1	Lower I/P Bezel
2	Remote Playback Device-CD Player

Fig 11: Digital Radio Receiver

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 11

Callout	Component Name
1	Right Side of Instrument Panel
2	Digital Radio Receiver
3	Digital Radio Receiver Connector

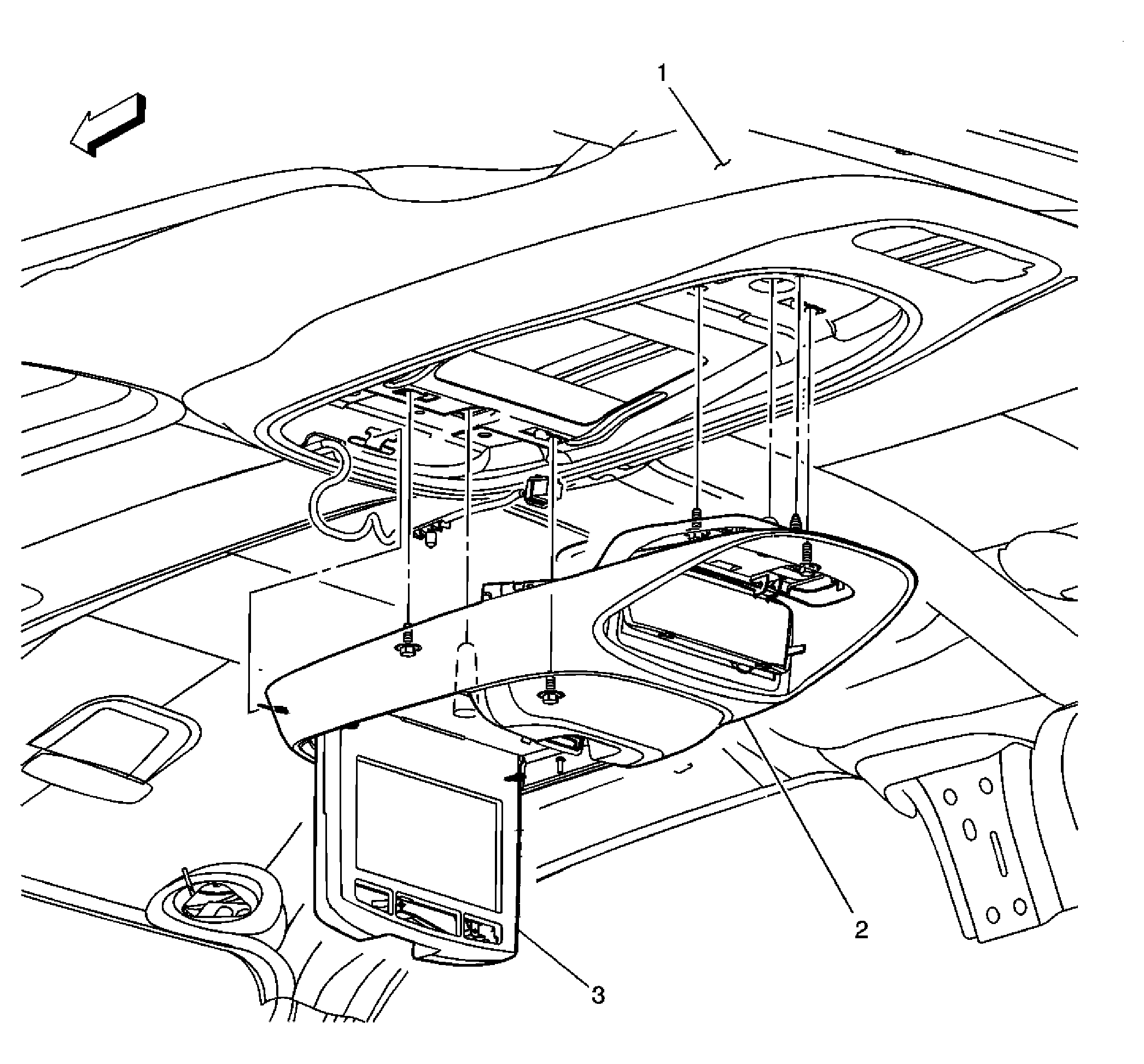

Fig 12: Rear Seat Entertainment (RSE) Assembly (U42)

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 12

Callout	Component Name
1	Headliner
2	Rear Seat Entertainment (RSE) Assembly
3	Rear Seat Entertainment (RSE) Display

Fig 13: Steering Wheel and Column Sub-System Component Views

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 13

Callout	Component Name
1	Steering Wheel Control Switch Assembly-Upper Left (UK3)
2	Passlock Sensor Connector
3	Ignition Key Alarm Switch
4	Ignition Lock Cylinder Control Actuator
5	Ignition Lock Cylinder Control Actuator Connector
6	Ignition Switch
7	Ignition Key Cylinder
8	Steering Wheel Control Switch Assembly-Upper Right (UK3)
9	Horn Switch
10	Steering Wheel Control Switch Assembly-Lower Right (UK3)
11	C277
12	Steering Wheel Control Switch Assembly-Lower Left (UK3)
13	Turn Signal/Multifunction Switch
