Valve Body Assembly: Installation

CAUTION: After completing installation, check transmission fluid leakage and fluid level. See CHECKING FLUID LEVELS .

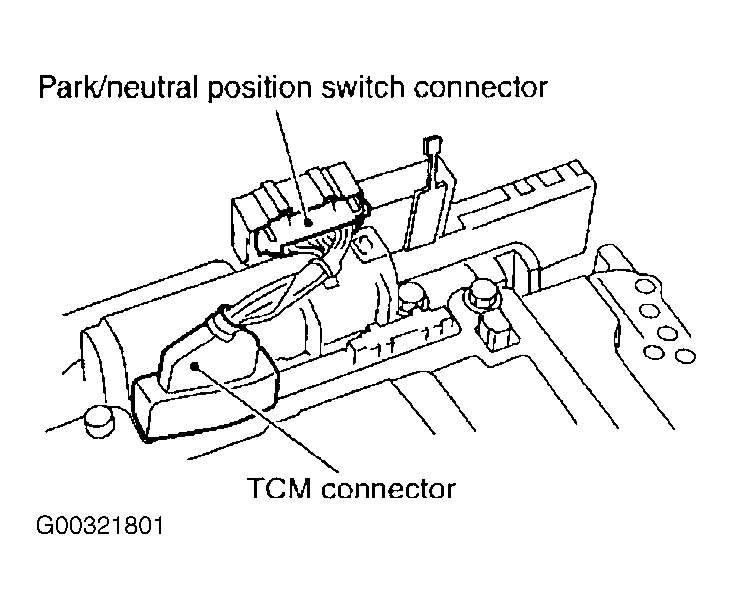

  1. Connect TCM connector and PNP switch connector. See Figure.
  2. Install transmission assembly harness connector from control valve with TCM.
  3. Connect TCM connectors.
  4. Install "O" ring in transmission assembly harness connector. DO NOT reuse "O" ring. Apply transmission fluid to "O" ring.
  5. Install transmission fluid temperature sensor No. 2 to bracket.
  6. Install transmission fluid temperature sensor No. 2 (with bracket) in control valve with TCM. Adjust bolt hole of bracket to bolt hole of control valve with TCM. Tighten to specification. See TORQUE SPECIFICATIONS . See Figure.
  7. Install control valve with TCM in transmission case. Ensure that turbine revolution sensor securely installs in sensor hole. See Fig 1. Hang down sensor harness toward outside so as not to disturb installation of control valve with TCM. Adjust transmission assembly harness connector of control valve with TCM of terminal hole of transmission case. Assemble it so that manual valve cutout is engaged with manual plate projection. See Figure.
  8. Install bolts "A", "B", and "C" in control valve with TCM. See Figure. See CONTROL VALVE BOLT IDENTIFICATION .
    CONTROL VALVE BOLT IDENTIFICATION

    Bolt Symbol Length - In. (mm) Number of Bolts
    "A" 1.65 (42.0) 5
    "B" 2.17 (55.0) 6
    "C" 1.57 (40.0) 1
  9. Tighten bolt 1, 2, and 3 temporarily to prevent dislocation. See Figure. After that, tighten in order (1, 2, and 3), and then tighten remaining bolts to specification. See TORQUE SPECIFICATIONS .
  10. Connect transmission fluid sensor No. 2 connector. See Figure.
  11. Securely fasten terminal cord assembly and transmission fluid temperature sensor No. 2 harness with terminal clips.
  12. Connect revolution sensor connector. See Figure
  13. Securely fasten revolution sensor harness with terminal clips.
  14. Install magnets in oil pan.
  15. Install oil pan to transmission case using the following steps:
    1. Install oil pan gasket to oil pan. DO NOT reuse oil pan gasket. Install it in the direction to align hole positions. Completely remove all moisture, oil and old gasket from oil pan mounting surface.
    2. Install oil pan (with oil pan gasket) to transmission case. Install it so that drain plug comes to the position as shown. Use care to not pinch electrical harnesses.
    3. Tighten oil pan mounting bolts to specification in sequence shown after temporarily tightening them. See Figure. DO NOT reuse oil pan mounting bolts. See TORQUE SPECIFICATIONS .
  16. Install drain plug to oil pan. DO NOT reuse drain plug gasket.
  17. Pull up transmission assembly harness connector. Use care to not damage connector.
  18. Install snap ring to transmission assembly harness connector.
  19. Connect transmission assembly harness connector.
  20. Connect heated oxygen sensor No. 2 harness connector.
  21. Install front suspension member. See appropriate FRONT SUSPENSION article in SUSPENSION.
  22. Pour transmission fluid into transmission assembly. See DRAINING & REFILLING .
  23. Connect negative battery terminal.
Fig 1: Locating Turbine Revolution Sensor
G00321802Courtesy of NISSAN MOTOR CO., U.S.A.
