Torque Specifications

WARNING: This page is about a different car, the 2004 Nissan Murano and 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

TORQUE SPECIFICATIONS

Application

Ft. Lbs. (N.m)

Camshaft Sprocket Bolts

Primary

73-79 (98-108)

Secondary

87-94 (118-128)

Connecting Rod Nut ⁽¹⁾

Step 1

14-15 (19-21)

Step 2

⁽²⁾

Crankshaft Pulley Bolt

Step 1

29-36 (39-49)

Step 2

Tighten Additional 60-65 Degrees

Cylinder Head Bolt ⁽³⁾⁽⁴⁾

Step 1

72 (98)

Step 2

Loosen Bolts In Reverse Order

Step 3

25-32 (34-44)

Step 4

⁽²⁾

Step 5

⁽²⁾

Drain Plug

29-39 (22-29)

Engine Mount

Mount-To-Bracket Nut

37-43 (49-58)

Mount-To-Front Cover Bolt

58-66 (66-74)

Mount-To-Front Cover Nut

7-11 (10-15)

Mount-To-Frame Bolt

49-54 (66-74)

Exhaust Manifold Nut ⁽⁵⁾

21-24 (28-33)

Flywheel/Flexplate Bolt

61-69 (83-93)

Fuel Tube Assembly

Step 1

⁽⁶⁾

Step 2

16-19 (19-26)

Idler Pulley Bracket Bolt

20 (27)

Ignition Coil Bolt

15-22 (20-29)

Intake Manifold ⁽⁷⁾

Step 1

⁽⁸⁾

Step 2

20-23 (26-31)

Intake Manifold Collector Bolt

13-15 (18-21)

Main Bearing Cap Bolt ⁽⁹⁾⁽¹⁰⁾

67-74 (91-100)

Step 1

24-28 (32-38)

Step 2

⁽²⁾

Oil Cooler Connector

33-40 (44-54)

Oil Drain Plug

22-29 (30-39)

Oil Filter

11-15 (15-20)

Oil Pan ⁽¹¹⁾

Lower Pan Bolts

⁽¹²⁾

Upper Pan Bolts

16-19 (12-14)

Oil Pump Pick-Up Tube-To-Oil Pump Bolt

15-16 (20-22)

Oxygen Sensor

30-36 (40-50)

Power Steering Pump

Adjuster Bolt

18-23 (25-31)

Pivot Bolt

Regulator Valve Cap

29-51 (39-69)

Right Engine Mount Bracket Bolt

63 (85)

Slack Guide

12 (16)

Spark Plug

14-22 (20-29)

Three Way Catalyst-To-Manifold Bolt

Bank 1

46-57 (61-78)

Bank 2

22-25 (29-34)

Transmission-To-Engine Bolt ⁽¹³⁾

Automatic

Bolts 1-5

52-58 (70-79)

Bolts 6-9

23-29 (31-40)

Manual

Bolts 1-6

52-58 (70-79)

Bolts 7-10

23-29 (31-40)

INCH Lbs. (N.m)

Camshaft Bearing Cap Bolts ⁽¹⁴⁾

Step 1 (Tighten Caps No. 7-10)

17 (2)

Step 2 (Tighten Caps No. 1-6)

17 (2)

Step 3 (Tighten Caps No. 1-10)

52 (6)

Step 4 (Tighten Caps No. 1-6)

80-104 (9-12)

Step 5 (Tighten Caps No. 7-10)

74-91 (10)

CVTC Cover

88-106 (8.3-10.3)

Front Timing Chain Case Bolt ⁽¹⁵⁾

8 mm Bolt

⁽¹⁶⁾

6 mm Bolt

106-124 (12-14)

IVTC Valve Cover Bolt

97 (11)

Oil Baffle Plate

22-28 (2.4-3.1)

Oil Pump Cover Bolt

Long Bolt

53-62 (6-7)

Short Bolt

35-43 (4-5)

Rear Oil Seal Retainer Bolt

72-82 (8-9)

Rear Timing Chain Case Bolt ⁽¹⁷⁾

6 mm Bolt

104-121 (12-14)

8 mm Blot

19-23 Ft. Lbs. (26-31)

Rocker Cover Bolt ⁽¹⁸⁾

Step 1

9-26 (1-3)

Step 2

61-80 (7-9)

Timing Chain Tensioner Bolt

62-82 (7-9)

Water Pump Bolt

72-95 (8-11)

⁽¹⁾	Measure bolts prior to installation for proper length. If bolts exceed specification, replace bolt. See Fig 1.

⁽²⁾	Tighten bolts an additional 90-95 degrees.

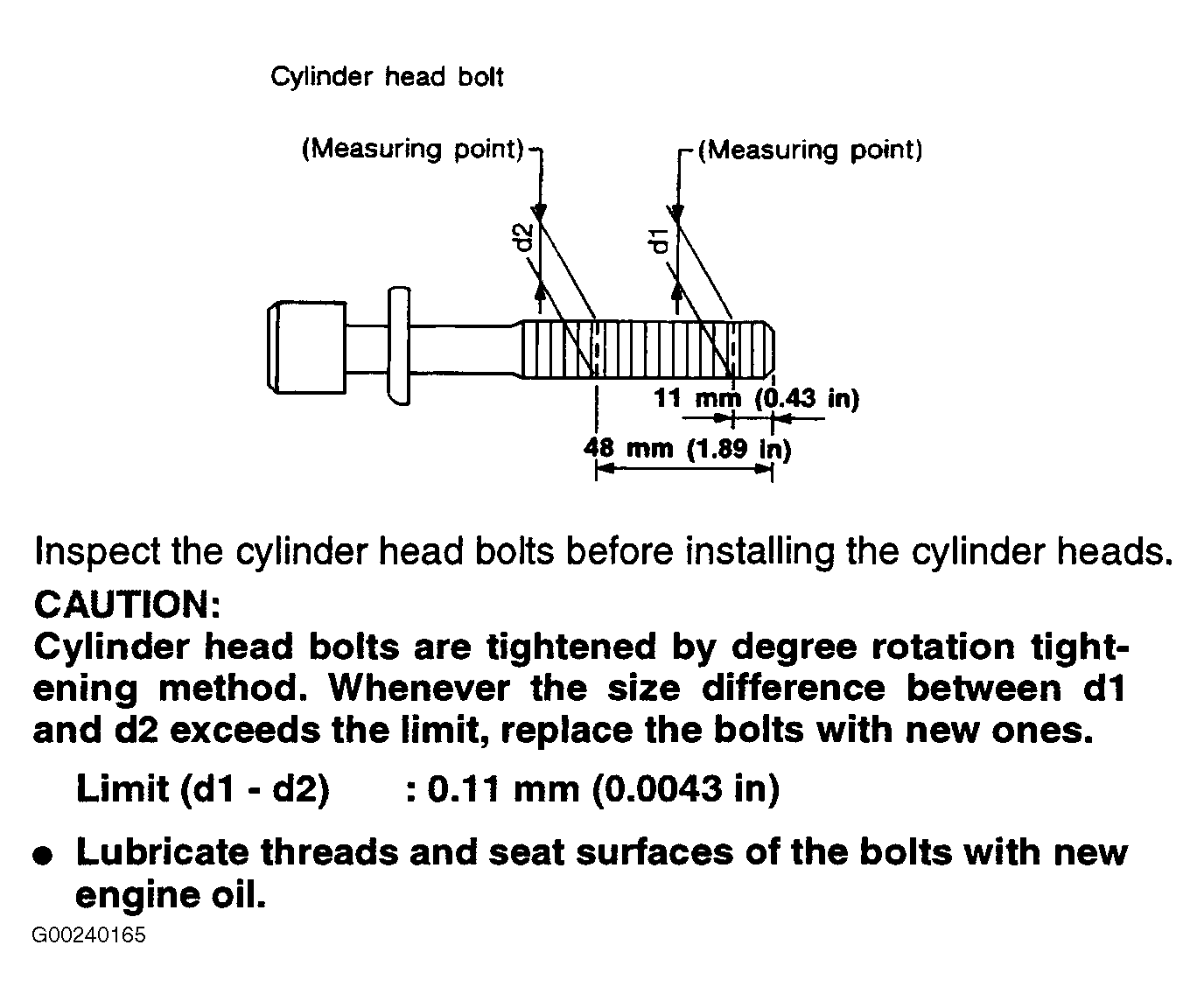

⁽³⁾	Measure bolts prior to installation for proper length. If bolts exceed specification, replace bolt. See Fig 2.

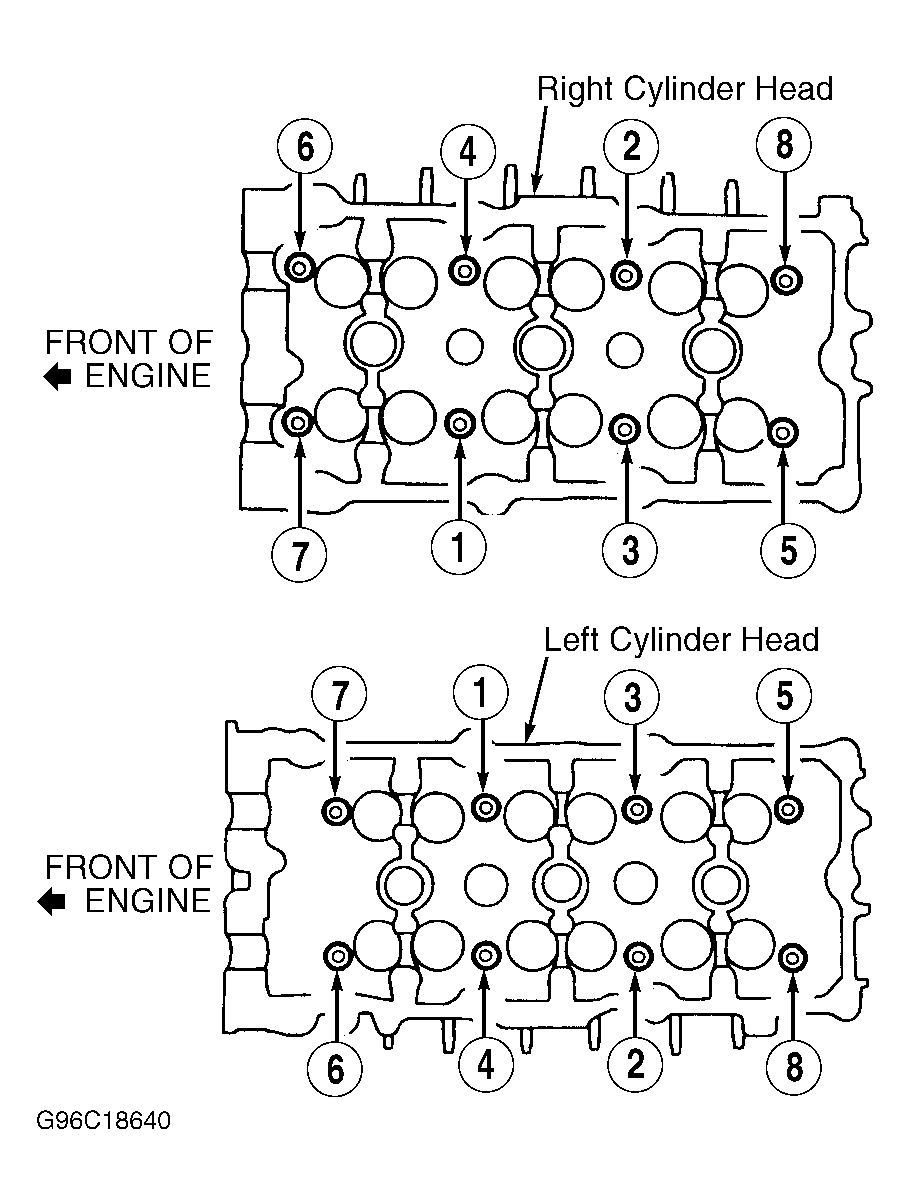

⁽⁴⁾	Tighten bolts to specification in sequence. See Fig 3.

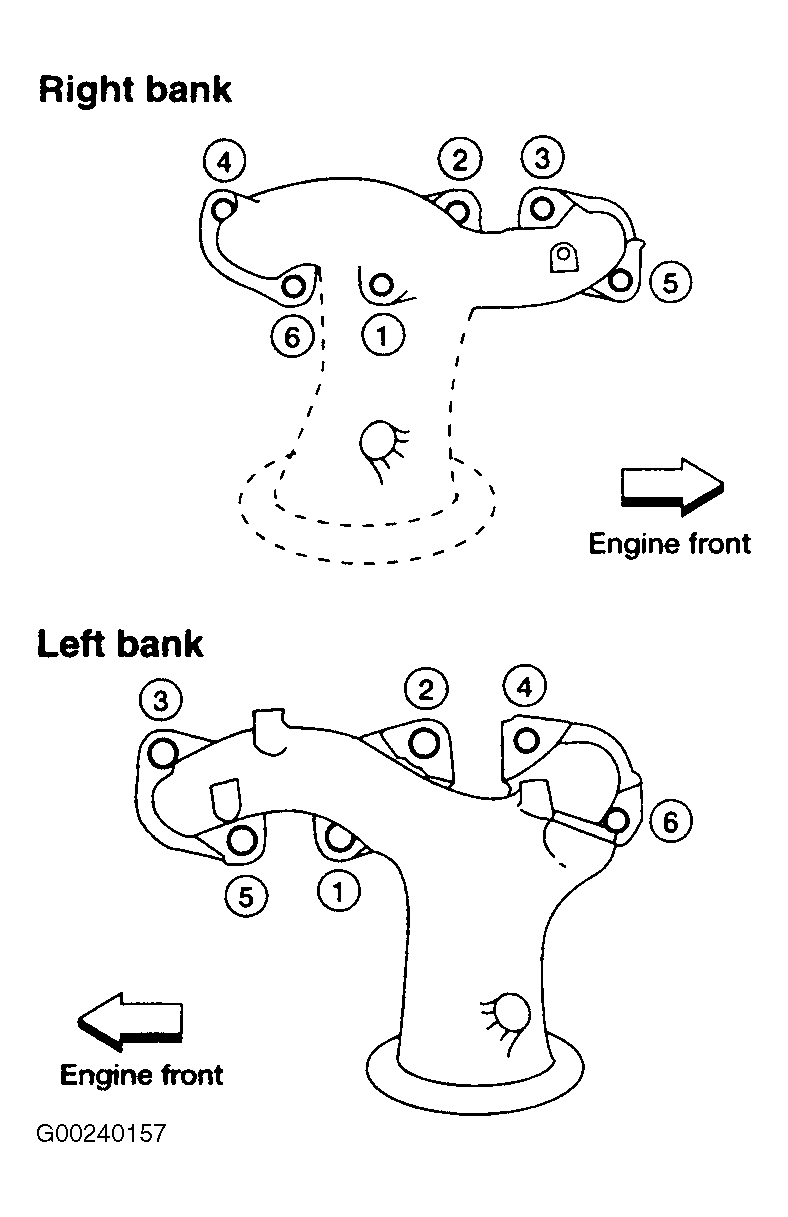

⁽⁵⁾	Tighten bolts to specification in sequence. See Fig 4.

⁽⁶⁾	Tighten to 82-96 INCH Lbs. (9.3-10.8 N.m)

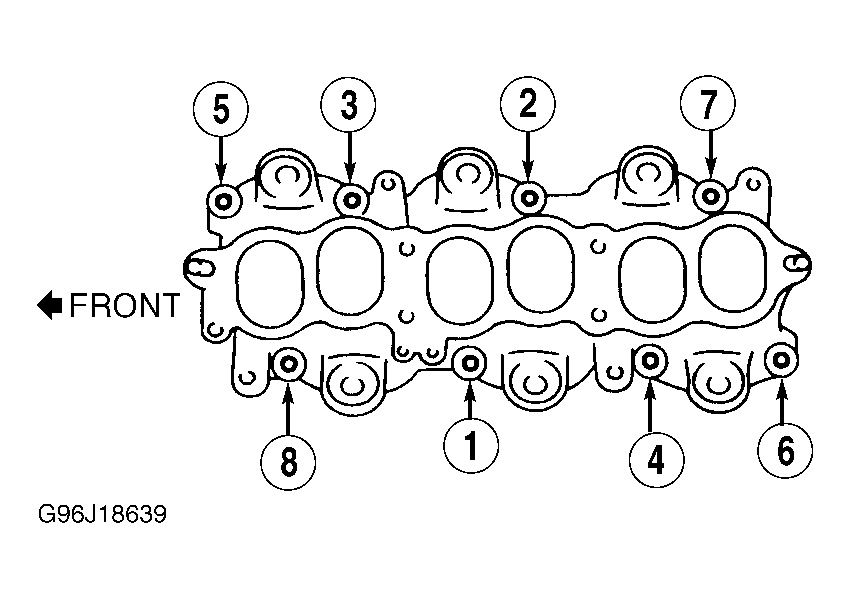

⁽⁷⁾	Tighten bolts to specification in sequence. See Fig 5.

⁽⁸⁾	Tighten to 44-86 INCH Lbs. (5-10 N.m).

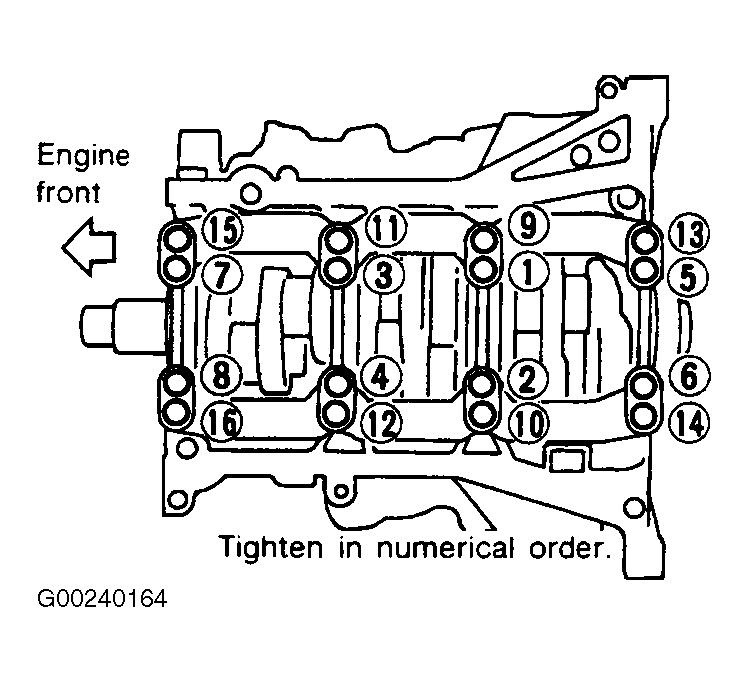

⁽⁹⁾	Tighten to specification in sequence. See Fig 6

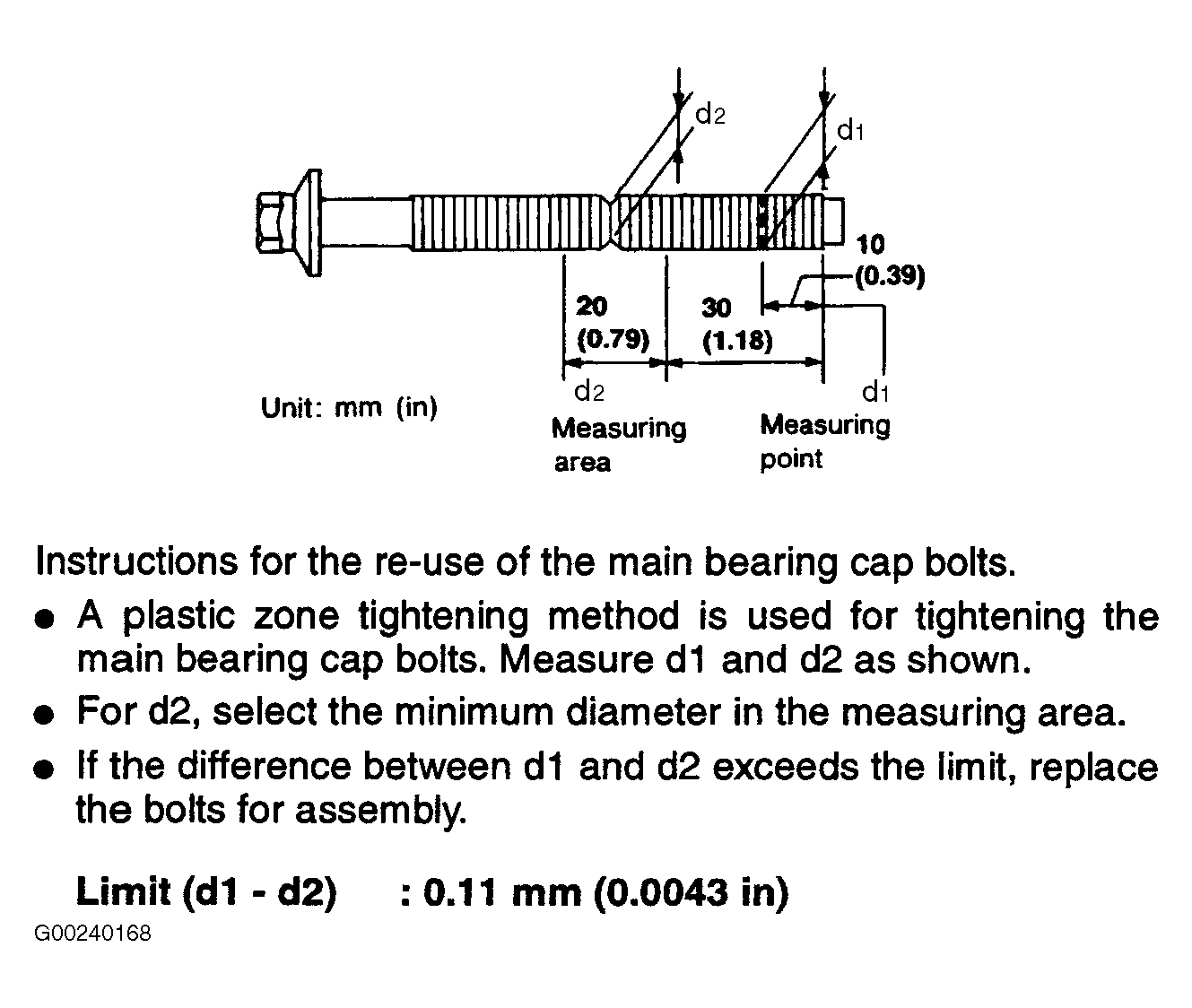

⁽¹⁰⁾	Measure bolts prior to installation for proper length. If bolts exceed specification, replace bolt. See Fig 7.

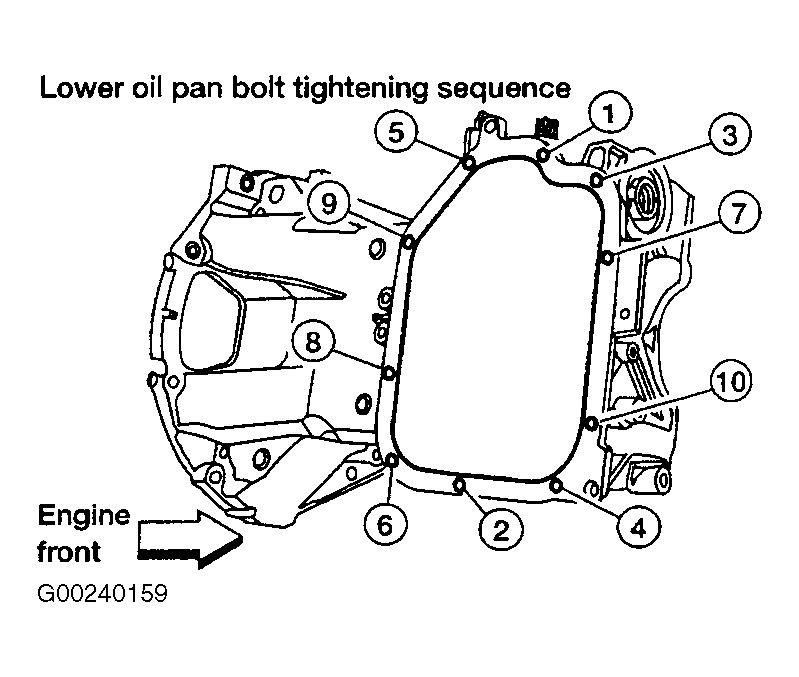

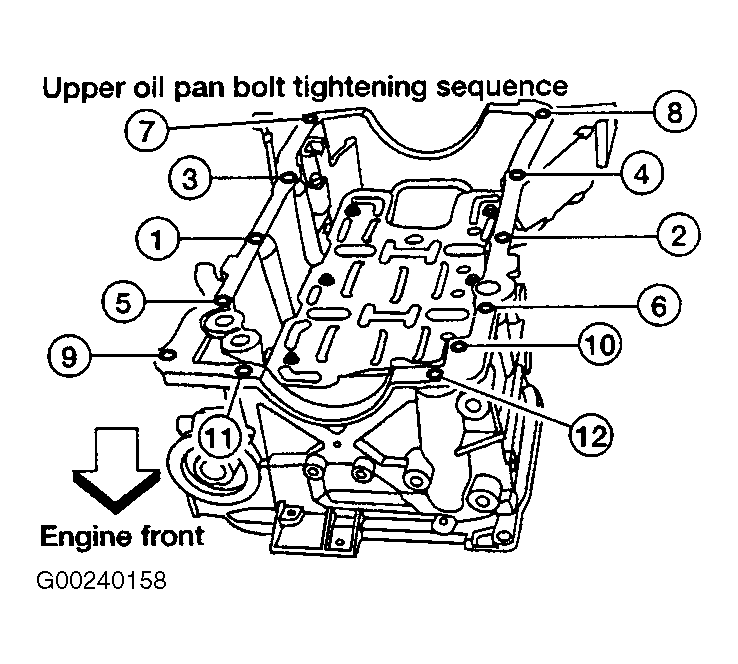

⁽¹¹⁾	Tighten bolts to specification in sequence. See Fig 8 and Fig 9 .

⁽¹²⁾	Tighten to 80-94 INCH Lbs. (9-11 N.m).

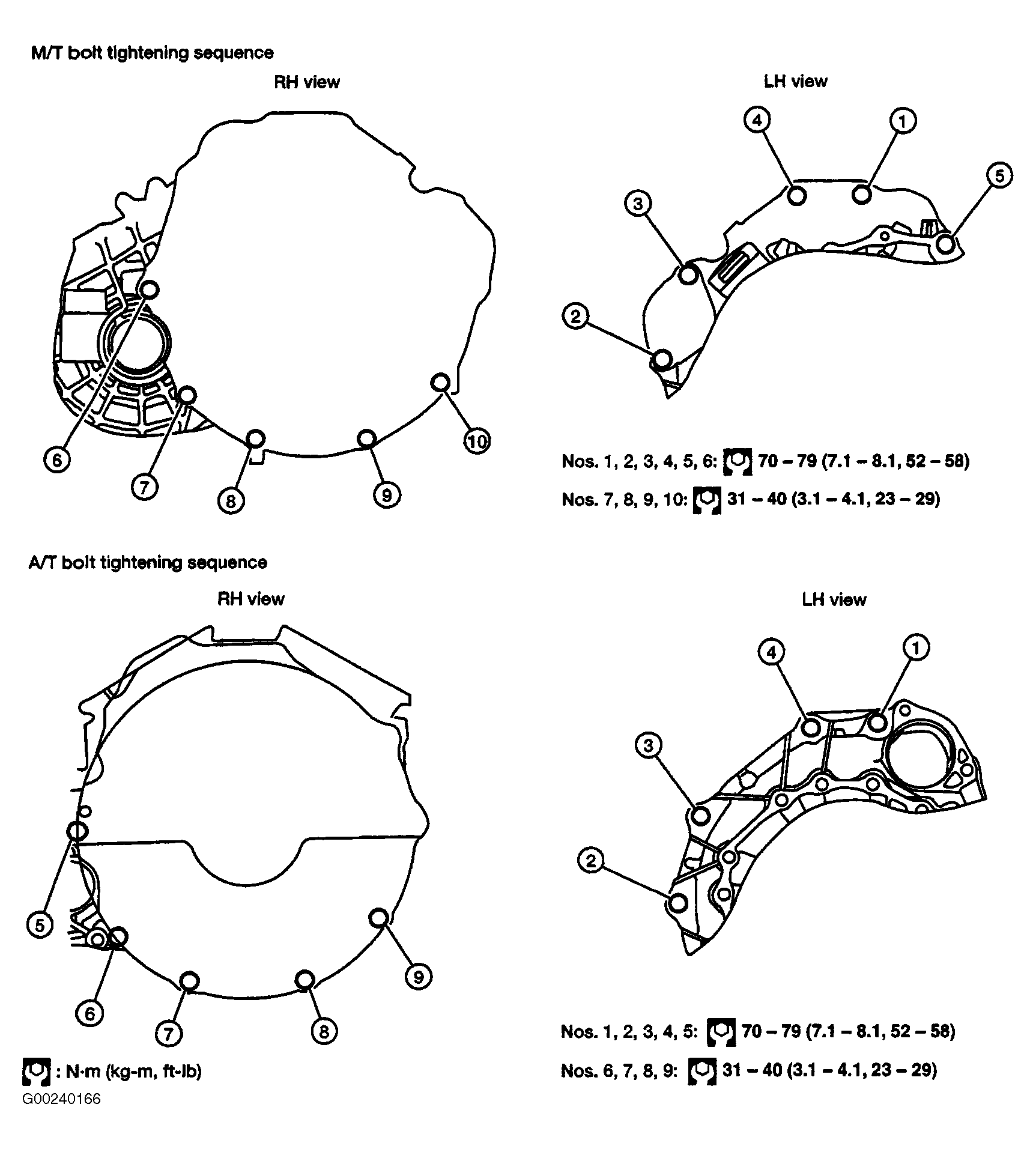

⁽¹³⁾	Tighten to specification in sequence. See Fig 10.

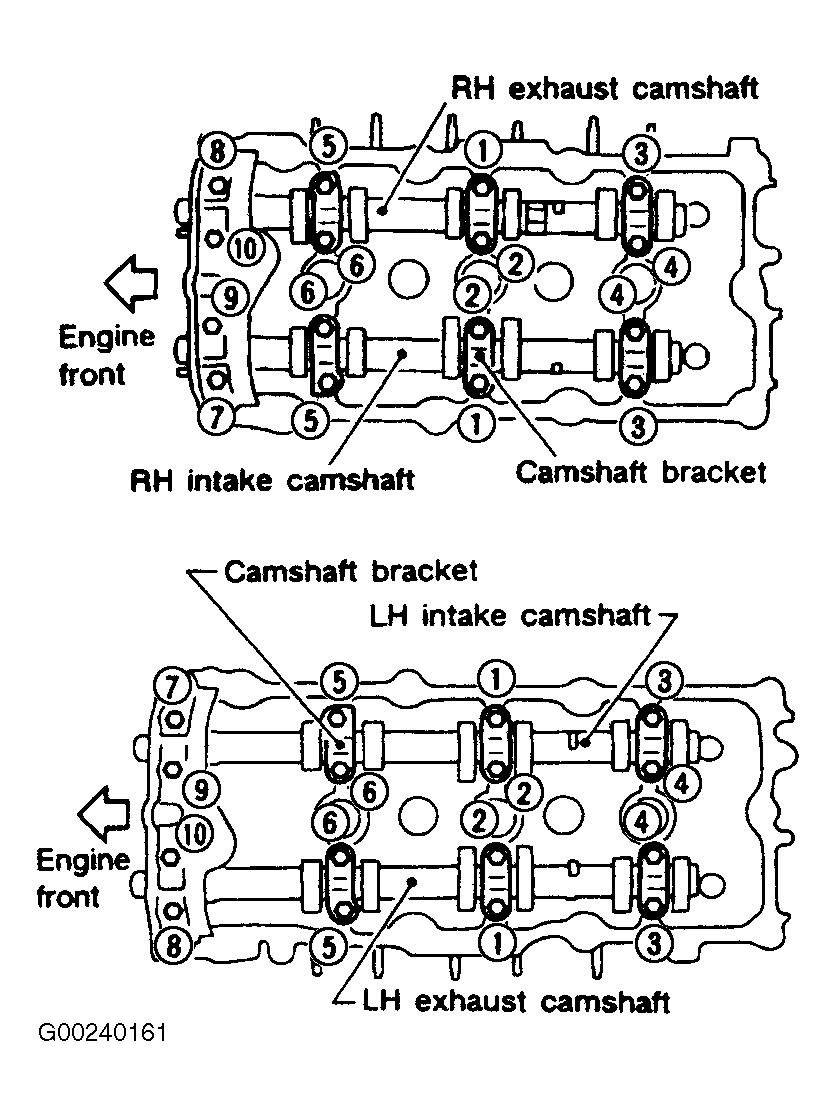

⁽¹⁴⁾	Tighten to specification in sequence. See Fig 11.

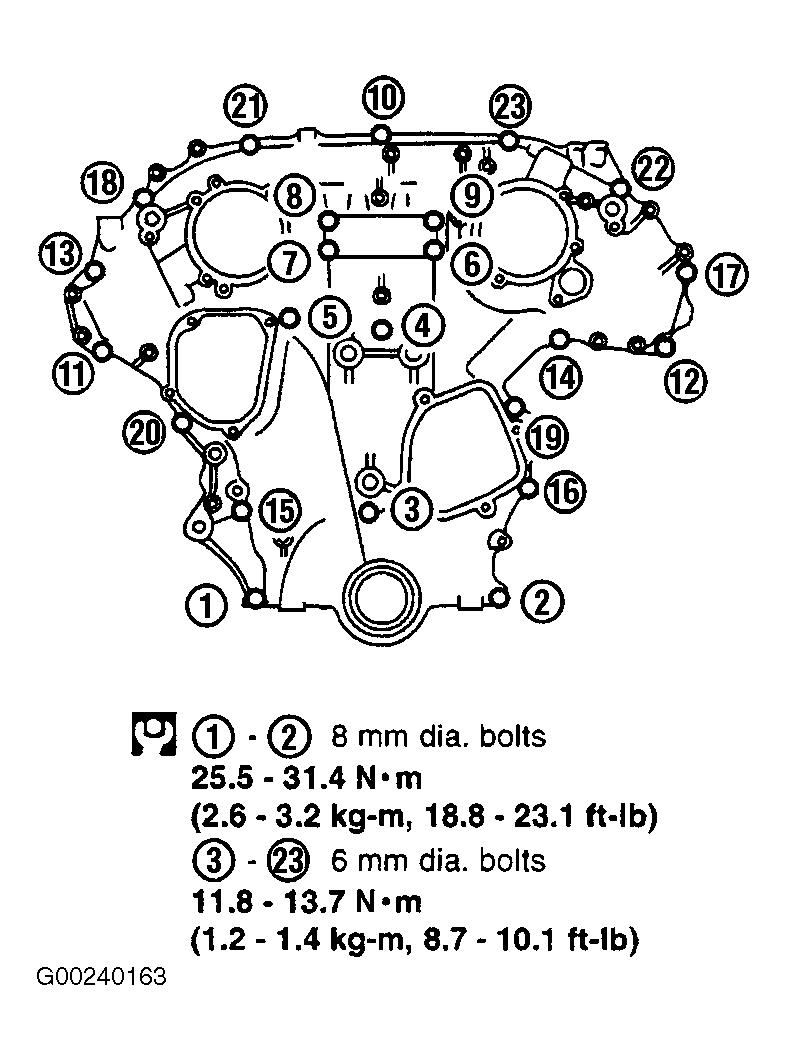

⁽¹⁵⁾	Tighten to specification in sequence. See Fig 12.

⁽¹⁶⁾	Tighten to 19-23 ft. lbs. (26-31 N.m)

⁽¹⁷⁾	Tighten to specification in sequence. See Fig 13.

⁽¹⁸⁾	Tighten to specification in sequence. See Fig 14.

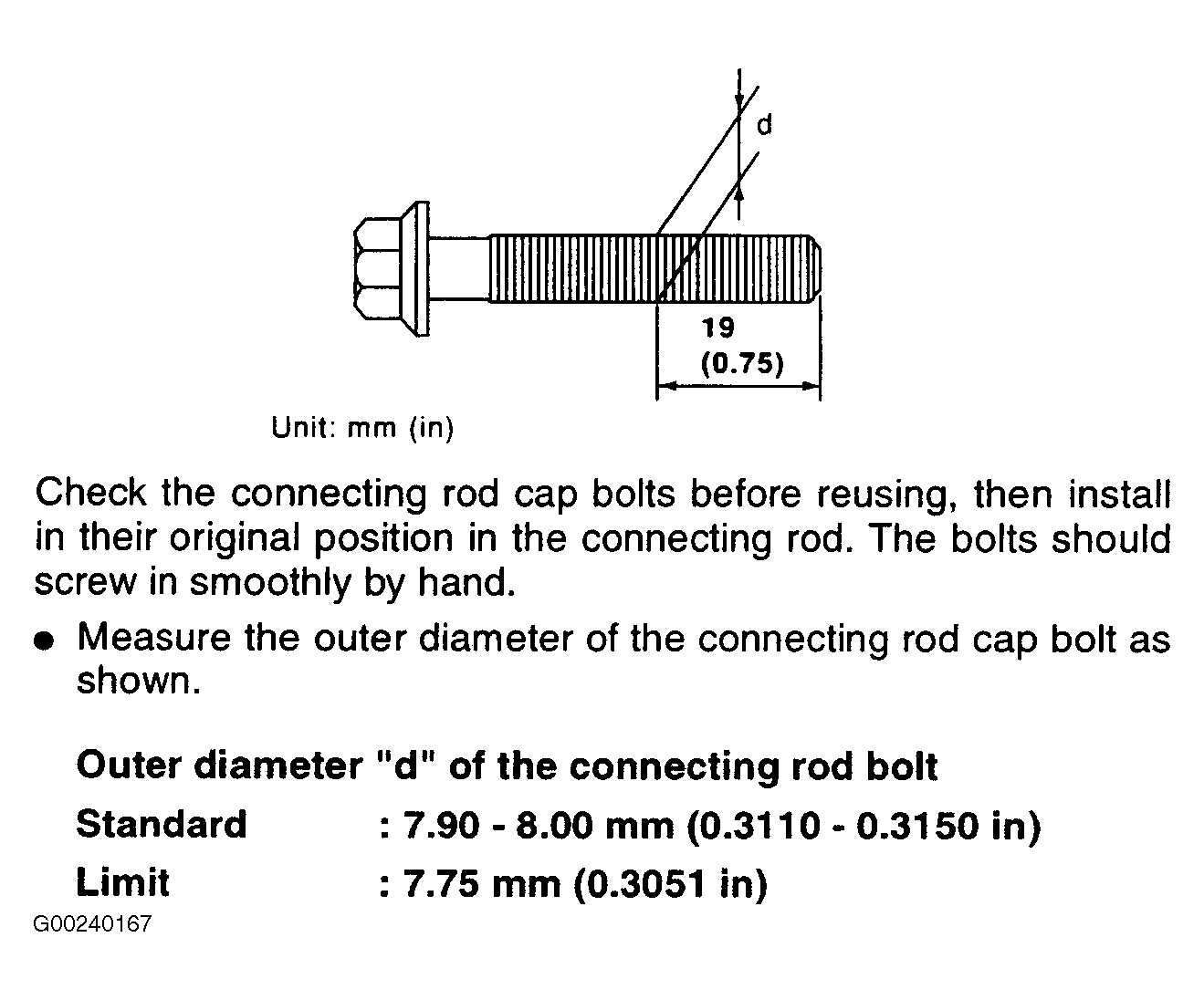

Fig 1: Measuring Connecting Rod Bolt Length
