Power and Grounding Component Views

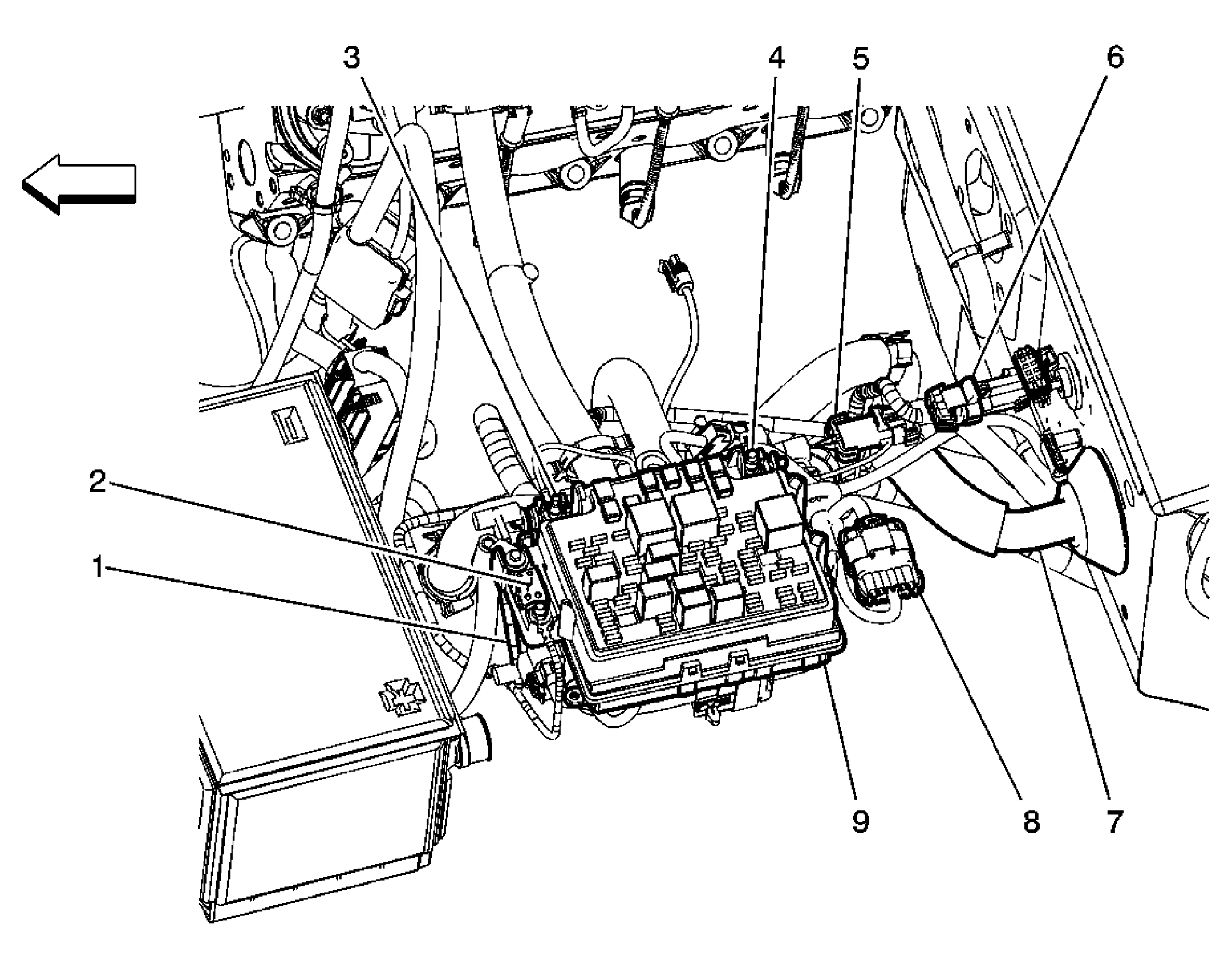

Fig 1: Fuse Block Underhood, C102, C107, and C108

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 1

Callout	Component Name
1	Fusable Link (WS2)
2	Mega Fuse (WS2)
3	Stud 1
4	Stud 2 - Trailer Connector Power Feed
5	C107 (UVC)
6	C108 (WS2)
7	I/P Harness
8	C102
9	Underhood Fuse Block

Fig 2: Fuse Block - I/P Component Views

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 2

Callout	Component Name
1	Fuse Block - I/P
2	Driver Door Harness
3	Fuse Block - I/P - C3 (BLK)

Fig 3: Relay Block - I/P Component Views

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 3

Callout	Component Name
1	Relay Block - I/P
2	Body Harness
3	Relay Block - I/P - C10 (NAT)

Fig 4: Junction Block - I/P Component Views

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 4

Callout	Component Name
1	Junction Block-I/P
2	I/P Harness
3	Footwell Courtesy Lamp Socket-Right
4	Footwell Courtesy Lamp Bulb-Right

Fig 5: S304 Component Views

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 5

Callout	Component Name
1	S304
2	G300
3	Chassis Harness
4	Electronically Controlled Air Suspension Relay

Fig 6: Splice Pack SP206 Component Views

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 6

Callout	Component Name
1	Steering Column
2	Transfer Case Shift Control Module
3	Splice Pack SP206
4	Steering Wheel Controls Backlight Fuse

Fig 7: G100 Component View

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 7

Callout	Component Name
1	Negative Battery Cable
2	Left Front Frame Rail
3	G100-Negative Battery cable
4	G100-Forward Lamp Harness
5	Forward Lamp Harness

Fig 8: Upper Rear Of Engine Component Views

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 8

Callout	Component Name
1	Engine Harness
2	G103-Engine Harness Ground
3	G104
4	Camshaft Position (CMP) Sensor Connector
5	Engine Oil Pressure (EOP) Sensor Connector

Fig 9: G102 Component Views

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 9

Callout	Component Name
1	G102-Negative Battery Cable
2	G102-Engine Harness Ground
3	Engine Harness

Fig 10: G106 Component View

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 10

Callout	Component Name
1	G106
2	Dash Panel
3	Engine Ground Strap

Fig 11: G200 Component View

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 11

Callout	Component Name
1	C200
2	C202
3	G200
4	I/P Harness

Fig 12: G203 Component View

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 12

Callout	Component Name
1	Cowl Panel Insulator
2	G203
3	HVAC Harness

Fig 13: Left Side of I/P

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 13

Callout	Component Name
1	Body Control Module (BCM) - C1
2	BCM - C2
3	BCM - C4
4	BCM- C3
5	BCM - C5
6	BCM
7	Data Link Connector (DLC)
8	Fuse Block - I/P - C1
9	Fuse Block - I/P
10	Splice Pack SP205

Fig 14: Splice Pack SP206 Component Views

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 14

Callout	Component Name
1	Steering Column
2	Transfer Case Shift Control Module
3	Splice Pack SP206
4	Steering Wheel Controls Backlight Fuse

Fig 15: Splice Pack SP207 Component Views

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 15

Callout	Component Name
1	C200
2	Splice Pack SP207
3	C202
4	Left Side Cowl Panel

Fig 16: G300 Component View

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 16

Callout	Component Name
1	Chassis Harness
2	G300
3	Left Frame Body Mount

Fig 17: G302 Component Views

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 17

Callout	Component Name
1	B Pillar
2	Body Harness
3	G302

Fig 18: G304 Component View

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 18

Callout	Component Name
1	G304
2	Body Harness
3	Inflatible Restraint and Diagnostic Module (SDM) Connector

Fig 19: G306 Component View

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 19

Callout	Component Name
1	B Pillar
2	Body Harness
3	G306

Fig 20: G308 Component View

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 20

Callout	Component Name
1	G308
2	Body Mount-RH
3	Chassis Harness

Fig 21: G310 Component View

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 21

Callout	Component Name
1	Body Mount-LH
2	G310
3	Chassis Harness

Fig 22: G401 Component View

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 22

Callout	Component Name
1	G401
2	Body Mount-LH
3	Fuel Tank Filler Ground
4	Chassis Harness

Fig 23: G405 Component View

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 23

Callout	Component Name
1	Chassis Harness
2	G405
3	Body Mount-RH
4	Air Suspension Inflator Switch Connector

Fig 24: G410 and SP410 Component Views

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 24

Callout	Component Name
1	Inner Side Panel - RH
2	G410
3	SP410
