Steering Column: Reassembly

  1. Install steering shaft into steering actuator housing.

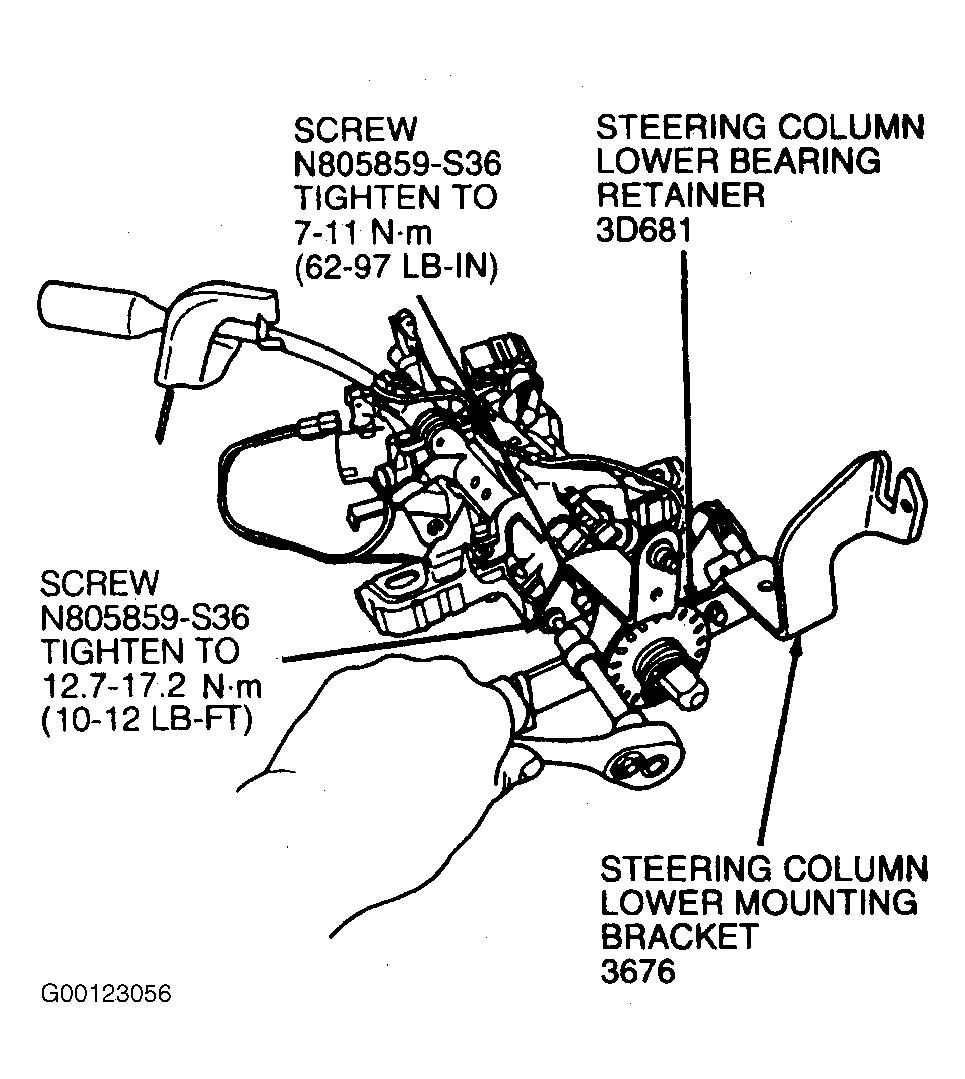

  2. Install steering column lower bearing retainer and steering column lower mounting bracket. Tighten screws to specification. See TORQUE SPECIFICATIONS  . SeeFigure .
  3. Install sensor ring, tolerance ring and spring to steering shaft. See Fig 1 .

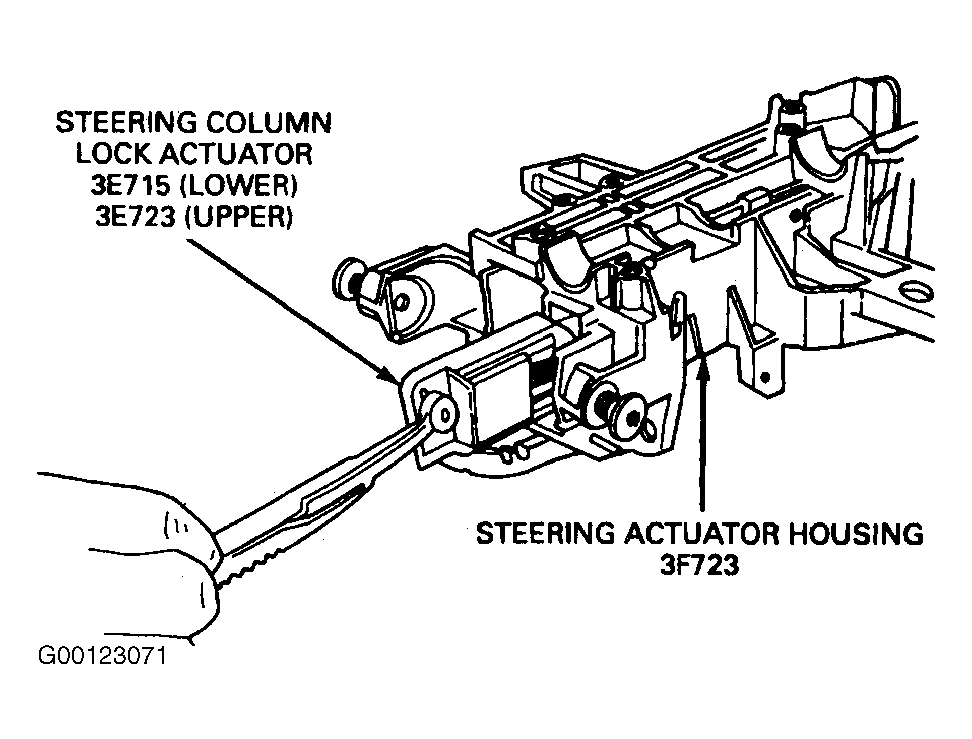

  4. Lubricate steering column lock actuators with Ignition Lock Grease F0AZ-19584-A (ESA-M1C232-A) or equivalent, prior to installation. Position steering column lock actuators in steering actuator housing. See Figure .
  5. Position steering column lock pawl in steering actuator housing and install steering lock with small hammer. Tap steering lock pawl pin in until flush with steering actuator housing. See Fig 2 .
  6. Install lock lever spring and lock lever into housing using a drift to hold in place.
  7. Install the other lever spring and lock lever with pin. Tap pin into place while driving out drift. See Fig 3 .
  8. Support steering actuator housing in a vise and drive lock lever pin flush with steering actuator housing. See Fig 4 .
  9. Place two nuts or spacers to hold steering column locking levers away from steering actuator housing. See Fig 5 .
    10. NOTE: Lube pivot bolts with Ignition Lock Grease F0AZ-19584-A (ESA-M1C232-A) or equivalent before installing.

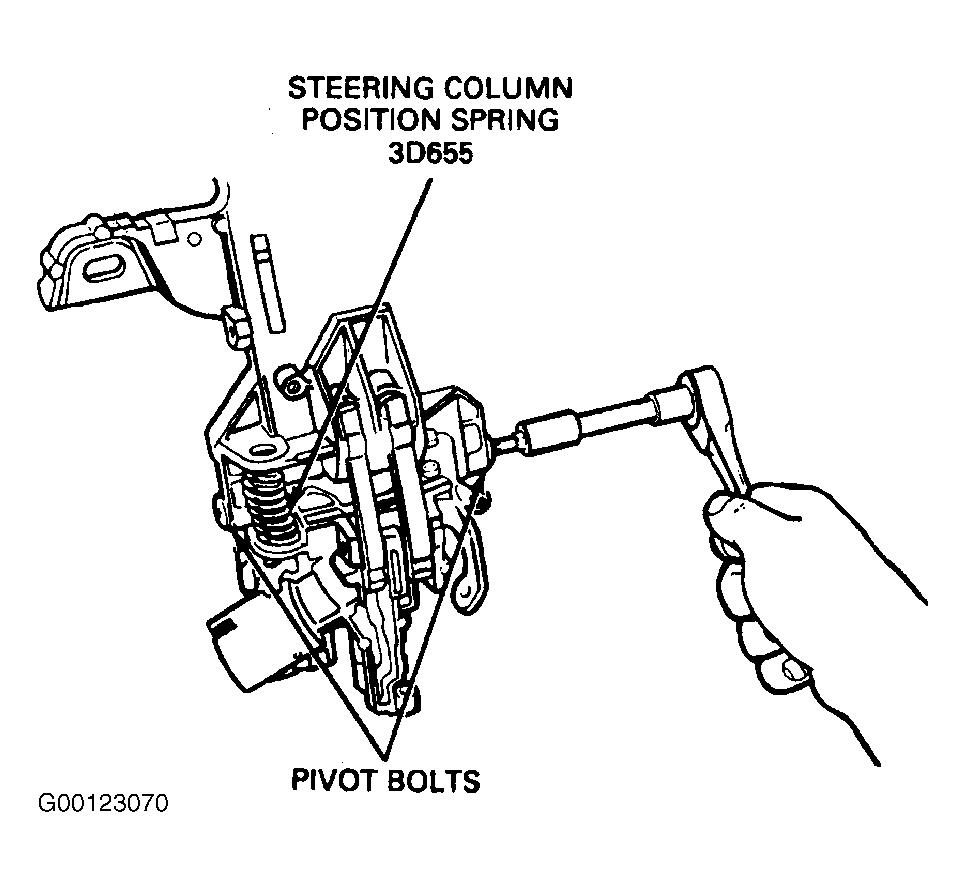

  10. Position steering column lock spring on steering column tube flange. With assistant, install steering column tube flange and pivot bolts. Tighten to specification. See TORQUE SPECIFICATIONS  . See Figure .
  11. Install tolerance ring and sleeve over steering shaft to upper bearing. See Fig 6 .
  12. Install steering column upper bearing spring and new snap ring on top side of steering column upper bearing spring using a 3/4-inch I.D. by 2-1/2 inch long PVC pipe. See Fig 7 .
  13. Install turn indicator cancel cam , flush surface "up." See Fig 8 .
  14. Install ignition switch. Align pin from ignition switch with slot in lock/column assembly. Position slot in lock/column assembly with index mark on casting. Ignition switch should be in RUN position. See Fig 9 .

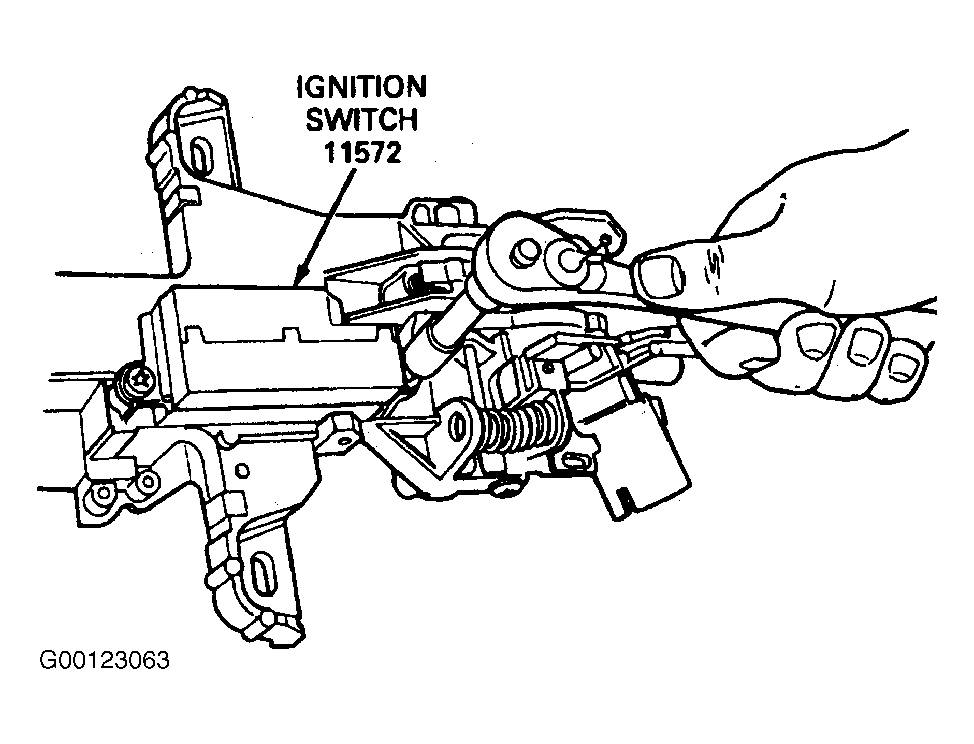

  15. Tighten to specification. See TORQUE SPECIFICATIONS  . See Figure .
  16. Install steering column lock gear. Coat gear with Ignition Lock Grease F0AZ-19584-A (ESA-M1C232-A) or equivalent. See Fig 10 .
  17. Lubricate steering column lock housing bearing. Lubricate with F0AZ-19584-A (ESA-M1C232-A) grease or equivalent. With actuator rack in 12 o'clock position, position bearing with tang inboard and in 5 o'clock position in lock cylinder. Insert tip of a screwdriver into double-D slot of bearing, then turn counterclockwise 90 degrees. See Fig 11 .
  18. Install plastic bearing retainer. See Fig 12 .
  19. Install shift control tube assembly (column shift only). See Fig 13 . Coat bushings with Steering Gear Grease C3AZ-19578-A or equivalent grease or equivalent. Tighten screws to specification. See TORQUE SPECIFICATIONS  .
  20. Install transmission shift selector position insert and brake/shift interlock solenoid assembly.
  21. Align air bag sliding contact to column shaft and mounting tabs and slide onto shaft. Push on air bag sliding contact to snap three tabs onto steering column tube flange.
  22. Install air bag sliding contact connector retainers into holes in steering column.
  23. Install air bag sliding contact retainers into holes in steering column bend bracket.
  24. Install key warning buzzer contact and anti-theft contact into ignition lock cylinder pocket in steering column tube flange. Make sure contacts do not slip out of ignition lock cylinder pocket. See Figure .
  25. Install upper steering column shroud.
  26. Push ignition switch lock cylinder into place.
  27. Install lower steering column shroud.
  28. Screw in tilt wheel handle and shank and tighten, if equipped.

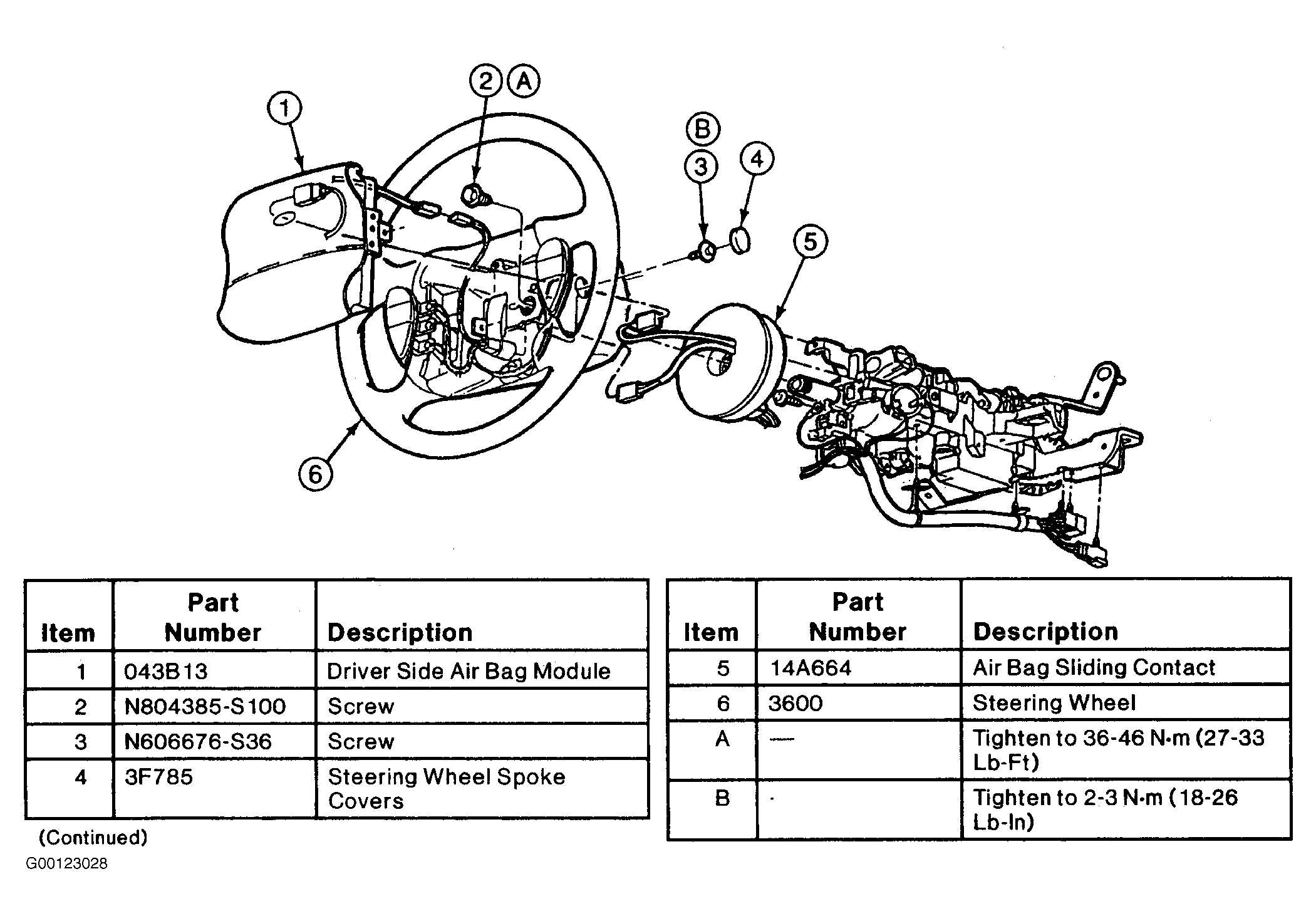

  29. Install steering column assembly.

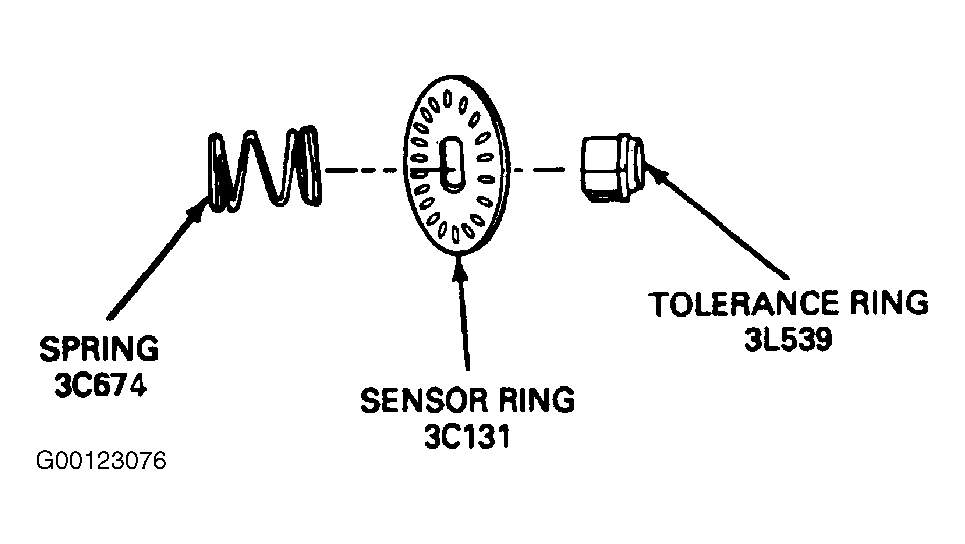

Fig 1: Installing Sensor Ring, Tolerance Ring & Spring-to-Shaft
G00123076Courtesy of FORD MOTOR CO.

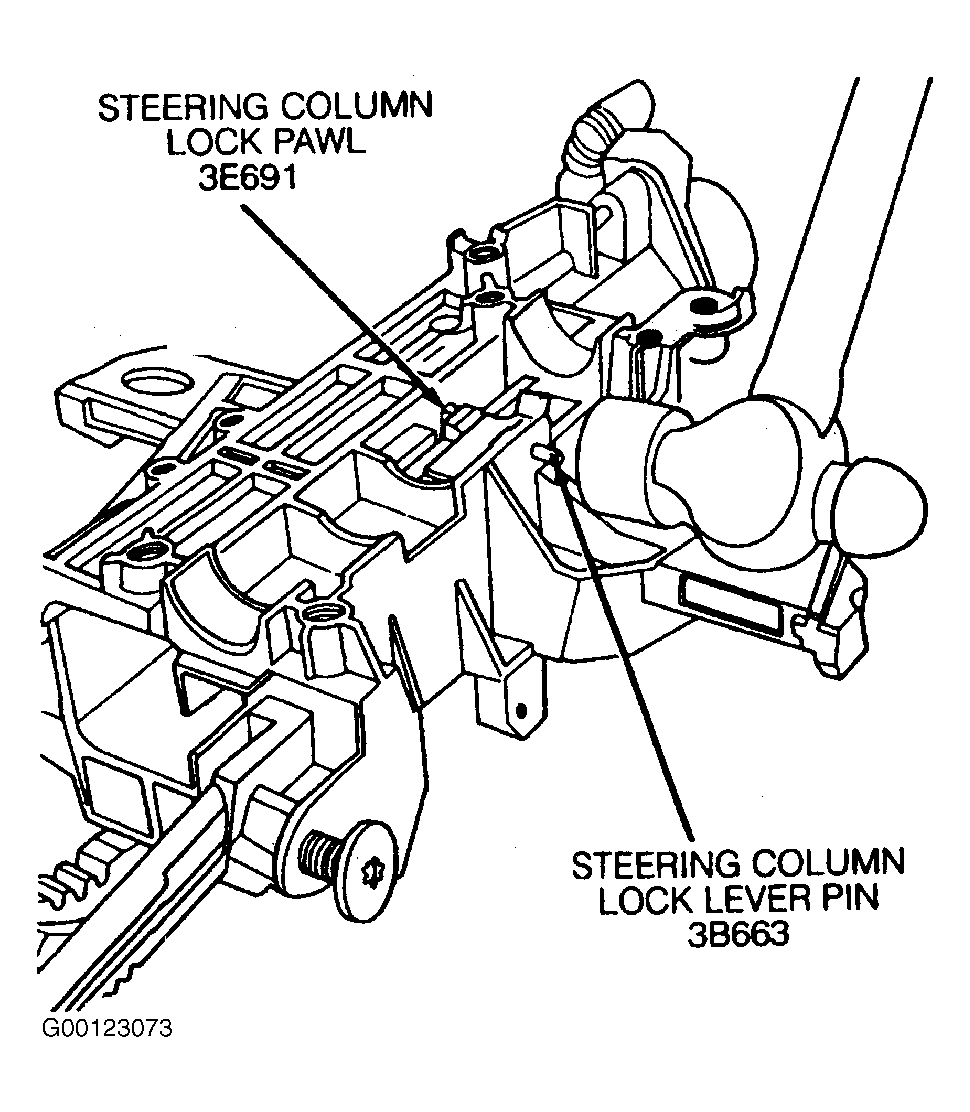

Fig 2: Installing Shift Lock Pawl
G00123073Courtesy of FORD MOTOR CO.

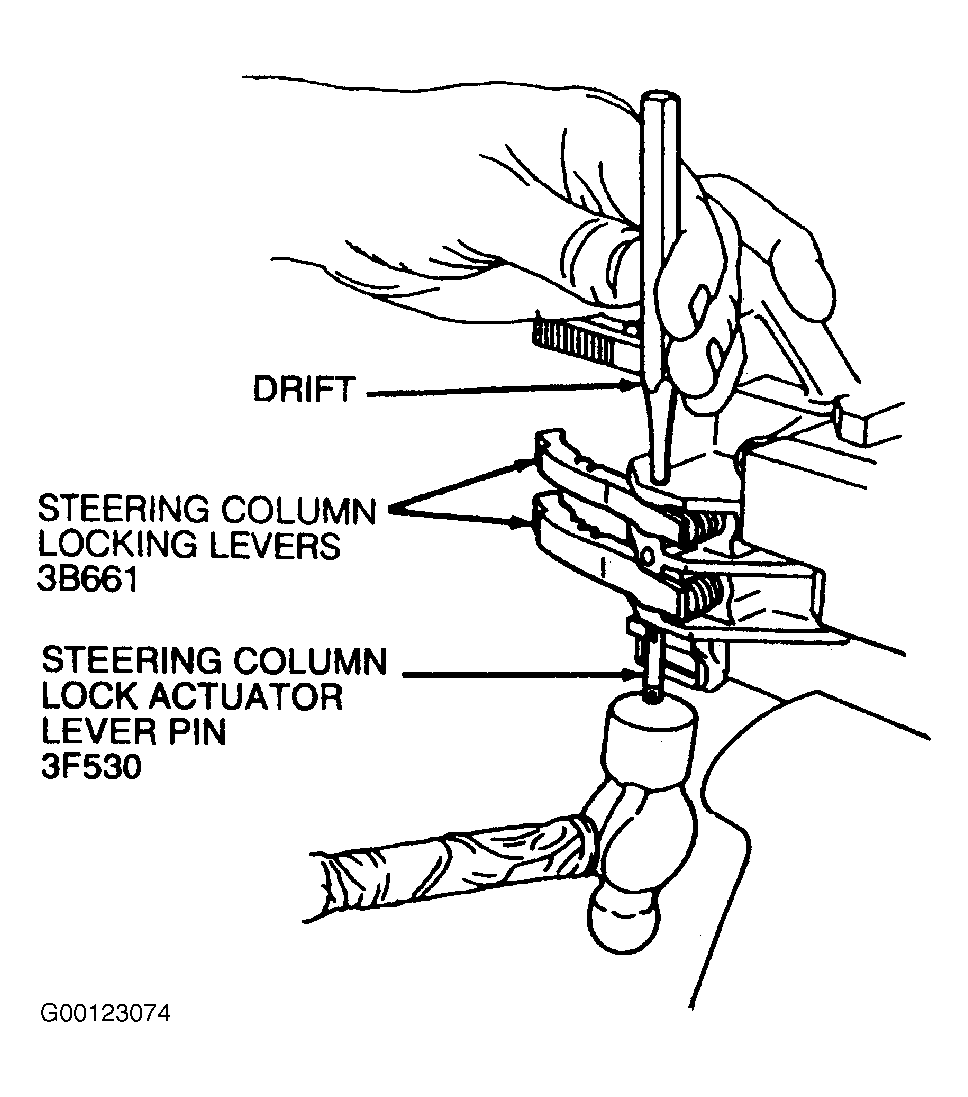

Fig 3: Installing Lock Lever Spring
G00123074Courtesy of FORD MOTOR CO.

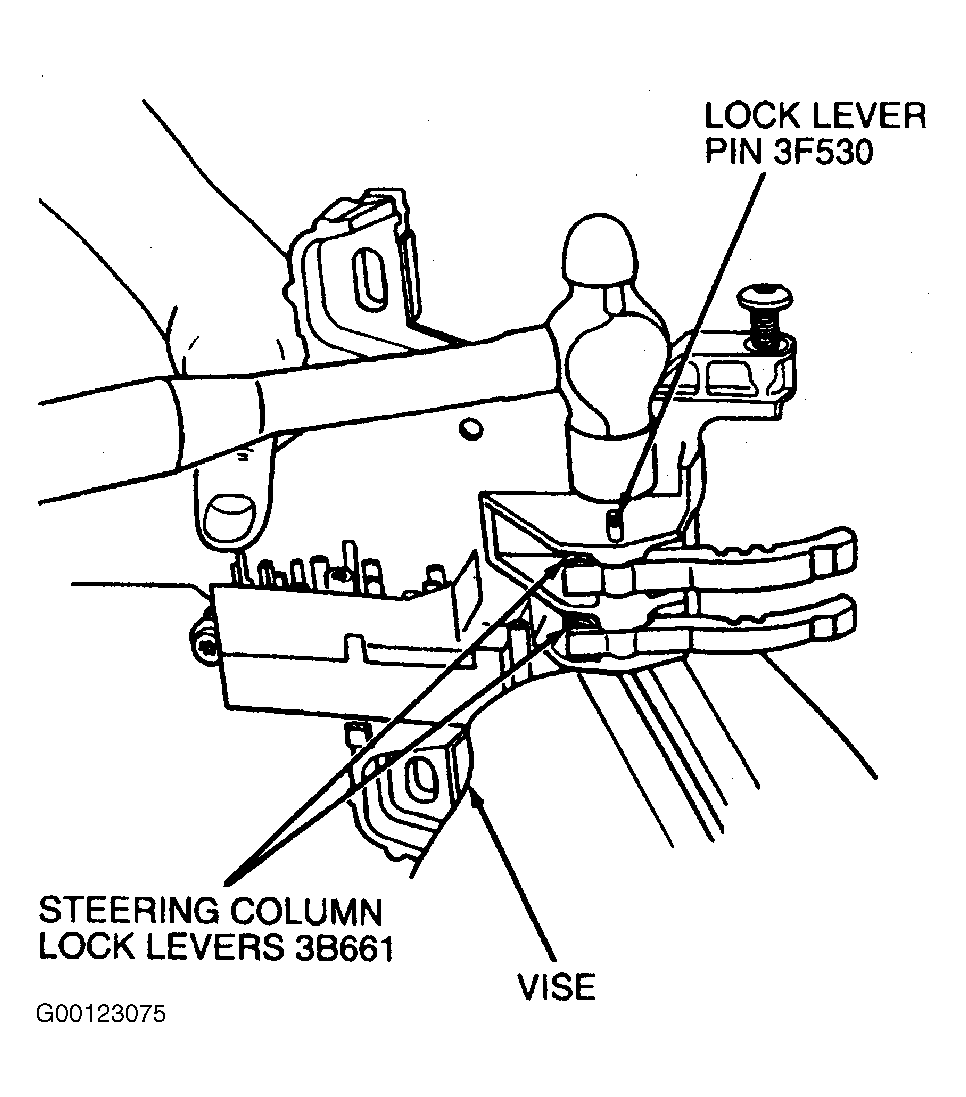

Fig 4: Driving Lock Lever Pin Flush With Steering Actuator Housing
G00123075Courtesy of FORD MOTOR CO.

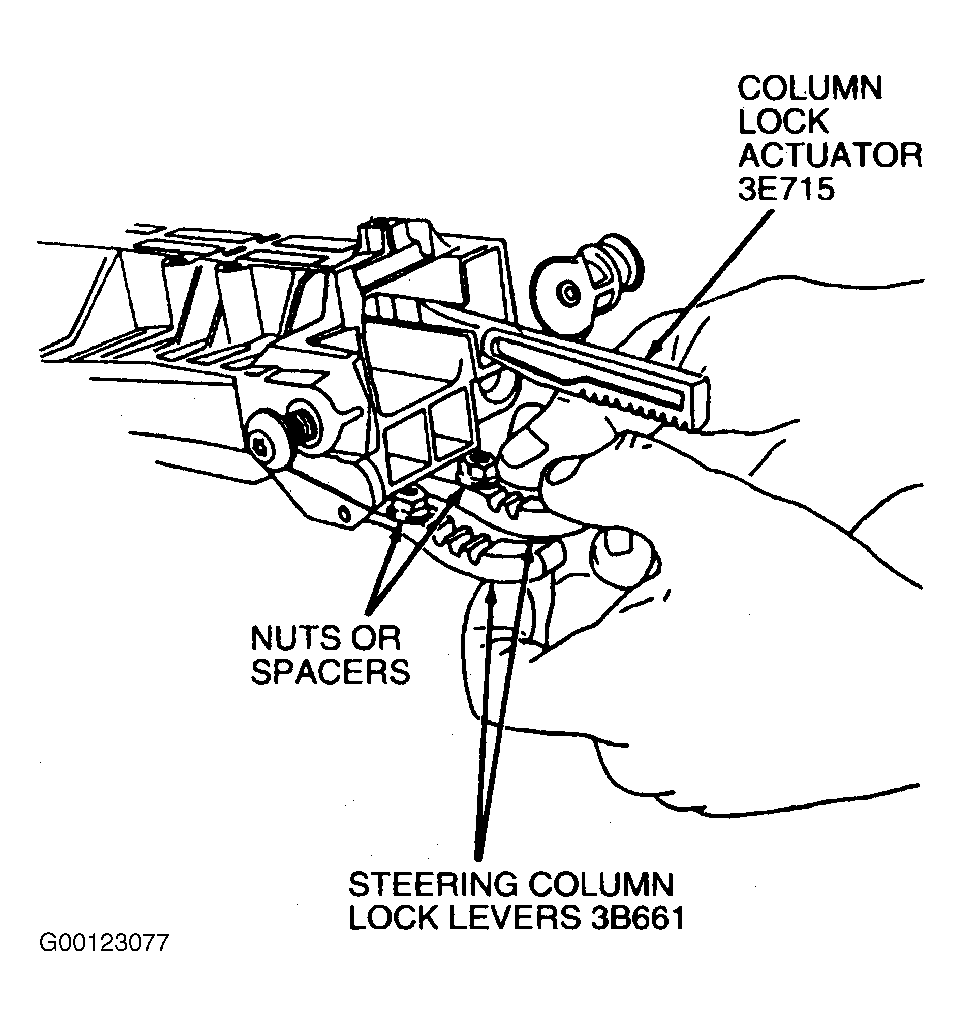

Fig 5: Inserting Spacers To Hold Steering Column Locking Levers
G00123077Courtesy of FORD MOTOR CO.

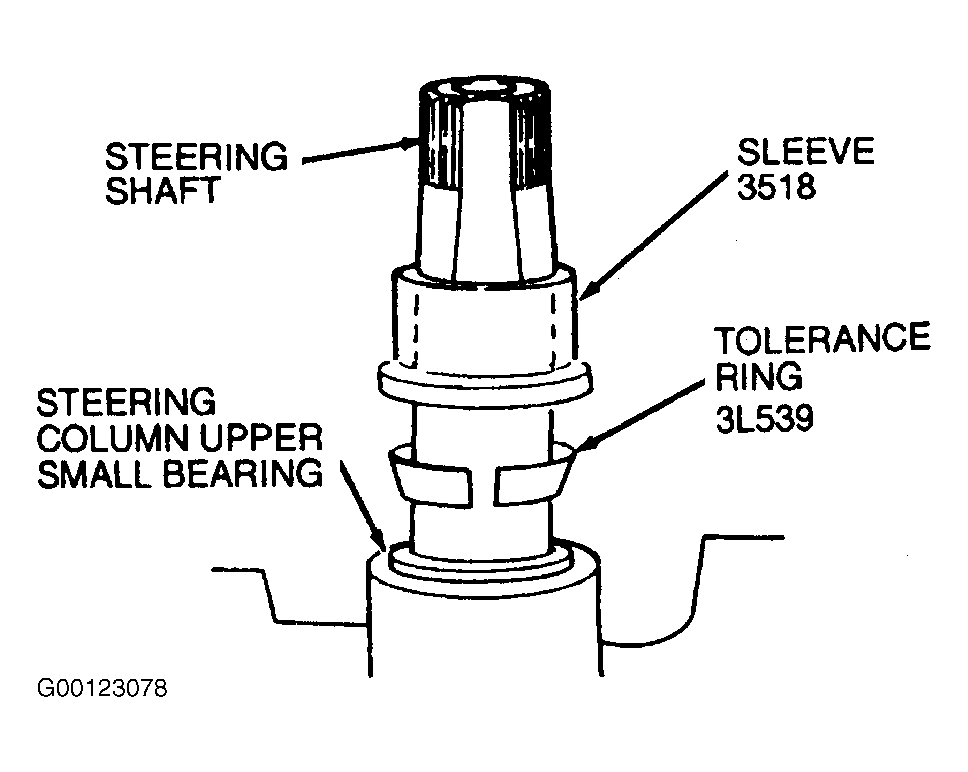

Fig 6: Installing Tolerance Ring-to-Upper Bearing Shaft
G00123078Courtesy of FORD MOTOR CO.

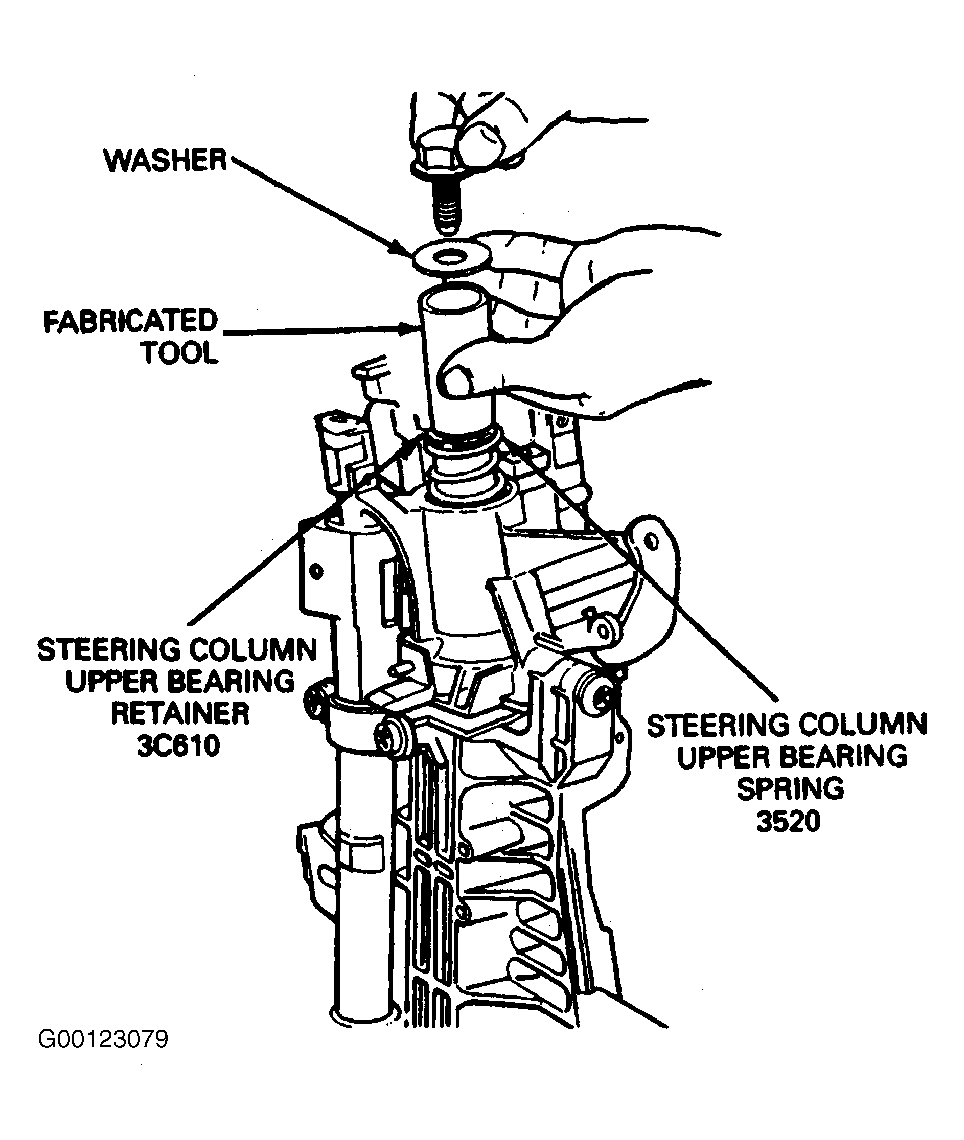

Fig 7: Installing Steering Column Upper Bearing Spring & Snap Ring
G00123079Courtesy of FORD MOTOR CO.

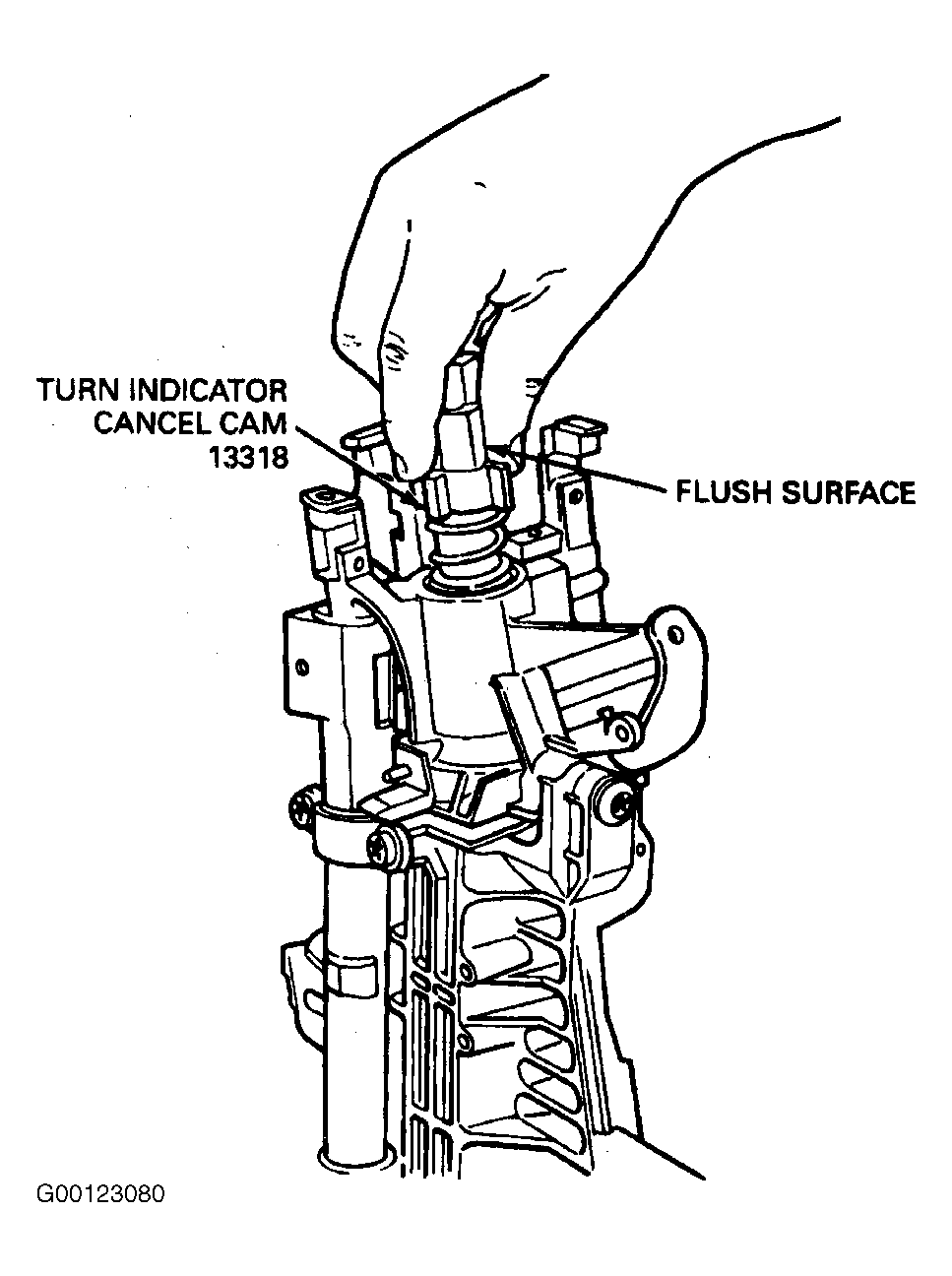

Fig 8: Installing Turn Indicator Cancel Cam
G00123080Courtesy of FORD MOTOR CO.

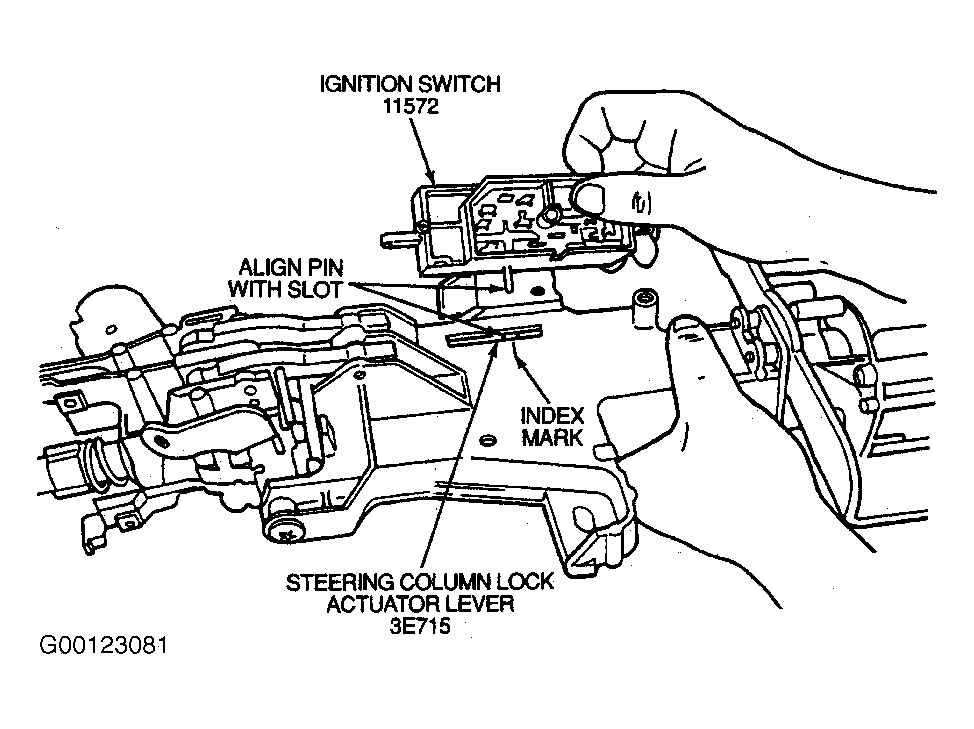

Fig 9: Installing Ignition Switch
G00123081Courtesy of FORD MOTOR CO.

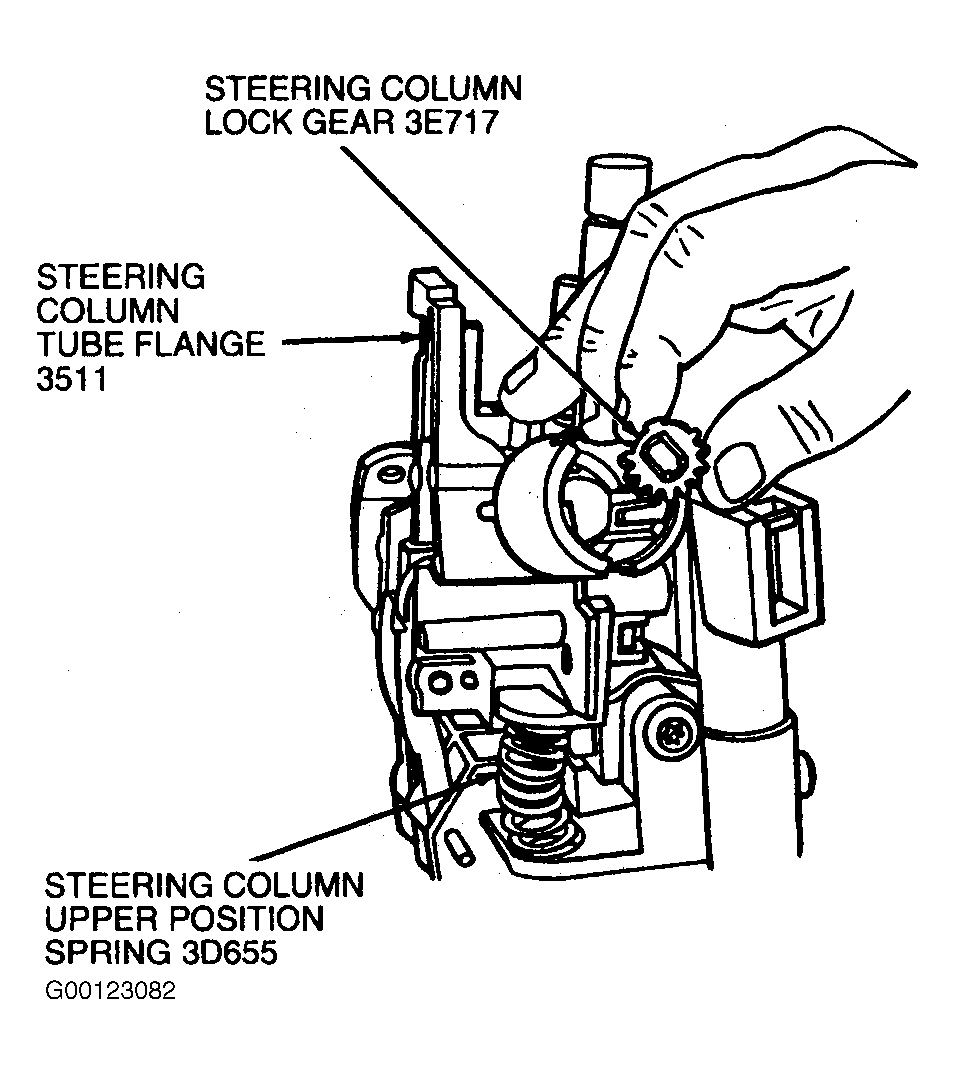

Fig 10: Installing Steering Column Lock Gear
G00123082Courtesy of FORD MOTOR CO.

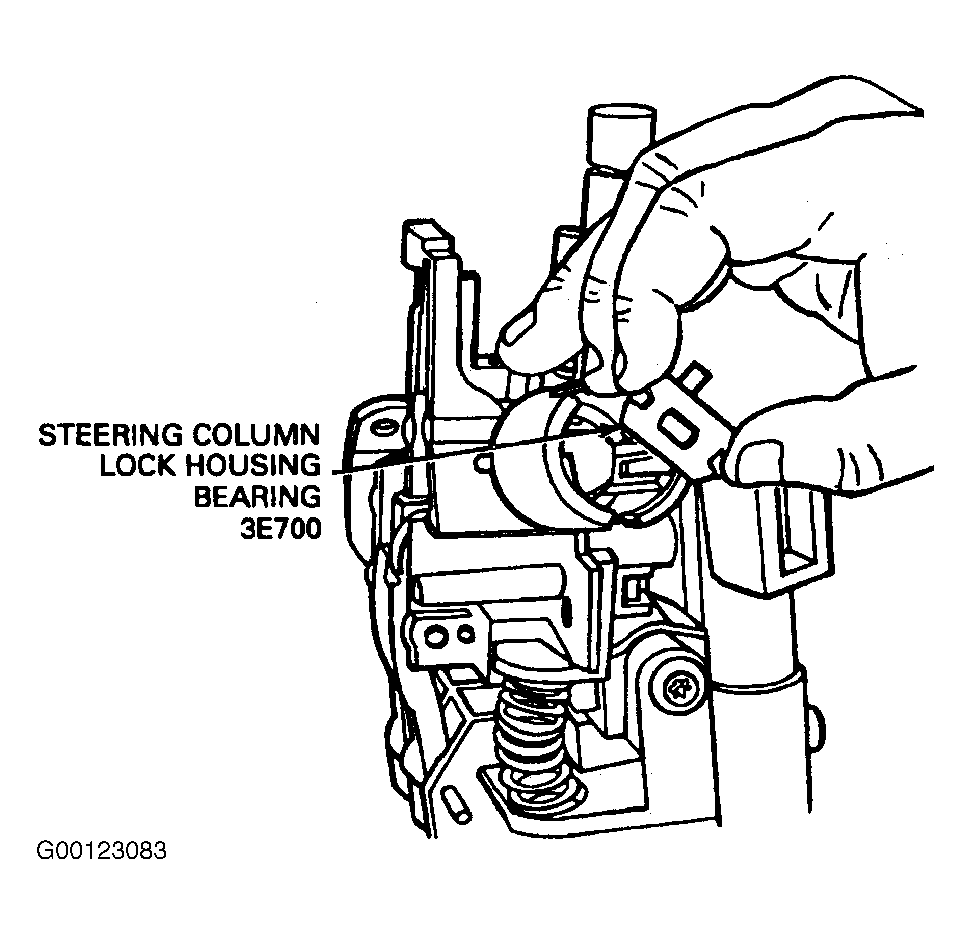

Fig 11: Installing Steering Column Lock Housing Bearing
G00123083Courtesy of FORD MOTOR CO.

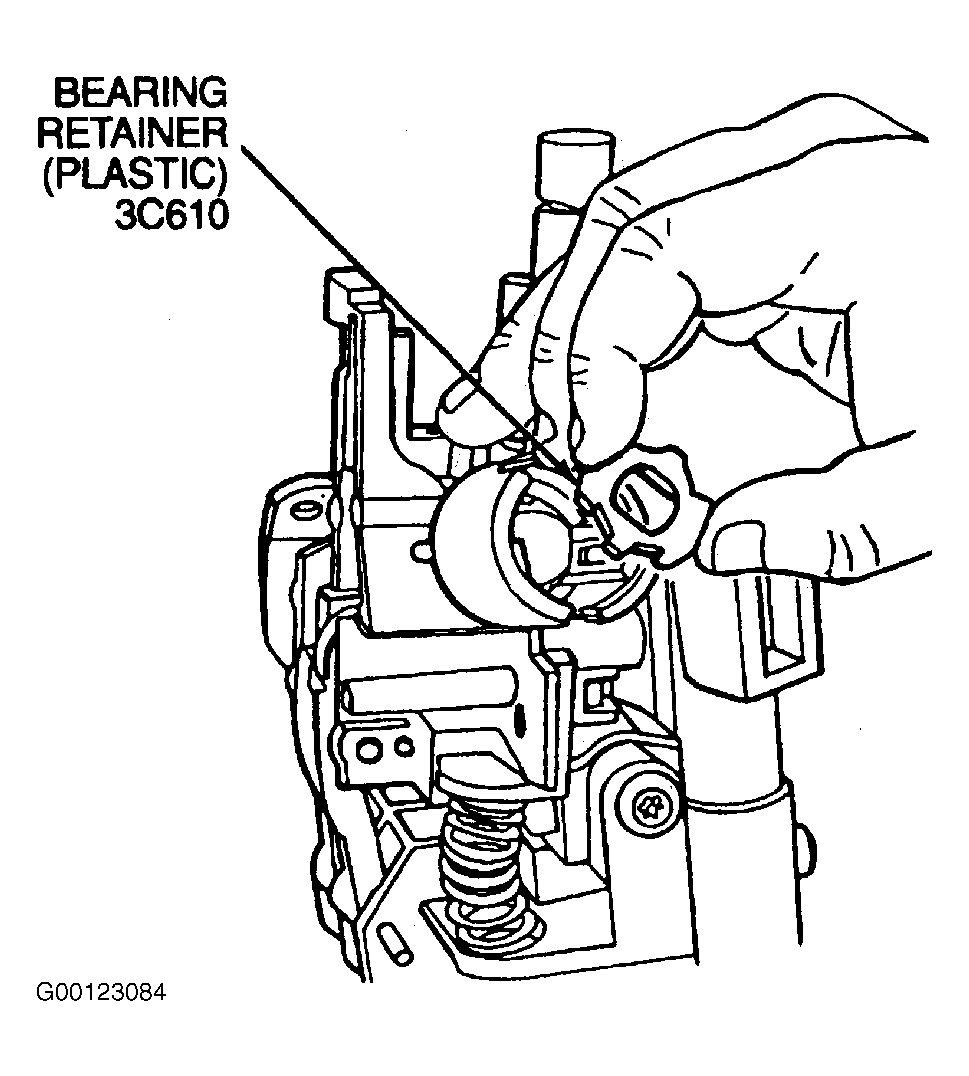

Fig 12: Installing Plastic Bearing Retainer
G00123084Courtesy of FORD MOTOR CO.

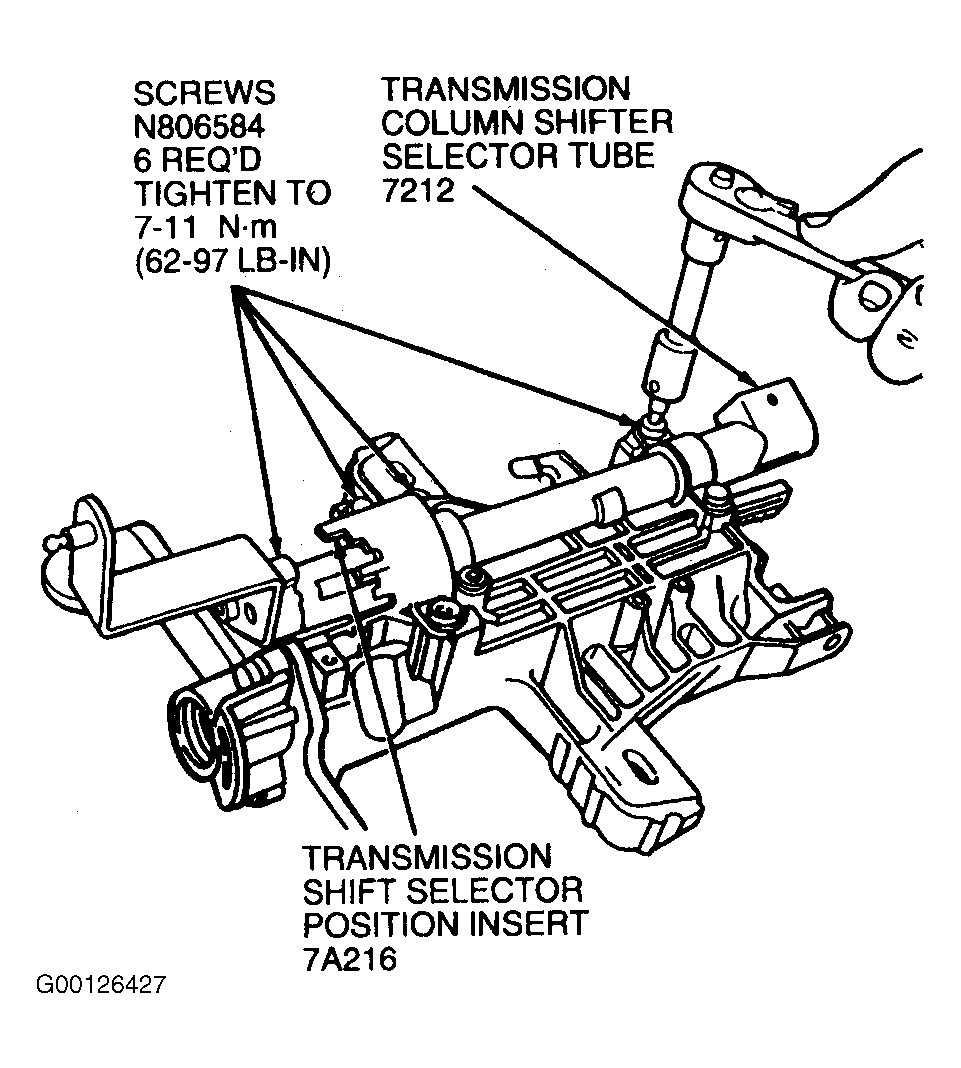

Fig 13: Installing Shift Control Tube Assembly
